SPF5-C-10 - Power strip EnerGenie - Free user manual and instructions

Product Type	Power Strip
Brand	EnerGenie
Model	SPF5-C-10
Number of Outlets	5 grounded outlets
Rated Voltage	230 V AC
Rated Current	16 A
Maximum Power	3680 W
Cable Length	1.8 m
Surge Protection	Yes (varistor)
On/Off Switch	Yes, with indicator light
Child Protection	Safety shutters on each outlet
Material	Fireproof ABS plastic
Dimensions (L x W x H)	25 x 6 x 3 cm
Weight	320 g
Protection Rating	IP20 (indoor use)
Operating Temperature	-10 °C to +40 °C
Wall Mountable	Can be wall-mounted (holes at back)
Maintenance	Unplug before cleaning; use a dry cloth
Safety Instructions	Do not connect devices exceeding maximum power; do not use outdoors
Spare Parts and Repairability	Not user repairable; contact after-sales service
Warranty	2 years

Frequently Asked Questions - SPF5-C-10 EnerGenie

What is the maximum power of the EnerGenie SPF5-C-10 power strip?

The maximum power is 3680 W (230 V / 16 A). Never exceed this limit to avoid any risk of overheating.

Does the power strip protect against power surges?

Yes, it is equipped with surge protection via a varistor. However, it does not replace a lightning arrester for severe storms.

Can I use this power strip with a travel adapter?

It is not recommended to use adapters, as they may compromise safety. Use only compatible type E/F (Schuko) sockets.

How to clean the power strip?

Always unplug the power strip before cleaning. Use a dry cloth or slightly damp cloth. Never use abrasive products or liquids.

Does the power strip have a switch?

Yes, it has an on/off switch with an indicator light showing power status.

What to do if the indicator light does not turn on?

Check that the power strip is properly plugged in and the switch is in the 'I' position. If the problem persists, the thermal fuse may have tripped (non-replaceable). In that case, stop using the device.

Can I connect multiple power strips in series?

No, it is strictly forbidden to daisy-chain power strips (in series). This can cause a dangerous overload.

Is the power strip suitable for outdoor use?

No, its IP20 protection rating makes it suitable only for indoor use in a dry location.

How to repair the power strip in case of failure?

The power strip is not user repairable. In case of malfunction, contact EnerGenie after-sales service or take it to an authorized center.

What is the cable length?

The cable is 1.8 meters long, offering placement flexibility in most rooms.

USER MANUAL SPF5-C-10 EnerGenie

Black rectangular power strip with six black buttons and a digital display showing 'PROTECTED' and 'GROUNDED' labels (no readable text beyond labels)

SPF5-C-10 SURGE PROTECTOR, 5 FRENCH SOCKETS

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

All brands and logos are registered trademarks of their respective owners

Features

• Built-in surge protection
- Designed for electrical loads up to 16 A
• High quality flame-retardant plastic case
• Built-in self-recovery thermal fuse
• Monitors correct grounding of the wall socket
• Monitors correct work of protection circuit
- Child protection shutters on each socket

Specifications

• Maximum total power load: 250 V AC, up to 16 A, (50 -60) Hz
- Maximum surge voltage 6000 V, maximum spike current 9000 A, energy 250 Joules
- Sockets: 5 X French type (German Schuko type compatible)
- Illuminated power rocker switch
• German (Schuko) plug 16 A 1.5mm2 power cord, 3 m
- Grounding indicator
• Self-diagnostic indicator
• Dimensions: 330 mm x 56 mm x 45 mm
• Temperature range: (-5...+40) °C
- Net weight: 0.6 kg

energenie

SPF5-C-10 SURGE PROTECTOR, 5 FRENCH SOCKETS

①

All brands and logos are registered trademarks of their respective owners

energenie

SPF5-C-10 SURGE PROTECTOR, 5 FRENCH SOCKETS

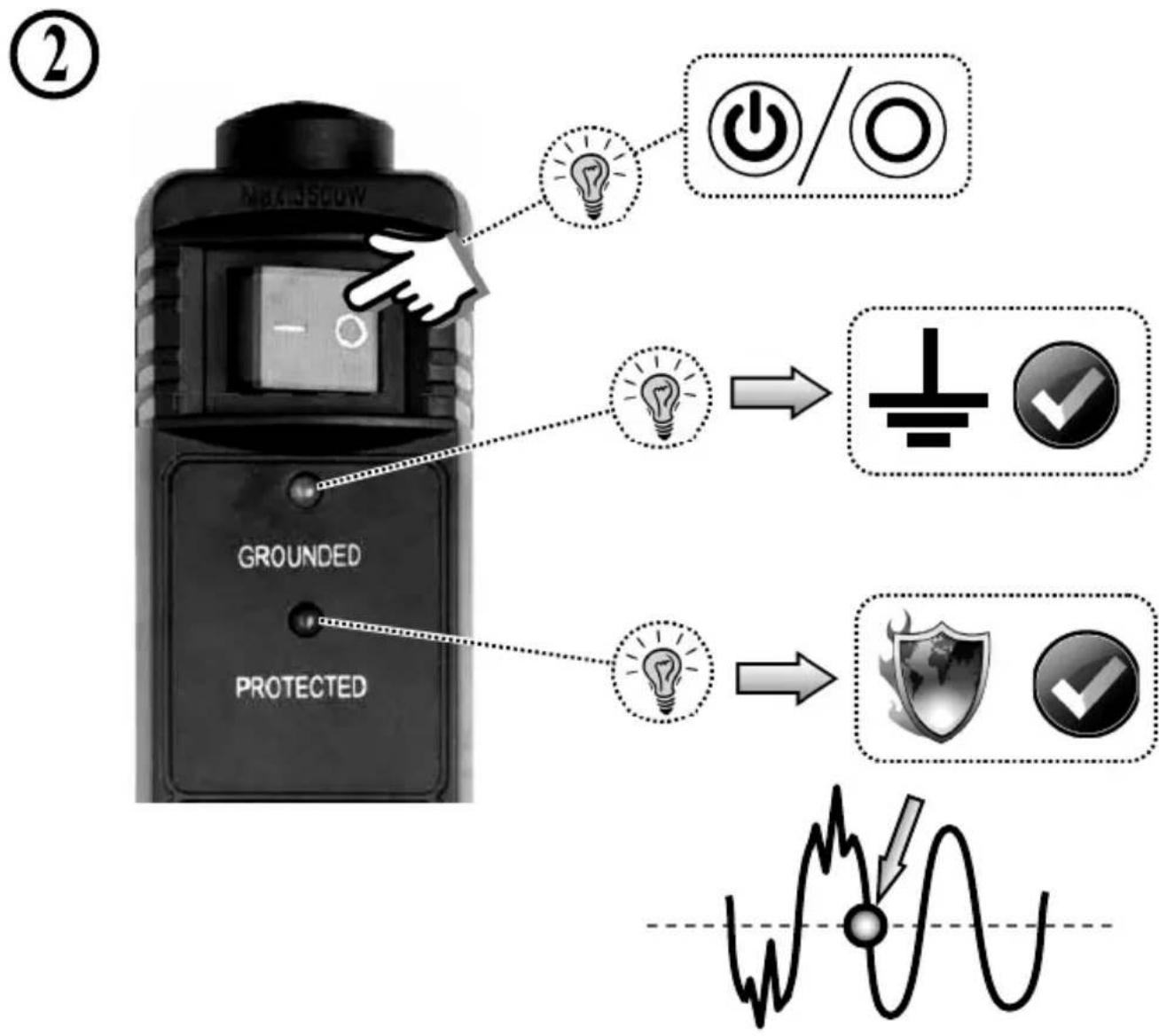


All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

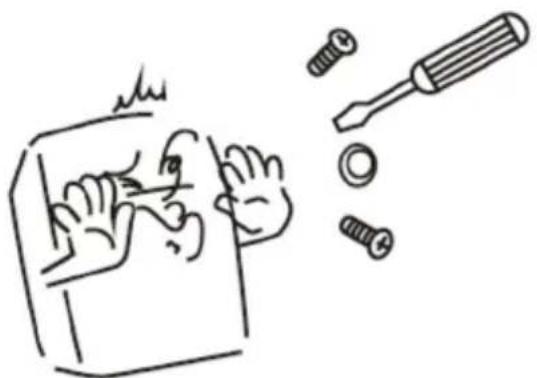

Hand-drawn sketch of a hand using a tool to clean or repair a screwdriver, with no text or symbols present.

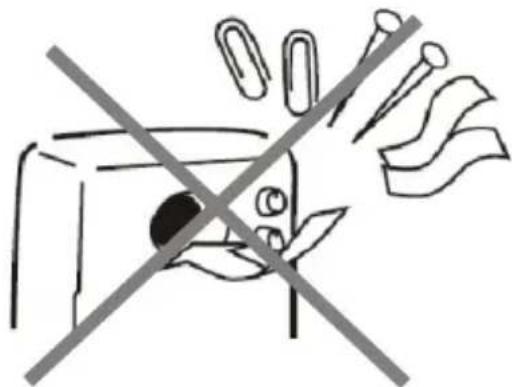

Simple line drawing of a container with a hand holding a flag and a crossed-out arrow (no text or symbols)

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners

GARANTIE VOORWAARDEN	CONDITIONS DE GARANTIE
Op de aankoopbon moeten de aankoopdatum en productomschrijving duidelijk vermeld staan. Gelieve de aankoopbon de gehele garantieperiode te bewaren, deze is ten alle tijden benodigd voor alle garantie aanspraken. Tijdens de garantieperiode zullen alle gebreken verholpen of vervangen worden door de fabrikant d.m.v. reparatie, omruiling van het defecte onderdeel of het gehele apparaat. Aanspraken tijdens de garantieperiode leiden niet tot verlenging hiervan. Garantieaanspraak vervalt bij schade of gebreken die ontstaan zijn door oneigenlijk gebruik, misbruik of invloeden van buitenaf (vallen, stoten, water, stof, vuil of breken). Slijtagegevoelige onderdelen (b.v. batterijen) zijn uitgesloten van garantie. Bij ontvangst van de RMA goederen behoudt Gembird zich het recht om te kiezen tussen vervanging van de defecte waren of het uitgeven van een kreditnota. Het bedrag van de kreditnota zal altijd gecalculeerd zijn op basis van de huidige marktprijs voor het defecte produkt.	Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil.Conservez le reçu d'achat pendant toute la durée de la garantie car elle est nécessaire pour toute réclamation.Au cours de la période de garantie tous les défauts doivent être remplacé aux frais du fabricant, soit par la réparation ou la remplacement de la pièce défectueuse ou l'ensemble du produit.Les travaux effectués sous garantie ne prolongent pas la période de garantie ni ne commencent pas une nouvelle période de garantie.Le fabricant se réserve le droit d'annuler toute demande de garantie pour les dommages ou défauts dus à une mauvaise utilisation, abus ou les effets externes (chute, choc, pénétration de l'eau, la poussière, etc..).Les pièces d'usure (par exemple les piles rechargeables) sont exclus de la garantie.Dès réception de la marchandise sous garantie, le SAV de Gembird Europe BV se réserve le droit de choisir entre le remplacement des produits défectueux ou de délivrer un avoir.Le montant d'avoir sera toujours calculée sur la base de la valeur actuelle du marché des produits défectueux.
Gembird Europe B.V.Wittevrouwen 56, 1358CD Almere, The Netherlands www.gembird.nl/service [e-mail]: 0900-GEMBIRD(€ 0,25 p/m binnen Nederland, exclusief mobiele telefoonkosten)	Gembird Europe B.V.Wittevrouwen 561358CD Almere, The Netherlands www.gembird.nl/support [e-mail][phone]Prix d'appel depuis telephone fixe Pays-Bas : 0.15 euro / minPrix d'appel depuis telephone mobile / autre pays - selon operateur

ГАРАНТИЙНЫЙ ТАЛОН
