USER MANUAL SJ-BB10IMXW2-EU SHARP

Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge freezer for the first time. It contains important safety information on the installation, safety, use and maintenance of your Fridge Freezer. Retain this manual for future use.

FIRE

Warning; Risk of fire / flammable materials

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge clear from obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside the Fridge.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: To avoid personal injury or damage this appliance must be installed in accordance with the manufacturer instructions.

The small quantity of refrigerant used in this fridge is eco-friendly R600a (an isobutene) and is flammable and osive if ignited in enclosed conditions.

* While carrying and positioning the fridge, do not damage the cooler gas circuit.
* Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the fridge.
* This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments which can be equated with ordinary household

- farm houses and by clients in hotels, motels and other residential type environments which can be equated with ordinary household

- bed and breakfast type environments which can be equated with ordinary household

- catering and similar non-retail applications which can be

equated with ordinary household

* Your fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician)

* This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

* Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

* A damaged power cord /plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

* This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

* Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
* Clean regularly surfaces that can come in contact with food and accessible drainage systems.
* Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
* Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
* One-, two- and three-star compartments are not suitable for the freezing of fresh food.
* If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

CHAPTER -1: SAFETY INSTRUCTIONS

Disposal

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.
• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

For Denmark products:

The appliance is equipped with a plug approved in the EU (EU-Schuko Plug) and can be used in Finland, Norway and Sweden. In Denmark, the appliance is only approved for use with a wall outlet type E or type CEE7 // 7-S with a ground leg. If there is only wall outlet type K at the connection point, Replacing EU-Schuko plug with the Danish plug must be performed by only an authorized service personnel. Alternatively, connect a suitable and approved power adapter to transition between Schuko plug and Danish earth system. This adapter (min. 10 amps and up to max. 13 amps) can be ordered via at well assorted whitegoods dealer or authorized electrician. Only with one of these methods it can be ensured that the appliance is the correct safety ground. In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from.

Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
• A damaged power cord / plug can cause fire or give you and electric shock. When damaged it must be replaced, this should only be dine by qualified personnel.

- Never bend the power cord excessively.

- Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.

- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

- When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

- Do not remove items from the freezer if your hands are damp or wet. Tis could cause skin abrasions or frost / freezer burns.

- Do not refreeze food once it has thawed out.

- Do not use plug adapter.

Installation Information

Before unpacking and manoeuvring your fridge freezer please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Do not expose your fridge freezer to moisture or rain.
• Your fridge freezer should be positioned at least 20mm away from another freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

- For safe operation it is important that your fridge freezer is safe and balanced. The adjustable feet are used to level your fridge freezer. Make sure that your appliance is level before placing any foodstuffs inside it.

- We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.

• Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Diagram of two coiled heat exchangers with arrows indicating flow direction (no text or labels)

CHAPTER -1: SAFETY INSTRUCTIONS

Before Using your Fridge

• Before setting up your fridge freezer, check for any visible damage. Do not install or use your fridge freezer if it is damaged
• When using your fridge freezer for the first time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efficient operation and prevents damage to the compressor.
• You may notice a light odour when using your fridge freezer for the first time. This is perfectly normal and will fade away as the fridge starts to cool.

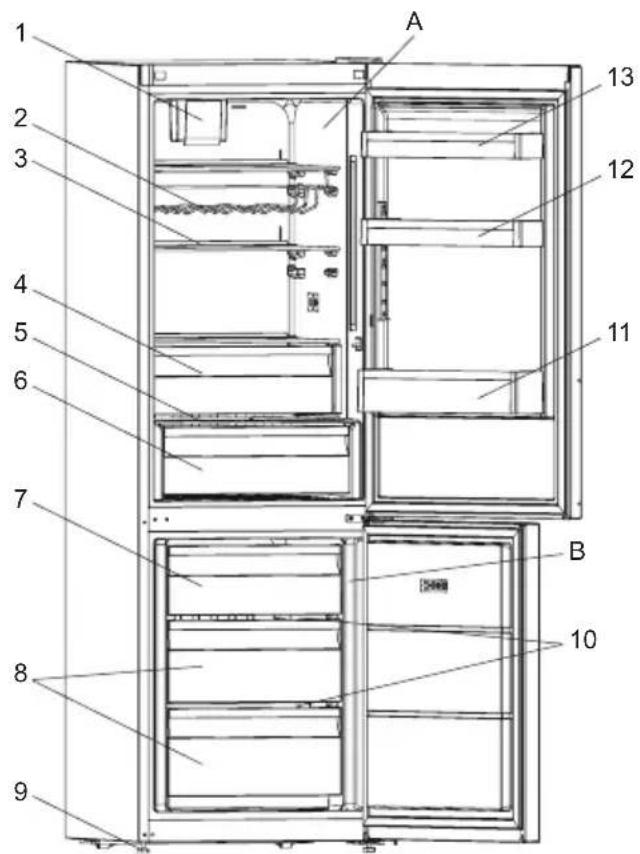

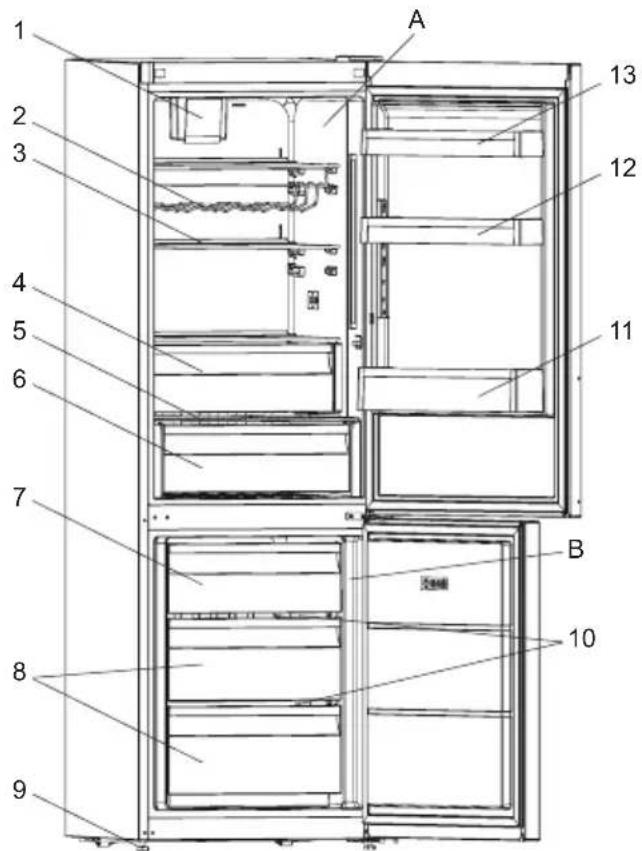

CHAPTER -2: YOUR FRIDGE FREEZER

A 13 12 11 B 10 7 8 9 4 5 6 3 2 1

14 15

Three labeled diagrams of laboratory test tubes: a grid, a tray with internal structures, and a funnel (no text or symbols)

This figure has been drawn for information purposes to show the various parts and accessories in the appliance. Parts may vary according to the model of the appliance.

A) Fridge compartment
B) Freezer compartment

1) Turbo fan *
2) Wine rack *
3) Fridge compartment shelves
4) Chiller *
5) Crisper cover
6) Crisper
7) Freezer upper drawer / upper flap
8) Freezer drawers
9) Levelling feet

10) Freezer glass shelves *
11) Bottle shelf
12) Adjustable door shelf (Adapti-Lift)* / Door shelf
13) Door upper shelves

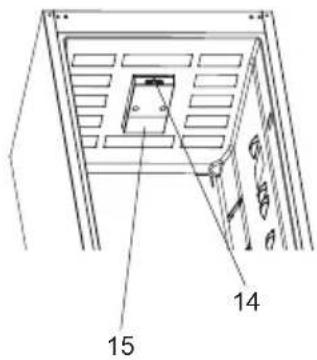

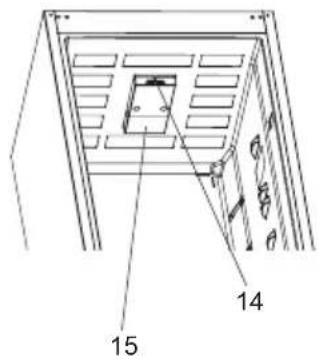

14) Thermostat knob
15) Refrigerator lamp and cover
16) Egg holder
17) Ice box tray
18) Ice scraper *

* In some models

CHAPTER -3: USING YOUR FRIDGE FREEZER

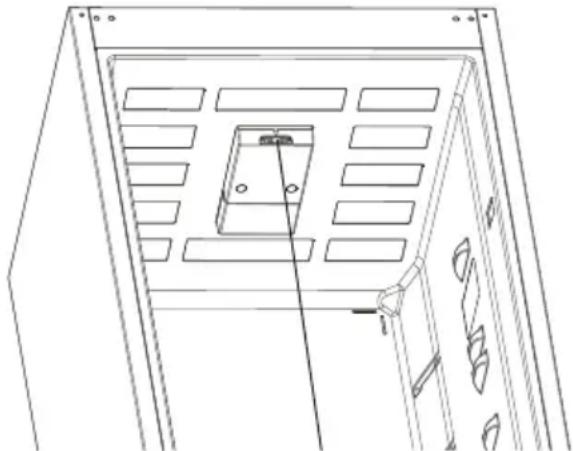

Thermostat setting

The thermostat automatically regulates the temperature inside the fridge and freezer compartments. To change the temperature the knob can be rotated from position 1 to 5 (5 being the coldest).

Technical line drawing of a cabinet or enclosure with internal compartments and doorways (no text or symbols)

Thermostat knob

• For short-term storage of food in the freezer compartment, you can set the knob between 1 and 3 position.
• For long-term storage of food in the freezer compartment, you can set the knop to the 3-4 position.

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

Warnings for temperature settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

• It is not recommended that you operate your fridge in environments colder than 10^ .

• The thermostat setting should be set by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator and the environment in which and the positioning of the appliance.

• We recommend that when first using the fridge freezer it should be left running for 24 hours uninterrupted to ensure it is completely cooled. Do not open the fridge doors, or put food inside for this period.
• Your fridge freezer has a 5 minute built in delay function, designed to prevent damage to the compressor. When power is applied to your fridge freezer, it will begin to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.

- This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climate Class Ambient Temperature		°C
T Between	16 and 43 (°C)
ST Between	16 and 38 (°C)
N Between	16 and 32 (°C)
SN Between	10 and 32 (°C)

Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.

To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly

It may be difficult to see the indicator, make sure it is properly lit. Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively a least 12 hours before starting a new check and potential change.

NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

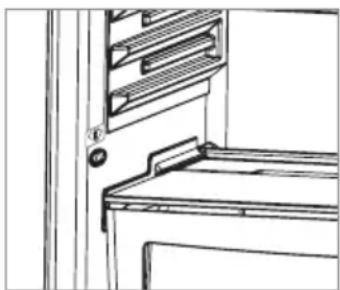

Store food in the coldest area of the refrigerator.

Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.

The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.

The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.

As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.

Technical line drawing of a cabinet or rack structure with no visible text or symbols

CHAPTER -3: USING YOUR FRIDGE FREEZER

Accessories

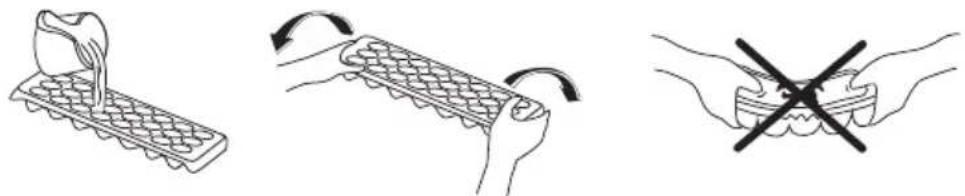

Ice tray

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a robotic manipulation: tool, grid rotation, and no-hand rule (no text or symbols)

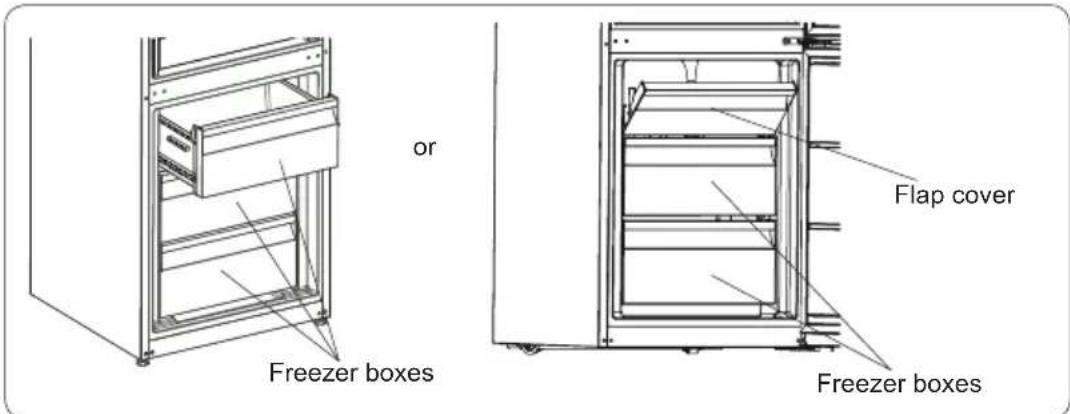

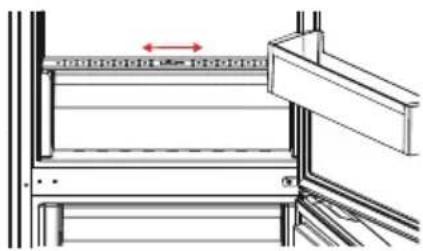

Freezer box

• The freezer box is for foods that need to be accessed more easily.
• Removing The freezer box;
  • Pull the box out as far as possible
• Pull the front of box up and out.
  ! Make the inverse of the same operation for the resetting the sliding compartment.

Note: Always hold the handle of box while moving in or out.

or Freezer boxes Flap cover Freezer boxes

Chiller shelf (In some models)

Keeping food in the chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer while preserving its fresh appearance. If the chiller tray becomes dirty, remove it and wash with water. (Water freezes at 0 °C, but foods containing salt or sugar require lowered temperatures to freeze)

Normally people use the chiller compartment for raw fish, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

Removing the chiller shelf

• Pull the chiller shelf out toward you by sliding it on rails.
• Pull the chiller shelf up from the rail to remove.

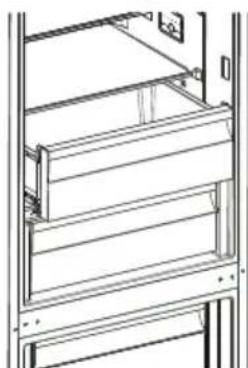

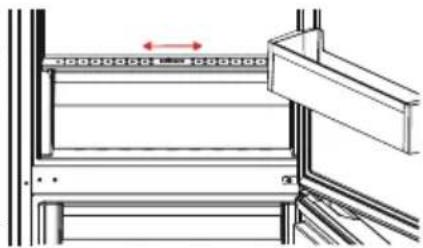

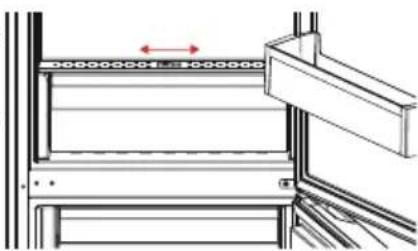

Humidity Controller

When the humidity controller is in the closed position, it allows fresh fruit and vegetables to be stored for a longer time.

In the event the crisper is full, the fresh dial that is located in front of the crisper, should be opened. By means of this, the air in the crisper and humidity rate will be controlled and the shelf life will be extended.

If you see any condensation on the glass shelf, the humidity control should be placed into the open positions.

Technical line drawing of a mechanical cabinet or rack structure (no text or symbols)

Technical line drawing of a door frame with a horizontal bar and bracket, showing no text or symbols

CHAPTER -3: USING YOUR FRIDGE FREEZER

Adapti-Lift Door Shelf (In some models)

Technical line drawing of a structural joint or bracket (no text or symbols)

Six different height adjustments can be made to provide storage areas that you need by Adapti-Lift.

To change the position of Adapti-Lift ;

Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1)

Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed

Technical line drawing of a structural frame with vertical dimension lines (no text or symbols)

Fig.2
Fig.1

Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails.

Visual and text descriptions on the accessories section may vary according which model you have..

Cleaning

• Before cleaning your fridge freezer, turn your mains supply off and remove the plug from the socket.
- Do not wash your fridge freezer by pouring water on to it.
- Use a warm, soapy cloth or sponge to wipe the interior and exterior of your fridge freezer.
- Carefully remove all shelves and drawers by sliding upwards or outwards and clean with soapy water. Do not wash in a washing machine or dishwasher.
- Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your fridge freezer. This may cause damage to the plastic surfaces and other components with the chemicals they contain.
- Clean the condenser at the back of your fridge freezer at least once a year with a soft brush or vacuum cleaner.

Make sure that your fridge is unplugged while cleaning.

Defrosting

Refrigerator compartment;

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

• Defrosting occurs automatically in the refrigerator compartment during operation; water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator.

Freezer compartment;

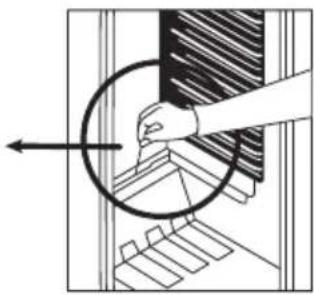

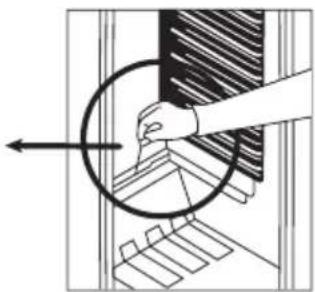

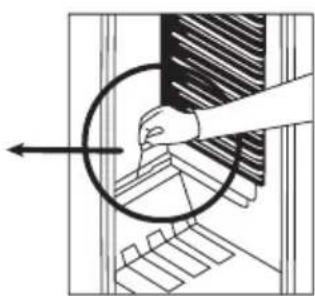

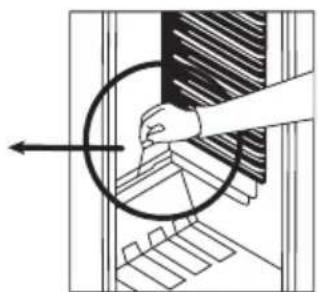

• The frost, which covers the shelves of the freezer compartment, should be removed periodically.
• Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit. Use the plastic scraper provided.
• When there is more than 5 mm of frost on the shelves, defrosting must be done.
• Before defrosting operation, place the frozen food in a cool place after wrapping them in sheets of newspaper in order to obtain its temperature steady for long time.
• To accelerate the defrosting process place one or more basins of warm water in the freezer compartment.

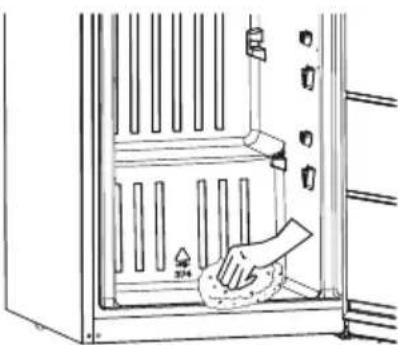

• Dry the inside of the compartment with a sponge or a clean cloth.
• Once the unit has been defrosted, place the food into freezer and remember to consume them in a short period of time.

Line drawing of a hand cleaning a server rack with a circular tool on the door (no text or symbols)

CHAPTER -3: USING YOUR FRIDGE FREEZER

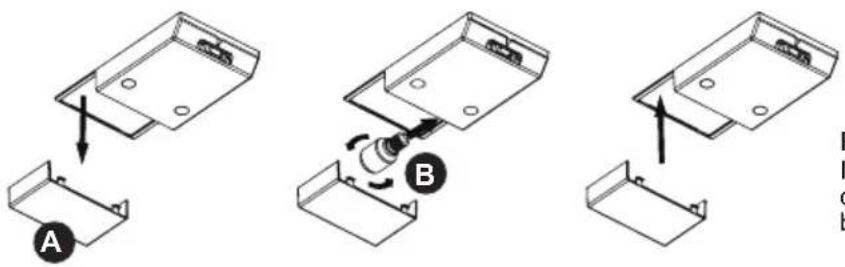

Replacing the light bulb

To replace the bulb fridge compartment;

1. Unplug your fridge.
2. Remove the refrigerator light cover (A) by pressing the hooks placed both sides of the cover.
3. Replace with a bulb of maximum 15 Watts. (B)
4. Install the cover.
5. Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Technical diagram showing three steps of a mechanical assembly with labeled components A, B, and C.

Replacing LED Lighting

If your fridge freezer has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.

CHAPTER -4: FOOD STORAGE GUIDANCE

Refrigerator compartment

• To reduce frost build up never place liquids with unsealed containers in the fridge compartment.
- Allow warn or hot food to cool down before storing. This helps reduce power consumption.
• To avoid frost buildup ensure that nothing is stored touching the back wall.
- The coldest area of the refrigerator is at the bottom. We recommend to use this area to store food that will perish easily, such as fish, ready meals, baked goods or dairy products. The warmest area is the top shelf of the door. We recommend you store butter or cheese here.

Freezer compartment

• Use the freezer to store frozen foods for long periods of time and make ice cubes.
• To freeze fresh food - ensure that as much of the surface of food to be frozen is in contact with the cooling surface.
• Do not put fresh food on either side of frozen food as it can thaw it.
• While freezing fresh foods(i.e meat,fish and mincemeat),divide into portion sizes.
• Once the unit has been defrosted replace the foods into freezer and remember to consume them in a short period of time.
• Never place warm food in the freezer compartment.
• The instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be stored in the freezer as soon as possible.
• If a package of frozen food shows signs of humidity and abnormal swelling it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

That; If you decide to open the freezer door again immediately after closing, it may be difficult to re-open. This is normal and after the freezer has reached an equilibrium condition the door will open easily.

Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed, they must NEVER be re-frozen.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, only add a small amount of spice if planning to freeze, or the desired spice should be added after the food has been thawed.
• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

CHAPTER -5: DOOR REVERSAL

Repositioning the door

• It depends on which fridge freezer you have as to whether it is possible the reverse the doors.
• It is not possible where handles are attached at the front of the appliance.
• If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call Sharp service.

CHAPTER -6: TROUBLESHOOTING

If your fridge freezer is not operating as expected, there may be a simple solution.

If your refrigerator is not working.

Check that ;

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator into a known working socket.

If the different compartments of the fridge do not get cold enough: Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly
  • There is no dust on the condenser,
• There is enough space at the rear and side walls.

Your fridge freezer is too noisy.

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

The appliance is well levelled,

- Nothing is touching the rear.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged insert a space please (Use defrost drain plug to clean the drain hole)

Recommendations

• In instances of a power cut unplug the appliance. This prevents damage to the compressor. You should delay plugging in 5 – 10 minutes after you regain power supply. This will avoid damage to components.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or ice may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the ice is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• If the problem persists after you have followed all the instructions above, please consult an authorised service provider.

CHAPTER -7: TIPS FOR SAVING ENERGY

1. Always allow foodstuffs to cool before storing in the appliance.
2. Thaw food in the fridge compartment, this helps save energy.
3. Energy consumption is declared with maximum load and using only bottom freezer drawer and bottom glass shelf.

Inhalt

Simple line drawing of a calculator and a funnel (no text or symbols)

17

18

Technical line drawing of a door frame with internal compartments and a central lock (no text or symbols)

Thermostat

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Line drawing of a container being inserted into a rack with a handle (no text or symbols)

Illustration of hands holding a woven mat with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol crossed out (no text or labels)

Technical line drawing of a cabinet or rack structure with no visible text or symbols

30000000 - 4000000

Technical line drawing of a structural joint or bracket (no text or symbols)

vorgenommen werden.

Technical line drawing of a structural frame with vertical and horizontal arrows indicating direction (no text or symbols)

Abb.2
Abb.1

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Kühlteil;

Line drawing of a hand cleaning a server rack with a circular tool (no text or symbols)

Technical diagram showing three steps of a mechanical assembly with labeled components A, B, and C.

Two diagrams showing a container with an arrow and a circular arrow inside, placed on parallel corrugated surfaces (no text or symbols)

PARTIE -1: AVERTISSEMENTS GÉNÉRAUX

Three labeled diagrams of electronic components: a tray, a grid device, and a funnel (no text or symbols present)

Technical line drawing of a cabinet or enclosure with internal compartments and structural elements (no text or symbols)

Line drawing of a refrigerator interior with no text or symbols

Illustration showing three steps of a dental tool: opening a tooth into an abacus, moving a tray with circular patterns, and removing it with a black X (no text or symbols)

Technical line drawing of a mechanical cabinet or rack frame with no visible text or symbols

PARTIE -3: UTILISATION DE L'APPAREIL

Curseur d'humidité

Technical line drawing of a window frame with a red double-headed arrow indicating a measurement or alignment (no text or symbols present)

Technical line drawing of a structural joint or bracket (no text or symbols)

Fig.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.2

Technical line drawing of a mechanical component with an inset showing a magnified view of a component (no text or symbols present)

Line drawing of a hand cleaning a server rack with a tool (no text or symbols)

HOOFDSTUK -6: PROBLEEMOPLOSSING....45

HOOFDSTUK -7: TIPS VOOR ENERGIEBESPARING 45

Technical line drawing of a door frame with internal compartments and a central rectangular component (no text or symbols)

Thermostaatvak

Line drawing of a cabinet or storage unit with shelves and doors, no text or symbols present

HOOFDSTUK -3: GEBRUIK VAN HET APPARAAT

Accessoires

Ijslade

Three-step illustration showing hand positioning: pressing a button, moving a tray with arrows, and holding a tool with a black X (no text or symbols)

Vriesvak

of Vriesvak Bovenste Afdekking vriesvak Vriesvak

Chiller-plank (In sommige modellen)

Technical line drawing of a mechanical cabinet or rack assembly (no text or symbols)

Technical line drawing of a window frame with a red double-headed arrow indicating a measurement or alignment (no text or symbols present)

HOOFDSTUK -3: GEBRUIK VAN HET APPARAAT

Adapti-Lift deurschap

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical and horizontal arrows indicating direction (no text or symbols)

afb. 1 afb. 2

Line drawing of a hand cleaning a server rack with a cloth (no text or symbols)

HOOFDSTUK -3: GEBRUIK VAN HET APPARAAT

Lamp Vervangen

Technical diagram showing three steps of a mechanical assembly with labeled components A, B, and directional arrows indicating movement.

Illustration of a grid-based object and a stylus-shaped tool (no text or symbols)

17

18

Technical line drawing of a structural frame with internal components and measurement markings (no text or symbols)

Termostato

Technical line drawing of a cabinet or rack with ladder and door (no text or symbols)

CAPÍTULO 3: USO DEL FRIGORÍFICO

Accesorios

Technical line drawing of a multi-level cabinet or rack structure (no text or symbols)

Technical line drawing of a window frame with a red double-headed arrow indicating a measurement or alignment (no text or symbols present)

CAPÍTULO 3: USO DEL FRIGORÍFICO

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical dimension arrows (no text or symbols)

Fig.2
Fig.1

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a server rack with a cloth (no text or symbols)

CAPÍTULO 3: USO DEL FRIGORÍFICO

Technical diagram showing three steps of a mechanical assembly with labeled components A and B

Technical line drawing of a mechanical assembly with no visible text or symbols

Termóstato

Line drawing of a cabinet or rack with a door open, showing structural details (no text or symbols)

OK

Illustration showing three steps of a robotic arm: moving a tool, rotating a curved object, and holding a tool with a crossed-out black symbol (no text or labels)

Arca congeladora

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Controlador de humidade

Pure technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with two parallel plates and a vertical dimension arrow (no text or symbols)

Fig.1 Fig.2

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a server rack with a tool (no text or symbols)

Technical diagram showing three steps of a mechanical assembly with labeled components A, B, and directional arrows indicating movement.

Technical line drawing of a mechanical or architectural component with grid patterns and a central rectangular feature (no text or symbols)

Termostatknap

Advarsler for temperaturindstillinger

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

illustrationen.

Illustration showing three steps of a robotic arm: pressing a button, moving a curved object, and holding a crumpled tool with a black X (no text or symbols)

Fryseboksen

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a window frame with a red double-headed arrow indicating a measurement or alignment (no text or symbols present)

KAPITEL -3: SÅDAN ANVENDES DIT K∅LEFRYSESKAB

Adapti-Lift Dørhylde (På visse modeller)

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical dimension arrows (no text or symbols)

Fig.1 Fig.2

Technical line drawing of a mechanical component with an inset showing a magnified view of a circular feature (no text or symbols)

Line drawing of a hand cleaning a server rack with a cloth (no text or symbols)

KAPITEL -3: SÅDAN ANVENDES DIT K∅LEFRYSESKAB

Diagram showing two views of a mechanical housing or enclosure with an arrow indicating direction, labeled 'A' (no text or symbols on the diagram itself)

Diagram of a mechanical assembly with a labeled component B, showing internal components and motion arrows (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with two components and an arrow indicating direction (no text or symbols)

Three labeled diagrams of laboratory glassware: a tray with circular holes, a grid of cubes, and a funnel-shaped tool (no text or symbols)

Technical line drawing of a door frame with vent slots and a central rectangular component (no text or symbols)

Termostatboks

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

KAPITTEL 3: HVORDAN BRUKE KOMBISKAPET DITT

Tilbehør

Isterningsbrett

Line drawing of a hand pouring liquid into a grid-patterned tray (no text or symbols)

Illustration of hands holding a woven mat with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol indicating a crossed-out condition (no text or labels)

Fryseboks

Technical line drawing of a multi-level cabinet or rack structure (no text or symbols)

Fuktighetsregulator

Technical line drawing of a structural frame with a horizontal beam and a vertical support (no text or symbols)

KAPITTEL 3: HVORDAN BRUKE KOMBISKAPET DITT

Dørhyllen Adapti-Lift (I noen modeller)

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical and horizontal beams (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a magnified view of a component (no text or symbols present)

Line drawing of a hand cleaning a server rack with a cloth (no text or symbols)

KAPITTEL 3: HVORDAN BRUKE KOMBISKAPET DITT

Bytte lyspære

Installationsinformation

Illustration of a grid-based object and a funnel-shaped tool (no text or symbols)

17

18

KAPITEL -3: ANVÄNDA DIN KYL OCH FRYS

Termostat

Technical line drawing of a door frame with vent slots and a central rectangular component (no text or symbols)

Termostat

Varningar om temperaturjusteringar

Line drawing of a cabinet or rack with a door and handle, no text or symbols present

KAPITEL -3: ANVÄNDA DIN KYL OCH FRYS

Tillbehör

Is-tråg

Illustration showing three steps of a robotic arm: adding a seed into a tray, moving a curved path, and removing a weight (no text or symbols present)

Fryslåda

Technical line drawing of a multi-level cabinet or rack structure (no text or symbols)

Fuktregulatorn

KAPITEL -3: ANVÄNDA DIN KYL OCH FRYS

Adapti-Lift dörrhylla (I vissa modeller)

Technical line drawing of a structural joint or bracket (no text or symbols)

fig. 1

Technical line drawing of a structural frame with vertical dimension arrows (no text or symbols)

fig. 2

Line drawing of a hand cleaning a server rack with a cloth (no text or symbols)

KAPITEL -3: ANVÄNDA DIN KYL OCH FRYS

Byte av glödlampa

Three labeled diagrams of laboratory test tubes: a tray with circular cavities, a grid of test tubes, and a funnel-shaped tool (no text or symbols on the tubes themselves)

Technical line drawing of a structural frame with internal compartments and a central rectangular component (no text or symbols)

Termostaatti

Line drawing of a refrigerator interior showing door, seat, and shelf (no text or symbols)

LUKU 3: JÄÄKAAPPIPAKASTIMEN KÄYTTÄMINEN

Lisävarusteet

Jäärasia

Illustration showing three steps of a robotic arm: pressing a tray, moving a curved object, and removing a handle with a cross (no text or symbols)

Pakastinlaatikko

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Kosteudenhallinta

Technical line drawing of a door frame with a wall-mounted bracket and a red double-headed arrow indicating a measurement or alignment (no text or symbols present)

LUKU 3: JÄÄKAAPPIPAKASTIMEN KÄYTTÄMINEN

Adapti-Lift ovihylly (Joissakin malleissa)

Pure technical line drawing of a structural component without any text, numbers, or symbols

Kuva 1

Technical line drawing of a mechanical assembly with two parallel plates and a vertical dimension arrow (no text or symbols)

Kuva 2

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a server rack with a circular tool on the door (no text or symbols)

LUKU 3: JÄÄKAAPPIPAKASTIMEN KÄYTTÄMINEN

Hehkulampun vaihto

Diagram showing two views of a mechanical housing or enclosure with an arrow indicating transformation (no text or symbols present)

Diagram of a mechanical assembly with a cylindrical component and directional arrows, no text or symbols present.

LUKU 6: VIANMÄÄRITYS

Diagram of two coiled heat exchangers with a person inside, no text or symbols present

2. PEATÜKK: TEIE SÜGAVKÜLMIKUGA KÜLMIK

A 13 12 11 B 10 7 8 9 4 5 6 3 2 1

14 15

Three labeled diagrams of laboratory test tubes: a tray, a grid with square holes, and a funnel (no text or symbols)

Technical line drawing of a door frame with vent slots and a central rectangular component (no text or symbols)

Termoregulaatori karp

Line drawing of a refrigerator interior showing door, seat, and shelf (no text or symbols)

3. PEATÜKK: SÜGAVKÜLMIKUGA KÜLMIKU KASUTAMINE

Tarvikud

Jääalus

Three-step illustration showing a hand holding an abacus, moving a ball, and removing a cross-shaped object (no text or symbols)

Sügavkülmikukast

Technical line drawing of a multi-level cabinet or rack structure (no text or symbols)

Technical line drawing of a window frame with a red double-headed arrow indicating a measurement or dimension (no text or symbols present)

3. PEATÜKK: SÜGAVKÜLMIKUGA KÜLMIKU KASUTAMINE

Adapti-Lift ukseriiul (Osadel mudelitel)

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a mechanical frame assembly with no visible text or symbols

joonis 2

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or workpiece (no text or symbols present)

Line drawing of a hand cleaning a server rack with a cloth (no text or symbols)

3. PEATÜKK: SÜGAVKÜLMIKUGA KÜLMIKU KASUTAMINE

Technical diagram showing three steps of a mechanical assembly with labeled components A and B

sharphomeappliances.com
