USER MANUAL XR-55A80K SONY

Illustration of a remote control with a house icon and a question mark on a grid screen (no text or symbols)

BRAVIA XR

About Manuals

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/jaep1/h_aep/

IMPORTANT - Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https://www.sony.net/tv-software-licenses/) or on your product screen. Press (Quick Settings) on the remote control and select [Settings] → [System] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "x"/"xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.
• Setting menus are subject to change without notice due to software updates.
  For latest information, visit Sony support website.

Location of the identification label

Labels for the TV Model No., Production Date (year/month)* and Power Supply rating are located on the rear of the TV or package.

* Only for limited region/country/model.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.

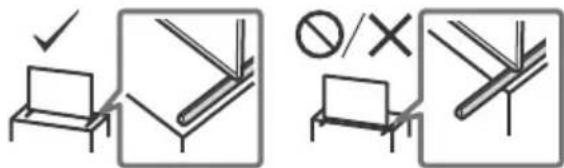

• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the TV where it cannot be pulled, pushed, or knocked over.

- Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Diagram illustrating three different types of electrical circuitry: check, no/×, and switch symbols.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more persons are needed to transport a large TV set.

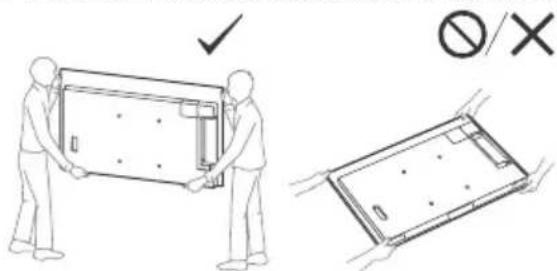

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating removal or disassembly.

- When handling or mounting the TV set, do not lay down the TV (except XR-55A8xK).

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no change (no text or labels present)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

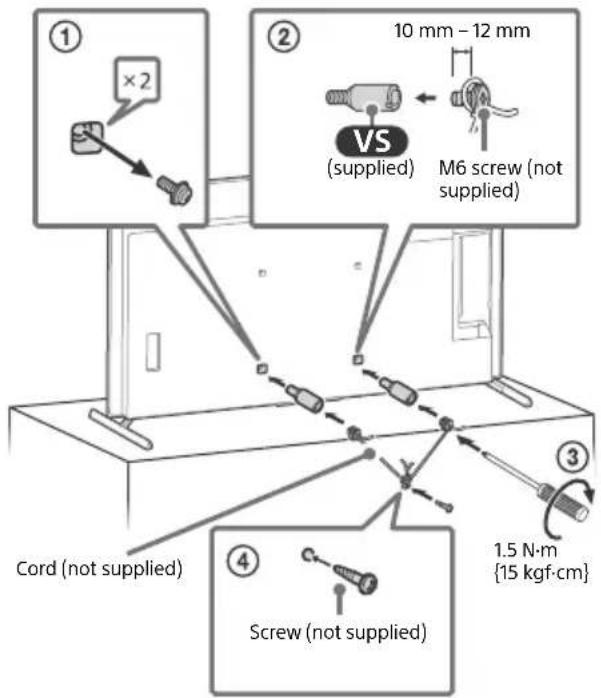

Topple prevention

① ×2 ② 10 mm - 12 mm VS (supplied) M6 screw (not supplied) Cord (not supplied) ③ 1.5 N·m {15 kgf·cm} ④ Screw (not supplied)

Protecting the TV Screen (OLED TV)

Precautions to Protect the Screen from Damage

Image retention

OLED TV's are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.

The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)
  • Static images such as photos.
• On-screen menus, programme guides, channel logos etc.
  • Static content from applications.
• On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV.
• Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal].
• Turn off the OSD (On Screen Display) by pressing 123 control menu) button and select [Info], and turn off the menus from connected equipment.
• Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen.
• Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often displays the station logos, etc.

The TV has following features to help reduce/prevent image retention.

Panel refresh

A panel refresh will adjust the panel uniformity. Panel refresh can be performed and should only be used when image retention is very noticeable.

Caution:

• The Panel refresh function may affect the panel. Do not perform Panel refresh more than once a year as it may affect the usable life of the panel.
• Panel refresh takes about ten minutes to complete.
• The effectiveness of a panel refresh may vary depending on the image retention condition.

Pixel shift

Automatically moves the image on the screen to prevent image retention.

Other feature

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

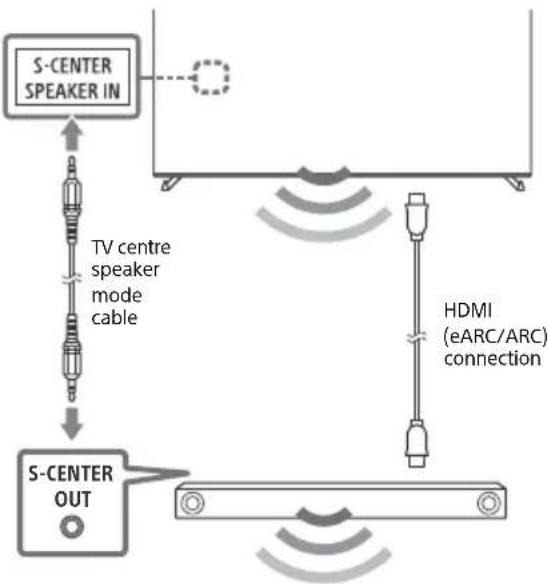

Using TV as Part of Audio System

Note

• Before connecting cables, disconnect the mains lead of both TV and AV receiver.
• Refer to the instruction manual of the Audio system with S-CENTER OUT terminal for detail.


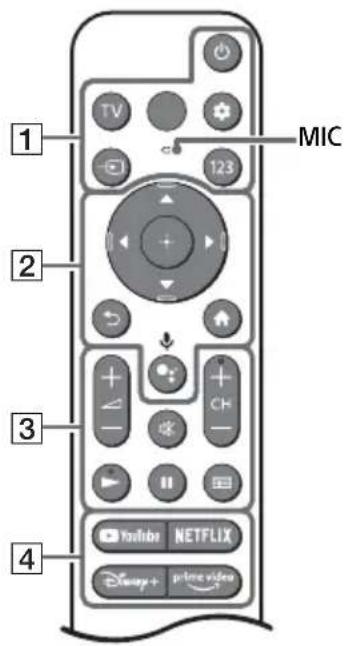

Remote Control and TV

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings ^4 .

1 TV MIC 2 123 + - + - + - + - + - + - + - + - + - + - 4 YouTube NETFLIX Disney+ pprime video

1 (Power)

TV: Display TV channel list or switch to input.

(Qquick settings): Display Quick Settings.

→ (Input select): Display and select the input source, etc.

123 (Control menu): Display the Control menu.

2 ▲ / ▼ / ◀ / ▶ / ⊕: On screen menu navigation and selection.

(Back) (Home)

•: (Google Assistant) / (Microphone): Use Google Assistant ^23 or voice search ^*3 .

3 +1 - (Volume)

(Mute)^*4 CH + / - (Channel) /

(Guide): Display the digital programme guide of TV or TV box ^4 .

4 App buttons

5 BUILT-IN MIC SWITCH: Turn on/off the built-in MIC.

6 ⏻(Power)

7 Remote Control sensor / Light sensor / LED

Built-in MIC ^236 : To enable the built-in MIC, press the Google Assistant/microphone button on the remote control and follow the on-screen instructions.

*1 For other remote control models, refer to the online Help Guide for details.
*2 Only for limited region/country/model/language.
*3 Google Assistant or voice search requires an Internet connection.
*4 Accessibility shortcut is available by pressing and holding ⚙ (Mute).
*5 [TV box setup] setting is required.
*6 Power consumption will increase when the built-in MIC is enabled as it is always listening.

For more information, refer to the Help Guide.

Press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

https://www.sony.eu/support

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL850 —Wall-Mount Bracket SU-WL450

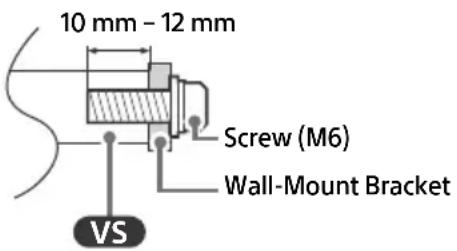

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.

The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

10 mm - 12 mm Screw (M6) Wall-Mount Bracket VS

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
  * Only for limited region/country/model.

Optional Camera and Microphone Unit (not supplied) Cable Management

Simple line drawing of a rectangular frame with a curved line and a small inset box, no text or symbols present.

Table-Top Stand position

Simple line drawing of a rectangular area with an attached electrical outlet (no text or symbols)

Wall-mount position

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off.
2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

The parental lock password has been forgotten.

- Enter 9999 for the PIN and enter the new PIN.

The screen becomes darker while watching TV.

- If the whole image or part of the image remains still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

You are concerned about image retention.

If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV.

Note

• Perform Panel refresh only when image retention is particularly noticeable. Avoid performing Panel refresh more than once a year because it may affect the usable life of the panel.
• Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

The message [Panel refresh did not finish...] is displayed.

When i) the TV is turned on or ii) the mains lead is unplugged during the Panel refresh, the Panel refresh is not completed. Please avoid the above two conditions during the Panel refresh.

For more information on troubleshooting, refer to the Help Guide.

Press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Specifications

System

Panel system: OLED (Organic Light Emitting Diode) Panel

TV system: Depend on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depend on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: Intermediate Frequency

950-2150 MHz

Sound output

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W + 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

AV IN / S-CENTER SPEAKER IN

Video/Audio input (mini jack)

S-centre speaker input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)* ^1*2 , 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formats*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

In eARC (Enhanced Audio Return Channel) mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*5

In eARC mode

Refer to the online Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

1, 2(HDD REC)

USB device port (2 USB HDD device for REC feature)

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.2 Gen 1)

M (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220V - 240V AC, 50Hz

Energy Efficiency Class ^4

(Except Egypt)

XR-77A8xK: A+

XR-65A8xK: A

XR-55A8xK: A

(For Egypt only)

XR-77A80K: C

XR-65A80K: C

XR-55A80K: D

Screen size (measured diagonally) (Approx.)

(Except Egypt)

XR-77A8xK: 194.7 cm / 77 inches

XR-65A8xK: 163.9 cm / 65 inches

XR-55A8xK: 138.8 cm / 55 inches

(For Egypt only)

XR-77A80K: 77 inches / 194.7 cm

XR-65A80K: 65 inches / 163.9 cm

XR-55A80K: 55 inches / 138.8 cm

Power consumption ^4

In [Standard] mode

(Except Egypt)

XR-77A8xK: 169 W

XR-65A8xK: 127 W

XR-55A8xK: 104 W

(For Egypt only)

XR-77A80K: 167.4 W

XR-65A80K: 123.9 W

XR-55A80K: 102.3 W

Annual energy consumption ^6 (Except Egypt) ^7

XR-77A8xK: 234 kWh per year

XR-65A8xK: 176 kWh per year

Europe: 0.50 W (30 W in software/EPG update mode), Jordan/UAE/Egypt: 0.50 W, Others: 0.5 W

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

Standard position:

XR-77A8xK: 172.2 × 102.4 × 38.9

XR-65A8xK: 144.8 × 86.2 × 33.0

XR-55A8xK: 122.7 × 73.8 × 33.0

Narrow position:

XR-77A8xK: 172.2 × 102.4 × 38.9

XR-65A8xK: 144.8 × 86.2 × 33.0

XR-55A8xK: 122.7 × 73.8 × 33.0

Soundbar position:

XR-77A8xK: 172.2 × 106.6 × 38.9

XR-65A8xK: 144.8 × 90.4 × 33.0

XR-55A8xK: 122.7 × 78.0 × 33.0

without Table-Top Stand

XR-77A8xK: 172.2 × 99.8 × 5.4

XR-65A8xK: 144.8 × 83.6 × 5.3

XR-55A8xK: 122.7 × 71.2 × 5.3

Stand width (Approx.) (cm)

Standard position:

XR-77A8xK: 140.9

XR-65A8xK / 55A8xK: 118.4

Narrow position:

XR-77A8xK: 61.9

XR-65A8xK / 55A8xK: 84.7

Soundbar position:

XR-77A8xK: 140.9

XR-65A8xK / 55A8xK: 118.4

Mass (Approx.) (kg)

with Table-Top Stand

XR-77A8xK: 37

XR-65A8xK: 24.6

XR-55A8xK: 19.5

without Table-Top Stand

XR-77A8xK: 34.8

XR-65A8xK: 23

XR-55A8xK: 17.9

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 / SU-WL450

Camera and Microphone Unit: CMU-BC1

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % – 80 % RH

(non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to connect.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 This information is for EU and other countries whose relevant regulation is based on EU energy labelling regulation.

*7 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*8 Energy consumption in kWh per year, based on the power consumption of the television operating 8 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*9 Specified standby power is reached after the TV finishes necessary internal processes.

*10 Standby power consumption will increase when your TV is connected to the network.

Note

- Optional accessories availability depends on countries/region/TV model/stock.

- Design and specifications are subject to change without notice.

- Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.

Notes on Digital TV function

- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

- The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

- Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2021 Dolby Laboratories. All rights reserved.

- Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

- Google, Google TV and related logos are trademarks of Google LLC.

- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.

- Netflix is a registered trademark of Netflix, Inc.

- DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

- All other trademarks are the property of their respective owners.

https://rd1.sony.net/help/tv/jaep1/h_aep/

Diagram illustrating correct and incorrect assembly methods for table parts, with checkmark indicating no change and X symbol indicating absence.

Transport

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation or disassembly.

Isometric diagram of a rectangular plate with internal compartments and mounting holes (no text or symbols)

—Support de fixation murale SU-WL850

—Support de fixation murale SU-WL450

Simple line drawing of a rectangular frame with a small box and a curved line extending from its top (no text or symbols)

Position support de table

Simple line drawing of a rectangular area with an attached electrical outlet (no text or symbols)

Position fixation murale

Dépannage

XR-65A8xK / 55A8xK : 10 W + 10 W + 10 W +

10 W + 10 W

Technologie sans fil

Protocole IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC*3

3840 × 2160p (100, 120 Hz)*2*4

Audio :

En mode eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*5

En mode eARC

DIGITAL AUDIO OUT (OPTICAL)

XR-65A8xK:144,8×86,2×33,0

XR-65A8xK:144,8×90,4×33,0

XR-55A8xK : 122,7 × 78,0 × 33,0

Sans support de table

https://rd1.sony.net/help/tv/jaep1/h_aep/

Diagram illustrating three different types of mechanical or structural assembly methods: check, no/×, and cross.

Перемещение

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no text or symbols (no readable text or labels)

https://www.sony.eu/support

DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

https://rd1.sony.net/help/tv/jaep1/h_aep/

ВАЖЛИВА ПРИМІТКА

Diagram illustrating correct and incorrect assembly methods for table parts, with checkmark and prohibition symbols indicating correct and incorrect states.

Транспортування

Diagram showing two steps of installing a door panel, with checkmark and prohibition symbols indicating installation conditions.

Pure technical diagram of a rectangular component with internal slots and mounting holes, no text or symbols present.

https://www.sony.eu/support

Simple line drawing of a rectangular frame with a curved line and a hanging object, no text or symbols present.

Simple line drawing of a rectangular frame with a curved line and three circular elements inside, no text or symbols present.

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

118.4 :XR-65A8xK / 55A8xK

موقع الم (((-))

61.9 :XR-77A8xK

84.7 :XR-65A8xK / 55A8xK

موقع الساوند بار:

140.9 :XR-77A8xK

118.4 :XR-65A8xK / 55A8xK

كتلة (تقريبي) (كجم)

(USB 2_J) 900 mA, (USB 1_J) 500 mA

33.0 × 86.2 × 144.8 :XR-65A8xK

33.0× 73.8× 122.7:XR - 55A8xK

موقع الم Thiック:

38.9 × 102.4 × 172.2 : XR-77A8xK

33.0 × 86.2 × 144.8 : XR-65A8xK

33.0 × 73.8 × 122.7 :XR-55A8xK

eARC/ARC (Enhanced Audio Return Channel/Audio Return

^5 *(فقط HDMI IN 3) (Channel

eARC في الوضع

DIGITAL AUDIO OUT (OPTICAL)

Simple line drawing of a rectangular container with a curved pipe and a hanging container (no text or symbols)

Pure electrical circuit lines without any symbols

https://www.sony.eu/support

https://rd1.sony.net/help/tv/jaep1/h_aep/

Diagram illustrating correct and incorrect assembly methods for table parts, with checkmark indicating no change and X symbol indicating absence.

النقل

Diagram showing two steps of installing a device, with checkmark and prohibition symbols indicating correct and incorrect states.

Isometric line drawing of a rectangular plate with internal compartments and mounting holes (no text or symbols)

https://www.sony.eu/support
