LSRM2010ST - Microwave Oven LG - Free user manual and instructions

Product Type	Microwave
Brand	LG
Model	LSRM2010ST
Color	Stainless steel
Power Supply	120 V AC, 60 Hz
Power Consumption	1500 W
Microwave Power	1100 W (according to IEC 60705)
Frequency	2450 MHz
Oven Capacity	2.0 cu ft
External Dimensions (W x H x D)	23 7/8 x 13 9/16 x 19 13/16 in
Cavity Dimensions (W x H x D)	16 11/16 x 11 1/4 x 18 1/16 in
Turntable	Glass, removable
Power Levels	10 (including 100%)
Cooking Functions	Sensor cooking, popcorn, auto cook, melt, soften, auto defrost/express, EZ-ON, timer, multi-stage cooking
Child Lock	Yes
Energy Saving	Yes (display off)
Recommended Utensils	Glass, ceramic, microwave-safe plastic, paper, plastic wrap (no metal)
Cleaning	Mild detergent, no abrasive cleaners
Warranty (Canada)	2 years parts and labor, 5 years magnetron

Frequently Asked Questions - LSRM2010ST LG

Can I use metal containers in this microwave?

No, metal utensils (including aluminum) can cause arcing and damage the appliance. Use only microwave-safe containers (glass, ceramic, microwave-safe plastic).

How do I set the oven clock?

Press STOP/CLEAR, then press CLOCK. Enter the time using the number pads (e.g., 3,1,5 for 3:15) and press CLOCK or START/ENTER again. The clock is in 12-hour format.

What should I do if the oven does not turn on?

Check that the power cord is plugged in, the door is closed tightly, and a cooking time has been set. If the problem persists, unplug and plug the appliance back in to reset the microcomputer.

Why is steam coming out of the vents?

This is normal. Steam is discharged through the ventilation openings during cooking. Do not block them to avoid overheating.

How do I use the auto defrost function?

Press AUTO DEFROST, select the food type (meat, poultry, fish) using the number key, then enter the weight in pounds or kg. The oven will automatically calculate the time and prompt you to turn the food during the cycle.

Can I cook eggs in their shells?

No, whole eggs can explode from pressure. To cook eggs, pierce the yolk with a toothpick or use another method (poached, scrambled).

How do I activate the child lock?

Press and hold the STOP/CLEAR button until the letter L appears on the display. To deactivate, press and hold STOP/CLEAR again until the L disappears.

Why does my popcorn burn?

Use only microwave-safe bags. Do not exceed the recommended time and listen for the popping: stop when the interval between pops reaches 2-3 seconds. Do not reuse bags.

How do I clean the glass turntable?

Wash it by hand with warm water and mild detergent, then dry with a soft cloth. Do not use abrasive pads or steel wool. Make sure it is dry before placing it back.

What is the warranty period for this microwave?

In Canada, the limited warranty covers 2 years for parts and labor, and an additional 5 years for the magnetron (parts only). Keep your original purchase receipt.

USER MANUAL LSRM2010ST LG

Black and white barcode image with vertical lines and patterns

MFL38260010

TABLE OF CONTENTS

Safety 3-4

Precaution to Avoid Possible Exposure To Excessive Microwave Energy 3

Grounding Instructions 3

Important Safety Instructions 4

Understanding Your Microwave Oven 5

Specifications 5

Installation 5

Part and accessories 6

Control panel 7

Cookware guide 8

Tips for microwave cooking 9

Precautions 10

Cleaning 10

Setting Clock 11

Child Lock-Out 11

Utensils 12

Sensor Touch Operation Instruction 13

Sensor Touch Cook 13

Sensor Touch Popcorn 14

Microwaving Made Easy 15

Auto Cook 15

Melt 16

Soften 17

Auto Defrost 18

Express Defrost 18

Ez ON 19

Kitchen timer 19

More/Less 19

ENERGY SAVING 20

Time Cooking 20

Using Muti-Power Levels 21

Muti-Power Setting Guide 21

Multi-Stage Cooking 22

Cooking Tips 23-24

Heating or Reheating Guide 22

Fresh Vegetable Table 23

Troubleshooting 27

Questions and Answers 27-28

Before calling for service 29

Limited warranty 30

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open, since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces.

- Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

• door (bent),
• hinges and latches (broken or loosened),
• door seals and sealing surfaces.

- The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

PROPERLY POLARIZED AND GROUNDED OUTLET

Illustration of a plug and a wall socket (no text or symbols)

Three-Pronged (Grounding) Plug.

WARNING

Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, and either:

1. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall

be equal to or greater than the electrical rating of the appliance.

1. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

NOTES:

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If a long cord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the extension cord must be a grounding-type 3-wire cord, and (3) the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over accidentally.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS

The safety instructions below will tell you how to use your oven to avoid harm to yourself or damage to your oven.

WARNING

■ To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY found on page 3 of this manual.
3. This appliance must be grounded. Connect only to properly grounded outlet. See GROUNDING INSTRUCTIONS found on page 3 of this manual.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products, such as whole eggs and sealed containers – for example, closed glass jars are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over the edge of a table or counter.
15. When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.

c. If materials inside the oven ignite, KEEP OVEN DOOR CLOSED, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel.

d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

1. Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons; 1) Do not overheat the liquid. 2) Stir the liquid both before and halfway through heating it. 3) Do not use straight-sided containers with narrow necks. 4) After heating, allow the container to stand in the microwave oven for a short time before removing the container. 5) Use extreme care when inserting a spoon or other utensil into the container.
2. Avoid heating small-necked containers such as syrup bottles.
3. Avoid using corrosive and vapors, such as sulfide and chloride.
4. Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients (instant coffee, etc.), resulting in harm to the oven and possible injury. In all containers, for best results, stir the liquid several times before heating. Always stir liquid several times between reheatings.

SAVE THESE INSTRUCTIONS

*IEC 60705 RATING STANDARD
Specifications subject to change without prior notice.

INSTALLATION

A. Circuits

For safety purposes this oven must be plugged into a 15 or 20 Amp circuit. No other electrical appliances or lighting circuits should be on this line. If in doubt, consult a licensed electrician.

B. Voltage Warning

The voltage used at the wall receptacle must be the same as specified on the oven name plate located on the back or on the side of the control panel of the oven. Use of a higher voltage is dangerous and may result in a fire or other type of accident causing oven damage. Low voltage will cause slow cooking. In case your microwave oven does not perform normally in spite of proper voltage, remove and reinsert the plug.

C. Placement of the Oven

Your microwave oven can be placed easily in your kitchen, family room, or anywhere else in your home. Place the oven on a flat surface such as a kitchen countertop or a specially designed microwave oven cart. Do not place oven above a gas or electric range. Free air flow around the oven is important. Allow at least 4 inches of space at the top, sides, and back of the oven for proper ventilation.

D. Do not block the air vents

All air vents should be kept clear during cooking. If air vents are covered during oven operation the oven may overheat. In this case, a sensitive thermal safety device automatically turns the oven off. The oven will be inoperable until it has cooled sufficiently.

E. Radio interference

1. Microwave oven operation may interfere with TV or radio reception.
2. When there is interference, it may be reduced or eliminated by taking the following measures:

a. Clean the door and the sealing surfaces of the oven.
b. Reorient the receiving antenna of radio or television.
c. Relocate the microwave oven in relation to the TV or radio.
d. Move the microwave oven away from the receiver.
e. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

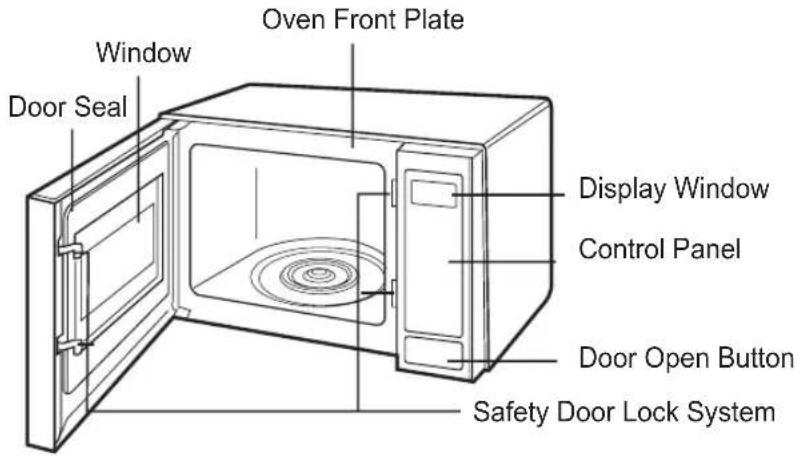

PARTS AND ACCESSORIES

Your oven comes with the following accessories:

1 Use and Care Manual
1 Glass Turntable
1 Rotating Ring

Window Door Seal Oven Front Plate Display Window Control Panel Door Open Button Safety Door Lock System

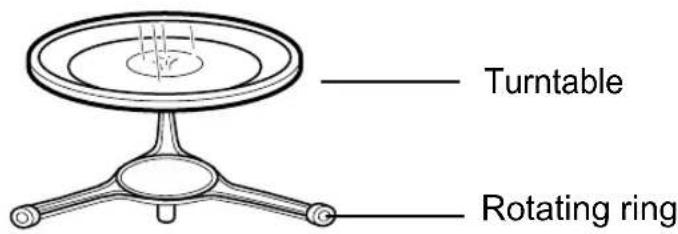

Turntable Rotating ring

NOTE: This microwave oven is designed for household use only. It is not recommended for commercial use.

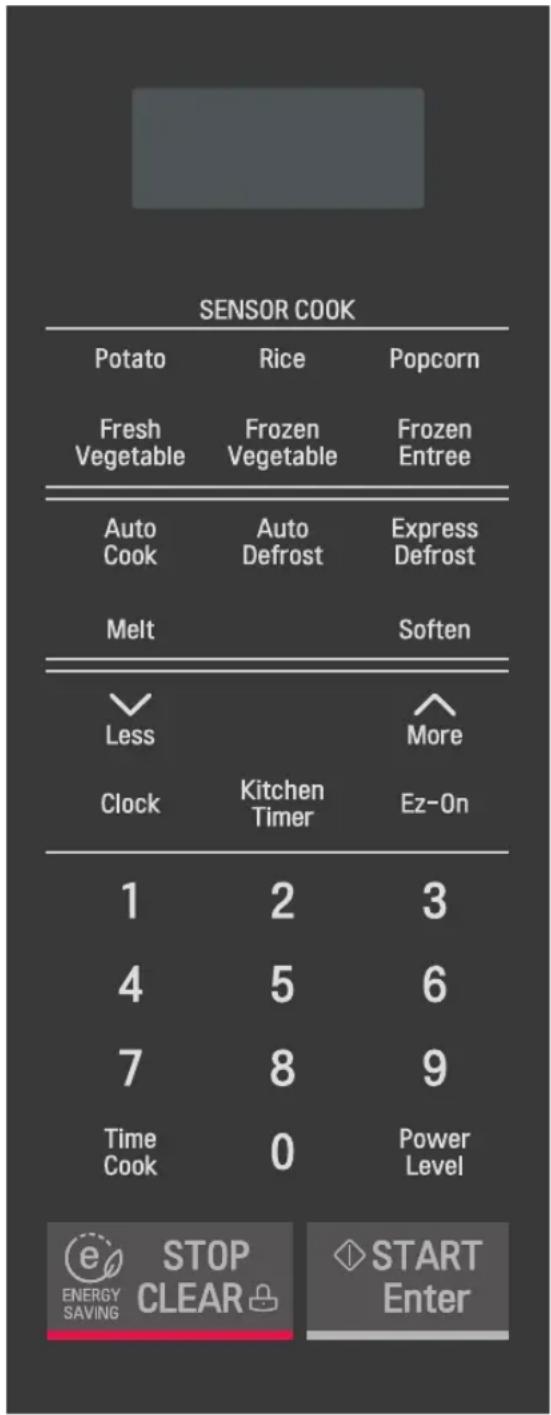

CONTROL PANEL

1. DISPLAY. The display includes a clock and indicators that tell you time of day, cooking time settings, and cooking functions selected.

2. SENSOR COOK Touch this pad to cook without entering a cook power or time.

3. MELT. Touch number pads to melt chocolate, cheese, butter, or mashmallows.

4. SOFTEN. Touch this pad to sosteen ice cream, cream cheese, butter, or frozen juice.

5. EXPRESS DEFROST. Touch this pad to thaw only 1lb of food very quickly.

6. AUTO COOK. Touch this pad to select programming food items.

7. AUTO DEFROST. Touch this pad to thaw ground meat, poultry, or steaks/chops by entering a weight.

8. NUMBER PADS. Touch number pads to enter cooking time, power level, quantities, or weights.

9. TIME COOK. Touch this pad to set a cooking time.

10. POWER LEVEL. Touch this pad to set a cooking power.

11. MORE. Each time you touch this pad, you add 10 seconds to the cooking time.

12. LESS. Each time you touch this pad, you subtract 10 seconds from the cooking time.

13. CLOCK. Touch this pad to enter the time of day.

14. KITCHEN TIMER. Touch this pad to use your microwave oven as a kitchen timer.

15. EZ-ON . Touch this pad to cook at 100% cook power for 30 seconds up to 3 minutes; after 3 minutes, every touch will add 1 minute up to 99 min 59 seconds.

16. START/ENTER. Touch this pad to start all entries.

17. STOP/CLEAR. Touch this pad to stop the oven or clear entries and to turn Child Lock on or off. ENERGY SAVING. Touch this pad also to save energy.

SENSOR COOK Potato Rice Popcorn Fresh Vegetable Frozen Vegetable Frozen Entree Auto Cook Auto Express Defrost Defrost Melt Soften ✓ Less ^ More Clock Kitchen Timer Ez-On 1 2 3 4 5 6 7 8 9 Time Cook 0 Power Level e ENERGY SAVING STOP CLEAR START Enter

Most heat-resistant, non-metallic cookware is safe for use in your microwave oven. However, to test cookware before using, follow these steps:

1. Place the empty cookware in the microwave oven.
2. Measure 1 cup of water in a glass measuring cup and place it in the oven beside the cookware.
3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.

USE

DO NOT USE

Ovenproof GlassGlass treated for use in high-intensity heat includes utility dishes, bread dishes, pie plates, cake plates, liquid measuring cups, casseroles, and bowls without metallic trim.ChinaBowls, cups, serving plates, and platters without metallic trim can be used in your oven.PlasticWhen using plastic wrap as a cover, make sure that the dish is deep enough so the plastic wrap does not touch the food. As the food heats, it may melt the plastic wrap wherever the wrap touches the food.Place plastic wrap loosely over the top of the dish and secure it by pressing the wrap to the sides of the dish.Vent by turning back one corner of the plastic wrap. This will allow excess steam to escape.Use plastic dishes, cups, semi-rigid freezer containers, and plastic bags only for short time cooking. Use these with care because the plastic may soften from the heat of the food.PaperMicrowave-safe paper towels, waxed paper, paper napkins, and paper plates with no metallic trim or design can be used in your oven.Refer to the manufacturer's label for use of any paper product in the microwave oven.

Metal UtensilMetal shields food from microwave energy and produces uneven cooking. Avoid metal skewers, thermometers, or foil trays.Metal utensils can cause arcing, which is a discharge of electric current. Arcing can damage your microwave oven.Metal DecorationDo not use metal-trimmed or metal-banded dinnerware, casserole dishes, etc.CenturaTM TablewareThe Corning Company recommends that you do not use Centura tableware and some CorelleTM closed-handle cups for microwave cooking.Aluminum FoilAvoid large sheets of aluminum foil because they hinder cooking and may cause arcing.Use small pieces of foil to shield poultry legs and wings.Keep all aluminum foil at least 1 inch from the walls and door of the oven.WoodWooden bowls, boards, and baskets will dry out and may split or crack when you use them in the microwave oven.Tightly Closed ContainersTightly closed cookware can explode. Be sure to leave an opening for steam to escape from covered cookware.Brown PaperAvoid using brown paper bags. They absorb heat and could burn.Metal Twist TiesAlways remove metal twist ties as they can become hot and cause a fire.

Meat and poultry with high fat content that are cooked for 10 or 15 minutes or longer will brown lightly. Foods cooked a shorter time can be brushed with a browning agent, such as Worcestershire sauce, soy sauce, or barbecue sauce.

COVERING

A cover traps heat and steam and causes the food to cook more quickly. Use a lid or microwave-safe plastic wrap with one corner folded back to vent the excess steam. Lids on glass casseroles can become hot during cooking. Handle carefully. Waxed paper will prevent the food from splattering in the oven and help retain heat. When warming bread items, use waxed paper, napkins, or paper towels. To absorb extra moisture, wrap sandwiches and fatty foods in paper towels.

SPACING

Arrange individual foods, such as baked potatoes, cupcakes, and hors d'oeuvres in a circle and at least 1 inch apart. This will help the food cook more evenly.

STIRRING

Stirring blends flavors and redistributes the heat in foods. Always stir from the outside toward the center of the dish. Food at the outside of the dish heats first.

TURNING

Large foods, such as roasts and whole poultry, should be turned so that the top and bottom cook evenly. Also turn over chicken pieces and chops.

ARRANGEMENT

Do not stack food. Arrange in a single layer in the dish for more even cooking. Because dense foods cook more slowly, place thicker portions of meat, poultry, fish, and vegetables toward the outside of the dish.

TESTING FOR DONENESS

Because foods cook quickly in a microwave oven, you need to test frequently for doneness.

STANDING TIME

Food often needs to stand from 2 to 15 minutes after you remove it from the oven. Usually, you need to cover food during standing time to retain heat. Remove most foods when they are slightly undercooked and they will finish cooking during standing time. The internal temperature of food will rise about 10 °F during standing time.

SHIELDING

To prevent some portions of rectangular or square dishes from overcooking, you may need to shield them with small strips of aluminum foil to block the microwaves. You can also cover poultry legs and wing tips with foil to keep them from overcooking.

Always keep foil at least 1 inch from oven walls to prevent arcing.

PIERCING

Pierce the shell, skin, or membrane of foods before cooking to prevent them from bursting. Foods that require piercing include yolks and whites of eggs, hot dogs, clams, oysters, and whole vegetables, such as potatoes and squash.

• Place the front surface of the door three inches or more from the countertop edge to avoid accidental tipping of the microwave oven during normal use.
• To program the oven, make sure you touch the center of each pad firmly since the areas between the pads will not activate the oven. A tone will sound each time a pad is touched correctly. Don't touch several pads at once.
• Do not strike the control panel with silverware, utensils, etc. Breakage may occur.
• Always use caution when taking the cooking utensils out of the oven. Some dishes absorb heat from the cooked food and may be hot. See Cookware Guide earlier in this section for more information.
• Do not rinse cooking utensils by placing them in water immediately after cooking. This may cause breakage. Also, always allow the turntable to cool before removing it from the oven.
• Never operate the oven when it is empty. Food or water should always be in the oven during operation to absorb the microwave energy.
• Do not use the oven to dry newspapers or clothes. They may catch fire.

CLEANING

NOTE: Before cleaning the oven, unplug the power cord. If this is impossible, open the oven door to prevent an accidental oven start.

INTERIOR

Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse and wipe dry. This should be done weekly or more often, if needed. Never use cleaning powders or rough pads.

Excessive oil splatters on the inside top will be difficult to remove if left for many days. Wipe splatters with a wet paper towel, especially after cooking chicken or bacon.

REMOVABLE PARTS

The turntable and rotating ring are removable. They should be hand-washed in warm (not hot) water with a mild detergent and a soft cloth. Once they are clean, rinse well and dry with a soft cloth. Never use cleaning powders, steel wool, or rough pads.

- The turntable may be cleaned at the sink. Be careful not to chip or scratch the edges as this may cause the turntable to break during use.

- The rotating ring should be cleaned regularly.

• Use thermometers that have been approved for microwave oven cooking.
• The turntable must always be in place when you operate the oven.
• Do not use your microwave oven to cook eggs in the shell. Pressure can build up inside the shell, causing it to burst.
• There are several precautions to follow when microwaving popcorn:
  — Do not pop popcorn, except in a microwave-safe container or commercial packages designed for microwave ovens.
  — Never try to pop popcorn in a paper bag that is not microwave-approved.
  — Overcooking may result in smoke and fire.
  — Do not repop unpopped kernels.
  — Do not reuse popcorn bags.
  — Listen while corn pops. Stop oven when popping slows to 2-3 seconds between pops.
  — Do not leave microwave unattended while popping corn.
  — Follow directions on bag.

DOOR

For best performance and safety, the inner door panel and the oven front frame should be free of food or grease buildup. Wipe often with a mild detergent; then rinse and wipe dry. Never use cleaning powders or rough pads.

After cleaning the control panel, touch STOP/CLEAR to clear any entries that might have been entered accidentally while cleaning the panel. Also make sure that the turntable and rotating ring are in the right position.

SETTING CLOCK

To set : 3:15

1. Touch STOP/CLEAR.

2. Touch CLOCK.

3. Enter the time by using the number key pads.

Example: To set 3:15, touch number key pads [3],[1] and [5].

1. Touch CLOCK. (or START/Enter)

NOTE: This is a 12 hour clock. You can switch between AM and PM by touching CLOCK.

STOP CLEAR

Clock

3 1 5

START Enter

CHILD LOCK - OUT

This is unique safety feature that prevents accidental running of the oven. Once the child lock - out is set, no cooking can take place.

When the child lock - out is set, you can't input any key.

To set :

1. Touch STOP/CLEAR.

2. Touch and hold STOP/CLEAR. more than 4 seconds.L will appear in the display with two beeps.

To cancel child lock - out :

1. Touch and hold STOP/CLEAR. L disappears in the display with two beeps.

STOP CLEAR

STOP CLEAR

STOP CLEAR

UTENSILS

ITEM	USE	COMMENTS
Disposable ovenable paperboard dishes	Cooking	Some frozen foods are packaged in these pans. Can be purchased in grocery stores.
Glassware Heat resistant oven glassware, glass-ceramic and ceramic, only	Cooking	Ideal for microwave cooking. May have many pieces available in your home. Do not use cracked or chipped dishes.
Oven cooking bags	Cooking	Follow manufacturers' directions. Close bag with either the nylon tie provided, a strip cut from the end of the bag, or a piece of cotton string. Do not close with metal twist tie. Make six 1/2-inch (1cm) slits by closure.
Parchment paper	Cooking	Use as a cover to prevent spattering.
Plastic Microwave-safe only, cooking and storage dishes	Cooking	Should be labeled, "Suitable for microwave heating." Check manufacturers' directions for recommended uses. Some microwave-safe plastic dishes are not suitable for cooking foods with high fat content.
Plastic wrap	Cooking	Use to cover foods during cooking to retain moisture.
Thermometers Microwave-safe, only	Cooking	Meat and candy thermometers are available.
Waxed paper	Cooking	Use as a cover to prevent spattering and to retain moisture.
Dinnerware Microwave-safe, only	Reheating and short term cooking	Check manufacturers' use and care directions for suitability for microwave heating. Some dinnerware may state on the back of the dish, "Microwave Oven Proof." Do not use cracked or chipped dishes.
Frozen dinner tray Aluminum	Reheating	Frozen dinners may be heated in foil tray, if tray is less than 3/4-inch (2cm) high. Place foil tray in center of oven. Leave at least 1-inch (2.5cm) space between foil tray and oven walls. Heat only 1 foil tray in the oven at a time. For containers more than 3/4-inch (2cm) deep, remove food and place in a similar size microwave-safe container.
Plastic	Reheating	Some frozen dinners have microwave-safe plastic trays.
Paper plates and cups	Reheating and short term cooking	Use to warm cooked foods and cook foods that require short cooking times such as wieners.
Paper towels and napkins	Reheating and cooking	Use to warm rolls and sandwiches. Use with supervision for a limited time only. Never use recycled paper.
Plastic Foam Cups	Reheating	Use to bring foods to a low serving temperature. Plastic foam will melt if foods reach a high temperature.
Aluminum foil	Shielding	Small strips of foil can be molded around thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven wall.
Browning dish	Searing meats	Check browning dish information for instructions and heating chart. Do not preheat for more than 8 minutes.
Fast food carton with metal handle	None	May cause arcing.
Metal twist ties	None	They may cause arcing and could cause a fire in the oven.
Paper bags	None	May cause a fire in the oven.
Glass jars	Warming	Remove lid. Heat food until just warm. Most glass jars are not heat resistant and may break.

TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a 8 oz (250mL) glass measure with water and place it in the microwave oven along with the container to be tested; heat one minute at HIGH. If the container is microwave oven-safe, it should remain comfortably cool and the water should be hot. If the container is hot, it has absorbed some microwave energy and should not be used.

Quick Touch Sensor cooking provides exciting new features to make microwave oven easier. Your new microwave oven will guide you, step by step, whether it be simply to reheat food or cook food and sensor menu with all the popular food choices helps you to cook perfectly because it has been pre-programmed and can tell how long to cook or reheat food items.

Categories : Sensor Touch Cook Sensor Touch Popcorn

1. The Sensor Touch system works by detecting a build-up of vapor.
2. Make sure the door remains closed.
3. Opening the door or touching the STOP/CLEAR pad before the vapor is detected will abort the process. The oven will stop.
4. Before using Sensor Touch, make sure the glass turntable is dry, to assure the best results.

SENSOR TOUCH COOK

SENSOR TOUCH COOK

allows you to cook most of your favorite food without having to select cooking times and power levels. This oven automatically determines required cooking times for each food item. This feature has 6 food categories.

Food item in the Sensor Touch Cook menu include:

1. Potato
2. Rice
3. Popcorn
4. Fresh Vegetable
5. Frozen Vegetable
6. Frozen Entree

EXAMPLE : To cook FRESH VEGETABLE, simply follow the steps below.

1. Touch STOP/CLEAR.

2. Touch Fresh Vegetable.

The oven begins the cooking you selected without the need to touch START.

Fresh Vegetable

SENSOR TOUCH POPCORN

This feature makes preparation of microwave popcorn simple and quick... one bag at a time.

The automatic popcorn uses the HI power only.

The popping time counts down in the display.

When the popping time is over, two short and one long tones sound and End shows. Oven shuts off automatically.

Place one bag only(50-100g) of prepackaged microwave popcorn on a microwave-safe / oven-safe dish on the turntable. The package should be at room temperature.

1. Touch STOP/CLEAR.

2. Touch Popcorn.

The oven begins the cooking you selected without the need to touch START.

1. Open bag carefully. Popcorn and steam are extremely hot. Open bag by pulling top diagonal corners to avoid escaping steam.

Popcorn

NOTE :

■If popcorn bag size is not known, follow manufacturers' instructions and do not use this feature.
■Do not use POPCORN key pad in combination with any other feature key pads.
■Do not attempt to reheat or cook any unpopped kernels.
■Do not reuse bag. Overcooking can result in an oven fire.
■Prepare one bag only at a time.
■Do not use popcorn popping devices in microwave oven with this feature.
■Do not leave microwave unattended while cooking popcorn.

CAUTION : Never use a brown paper bag for popping corn.

Close-up of a metallic plastic component with two protrusions, labeled 'POPCORN' on its side (no other text or symbols visible)

When popping prepackaged popcorn; Place carefully so the bag does not touch the oven walls. Fold each end of the bag in half toward the center top of the bag.

MICROWAVING MADE EASY

Oven - guided cooking is a group of exciting new features to make microwaving easier. Your new microwave oven will guide you, step-by-step, whether it be simply to reheat food or to defrost and cook food. A blinking indicator informs you of every stage you are at in the process, and prompts you along, each step of the way. And an easy-to-use menu with all the popular food/beverage choice helps you to cook more perfectly because it has been pre-programmed and knows how long to cook, defrost or reheat various food items.

Called: AUTO COOK

MELT

SOFTEN

AUTO DEFROST

EXPRESS DEFROST

AUTO COOK

Auto Cook made easy! Your oven's menu has been preprogrammed to automatically cook food. Tell the oven what you want and how many items there are. Then let your microwave oven cook your selections.

EXAMPLE: To cook 4 slices, of bacon simply follow the steps below.

1. Touch STOP/CLEAR.

1. Touch AUTO COOK.

'Ac-1' appears in the display.

1. Touch number 4.

'4' appears in the display.

1. Touch START/Enter.

Auto Cook

4

START Enter

AUTO COOK CHART

Code	Category	Direction	Amount
Ac-1	Bacon	Place bacon strips on microwave bacon rack for best results. (Use diner plate lined with paper towels if none available.)	2-6 slices
Ac-2	Frozen Roll/Muffin	Remove from display package and place on plate. (If muffins are over 3 oz. each, count as two when keying quantity.)	1-6 pieces. (2-3 ounces each)
Ac-3	Fresh Roll/Muffin	Remove from display package and place on plate. (If muffins are over 3 oz. each, count as two when keying quantity.)	1-6 pieces. (2-3 ounces each)
Ac-4	Beverage	Remove from display package and place on plate. (Be careful! The beverage will be very hot! Sometimes liquids heated in cylindrical containers will splash out when the cup is moved.)	1-2 cups
Ac-5	Chicken Pieces	Place the chicken pieces in an appropriately sized microwavable container, cover with plastic wrap, and vent.	^1/_2 -2.0 lbs
Ac-6	Hot Cereal	Prepare as directed on package and cook. Stir and allow standing time before eating. Use only instant hot cereal.	1-6 servings

MELT

The oven uses low power to melt foods (butter, chocolate, marshmallows and cheese). See the following table.

EXAMPLE: To Melt 8 oz. Chocolate.

1. Touch STOP/CLEAR.

1. Touch MELT twice.

Melt

1. Touch number 2.

2

1. Touch START/Enter.

START Enter

MELT TABLE

Code	Category	Direction	Amount
1	Butter/Margarine	Unwrap and place in microwavable container. No need to cover butter. Stir at the end of cooking to complete melting.	1, 2 or 3 sticks
2	Chocolate	Chocolate chips or squares of baking chocolate may be used. Unwrap squares and place in microwavable container. Stir at the end of cycle to complete melting.	4 or 8 oz.
3	Cheese	Use processed cheese food only. Cut into cubes. Place in a single layer in microwavable container. Stir at the end of cooking to complete melting.	8 or 16 oz.
4	Marsh-mallows	Large or miniature marshmallows may be used. Place in microwavable container. Stir at the end of cycle to complete melting.	5 or 10 oz.

SOFTEN

The oven uses low power to soften food (butter, ice cream, cream cheese, and frozen juice). See the following table.

EXAMPLE: To Soften a quart Ice Cream.

1. Touch STOP/CLEAR.

1. Touch SOFTEN twice.

Soften

1. Touch number 2.

2

1. Touch START/Enter.

START Enter

SOFTEN TABLE

Code	Category	Direction	Amount
1	Butter	Unwrap and place in microwavable container. No need to cover butter. Butter will be at room temperature and ready for use in recipe.	1, 2 or 3 sticks
2	Ice Cream	Place container in oven. Ice cream will be soft enough to make scooping easier.	Pint, Quart, Half gallon
3	Cream Cheese	Unwrap and place in microwavable container. Cream cheese will be at room temperature and ready for use in recipe.	3 or 8 oz.
4	Frozen Juice	Remove top. Place in oven. Frozen juice will be soft enough to easily mix with water.	6, 12 or 16 oz.

AUTO DEFROST

The AUTO DEFROST feature is an accurate defrosting method for frozen ground meat poultry fish up to 6.0 lbs or 4.0 kg.

The oven automatically determines required defrosting times for each food item according to the weight you enter.

Simply tell the oven the type of your frozen food and enter the food weight. The oven calculates the rest.

For added convenience, the AUTO DEFROST Feature contains a built-in beep mechanism that lets you check, turn over, separate or rearrange as recommended in the express defrost chart in the last.

Three different defrosting levels are provided:

1 MEAT
2 POULTRY
3 FISH

EXAMPLE: To defrost 1.2 lbs of ground beef.

1. Touch STOP/CLEAR.

1. Touch AUTO DEFROST once.

Auto Defrost

1. Touch number 1 and 2.

1 2

1. Touch START/Enter.

START Enter

NOTE:

When you touch the START pad, the display changes to defrost time count down. The oven will beep during the DEFROST cycle. At each beep, open the door and turn over, separate, or rearrange the food. Remove any portions that have thawed. Return frozen portions to the oven and touch START to resume the defrost cycle.

For best results, remove fish, shellfish, meat, and poultry from its original closed paper or plastic package (wrapper). Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the foods to cook.
■ For best results, shape your ground meat into the form of a doughnut before freezing. When defrosting, scrape off thawed meat when the beep sounds and continue defrosting.
■ Place foods in a shallow container or on a microwave roasting rack to catch drippings.
■ Food should still be somewhat icy in the center when removed from the oven.

EXPRESS DEFROST

The EXPRESS DEFROST feature provides you with the quick defrosting method for 1.0 pound frozen foods.

EXAMPLE: To defrost 1lb food.

1. Touch STOP/CLEAR.

1. Touch EXPRESS DEFROST.

Express Defrost

1. Time counting down automatically.

Ez ON

A time-saving pad, this simplified control lets you quickly set and start microwave cooking without the need to touch START.

NOTE: If you touch Ez-On, it will add 30 seconds up to 3 minutes; after 3 minutes, every touch will add 1 minute up to 99 min 59 seconds.

EXAMPLE: To set EZ ON

cooking for 1 minute.

1. Touch STOP/CLEAR.

2. Touch EZ-ON 2 times.

3. The oven begins cooking 1 minute and display shows time counting down.

ENERGY SAVING

STOP

CLEAR

Ez-On

KITCHEN TIMER

You can use the Kitchen Timer of your oven for purposes other than food cooking.

Example :

To count 3 minutes for an egg or telephone call.

1. Touch STOP/CLEAR.

2. Touch KITCHEN TIMER.

3. Touch numbers for time.

Example : 3 minutes.

Touch number key pads. [3], [0] and [0].

1. Touch START/Enter.

ENERGY SAVING

STOP

CLEAR

Kitchen Timer

300

START

Enter

MORE / LESS

By using the MORE or LESS keys, AUTO COOK, and COOK TIME program can be adjusted to cook food for a longer or shorter time. Pressing MORE will add 10 seconds to the cooking time each time you press it. Pressing LESS will subtract 10 seconds of cooking time each time you press it.

NOTE:

Press the MORE or LESS pad during time countdown.

Example: If you want to adjust the RICE (1 cup) cooking time for a longer time period.

1. Touch STOP/CLEAR.

2. Touch 1, 0, 0.

3. Touch START/Enter.

4. Touch MORE or LESS.

ENERGY SAVING

STOP

CLEAR

100

START

Enter

V

Less

^

More

ENERGY SAVING

ENERGY SAVING feature saves energy by turning off the display. This feature only operates when the STOP/Clear (ENERGY SAVING) button is touched and then cancels when the door is opened or any button is touched.

Touch STOP/CLEAR

The display will go out and ENERGY SAVING will be active.

Touch STOP/CLEAR or any other button to cancel this feature when it is on.

TIME COOKING

This basic microwave cooking method allows you to cook food for a time period that you determine.

Set the time, and press START. Your oven begins cooking using its maximum power (HI POWER)

Foods with high moisture content should be cooked on maximum power, as this is the fastest cooking method and best maintains the natural flavour and texture of the foods.

EXAMPLE: To cook food on HI POWER for a 3 minutes 30 seconds.

1. Touch STOP/CLEAR.

2. Touch TIME COOK.

3. Enter cooking time by touching the number pads. Touch [3], [3] and [0]

4. Touch START/Enter.

Time Cook

3 3 0

START Enter

USING MULTI-POWER LEVELS

For foods requiring slower cooking, your oven also provides 10 different power settings.

The Multi-Power feature lets you choose a lower power level over the automatic HI (maximum oven power), so that food can be cooked more slowly.

Refer to the Multi-Power Setting Guide for the most suitable cooking level of various foods.

EXAMPLE: To cook food on 80% Power (Power 8) for a 5 minutes 30 seconds.

1. Touch STOP/CLEAR.
2. Touch TIME COOK.
3. Enter cooking time by touching the number pads. Touch [5], [3] and [0]
4. Touch POWER LEVEL.
5. Touch 8.
6. Touch START/Enter.

Time Cook

5 3 0

Power Level

8

START Enter

MULTI-POWER SETTING GUIDE

POWER LEVEL	OUTPUT (OF WATTS)	COOKING EXAMPLES
0	0	Standing timeIndepartment timer
1	10%	Softening cream cheese.Keeping casseroles and main dishes warm.
2	20%	Softening chocolate. Heating breads, rolls, pancakes, tacos, tortillas and French toast. Clarifying butter.Taking the chill out of fruit. Heating small amounts of food.
3	30%	Thawing bread, small quantity of most food.Completing the cooking cycle of casseroles, stews and sauces.Cooking small quantities of most food.
4	40%	Cooking less tender cuts of meat in liquid or slow-cooking dishes.Completing the cooking cycle of less tender roasts.
5	50%	Cooking stews and soups after bringing to a boil.Cooking baked custards and pasta.
6	60%	Cooking scrambled eggs. Baking cakes.
7	70%	Cooking rump roast, ham, veal and lamb.Cooking cheese dishes.Cooking eggs and milk.
8	80%	Reheating precooked or prepared food quickly.
9	90%	Cooking onions, celery and green peppers quickly.Reheating meat slices quickly.
10(HIGH) Automatic	100%	Cooking poultry, fish, vegetables and most casseroles.Preheating the browning dish. Boiling water.

MULTI-STAGE COOKING

Multi-stage cooking lets you program up to 2 different cooking stages in advance-each stage with a different power level and time settings.

When START is pressed, the oven begins the first stage and automatically proceeds to the second and the third stage.

Two beep sound between stages.

When all programmed stages are over, four short tones sound and COOK END shows in the display window.

EXAMPLE: To cook and simmer spaghetti sauce, here is how to set all two stages at the beginning.

First Stage (10 minutes, power level: HI)

1. Touch STOP/CLEAR.

2. Touch TIME COOK.

3. Enter 10 minutes by touching [1], [0], [0] and [0].

Second Stage (8 minutes, power level: 7 (70))

1. Touch TIME COOK.

2. Enter 8 minutes by touching [8], [0], and [0].

3. Touch POWER LEVEL.

4. Touch 7.

5. Touch START/Enter.

Time Cook

1000

Time Cook

800

Power Level

7

START Enter

COOKING TIPS

⚠ WARNING: Do not use aluminum foil during cooking cycle.

COOKING TIPS

Meat

1. No special techniques are required. Meat should be prepared as with conventional cooking. Season if desired. Always thoroughly defrost meat before cooking.
2. Place the meat on a microwave roasting rack or microwave-proof plate and place on the turntable.
3. Cook according to the Meat Cooking Table (below). Use the longer time for large cuts of meats and the shorter time for small cuts of meats. For thicker chops, use the longer time.
4. Turn the meat once halfway through the cooking time.
5. Let stand for 5\~10 minutes wrapped in foil after cooking. The standing time is very important as it completes the cooking process.
6. Make sure meat, especially pork, is thoroughly cooked before eating.

Meat Cooking Table

Meat	Microwave Power	Cooking Time Per Pound
BEEFStanding/Rolled Rib– Medium– Well-doneGround Beef (to brown for casserole)Hamburgers, Fresh or defrosted (4 oz. each)– 2 patties– 4 patties	88HIGH (100%)	9^1/2 to 1^1/2 minutes 11^1/2 to 14 minutes 6^1/2 to 9^1/2 minutes
	HIGH (100%)	2^1/2 to 4^1/2 minutes 3^1/2 to 5^1/2 minutes
PORKLoin, Leg Bacon– 4 slices– 6 slices	8HIGH (100%)HIGH (100%)	12^1/2 to 16^1/2 minutes 2^1/2 to 3^1/2 minutes 3^1/2 to 4^1/2 minutes

NOTE: The times listed above are only a guide. Allow for difference in individual tastes and preferences. The times may also vary due to the shape, cut, and composition of the food.

Poultry

1. No special techniques are required. Poultry should be prepared as with conventional cooking. Season if desired.
2. Poultry should be thoroughly defrosted. Remove giblets and any metal clamps.
3. Prick the skin and brush lightly with vegetable oil unless the poultry is self-basting.
4. All poultry should be placed on a microwave roasting rack or a microwave-proof plate and placed on the turntable.
5. Cook according to the instructions in the Poultry Cooking Table below. Turn over halfway through the cooking time. Because of its shape, poultry has a tendency to cook unevenly, especially in very bony parts. Turning during roasting helps to cook these areas evenly.
6. Let stand for 5\~10 minutes wrapped in foil after cooking before carving. The standing time is very important, since it completes the cooking process.
7. Make sure poultry is thoroughly cooked before eating. Whole poultry is completely cooked when the juices run clear from the inside thigh when it is pierced with a sharp knife. Poultry pieces should be pierced with a sharp knife through the thickest part to ensure that the juices are clear and the flesh is firm.

Poultry Cooking Table

Poultry	Microwave Power	Cooking Time Per Pound
CHICKENWholeBreast (boned)Portions	888	11 to 15 minutes10 to 14 minutes11 to 17 minutes
TURKEYWhole	8	11 to 15 minutes

NOTES:

• The times listed above are only a guide. Allow for difference in individual tastes and preferences. The times may also vary due to the shape, cut, and composition of the food.
• If whole poultry is stuffed, the weight of the stuffed bird should be used when calculating the cooking time.

COOKING TIPS

COOKING TIPS (continued)

Fish

1. Arrange fish in a large shallow non-metallic dish or casserole.
2. Cover with pierced microwave plastic wrap or casserole lid.
3. Place the dish on the turntable.

4. Cook according to the instructions in the Fresh Fish Cooking Table below. Flakes of butter can be added to the fish if desired.

5. Let stand as directed in the Cooking Table before serving.

6. After standing time, check to see that the fish is thoroughly cooked. The fish should be opaque and flake easily.

Fresh Fish Cooking Table

Fish	Microwave Power	Cooking Time Per Pound	Butter	Standing Time
Fish Fillets	HIGH	4^1/_2 to 8 minutes	Add 15 to 30 ml (1 to 2 tbsp lemon juice)	2 to 3 minutes
Whole Mackerel, Cleaned and Prepared	HIGH	4^1/_2 to 8 minutes	-	3 to 4 minutes
Whole Trout, Cleaned and Prepared	HIGH	5^1/_2 to 9 minutes	-	3 to 4 minutes
Salmon Steaks	HIGH	5^1/_2 to 8 minutes	Add 15 to 30 ml (1 to 2 tbsp lemon juice)	3 to 4 minutes

HEATING OR REHEATING GUIDE

To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure the amount of food in order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room temperature food will heat faster than refrigerated food. Canned foods should be taken out of the can and placed in a microwavable container. The food will be heated more evenly if covered with a microwavable lid or plastic wrap and vented. Remove cover carefully to prevent steam burns. Use the following table as a guide for reheating cooked food.

Items Cook time	Special Instructions(at HIGH)
Sliced meat Place sliced meat on microwavable plate.3 slices (1/4-inch thick) 1-2 minutes Cover with plastic wrap and vent.		*Note: Gravy or sauce helps to keep meat juicy.
Chicken pieces1 breast 2-31/2 minutesPlace chicken pieces on microwavable plate. Cover with plastic 1 leg and thigh 11/2-3 minutes wrap and vent.
Fish fillet Place fish on microwavable plate. Cover with plastic wrap and(6-8 oz.) 2-4 minutes vent.
Lasagna Place lasagna on microwavable plate. Cover with plastic wrap1 serving (101/2 oz.) 6-8 minutes and vent.
Casserole1 cup 1-31/2 minutes COOK covered in microwavable casserole. Stir once halfway4 cups5-8 minutes through cooking.
Casserole –cream or cheese1 cup 11/2-3 minutes COOK covered in microwavable casserole. Stir once halfway4 cups31/2-51/2minutesthrough cooking.
Sloppy Joe orBarbecued beef1 sandwich1-21/2minutesReheat filling and bun separately.(1/2 cup meat filling)without bun1 -21/2minutesCook filling covered in microwavable casserole. Stir once. Heatbun as directed in table below.
Mashed potatoes1 cup 1-3 minutes COOK covered in microwavable casserole. Stir once halfway4 cups5-8 minutes through cooking.
Baked beans1 cup11/2-3 minutesCOOK covered in microwavable casserole. Stir once halfway through cooking.
Ravioli or pasta in sauce1 cup21/2-4 minutes COOK covered in microwavable casserole. Stir once halfway4 cups71/2-11 minutesthrough cooking.
Rice1 cup 11/2-31/2minutesCOOK covered in microwavable casserole. Stir once halfway4 cups4-61/2minutes through cooking.
Sandwich roll or bun1 roll15-30 secondsWrap in paper towel and place on glass microwavable rack
Vegetables1 cup11/2-21/2minutesCOOK covered in microwavable casserole. Stir once halfway4 cups4-6 minutesthrough cooking.
Soup1 serving (8 oz.)11/2-21/2minutesCOOK covered in microwavable casserole. Stir once halfway through cooking.

FRESH VEGETABLE TABLE

Vegetable	Amount	Cook timeat HIGH Time	StandingInstructions
Artichokes 2 medium(8oz. each) 4 medium	5~8 Trim.Add 10~13	2 tsp water and 2 tsp juice. Cover. 2-3 minutes
Asparagus, 1lb. 3~6Fresh, Spears	Add		^1/_2 cup water. Cover. 2-3 minutes
Beans, Green & 1 lbWax	6~10	Add	^1/_2 cup water in 1^1/_2 qt. casserole. Stirhalfway through cooking.	2-3 minutes
Beets, Fresh	1 lb. 10~14	Add	^1/_2 cup water in 1^1/_2 qt. covered casserole.Rearrange halfway through cooking.	2-3 minutes
Broccoli, Fresh,Spears	1lb. 4~6	Place broccolin baking dish. Add	^1/_2 cup water.	2-3 minutes
Cabbage, Fresh,Chopped	1lb. 4~6	Add	^1/_2 cup water in 1^1/_2 qt. covered casserole.Stir halfway through cooking.	2-3 minutes
Carrots, Fresh,Sliced	2 cups	2~4 Add	^1/_4 cup water in 1 qt. covered casserole.Stir halfway through cooking.	2-3 minutes
Cauliflower,Fresh, Whole	1lb.	4~6 Trim. Add	^1/_4 cup water in 1 qt. covered casserole.Stir halfway through cooking.	2-3 minutes
Flowerettes, FreshCelery, Fresh,Sliced	2 cups4 cups	2^1/_2 ~44~6 Stir	Slice. Add ^1/_2 cup water in 1^1/_2 qt. covered casserole. Halfway through cooking.	2-3 minutes
Corn, Fresh	2 ears	4~8	Husk. Add 2 tbsp water in 1^1/_2 qt. baking dish.Cover.	2-3 minutes
Mushrooms,Fresh, Sliced	1/2 lb.	23^1/_2	Place mushrooms in 1^1/_2 qt. covered casserole.Stir halfway through cooking.	2-3 minutes
Parsnips, Fresh, 1lb.Sliced	4~6 Add		^1/_2 cup water in 1^1/_2 qt. covered casserole.Stir halfway through cooking.	2-3 minutes
Peas, Green, 4 cupsFresh	6~8	Add	^1/_2 cup water in 1^1/_2 qt. covered casserole.Stir halfway through cooking.	2-3 minutes
Sweet PotatoesWhole Baking(6-8 oz. each)	2 medium4 medium	5~87~12	Pierce potatoes several times with fork.Place on 2 paper towels.Turn over halfway through cooking.	2-3 minutes2-3 minutes
White Potatoes,Whole Baking(6-8 oz. each)	2 potatoes4 potatoes	6~910~14	Pierce potatoes several times with fork.Place on 2 paper towels.Turn over halfway through cooking.	2-3 minutes2-3 minutes
Spinach, Fresh,Leaf	1lb. 3~6	Add	^1/_2 cup water in 2 qt. covered casserole.	2-3 minutes
Squash, Acorn orButternut, Fresh	1 medium	5~7	Cut squash in half. Remove seeds.Place in 8 x 8-inch baking dish. Cover.	2-3 minutes
Zucchini, Fresh,Sliced	1lb.	4~6	Add ^1/_2 cup water in 1^1/_2 qt. covered casserole.Stir halfway through cooking.	2-3 minutes
Zucchini, Fresh,Whole	1lb.	5~8	Pierce. Place on 2 paper towels.Turn zucchini over and rearrange halfway through cooking.	2-3 minutes

TROUBLESHOOTING

Questions and Answers

Operation

Question	Answer
Why is the oven light not on during cooking?	There may be several reasons why the oven light is not on.Have you:Set a cooking time?Touched START?Checked the light bulb?
Why does steam come out of the air exhaust vent?	Steam is normally produced during cooking. The microwave oven has been designed to vent this steam.
Will the microwave oven be damaged if it operates empty?	Yes. Never operate the oven empty or without the glass turntable.
Does microwave energy pass through the viewing screen in the door?	No. The metal screen bounces the energy back to the oven cavity.The holes (or ports) allow only light to pass through. They do not let microwave energy pass through.
Why does a tone sound when a pad on the control panel is touched?	The tone tells you that the setting has been entered.
Can my microwave oven be damaged if food is cooked for too long?	Like any other cooking appliance, it is possible to overcook food to the point that the food creates smoke and even possibly fire, and damage to the inside of the oven. It is always best to be near the oven while you are cooking.
When the oven is plugged into wall outlet for the first time, it might not work properly.What is wrong?	The microcomputer controlling your oven may temporarily become scrambled and fail to function as programmed when you plug in for the first time or when power resumes after a power interruption. Unplug the oven from the 120 volt household outlet and then plug it back in to reset the microcomputer.
Why do I see light reflection around the outer case?	This light is from the oven light which is located between the oven cavity and the outer wall of the oven.
What are the various sounds I hear when the microwave oven is operating?	The clicking sound is caused by a mechanical switch turning the microwave oven's magnetron ON and OFF.The heavy hum and clunk is from the change in power the magnetron draws as it is turned ON and OFF by a mechanical switch.The change in blower speed is from the change in line voltage caused by the magnetron being turned ON and OFF.

Food

Question	Answer
What is wrong when baked foods have a hard, dry, brown spot?	A hard, dry, brown spot indicates overcooking. Shorten the cooking or reheating time.
Why do eggs sometimes pop?	When baking, frying, or poaching eggs, the yolk may pop due to steam build-up inside the yolk membrane. To prevent this, simply pierce the yolk with a wooden toothpick before cooking.CAUTION: Never microwave eggs in the shell.

TROUBLESHOOTING

Questions and Answers (continued)

Food

Question	Answer
Why are scrambled eggs sometimes a little dry after cooking?	Eggs will dry out when they are overcooked, even if the same recipe is used each time. The cooking time may need to be varied for one of these reasons:• Eggs vary in size.• Eggs are at room temperature one time and at refrigerator temperature another time.• Eggs continue cooking during standing time.
Is it possible to pop popcorn in a microwave oven?	Yes, if using one of the two methods described below:(1) microwave-popping devices designed specifically for microwave cooking(2) prepackaged commercial microwave popcorn that is made for specific times and power output neededFollow exact directions given by each manufacturer for its popcorn popping product and do not leave the oven unattended while the corn is being popped. If corn fails to pop after the suggested time, discontinue cooking. Overcooking could result in an oven fire.CAUTION:• Never use a brown paper bag for popping corn or attempt to pop leftover kernels.• Do not pop prepackaged commercial microwave popcorn directly on the glass turntable. To avoid excessive heating of the glass turntable, place the popcorn bag on a plate.• Listen while corn pops. Stop oven when popping slows to 2-3 seconds between pops.• Do not leave microwave unattended while popping corn.• Follow directions on bag.
Why do baked apples sometimes burst during cooking?	The peel has not been removed from the top half of each apple to allow for expansion of the interior of the apple during cooking. As in conventional cooking methods, the interior of the apple expands during the cooking process.
Why do baked potatoes sometimes burn during cooking?	If the cooking time is too long, fire could result. At the end of the recommended cooking time, potatoes should be slightly firm.CAUTION: Do not overcook.
Why is a standing time recommended after microwave cooking time is over?	Standing time allows foods to continue cooking evenly for a few minutes after the actual microwave oven cooking cycle. The amount of standing time depends upon the density of the foods.
Why is additional time required for cooking food stored in the refrigerator?	As in conventional cooking, the initial temperature of food affects total cooking time. You need more time to cook food taken out of a refrigerator than for food at room temperature.

TROUBLESHOOTING

Before Calling for Service

You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating problem in the list below and try the solutions listed for each problem.

If the microwave oven still does not work properly, contact the nearest GoldStar Authorized Service Center.

GoldStar Authorized Service Centers are fully equipped to handle your service requirements.

Problem	Possible Causes
Oven does not start	• Is the power cord plugged in?• Is the door closed?• Is the cooking time set?
Arcing or Sparking	• Are you using approved cookware?• Is the oven empty?
Incorrect time of day	• Have you tried to reset the time of day?
Unevenly Cooked Foods	• Are you using approved cookware?• Is the glass turntable in the oven?• Did you turn or stir the food while it was cooking?• Were the foods completely defrosted?• Was the time/cooking power level correct?
Overcooked Foods	• Was the time/cooking power level correct?
Undercooked Foods	• Are you using approved cookware?• Were the foods completely defrosted?• Was the time/cooking power level correct?• Are the ventilation ports clear?
Improper Defrosting	• Are you using approved cookware?• Was the time/cooking power level correct?• Did you turn or stir the food during the defrosting cycle?

WARNING: This product contains chemicals known to the State of California

to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

LG ELECTRONICS CANADA, INC. LIMITED WARRANTY · Canada

WARRANTY: Should your LG Microwave ("Product") fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty (60) days from the date of manufacture).
Over-the-Range / All Convection / Microwaves in Built-in application / All other Microwave Oven	Extended Component Warranty (Parts Only)
Two (2) years from the date of origina retail purchaseretail purchase	Five (5) years from the date of original retail purchase
Parts and Labor (In-Home ; OTR & Convection) (internal/functional parts only)	Magnetron Only

Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
© LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE.

LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE.

This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner's manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined in the Product owner's manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner's and installation manuals.
17. Accessories to the Product such as door bins, drawers, handles, shelves, etc.. Also excluded are parts besides those that were originally included with the Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.com

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

MANUEL DE L'UTILISATEUR

FOUR À MICRO-ONDES

LISEZ ATTENTIVEMENT CE MANUEL

AVANT DE METTRE L'APPAREIL EN MARCHE.

LSRM2010**

Black and white barcode image with vertical lines and patterns

MFL38260010

TABLE DES MATIÈRES

Sécurité 3-4

Fonction plus/moins (more/less) 20

ené'D eignienocÉ.... 21

Cuisson minutée 21

1. Appuyez surSTART/Enter.

Kitchen Timer

300

START Enter

FONCTION PLUS/MOINS (MORE/LESS)
