Product Type	4K Ultra HD LED TV
Brand	Haier
Model	H43K800UX
Screen Size	43 inches (109 cm)
Resolution	3840 x 2160 pixels (4K UHD)
Aspect Ratio	16:9
TV System	PAL-B/G, SECAM-B/G, DVB-T, DVB-C, DVB-T2, DVB-S2
Video System	PAL / SECAM / NTSC
Power Consumption	100 W
Power Supply	100-240 V~, 50/60 Hz
Audio Power	2 x 8 W (THD ≤ 7%)
HDMI Inputs	4 (including 1 with eARC/ARC)
USB Inputs	2 (5V, 200mA)
Antenna Input	1 (RF, 75 Ω)
Satellite Input	1 (LNB IN)
AV Input	1 (composite video + L/R audio)
Digital Audio Output	1 (optical)
Headphone Output	1
Network Connectivity	1 LAN port (Ethernet), Built-in Wi-Fi
Common Interface	1 (CI)
Number of Storable Channels	DVB-T2: 1000, DVB-C: 1000, ATV: 99
Weight (approx.)	Approximately 10 kg
Dimensions (without stand, approx.)	960 x 560 x 80 mm (W x H x D)
Smart Functions	Google TV, Google Assistant, Netflix, Prime Video, YouTube
Energy Class	Not specified

Frequently Asked Questions - H43K800UX HAIER

How to turn on the Haier H43K800UX TV?

Use the Power button located on the front panel or on the remote control. If the LED indicator is red, the TV is in standby; press to start.

How to connect a TV antenna?

Connect the antenna cable (75 Ω) to the ANT IN jack at the back of the TV. Make sure to tighten the connector. For a satellite antenna, use the LNB IN input.

How to access Netflix or YouTube apps?

Press the NETFLIX or YouTube button on the remote control. Make sure the TV is connected to the Internet via Wi-Fi or Ethernet.

What to do if the remote control doesn't work?

First check the batteries (type AAA, 1.5V) and replace if necessary. Then make sure there is no obstacle between the remote and the sensor. If the problem persists, you can use the front panel buttons.

How to adjust volume or change channels without the remote?

Use the front panel buttons: VOL+/VOL- for volume and CH for channels. The Power button turns the TV on/off.

How to connect an external device (DVD player, console)?

Use an HDMI cable for digital connection (HD/4K quality). Connect it to one of the HDMI inputs at the back. For older devices, use the AV input with yellow (video), red and white (audio) cables.

How to perform the first setup of the TV?

Turn on the TV for the first time. The setup wizard appears. Follow the steps: select language, region, connect to Wi-Fi, accept Google terms, set a PIN, and choose usage mode (home or store).

The TV displays 'No signal'. What to do?

Check that the selected input source (HDMI, TV, etc.) is correct. Make sure the cable is properly connected and the source device is on. If using an antenna, perform a channel scan via the menu.

How to clean the TV screen?

Turn off and unplug the TV. Use a soft, dry cloth to gently wipe the screen. Never use chemicals, alcohol, or solvents. For stubborn stains, slightly dampen the cloth with water.

What are the important safety precautions?

Do not expose the TV to rain or moisture. Do not block ventilation openings. Use a stable stand. During storms or prolonged absence, unplug the device. For any repairs, contact a qualified technician.

USER MANUAL H43K800UX HAIER

Please READ this manual carefully before operating your TV, and retain it for future reference

IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20) Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Illustration of a computer monitor with arrows indicating signal flow and a crossed-out hand symbol (no text or labels)

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Illustration of a TV with a cross symbol crossed out, next to a rope tied to a bag (no text or symbols present)

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen TV with stand (no text or symbols)

Do not trap the power supply cord under the television receiver.

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame, no text or symbols present.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

Illustration of a person reacting to a computer screen with a magnifying glass (no text or symbols present)

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Main features

① Used as Television, display terminal;
② High luminance, wide viewing angle;
③ Can store Air and Cable TV programs;
④ HDMI interface;
⑤ Multi-Media player (USB);

Accessories

Remote Controller.....2

User's Manual....1

Main parameter

Viewing Picture Size (Diagonal)	43 inch	50 inch	55 inch 65 inch
Resolution	3840x21603840x2160		3840x2160 3840x2160
Aspect Ratio	16:9
TV System	PAL-B/G, SECAM-B/G, DVB-T, DVB-C, DVB-T2,DVB-S2
Video Signal System	PAL/NTSC/SECAM
Receiving Channel	DVB-T2:1000, DVB-C:1000, ATV:99
Input Power Voltage	100-240V~50/60Hz
Power consumption	100W	120W	150W 170W
Audio Output Power (THD 5%)	2 x8W	2 x10W
Signal input/output	High-Definition Multimedia Interface( HDMI) x 4Composite Video Input x 1Audio Input x 1LAN Input x 1USB x 2OPTICAL OUTPUT x 1HEADPHONE OUTPUT x 1RF x 1LNB IN x 1CI x 1
Horizontal definition (TV line)	Composite Video input >=350

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

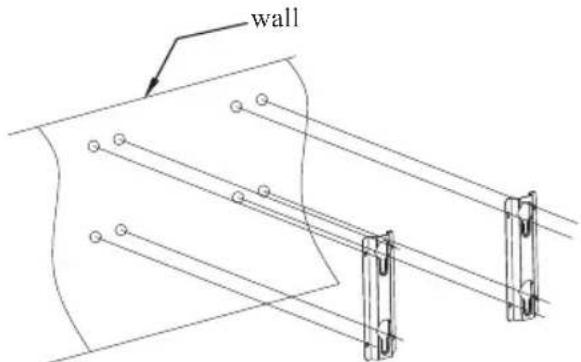

Step One: Use the expansion bolts(4*36PWA) to fix the wall mount brackets into the wall.

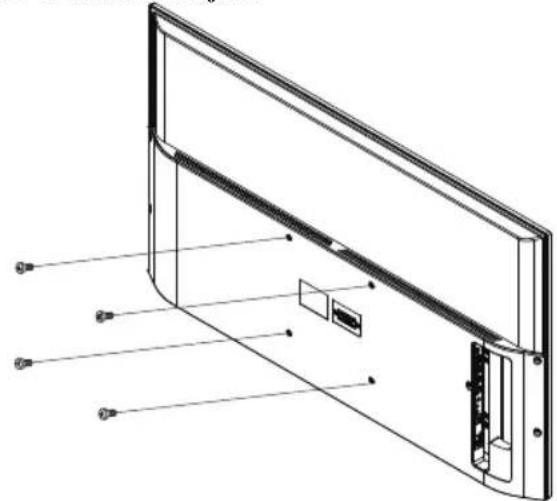

Step Two: Fix the wall mount screws (43":M6x8mm, 50":M6x12mm,55"/65":M6x16mm/4pcs) into the rear side of the LCD TV, using the tongue of 8kgf.cm.

* The TV appearance subject to material object.

Technical line drawing of a door panel with labeled components (no text or symbols present)

Step Three: Put the LCD TV with wall mount screws onto the wall mount brackets.

Warning: the angle between the TV and wall must not be bigger than 3°.

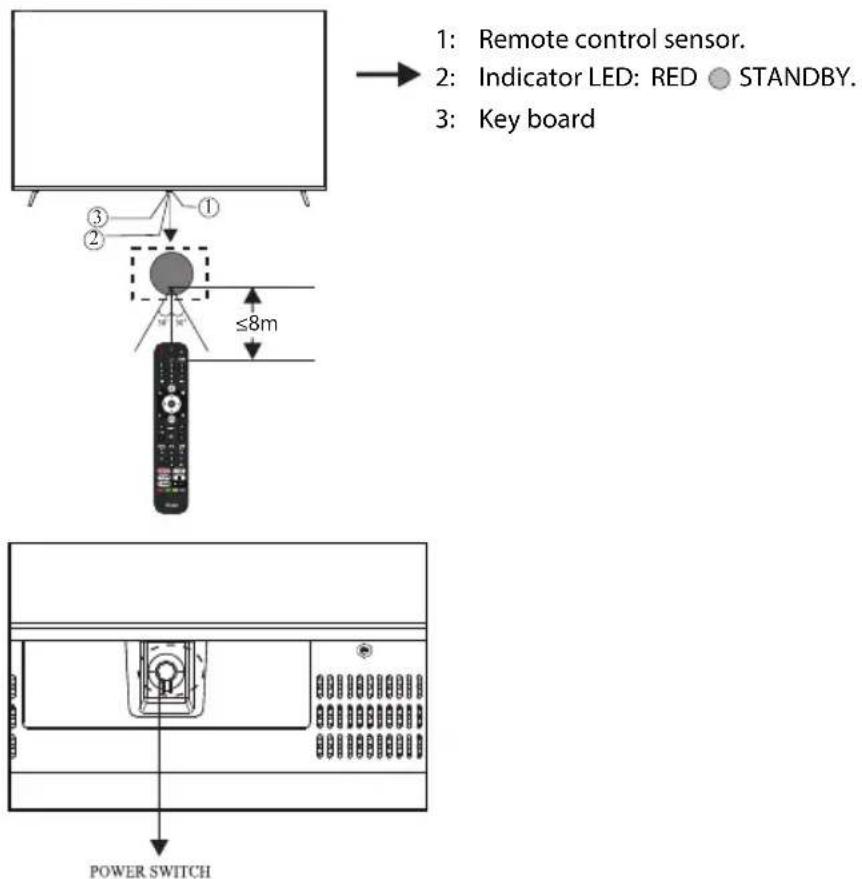

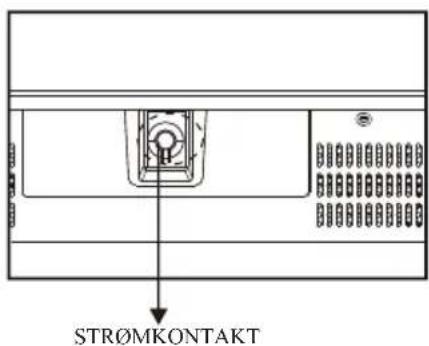

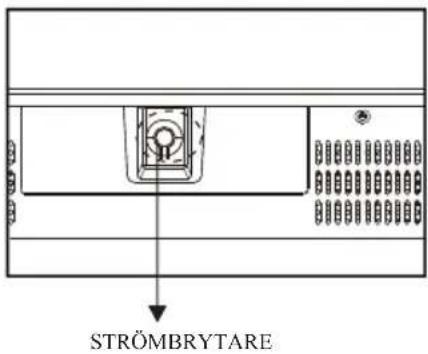

Front panel

(1) In the standby mode - Press the button to start the TV.

(2) In the boot state - Press the button to shut down.

REAR AV Connections (SIDE)

All the terminals are (from left to right): HDMI1(eARC/ARC), LNB IN, ANT IN, USB, CI, EARNPHONE output.

REAR AV Connections

All the terminals are (from left to right): RJ45, OPTICAL output, VIDEO, AUDIO input(L/R), HDMI4, HDMI3, HDMI2.

Note: When HDMI port get DVI signal, the audio signal receives from the AV Audio channel.

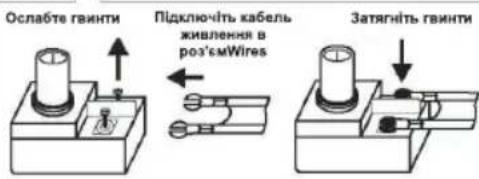

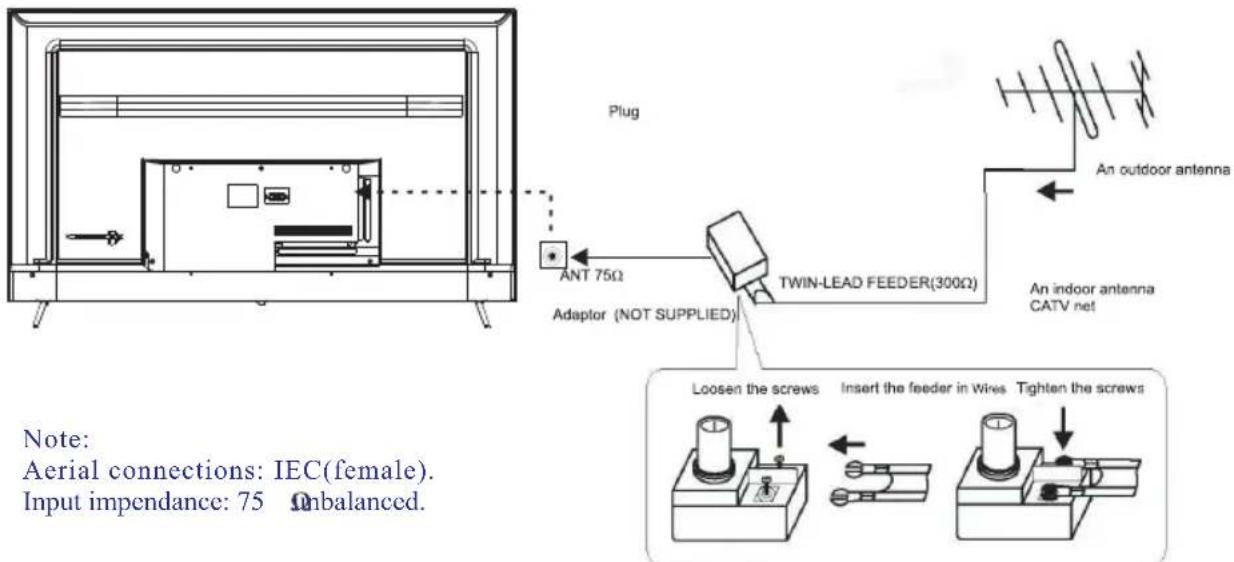

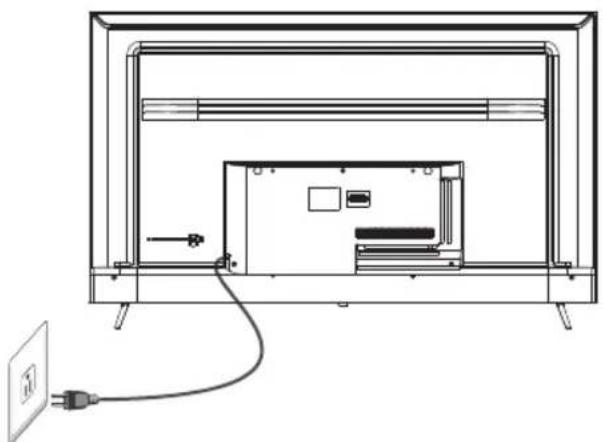

ANTENNA

Line drawing of a TV set with cable and power outlet, no text or symbols present

PRESET MODE (HDMI)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

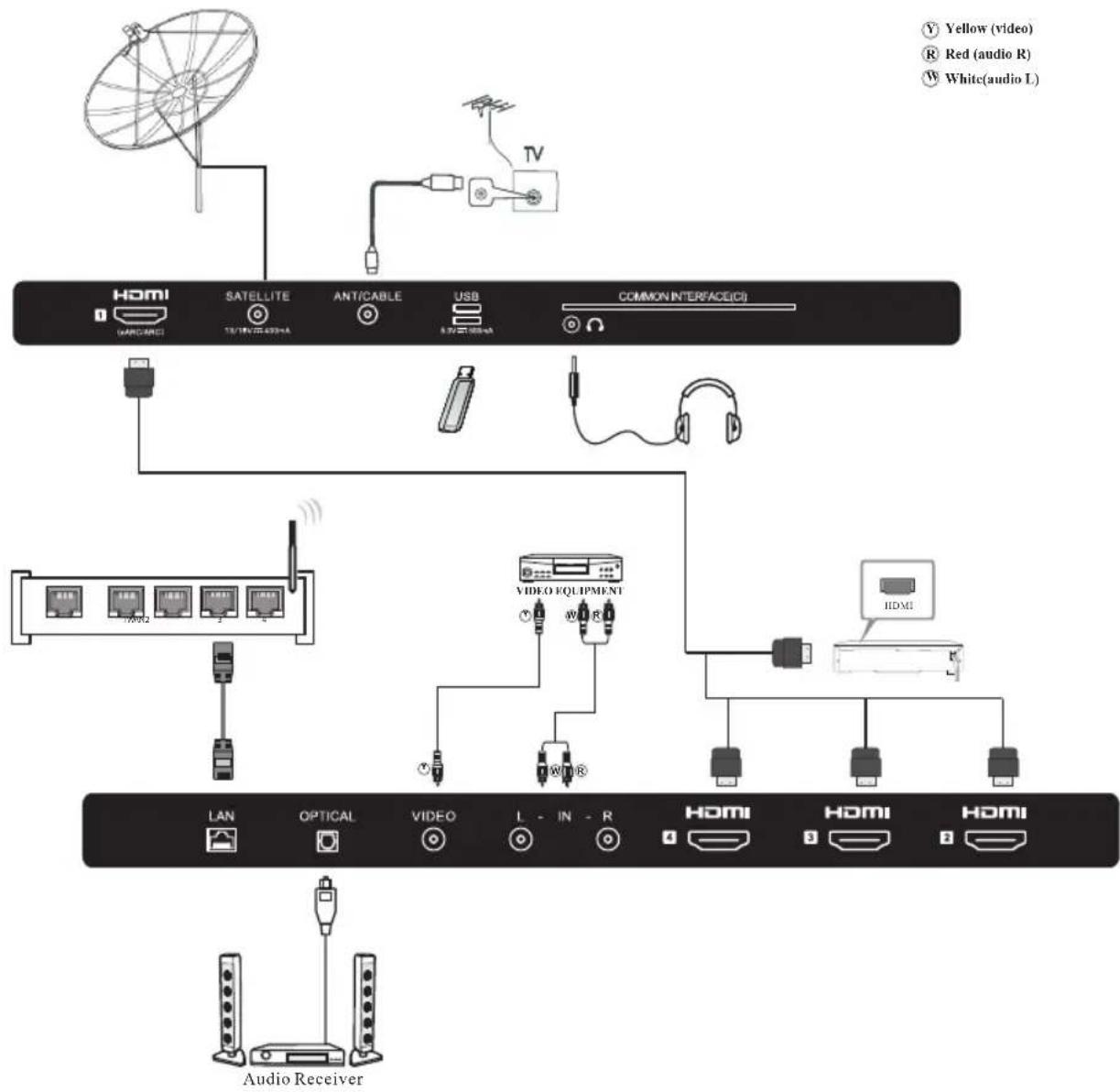

AV EQUIPMENT

This TV provides one group of AV for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc.....

Note:

1. When HDMI port get DVI signal, the "Audio" channel is changed to receive the audio for HDMI port.
2. Sometimes it will not support in different device because the device supplies nonstandard signal.

#	Item	Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2		Press to open the input source list.
3		Press to open Soft Keyboard.
4	0~9 number	Press to enter a TV channel number.
5	-/--	It depends on the actual function.
6		Press to open the Google Assistant.
7		Choose or add an account.
8	OK	Enter the selected option or perform the selected operation.

#	Item	Descriptions
9	▲▼◀▶	Press to navigate the on-screen menu.
10	←	Return to the previous menu.
11		Press to open the Home Page.
12	MENU≡	Press to open or close the on-screen menu.
13	VOL+/VOL-	Press VOL+ or VOL- to adjust volume level.
14	TEXT	Press to select the teletext mode.
15	SUBTITLE	Open or close subtitle.
16		Press to reverse playback in multimedia & Timeshift mode.
17		Previous track.
18	II	Press to pause in multimedia mode & Timeshift Mode.
19		Press to record the TV program you are watching in DTV mode.
20	NETFLIX	Press to open the NETFLIX.
21	prime video	Press to prime vido for viewing online TV shows and flms (internet connection required).
22	YouTube	Press to open the YouTube.
23	Coloured buttons	Implement the relevant operations according to the prompt at the bottom of the menu in the text.
24		Press to open the mute.
25	MEDIA	Press to open the multimedia player.
26	INFO	Press to display the channel information.
27		Press to open the settings menu.
28		Press to display electronic programme guide in TV mode.
29	CH^ /CH√	Press CH^ or CH√ to change TV channels.
30	EXIT	It depends on the actual function.
31	AUDIO	Switch the soundtrack.
32		Press to fast forward in multimedia &Timeshift mode.
33		Press to play in multimedia mode &Timeshift Mode.
34		Next track
35	FAV	Press to select or remove your favorite channel.
36		Press to stop multimedia playback, REC &Timeshift Mode.
37		Press to open the Live TV.
38		Press to open the all apps pages.
39	YouTube Music	Press to open the YouTube Music.

Remove the cover of the battery compartment. Insert the 2 supplied batteries (Type AAA 1.5V).

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Press ▲/▼ to select the system language and press OK to confirm the language.

Press ▲/▼ to select the region/country of your device and press OK to confirm.

Press ▲/▼ to select the "Set up basic TV" of your device and press OK to complete the setup.

Press ▲/▼ to select the wifi to connect, press OK and enter the password to confirm the Connection is successful.

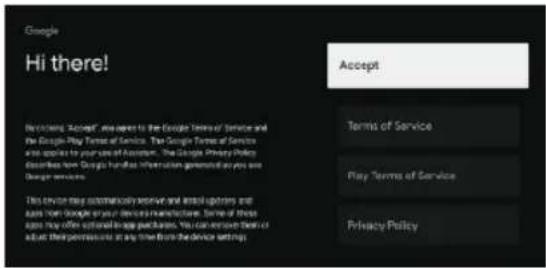

By accepting the Google Terms of Service to improve the product experience, select "Accept" to accept this condition.

Used to set your device's password to ensure security and privacy.

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password automatically jump to the next interface.

Confirm the password again and keep it consistent Use the remote control to enter the password and complete the password.

For selecting the mode, press ▲/▼ key to select Home mode and press "Yes".

Select"Saving Mode" and proceed to the next step.

To select the Tuner mode for searching, press to select and press OK to confirm.

- Once in the user interface, you can switch from basic TV to Google TV settings

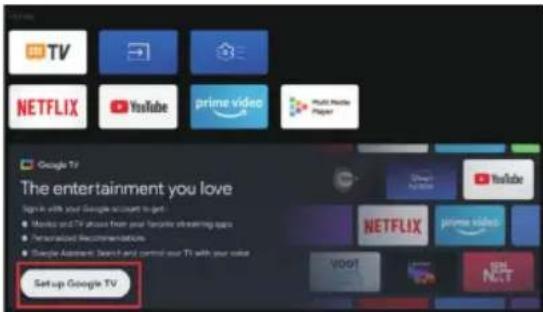

Press ▲/▼ to select the "Set up Google TV" of your device and press OK to complete the setup.

Use your Google Account Sign in. Follow the Google Guide.

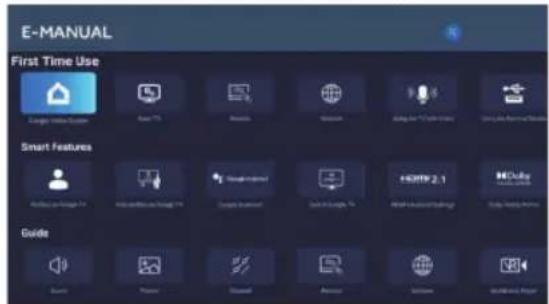

E-Manual

E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV features, access your E-Manual by referring to the following. E-Manual may be available depending on the region or model.

1. Press HOME button to access the home page.
2. Press UP/DONW/LEFT/RIGHT and OK button to select and enter "E-Manual" in "Apps".

Note: The picture is only for reference.

Haier

Haier

MANUAL DEL

USUARIO DEL TELEVISOR LED LCD

MODELO: H43K800UX

H50K800UX

H55K800UX

H65K800UX

Haier

Illustration of a computer monitor with a warning symbol and a hand holding a device (no text or labels)

Simple line drawing of a window with a diagonal X mark and a hanging curtain, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol crossed out, surrounded by stars (no text or symbols)

Simple line drawing of a computer monitor with a fan, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Cartoon illustration of a person climbing a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric object with crosshairs and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular diagram with a document (no text or symbols present)

Simple line drawing of a monitor with a cross symbol and a warning light emitting sound waves (no text or symbols)

1: Sensor de control remote.
2: Indicator LED:ROJO ESPERA
3: Teclado

Diagram of a device rear panel with a central connector and control buttons (no text or labels)

INTERRUPT OR DE ENCENDIDO

Line drawing of a TV setup with an open box, cable, and power outlet (no text or symbols)

PREAJUSTADO (HDMI)

	RESOLUCIÓN	V.Frec.(Hz)	H.Frec.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

EQUIPOS AV

Illustration of a computer monitor with an electrical circuit and a crossed-out cable (no text or symbols)

Illustration of a TV screen with a cross symbol crossed out, next to a rope tied to a curtain (no text or symbols present)

Simple line drawing of a monitor with a cross symbol and stars, no text or symbols present.

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a woman running away from a computer screen next to a CD with a small object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a speaker emitting sound waves (no text or symbols)

Diagram of a computer monitor with an open button and control panel, showing no text or symbols

All the terminals are (from left to right):

RJ45, SORTIE OPTIQUE, VIDEO, entrée audio(L/R), HDMI4, HDMI3, HDMI2.

Line drawing of a TV setup with an attached cable and power outlet (no text or symbols)

MODE SUPPORTÉ (HDMI)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

ÉQUIPEMENT AV

Illustration of a computer monitor with arrows indicating motion and a hand holding a device (no text or symbols present)

Simple line drawing of a window with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a roof and legs, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Cartoon illustration of a person on a computer monitor with a crossed-out 'X' symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person reacting to a computer screen with a magnifying glass (no text or symbols present)

Technical line drawing of a flat-screen monitor with internal components and connectors (no text or symbols)

Diagram of a device rear panel with a central button and control panel (no text or symbols)

NETZSCHALTER

Line drawing of a TV set with cable and power outlet, no text or symbols present

ERSTELLUNG

Illustration of a computer monitor with a hand holding a device and a crossed-out X (no text or symbols)

Simple line drawing of a monitor with a cross mark and a curtain in the background (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen with a bomb and a circular object nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit fuse and a lamp (no text or symbols)

Technical line drawing of a computer monitor rear panel with labeled components (no text or symbols present)

ВЫКЛЮЧАТЕЛЬ

Line drawing of a TV setup with an attached cable and power outlet (no text or symbols)

Illustration of a computer monitor with a hand holding a device and a crossed-out X symbol (no text or labels)

Simple line drawing of a window with a cross mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a cloud cover (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Simple line drawing of a geometric shape with intersecting lines and a horizontal base (no text or symbols)

Illustration of a person running away from a computer screen with a broken phone to the left (no text or symbols present)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lamp and a small object (no text or symbols)

Technical line drawing of a computer monitor with labeled components (no text or symbols present)

Diagram of a device rear panel with a central button and control buttons, no text or symbols present

INTERRUTTORE DI POTENZA

Illustration of a computer monitor with a hand holding a device and a crossed-out X (no text or symbols)

Simple line drawing of a monitor with a cross mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a curved top and base, emitting steam or heat (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Cartoon illustration of a person holding a crossed-out monitor with a crossed-out fist, symbolizing no change or suppression (no text present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen with a broken phone nearby (no text or symbols)

Technical line drawing of a flat-screen monitor with internal components and labeled ports (no text or symbols present)

ПЕРЕМИКАЧ ЖИВЛЕННЯ

Technical line drawing of a flat-screen TV unit with cable and power outlet (no text or symbols)

Illustration of a computer monitor with arrows indicating motion and a hand holding a pen crossed out (no text or symbols)

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars above (no text or labels)

Simple line drawing of a computer monitor with a roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Cartoon illustration of a person on a computer monitor with a crossed-out 'X' symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular frame, no text or symbols present.

Illustration of a person running away from a computer screen with a magnifying glass (no text or symbols)

Technical line drawing of a flat-screen monitor with labeled ports and connectors (no text or symbols present)

Line drawing of a TV setup with an open box, cable, and power outlet (no text or symbols)

ПЪРВОНАЧАЛНИ НАСТРОЙКИ

Illustration of a computer monitor with an electrical circuit and a crossed-out resistor (no text or symbols)

Diagram showing a monitor with a cross symbol crossed out, next to a hanging bag and a rope (no text or symbols present)

Simple line drawing of a computer monitor with a cross symbol on the screen, surrounded by stars (no text or labels)

Simple line drawing of a computer monitor with a roof and ventilation grille (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with crosshairs and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen with a magnifying glass showing a small icon (no text or symbols present)

Simple line drawing of a monitor with a cross symbol crossed out, next to a ringing alarm clock (no text or symbols)

Technical line drawing of a flat-screen monitor with labeled ports and connectors (no text or symbols present)

1: Fjernbetjeningssensor.
2: Indikator-LED: R∅D ● STANDBY.
3: Tastatur

Line drawing of a flat-screen TV unit with cable and power outlet, no text or symbols present

FORUDINDSTILLET TILSTAND (HDMI)

	OPL∅SNING	V. Frekv. (Hz)	H. Frekv. (KHz)
1	800 * 600	60	37,88
2	1024 * 768	60	48,36
3	1360 * 768	60	47,7
4	1280 * 768	60	47,3
5	1920 * 1080	60	67,5
6	3840 * 2160	30	67,5
7	3840 * 2160	50	112,5
8	3840 * 2160	60	135

AV-UDSTYR

INDLEDENDE OPSÄETNING

Illustration of a computer monitor with arrows indicating motion and a crossed-out hand gesture (no text or symbols)

Simple line drawing of a window frame with a diagonal X mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a base, emitting steam (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Simple line drawing of a geometric shape with intersecting lines and a right-angle bracket, no text or symbols present.

Illustration of a person running away from a computer screen with a magnifying glass showing a small icon (no text or symbols present)

Simple line drawing of a monitor with a 'X' symbol crossed out, next to a warning light emitting sound waves (no text or symbols)

Technical line drawing of a rear panel with labeled components (no text or symbols present)

Line drawing of a TV set with cable and power outlet, no text or symbols present

ESIASETUSTILASSA (HDMI)

	päätöslauselma	V.Freq.(Hz)	H.Freq.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

LAITTEISTO AV

Paina ▲/▼ valitse "Set up basic

Valitse tila painamalla ▲/▼-painiketta valitaksesi Kotitila ja paina "Yes".

Paina ▲/▼ valitaksesi “Set up Google TV” laitteessasi ja viimeistele asetus painamalla OK.

Illustration of a computer monitor with a hand holding a device and a crossed-out black symbol (no text or labels)

Simple line drawing of a window with a diagonal X mark and a cloth hanging nearby (no text or symbols)

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person running away from a computer screen with a circular diagram showing a magnifying glass (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and a warning light (no text or symbols present)

Technical line drawing of a front panel with labeled components (no text or symbols present)

HDMI1(eARC/ARC), LNB IN, ANT IN, USB, CI, ieşire CĂŞTI.

Line drawing of a flat-screen TV with cable and indicator lights, no text or symbols present

MOD PRESETAT (HDMI)

	REZOLUTIE	V.Freq.(Hz)	H.Freq.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

ECHIPARE AV

Illustration of a computer monitor with arrows indicating motion and a crossed-out hand gesture (no text or symbols)

Simple line drawing of a window frame with a diagonal X mark and a cloth hanging nearby (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol crossed out, surrounded by stars (no text or symbols)

Simple line drawing of a computer monitor with a steaming roof (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Ikke klem strømledningen under TV-mottakeren.

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Stå aldri, len deg på eller skyv TVen eller stativet plutselig. Du bør være spesielt oppmerksom på barn. Alvorlig skade kan oppstå hvis du mister den.

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame, no text or symbols present.

Ikke plasser TV-en på en ustabil vogn, stativ, hylle eller bord. Alvorlig personskade og skade på TV-en hvis den mistes.

Illustration of a person running away from a computer screen with a magnifying glass (no text or symbols)

Technical line drawing of a rear panel with labeled components (no text or symbols present)

1: Sensor for fjernkontroll.

2: LED-indikator: R∅D ● STANDBY.

Diagram of a device panel with an internal component and control buttons, no text or symbols present

STRÖMBRYTER

Line drawing of a flat-screen TV unit with cable and indicator lights, no text or symbols present

FORHÅNDSINNSTILT MODUS (HDMI)

	RESOLUSJON	V.Frek.(Hz)	H.Frek.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

AV-UTSTYR

INNLEDENDE OPPSETT

Illustration of a computer monitor with an electrical circuit and a crossed-out hand gesture (no text or symbols)

Simple line drawing of a monitor with a cross mark and a hanging garment, no text or symbols present

Simple line drawing of a monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Simple line drawing of a geometric structure with crosshairs and a rectangular frame, no text or symbols present.

Illustration of a person running away from a computer screen with a broken phone and a bag nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a warning light (no text or symbols)

Technical line drawing of a flat-screen monitor with labeled ports and panel (no text or symbols present)

1: Sensor de controle remoto.

2: Indicator LED: VERMELHO ● ESPERA

3:Teclado

Diagram of a device rear panel with a central button and control buttons, showing no text or symbols.

Technical line drawing of a device setup with a cable and power outlet, no visible text or symbols

PREDEFINIÇÃO (HDMI)

	RESOLUÇÃO	V.Frec.(Hz)	H.Frec.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

EQUIPAMENTOS AV

ativar o YouTu

Illustration of a computer monitor with arrows indicating motion and a hand holding a device (no text or symbols present)

Illustration of a TV screen with a cross symbol crossed out, next to a hanging cloth and rope (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a roof and ventilation grille (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a vertical line (no text or symbols)

Illustration of a woman running away from a computer screen next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a ringing bell icon (no text or symbols)

Technical line drawing of a flat-screen monitor with internal components and labeled parts (no text or symbols present)

1: Fjärrkontrollsensor.
2: Indikator-LED: RÖD ● STANDBY.
3: Tangentbord

HDMI1(eARC/ARC), LNB IN, ANT IN, USB, CI, HÖRLURSUTGÅNG.

AV-anslutningar BAKSIDAN

Line drawing of a TV setup with cable and power outlet, no text or symbols present

FÖRINSTÄLLT LÄGE (HDMI)

	UPPLÖSNING	V.Frekv.(Hz)	H.Frekv.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

AV-UTRUSTNING

FÖRSTA INSTALLATIONEN
