Introduction

Welcome!

Thank you for adding the VOX StompLab IG Modeling Guitar Effect Processor to your rig. Whether you're playing live, in the studio, or practicing with headphones, the StompLab will give you countless hours of great sounds!

To ensure a long and trouble-free relationship with your StompLab, please read this manual carefully. When you've finished reading this manual, please keep it for future reference.

Main features

103 different modeling effect variations are built-in, and you can use up to seven different effects simultaneously (including noise reduction).
Use these modeling effects to create your own sounds and store them in internal memory as one of 20 user programs. In addition, 100 more programs are provided as presets for immediate use.
A built-in auto chromatic tuner lets you tune while bypassed or muted.

Front and rear panel

This section explains the switches and connectors on the StompLab IG's front and rear panels.

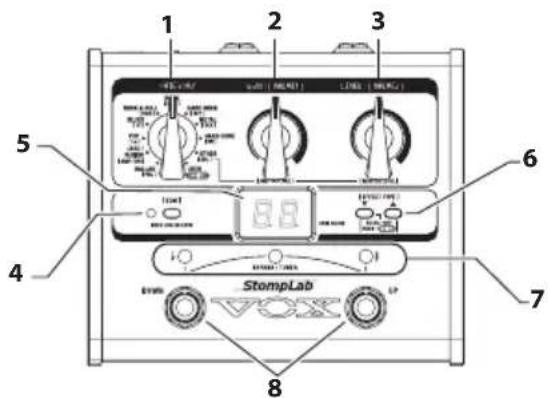

Front panel

1. CATEGORY selector

In Program select mode, use this to select the program genre and to recall the selected genre of the program.

In Edit mode, use this to select the effect that will be edited. Also, you can save the settings of an edited effect in a program when [WRITE] is selected.

2. VALUE 1 knob

In Program select mode, use this knob to adjust the amplifier

([AMP/DRIVE]) gain. When making this adjustment, the program/ value display will indicate the gain value and the EDIT LED and Tuner center LED will blink.

In Edit mode, use this knob to set the first parameter of an effect. Also, when saving a program, use this knob to select the program location where a set program will be saved (written).

3. VALUE 2 knob

In Program select mode, use this knob to adjust the amplifier ([AMP/DRIVE]) output level. When making this adjustment, the program/value display will indicate the output level and the EDIT LED and Tuner # LED will blink.

In Edit mode, use this knob to set the second parameter of an effect.

4.EDIT button, EDIT LED

Use this button to switch the Program select mode and the Edit mode. The modes can be switched each time the button is pressed. When in the Edit mode, the EDIT LED will light up.

In Program select mode, the Value lock function turns on when this button is pressed and held for 2 seconds and the functionality of the VALUE 1 and VALUE 2 knobs will be disabled. The Value lock function is canceled when the button is pressed and held again for 2 seconds.

The Value lock function can only be enabled in Program select mode.

5. Program/Value display

In Program select mode, this indicates the selected program number and the knob value. When BYPASS/MUTE is active, the display indicates the name of the note that you're tuning.

In Edit mode, this indicates the effect abbreviations, parameter values. Also, this indicates the program number that was selected as the save location when the program is saved.

6.▲,▼ buttons

In Program select mode, use these to select programs. The program number will increase (decrease) each time you press the button. In Edit mode, use these buttons to select an effect and turn it on/off. Use them to select the program in the save location and execute the save function when saving a program.

Also, the calibration is set when the tuner is started.

7. Tuner LED

In Program select mode, this serves as the tuner meter when BYPASS/MUTE function is active.

In Edit mode:

• The left LED will light up when the effect name is indicated in the program/value display.
• The center LED will light up when the VALUE 1 knob value is indicated in the program/value display.
• The right # LED will light up when the VALUE 2 knob value is indicated in the program/value display.

8. Program UP/DOWN pedals

In Program select mode, use these pedals to select programs. The program number will increase (decrease) each time you press the pedal.

In Edit mode, use these to switch the display of the program/value display. The display is switched in the order of "Effect Name" "VALUE 1 Value" "VALUE 2 Value".

Rear panel

1. INPUT jack

Connect your guitar to this jack.

2. OUTPUT/PHONES jack

Connect this jack to your guitar amp, Mixer, Recorder or headphones.

3. POWER button

To turn the power on or off, press and hold down this button for 1 second.

4. DC 9V jack

You can connect an optional AC adapter to this jack.

Setup

Installing batteries

Do not mix new batteries and used batteries or different types of batteries together.

1. Remove the 4 screws from the rubber feet that secure the bottom cover.

2. Insert four AA-size batteries, being sure to observe the correct polarity (^ + ^ and " markings), and close the bottom cover.

If the battery level becomes low, noise may be generated.

Basic connections

Be sure to connect all cables with the power turned off. If you fail to use caution when connecting cables, you could damage your guitar amp or speaker system, or cause other malfunctions.

1. Use a cable to connect the StompLab's OUTPUT/PHONES jack to your guitar amp, mixer or recorder.

When connecting cables or turning on the power, make sure to lower the volume of your amp or mixer so that you don't hear noise
If you're using headphones, plug them into the OUTPUT/PHONES jack.
If you're using the optional AC adapter, connect it to the rear panel DC9V power supply jack, and then plug the adapter into an AC outlet to turn the power on.

1. Connect your guitar to the rear panel INPUT jack.

2. Press and hold the power button and release the switch when the program/value display lights up. When the StompLab starts, the program/value display will indicate the program number.

3. Raise the volume of your amp or mixer to the appropriate volume.

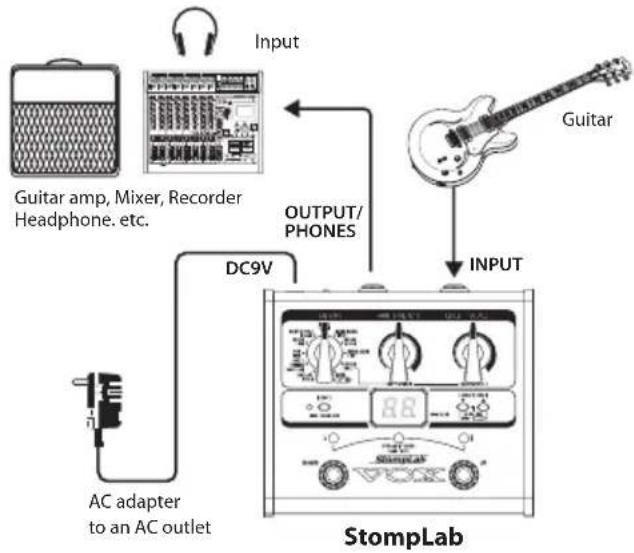

Example of a connection

Auto Power-Off function

The StompLab has an Auto Power-Off function that automatically turns off the power when one hour has elapsed since the most recent user input. If the auto power-off function is activated, power will not be restored even if a button or pedal is used. Turn the power on again.

Even if there hasn't been any user input, the Auto Power-Off function will not engage if there is audio input present at the INPUT jack.
The Auto Power-Off function is enabled as the factory default.

Enabling the auto power-off function

While holding down the EDIT button and Program DOWN pedal, turn the power on.

After "AP" is indicated, the program/value display will indicate "En."

Disabling the auto power-off function

While holding down the EDIT button and Program UP pedal, turn the power on.

After "AP" is indicated, the program/value display will indicate "dS."

The setting to enable or disable the auto power-off function is saved even when the power is turned off.

Program select mode

The Program select mode is where you can select and perform with programs.

Settings for each effect are collectively called a "program." The StompLab has 120 programs. These programs include 100 programs that are preset programs (00-99) and cannot be overwritten and 20 programs that are user programs (U0-U9, u0-u9) that can be overwritten. The 100 preset programs are divided in 10 categories with 10 programs each.

Selecting a program

1. Check whether you are in Program select mode.
   In Program select mode, the Tuner# LED and LED will light up and the EDIT LED will turn off.
   When in Edit mode, the EDIT LED will light up and it will turn off when the EDIT button is pressed to switch to Program select mode.
2. Select a genre with the CATEGORY selector and press the Program UP or Program DOWN pedal to select the program. The program/value display shows the number of the program that you selected.
3. Adjust the master volume as necessary.

Page 11 "Setting the type of device that you'll be connecting to the OUTPUT/PHONES jack and master volume - [GBL] (GLOBAL)".

Bypass and Mute

Bypass (which turns off all effects including noise reduction) and Mute (which mutes the StompLabs output) are convenient functions to use while you're adjusting your guitar amp, tuning during a live performance, or switching guitars. Here's how to use Bypass or Mute.

Bypassing the StompLab

Simultaneously press the Program UP and Program DOWN pedals; all effects will be bypassed. At this time, the program/ value display will indicate - - ^

Muting the StompLab

Simultaneously press and hold down the Program UP and Program DOWN pedals for about one second and the output will be muted. At this time, the program/value display will indicate "---".

When bypassed or muted, the Auto Chromatic Tuner will be active. To cancel the bypass or mute function, press the Program UP or Program DOWN pedal (this will not change the program).

Tuner

The StompLab has a built-in Auto Chromatic Tuner.

You can calibrate the reference pitch (the note "A") of the tune in a range of 438Hz - 445Hz

Tuning procedure

1. The Auto Chromatic Tuner will be activated when the StompLab is bypassed or muted.

If you want to tune silently, such as during a live performance, simply mute the StompLab.

1. Play a note on your guitar and the program/value display will indicate the name of the closest note.

Note names are indicated as follows.

Note name	CC#DD#EFF#GG#AA#B
Display	C	C'	d	d''	E	F	F'	G	G'	R	R'

1. If your guitar is sharp (pitch too high), the Tuner # LED will light up. If your guitar is flat (pitch too low), the Tuner b LED will light up. In either case, the brightness of the LEDs will indicate

how far either has veered.

When in tune, both the Tuner center LED will light up.

Adjusting the tuner calibration

You can adjust the reference pitch of the internal tuner (piano center frequency A). You can calibrate this reference pitch in a range of 438Hz - 445Hz

When you turn off the power, the calibration adjustment that you made will be discarded and the StompLab will automatically be set to 440Hz .
1. Change the reference pitch with the or button when the tuner is starting up.

The program/value display will indicate a reference pitch (38-45: 438-445Hz).

Creating your sound (Edit mode)

The Edit mode is where you can set the effects that are used in each category, such as [PDL] (PEDAL), [AMP/DR] (AMP/ DRIVE), [CAB] (CABINET), [NR] (NOISE REDUCTION), [MOD] (MODULATION), [DLY] (DELAY) and [REV] (REVERB).

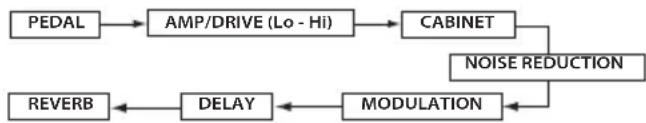

Signal flow

Entering Edit mode

1. In Program select mode, press the EDIT button. You will enter the Edit mode and the EDIT LED will light up.

Selecting effects and adjusting the parameters - [PDL], [AMP/DR], [CAB], [NR], [MOD], [DLY], [REV]

Select an effect to use in each category and set the parameter.

1. Select the category with the CATEGORY selector.
2. Select the effect with the or button.

The program/value display will indicate an abbreviation of the effect name and the Tuner b LED will light up.

For the effects and parameters that you can select, please refer to the "Appendices" section on page 62.

When you select an effect, the StompLab automatically sets the parameters of that effect to the most effective values. By adjusting the parameters, you can tweak your sound to what you have in mind.

To turn an effect on/off, press both the and buttons simultaneously. When an effect is on, the effect name is shown, and when an effect is off, the display indicates "oF".

1. Set the effect parameter with the VALUE 1 knob and VALUE 2 knob.

As you turn a knob, the program/value display will indicate the values. For VALUE 1 the Tuner center LED will light up and for VALUE 2 the Tuner # LED will light up.

For the effect parameters that are assigned to each knob, please refer to the "Appendices" section on page 62.

[Lo] and [Hi] are part of the [AMP/DR] parameter. If [AMP/DR] is turned off, the effect will be disabled. Also, you can set the volume level of the program with the [AMP/DR] VALUE 2 knob (LEVEL).

For noise reduction, select [NR] with the CATEGORY selector and adjust the sensitivity with the VALUE 1 knob. Adjust the noise reduction sensitivity so that you don't hear noise (hiss) when you're not playing your guitar. Depending on the guitar that you're using, sustaining notes may be cut off if you raise the noise reduction value excessively. This parameter should be adjusted so notes ring out naturally.

Effect/parameter type and parameter value display In the Edit mode you can switch the effect names or the VALUE 1 and VALUE 2 values indicated with the Program UP/DOWN pedals. The tuner LED will light up when the effect name is indicated, the tuner center LED will light up when VALUE 1 is indicated and the tuner # LED will light up when VALUE 2 is indicated.

Checking the values saved in a program (Original Value)
The Original Value LED in the program/value display lets you check the parameter values of a saved program.
When you use the knob or buttons to modify the value of a parameter, the Original Value LED will light up when that value matches the value that's already been saved in the program (i.e., the original value).

In Program select mode, the Original Value LED will light up if the values of all parameters match the values that are saved in the program.

Saving a program — [WRITE]

Here's how to save (write) a sound that you've created.

If you switch to a different program in Program mode or turn off the power without writing your settings into memory, the changes that you made will be lost.

1. Set the CATEGORY selector to [WRITE]. The program number will blink in the program/value display.

2. Use the VALUE 1 knob, the / buttons or the Program UP/DOWN pedals to select the program location where you want to save your settings.

3. Press the button and button simultaneously for 1 second. The program will be saved, and the program/value display will indicate "CP" briefly.

The newly saved program will overwrite (i.e., replace) the existing settings, so the previous program in that location will be lost.

To cancel saving the program, select a category other than [WRITE] with the CATEGORY selector.

Setting the type of device that you'll be connecting to the OUTPUT/PHONES jack and master volume - [GBL] (GLOBAL)

You can set the type of device that you'll be connecting to the OUTPUT/ PHONES jack and the master volume of the StompLab.

These settings are common settings for all programs. The type of device setting will be saved when the power is turned off. When the power is turned off, the master volume will be initialized at 7.0.
1. Select [GBL] with the CATEGORY selector.
2. Set the type of device that you'll be connecting to the OUTPUT/ PHONES jack with the VALUE 1 knob.

This setting compensates the output from the guitar amp model so that it will be suitable for connection to the input jack of your guitar amp.

A1: Use this setting if you've connected the StompLab to an amp with a distinctive mid-range character, such as a UK-made open-backed combo.
A2: Use this setting if you've connected the StompLab to a clean-sounding amp, such as a typical US-made open-backed combo.

A3: Use this setting if you've connected the StompLab to a stack-type amp, such as a 4x12 closed-back cabinet.

Ln: Use this setting if you've connected the StompLab to a line input, to a headphones, to the power amp input of a guitar amp, or to a recorder.

1. Set the master volume with the VALUE 2 knob.

Restoring the factory preset programs

Here's how to restore (reload) the StompLab's programs back to the original factory preset programs.

When you perform this operation, all of the programs you created and stored inside the StompLab will be erased, and replaced by the factory programs.

1. While holding down the button and the button, turn on the power.
2. The program/value display will indicate "rL", and the TUNER # and LEDs will blink. Take your hand off the buttons you had been pressing.

If you decide to cancel the reload operation at this point, press the button.

1. If you wish to reload the factory settings press the button. The program/value display will indicate "Ld" and reloading will begin. When reloading has completed, the program/value display will indicate "CP", and the StompLab will automatically enter Program select mode.

Never turn off the power while reloading.

Troubleshooting

If you suspect a malfunction, please check the following points. If this does not resolve the problem, please contact a nearby dealer.

1. Power does not turn on

Have the batteries have run down?
When the batteries run low, the program/value display will be dark. We recommend that you replace the batteries as soon as possible. If batteries become unusable, remove them immediately. Leaving drained batteries in the unit can cause malfunctions (such as battery leakage). You should also remove the batteries if you won't be using the StompLab for an extended period of time.
Make sure the batteries are inserted with the polarities (+, -) in the correct orientation.
Is the AC adapter connected to the rear panel DC9V jack?
Is the AC adapter plugged into an AC outlet?
Could the AC adapter be damaged?

2. No sound

Is the volume of your guitar turned down?
Is your guitar cable connected correctly?
Is your guitar cable broken?
Are the [AMP/DR] VALUE 1 (GAIN) or VALUE 2 (LEVEL) parameters currently set to a low value?
Are the [Lo] or [Hi] parameters currently set to a low value? For some amp models, there may be no sound from the amp if the TREBLE, MIDDLE, and BASS control values are low.
Is the volume turned down for another effect?
Is the Mute function activated? Refer to "Bypass and Mute"

(p. 8) and cancel the Mute function.
Is the master volume turned down?

Set the CATEGORY selector to [GBL], and turn the VALUE 2 knob to adjust the master volume.

3. Effects don't apply

Could an effect be off?
Is the [MOD] VALUE 2 knob (DEPTH) or the [DLY] or [REV] VALUE 2 knob (MIX) set to a low value?
[B] the StompLab in Bypass mode? Refer to "Bypass and Mute" (p. 8) and cancel the Bypass function.

4. High frequencies are distorted when using [PDL] (PEDAL) AC (ACOUSTIC)

Are you applying too much drive? Lower the [AMP/DR] VALUE 1 (GAIN) setting.
Are you using a guitar that has high output humbucking pickups? Lower the volume of your guitar.

5. Sound source connected to the guitar amp is distorted, or sounds wrong

Is the VALUE 1 knob (StompLab OUTPUT/PHONES jack connection volume) in [GBL] set at Ln (LINE)? Set to A1-A3 (AMP).
Is the VALUE 2 knob (LEVEL) in [AMP/DR] or the VALUE 2 knob (MASTER LEVEL) in [GBL] set too high?

Specifications

Number of effects: Pedal types: 8

Amp/Drive Models: 62

Cabinet Models: 12

Modulation types: 9

Delay types: 8

Reverb types: 3

Noise Reduction: 1

Number of programs: 120 (20 user/100 preset)

Audio input: INPUT (mono)

Audio output: OUTPUT/PHONES (stereo)

Signal processing: A/D conversion: 24 bit

D/A conversion: 24 bit

Tuner: Detection range : A0-E6

Calibration: A = 438 - 445Hz

Power supply: Four AA batteries or DC9V AC

adapter (separately sold)

Battery life 7.5 hours (using four alkaline

AA batteries)

Dimensions (W X D X H): 145 × 125 × 57 ~mm

5.71" x 4.92" x 2.24"

Weight: 590g / 1.30lbs

Included items: Owner's manual, four AA-size

batteries

Options (separately sold):

DC9V AC adapter

• Specifications and appearance are subject to change without notice for improvement.

Precautions

Emplacement

4. Bouton et diode EDIT

Types Amp/Drive Model: 62

Types Cabinet Model: 12

Types Modulation: 9

Types Delay: 8

Types Reverb: 3

Noise Reduction: 1

4.EDIT-Taste, EDIT-LED

Notartheastern and central European countries (solo UE)

Effect Display VALUE 1 VALUE 2
COMP Co SENS	0...10 LEVEL 0...10
FIX WAH FW MANUAL 0...10 TYPE (V847/845) 1/2
AUTO WAH	AW	SENS/POLARITY	0...10 (up), 0...10 (down)	RESONANCE	0...10
BRN OCTAVE	oC	DIRECT	0...10	EFFECT	0...10
ACOUSTIC	AC	TONE	0...10	---
U-VIBE	Uv	SPEED	0.1...10 DEPTH 0...10	10
TONE	to	TONE	0...10	---	---
RING MOD	rM	MANUAL	0...10	BALANCE	0...10

AMP/DR, Lo, Hi (AMP/DRIVE, BASS/MID, TREBLE/PRESENCE)

AMP/DRIVE						Lo			Hi
Effect	Display	VALUE 1		VALUE 2		VALUE 1		VALUE 2	VALUE 1		VALUE 2
c(Clean/Crunch1)	c1...c8	GAIN	0...10	LEVEL	0...10	.10 0...10	0...10	0...10	0...10	TREBLE	0...10 PRESENCE
C(Clean/Crunch2)	C1...C9		0...10		0...10			0...10
G(Gain)	G1...G9		0...10		0...10			0...10
h(Hi-Gain1)	h1...h9		0...10		0...10			0...10
H(Hi-Gain2)	H1...H9		0...10		0...10			0...10
o(Overdrive)	o1...o5		0...10		0...10			0...10
d(Distortion)	d1...d7		0...10		0...10			0...10
F(Fuzz)	F1...F6		0...10		0...10			0...10

AMP Model

AMP MODEL 1	23456789
c(Clean/Crunch 1)	BTQ CLEAN JAZZ CLEAN 1 PU	RE CLEAN JAZZ	CLEAN 2 CALI	CLEAN 1 CALI	CLEAN 2 CALI	CLEAN 3 VOX AC4
C(Clean/Crunch 2)	CALI CLEAN 4 US BLUES 1 US 2x12 1 US 2x12 2	VOX AC15TB V	OX AC15 VOX AC30TB VOX AC30	HH VOX CRUNCH
G(Gain)	US BLUES 2	US BLUES 3	US BLUES 4	US 2x12 3	US 2x12 4	UK ROCK1	UK ROCK 2	UK ROCK 3	BTQ OD
h(Hi-Gain 1)	VOX NT15	VOX AC30BM	UK ROCK 4	UK METAL 1	UK METAL 2	UK METAL 3	UK METAL 4	US HIGAIN 1	US HIGAIN 2
H(Hi-Gain 2)	US HIGAIN 3	US HIGAIN 4	US METAL 1	US METAL 2	US METAL 3	US METAL 4	BTQ METAL 1	BTQ METAL 2	BTQ METAL 3

Drive

DRIVE MODEL	1	2	3	4	5	6	7
o(Overdrive)	TONE DRIVE	BLUE DRIVE	TREBLE BOOST	GOLD DRIVE	TUBE OD
d(Distortion)	BRIT LEAD	FAT	METAL DIST	ROCK PLANET	TUBE DX	ORANGE DIST	CLASSIC+
F(Fuzz)	GERMANIUM FUZZ	BIG FUZZ	VOX TONE BENDER	OCTA FUZZ	TECHNO FUZZ	CRusher

CAB (CABINET)

Effect	Display	VALUE 1
TWEED 1x8	t1	---	---
TWEED 1x12	t2	---	---
TWEED 4x10	t3	---	---
BLACK 2x10	b1	---	---
BLACK 2x12	b2	---	---
VOX AC15	v1	---	---
VOX AC30	v2	---	---
VOX AD120VTX	v3	---	---
UK H30 4x12	U1	---	---
UK T75 4x12	U2	---	---
USV30 4x12	US	---	---
CUSTOM	CU	CHARACTER	0...20

MOD (MODULATION)

Effect Display VALUE 1 VALUE 2
CE CHORUS CH SPEED 0.1...10 DEPTH 0...10
MULTI CHORUS MC SPEED 0.1...10 DEPTH 0...10
FLANGER FL SPEED 0.1...10 RESONANCE 0...10
ORG PHASE PH SPEED 0.1...10 RESONANCE 0...10
TWIN TREM tr SPEED 0.1...10 DEPTH 0...10
G4 ROTARY	ro SPEED 0.1...10 DEPTH 0...10
PITCH SHIFT	Pt	PITCH	-12...0, dt, 1...12	BALANCE	0...10
FILTRON1 (AUTO)	F1	SENS/POLARITY	0...10 (up), 0...10 (down)	RESONANCE	0...10
FILTRON2 (MANUAL)	F2 MANUAL	0...10	RESONANCE 0...10

DLY (DELAY)

Effect Display		VALUE 1		VALUE 2
ANALOG DELAY 1	A1	TIME	0.1...10	MIX	0...10
ANALOG DELAY 2	A2	TIME	0.1...10	MIX	0...10
ANALOG DELAY 3	A3	TIME	0.1...10	MIX	0...10
ANALOG DELAY 4	A4	TIME	0.1...10	MIX	0...10
ECHO 1	E1	TIME 0.1...10	MIX 0...0	0
ECHO 2	E2	TIME 0.1...10	MIX 0...0	0
ECHO 3	E3	TIME 0.1...10	MIX 0...0	0
ECHO 4	E4	TIME 0.1...10	MIX 0...0	0

• For ANALOG DELAY (1-4) and ECHO (1-4), the feedback volume may vary. The feedback volume will be larger as the number increases.
• Dans le cas des effets ANALOG DELAY (1-4) et ECHO (1-4), le niveau de réinjection (feedback) est régiable. Plus la valeur est élevée, plus le niveau de réinjection augmente.
• Bei ANALOG DELAY (1-4) und ECHO (1-4) kann der Rückkopplungspegel variieren. EinHigherer Wert bedeutet einen higheren Rückkopplungspegel.
• El volumen de la retroalimentacion para ANALOG DELAY (1-4) y ECHO (1-4)uede variar. Cuanto mas grande sea el numero, mayor sera el volumen de la retroalimentacion.
• ANALOG DELAY、ECHOともに1～4でそのじフフドバク量が異なります。大小の番号はとフフドバク量が大小の尺寸ります。

REV (REVERB)

Effect Display VALUE 1 VALUE 2
ROOM rM TIME 0.1...10 MIX 0...10
SPRING SP TIME 0.1...10 MIX 0...10
HALL HL TIME 0.1...10 MIX 0...10

NR (NOISE REDUCTION)

Effect Display VALUE 1
NR nr SENS 0..10

GBL (GLOBAL)

	Display VALUE 1	VALUE 2
GLOBAL GL OUTPUT SEL A1, A2, A3, Ln		MASTER LEVEL	0...10

AFTATA-5V

This warranty is valid only in Japan.
