USER MANUAL IT 6350 TEKA

Pure geometric diagram with circles and lines, no text or symbols present

ES INSTRUCCIONES PARA LA INSTALACIÓN Y RECOMENDACIONES DE USO Y MANTENIMIENTO ENCIMERAS VITROCERÁMICAS TOUCH CONTROL....6
PT INSTRUÇÕES DE INSTALAÇÃO E RECOMENDAÇÕES PARA A UTILIZAÇÃO E MANUTENÇÃO PLACAS DE COZINHA VITROCERÂMICAS TOUCH CONTROL....14
EN INSTALLATION INSTRUCTIONS AND RECOMMENDATIONS FOR USING AND MAINTAINING CERAMIC HOT PLATES TOUCH CONTROL....22
DE MONTAGEANLEITUNG UND EMPFEHLUNGEN ZUR VERWENDUNG UND WARTUNG GLASKERAMIK-KOCHFELDER MIT TOUCH CONTROL....29
FR INSTRUCTIONS POUR L'INSTALLATION ET CONSEILS D'UTILISATION ET D'ENTRETIEN PLAQUES DE CUISSON VITROCÉRAMQIUE TOUCH CONTROL....37
TR KULLANMA VE MUHAFAZA İÇİN KURULUM TALİMATLARI VE TAVSİYELERİ SERAMİK ISITMA PLAKALARI DOKUNMATİK KONTROL....45
PL INSTRUKCJA OBSŁUGI, MONTAŻU ORAZ WSKAZÓWKI DOTYCZĄCE PIEŁĘGNACJI CERAMICZNYCH PŁYT KUCHENNYCH TOUCH CONTROL....52
CS NÁVOD K INSTALACI A DOPORUČENÍ K PROVOZU A ÚDRŽBĚ SKLOKERAMICKÉ VARNÉ DESKY TOUCH CONTROL....60
SK NÁVOD NA INŠTALÁCIU A ODPORÚČANIA PRE POUŽÍVANIE A ÚDRŽBU KERAMICKÝCH VARNÝCH PLATNÍ DOTYKOVÉ OVLÁDANIE....67
RO INSTRUCTIUNI DE INSTALARE ŞI RECOMANDĂRI DE UTILIZARE ŞI ÎNTRETINERE PLITE DE GĂTIT INCORPORABILE VITROCERAMICE TOUCH CONTROL....74
IT ISTRUZIONI PER L'INSTALLAZIONE E CONSIGLI PER L'USO E LA MANUTENZIONE PIANI DI COTTURA IN VETROCERAMICA TOUCH CONTROL....82
NL AANWIJZINGEN VOOR DE INSTALLATIE EN RAADGEVINGEN VOOR GEBRUIK EN ONDERHOUD KERAMISCHE KOOKPLATEN TOUCH CONTROL....90

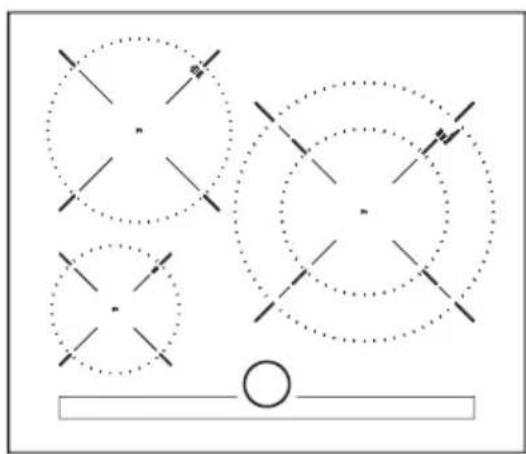

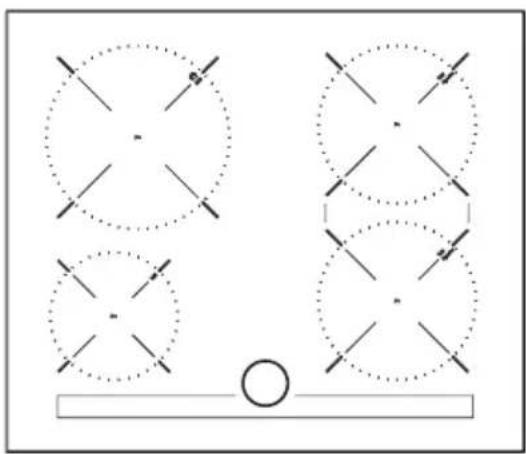

Presentación / Apresentação / Presentation / Präsentation / Présentation / Wprowadzenie/ Provedení / Predstavenie / Prezentare / Presentasjon / Presentazione / Presentatie

Pure geometric diagram with four circles and intersecting lines, no text or symbols present

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

Instalación / Instalação / Installation / Montage / Installation / Kurulum / Montaz / Instalace / Inštalácia / Instalare / Installazione / Installatie

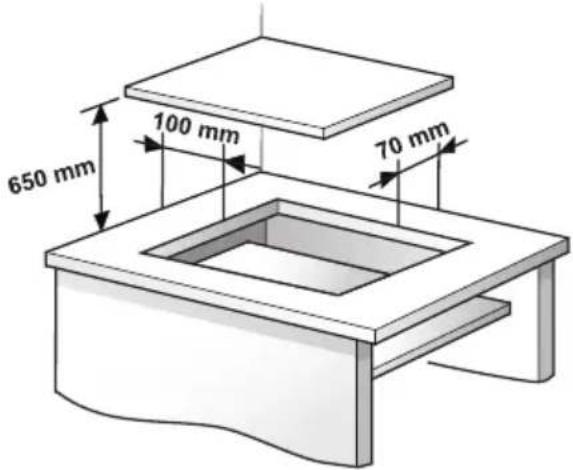

Distancias mínimas / Distâncias mínimas / Minimum distances / Mindestabstände / Distances minimales / Minimum mesafeler / Minimalne odległości / Minimální vzdálenosti / Minimálne vzdialenosti / Distanțe minime/ Distanze minime / Minimumafstanden /

650 mm 100 mm 70 mm

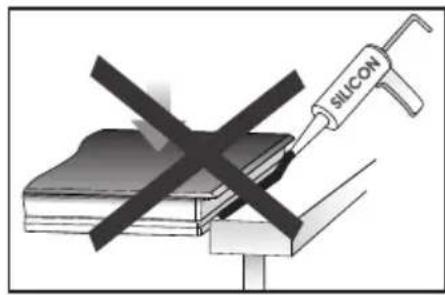

SILICON

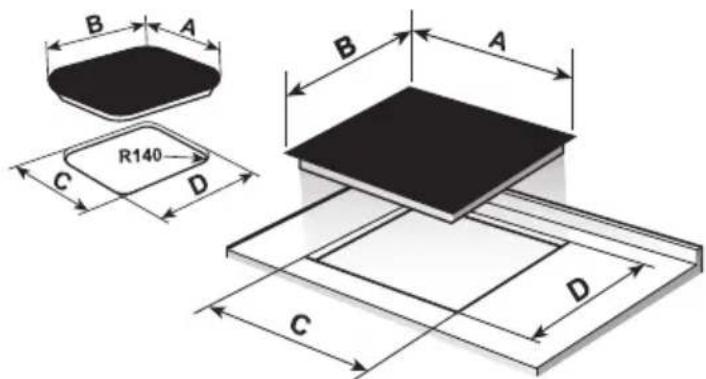

B A C R140 D B A C D

A	B	C	D
60551	5560490
60051	0560490
60043	5580415
80040	0780380
59051	0570490
90040	0860380
80051	0750490

Unidades en mm / Unidades em mm / Units in mm / Einheiten in mm / Unités en mm / mm cinsiden birimler / Wymiary w mm / / Jednotky v mm / Jednotky v mm / Unitāṭi în mm / / Unità in mm / Eenheden in mm /

Instalación / Instalação / Installation / Montage / Installation / Kurulum / Montaz / Instalace / Inštalácia / Instalare / Installazione / Installatie

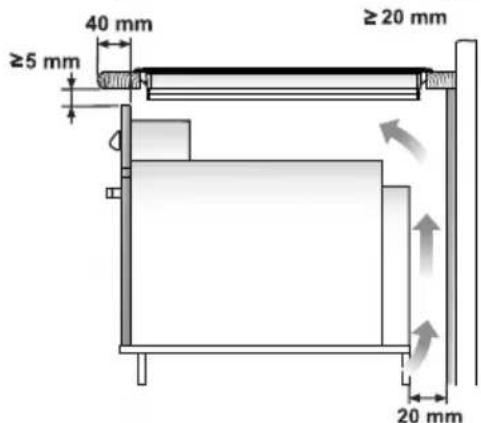

Distancias mínimas / Distâncias mínimas / Minimum distances / Mindestabstände / Distances minimales / Minimum mesafeler / Minimalne odległości / Minimální vzdálenosti / Minimálne vzdialenosti / Distanțe minime/ Distanze minime / Minimumafstanden /

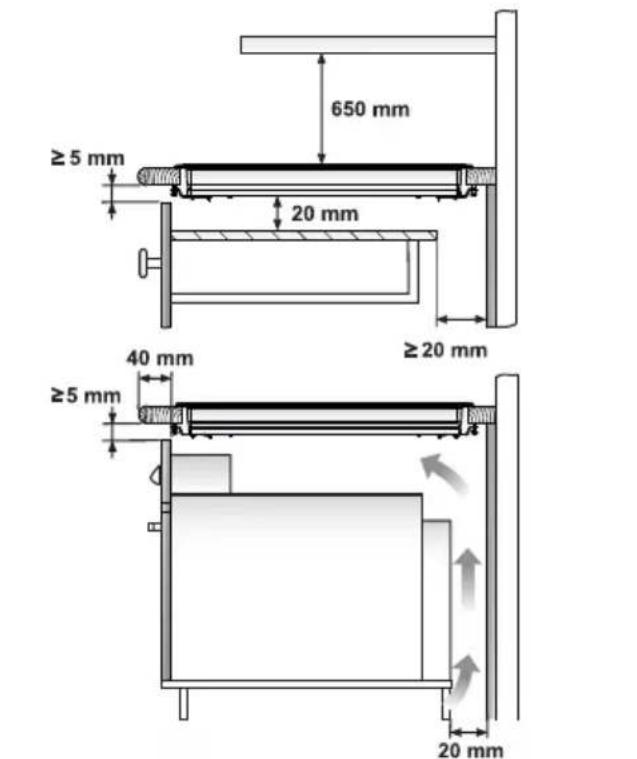

STANDARD INSTALLATION SYSTEM FAST-CLICK SYSTEM

650 mm ≥ 5 mm 20 mm ≥ 20 mm 40 mm ≥ 5 mm 20 mm

Horno Teka / Forno TEKA / TEKA Oven /TEKA-Herd / Four TEKA / TEKA /Piekamik TEKA / TEKA sütő / Trouba TEKA / Rúra na pečenie TEKA / TEKA Cuptor /TEKA Ugn / TEKA Ovn / TEKA-ovn / Teka-uuni /Fomo Teka / TEKA Oven /

Illustration of a hand using a tool to press down a mechanical component, with a magnified inset showing a faucet mechanism (no text or symbols)

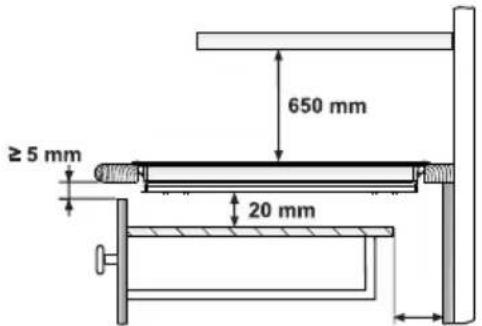

≥ 5 mm 650 mm 20 mm

40 mm ≥5 mm ≥20 mm 20 mm

Horno Teka / Forno TEKA / TEKA Oven /TEKA-Herd / Four TEKA / TEKA/Piekamik TEKA / TEKA sütő / Trouba TEKA / Rúra na pečenie TEKA / TEKA Cuptor /TEKA Ugn / TEKA Ovn / TEKA-ovn / Teka-uuni /Fomo Teka / TEKA Oven /

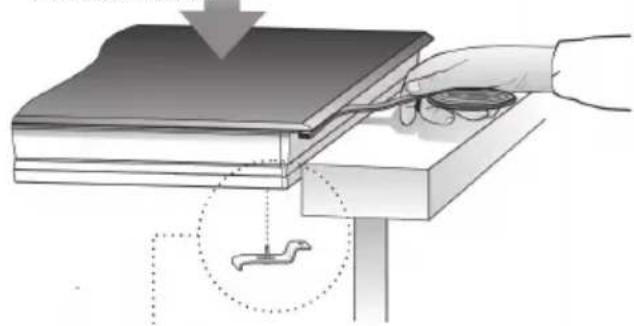

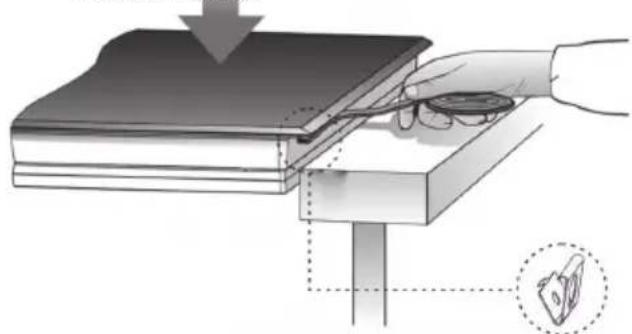

Illustration of a hand using a tool to lift or press over a stack of books (no text or symbols present)

Simple diagram with four circles and scattered dots inside a rectangle, no text or symbols present.

Technical line drawing of a mechanical component or assembly (no text or symbols visible)

Unidades en mm / Unidades em mm / Units in mm / Einheiten in mm / Unités en mm / mm cinsiden birimler / Wymiary w mm / Jednotky v mm / Jednotky v mm / Unitāti în mm / Unità in mm / Eenheden in mm /

ES

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

⚠ Warning. If the ceramic glass breaks or cracks, immediately unplug the stovetop to avoid electric shocks.

⚠ This appliance is not designed to work with an external timer (not built into the appliance) or a separate remote control system.

⚠ Do not steam clean this device.

⚠ Warning. The device and its accessible parts may heat up during operation. Avoid touching the heating elements. Children younger than 8 years old must stay away from the hob unless they are permanently supervised.

⚠ This device may solely be used by children 8 years old or older, people with impaired physical, sensory or mental abilities, or those who lack experience and knowledge, ONLY when supervised or if they have been given adequate instruction on the use of the device and understand the dangers its use involves. User cleaning and maintenance may not be done

by unsupervised children.

Children must not play with the device.

⚠ Warning. It is dangerous to cook with fat or oil without being present, as these may catch fire. NEVER try to extinguish a fire with water! In this event disconnect the device and cover the flames with a lid, a plate or a blanket.

⚠ Do not store any object on the cooking areas of the induction hob. Prevent possible fire hazards.

⚠ The induction generator complies with current EU legislation We however recommend that anyone fitted with a device such as a pacemaker should refer to their physician, or if in doubt abstain from using the induction areas.

⚠ Metal object such as knives, forks, spoons and lids may not be placed on the surface of the hob as they may overheat.

⚠️ After use always disconnect the hot plate, do not simply remove the pot or pan. Otherwise a malfunction may

occur if inadvertently another pot or pan is placed on it within the detection period. Prevent possible accidents!

⚠️ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

⚠ WARNING: Use only stovetop protectors designed by appliance manufacturer or indicated by the manufacturer in the instructions for use as adequate or stovetop protectors incorporated into the device. The use of inadequate protectors can cause accidents.

⚠ It is necessary to allow the appliance disconnection after installation. Disconnection devices must be incorporated to the fixed electrical installation, according to the installation regulations.

Installation

Installation with cutlery drawer

If you wish to install furniture or a cutlery drawer under the hob, a separation board must be fitted between the two. Accidental contact with the hot surface of the device's housing is thus prevented.

The board must be fitted 20 mm beneath the under part of the stovetop.

Electrical connection

Before you connect the stovetop to the mains, check that the voltage and frequency match those specified on the stovetop nameplate, which is underneath it, and on the Guarantee Sheet, or if applicable on the technical data sheet, which you must keep together with this manual throughout the product's service life.

Ensure that the inlet cable does not come into contact with the induction top housing or the oven housing, if it is installed in the same unit.

Warning:

The electrical connection must properly grounded, following the consent legislation, otherwise the action hob may malfunction.

Unusually high power surges damage the control system (like any electrical appliance).

It is advised to refrain from the induction hob during the lytic cleaning function in the of pyrolytic ovens, due to the

high temperature that this type of device attains.

Only the TEKA official techni- service can handle or repair the ance, including replacement the power cable.

Before disconnecting the hob of the mains, we recommend nothing off the cutoff switch and fixing for approximately 25 ends before disconnecting from mains. This time is required to be for the complete discharge of electronic circuitry and thus divide the possibility of electric risk from the cable terminals.

Keep the Guarantee Certificate or the technical data sheet together with the instructions manual throughout the product's service life. These contain important technical information.

Use and

Maintenance

User instructions of the

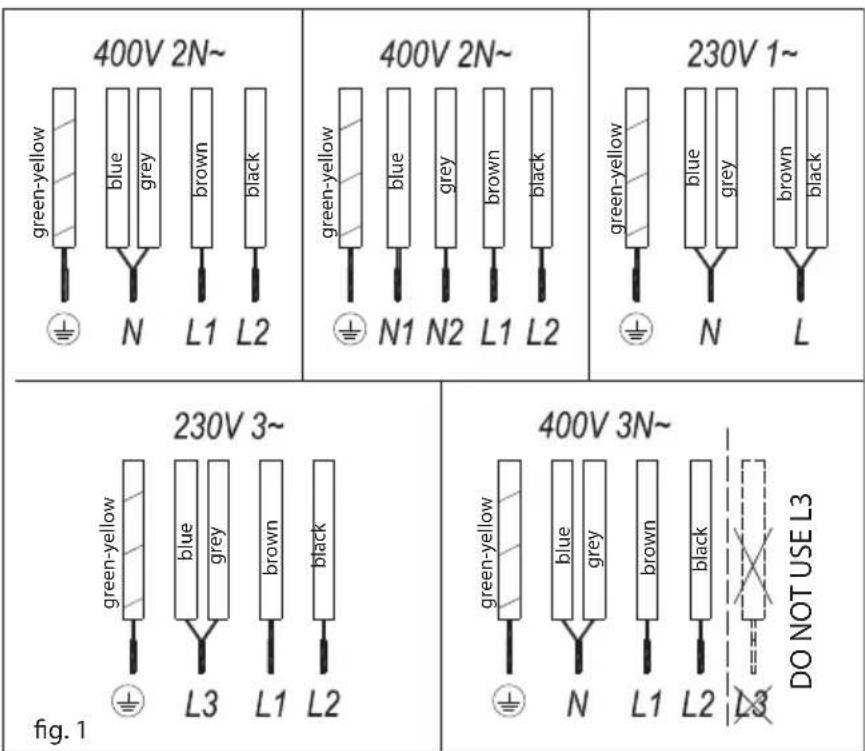

400V 2N~ green-yellow blue grey brown black N L1 L2 400V 2N~ green-yellow blue grey brown black N1 N2 L1 L2 230V 1~ green-yellow blue grey brown black N L 230V 3~ green-yellow blue grey brown black L3 L1 L2 400V 3N~ green-yellow blue grey brown black N L1 L2 DO NOT USE L3 fig. 1

Touch Control

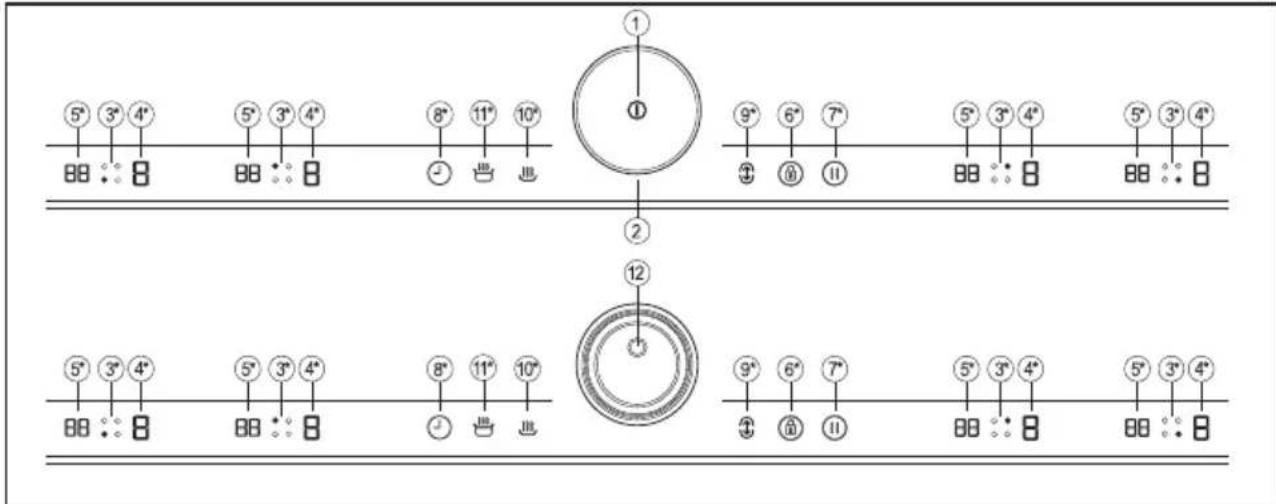

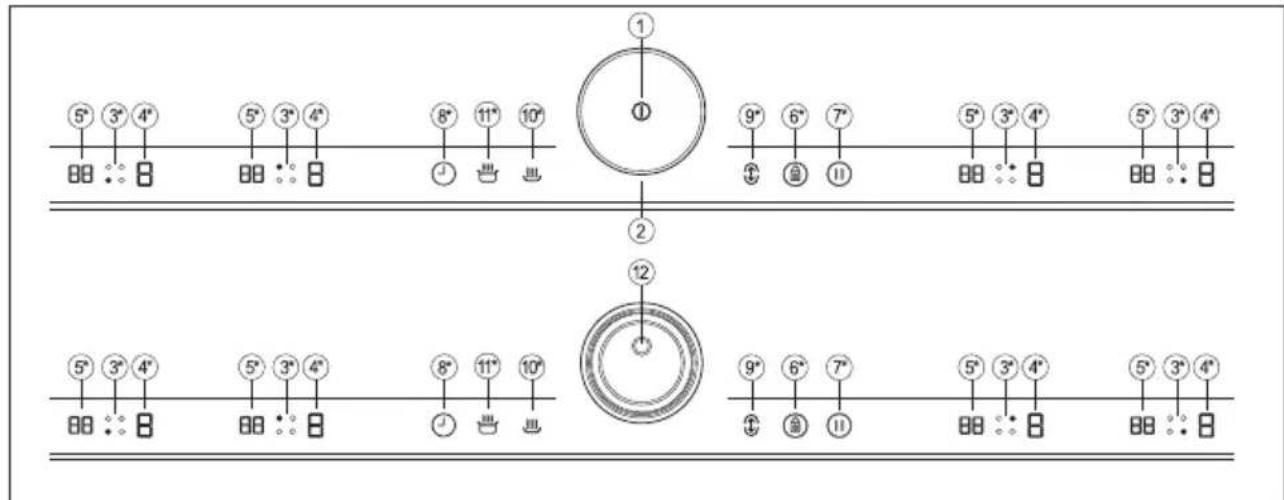

HANDLING ELEMENTS (fig. 2)

① General on/off sensor.
② Power and time selection knob
③Zone's selection sensor and indicator.
④ Power and/or residual heat indicator.
⑤ Timer indicator.
⑥ "Block" sensor and indicator.
⑦ "Stop&go" sensor and indicator.
⑧ "Timer" sensor and indicator.
⑨ "Synchro" sensor and indicator (depends on the model).
⑩ "Keep Warm" sensor and indicator.
⑪ “iQuickBoiling” sensor and indicator.
⑫ On/off sensor

* Only visible while running.

The manoeuvres are done by means of the touch keys and knob. You do not need to exert force on the desired touch key; you only need to touch it with your fingertip to activate the required function

Each action is verified by a beep.

Any knob's rotation (2) allows power levels adjustment between 0 and 9 and time adjustment between 0 and 99. Turning rightwards the knob, the value will be increased, whilst turning it leftwards will be decreased.

In order to select a plate on models, directly touch the selection sensor(3).

SWITCHING ON THE DEVICE

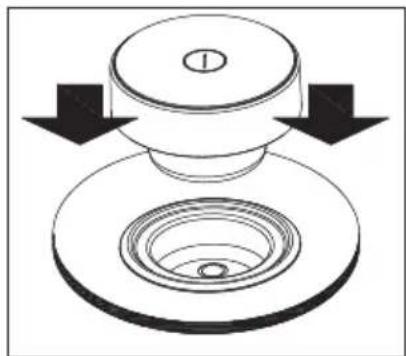

1 Insert the knob (2) in its working housing (see figure 3).
2 Touch the On touch key (1) for at least one second. The touch control will become active and visible, and the external ring will be lighted. If any cooking area is hot, in the power indicator (4) will show an H.

fig.2

① ② ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫

Figure 3

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

If you do not take any action in the next 10 seconds the touch control will switch off automatically.

When the touch control is activated, you can disconnect it at any time by touching the touch button (1), even if it has been locked ("Lock" function activated). The touch button (1) always has priority to disconnect the touch control.

You can remove the knob (2) from its housing at any time. This action is useful as safety measure for avoiding non-desired manipulations by children.

Inside the knob's housing, an off sensor is available (12) that will allow you to switch off the hob when the knob is out of its position.

PLATES ACTIVATION

Once the Touch Control is activated through the sensor Ⓐ(1), any plate can be switched on by following these steps:

1 You have to choose the desired zone for cooking by means of pressing the zone selection sensor (3). Zone selected is indicated by the corresponding dot blinking of the zone indicator (3). Twisting the knob rightwards or leftwards, the power level can be set between 0 and 9. The power value will be shown on the corresponding power indicator (4).

2 By means of knob twist (2) a new cooking level between 0 and 9 can be chosen.

As long as the plate is selected, its power level can be modified.

TURNING OFF ONE PLATE

If a zone is already selected, twist the knob (2) leftwards until level 0 is reached. The hotplate will switch off.

If switching off a zone, an H appears on its power indicator (4), it means the glass surface has reached high temperature, there is risk of burns. When the temperature decreases, the power indicator (4) switches off.

TURNING ALL PLATES OFF

All plates can be simultaneously disconnected by using the general on/off sensor ① (1). All plate indicators (4) will turn off. If the heating zone turned off is hot, its power indicator (4) shows an H.

Pan detector

Induction cooking zones have a built-in pan detector. This way, the plate will stop working if there is no pan present or if the pan is not suitable.

The power indicator (4) will show a symbol to designate "there is no pan" if, while the zone is on, no pan is detected or the pan is not suitable

If a pan is taken off the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for "there is no pan". When a pan is once again placed on the cooking zone, energy supply will resume at the same power level previously selected.

The time for pan detection is 3 minutes. If a pan is not placed within this time period, or the pan is unsuitable, the

When finished, turn off the cooking zone by using the knob. Otherwise an undesired operation could occur if a pan is accidentally placed on the cooking zone during the three minutes. Avoid possible accidents!

Lock Function

With the "Block" function, you can block the other sensors, except for the on/off sensor ① (1), in order to avoid undesired operations. This function is useful as a childproof safety.

Activating the function.

To activate this function, touch sensor (6) for at least one second. The icon (6) will be illuminated with higher intensity indicating that the control panel is blocked. To deactivate the function, just touch sensor (6) again. The icon (6) will be illuminated fainter.

Deactivating the function.

If the on/off sensor Ⓐ (1) is used to turn off the appliance while the "Block" function is activated, it won't be possible to turn the hob on again until it gets unlocked. When the hob is switched off and "Block" function is activated, lock icon ⓐ (6) will remain illuminated around 1 minute. After that they will be off. Trying to switch on the hob in this condition, lock icon (f6) will be illuminated again, showing the hob remains locked.

Silencer of the beep

Immediately after switching on the hob, if "Timer" sensor (8) and "Stop&Go" sensor (7) are pressed simultaneously for three seconds, the beep that accompanies each action will be deactivated. The power indicators (4) will display "OF".

This deactivation will not be applied to all the functions, as for example the beep for on/off, the ending of the timer or the locking/unlocking of the touch keys always remain activated.

In order to activate again the beeps that accompanies each action, press again simultaneously "Timer" sensor (8) and "Stop&Go" sensor (11) (7) for three seconds. The power indicators (4) will display "On"

Stop&Go Function

This function puts the cooking process on pause. The timer will also be paused if it is activated.

Activating the function.

Touch "Stop&Go" sensor (7). Its icon (II) (7) will be illuminated with higher intensity and the power indicators (4) will show the symbol // to indicate cooking has been paused.

Deactivating the function.

Touch "Stop&Go" sensor (7) again. Its icon (7) will be illuminated fainter and cooking resumes under the same power and timer settings that were established before the pause.

Power Function

This function supplies “extra” power to the plate, above the nominal value. Said power depends on the size of the plate, with the possibility of reaching the maximum value permitted by the generator.

1 Twist the knob (2) rightwards until power level 9 and wait for a second. Twist the knob again rightwards until a P is shown in its corresponding power indicator (4).
2 The power level indicator (4) will show the symbol P, and the plate will start to supply extra power.

The “Power” function has a maximum duration specified in Table 1. After this time, the power level will automatically adjust to 9. A beep sounds.

On activating the "Power" function in one hotplate, it is possible that the performance of some of the others may be affected, reducing its power to a lower level, in which case this will be displayed on its indicator (4).

Deactivation of “Power” function, before its working time finishes, twist the knob (2) and choose a different power level.

Timer Function (countdown clock)

This function facilitates cooking given that you don't have to be present: You can set a timer for a plate, and it will turn off once the desired time is up.

For these models, you can simultaneously program each plate for durations ranging from 1 to 90 minutes.

Timing one plate.

Once the power level is set on the desired zone and during the selection zone's dot is blinking, the zone will be able to be timed. Its icon ⏻ (8) will be illuminated with higher intensity. For that:

1 Touch sensor (8). The timer indicator (5) of the selected plate will show flashing "00". The light ring of the knob will change to blue color. If no action is performed on the knob and no time is set, after a few seconds, the timer will be switched off.
2 Immediately after, turn the knob (2) rightwards and select a cooking time value between 1 and 99 minutes. If the first turn, from "00", is done leftwards, the initial time value will be 60 minutes. In both cases the knob (2) has to be turned leftwards to return the time to 00. Anytime the time value is set to "00", if you turn left the knob (2) the initial time value will be 60 minutes.
3 When the timer indicator (5) stops flashing, it will start counting down the time automatically. When the remaining time is 1 minute, the countdown will be in seconds.

Once the selected cooking time has elapsed, the heating zone being timed is turned off and the clock emits a series of beeps for several seconds.

To turn off the audible signal, touch any sensor. The timer indicator (5) will display a 00. If the heating zone turned off is hot, its power indicator (4) will display the H symbol.

If you wish to time another hotplate at the same time, repeat steps 1 to 3.

Changing the programmed time.

If you wish to modify the timer the before programmed time is up:

1 Select the desired plate.
2 Twist the knob (2) rightwards or leftwards for modifying the programmed time.

Disconnecting the clock

EN

If you wish to stop the timer before the programmed time ends:

Activating the function.

higher intensity.

1 Select the desired plate.
2 Twist the knob (2) leftwards until the time is 00. Timer will be cancelled.

To activate the function, select the plate, and press sensor (10). Its icon (10) will be illuminated with higher intensity. Once the function is activated, the symbol R will appear on the power indicator (4).

Once the feature is activated, the icon A will appear on both the power indicator (4) and the timer indicator (12); a moving segment will appear, indicating that the cooking is under system's control.

Synchro Function (depending on model)

Through this function, it is possible to link two cooking zones, indicated in the printing screen as "Synchro", working together and to select a common power level and to activate common timer function for both zones.

Deactivating of the function.

You can override the function at any time, having previously selected the plate, touching again the sensor (10), turning off the plate or modifying the power level. Its icon (10) will be illuminated fainter, and the R will disappear of the power indicator (4).

When the system detects that it is about to start boiling, a first beep will be heard. Take this opportunity to prepare your food for boiling or baking as desired.

After 30 seconds, a second beep will be heard; if you have not already done so, it's time to pour the food in the pan.

Activating the function.

To enable this function press sensor ^① (9). Its icon ② (9) will be illuminated with higher intensity, and zone indicators' icons of linked zones will be switching on. Power value "0" will be shown flashing on both power indicators (3). Pan detection will take place in the whole linked area. You have a few seconds for doing the next operation. At the contrary, if no action is done, the function will be deactivated automatically and the zones will return to previous status. This function can be enabled as well if any of the zones has already assigned a power value.

iQuickBoiling Function

This function enables the automatic boiling control, which is a great help for cooking pasta, rice, eggs, boil some food, etc. It is available only in zones where the symbol 🏠 appears.

Conditions of the container

For a proper operation of the "iQuickBoiling" function, you need to use a container that meets the following preconditions:

- Bottom size as close as possible to the diameter of the plate

After the second beep, the system will activate the timer and stopwatch for you so that you can control how long the food is to be boiled.

30 seconds after activating the stopwatch, a third beep will sound to warn that from that moment on, the system will decrease the power supplied in order to maintain a gentle and continuous boil. The timer will remain active until the end of cooking.

If desired, you can disable the timer and set a time for the countdown and automatic shutdown of the plate (see section "Timer" unction).

Deactivating the function.

To disable this function, sensor ^① (9) has to be pressed again, and the zones will be unlinked but current power levels or special functions assigned to the zones will be kept. Its icon ② (9) will be illuminated fainter. This function can also be disabled by reducing the power level to "0". Unless you press another zone' sensor the function will be disabled automatically after 10 seconds.

- WITHOUT LID.

- Filled to over half its capacity at room temperature water (never use warmed or hot water).

Failure to comply with these conditions will distort the proper control of boiling.

Deactivating the function.

You can override the function at any time by turning off the plate, by changing the power level or by choosing a different special function. The icon 📊 (11) will be illuminated fainter.

Keep Warm Function

This function automatically sets an appropriate power level to keep the cooked food hot.

WARNING: do not use this feature for a different cooking purpose other than boiling water. Never use oil, it may lead to overheat and generate a flame.

Activating the function.

To activate the function, select the plate, and press sensor 🎨 (11). Its icon 🎨 (11) will be illuminated with

Power Management Function (depending on model)

Some models are equipped with a power limiting function (Power Management). This function allows the total power generated by the hob to be set to different values selected by the user. To do this, for the first minute after having connected the hob to the

power supply, it is possible to access the power limiting menu.

1 Press sensor ⏻ (8) for three seconds. The letter PL will appear on the timer indicator (5).
2 Press lock sensor (6). The different available power limits will be shown while you turn the knob (2) leftwards or rightwards.
3 Once the value has been selected, once again press the locking touch key (6). The hob will be limited to the chosen power value.

If you want to change the value again, you must unplug the hob and plug it in again after a few seconds. Thus you will again be able to enter the power limiting menu.

Every time the power level of a hotplate is changed, the power limiter will calculate the total power the hob is generating. If you have reached the total power limit, the touch control will not allow you to increase the power level of that hotplate. The hob will beep and the power indicator (3) will blink at the level that cannot be exceeded. If you wish to exceed that value, you must lower the power of the other hotplates. Sometimes it will not be enough to lower another by a single level as this depends on the power of each hotplate and the level it is set at. It is possible that to raise the level of a large hotplate that of several smaller ones must be turned down.

If you use the quick switch-on at maximum power function and the said value is above the value set by the limit, the hotplate will be set to the maximum possible level. The hob will beep and the said power value will blink twice on the indicator (4).

Safety switch off function

If due to an error one or several heating zones do not switch off, the appliance will be automatically disconnected after a set amount of time (see table 1).

Table 1

Selected power level	MAXIMUN OPERATING TIME (in hours)
0	0
1	8
2	8
3	5
4	4
5	4
6	3
7	2
8	2
9	1
P	10 or 5 minutes, readjusts to level 9 (depending on model)

* Depends on model

When the “safety switch off” function has been triggered, a Ois displayed if the glass surface temperature is not dangerous for the user or an H if there is a burn risk.

Keep the control panel of the ing areas clean and dry at all s.

In the event of operating pro- s or incidents not mentioned is manual, disconnect the ance and contact the TEKA nical service.

Suggestions and recommendations

* Use pots or pans with thick, completely flat bottoms.
* Pots/pans with a smaller diameter than the shown heating area are not recommended.
* Do not slide pots and pans over the glass because they could scratch it.
* Although the glass can take knocks from large pots and pans without sharp edges, try not to knock it.
* To avoid damaging the ceramic glass surface, do not drag pots and pans over the glass and keep the undersides of them clean and in good condition.

Try not to spill sugar or pro- s containing sugar on the glass

as while the surface is hot these could damage it.

Cleaning and maintenance

To keep the appliance in good condition, clean it using suitable products and implements once it has cooled down. This will make the job easier and avoid the build-up of dirt. Never use harsh cleaning products or tools that could scratch the surface, or steam-operated equipment.

Light dirt not stuck to the surface can be cleaned using a damp cloth and a gentle detergent or warm soapy water. However, for deeper stains or grease use a special cleaner for ceramic hot plates and follow the instructions on the bottle. Dirt that is firmly stuck due to being burned repeatedly can be removed using a scraper with a blade.

Slight tinges of colour are caused by pots and pans with dry grease residue underneath or due to grease between the glass and the pot during cooking. These can be removed using a nickel scourer with water or a special cleaner for ceramic hot plates. Plastic objects, sugar or food containing a lot of sugar that have melted onto the surface must be removed immediately using a scraper.

Metallic sheens are caused by dragging metal pots and pans over the glass. These can be removed by cleaning thoroughly using a special cleaner for ceramic glass hot plates, although you may need to repeat the cleaning process several times.

Warning:

A pot or pan may become k to the glass due to a product ing melted between them. Do try to lift the pot while the ring zone is cold! This could k the glass.

Do not step on the glass or on it as it could break and cau-jury. Do not use the glass as a face for placing objects.

TEKA INDUSTRIAL S.A. reserves the right to make changes to its manuals that it deems necessary or useful,

EN

without affecting the product's essential features.

Environmental considerations

The symbol ■ the product or its packaging means that this product cannot be treated like ordinary household waste. This product must be taken to a recycling collection point for electrical and electronic appliances. By ensuring that this product is disposed of correctly, you will avoid harming the environment and public health, which could happen if this product is not handled properly. For more detailed information about recycling this product, please contact your local authority, household waste service or the store where you purchased the product.

The packaging materials used are environmentally friendly and can be recycled completely. Plastic components are marked >PE<, >LD<, EPS<, etc. Dispose of packaging materials, like household waste, in your local container.

Fulfillment with Energy Efficiency of the appliance: -Appliance has been tested according to standard EN 60350-2 and the obtained value, in Wh/Kg, is available in the appliance's rating plate.

If something does not work

Before calling the technical service, perform the verifications described below.

The appliance does not work: Ensure that the power cable is plugged in.

The induction zones do not produce heat:

The container is not appropriate (it does not have a ferromagnetic bottom or is too small). Check that the bottom of the container attracts a magnet, or use a larger container.

A humming is heard when starting

to cook in the induction zones: touch control surface clean and dry With containers which are not very until the message disappears.

thick or not of one piece, the humming results from the transmission of energy directly to the bottom of the container. The humming is not a defect, but if you wish to avoid it anyway, reduce the power level slightly or use a container with a thicker bottom, and/or of one piece.

The touch control does not light up or, despite lighting, does not respond:

No heating zone has been selected. Be sure to select a heating zone before operating it.

There is humidity on the sensors, and/or your fingers are wet. Keep the touch control surface and/or your fingers clean and dry. The locking function is activated. Unlock the controls.

The sound of a fan is heard while cooking, which continues even after cooking has ended:

The induction zones have a fan to keep the electronics cool. This only operates when the electronic circuits get hot. It stops again when the circuits cool whether the hob is turned on or not.

The symbol will appear - on the power indicator of a hotplate:

The induction system does not find a pot or pan on a hotplate or it is of an unsuited type.

The hotplate will switch off and the message C81 or C82 will appear on the indicators:

Excessive temperature in the electronics or on the glass. Wait for a while for the electronics to cool down or remove the pot or pan so that the glass can cool.

C85 appears on the indicator of one of the hotplates:

The pot or pan used is of an unsuited type. Switch off the hob, switch it on again and try with another pot or pan.

The appliance switches off and the message C90 appears on the indicators (3):

The touch control detects some covered sensor and doesn't allow to switch on the cooktop. Remove the possible objects or liquids keeping the

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Abb. 3

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Figure 3

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Şekil. 3

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Rys. 3

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Obr. č. 3

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Obr. č. 3

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Imaginea. 3

Daca timp de 10 secunde nu va fi efectuata nici o operatie, panoul digital de control se va inchide automat.

Dupa ce panoul de control digital va fi activat, il puteti inchide apasand pe senzorul digital ^1 (1) chiar daca acesta se va bloca (functia”Blocare”este activa). Senzorul digital ^1 (1) are intotdeauna prioritate pentru a inchide panoul de control digital.

Simbolul 10.12.17.18.19.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

ACCENSIONE DEL DISPOSITIVO

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Fig. 3

HET APPARAAT INSCHAKELEN

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Afb. 2 3

Country Subsidiary Address City Phone

AustriaKüppersbusch Austria	Eitnergasse, 13	1231 Wien	[phone]
BelgiumKüppersbusch Belgium S.P.R.L.	Doomveld Industrie, Asse 3, No. 11 - Boite 7	1731 Zellik	[phone]
BulgariaTeka Bulgaria EOOD	Blvd. “Tsarigradsko Shosse” 135	1784 Sofia	[phone]
ChileTeka Chile S.A.	Avd El Retiro Parque los Maitenes, 1237. Parque Enea	Pudahuel, Santiago de Chile	+ 56 24 386 000
ChinaTeka International Trading (Shanghai) Co. Ltd.	No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd.	Xuhui, Dist. 200030 Shanghai	[phone]
Czech RepublicTeka CZ S.R.O.	V Holesovickách, 593	182 00 Praha 8 - Liben	[phone]
EcuadorTeka Ecuador S.A.	Parque Ind. California 2, Via a Daule Km 12	Guayaquil	[phone]
GreeceTeka Hellas A.E.	Thesi Roupaki - Aspropyrgos	193 00 Athens	[phone]
HungaryTeka Magyarország Zrt.	Terv u. 92	9200 Mosonmagyaróvár	[phone]
IndonesiaPT Teka Buana	Jalan Menteng Raya, Kantor Taman A9 Unit A3	12950 Jakarta	[phone]
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd	10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie	40150 Shah Alam, Selangor Darul Ehsan	[phone]
MexicoTeka Mexicana S.A. de C.V.	Blvd Manuel A. Camacho 126, Piso 3 Col. Chapultepec	11000 Mexico D.F.	[phone]
MoroccoTeka Maroc S.A.	73, Bd. Slimane, Depôt 33, Route de Ain Sebaa	Casablanca	[phone]
PeruTeka Küchentechnik Perú S.A.	Av. El Polo 670 local A 201, CC El polo, Surco	Lima	[phone]
PolandTeka Polska Sp. ZO.O.	ul. 3-go Maja 8 / A2	05-800 Pruszkow	[phone]
PortugalTeka Portugal S.A.	Estrada da Mota - Apdo 533	3834-909 Ilhavo, Aveiro	[phone]
RomaniaS.C. Teka Küchentechnik Romania S.R.L.	Sevastopol str., no 24, 5th floor, of. 15	010992 Bucharest Sector 1	[phone]
Russia/RocciaTeka Rus LLC/OOO "Teka Pyc"	Neverovskogo 9, Office 417, 121170, Moscow, Russia	121087 Россия, Москва	[phone]
SingaporeTeka Singapore PTE Ltd	Clemenceau Avenue, 83, 01-33/34 UE Square	239920 Singapore	[phone]
SpainTeka Industrial, S.A.	C/ Cajo,17	39011 Santander	[phone]
ThailandTeka (Thailand) Co. Ltd.	364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee	10400 Bangkok	[phone]
TurkeyTeka Teknik Mutfak Aletleri Sanayi Ve	Büyükdere Cad. 24/13	80290 Mecidiyeköy, Istanbul	[phone]
UkraineTeka Ukranie LLC	86-e, Bozhenko Str .2nd floor,4th entrance	03150 Kyiv	[phone]
United Arab EmiratesTeka Middle East Fze	Building LOB 16, Office 417	P.O. Box 18251 Dubai	[phone]
United Arab EmiratesTeka Küchentechnik U.A.E LLC	Bin Khedia Centre	P.O. Box 35142 Dubai	[phone]
VenezuelaTeka Andina S.A.	Ctra. Petare-Santa Lucia, km 3 (El Limoncito)	1070 Caracas	[phone]
VietnamTEKA Vietnam Co., Ltd.	803, Fl 8th, Daiminh Convention Center, 77, Hoang Van	Thai, Tan Phu Ward, District 7, Ho Chi Minh	[phone]

тека
