THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please register your product on

www.whirlpool.eu/register

Before using the appliance carefully read the Safety Instruction.

Before using the machine, it is imperative that the transport bolts are removed. For more detailed instructions on how to remove them, see the Installation Guide.

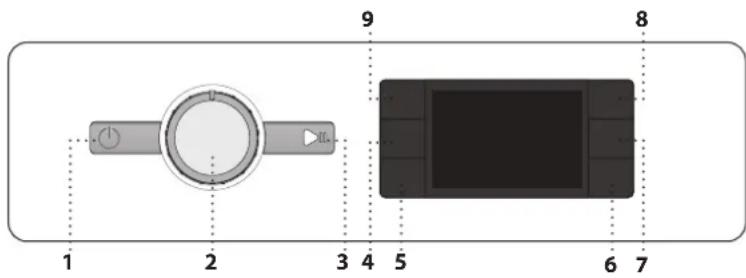

CONTROL PANEL

1 "ON/OFF" button
2 Programme selector
3 "Start/Pause" button
4 "Spin" button
5 "Intensive rinse" button
6 "Clean+" button /
"Key lock" -button
7 "Start delay" button
8 "FreshCare+"
9 "Temperature" button

DISPLAY INDICATORS

Door locked

FreshCare+ activated

1 2 3 4 5 6 7 8 9

Start delay activated

Key lock activated

Washing phase

Indicates washing phase of the cycle

Failure: Call Service

Refer to Troubleshooting section

Failure: Water filter clogged

Water cannot be drained; water filter might be blocked

Failure: No water

No or not sufficient inlet water.

In the event of any failure, refer to the

"TROUBLESHOOTING" section

PROGRAMME CHART

Max load 8 KgPower consumption in off -mode 0.5 W / in left-on mode 8.0 W							Detergents and additives			Recommended detergent		Residual dampness % (*)	Energy consumption kWh	Total water lt	Laundry temperature °C
Programme		Temperatures		Max. spin speed (rpm)	Max load (kg)	Duration (h : m)	Prewash	Main wash	Softener	Powder	Liquid
		Setting	Range				I	II	✿
	Mixed	40°C	✿ - 40°C	1000	8.0	**	-	●	○	-	√	-	-	-	-
	White	60°C	✿ - 90°C	1400	8.0	2:35	● (90°)	●	○	√	√	55	1,790	89	55
	Cotton	40°C	✿ - 60°C	1400	8.0	3:30	-	●	○	√	√	53	1,100	95	45
	Eco 40-60	40°C	40°C	1351	8.0	3:35	-	●	○	√	√	53	0,575	59	32
				1351	4.0	2:48	-	●	○	√	√	53	0,358	47	27
				1351	2.0	2:20	-	●	○	√	√	53	0,180	35	23
	Sport	40°C	✿ - 40°C	600	4.0	**	-	●	○	-	√	-	-	-	-
	Duvet	30°C	✿ - 30°C	1000	3.5	**	-	●	○	-	√	-	-	-	-
	Steam Refresh	-	-	-	2.0	**	-	-	-	-	-	-	-	-	-
	Spin & Drain	-	-	1400	8.0	**	-	-	-	-	-	-	-	-	-
	Rinse & Spin	-	-	1400	8.0	**	-	-	○	-	-	-	-	-	-
	Rapid 30'	30°C	✿ - 30°C	1200 (***)	4.5	0:30	-	●	○	-	√	71	0,178	37	27
	20°C	20°C	✿ - 20°C	1400	8.0	1:50	-	●	○	-	√	55	0,138	78	22
	Wool	40°C	✿ - 40°C	800	2.0	**	-	●	○	-	√	-	-	-	-
	Delicates	30°C	✿ - 30°C	600 (***)	1.0	**	-	●	○	-	√	-	-	-	-
	Synthetics	40°C	✿ - 60°C	1200	4.5	2:15	-	●	○	√	√	35	0,580	60	43

● Dosing required ○ Dosing optional

This data may differ in your home due to changing conditions in inlet water temperature, water pressure etc. Approximate programme duration values refer to the default setting of the programmes, without options. The values given for programmes other than the Eco 40-60 programme are indicative only.

ECO 40-60 Eco 40-60 - Test wash cycle in compliance with EU Ecodesign regulation 2019/2014. The most efficient programme in terms of energy and water consumption for washing normally soiled cotton laundry.

Note: spin speed values shown on the display can slightly differ from the values stated in the table.

For all Test Institutes

Long wash cycle for cottons: set wash cycle Cotton with a temperature of 40^ C.

Synthetic program along: set wash cycle Synthetics √ with a temperature of 40°C.

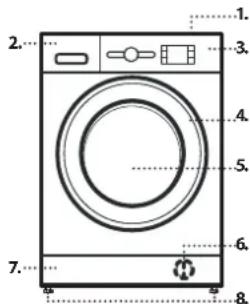

PRODUCT DESCRIPTION

1. Worktop
2. Detergent dispenser
3. Control panel
4. Door handle
5. Door
6. Water filter - behind plinth
7. Plinth (removable)
8. Adjustable feet (4)

1. 2. 3. 4. 5. 6. 7. 8.

* After programme end and spinning with maximum selectable spin speed, in default programme setting.
**The duration of the programme is shown on the display.
*** The display will show the suggested spin speed as default value.
6th Sense - the sensor technology adapts water, energy and programme duration to your wash load.

DETERGENT DISPENSER

Main wash compartment

Detergent for the main wash, stain remover or water softener. For a liquid detergent it is recommended to use removable plastic partition A (supplied) for a proper dosage. If powder detergent is used, place the partition into slot B.

Prewash compartment

Detergent for the prewash

Softener compartment

Fabric softener. Liquid starch.

Pour in softener or starch solution only up to the "max" mark.

Release button

Press to remove tray for cleaning.

Diagram of a device with labeled components A, B, I, and II, showing connections and directional arrows.

PROGRAMMES

For choosing the appropriate programme for your kind of laundry, always respect the instructions on the care labels of the laundry. The value given in the tub symbol is the maximum temperature possible for washing the garment.

Mixed

For washing lightly to normally soiled resilient garments in cotton, linen, synthetic fibres and mixed fibres.

White

For washing normally to heavily soiled towels, underwear, table and bed linen, etc in resilient cotton and linen. Only when the temperature is selected at 90^ C the cycle is provided with a prewash phase before main washing phase. In this case it is recommended to add detergent both, in the prewash and main wash section.

Cotton

Normally to heavily soiled and robust cottons.

Eco 40-60 ECO 40-60

For washing normally soiled cotton garments declared to be washable at 40 °C or 60 °C , together in the same cycle. This is the standard cotton programme and the most efficient in terms of water and energy consumption.

Sport

For washing lightly soiled sports clothing (tracksuits, shorts, etc.). For best results, we recommend not exceeding the maximum load indicated in the "PROGRAMME CHART". We recommend using liquid detergent, and adding the amount suitable for half-load.

Duvet

Designed for washing eiderdown padded items such as double or single duvets, cushions and anoraks. It is recommended to load such padded items in the drum with the edges folded inwards and not to exceed 34 of the drum's volume. For optimal washing, we recommend using a liquid detergent.

Steam Refresh

This programme refreshes garments by removing bad odours and relaxing the fibres (2 kg, roughly 3 items). Insert dry items only (that are not dirty) and select programme "Steam Refresh". Garments will be a little damp at the end of the cycle and can be worn after a few minutes.

The "Steam Refresh" programme makes ironing easier.

! Not recommended for wool or silk garments.

! Do not add softeners or detergents.

Spin & Drain

Spins the load then empties the water. For resilient garments. If you exclude the spin cycle, the machine will drain only

Rinse & Spin

Rinses and then spins. For resilient garments.

Rapid 30'

For washing lightly soiled garments quickly. This cycle lasts only 30 minutes, saving time and energy.

20°C 20°C

For washing lightly soiled cotton garments, at a temperature of 20 °C.

Wool

All wool garments can be washed using programme, "Wool" even those carrying the "hand-wash only" label. For best results, use special detergents and do not exceed max kg declaration of laundry.

Delicates

For washing particularly delicate garments. Preferably turn garments inside out before washing.

Synthetics

For washing soiled garments made from synthetic fibres (such as polyester, polyacrylic, viscose, etc.) or cotton/synthetic blends.

FIRST TIME USE

To remove any manufacturing debris select the "Cotton" programme at a temperature of 60^ C. Pour a small quantity of detergent powder into the main wash I compartment of the detergent dispenser (maximum 1/3 of the quantity the detergent manufacturer recommends for lightly soiled laundry). Start the programme without adding any laundry.

DAILY USE

Prepare your laundry according to the recommendations in the "HINTS AND TIPS" section. Load the laundry, close the door, open the water tap and press the "ON/OFF" button to switch the wasching machine on, the "Start/Pause" button flashes. Turn the programme selector to the desired programme and select any option if needed. The temperature and spin speed can be changed by pressing the "Temperature" button or the "Spin" button. Pull out the detergent dispenser and add the detergent (and additives/softener) now. Observe the dosing recommendations on the detergent pack. Then close the detergent dispenser.

STARTING CYCLE

Press the "Start/Pause" button.

The machine will lock the door ( Symbol on) and the drum will start to rotate; the door will be unlocked ( Symbol OFF) and then locked again ( Symbol on) as preparation phase of each washing cycle. The "Clicking" noise is part of the door locking mechanism. Water will enter the drum and start the washing phase once the door is locked.

PAUSE A RUNNING PROGRAMME

To pause the wash cycle, press the "Start/Pause" the indicator light will go off and the remaining time on display flash. To start the wash cycle from the point at which it was interrupted press the button again.

OPEN THE DOOR, IF REQUIRED

After starting a programme, the "Door locked" indicator lights up to show that the door can not be opened. As long as a wash programme is running, the door remains locked. To open the door while a programme is in progress, press the "Start/Pause" pause the programme. Provided the water level and/or temperature is/are not too high, the "Door locked" indicator light goes off and you can open the door. For example to add or remove laundry. Press the "Start/Pause" button again to continue the programme.

PROGRAMME END

The "Door locked" indicator light goes off and the display shows "End". To switch off the washing machine after programme ends press the "ON/OFF" button, the lights goes off. If you do not press "ON/OFF" button, the washing machine will switch off automatically after about a 10 minutes. Close the water tap, open the door and unload the washing machine. Leave the door ajar to allow the drum to dry.

OPTIONS

! If the selected option is incompatible with the programme set, the incompatibility will be signalled by a buzzer (3 beeps) and the corresponding indicator light will flash.

! If the selected option is incompatible with another previously set option, only the most recent selection will remain active.

Clean+

Clean+ is an option working on 3 different levels (Intensive, Daily and Fast) that are specially designed to set the right washing action, depending on your cleaning needs:

Intensive 📋: this option is designed for high levels of dirtiness, removing most stubborn stains.

Daily this option is designed to remove everyday stains.

Fast 📋: this option is designed to remove lightly soiled stains.

Intensive rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin. Press the button once, two or three times to select an additional 1 ⚡, 2 ⚡ or 3 ⚡ rinses after the standard cycle rinse and remove all traces of detergent. Press the button again to go back to the "Normal rinse" rinse type.

Start delay _h

To set the selected programme to start at a later time, press the button to set the desired delay time. Symbol lights on the display when this fuction is enabled. To cancel the delayed start, press the button again untile the value, "0" is shown on the display.

FRESH CARE+

This option enhances washing performance by generating steam to inhibit the proliferation of the main bad odour sources inside the machine. After steam phase, the washing machine will perform gentle tumbling through slow rotations of the drum. FRESH CARE® option starts after the cycle ends for a maximum duration of 6h and you can interrupt it at any time by pressing any button on control panel or turning the knob. Wait around 5 minutes before door can be opened.

Temperature

Every programme has a predefined temperature. If you want to change

the temperature, press the "Temperature" button. The value appears on the display.

Spin

Every programme has a predefined spin speed. If you want to change the spin speed, press the "Spin" button. The value appears on the display.

Demo mode

To deactivate this function, switch the washing machine OFF. Than press and hold "Start/Pause" button, within 5 seconds press also "ON/OFF" button and hold both buttons for 2 seconds.

KEY LOCK=○

To lock the control panel, press and hold the "Key lock" = button for approximately 3 seconds. The symbol = w0 light up on the display to indicate that the control panel has been locked (with the exception of the "ON/OFF" button). This prevents unintentional changes to programmes, especially with children near the machine. To unlock the control panel, press and hold the "Key lock" = button for approximately 3 seconds.

BLEACHING

If you wish to bleach the laundry, load the washing machine and set the "Rinse & Spin" programme.

Start the machine and wait for it to complete the first water filling cycle (roughly 2 minutes). Put the machine in pause mode by pressing the "Start/Pause" button, open the detergent drawer and pour the bleach (observe the recommended doses indicated on the package) into the main wash compartment where the partition was previously mounted. Restart the cycle by pressing the "Start/Pause" button.

If desired, it is possible to add fabric softener into the appropriate compartment of the detergent drawer.

HINTS AND TIPS

Sort your laundry according to

Type of fabric/care label (cotton, mixed fibres, synthetics, wool, handwash items). Colour (separate coloured and white items, wash new coloured items separately). Delicates (wash small items – like nylon stockings – and items with hooks – like bras – in a cloth bag or pillow case with zip).

Empty all pockets

Objects like coins or lighters can damage your laundry as well as the drum.

Follow the dosage recommendation / additives

It optimizes the cleaning result, it avoids irritating residues of surplus detergent in your laundry and it saves money by avoiding waste of surplus detergent

Use low temperature and longer duration

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Observe the load sizes

Load your washing machine up to the capacity indicated in the "PROGRAMME CHART" table to save water and energy.

Noise and remaining moisture content

They are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

CLEANING & MAINTENANCE

For any cleaning and maintenance, switch off and unplug the washing machine. Do not use flammable fluids to clean the washing machine. Clean and maintain your washing machine periodically (at least 4 times per year).

Cleaning the outside of the washing machine

Use a soft damp cloth to clean the outer parts of the washing machine. Do not use glass or general purpose cleaners, scouring powder or similar to clean the control panel – these substances might damage the printing.

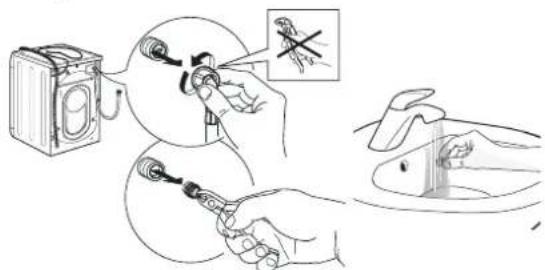

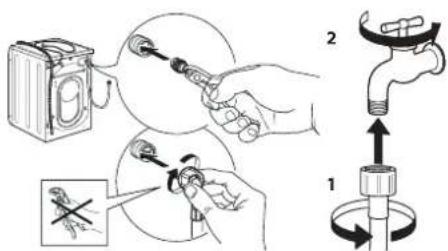

Checking the water supply hose

Check the inlet hose regularly for brittleness and cracks. If damaged, replace it by a new hose available through our After-Sales Service or your specialist dealer. Depending on the hose type: If the inlet hose has a transparent coating, periodically check if the colour intensifies locally. If yes, the hose may have a leak and should be replaced

Cleaning the water filter / draining residual water

If you used a hot wash programme, wait until the water has cooled down before draining any water. Clean the water filter regularly, to avoid that the water cannot drain after the wash due to obstruction of the filter. If the water cannot drain, the display indicates that the water filter may be clogged.

Remove the plinth by using the screwdriver: push downwards one side of the plinth with your hand, then push the screwdriver into the gap between plinth and front panel and pry open the plinth. Place a broad, flat container beneath the water filter, to collect the drain water. Slowly turn the filter counterclockwise until water flows out. Let the water flow out, without removing the filter. When the container is full, close the water filter by turning it in clockwise. Empty the container. Repeat this procedure until all the water has drained. Lay a cotton cloth beneath the water filter, which can absorb a small amount of rest water. Then remove the water filter by turning it out anti clockwise. Clean the water filter: remove residues in the filter and clean it under running water. Insert the water filter and reinstall the plinth: Reinsert the water filter again by turning it in clockwise direction. Make sure to turn it in as far as it goes; the filter handle must be in vertical position. To test water tightness of the water filter, you can pour about 1 liter of water into the detergent dispenser. Then reinstall the plinth.

ACCESSORIES

Contact our After-Sales Service to check if the following accessories are available for your washing machine model.

Stacking kit shelf

By which your dryer can be fixed on top of your washing machine to save space and to facilitate loading and unloading your dryer in the higher position.

TRANSPORT AND HANDLING

Never lift the washing machine by holding it at the worktop.

Pull out the mains plug, and close the water tap. Make sure that door and detergent dispenser are properly closed. Disconnect the inlet hose from the water tap, and remove the drain hose from your draining point. Remove all rest water from the hoses, and fix them so that they cannot get damaged during transport. Refit the transport bolts. Follow the instructions for removing the transport bolts in the INSTALLATION GUIDE in reverse order.

TROUBLESHOOTING

The washing machine may sometimes not work properly for certain reasons. Before calling the After-sales service, it is recommended to check to see if the problem can be easily resolved using the following list.

Anomalies: Possible causes / Solution:
The washing machine does not turn on.	· The plug is not inserted into the electrical outlet, or not enough to make contact.· There has been a power failure.
The wash cycle does not start.	· The door is not fully closed.· The “ON/OFF” button has not been pressed.· The “Start/Pause” button has not been pressed.· The water tap is not open.· A “Start delay” has been set.
The washing machine does not fill with water (the message “h2o” is shown on the display). “Beep” sound every 5 seconds.	· The water intake hose is not connected to the tap.· The hose is bent.· The water tap is not open.· The mains water supply has been shut off.· There is not enough pressure.· The “Start/Pause” button has not been pressed.
The washing machine loads and drains water continuously.	· The drain hose has not been installed at 65 to 100 cm from the ground.· The end of the drain hose is immersed in water.· The drain connector on the wall does not have an air vent.· If the problem persists after having performed these checks, close the water tap, shut off the washing machine, and call the After-sales service. If the dwelling is located on one of the uppermost floors of a building, a siphon effect can sometimes occur, thus causing the washing machine to load and drain water continuously. Special anti-siphon valves are available on the market to prevent these types of problems.
The washing machine does not drain or does not spin.	· The programme does not include the draining function: with certain programmes it must be activated manually.· The drain hose is bent.· The drain line is obstructed.
The washing machine vibrates excessively during the spin cycle.	· At the time of installation, the drum was not properly unblocked.· The washing machine is not level.· The washing machine is squeezed between furniture and the wall.
The washing machine leaks water.	· The water intake hose has not been tightened properly.· The detergent dispenser is clogged.· The drain hose has not been properly fastened.
The machine is locked and the display flashes, indicating an error code (e.g. F-01, F-.).	· Shut off the machine, disconnect the plug from the outlet, and wait about 1 minute before turning it back on.· If the problem persists, call the After-sales service.
Too much foam is formed.	· The detergent is not compatible with the washing machine (it must bear the wording “for washing machines”, “for hand washing and washing machines”, or something similar).· The dosage was excessive.
Door is locked, with or without failure indication, and the programme does not run.	· Door is locked in case of power breakdown. Programme will continue automatically as soon as the mains is available again.· Washing machine is in a standstill. Programme will continue automatically after the origin of the standstill does not persist anymore.

Regulatory documentation, standard documentation, ordering spare parts and other product information can be found:

- By visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com

- Using QR code

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate. For User's Repair & Maintenance Information visit www.whirlpool.eu

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu

For any cleaning and maintenance, switch off and unplug the washing machine. Do not use flammable fluids to clean the washing machine.

CLEANING THE OUTSIDE OF THE WASHING MACHINE

Use a soft damp cloth to clean the outer parts of the washing machine.

Do not use glass or general purpose cleaners, scouring powder or similar to clean the control panel – these substances might damage the printing.

CHECKING THE WATER SUPPLY HOSE

Check the inlet hose regularly for brittleness and cracks. If damaged, replace it by a new hose available through our After-Sales Service or your specialist dealer. Depending on the hose type:

If the inlet hose has a transparent coating, periodically check if the colour intensifies locally. If yes, the hose may have a leak and should be replaced.

For water stop hoses: check the small safety valve inspection window (see arrow). If it is red, the water stop function was triggered, and the hose must be replaced by a new one. For unscrewing this hose, press the release button (if available) while unscrewing the hose.

CLEANING THE MESH FILTERS IN THE WATER SUPPLY HOSE

1. Close water tap and unscrew the inlet hose.

1. Clean the mesh filter at the hose's end carefully with a fine brush.

Line drawing of two hands using a tool to apply a small object (no text or symbols present)

1. Now unscrew the inlet hose on the back of the washing machine by hand. Pull out the mesh filter from the valve on the back of the washing machine with pliers and carefully clean it.

Diagram illustrating a hand operating a device with a magnified inset showing a close-up of the switch mechanism.

1. Insert the mesh filter again. Connect the inlet hose to water tap and washing machine again. Do not use a tool to connect the inlet hose. Open the water tap and check that all connections are tight.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating steps.

Remove the dispenser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

CLEANING THE WATER FILTER / DRAINING RESIDUAL WATER

Switch off and unplug the washing machine before cleaning the water filter or draining residual water. If you used a hot wash programme, wait until the water has cooled down before draining any water. Clean the water filter regularly every three months to prevent it from clogging and prevent the water from draining properly. If the water cannot drain, the display indicates that the water filter may be clogged.

1. Remove the kick panel: Using a screwdriver, do that which is shown in the following figure.

Hand holding a metal rod with arrows indicating force direction (no text or symbols)

1. Container for the drained water: Place a low and wide container under the water filter in order to collect the residual water.

Technical line drawing of a mechanical component with no visible text or symbols

1. Drain the water: Slowly turn the filter counter-clockwise until all the water has come out. Allow the water to flow out without removing the filter. Once the container is full, close the water filter by turning it clockwise. Empty the container. Repeat the procedure until all the water has been drained.

Line drawing of a hand using a sewing machine to adjust a component (no text or symbols)

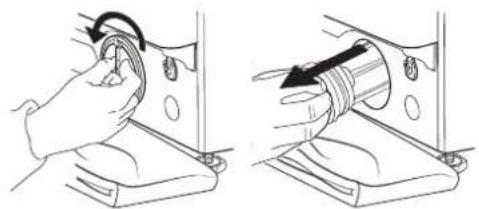

1. Remove filter: Lay a cotton cloth beneath the water filter, which can absorb a small amount of rest water. Then remove the water filter by turning it out anticlockwise.

Two-step diagram showing hand turning a circular component into a mechanical component, with no visible text or symbols.

1. Clean the water filter: remove residues in the filter and clean it under running water.

Line drawing of hands cleaning a sink with a tool (no text or symbols)

1. Insert the water filter and reinstall the plinth: Reinsert the water filter again by turning it in clockwise direction. Make sure to turn it in as far as it goes; the filter handle must be in vertical position. To test water tightness of the water filter, you can pour about 1 liter of water into the detergent dispenser. Then reinstall the plinth.

Technical diagram showing two mechanical assembly steps: one with a rotating component and the other with a sliding mechanism.

Never lift the washing machine by holding it at the worktop.

1. Pull out the mains plug, and close the water tap.
2. Make sure that door and detergent dispenser are properly closed.

3. Disconnect the inlet hose from the water tap, and remove the drain hose from your draining point. Remove all rest water from the hoses, and fix them so that they cannot get damaged during transport.

4. Refit the transport bolts. Follow the instructions for removing the transport bolts in the "Installation Guide" in reverse order.

Important: Do not transport the washing machine without having fixed the transport bolts.

AFTER-SALES SERVICE

BEFORE CALLING THE AFTER-SALES SERVICE

1. See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE

To receive assistance, call the number shown on the warranty booklet.

When contacting our Client After sales service, always specify:

• a brief description of the fault;
• the type and exact model of the appliance;

Technical diagram showing a device with two circular components and an arrow pointing to a labeled component, possibly indicating a measurement or annotation.

1. Switch the appliance off and back on again to see if the fault persists.

- the service number (number after the word Service on the rating plate).

• your full address;
• your telephone number.

If any repairs are required, please contact an authorised after-sales service (to guarantee that original spare parts will be used and repairs carried out correctly).

KIITOS SIITÄ, ETTÄ OSTIT WHIRLPOOL-TUOTTEEN

Two mechanical connectors with threaded ends and arrows indicating assembly or connection (no text or symbols)

Line drawing of two hands using a tool to apply a small object (no text or symbols present)

Diagram illustrating a medical procedure for using a device to adjust eye movements, with an inset showing a magnified view of the eye.

Diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing tool installation and component insertion.

Hand holding a ruler with an arrow indicating measurement or adjustment (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a sewing machine to press or adjust a component (no text or symbols visible)

Two-step diagram showing hand turning a cable or switch into a mechanical component (no text or symbols)

Line drawing of hands cleaning a sink with a tool (no text or symbols)

Technical diagram showing two mechanical assembly steps: one with a rotating shaft and labeled component 1, and another with a hand holding a bracket.

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL

TRANSPORT ET MANUTENTION

Line drawing of two hands using a tool to apply or install a component (no text or symbols present)

Diagram illustrating a procedure for using a device to adjust a tool, with an inset showing a hand holding a tool and a crosshair symbol.

Diagram illustrating a hand tool application on a battery, showing step 1 and step 2 of the process.

Hand holding a metal rod with arrows indicating force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a sewing machine to lift a small object (no text or symbols)

Illustration showing two steps of a hand holding a cable, with no visible text or symbols

Line drawing of hands washing a sink with a tool (no text or symbols)

Technical diagram showing two-step installation of a mechanical component with labeled parts and motion arrows

Diagram showing a device with labeled components and an arrow pointing to a highlighted section, likely indicating a measurement or annotation.

Line drawing of two hands using a tool to apply a small object (no text or symbols present)

Diagram illustrating a procedure for using a device to adjust a small object, with magnified views showing the tool and component.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating steps.

Hand holding a tool interacting with a metal bracket, no text or symbols visible

Technical line drawing of a mechanical component with mounting flanges and a circular dial (no text or symbols)

Line drawing of a hand using a tool to press or install a component, no text or symbols present

Two-step diagram showing hand turning a cable or switch, with no text or symbols present.

Line drawing of hands cleaning a sink with a tool (no text or symbols)

Technical diagram showing two-step installation of a mechanical component with labeled parts and a close-up view.

FreshCare+ FRESH CARE+

SKALBYKLĖS IŠORĖS VALYMAS

Line drawing of two hands using a tool to apply or install a component (no text or symbols present)

Diagram illustrating a procedure for using a device to adjust a device with an insect, including magnified insets showing the insect and hand.

Diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing components like battery, switch, and pipe fitting.

Hand holding a metal rod with arrows indicating force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a sewing machine to lift a component (no text or symbols)

Two-step diagram showing hand turning a cable or switch, with no text or symbols present.

Line drawing of hands cleaning a sink with a tool (no text or symbols)

Technical diagram showing two mechanical assembly steps: one with a rotating shaft and arrow, the other with a hand holding a tool.

Technical diagram showing a device with labeled components and an arrow pointing to a circular feature, possibly indicating a zoom or annotation.

Two mechanical connectors with threaded ends and arrows indicating assembly or connection (no text or symbols)

Line drawing of two hands using a tool to apply or install a component (no text or symbols present)

Diagram illustrating a medical procedure for using a device to adjust eye movements, with an inset showing a close-up of the eye.

Diagram illustrating a mechanical assembly process with labeled steps and component illustrations

Hand holding a metal rod with arrows indicating force direction (no text or symbols)

Technical line drawing of a mechanical component with mounting flanges and a circular feature (no text or symbols)

Line drawing of a hand using a sewing machine to lift a small object (no text or symbols)

Two-step diagram showing hand turning a cable or switch into a mechanical component (no text or symbols present)

Line drawing of hands washing a sink with a tool (no text or symbols)

Technical diagram showing two-step installation of a mechanical component with labeled parts and motion indicators

Technical diagram showing a device with labeled components and an arrow pointing to a component, likely indicating assembly or alignment.

Diagram of a device with labeled parts A, B, and I, showing directional arrows and components.

PROGRAMMA'S

Line drawing of two hands using a tool to apply a spring (no text or symbols present)

Diagram illustrating a medical procedure for using a device to adjust or install a circular component, with an inset showing a close-up of the device.

Diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing tool application and component insertion.

Hand holding a ruler with an arrow indicating measurement or force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a sewing machine to lift a small object (no text or symbols present)

Two-step diagram showing hand turning a cable or switch into a mechanical component (no text or symbols present)

Line drawing of hands washing a sink with a tool (no text or symbols)

Technical diagram showing two mechanical assembly steps: one with a rotating shaft and labeled component 1, and another with a mounted bracket and base.

Technical diagram showing a device with labeled components and an arrow pointing to a highlighted section.

MANGE TAKK FOR AT DU HAR KJ∅PT ET WHIRLPOOL-PRODUKT

4 Knapp for "Sentrifuge"

5 Knapp for "Intensiv skylling"

6 "Clean+" knapp/

"Tastelås" knapp

7 Knapp for "Utsatt start"

8 "FreshCare+"

9 "Temperatur" knapp

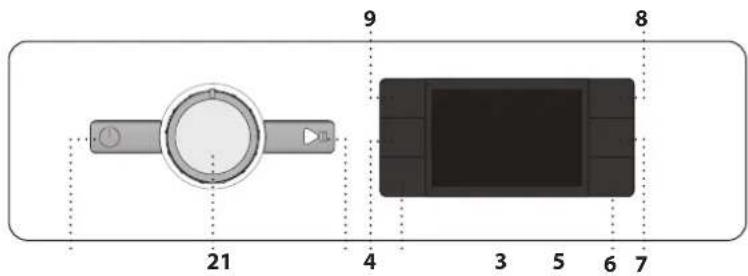

DISPLAY INDIKATORER

Lukket dør

FreshCare+ er aktivert

21 9 4 3 5 6 7 8

Line drawing of two hands using a tool to apply a small object (no text or symbols present)

Diagram illustrating a hand operating a device with a magnified view showing a close-up of the switch mechanism.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating steps.

Hand holding a rectangular object with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Two-step diagram showing hand turning a circular component into a mechanical component, with no visible text or symbols.

Line drawing of hands cleaning a sink with a tool (no text or symbols)

1. Sett inn vannfilteret og sokkeldekselet: Sett inn vannfilteret og drei det med klokken. Drei filteret så langt det går. Filterhåndtaket skal være i vertikal stilling. For å teste at vannfilteret er vanntett, kan du helle ca. 1 liter vann i vaskemiddelskuffen. Sett sokkeldekselet på plass igjen.

Technical diagram showing two mechanical assembly steps: one with a rotating component labeled '1' and '2', and another with a hand holding a screw.

Aldri løft vaskemaskinen med topplaten.

Technical diagram showing a device with labeled components and an arrow pointing to a highlighted section.

Diagram of a device with labeled components A, B, and I, showing directional arrows and a fan symbol.

PROGRAMY

Line drawing of two hands using a tool to apply or install a component (no text or symbols present)

Diagram illustrating a procedure for using a device to adjust a small object, with magnified views showing the tool and component.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating steps.

Hand holding a rectangular object with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a tool to press or install a component, no text or symbols present

Two-step diagram showing hand turning a circular component into a mechanical part, with no text or symbols present.

Line drawing of hands cleaning a sink with a tool (no text or symbols)

Technical diagram showing two mechanical assembly steps: one with a rotating component labeled '1' and '2', and another with a close-up view of a mounted device.

Technical diagram showing a device with two circular components and an arrow pointing to a labeled section, likely indicating a measurement or annotation.

Diagram of a device with labeled parts A, B, I, and directional arrows indicating flow or movement.

PROGRAME

Two mechanical components with threaded ends and arrows indicating assembly or motion (no text or symbols)

Line drawing of two hands using a tool to apply a brush (no text or symbols present)

Diagram illustrating a procedure for using a device to adjust or install a component, with magnified insets showing the tool and magnified view.

Diagram illustrating a hand tool application on a battery, showing step 1 and step 2 with instructions for adjusting the switch.

Hand holding a rectangular object with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a circular feature (no text or symbols)

Line drawing of a hand using a sewing machine to adjust a component (no text or symbols)

Two-step diagram showing hand turning a circular component into a mechanical part, with no text or symbols present.

Line drawing of hands cleaning a sink with a tool (no text or symbols)

Technical diagram showing two-step installation of a mechanical component with labeled parts and motion indicators

NEERED MEASURE

Line drawing of two hands using a tool to apply a brush (no text or symbols present)

Illustration showing a person using a device to clean a mosquito, with an inset showing the insect and a close-up of the insect being examined.

Diagram illustrating the installation of a plug into a drain, showing components and wiring steps

Hand holding a metal rod with arrows indicating force direction (no text or symbols)

Technical line drawing of a mechanical component with circular features and mounting holes (no text or symbols)

1. Vypustite vodu: pomaly otáčajte filtrom proti smeru hodinových ručičiek, kým nevytečie všetka voda. Nechajte vodu vytiect bez toho, aby ste vybrali filter. Ked'je nádoba plná, zatvorte vodný filter otočením v smere hodinových ručičiek. Vyprázdnite nádobu. Postup opakujte, kým nevytečie všetka voda.

Line drawing of a hand holding a curved object with a knob, next to a small mechanical component (no text or symbols)

Two-step diagram showing hand positioning of a mechanical component, no text or symbols present

Line drawing of hands washing a sink with a tool (no text or symbols)

Technical diagram showing two-step installation of a mechanical component with labeled parts and motion indicators

Diagram showing a device with labeled components and an arrow pointing to a highlighted section, likely indicating a component or annotation.

TACK FÖR ATT DU HAR KÖPT EN PRODUKT FRÄN WHIRLPOOL

Diagram of a device with labeled parts A, B, I, and II, showing internal components and directional arrows.

PROGRAM

ÖPPNA LUCKAN, VID BEHOV

Line drawing of two hands using a tool to apply a brush (no text or symbols present)

Diagram illustrating a procedure for using a device to adjust eye position, with magnified insets showing the same eye and hand positioning.

Diagram illustrating a hand tool application on a battery, showing steps to switch and install a valve with a plug.

Hand holding a rectangular object with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a sewing machine to adjust a component (no text or symbols)

Two-step diagram showing hand turning a cable or switch into a mechanical component (no text or symbols present)

Line drawing of hands cleaning a sink with a tool (no text or symbols)

Technical diagram showing two mechanical assembly steps: one with a rotating component and the other with a sliding mechanism.
