USER MANUAL JEHSCU0300CL3 DAIKIN

J&E Hall International for DAIKIN

Installation Manual

Operation Manual

(Original Instruction)

Reciprocating condensing unit for medium temperature application

Series 1

JEHCCU0040CM1

JEHCCU0050CM1

JEHCCU0051CM1

JEHCCU0063CM1

JEHCCU0067CM1

JEHCCU0077CM1

JEHCCU0095CM1

JEHCCU0100CM1

JEHCCU0113CM1

Series 2

JEHCCU0140CM1

JEHCCU0140CM3

JEHCCU0150CM1

JEHCCU0150CM3

JEHCCU0225CM1

JEHCCU0225CM3

JEHCCU0300CM1

JEHCCU0300CM3

Reciprocating condensing unit for low temperature application

Series 1 JEHCCU0115CL1

Scroll condensing unit for medium temperature application

Series 2

JEHSCU0200CM1

JEHSCU0200CM3

JEHSCU0250CM1

JEHSCU0250CM3

JEHSCU0300CM1

JEHSCU0300CM3

JEHSCU0350CM3

Series 3

JEHSCU0400CM3

JEHSCU0500CM3

JEHSCU0600CM3

JEHSCU0680CM3

Series 4

JEHSCU0800CM3

JEHSCU1000CM3

Scroll condensing unit for low temperature application

Series 2 JEHSCU0200CL3 JEHSCU0300CL3

Series 3 JEHSCU0400CL3 JEHSCU0500CL3 JEHSCU0600CL3

Series 4 JEHSCU0750CL3 JEHSCU0950CL3 EVI

Contents

1. Nomenclature 2
2. Safety and Health 2
3. Installation & commissioning 2
4. Decommissioning & Disposal 9
5. Checklist 9
6. Service and Maintenance 9
7. F gas Regulations 10
8. Trouble Shooting 10
9. Specifications 11

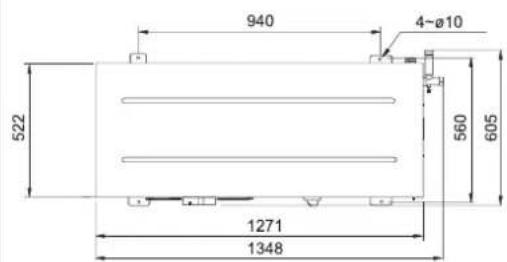

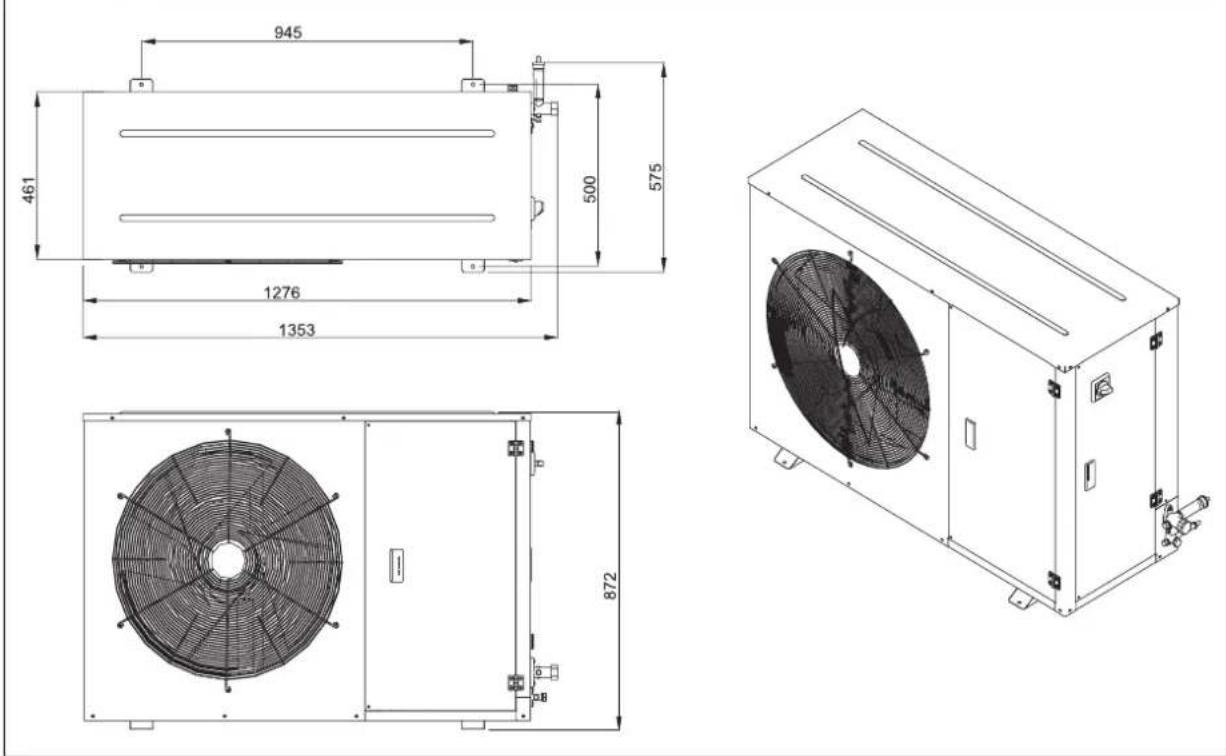

10. Outline Drawings 13

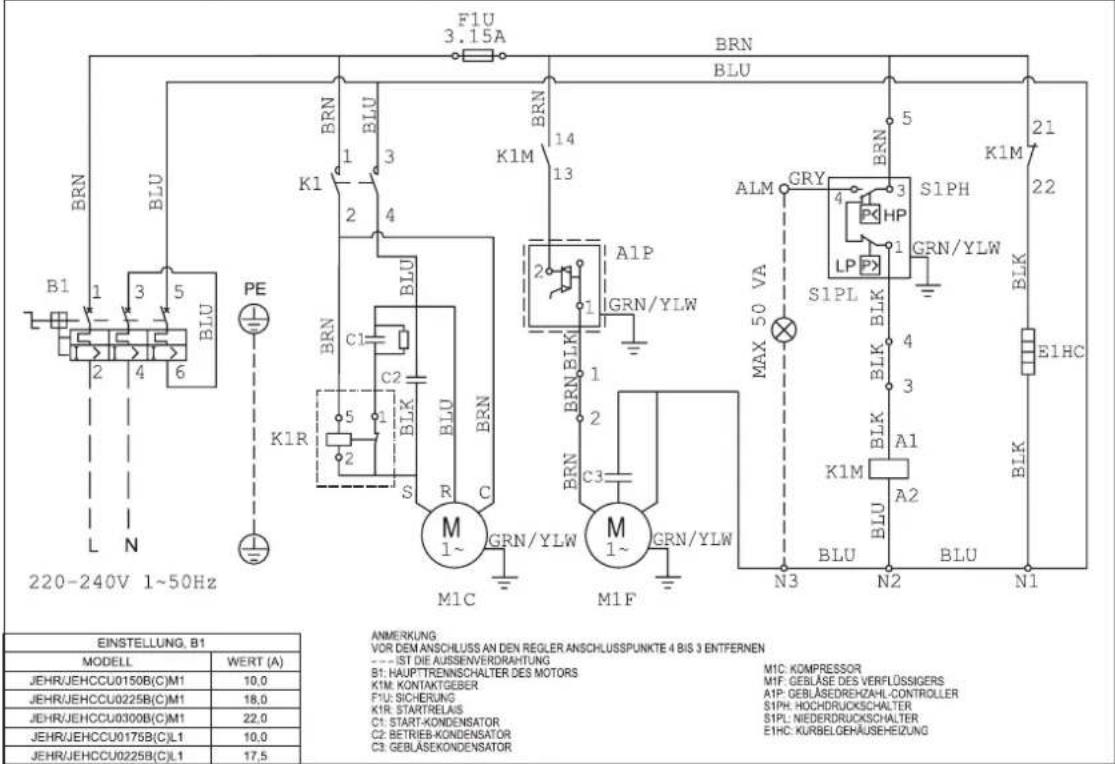

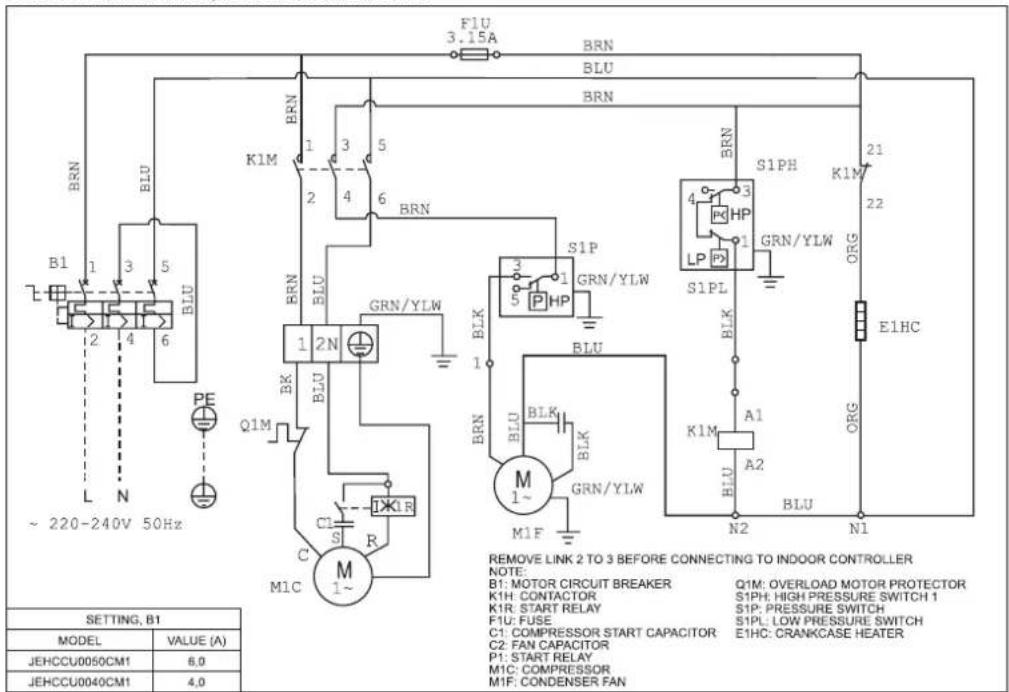

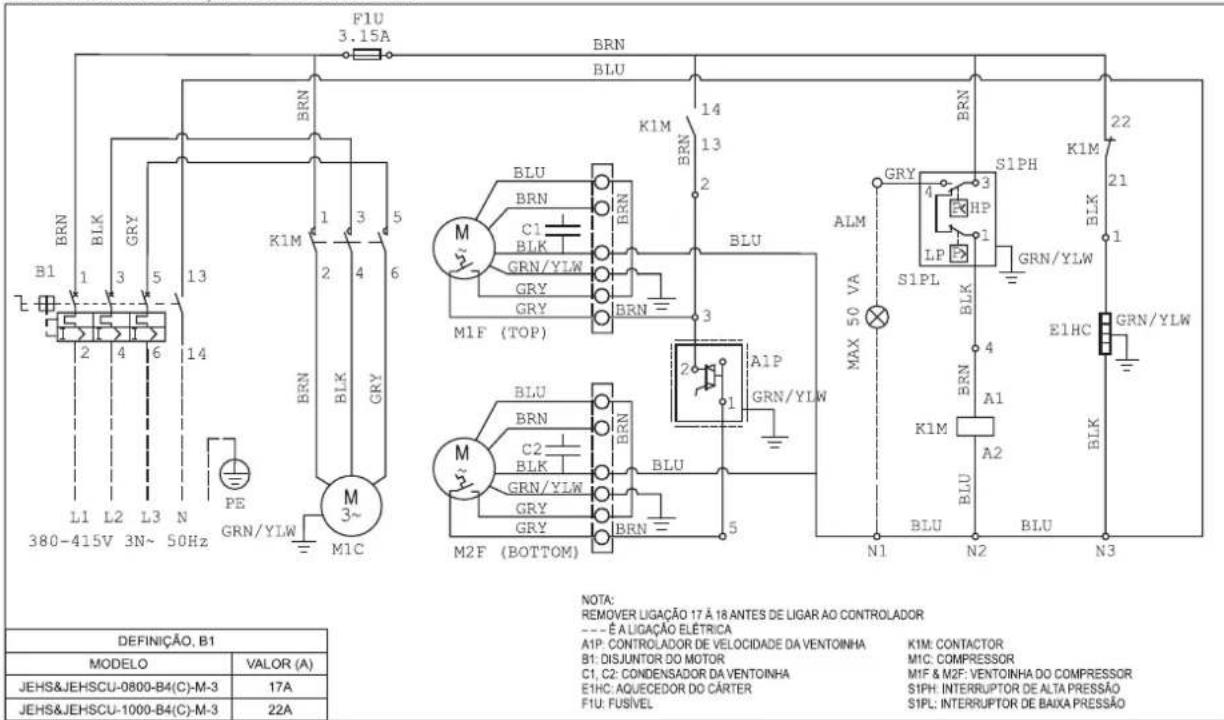

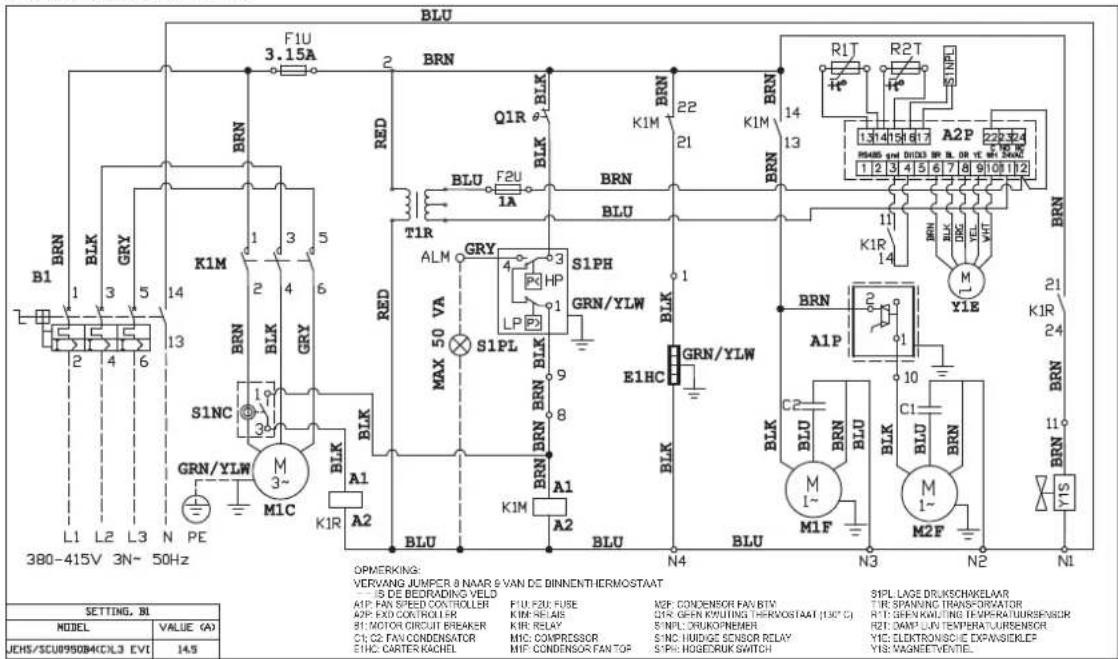

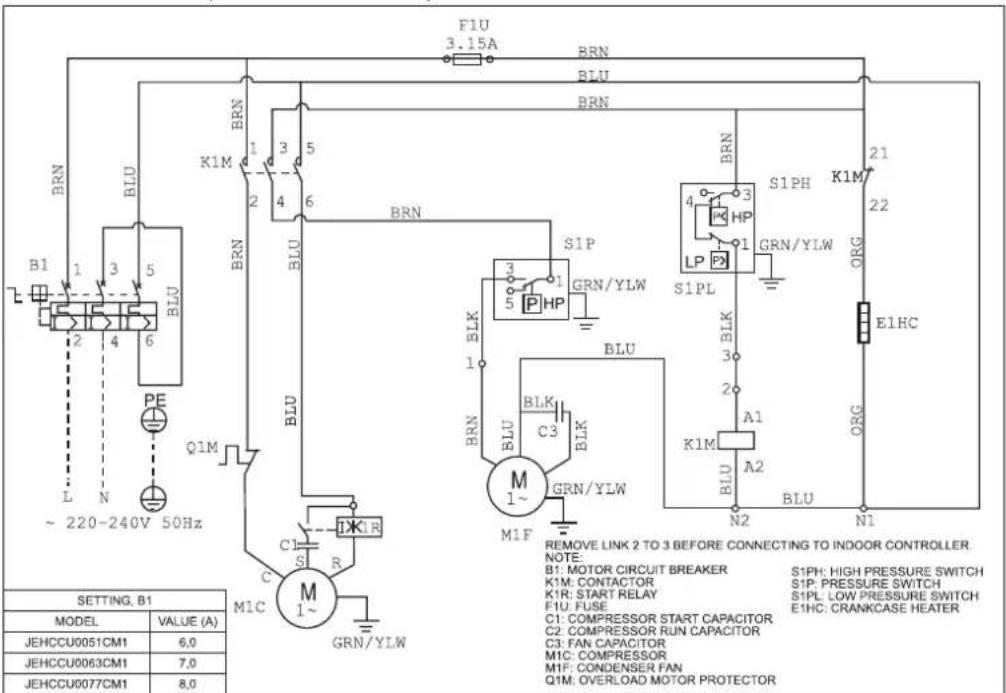

11. Electrical Data 16
12. Appendix 23

1. Nomenclature

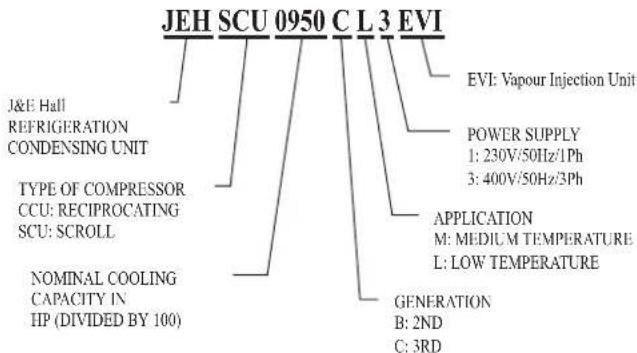

JEH SCU 0950 CL3 EVI J&E Hall REFRIGERATION CONDENSING UNIT TYPE OF COMPRESSOR CCU: RECIPROCATING SCU: SCROLL NOMINAL COOLING CAPACITY IN HP (DIVIDED BY 100) EVI: Vapour Injection Unit POWER SUPPLY 1: 230V/50Hz/1Ph 3: 400V/50Hz/3Ph APPLICATION M: MEDIUM TEMPERATURE L: LOW TEMPERATURE GENERATION B: 2ND C: 3RD

2. Safety and Health

General Information

Important Note

Only a qualified refrigeration engineer who is familiar with refrigeration systems and components, including all controls should perform the installation and start-up of the system. To avoid potential injury, use care when working around coil surfaces or sharp edges of metal cabinets. All piping and electrical wiring should be installed in accordance with all applicable codes, ordinances and local by-laws.

This appliances is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Ensure the unit received is the correct model for the intended application.
• Ensure refrigerant, voltage, are suitable for the proposed application and environment.

• Installation and maintenance are to be performed only by qualified personnel who are familiar with local codes and regulations, and experienced with this type of equipment.
  • The condensing unit is delivered with a nitrogen holding charge.

• The condensing unit contains moving machinery and electrical power hazards. May cause severe injury or death. Disconnect and shut off power before installation or service of the equipment.

• Refrigerant release into the atmosphere is illegal. Proper evacuation, handling and leak testing procedures must be observed at all times.
• Condensing unit must be earthed Improper earthing may result in electric or fire.
• Be sure to switch off the unit before touching any electrical parts. Touching a live part may result in electric shocks or fire.
• The electrical covers and condenser fan guard must remain fitted at all times.
• Use of the condensing unit outside of design conditions and application for which units were intended may be unsafe and be detrimental to the unit, regardless short or long term operation.
• The condensing units are not designed to withstand loads or stresses from other equipment or personnel. Such extraneous loads or stress may cause failure / leak / injury. In some circumstances, a suction accumulator (not supplied) component may be required, it offers protection against refrigerant flood back during operation. It helps protect against off-cycle migration by adding internal free volume to the low side of the system.
• Test must be conducted to ensure the amount of off-cycle migration to the compressor does not exceed the compressor's charge limit.
• Wherever possible the system should be installed to utilize a pump down configuration. For unit Series 1 JEHCCU040CM1 and JEHCCU0050CM1, it is advisable to connect with thermostat cut off configuration using the reserved terminal in control box.
• After installation, the system should be allowed to run for 3 – 4 hours. The oil level should be checked after 3 – 4 hours run time and topped up as necessary. The oil level should not be lower than quarter of the compressor oil sight glass.

3. Installation & Commissioning

3.1 Unit site location

• In order to achieve maximum cooling capacity, the installation location for condensing unit should be carefully selected.
• Install the condensing unit in such a way so that hot air distributed by the condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient space for maintenance around the unit.

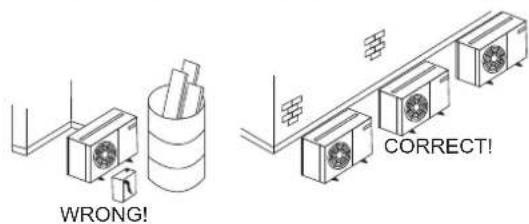

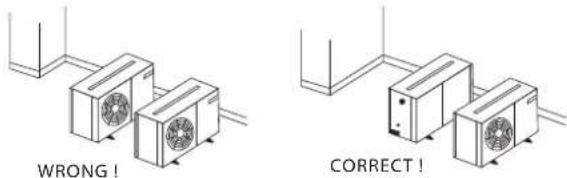

WRONG! CORRECT!

- Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air intake or discharge.

WRONG! CORRECT!

- The location must be well ventilated, so the unit can draw in and distribute plenty of air thus lowering the condensing temperature.

- To optimize the unit running conditions, the condenser coil must be cleaned at regular intervals.

3.2 Installation Clearance

- The installation location should allow sufficient space for air flow and maintenance around the unit.

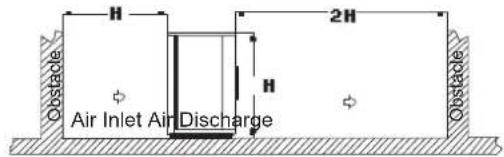

H 2H Air Inlet Air Discharge Obstacle H Obstacle

- To allow sufficient space for doing service or installation.

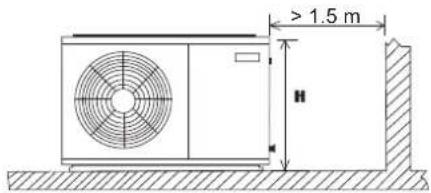

> 1.5 m H

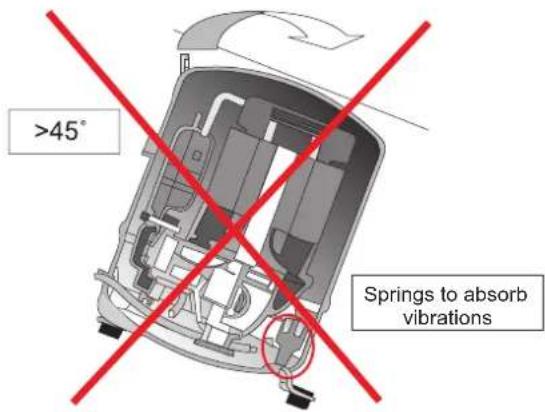

3.3 Compressor handling

To ensure compressor reliability, the condensing unit and the compressor must not be tilt greater than an angle of 45^ . Otherwise, the compressor can fall from its 3 compressor housing spring, which results in noisyvibrations during operation and possible to breakdown.

>45° Springs to absorb vibrations

3.4 Field Piping

To

ensure

Important Note Line sizing should only be determined by qualified personnel. All local codes of practice must be observed in the installation of refrigerant piping.

satisfactory operation and performance, the following points should be noted for field piping arrangements,

- Couples one indoor unit with one outdoor condensing unit only.

- Release all the pre-charged nitrogenbefore pipework connection.

- Connecting pipe size for suction and liquid line must same as attaches to the condensing unit. Correct line sizing will minimize the pressure drop and maintain sufficient gas velocity for proper oil return.

- Pipework routes must be as simple and as short as possible. Avoid low points on pipework where oil can accumulate.

- Use only clean, dehydrated refrigeration grade copper tube with large radius elbows. The piping shall be kept with enough bending radius.

• Braze without over filling to ensure there is no excess solder into the tube.
• To prevent oxidation, blow nitrogen through pipework when brazing.
  • Install insulation on all suction lines after pressure test.
• Adequately support all pipe work at a maximum of 2 meter intervals.
• For the condition where the outdoor condensing unit is above the indoor unit, the height difference between units shall be less than 25 m and install oil trap on suction pipe every 4 m height. The suction pipe must always be fitted with U-trap at the bottom.
• For the condition where the outdoor condensing unit is below the indoor unit, the height difference between units shall be less than 4 m. Pipe trap shall be installed upward on outlet of indoor unit (suction pipe).
  • The recommended piping length is 25 m or less.
• Additional oil might be required in case field piping is long or with many oil traps. Check the oil level of the compressor to decide to add the oil after minimum 2 hours operation.
• It is recommended as well to install the MOP (Maximum Operation Pressure), expansion valve for medium evaporating temperature units, if the working suction pressure during start procedure especially after defrost cycle, is out of the limit, as refer to the table provided.

Recommend compressor working pressure range:

Medium Temperature

Compressor Model	AE/AJ ZBMTZ
Refrigerant	R404A	R134a	R404A	R134a	R407C	R404A	R134a
Working Pressure Range High Side, (barg)	13.2-27.7	6.7-15.8	13.2-27.7	7.9-15.8	12.5-29.4	7.14-27.6	6.6-15.8
Working Pressure Range Low Side, (barg)	1.5-8.3	0.1-3.9	1.0-7.2	0.6-4.7	1.4-6.6	1.98-7.14	0.6-3.8

Low Temperature

Compressor Model	AJ	NTZ	ZF
Refrigerant	R404A	R404A	R404A
Working Pressure Range High Side, (barg)	13.2-27.7	13.2-27.7	13.2-27.7
Working Pressure Range Low Side, (barg)	0.1-3.3	0.1-3.3	0.1-3.3

3.5 Pressure testing

• Make sure unit are isolated when pressure test on field piping, always use an inert, dry gas such as Nitrogen. Check for leak if there is reduction in holding pressure.
• The pressure differential between the high and low side of system shall not exceed below value.

Compressor	Pressure differential
AE/AJ	19 barg(275 psig)
MTZ/ZB/ZF	30 barg(435 psig)

- Test pressures used in factory as shown follows.

Test pressure
High side	Low side
28 barg(405 psig)	19 barg(275 psig)

3.6 Leak detection

• Make sure that all isolation valves are open.
- Perform a leak test of the system using nitrogen mixed with the approved refrigerant for the unit.
- Do not use CFC for leak testing the condensing unit which intended for used with HFC refrigerants.
- The use of leak testing fluids is not recommended as this may interact with the lubricants own additives.

3.7 Vacuum - moisture removal

Important Note

Moisture prevents proper functioning of the compressor and the refrigeration system.

Air and moisture reduce service life and increase condensing pressure causing abnormally high discharge temperatures likely to destroy the oil's lubricating properties. The risk of acid formation is also increased by air and moisture and copper plating can be generated in this way. All these phenomena can cause mechanical and electrical failure.

Important Note

Ensure that a good quality vacuum pump is used to pull a minimum vacuum of -0.1 barg (250 microns) or less. Ensure that no pressure increase during 1 hour or more after stop vacuuming. If pressure increase, there is moisture or leakage along the pipeline.

3.8 Safety pressure switch settings

The pressure switch fitted to condensing units with auto reset for low pressure and manual reset for high pressure are NOT factory preset.

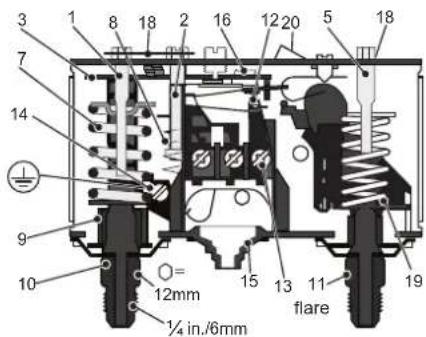

3 1 8 18 2 16 12 20 5 18 7 14 9 10 = 12mm 15 13 11 flare 19 ¼ in./6mm

1. Low pressure (LP) setting spindle
2. Differential setting spindle, LP
3. Main arm
4. High pressure (HP) setting spindle
5. Main spring
6. Differential spring
7. Bellows
8. LP connection

9. HP connection

10. Switch

11. Terminals
12. Earth terminal
13. Cable entry
14. Tumbler
15. Locking plate
16. Arm
17. Manual reset button

High pressure safety (Manual reset)

The high pressure safety switch is required to protect the compressor from working out of its envelope. The high pressure switch shall set equal or lower than below values depending on the type of refrigerant, application and the ambient condition.

Model	AE/CAJ/TAJ MTZ/ZB/ZF
Refrigerant	R404A	R134a	R404A	R134a
Cut Out (barg)	27.7	18	27.7	18
Cut Out (psig)	402	261	402	261

Low pressure safety (Auto reset)

The low pressure safety switch is used to avoid compressor operate at too low suction pressure or a vacuum condition. The low pressure safety cut out should never be set lower than value shown in following table. If pump down is used, the electrical circuitry should be arranged so that compressor restart is triggered by demand from thermostat rather than a reset low pressure switch.

* M: Medium temperature; L: Low temperature

Model	AE/CAJ/TAJ MTZ		ZB/ZF
Refrigerant			R134a	R404AR	404A R	34a R40	7C R404A R134a
Application	M*	L*	M*	M*	M*	M*	M*	L*	M*
Cut out (barg)	1.5	0.1	0.5	1.0	0.6	1.4	2.0	0.1	0.6
Cut out (psig)	21.8	1.5	7.3	14.5	8.7	20.3	29.0	1.5	8.7

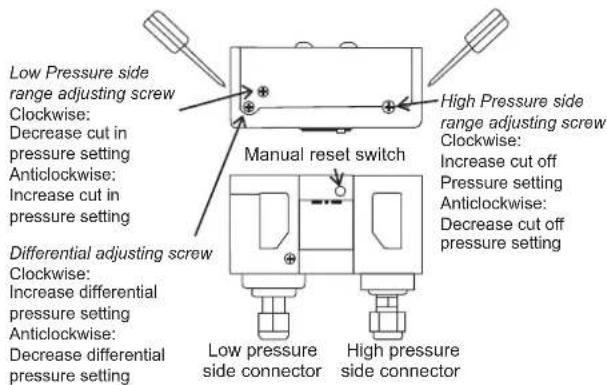

Low Pressure side range adjusting screw Clockwise: Decrease cut in pressure setting Anticlockwise: Increase cut in pressure setting Differential adjusting screw Clockwise: Increase differential pressure setting Anticlockwise: Decrease differential pressure setting Manual reset switch High Pressure side range adjusting screw Clockwise: Increase cut off Pressure setting Anticlockwise: Decrease cut off pressure setting Low pressure side connector High pressure side connector

The low pressure cut off pressure is the setting of cut in minus the differential.

Important Note

There must be no more than 10 compressor starts per hour. A higher number reduces the service life of the compressor. If necessary, use an anti-short-cycle timer in the control circuit. Minimum a 2 minutes runtime after each start of compressor and a 3 minute idle time after each stop & start are recommended. Only during the pump down cycle may the compressor run for much shorter intervals.

3.9 Fan speed controller setting

The fan speed controller control the condensing head pressure via speed regulating according to the ambient temperature. The setting for fan cut off should be set higher than the recommended value in table below, to maintain enough liquid sub cooling ahead of TXV for low ambient application.

The fan speed controller is factory set to 19 bar for operation with R4*** series refrigerant to ensure compressor always operates within envelope at all declared working condition.

Higher energy efficiency as shown in eco design sheet can be obtained with the setting shown in below table:

For model in Series 1:

Refrigerant	R404A	R134a
Setting (bar) Cut in	16*	10
Setting (bar) Differential	7*	7

*Factory default setting

For model in Series 2, 3 and 4:

Application	Medium Temp Low Temp
Refrigerant	R404A/R407F/R407A/R448A/R449A	R134a	R404A/R407F/R407A/R448A/R449A
Setting (barg)	19*(Series 2)	13(Series 2 &3)	13(except EVI unit)
	10(Series 3 & 4)	10(Series 4)	17(JEHSCU0950CL3 EVI)

*Factory default setting

Cut off: Fan motor stops when the pressure decreases below the value Pmin.

Note:

F.V.S. = Full Voltage Set Point (pressure setting for maximum speed)

E.P.B. = Effective Proportional Band (6 bar)

Pmin = (F.V.S. - 6)

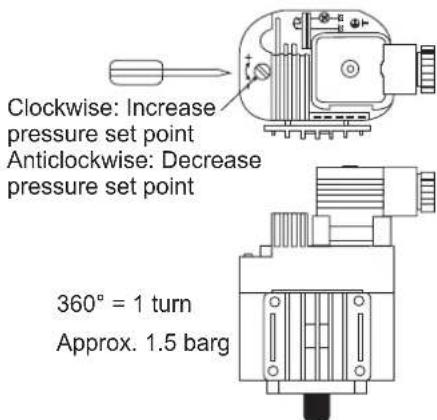

Clockwise: Increase pressure set point Anticlockwise: Decrease pressure set point 360° = 1 turn Approx. 1.5 barg

3.10 Commissioning of the Condensing Unit

Please make sure that all manual service valves are fully opened before starting the system for the first time. This includes external and internal shut off valves as well as liquid receiver valve in the unit. The ball valve open position is shown as below:

Open position Max 150°C

3.11 Compressor electrical wiring

Verification of proper rotation direction is made by observing that suction pressure drops and discharge pressure rises when the compressor is energized. Reverse rotation of a scroll compressor also results in substantially reduced current draw. Suction temperature will be high, discharge temperature will be low and the compressor may generate abnormal noise.

3.12 Earthing of Condensing Unit

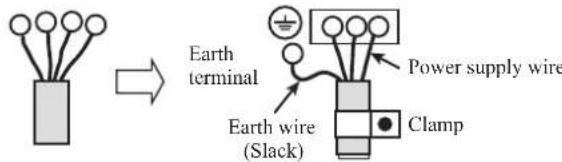

Installation of earth wire must be made to grounding screw (labelled with earth label) before connecting the live wires. The earth wire shall be slack as shown in below diagram.

Earth terminal Power supply wire Earth wire (Slack) Clamp

3.13 Tightening torque - rotolock connection

Unit Model		Series	Compressor Model	Rotolock (Suction) Thread: Tightening Torque (N.m)	Rotolock (Discharge) Thread: Tightening Torque (N.m)
Medium TemperatureLow Temperature	JEHCCU0050CM1	1	AE4460Z-FZ1C	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHCCU0067CM1		CAJ9480Z
	JEHCCU0100CM1		CAJ9510Z
	JEHCCU0113CM1		CAJ9513Z
	JEHCCU0040CM1		AE4440Y-FZ1A
	JEHCCU0051CM1		CAJ4461Y
	JEHCCU0063CM1		CAJ4476Y
	JEHCCU0077CM1		CAJ4492Y
	JEHCCU0095CM1		CAJ4511Y
	JEHCCU0140CM1	2	CAJ4517Z
	JEHCCU0140CM3		TAJ4517Z
	JEHCCU0150CM1		MTZ18-5VM	NOT APPLICABLE(BRAZED - CONNECTION)	1"-14 UNS(70-80N.m)
	JEHCCU0150CM3		MTZ18-4VM
	JEHCCU0225CM1		MTZ28-5VM
	JEHCCU0225CM3		MTZ28-4VM
	JEHCCU0300CM1		MTZ36-5VM
	JEHCCU0300CM3		MTZ36-4VM
	JEHSCU0200CM1		ZB15KQE-PFJ	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHSCU0200CM3		ZB15KQE-TFD
	JEHSCU0250CM1		ZB19KQE-PFJ
	JEHSCU0250CM3		ZB19KQE-TFD
	JEHSCU0300CM1		ZB21KQE-PFJ
	JEHSCU0300CM3		ZB21KQE-TFD
	JEHSCU0350CM3		ZB26KQE-TFD
	JEHSCU0400CM3	3	ZB29KQE-TFD
	JEHSCU0500CM3		ZB38KQE-TFD
	JEHSCU0600CM3		ZB45KQE-TFD
	JEHSCU0680CM3		ZB48KQE-TFD
	JEHSCU0800CM3	4	ZB58KCE-TFD	1-3/4"-12UNF(135-160 N.m)	1-1/4"-12UNF(110-135 N.m)
	JEHSCU1000CM3		ZB76KCE-TFD
	JEHCCU0115CL1	1	CAJ2446Z	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHSCU0200CL3	2	ZF06K4E-TFD	1-1/4"-12UNF(110-135 N.m)	1"-14 UNS(70-80N.m)
	JEHSCU0300CL3		ZF09K4E-TFD
	JEHSCU0400CL3	3	ZF13K4E-TFD
	JEHSCU0500CL3		ZF15K4E-TFD
	JEHSCU0600CL3		ZF18K4E-TFD
	JEHSCU0750CL3	4	ZF25K5E-TFD		1-1/4"-12UNF(110-135 N.m)
	JEHSCU0950CL3 EVI		ZF18KVE-TFD-EVI		1"-14 UNS(70-80N.m)

3.14 Series 4 EVI Unit

3.14.1 Piping Size Selection

Sizing of liquid and suction lines for EVI model will be different from standard scroll models. Piping sizes of this model need to follow the recommended correction coefficient of cooling capacity. This is vital as if the pipework selected is oversized, especially for the suction pipe, the gas velocity will be decreased at low mass flow rate / low evaporating temperature, causing oil return problems. Undersized suction lines will also cause decreased capacity due to increased pressure drop.

The correction factor of refrigerant R404A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.64	0.66	0.68	0.70	0.72
32	CF	0.61	0.63	0.65	0.67	0.69
35	CF	0.59	0.61	0.63	0.65	0.67
38	CF	0.57	0.59	0.61	0.63	0.65
43	CF	0.54	0.55	0.57	0.58	0.60

For instance,

At condition of Te -35°C, Ta +32°C

Refrigerant R404A

Published cooling capacity = 5.9kW.

Cooling capacity = Correction factor x Published cooling capacity

$$ = 0. 6 3 \times 5. 9 \mathrm{kW} $$

$$ = 3. 7 0 7 \mathrm{kW} $$

Therefore, the pipe sizes should be selected against the corrected capacity of 3.71kW.

The correction factor of refrigerant R407A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.73	0.73	0.73	0.73	0.73
32	CF	0.68	0.69	0.69	0.70	0.70
35	CF	0.65	0.66	0.67	0.67	0.68
38	CF	0.62	0.63	0.64	0.65	0.66
43	CF	0.57	0.58	0.60	0.61	0.63

The correction factor of refrigerant R407F is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.72	0.73	0.73	0.73	0.72
32	CF	0.68	0.68	0.69	0.69	0.69
35	CF	0.65	0.66	0.66	0.67	0.67
38	CF	0.62	0.63	0.64	0.65	0.65
43	CF	0.57	0.58	0.60	0.61	0.62

The correction factor of refrigerant R448A/R449A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.71	0.72	0.71	0.72	0.72
32	CF	0.67	0.68	0.68	0.68	0.69
35	CF	0.65	0.65	0.65	0.66	0.67
38	CF	0.62	0.63	0.63	0.64	0.65
43	CF	0.58	0.59	0.59	0.60	0.61

3.14.2 Insulation Selection

The liquid pipe connecting CCU service valve to the evaporator must be well insulated with recommended wall thickness of minimum 34 .

3.14.2 Expansion Valve Selection

The lower liquid temperature of the EVI unit can increase evaporator expansion valve capacities. Selection of the expansion valve needs to be done based on the expected amount of sub-cooling shown in below tables:

(A.) R404A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	39.9	36.9	33.9	30.9	27.9
32	40.9	37.9	34.9	31.9	28.9
35	41.5	38.5	35.5	32.5	29.5
38	42.1	39.1	36.1	33.1	30.1
43	43.1	40.1	37.1	34.1	31.1

(B.) R407A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.1	32.8	32.4	32.1	31.8
32	38.0	37.0	35.9	34.9	33.8
35	41.0	39.5	38.0	36.5	35.0
38	43.9	42.0	40.1	38.1	36.2
43	48.9	46.2	43.5	40.9	38.2

(C.) R407F

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.8	33.5	33.1	32.8	32.5
32	38.8	37.8	36.7	35.7	34.6
35	41.9	40.4	38.8	37.3	35.8
38	44.9	42.9	41.0	38.9	37.0
43	50.0	47.2	44.5	41.8	39.0

(D.) R448A/R449A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.1	32.8	32.4	32.1	31.8
32	37.9	36.9	35.8	34.8	33.8
35	40.9	39.4	37.9	36.4	34.9
38	43.8	41.9	40.0	38.0	36.1
43	48.8	46.1	43.4	40.8	38.1

3.14.3 Controller EXD-HP1

The controller EXD-HP1 used in the Series 4 EVI unit operates as an economizer control. The setting of controller is preset by the factory and is password protected. Users are not allowed to change any settings in the controller.

Safety Instructions:

1. Read installation instruction carefully. Failure to comply can result in device failure, system damage or personal injury.
2. Only person having appropriate knowledge and skill are allowed to manipulate the controller.
3. Disconnect all voltages from system before installation.

3.14.2 Electrical Installation

• Do not operate system before all cable connections are completed.
  • Refer to wiring diagram for electrical connections.
• Class II category transformer is required for 24VAC power supply
• Do not connect any EXD-HP1 input to main voltage as it will permanently damage the controller.

• When connecting wires of expansion valve and pressure sensor, consider color coding as follow:

• EXM : BR: BROWN; BL: BLUE, OR: ORANGE; YE: YELLOW; WH: WHITE

• PT5 : BN: BROWN; WH: WHITE

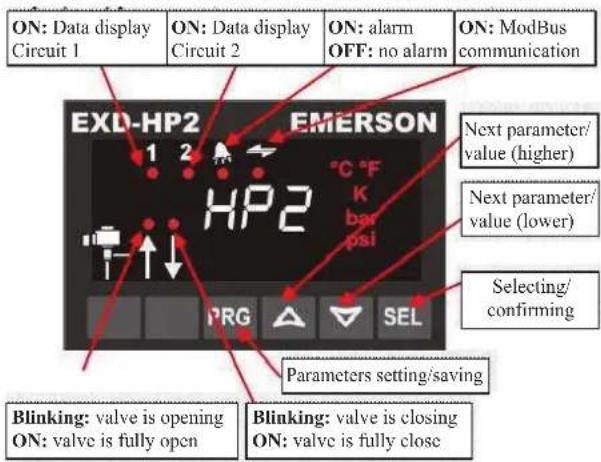

3.14.3 Display / keypad unit (LEDs and button functions)

ON: Data display Circuit 1 ON: Data display Circuit 2 ON: alarm OFF: no alarm ON: ModBus communication EXD-HP2 EMERSON 1 2 °C °F HP2 K bar psi PRG SEL Next parameter/ value (higher) Next parameter/ value (lower) Selecting/ confirming Parameters setting/saving Blinking: valve is opening ON: valve is fully open Blinking: valve is closing ON: valve is fully close

• In standard mode the superheat is shown at the display. In case of liquid injection and economizer function this changes to discharge temperature.
• To display other data of EXD-HP1 press "SEL" button for 1 second until index number according to below table appears. Release "SEL" button and the next variable data will appear. By repeating the procedure variable data can be displayed in sequence as measured superheat (K) → Measured suction pressure (bar) → valve position (%) → Measured suction gas temperature (°C) → Calculated saturated temperature (°C) → Measured discharge temperature (°C) (if economizer function is selected) → REPEATING

Variable data	Controller EXD-HP1
Default Superheat, K	1 1
Suction pressure, bar	1 0
Valve position, %	1 0
Suction gas temperature, °C	1 0
Saturation temperature, °C	1 0
Discharge temperature, °C	1 0

3.14.4 Digital Input Di1/Di2

• The digital input Di1 is the interface between controller EXD-HP1 and system controller if Modbus communication has not been used.
• The digital status is dependent to operation of system's compressor or demand.

Operating Condition	Digital input status
Compressor starts	Closed (Start)
Compressor stops	Open (Stop)

3.14.5 Manual mode operation

Warning: All alarms are disabled during manual control. We do not recommend unattended operation of system during manual control.

• Press PRG and ▼ together for 5 seconds to access to manual mode operation.
• List of parameters in scrolling sequence by pressing button

Code	Parameter description and choices	Min	Max	Factory setting	Field setting
1Ho	Manual mode operation; circuit 1 00 = disabled; 1 = Enabled		1	0
1HP	Valve opening (%)	0	100	0
2Ho	Manual mode operation; circuit 20 = disabled; 1 = Enabled	0	1	0
2HP	Valve opening (%)	0	100	0

Manual alarm reset clearing functional alarms (except hardware error)

- Press PRG and together for 5 seconds. When the clearing is done, "CL" message appears for 2 seconds.

3.14.6 EXD-HP1 Error/Alarm handling

Alarm code	Description	Related parameter	Valve W	What to do?	Requires manual reset after resolving alarm
1E0/2E0	Pressure sensor 1/2 error	-	Fully close	Check wiring connection and measure the signal 4 to 20 mA No
1E1/2E0	Temperature sensor 1/2 error	-	Fully close	Check wiring connection and measure the resistance of sensor	No
1Ed	Discharge hot gas temperature sensor 3 error	-	Operating	Check wiring connection and measure the resistance of sensor	No
1AII/2AII	EXM/EXL electrical connection error	-	-	Check wiring connection and measure the resistance of winding	No
1Ad	Discharge hot gas temperature above limit		Operating	Check valve opening/ check liquid flow for flash gas free/check discharge hot gas temperature sensor	No
AF	Freeze protection	1P4/2P4: 1	Fully close	Check the system for cause of low pressure such as insufficient load on evaporator	No
AF blinking		1P4/2P4: 2	Fully close		Yes
AL	Low superheat (<0.5K)	1uL/2uL: 1	Fully close	Check wiring connection and operation of valve	No
AL blinking		1uL/2uL: 2	Fully close		Yes
AH	High superheat	1uII/2uII: 1	Operating	Check the system	No
AP	Low pressure	1P9/2P9: 1	Operating	Check the system for cause of low pressure such as refrigerant loss	No
AP blinking		1P9/2P9: 2	Operating		Yes

Note: When multiple alarms occur, the highest priority alarm is displayed until being cleared.
Then the next highest alarm is displayed until all alarms are cleared.
Only then will parameters will be shown again

O-CU06-AUG17-3

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

4 Decommissioning & Disposal

At the end of the unit's useful life, a suitably qualified engineer should decommission it. The refrigerant and compressor oil are classed as hazardous waste and as such must be reclaimed and disposed of in the correct manner, including completion of waste transfer paperwork. The unit components must be disposed of or recycled as appropriate in the correct manner.

5. Checklist

• Ensure the high low pressure controls are configured properly.
• Ensure crankcase heater is energized minimum 12 hours prior to start up and permanently energized.
• Check the refrigerant is correct for intended use.
• Check all electrical connections.
• Check all electrical termination and circuits are correct.
• Check compressor oil level via compressor sight glass, the oil level should not be lower than quarter of sight glass.
• Check the TXV capacity sizing based on indoor unit capacity. Check TXV applicable refrigerant. Check position and condition of the sensing bulb fixing
• Observed the system pressures during the charging and initial operation process.
• Ensure that suction pressure will decrease, discharge pressure will increase. No abnormal noise from the compressor.
• Continue to charge the system until sight glass is clear. Make sure that high pressure is > 14 barg for R404A and > 8 barg for R134a when doing this charge adjustment operation. Continuous flow of clear refrigerant through the sight glass, with perhaps an occasional bubble at very high temperature indicates the refrigerant is at optimum.
• Check the compressor's discharge and suction pressure, to ensure it is within operating range. Discharge temperature should be within 50 to 90 °C and pressure should be around 15 to 26 barg (for system charged with R404A) and 8 to 16 barg (for system charged with R134a).
• Check the current of condensing unit and ensure it is below the motor circuit breaker setting value.
• Check condenser fan, ensure warm air blowing off the condenser coil.
• Check evaporator blower, ensure it's discharging cool air.
• Check suction superheat and adjust expansion valve to prevent liquid flood back to the compressor. Recommended 5 to 20 K of suction superheat.
• Do not leave the system unattended until the system has reached its normal operating condition and the oil charge has properly adjusted itself to maintain the proper level in the sight glass.
• Check periodically the compressor performance and all the moving components during the first day of operation.
• Check the liquid line sight glass and expansion valve operation. If there is an indication that the system is low on refrigerant, thoroughly check the system for leaks before adding refrigerant.

6. Service and Maintenance

Important Note

Warning! – Disconnect the mains electrical supply before servicing or opening the unit

Warning! – Ensure there is no refrigerant in refrigerant circuit before dismantle it

Warning! - If the supply cord is damaged, it must be replaced by the qualified service agent in order to avoid a hazard.

The condensing units are designed to give long life operation with minimum maintenance. However, they should be routinely checked and the following service schedule is recommended under normal circumstances:

Important Note

For scroll compressor: wiring for 3 phases must be controlled. Supply phase sequence L1, L2 and L3 will affect the rotating direction of scroll compressor and damage the compressor.

Service technician should be present at initial start-up to verify that the supply power is properly phased and that compressor is rotating in the correct direction.

The removal of the top, side and front panels ensures that all parts are accessible.

1. Compressor – Inspect at regular intervals

- Check for refrigerant leaks on all joints and fittings.

- Ensure that no abnormal noise or vibration is detected during test run.

- Check the compressor oil levels and top up if required. The oil level should not be lower than quarter of the compressor oil sight glass. Not applicable to AE/AJ compressor.

1. Condenser Coil – Clean and inspect at regular intervals

- Remove surface dirt, leaves, fibers, etc. with a vacuum cleaner (preferably with a brush or other soft attachment rather than a metal tube), compressed air blown from the inside out, and/or a soft bristle (not wire!) brush. Do not impact or scrape the coil with the vacuum tube, air nozzle, etc. It may be beneficial to blow or vacuum out the rinse water from MCHE to speed drying and prevent pooling.

1. Power Supply – Inspect at regular intervals

- Check the running current and voltage for the condensing unit.

- Check the electrical wiring and tighten the wires onto the terminal blocks if necessary.

Under normal circumstances:

- Clean condenser coil every three months

• To assure no leakage

- Check and verify operation of all safety devices every three months, ensure crankcase heater is operational

- Check sight glass and operating conditions

- Check security of compressor mountings and the bolts that hold down the unit each year

1. Compact Brazed Heat Exchanger (BPHE)

** For JEHSCU0950CL3 EVI Unit ONLY

- Any soldering process done on the heat exchanger needs to be brazed with minimum 45% silver solder at maximum 450°C (840°F) when soft soldering and 450-800°C (840-1470°F) when hard soldering.

- Do not direct flame at BPHE and use wet rag to avoid overheating of BPHE.

7. F-Gas Information

• From 1/1/2015, a new F-Gas Regulation (EU) No 517/2014 comes into force repealing Regulation (EC) No 842/2006. This will affect system labelling, information supplied within documentation and also the way in which thresholds for frequency of leak testing.
• For systems with a charge below 3kg, the changes to the leak checking regime will not apply until 2017. Currently, there is no requirement for regular leak testing of systems with a total charge below 3kg.
  • Changes to leak testing requirements are as follows:

OLD LEGISLATION	NEW LEGISLATION	LEAK CHECKING FREQUENCY
	5-50 TCO_2Eq 3-30Every 12 months but can be increased to 24 months if fitted with a fixed leak detection system.
30-300 kgs	50-500 TCO_2Eq	Every 6 months but can be increased to 12 months if fitted with a fixed leak detection system.
	500+ TCO_2Eq 300Every 6 months - however automatic leak detection system is mandatory which requires servicing every 12 months.

Important information regarding the refrigerant used

Its functioning relies on fluorinated greenhouse gases

• This product is factory charged with N2.
- The refrigerant system will be charged with fluorinated greenhouse gases. Do not vent gases into the atmosphere.

The GWP (Global Warming Potential) values of refrigerants which are specified for use in this equipment along with the three new thresholds for leak testing requirements based on TCO_2Eq (Tonnes CO_2 Equivalent) are as follows:

Refrigerant	GWP (1)	Refrigerant Charge - kg
		5T	50T	500T
		CO_2Eq	CO_2Eq	CO_2Eq
R404A	3921.6	1.3	12.7	127
R407A	2107	2.4	23.7	237
R407F	1824.5	2.7	27.4	274
R134a	1430	3.5	35.0	350
R448A	1387	3.6	36.0	360
R449A	1397	3.6	35.8	358

Please fill in with indelible ink, on the refrigerant charge label supplied with the product.

total refrigerant charge & the TCO charged refrigerant.

2 equivalent for

The filled out label must be adhered in the proximity of the product charging port.

Contains Fluorinated Greenhouse Gases

Ref.	GWP	Charge (kg)	CO2Eq.
R404A	3922
R407A	2107
R407F	1825
R448A	1387
R449A	1397
R134a	1430

8. Trouble Shooting

This troubleshooting guide describes some common condensing unit failure. Consult qualified personnel before any corrective actions are taken.

Failure Possible Causes
Fan does not work	Improper wiring
Compressor does not start	Improper wiringSystem stopped because of tripped of safety device.
Insufficient cooling	Incorrect TXV size and SH settingMiss matching of indoLow refrigerant chargeCondenser coil dirtyObstacle blocking air inlet/outletImproper thermostat settingCompressor rotating direction is incorrect

Important Note Warning! – Immediately shut off power of the unit if there is any event of accident or breakdown.

9. Specifications

Medium Temperature

Model		Series	COP/SEPR						Compressor			Oil type	Electrical Data							Airflow (m3/h)	Receiver	Connection Dimensions					Weight (kg)	Sound pressure dB( A) ^2 at 10 meter
			R404A	R407A	R407F	R448A	R449A	RL346	Type	Displacement (m3/h)	Oil Charge (Liber)		Power Input	Nominal Current* (A) R404A	Nominal Current* (A) R407A	Nominal Current* (A) R407F	Nominal Current* (A) RL34a	Lock Rotor current (A) RL34a	MFA ^3 (A)			Volume (Liter)	Suction (Inch)	Liquid (Inch)	Width (mm)	Depth (mm)	Height (mm)
Median temperature	JEHCCU0050CM1	1	1,45	1,33	1,47	N/A	1,44	N/A	AE4460Z-FZ1C	1,80	0,28	230W/- Oil A'	230V/1~50Hz	3,79	3,74	3,78	N/A	19,4	10	1300	2,4	3/8"	1/4"	876	420	807	47	29
	JEHCCU0087CM1	1	1,51	1,37	1,49	N/A	1,45	N/A	CAJ8460Z	2,64	0,475		230V/1~50Hz	3,53	3,32	3,53	N/A	24,1	10	1300	2,4	1/2"	3/8"	876	420	807	54	28
	JEHCCU0100CM1	1	1,51	1,43	1,51	N/A	1,45	N/A	CAJ8510Z	3,18	0,475		230V/1~50Hz	4,26	4,60	4,21	N/A	29,5	10	1300	2,4	1/2"	3/8"	876	420	607	55	28
	JEHCCU0113CM1	1	1,60	1,52	1,58	N/A	1,53	N/A	CAJ8513Z	4,21	0,475		230V/1~50Hz	5,27	4,88	5,11	N/A	33,5	12	1300	2,4	1/2"	3/8"	876	420	607	56	28
	JEHCCU0400CM1	1	N/A	N/A	N/A	N/A	N/A	1,28	AE4440Y-FZ1A	1,8	0,26		230V/1~50Hz	N/A	N/A	N/A	2,55	13,2	10	1300	2,4	3/8"	1/4"	876	420	607	47	29
	JEHCCU0051CM1	1	N/A	N/A	N/A	N/A	N/A	1,53	CAJ961Y	3,18	0,475		230V/1~50Hz	N/A	N/A	N/A	3,65	19	10	1300	2,4	3/8"	1/4"	876	420	807	55	29
	JEHCCU0083CM1	1	N/A	N/A	N/A	N/A	N/A	1,55	CAJ1470Y	3,79	0,475		230V/1~50Hz	N/A	N/A	N/A	4,65	24	10	1300	2,4	3/8"	1/4"	876	420	607	54	29
	JEHCCU0077CM1	1	N/A	N/A	N/A	N/A	N/A	1,63	CAJ1492Y	4,51	0,475		230V/1~50Hz	N/A	N/A	N/A	5,25	28	10	1300	2,4	1/2"	3/8"	876	420	807	56	29
	JEHCCU0095CM1	1	N/A	N/A	N/A	N/A	N/A	1,65	CAJ4511Y	5,69	0,475		230V/1~50Hz	N/A	N/A	N/A	4,17	29,5	10	1300	2,4	1/2"	3/8"	876	420	807	55	29
	JEHCCU0140CM1	2	1,68	1,57	1,75	N/A	1,96	N/A	CAJ4517Z	4,52	0,475		230V/1~50Hz	5,90	5,19	6,97	N/A	38,5	16	2700	4,5	5/8"	3/8"	1101	444	662	67	34
	JEHCCU0140CM3	2	1,80	1,50	1,67	N/A	1,88	N/A	TAJ4517Z	4,52	0,475		400V/3~50Hz	2,94	2,37	2,96	N/A	18	10	2700	4,5	5/8"	3/8"	1101	444	662	67	34
	JEHCCU0150CM1	2	1,78	1,77	1,78	N/A	N/A	1,57	MTZ18-5VM	5,26	0,95	Oil B'	230V/1~50Hz	7,08	6,89	7,03	5,23	40	12	2700	4,5	5/8"	3/8"	1101	444	662	68	37
	JEHCCU0150CM3	2	1,81	1,83	1,85	N/A	N/A	1,71	MTZ18-4VM	5,26	0,95		400V/3~50Hz	3,23	2,99	3,06	2,47	20	10	2700	4,5	5/8"	3/8"	1101	444	662	68	37
	JEHCCU0225CM1	2	1,86	1,85	1,86	N/A	N/A	1,81	MTZ28-5VM	8,36	0,95		230V/1~50Hz	11,40	9,94	10,45	8,28	51	20	2700	4,5	5/8"	3/8"	1101	444	662	70	38
	JEHCCU0225CM3	2	1,90	1,92	1,93	N/A	N/A	1,82	MTZ28-4VM	8,36	0,95		400V/3~50Hz	4,52	4,15	4,28	3,35	23	10	2700	4,5	5/8"	3/8"	1101	444	662	70	38
	JEHCCU0300CM1	2	1,90	1,80	1,80	N/A	N/A	1,91	MTZ36-5VM	10,52	0,95		230V/1~50Hz	15,66	12,14	12,60	10,68	60	25	2700	4,5	3/4"	3/8"	1101	444	662	72	39
	JEHCCU0300CM3	2	1,94	1,87	1,87	N/A	N/A	1,95	MTZ36-4VM	10,52	0,95		400V/3~50Hz	5,46	4,99	5,17	3,64	30	10	2700	4,5	3/4"	3/8"	1101	444	662	72	39
	JEHSCU0200CM1	2	2,25	2,13	1,88	1,96	1,96	1,85	ZB15KQE-PFD	5,90	1,24	400V/3~50Hz	230V/1~50Hz	7,68	8,10	8,98	5,45	58	16	2700	4,5	3/4"	3/8"	1101	444	662	70	33
	JEHSCU0200CM3	2	2,06	2,07	1,81	1,96	1,96	2,12	ZB15KQE-TFD	5,90	1,24		230V/1~50Hz	3,51	3,43	3,65	2,94	26	10	2700	4,5	3/4"	3/8"	1101	444	662	70	33
	JEHSCU0250CM1	2	2,00	2,01	1,79	1,87	1,87	2,14	ZB19KQE-PFD	6,80	1,30		230V/1~50Hz	9,87	9,70	10,35	6,24	61	16	2700	4,5	3/4"	3/8"	1101	444	662	72	34
	JEHSCU0250CM3	2	2,07	1,95	1,79	1,87	1,87	2,13	ZB19KQE-TFD	6,80	1,34		230V/1~50Hz	4,75	4,41	4,71	3,36	32	10	2700	4,5	3/4"	3/8"	1101	444	662	72	34
	JEHSCU0300CM1	2	1,88	1,89	1,69	1,79	1,79	2,13	ZB21KQE-PFD	8,60	1,45		230V/1~50Hz	12,83	12,32	13,13	7,44	82	20	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0300CM3	2	1,94	1,86	1,65	1,79	1,79	2,10	ZB21KQE-TFD	8,60	1,45		230V/1~50Hz	4,97	4,80	5,06	3,75	40	10	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0350CM3	2	2,61	N/A	N/A	2,28	2,28	2,08	ZB26KQE-TFD	9,90	1,5		400V/3~50Hz	6,43	N/A	N/A	4,28	46	10	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0400CM3	3	1,36	3,73	3,48	3,08	3,08	2,29	ZB29KQE-TFD	11,30	1,36		400V/3~50Hz	8,20	8,20	6,31	5,20	50	16	4250	7,6	7/8"	1/2"	1353	575	872	79	37
	JEHSCU0500CM3	3	3,08	3,16	3,05	2,92	2,92	2,69	ZB38KQE-TFD	14,40	2,07		400V/3~50Hz	9,11	8,30	8,40	6,57	65,5	16	4250	7,6	7/8"	1/2"	1353	575	872	123	38
	JEHSCU0600CM3	3	3,08	3,15	3,09	2,90	2,90	2,63	ZB45KQE-TFD	17,10	1,89		400V/3~50Hz	9,56	8,62	9,21	6,87	74	16	4100	7,6	1-1/8"	1/2"	1353	575	872	125	40
	JEHSCU0660CM3	3	3,04	2,90	2,87	2,62	2,62	2,57	ZB48KQE-TFD	18,80	1,8		400V/3~50Hz	12,33	11,50	11,80	8,67	101	20	4100	7,6	1-1/8"	1/2"	1353	575	872	126	40
	JEHSCU0660CM3	4	3,35	3,08	2,93	2,83	2,83	3,04	ZB58KQE-TFD	22,10	2,5		400V/3~50Hz	13,00	12,57	12,33	12,41	95	20	8500	13,6	1-1/8"	3/4"	1348	641	1727	222	43
	JEHSCU1000CM3	4	3,15	2,71	2,73	2,77	2,77	3,29	ZB76KQE-TFD	29,10	3,2		400V/3~50Hz	16,20	15,67	15,76	12,90	118	25	8500	13,6	1-3/8"	3/4"	1348	641	1727	226	43

* Refer to condition: Outside ambient temperature= 32°C. Evaporation temperature = -10°C (medium temperature application).
" MFA = Maximum Fuse Amps
Sound pressure level measured in anechoic room
^1 Oil A = Unigema Emkarate RL32CF
Oil B = Polyester oil 160PZ
^1 Oil C = Polyester oil (Copeland Ultra 22 CC, Copeland Ultra 32 CC, Copeland Ultra 32-3MAF, Mobil EAL ^TM Arctic 22 CC, Uniqema Emkarate RL32CF)
Note: condensing units are pre-charged with oil as stated in table

O-CU06-AUG17-3

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

Low Temperature

Model		Series	COP/SEPR					Compressor			Oil type	Electrical Data					Airflow (m^3/h)	Receiver	Connection		Dimensions		Weight(kg)	Sound pressure dB(A^2) at 10 motor
			R404A	R407A	R407F	R448A	R448A		Type	Displacement (m^3/h)	Oil Charge(Liter)								Volume(Liter)	Suction(Inch)	Liquid(Inch)	Width(mm)	Depth(mm)	Height(mm)
Low temperature	JEHCCU0115CL1 1 0,96		N/A	N/A	N/A	N/A CA12446Z 4,55 0,887 Oil A						"	230W/1~/50Hz	4,00	N/A	30	10	1300	2,4	3/8"	1/4"	876	420	607	57	31
	JEHSCU0200CL3	2	0,97	0,89	0,93	0,86	0,86	ZF06K4E-TFD	5,9	1,3	Oil C	400V/3~/50Hz	3,30	3,22	26	10	2700	4,5	3/4"	3/8"	1101	444	662	76	32
	JEHSCU0300CL3	2	1,09	0,85	0,91	0,92	0,92	ZF09K4E-TFD	8,0	1,5		400V/3~/50Hz	4,40	4,39	40	10	2700	4,5	3/4"	3/8"	1101	444	662	78	33
	JEHSCU0400CL3	3	1,88	1,67	1,65	1,67	1,67	ZF13K4E-TFD	11,8	1,9		400V/3~/50Hz	5,79	5,39	51,5	10	4250	7,6	7/8"	1/2"	1353	575	872	132	37
	JEHSCU0500CL3	3	1,79	1,67	1,64	1,53	1,53	ZF15K4E-TFD	14,5	1,9		400V/3~/50Hz	7,59	6,58	64	16	4250	7,6	7/8"	1/2"	1353	575	872	132	39
	JEHSCU0600CL3	3	1,80	1,52	N/A	1,53	1,53	ZF18K4E-TFD	17,1	1,9		400V/3~/50Hz	8,51	7,00	74	16	4250	7,6	7/8"	1/2"	1353	575	872	133	41
	JEHSCU0750CL3	4	1,82	1,51	N/A	1,64	1,64	ZF25K5E-TFD	21,4	1,9		400V/3~/50Hz	9,15	8,75	102	16	5750	13,6	1-1/6"	1/2"	1348	605	1727	203	41
	JEHSCU0950CL3 EVI	4	1,79	1,76	1,63	1,76	1,76	ZF18KVE-TFD-EVI	17,1	1,9		400V/3~/50Hz	8,50	8,10	74	16	5870	13,6	7/8"	1/2"	1348	605	1727	200	37

^a Refer to condition: Outside ambient temperature=32°C, Evaporation temperature = -35°C (low temperature application)
b MFA = Maximum Fuse Amps
^c Sound pressure level measured in anechoic room
^1 Oil A = Unigenna Emkarale RL32CF
Oil C = Polyester oil (Copeland Ultra 22 CC. Copeland Ultra 32 CC. Copeland Ultra 32-3MAF. Mobil EAL™ Arctic 22 CC. Uniqema Emkarate RLS2CF)
Note: condensing units are pre-charged with oil as stated in table

O-CU06-AUG17-3

12

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

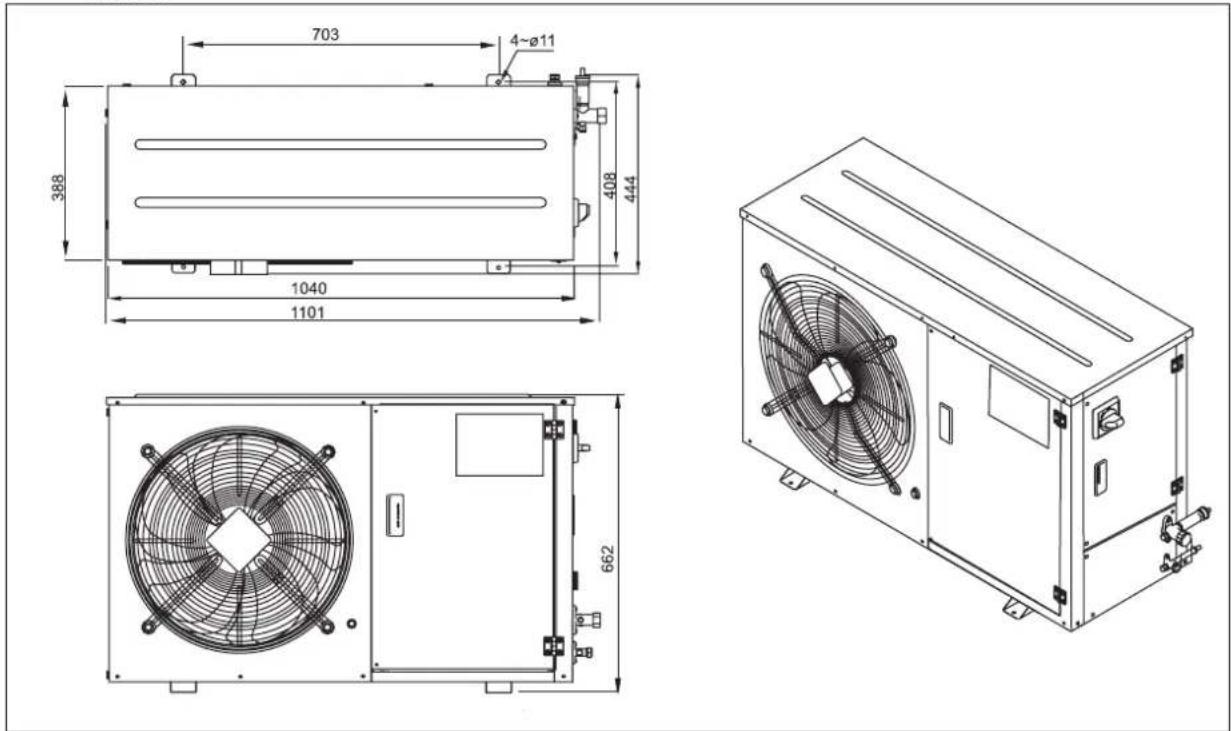

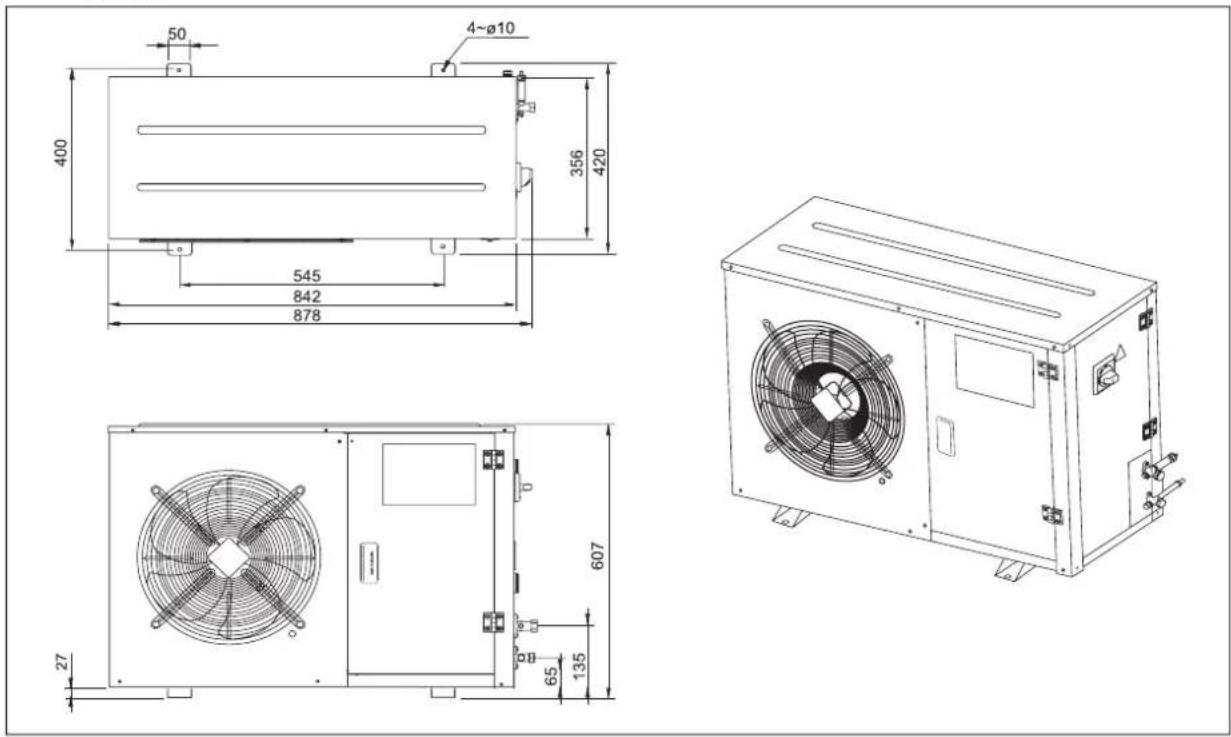

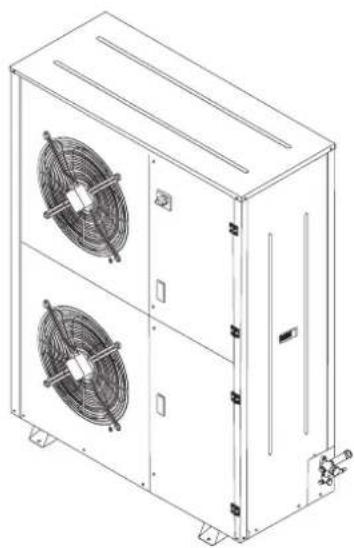

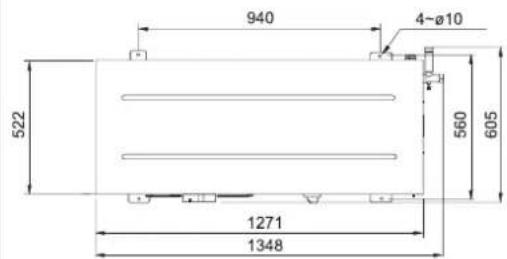

10. Outline drawings

Series 1

Series 2

Series 3

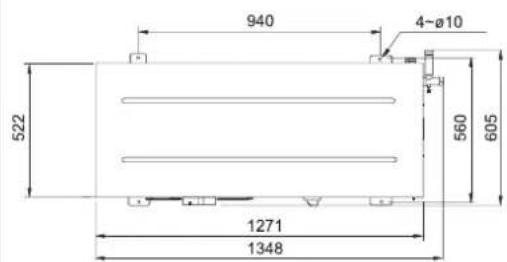

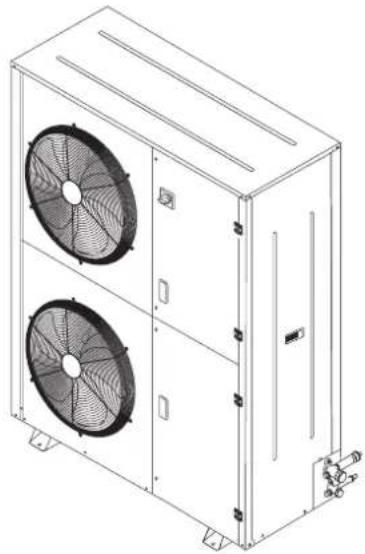

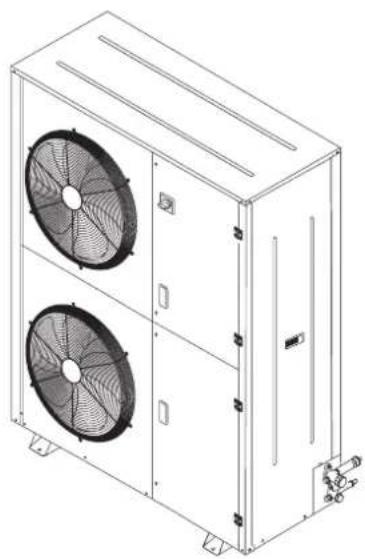

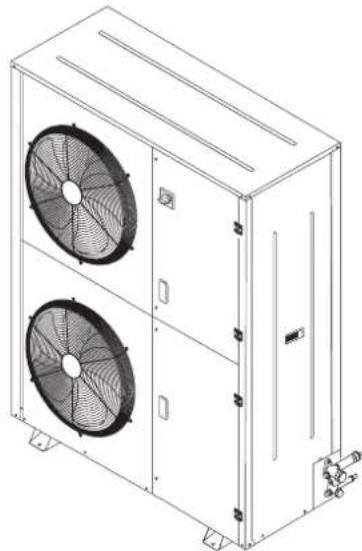

Series 4

Medium Temperature

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with fans and cooling fins (no text or symbols)

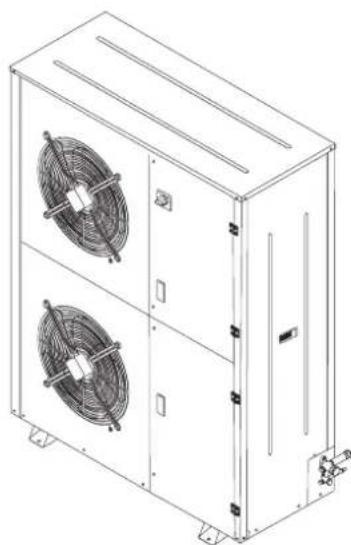

Low Temperature

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

11. Electrical Data

Important Note: All wiring and connections to the condensing unit must be made in accordance to the local codes.

Single Phase

JEHCCU0040CM1; JEHCCU0050CM1

F1U 3.15A BRN BLU BRN BRN S1PH K1M 21 22 ORG E1HC S1PL 4 HP GRN/YLW GRN/YLW S1P 1 GRN/YLW S1P 3 BLK BLU BRN BRN Q1M: OVERLOAD MOTOR PROTECTOR S1PH: HIGH PRESSURE SWITCH 1 S1P: PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER Q1M: OVERLOAD MOTOR PROTECTOR S1PH: HIGH PRESSURE SWITCH 1 S1P: PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER BEICCU0050CM1 6.0 JEHCCU0040CM1 4.0 JHECCU0050CM1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 B1 BLU BLU BRN BRN BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/TM1C BRN/TM1R BRN/TM1F BRN/TM2N2 BRN/TM2N1 B1: MOTOR CIRCUIT BREAKER Q1M: OVERLOAD MOTOR PROTECTOR K1H: CONTACTOR S1PH: HIGH PRESSURE SWITCH 1 K1R: START RELAY S1P: PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH C1: COMPRESSOR START CAPACITOR E1HC: CRANKCASE HEATER C2: FAN CAPACITOR P1: START RELAY M1C: COMPRESSOR M1F: CONDENSER FAN

JEHCCU0051CM1; JEHCCU0063CM1; JEHCCU0077CM1

F1U 3.15A BRN BLU BRN BRN BRN K1M 1 3 5 2 4 6 BLU BRN S1P GRN/YLW S1PL 4 HP 1 GRN/YLW ORG E1HC B1 1 3 5 2 4 6 BLU BRN BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN M1C 1~ GRN/YLW C1 S R C1R M1~

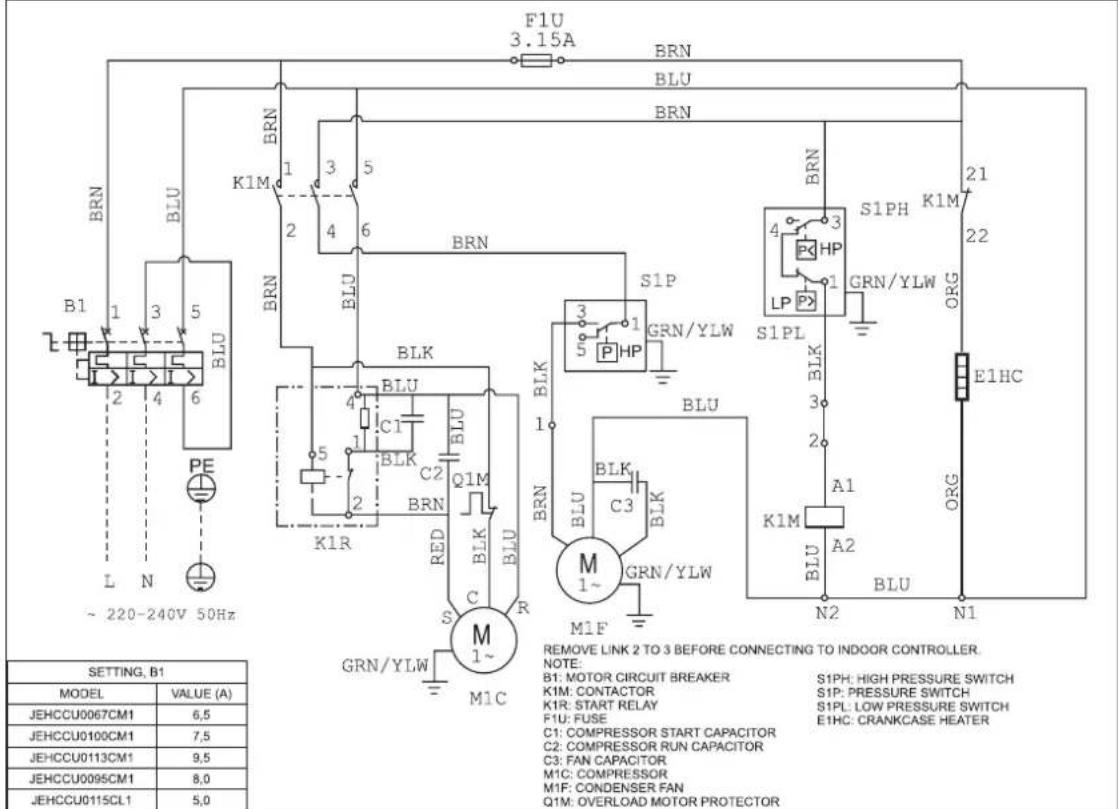

JEHCCU0067CM1; JEHCCU0095CM1; JEHCCU0100CM1; JEHCCU0113CM1, JEHCCU0115CL1

F1U 3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (220-240V 50Hz) L N ~ 220-240V 50Hz B1 1 3 5 2 4 6 PE K1M 1 3 5 2 4 6 BLU BRN BLU BRN BLU BLK C1 BLK BLU Q1M BRN RED BLK BLU S C R GRN/YLW M1~ M1C BRN/YLW GRN/YLW BLK BLU BLK C3 BLK M1~ GRN/YLW M1F BRN/SPHP S1P HSP K1M GP HP GRN/YLW ORG LP P1 S1PL ORG E1HC 3 BLK A1 BLU N2 N1 K1M A2 BLU N1 BEIHC

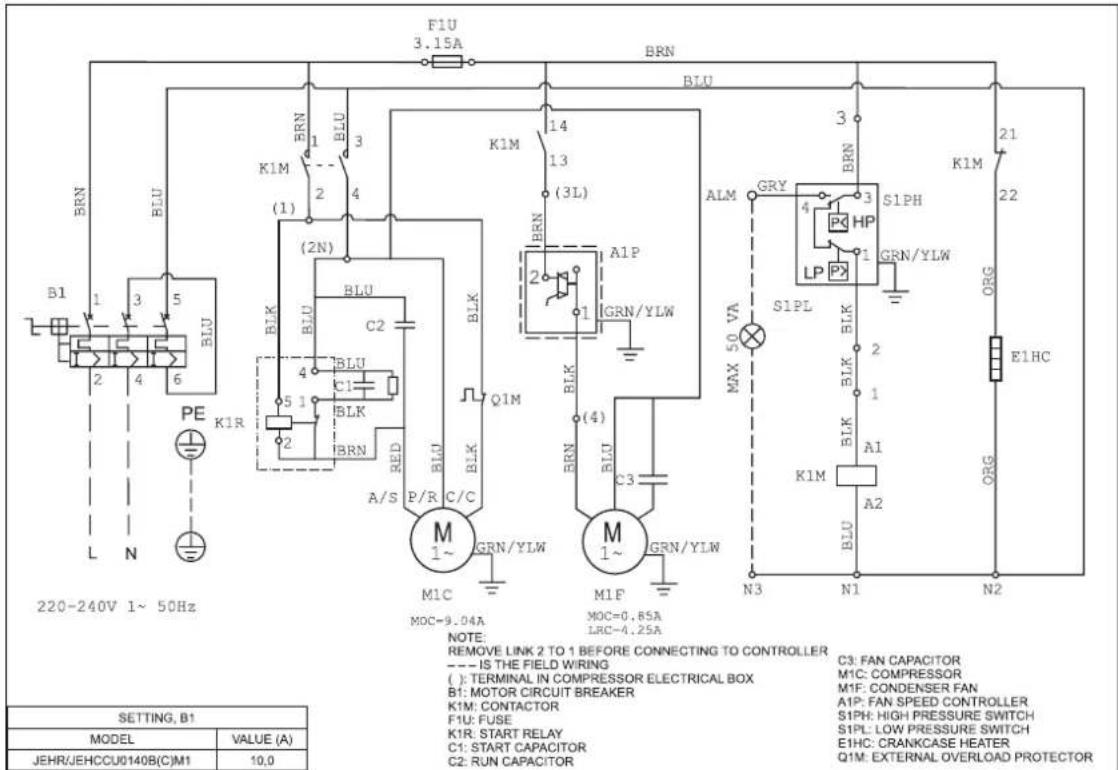

JEHCCU0140CM1

F1U 3.15A BRN BLU BRN K1M (1) BLU 3 (2N) BLU C2 BLU C1 BLK BRN RED A/S P/R C/C M 1~ M1C M1- GRN/YLW M1~ GRN/YLW Q1M BRN ALM GRY S1PH HP GRN/YLW S1PL ORG E1HC MAX 50 VA N3 N1 N2 NOTE: REMOVE LINK 2 TO 1 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING (:) TERMINAL IN COMPRESSOR ELECTRICAL BOX B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE K1R: START RELAY C1: START CAPACITOR C2: RUN CAPACITOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER Q1M: EXTERNAL OVERLOAD PROTECTOR 220-240V 1~ 50Hz B1 L N PE K1R MOC=9.04A MOC=0.85A LRC=4.25A NO. MODEL VALUE (A) JEHR/JEHCCU0140B(C)M1 10,0

JEHCCU0150CM1, JEHCCU0225CM1, JEHCCU0300CM1

F1U 3.15A BRN BLU BRN K1 1 3 BRN 14 13 K1M BRN 5 21 BLU BRN/YLW ALM GRY BRN S1PH 22 S1PL GRN/YLW BLK E1HC MAX 50 VA BLK BLK BLK BLK M1C GRN/YLW M1F M1R BRN/YLW BRN/YLW BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK B1: MOTOR CIRCUIT BREAKER B1: MOTOR CIRCUIT BREAKER JHEHCCU0150B(C)M1 JEHR/JEHCCU0225B(C)M1 JEHR/JEHCCU0300B(C)M1 JEHR/JEHCCU0175B(C)L1 JEHR/JEHCCU0225B(C)L1 10.0 18.0 22.0 10.0 17.5 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER

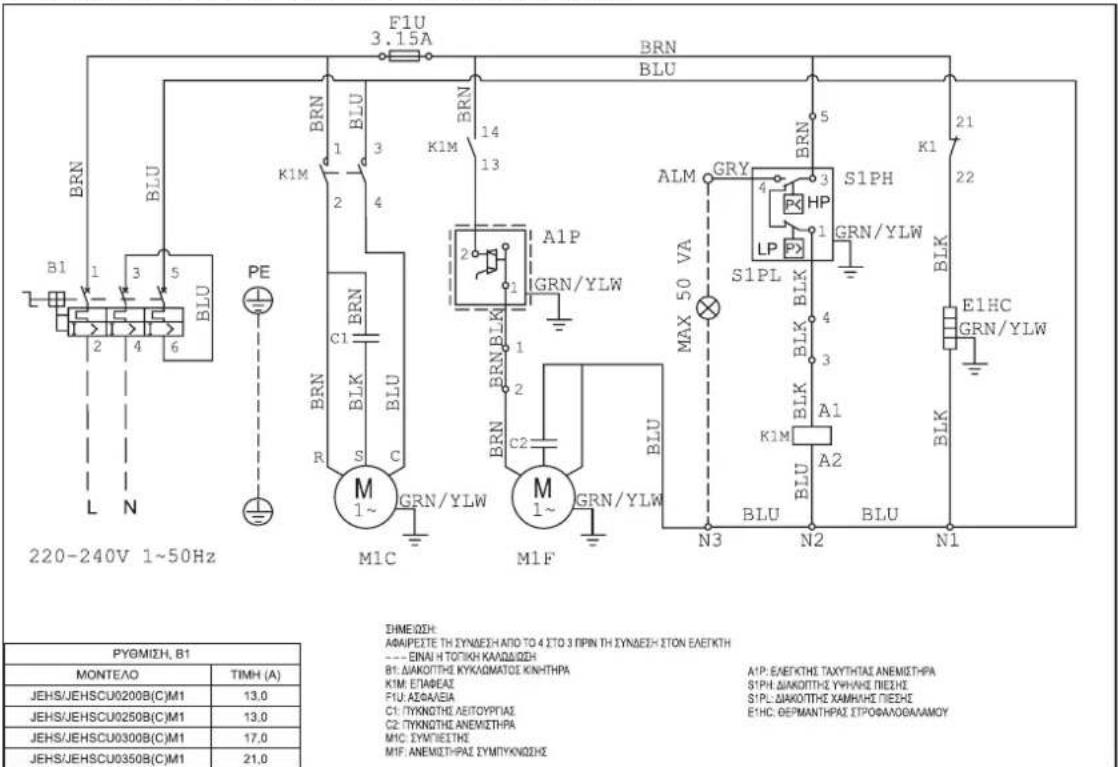

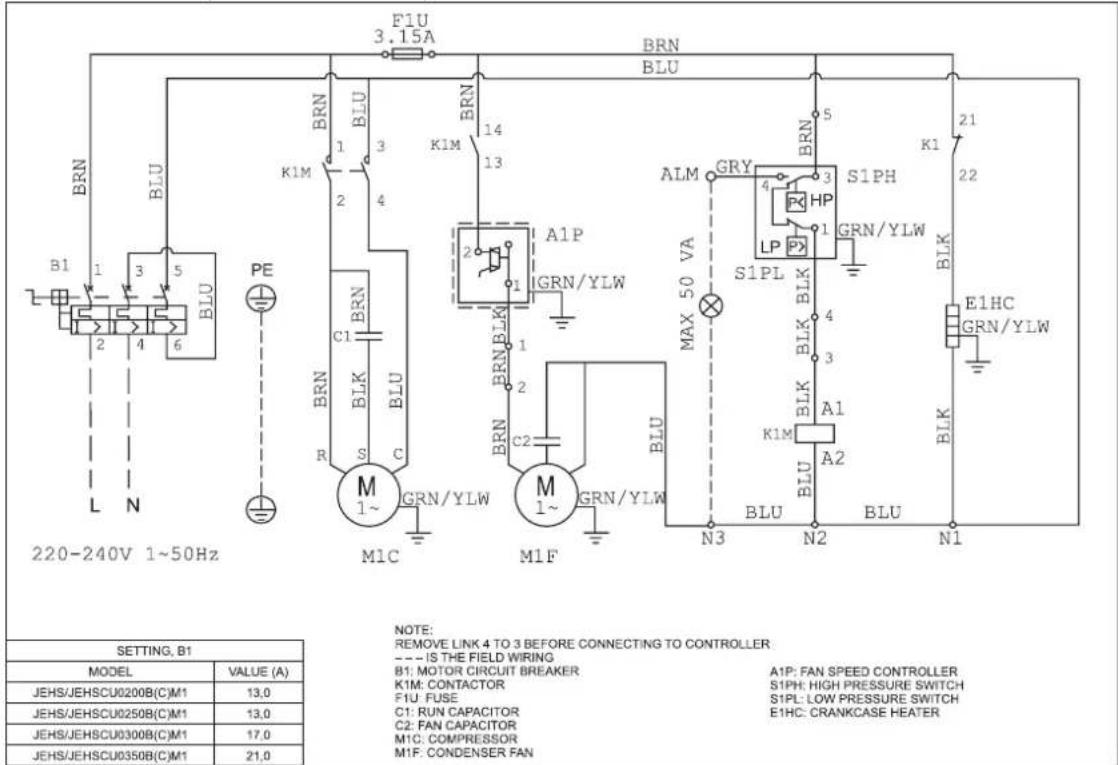

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN K1M 1 3 4 BRN 14 13 BRN 1 BRN C1 BRN BLK BLU PE BRN R S C M 1~ GRN/YLW M1C M1F ALM GRY BRN S1PH HP LP GLK GRN/YLW BLK E1HC GRN/YLW BLK MAX 50 VA S1PL BLK BLK BLK A1P BRN/ YLW BRN/ YLW A1M BRN/ YLW BLU N3 N2 N1 NOTES: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER. --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER A1P: FAN SPEED CONTROLLER K1M: CONTACTOR S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH C1: RUN CAPACITOR C2: FAN CAPACITOR E1HC: CRANKCASE HEATER M1C: COMPRESSOR M1F: CONDENSER FAN

Three Phase

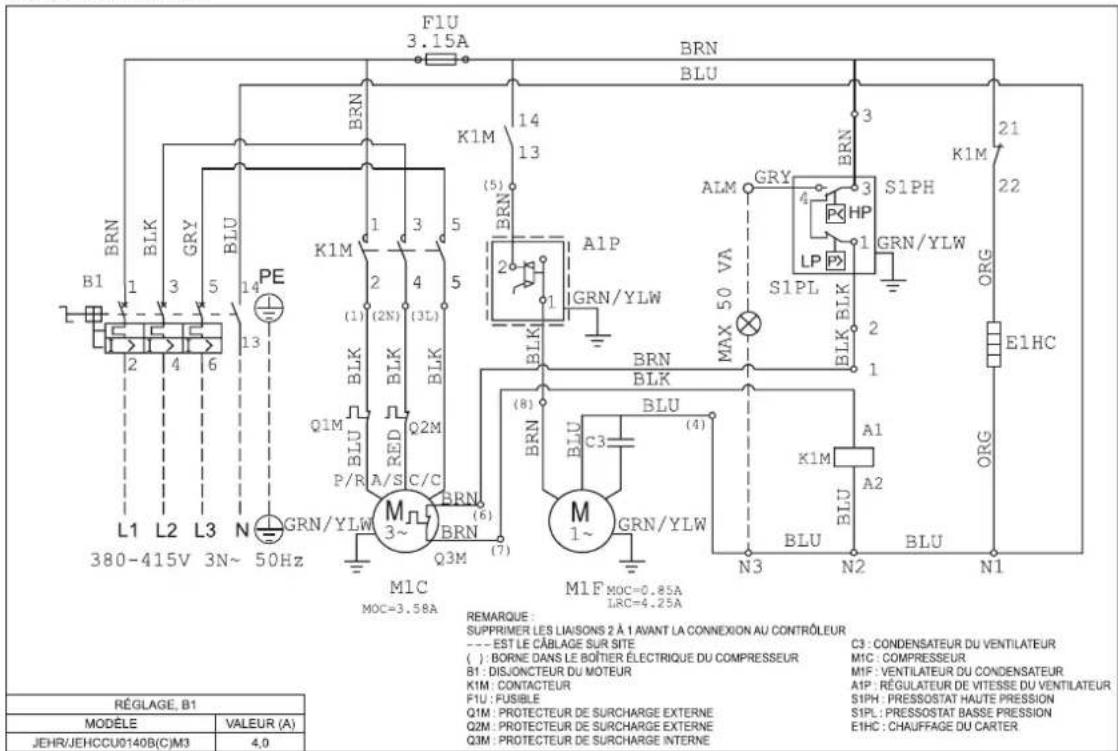

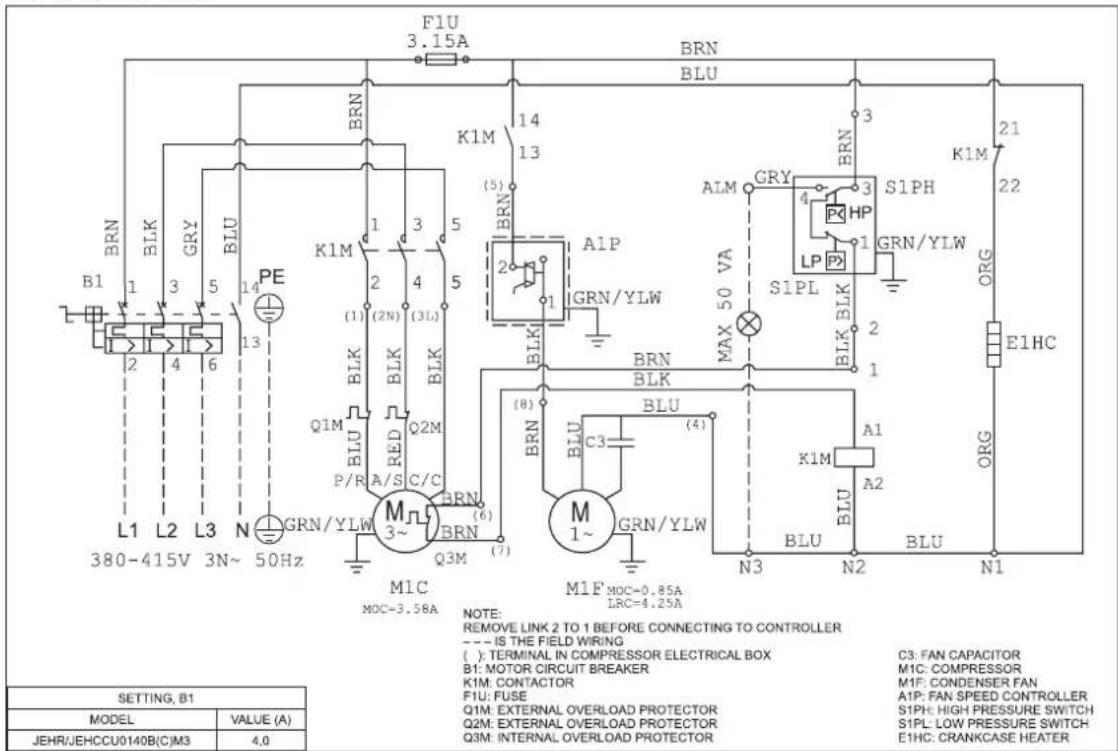

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 P HP LP GRN/YLW ORG E1HC L1 L2 L3 N 380-415V 3N~ 50Hz Q1M BLK Q2M BRN/YLW A/S C/C BRN Q3M M1C MOC=3.58A M1F MOC=0.85A LRC=4.25A NOTE: REMOVE LINK 2 TO 1 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING ( ): TERMINAL IN COMPRESSOR ELECTRICAL BOX B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE Q1M: EXTERNAL OVERLOAD PROTECTOR Q2M: EXTERNAL OVERLOAD PROTECTOR Q3M: INTERNAL OVERLOAD PROTECTOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER MODEL VALUE (A) JEHR/JEHCCU0140B(C)M3 4.0

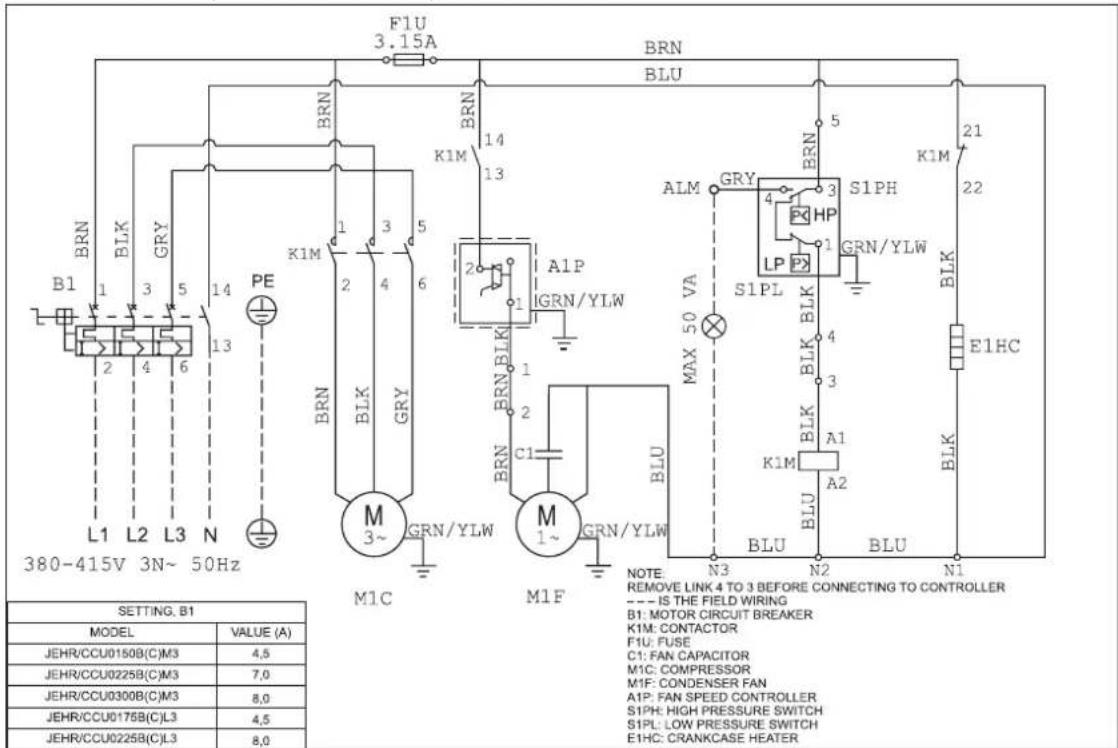

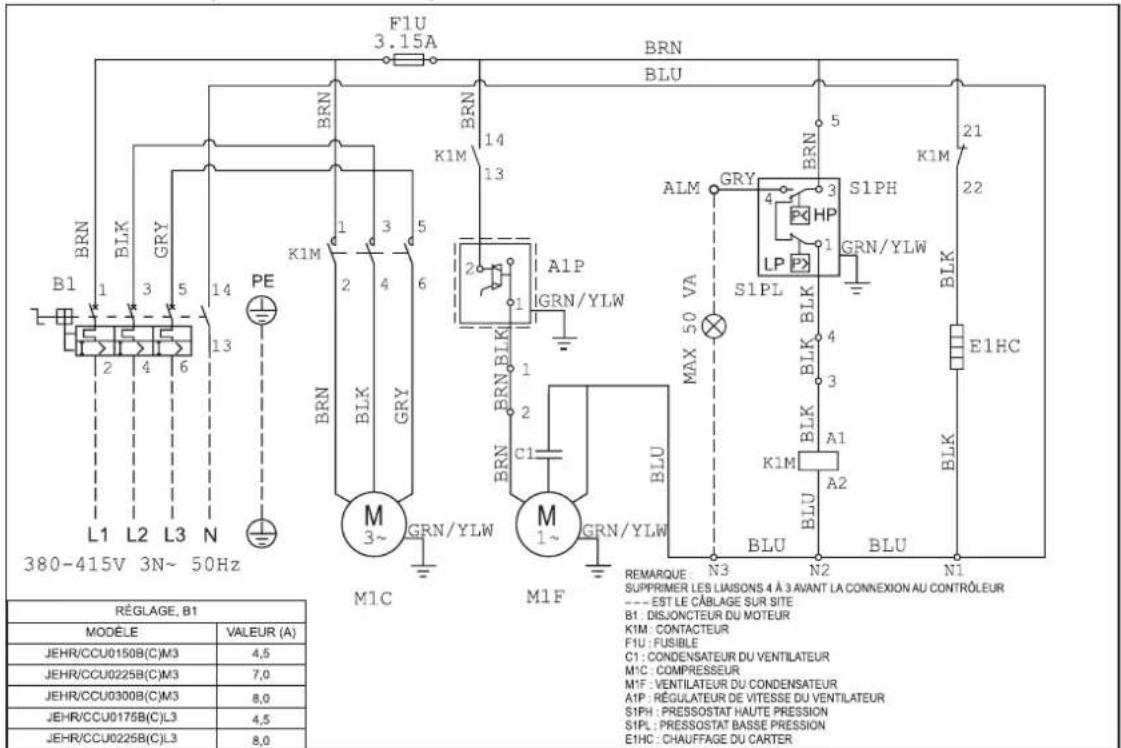

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY 2 4 6 M 3~ GRN/YLW M1C M1F ALM GRY S1PH BRN/ YLW LP BLK BLK MAX 50 VA S1PL 4 3 A1 K1M A2 BLU BLU N3 N2 N1 E1HC NOTE REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE C1: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER JHER/CCU0150B(C)M3 4,5 JEHR/CCU0225B(C)M3 7,0 JEHR/CCU0300B(C)M3 8,0 JEHR/CCU0175B(C)L3 4,5 JEHR/CCU0225B(C)L3 8,0

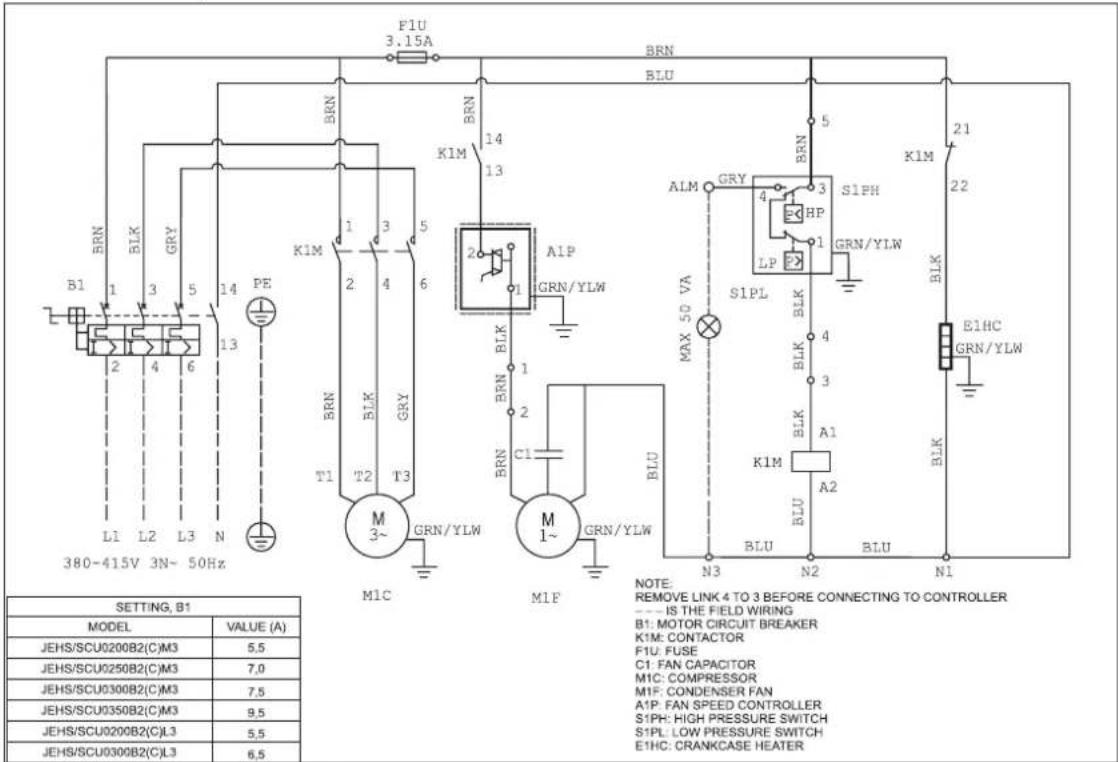

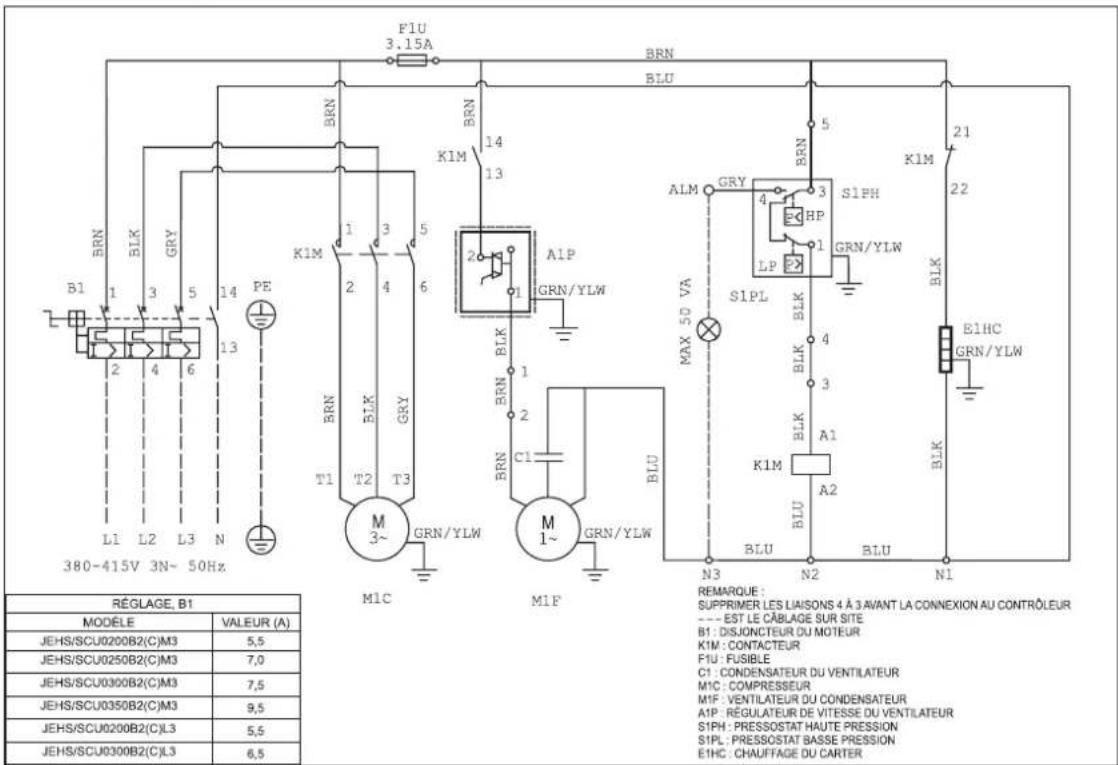

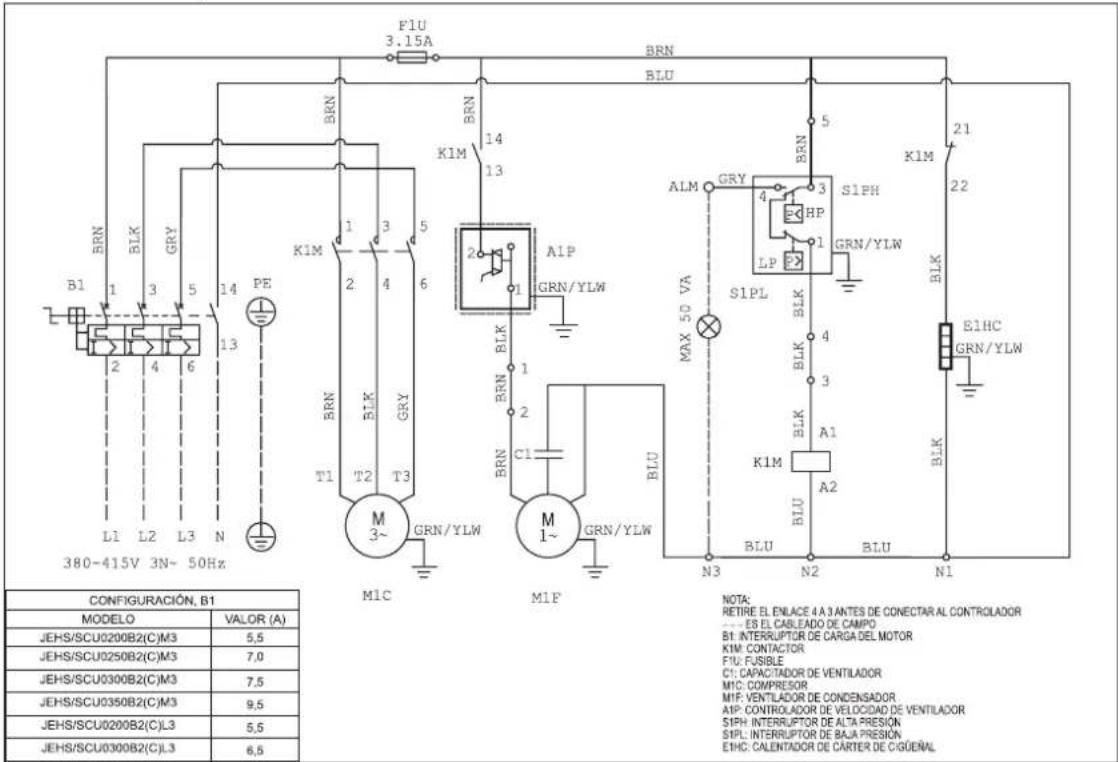

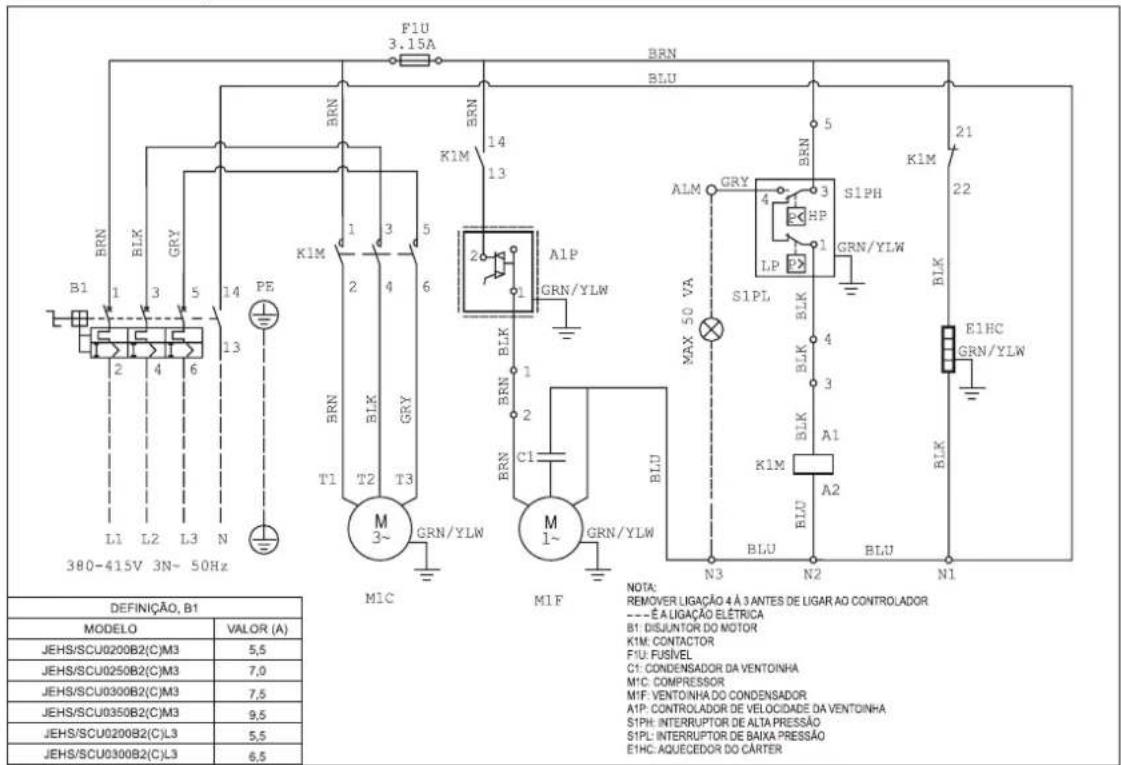

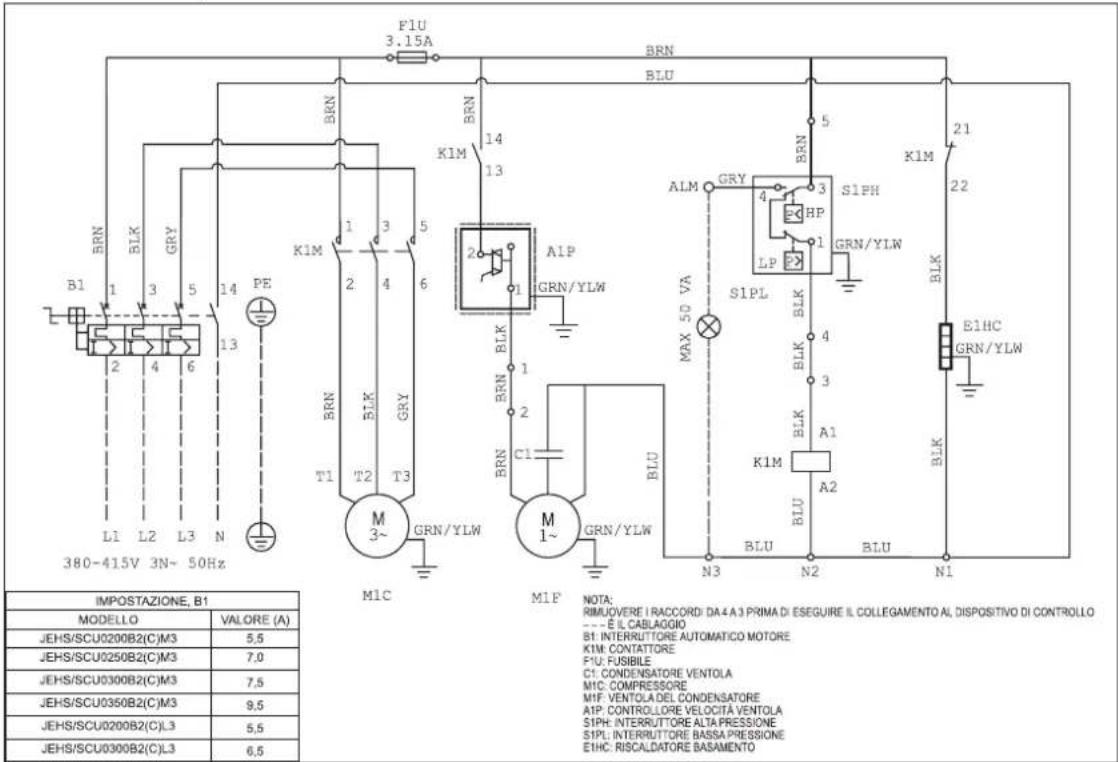

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN K1M 2 4 6 T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY 3 S1PH HP GRN/YLW LP BLK BLK A1 K1M A2 BLU BLU N3 N2 N1 MAX 50 VA S1PL BLK BLK A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING BI: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE C1: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER

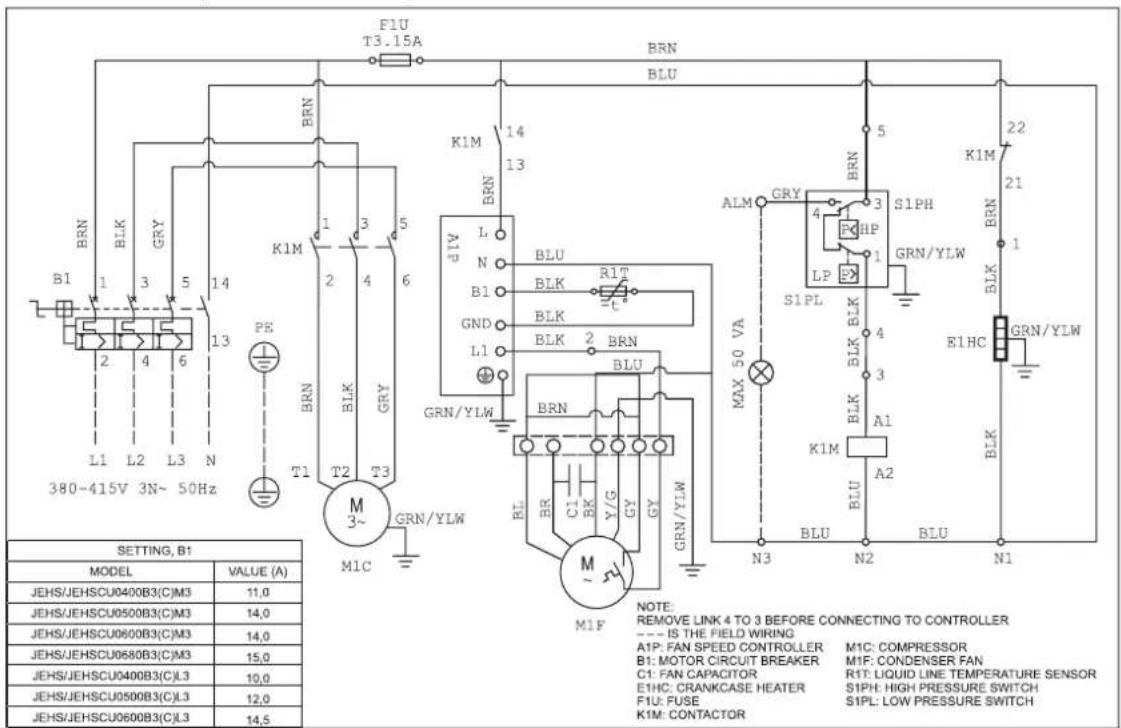

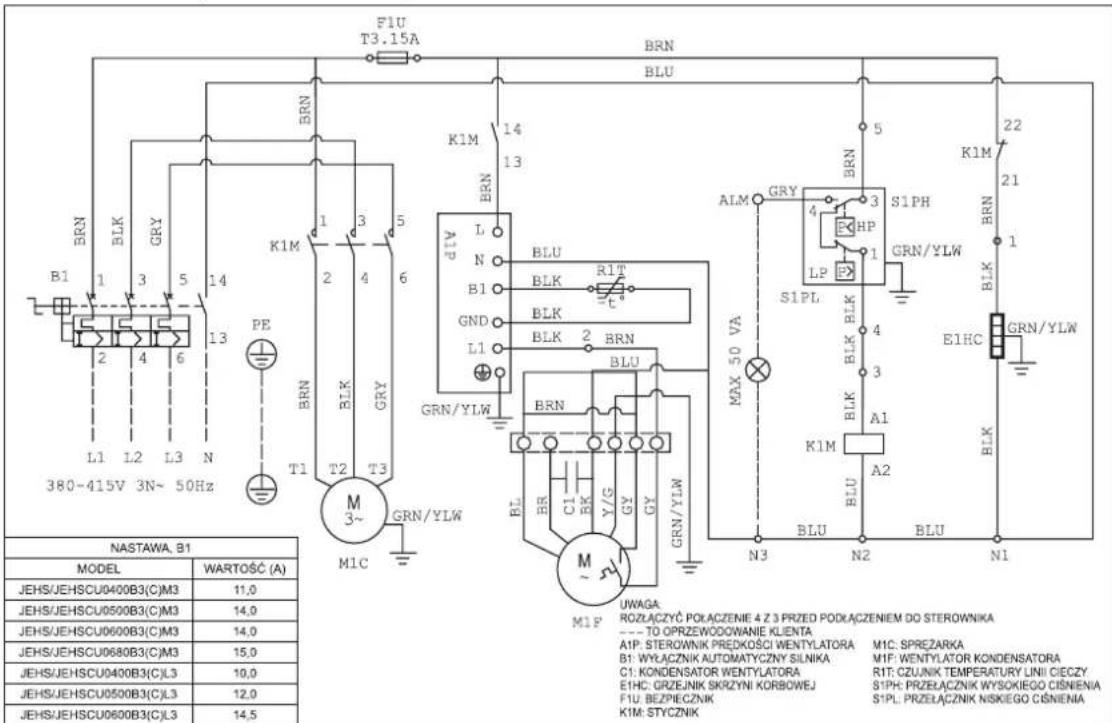

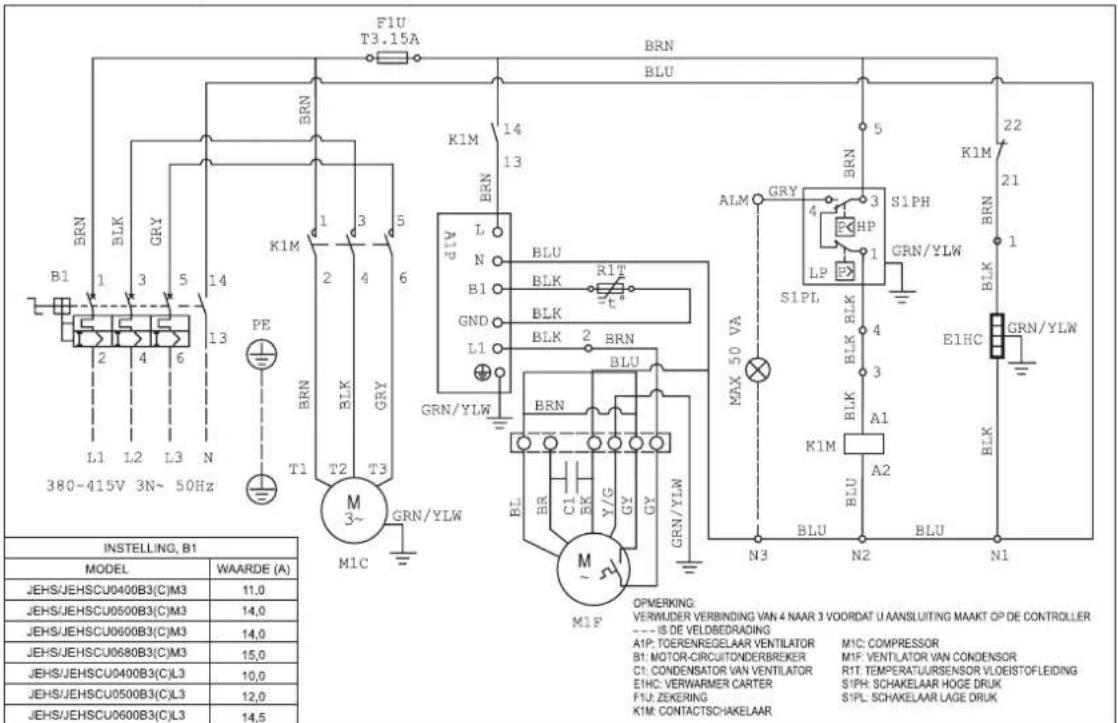

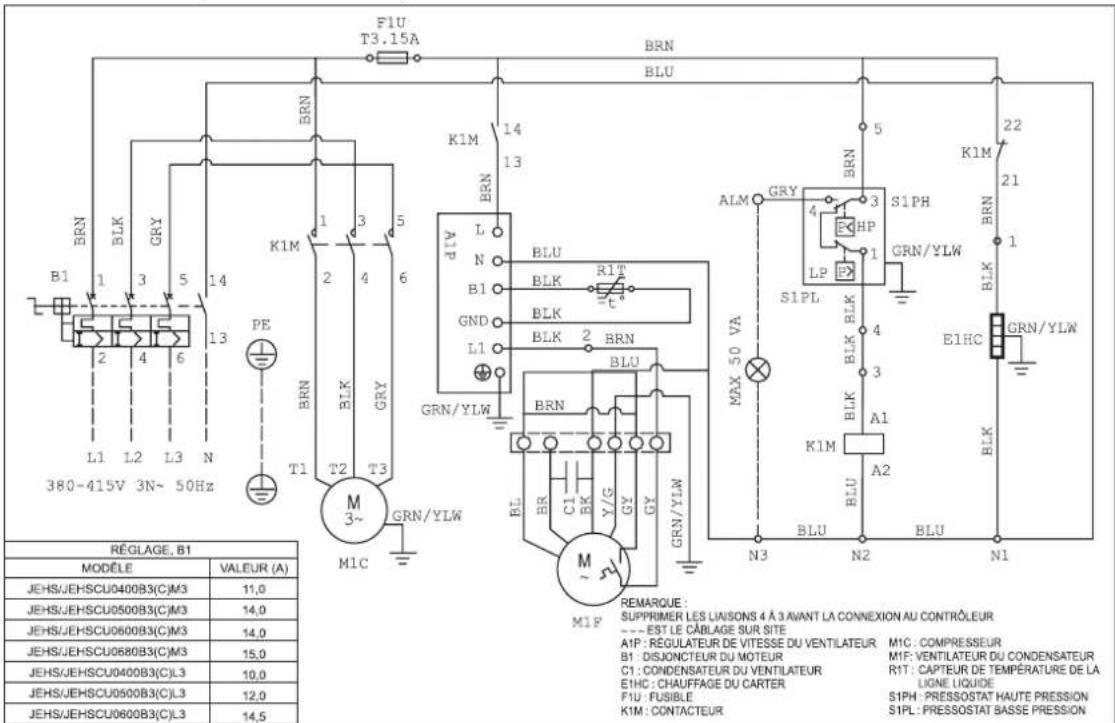

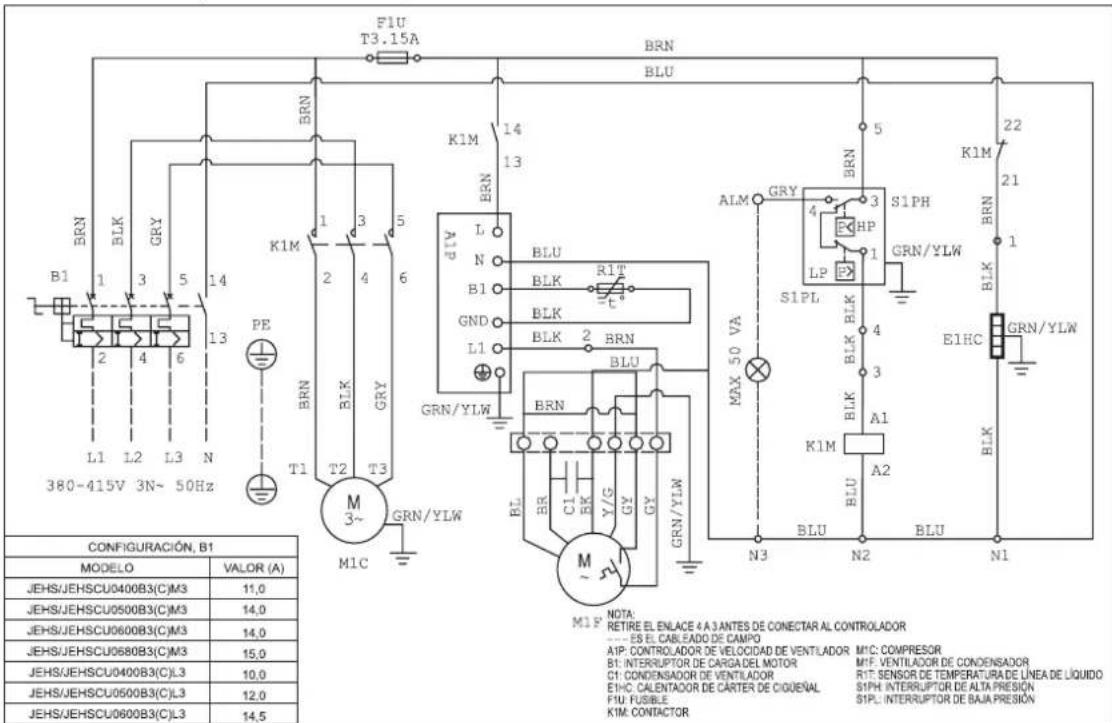

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN B1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 K1M BRN BRN/ YLW BRN/ YLW M1C M1F M3~ T1 T2 T3 PE BRN BLK GRY BRN/ YLW ALM GRY BRN S1PH HP GRN/YLW BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 380-415V 3N~ 50Hz MODEL VALUE (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER. --- IS THE FIELD WIRING. A1P: FAN SPEED CONTROLLER M1C: COMPRESSOR B1: MOTOR CIRCUIT BREAKER M1F: CONDENSER FAN C1: FAN CAPACITOR R1T: LIQUID LINE TEMPERATURE SENSOR E1HC: CRANKCASE HEATER S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH K1M: CONTACTOR

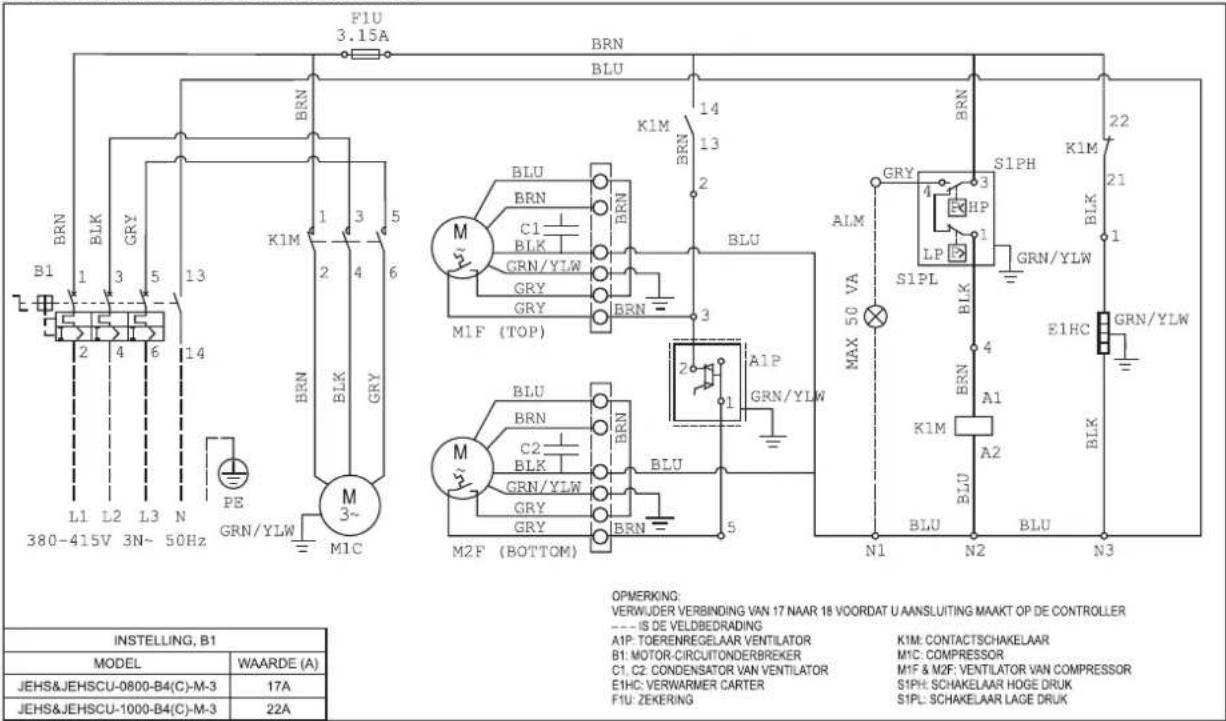

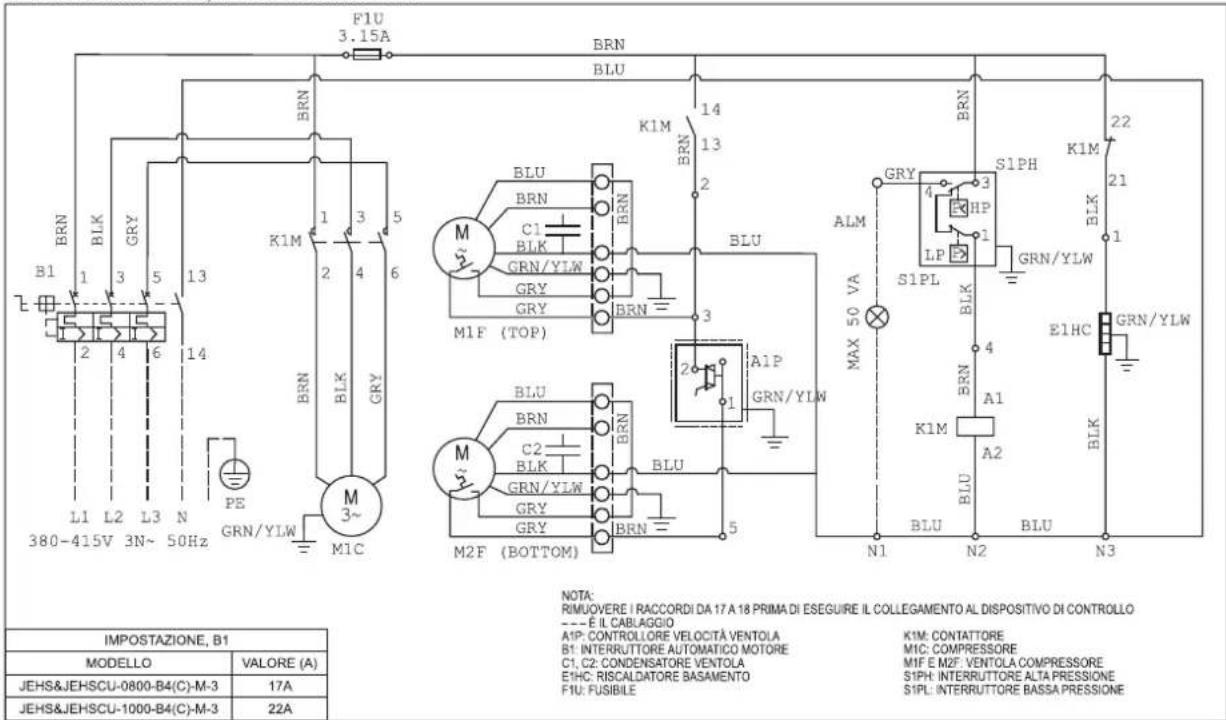

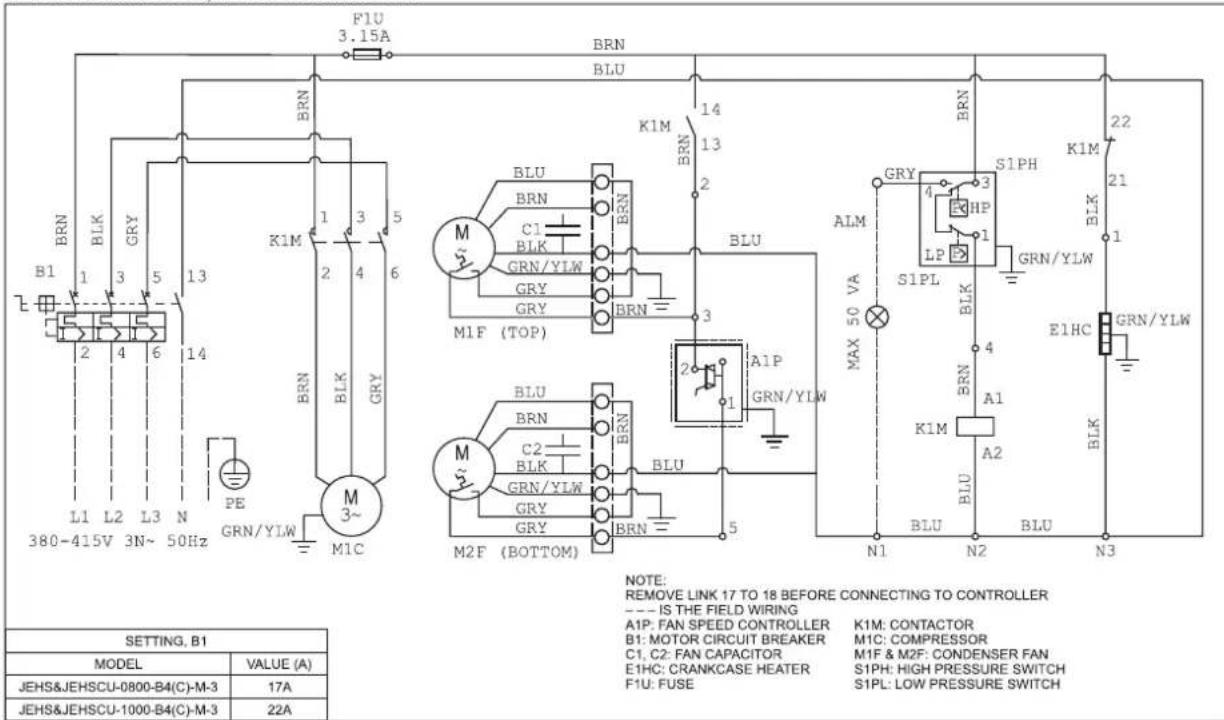

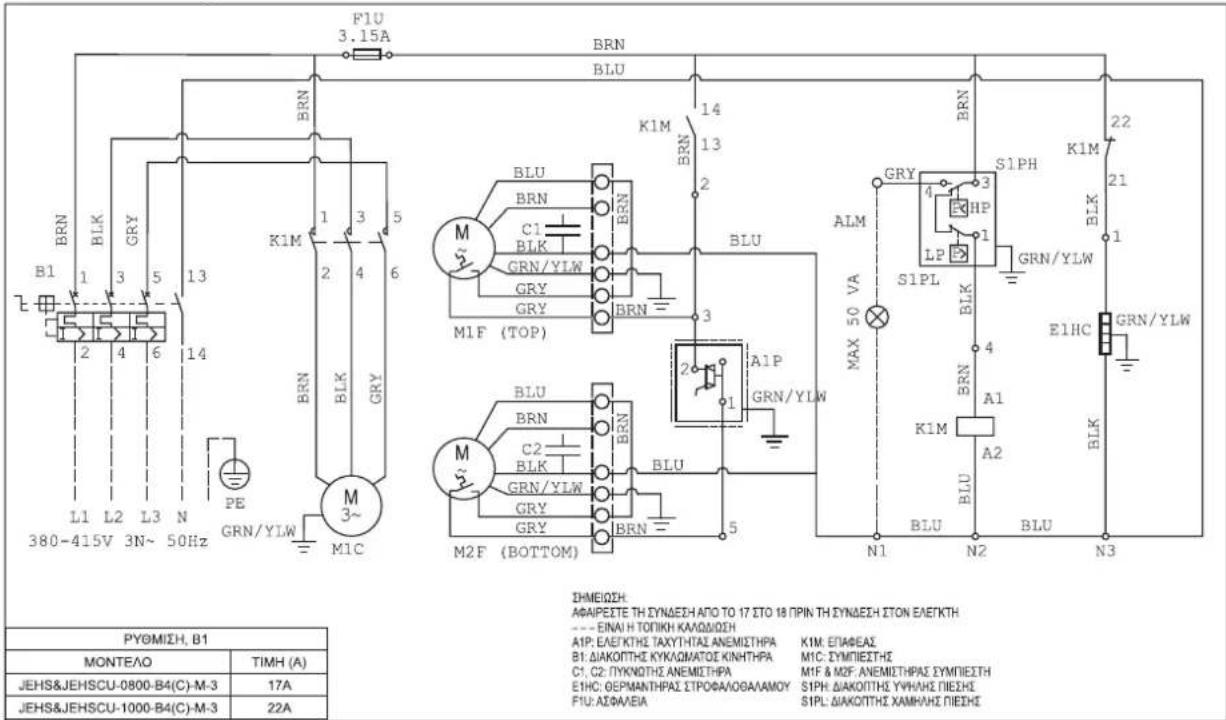

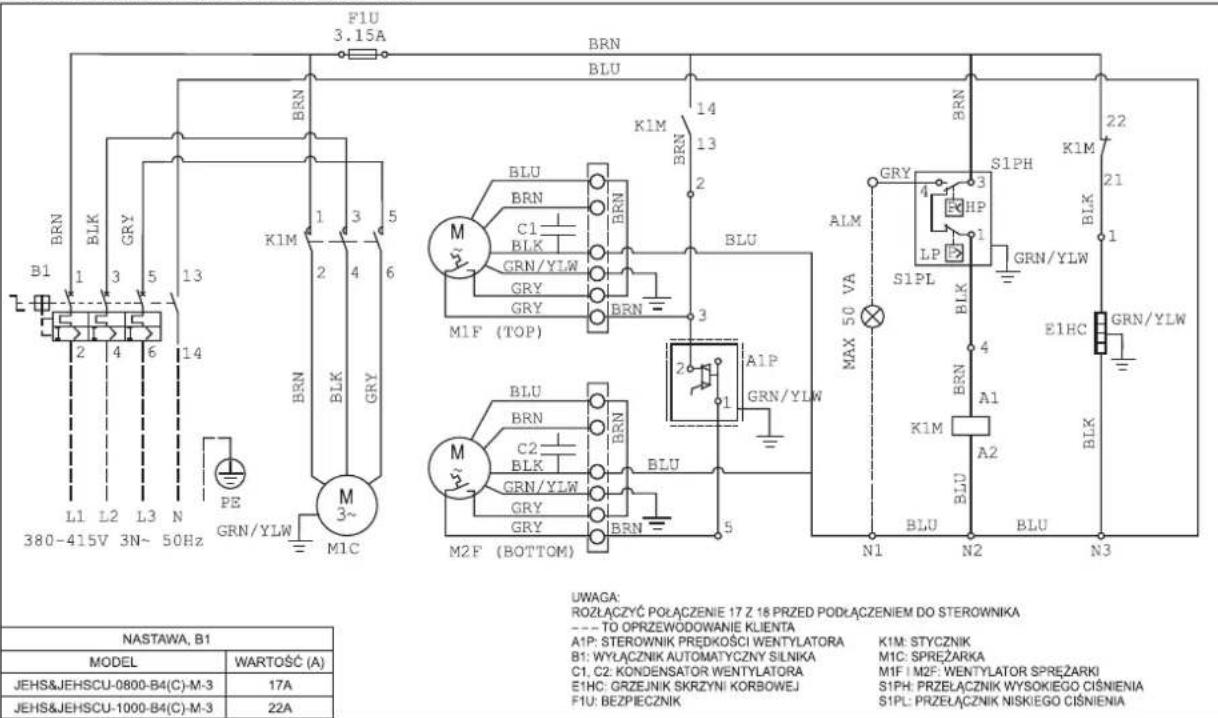

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C M2F (BOTTOM) ALM S1PL BRN A1P GRN/YLW MAX 50 VA S1PH 4 HP LP GRN/YLW E1HC GRN/YLW N1 N2 N3 NOTE: REMOVE LINK 17 TO 18 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING A1P: FAN SPEED CONTROLLER K1M: CONTACTOR B1: MOTOR CIRCUIT BREAKER M1C: COMPRESSOR C1, C2: FAN CAPACITOR M1F & M2F: CONDENSER FAN E1HC: CRANKCASE HEATER S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH BEHSC-415V L2 L3 N 380-415V 3N~ 50Hz BRN BLK GRY BRN PE GRN/YLW M3~ M1F (TOP) M2F (BOTTOM)

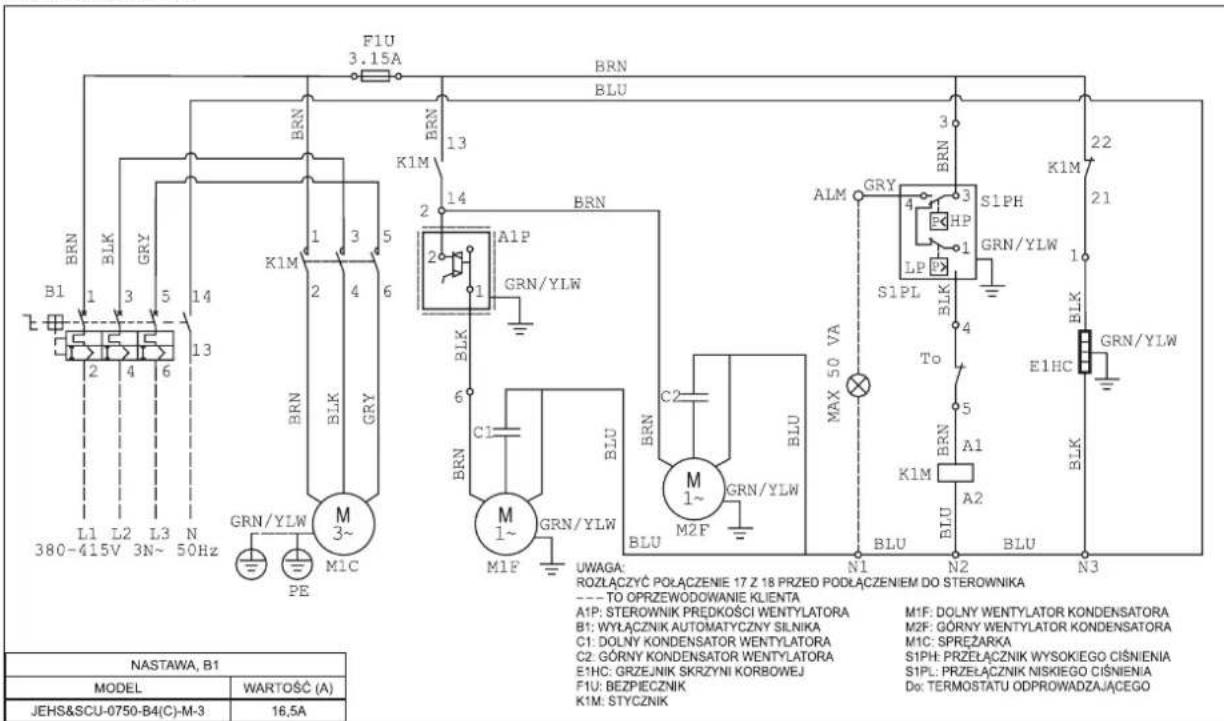

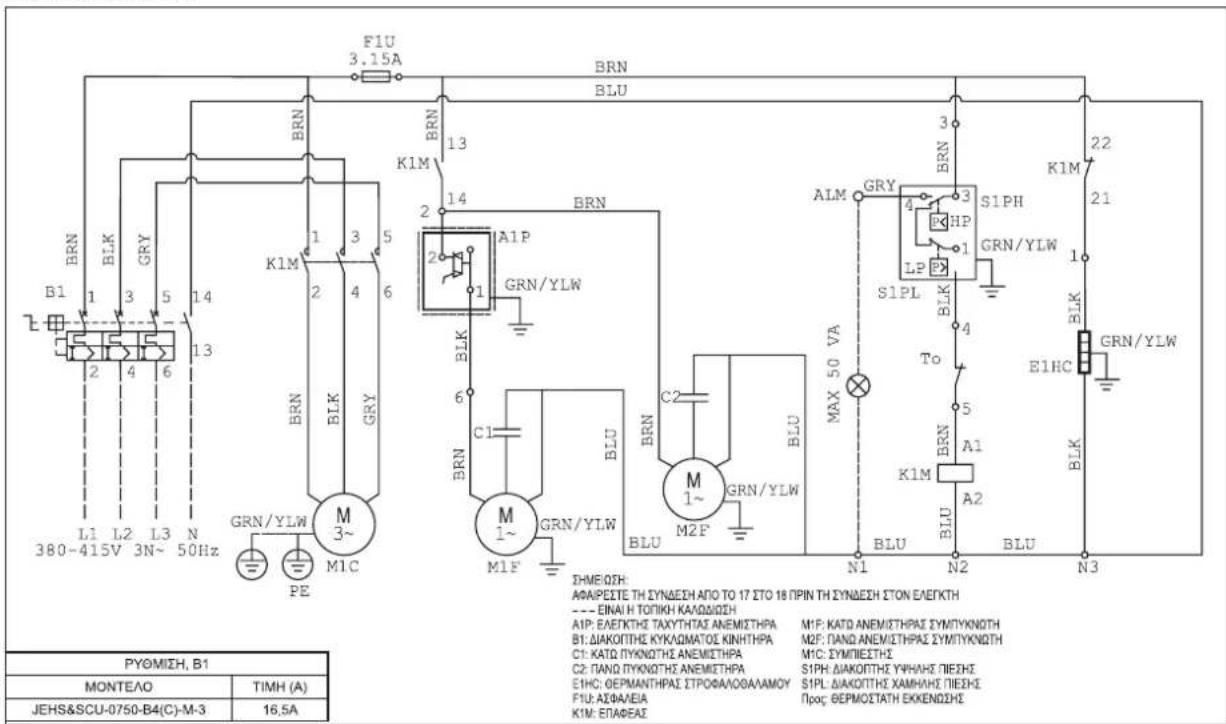

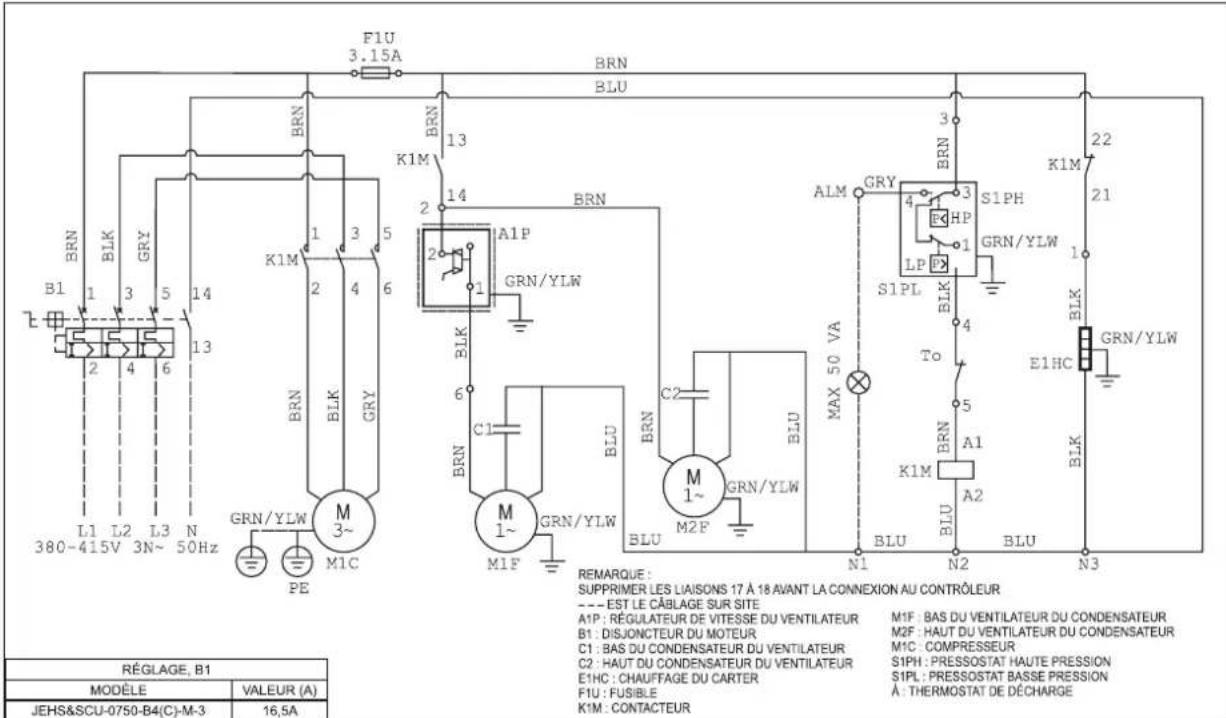

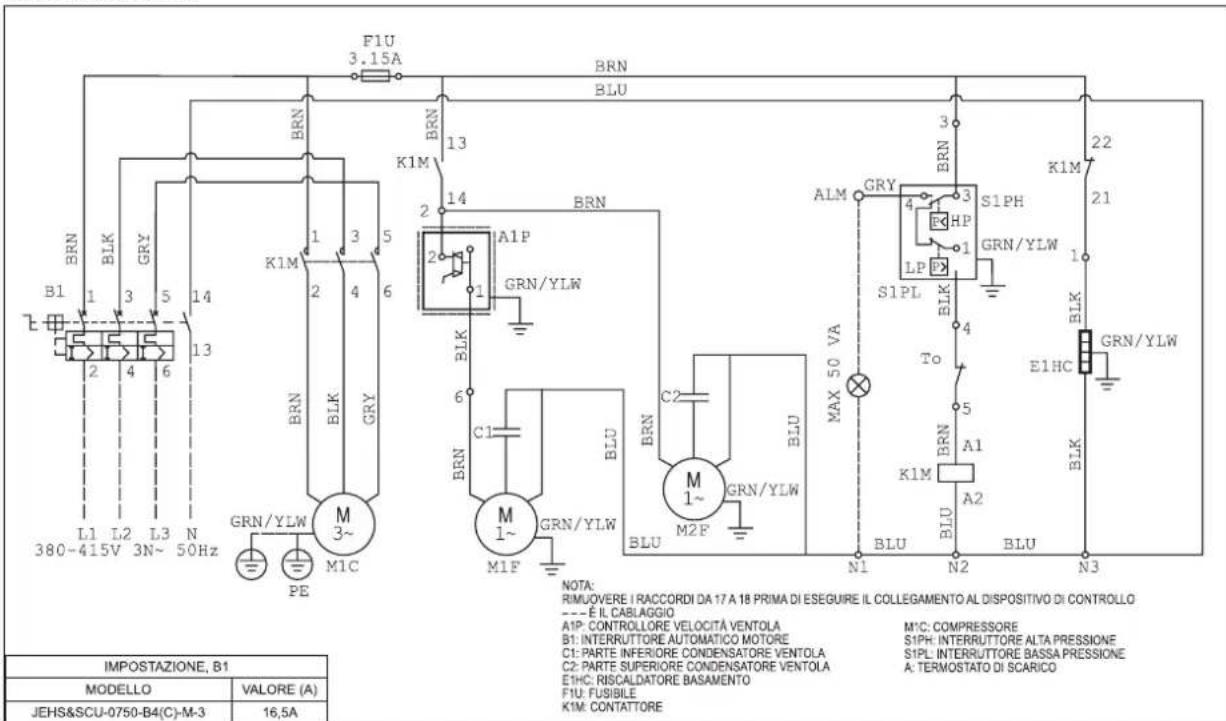

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 1 2 13 BRN/YLW GRN/YLW A1P BRN/YLW BRN C1 BRN/YLW BRN C2 BRN/YLW M1~ M2F BLU MAX 50 VA S1PH GRN/YLW ALM GRY 4 3 BRN S1PL BLK To E1HC GRN/YLW A1P: FAN SPEED CONTROLLER B1: MOTOR CIRCUIT BREAKER C1: FAN CAPACITOR BOTTOM C2: FAN CAPACITOR TOP E1HC: CRANKCASE HEATER F1U: FUSE K1M: CONTACTOR NOTE: REMOVE LINK 17 TO 18 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING M1F: CONDENSER FAN BOTTOM M2F: CONDENSER FAN TOP M1C: COMPRESSOR S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH To: DISCHARGE THERMOSTAT BEHSC-415V 3N~ 50Hz L1 L2 L3 N PE GRN/YLW M1C GRY BLK GRY BLK

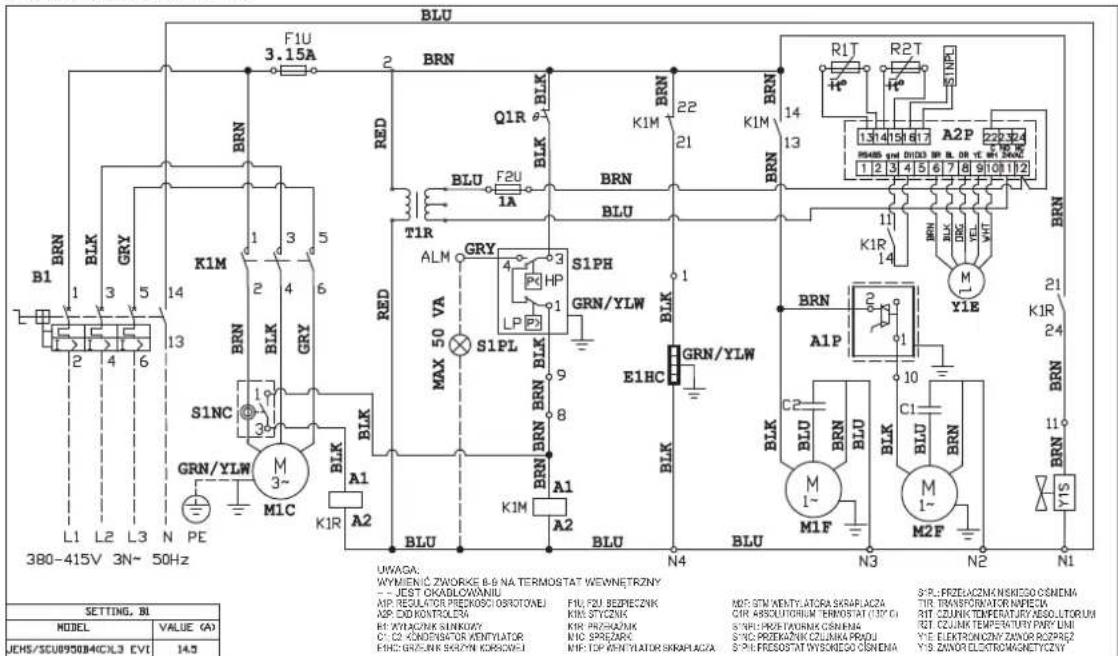

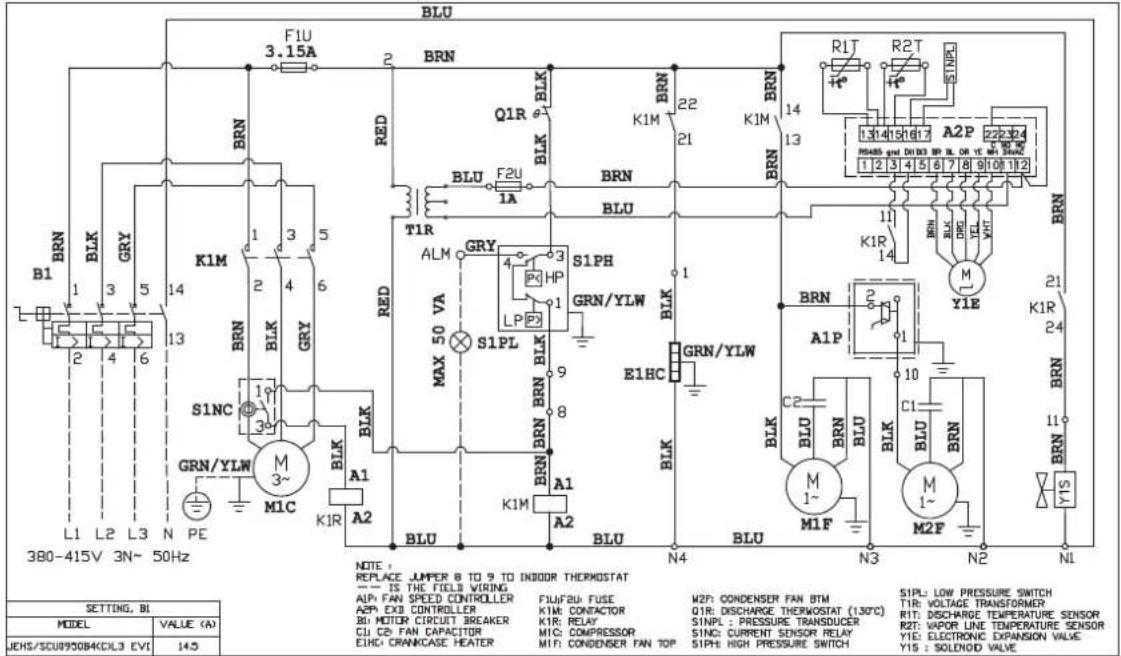

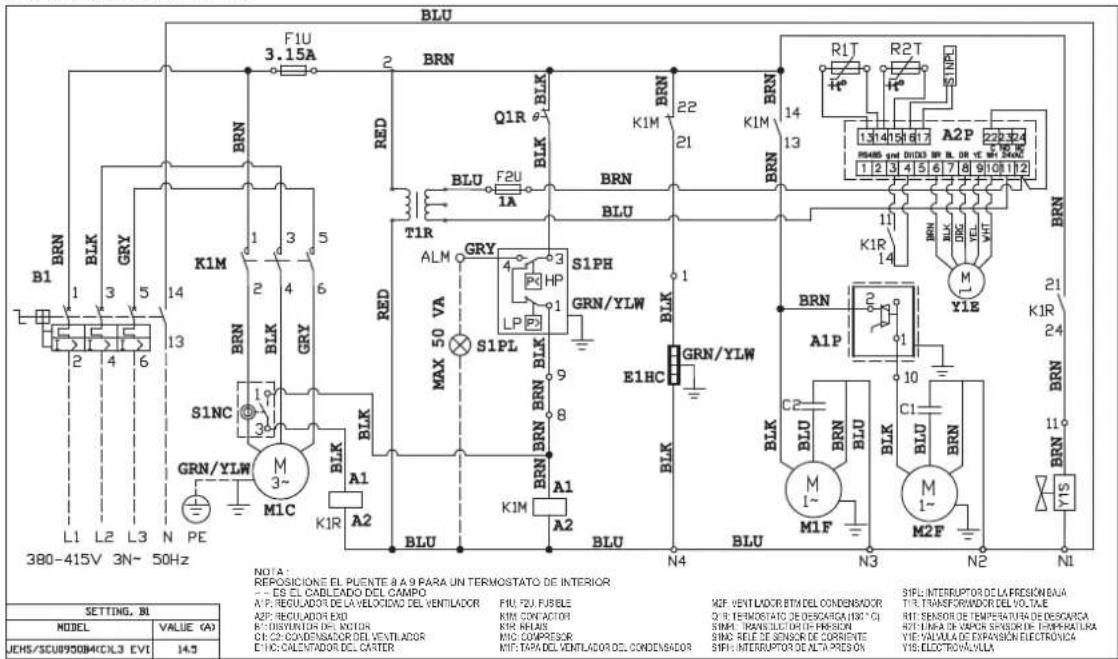

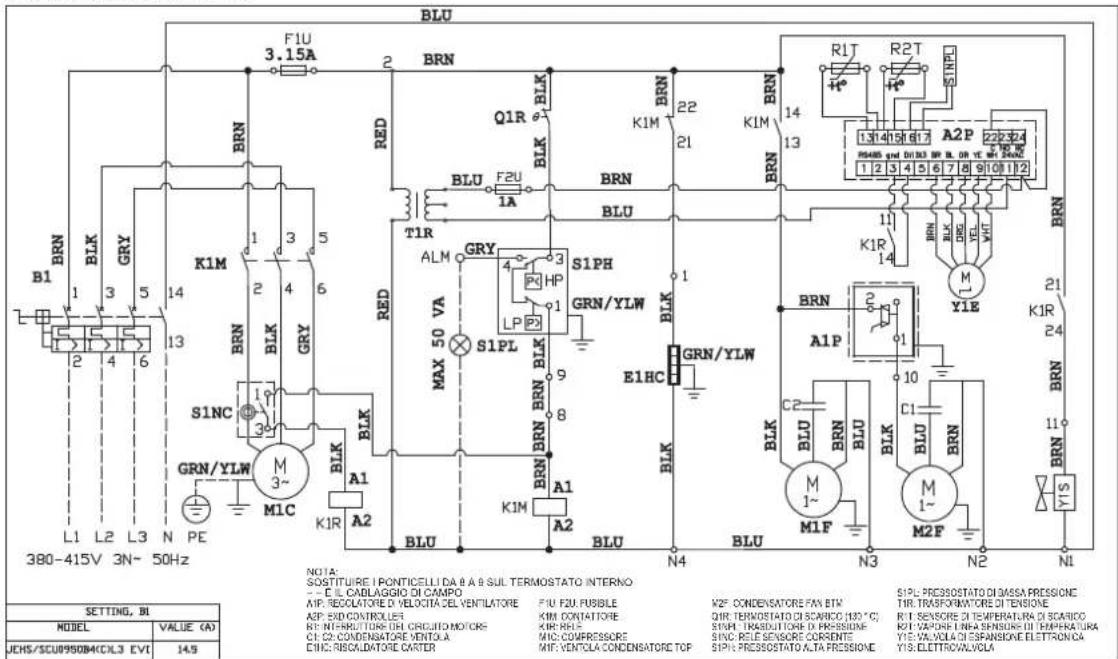

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN 14 13 R1T R2T S1NP 1:3:4:5:6:7:8:9:10:11:12 A2P 22:3:4 FR485 grnd D103 SP IL OR VT 10V 10V 10V 10V 1:2:3:4:5:6:7:8:9:10:11:12 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Appendix

CHECKLIST BEFORE START-UP

No.	Description	Record
1	Is the unit in good condition and without any visible damage?	☐ Yes
2	Has the unit been transported in upward position?	☐ Yes
3	Is the crankcase oil level between 1/4 and 3/4 of the compressor sight glass?	☐ Yes
4	Is the power supply on site in line with the unit specification?	☐ Yes
5	Is air short circuit and/or air blockage avoided?	☐ Yes
6	Is the location well ventilated?	☐ Yes
7	Is there sufficient space for air flow and maintenance?	☐ Yes
8	Is all the pre-charged nitrogen released before the field pipe connection started?	☐ Yes
9	Has nitrogen been blown through the pipes during brazing?	☐ Yes
10	Is there only 1 indoor unit connected to the CDU?	☐ Yes
11	Does the field piping has the same diameter as the pipes coming from the CDU?	☐ Yes
12	Is the suction pipe insulated?	☐ Yes
13	Does the bends have enough bending radius?	☐ Yes
14	Is the total pipe length less than 25 m?	☐ Yes
15	Is the height difference within the specifications? [Refer page 7]	☐ Yes
16	Are the oil traps in the vertical suction line correctly positioned? [Refer page 3]	☐ Yes
17	Does the CDU capacity matches the indoor unit capacity?	☐ Yes
18	Does the TXV capacity matches the indoor unit capacity?	☐ Yes
19	Is the TXV sensing bulb fixing in good position/condition?	☐ Yes
20	Is there a MOP expansion valve installed? [Refer page 3]	☐ Yes
21	Was inert, dry gas (e.g. Nitrogen) used when pressure testing?	☐ Yes
22	Could the leak test pressures be reached?	☐ Yes
23	Did the test pressure stayed stable after at least 24 hours?	☐ Yes
24	Could the vacuum condition (< -0.1 barg for 2 hours) be reached?	☐ Yes
25	Did the pressure stayed stable for at least 1 hour, when turning off the vacuum pump?	☐ Yes
26	Is the high/low pressure safety on the pressure switch set correctly? [Refer page 4]	☐ Yes
27	Is the fan speed controller set correctly? [Refer page 4]	☐ Yes
28	Is the correct circuit breaker been used?	☐ Yes
29	Is there an earth connection foreseen?	☐ Yes
30	Are all terminal connections good/tight connected?	☐ Yes
31	Is the crankcase heater been energized for minimum 12 hours before start up?	☐ Yes
32	Is the refrigerant correct for intended use?	☐ Yes
33	Is the high pressure above the minimum limit when charging the system? [Refer page 5]	☐ Yes
34	Is the refrigerant charge amount correct (clear sight glass)?	☐ Yes

Remarks: The system may only be started up if all questions can be answered with "Yes".

CHECKLIST BEFORE COMMISSIONING

No.	Description	Record
1	Is the suction pressure decreasing and the discharge pressure increasing?	☐ Yes
2	Is the compressor rotation (only for scroll type) correct (no abnormal noise)?	☐ Yes
3	Is the crankcase oil level between 1/4 and 3/4 of the compressor sight glass? (after 3 or 4 hours of operation)	☐ Yes
4	Is the discharge temperature within the limits (between 50 °C and 90 °C)?	☐ Yes
5	Is the suction superheat within the limits (between 5K and 20K) during normal operation?	☐ Yes
6	Is the suction superheat within the limits (between 5K and 20K) after defrost operation?	☐ Yes
7	Is the running current below isolator setting value?	☐ Yes
8	Is warm air blowing out from the condenser fan?	☐ Yes
9	Is the compressor On/Off cycle within the specification? [Refer page 4]	☐ Yes

Remarks: The system may only be handed over to user/owner if all questions can be answered with "Yes".

Additional advice:

1. Do not leave the system unattended until the system has reached its normal operating condition and the oil charge has properly adjusted itself to maintain the proper level in the sight glass.
2. Check periodically the compressor performance and all the moving components during the first day of operation.
3. Check the liquid line sight glass and expansion valve operation. If there is an indication that the system is low on refrigerant, thoroughly check the system for leaks before adding refrigerant.

SITE RECORDINGS

Customer name	:	Field Settings
Installer name	:	Pressure switch settings	:
Installation date	:	Cut Out (High Side)	:
		Cut In (Low Side)	:
Unit model name	:	Differential (Low Side)	:
Unit serial number	:
		Fan speed controller setting	:
Indoor unit	:
Expansion valve	:	Running conditions
		Discharge temperature	:
Refrigerant type	:	Suction superheat normal operation	:
Ambient temp.	:	Minimum suction superheat after defrost operation	:
Thermostat setting	:
		Running current before defrost	:
Unit location/Field piping		Running current after defrost	:
Piping length	:	Suction pressure (Pe)	:
Position of CDU	:Above/below indoor unit	Liquid line pressure (Pc)	:
Height difference	:

J&E Hall International for DAIKIN

Installationshandbuch

Bedienungsanleitung

Diagram of two air conditioning units with fan blades, connected by lines (no text or symbols)

FALSCH!

Technical line drawing of two air conditioning units connected by a pipe, labeled 'RICHITIGI' below (no other text or symbols)

RICHTIG!

At condition of Te -35°C, Ta +32°C

Refrigerant R404A

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

Niedrige Temperatur

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

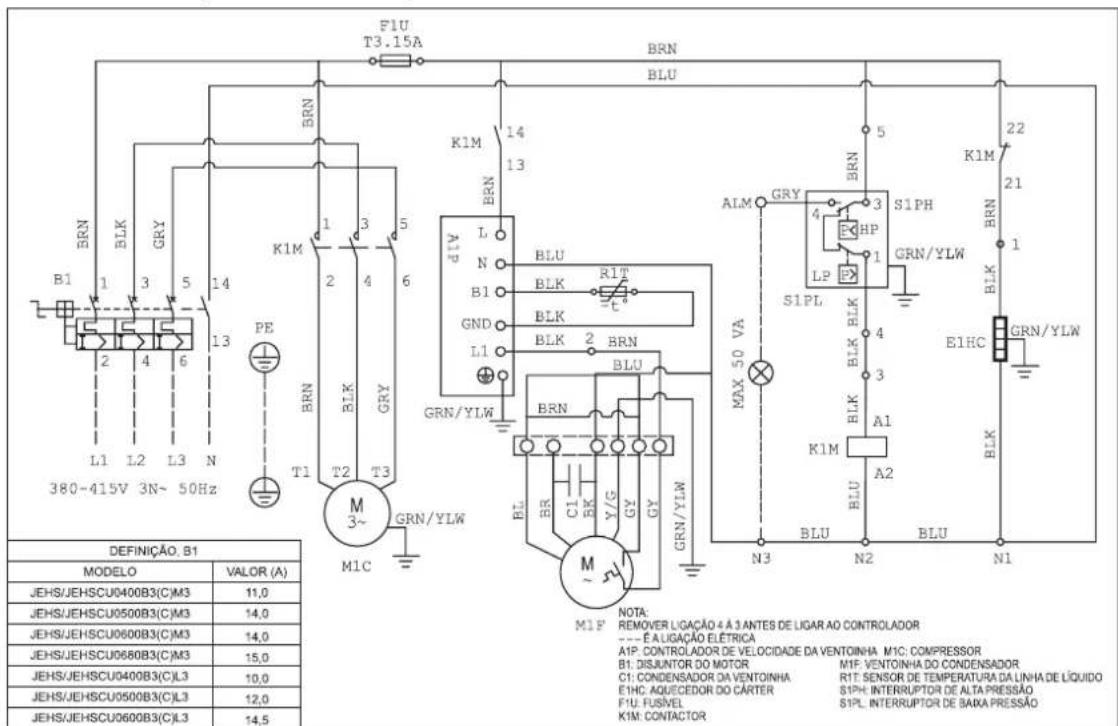

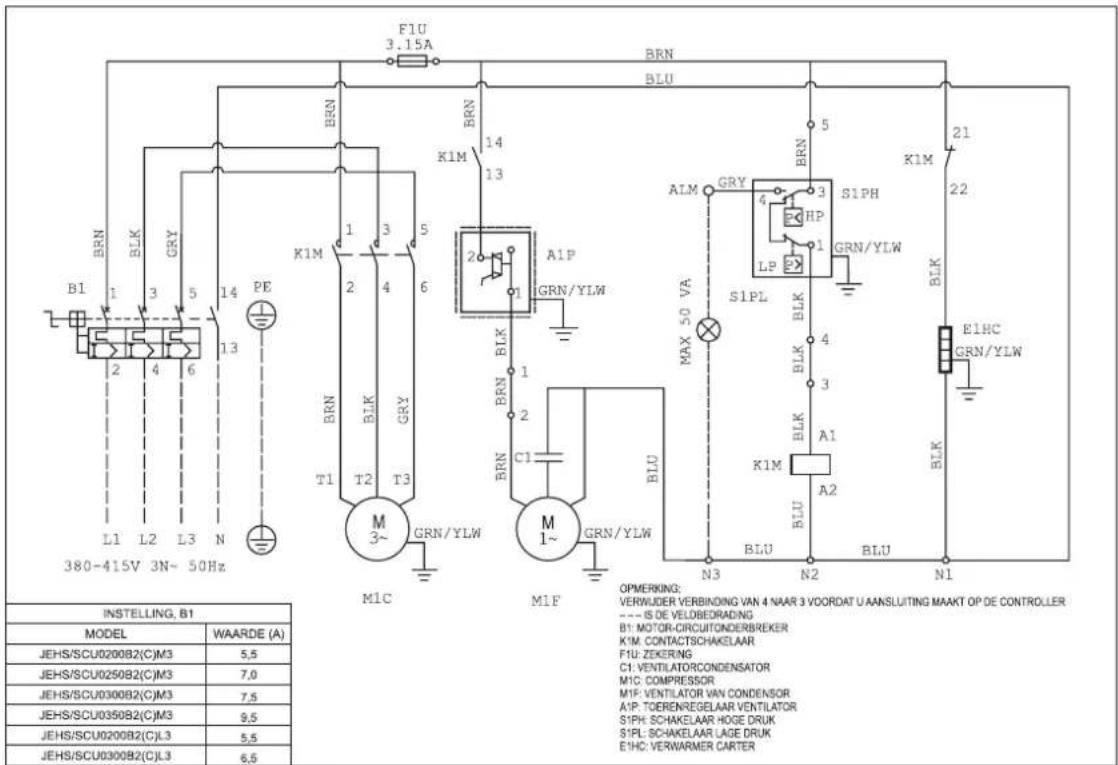

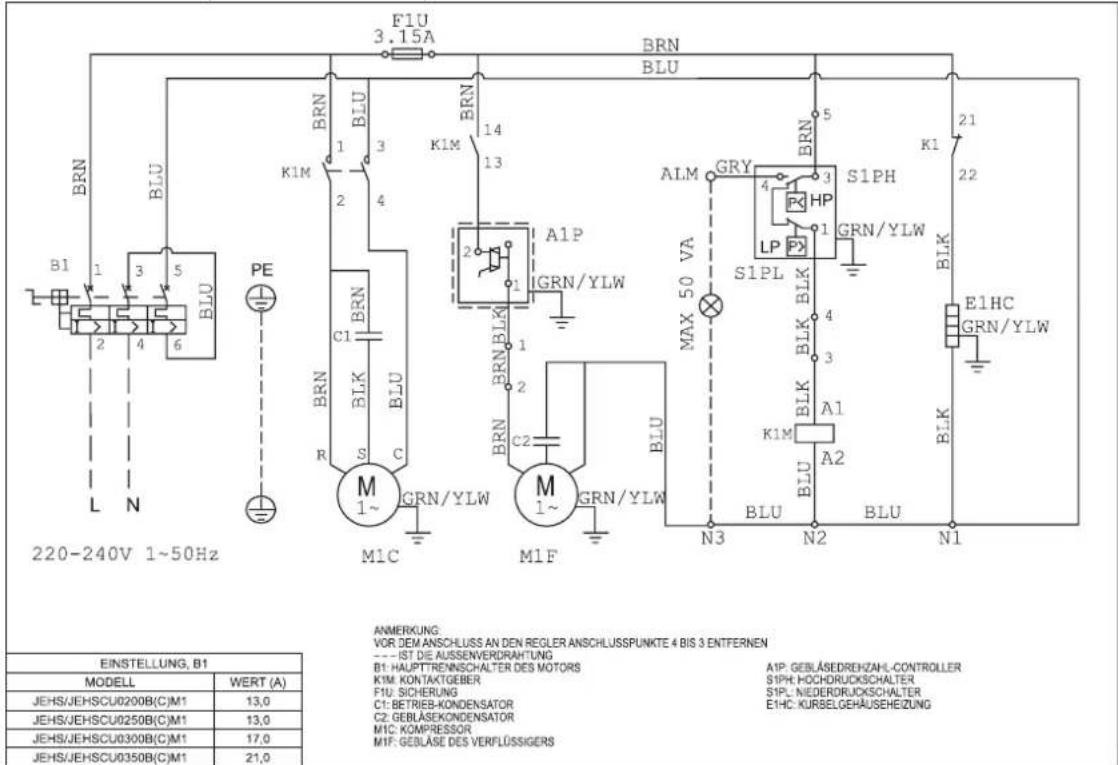

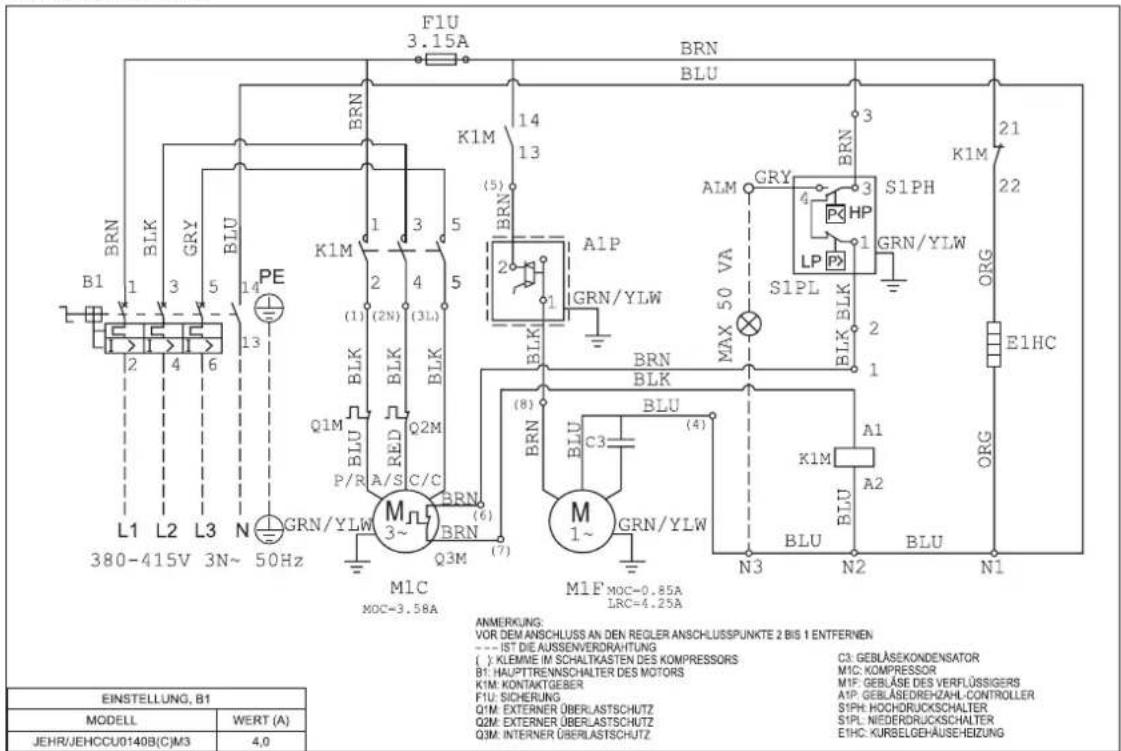

11. Elektro-Daten

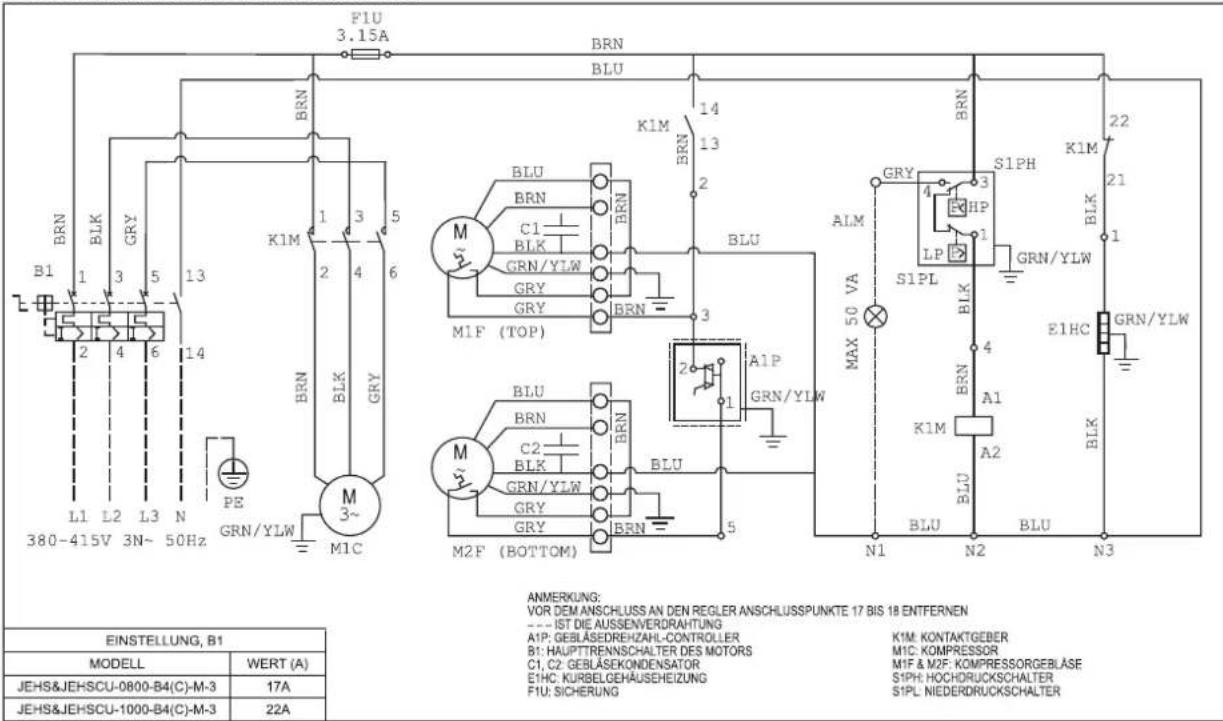

F1U 3.15A BRN BLU BRN K1M 1 BLU 3 (1) (2N) BLU C2 BLU C1 BLK BLR Q1M BLK BLU BLR BLK A/S RED P/R C/C M 1~ M1C M1F GRN/YLW M1~ GRN/YLW MOC=0.85A LRC=4.25A ALM GRY 3 BRN S1PH HP GRN/YLW LP S1PL 2 MAX 50 VA S1C BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHCCU0150CM1, JEHCCU0225CM1, JEHCCU0300CM1

F1U 3.15A BRN BLU BRN K1 1 3 BRN 14 13 K1M BRN BRN K1R C1 2 4 BLU BRN C2 5 1 S BLU BRN BRN/YLW BRN/YLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRN/BLW BRIN/YLW BRIN/YLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW BRIN/BLW

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN K1M 1 3 4 BRN 14 13 BRN 1 2 3 4 BRN C1 BRN BLK BLU R S C M 1~ GRN/YLW M1C BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/ ALM GRY BRN S1PH K1 MAX 50 VA LP GP HP GRN/YLW BLK E1HC GRN/YLW BLK MAX 50 VA LP GP HP GRN/YLW BLK E1HC GRN/YLW BLK ANMERKUNG. VOR DEM ANSCHLUSS AN DEN REOLER ANSCHLUSSPUNKTE 4 BIS 3 ENTFERENEN --- IST DE AUSSENVERDRAHTUNG B1: HAUPTTRENNSCHALTER DES MOTORS A1P: GEBLÄSEDREHZAHL-CONTROLLER K1M: KONTAKTGEBER S1PH: HOCHDRUCKSCHALTER F1U: SICHERUNG S1PL: NIEDERDRUCKSCHALTER C1: BETRIEB-KONDENSATOR C2: GEBLÄSEKONDENSATOR E1HC: KURBELGEHÄUSEHEIZUNG M1C: KOMPRESSOR M1F: GEBLÄSE DES VERFLÜSSIGERS

Dreiphasig

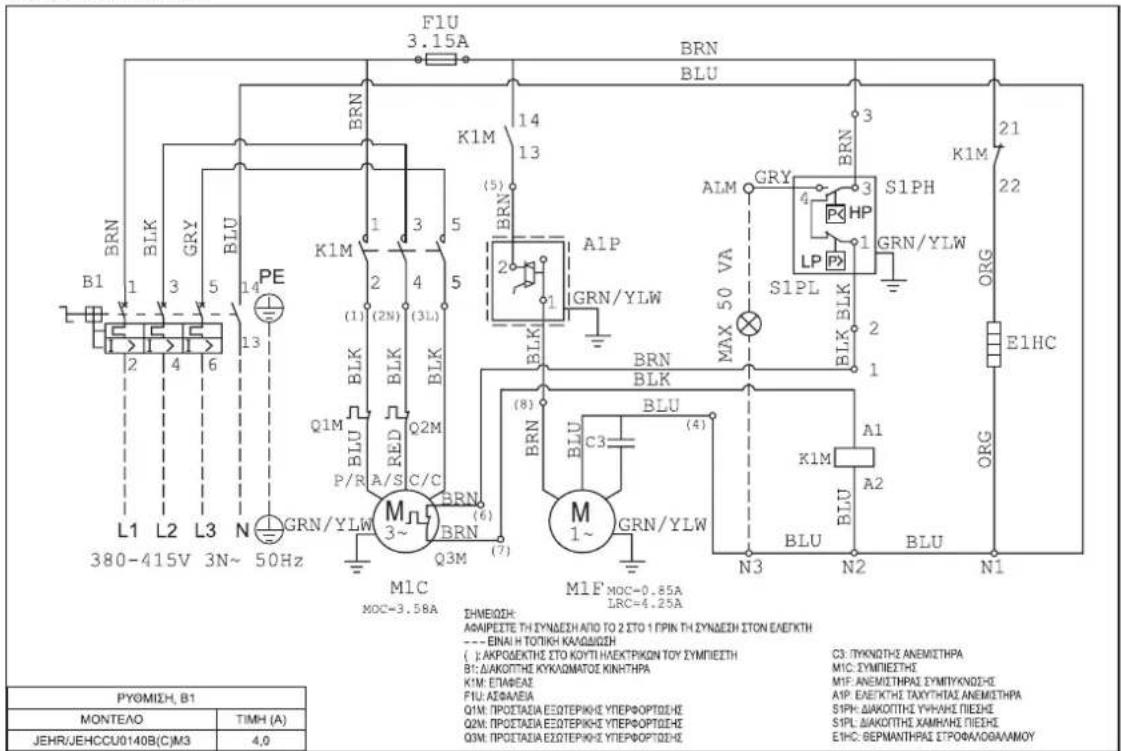

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 Pd HP 1 GRN/YLW LP Px ORG E1HC Q1M BRN/YLW BRN/YLW BRN BLK MAX 50 VA S1PL BLK ORG Q1M BRN/YLW BRN/YLW Q3M (6) (7) BRN BLK (8) BLU C3 (4) M1F MOC=0.85A LRC=4.25A M1C MOC=3.58A M1F MOC=0.85A LRC=4.25A ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 2 BIS 1 ENTFERNIEN --- IS TIE AUSSENVERDRAHTUNG ( ) KLEMME IM SCHALTKASTEN DES KOMPRESSORS C3 GEBLÄSEKONDENSATOR B1: HAPPTTRENNSCHALTER DES MOTORS M1C KOMPRESSOR K1M: KONTAKTGEBER M1F GEBLÄSE DES VERFLÜSSIGERS FU: SICHERUNG A1P GEBLÄSEDREHZAHL-CONTROLLER Q1M: EXTERNER ÜBERLASTSCHUTZ S1PH: HOCHDRUCKSCHALTER Q2M: EXTERNER ÜBERLASTSCHUTZ S1PL: NIEDERDRUCKSCHALTER Q3M: INTERNER ÜBERLASTSCHUTZ E1HC: KURBELGEHÄUSEHEIZUNG EINSTELLUNG, B1 MODELL WERT (A) JEHR/JEHCCU0140B(C)M3 4,0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

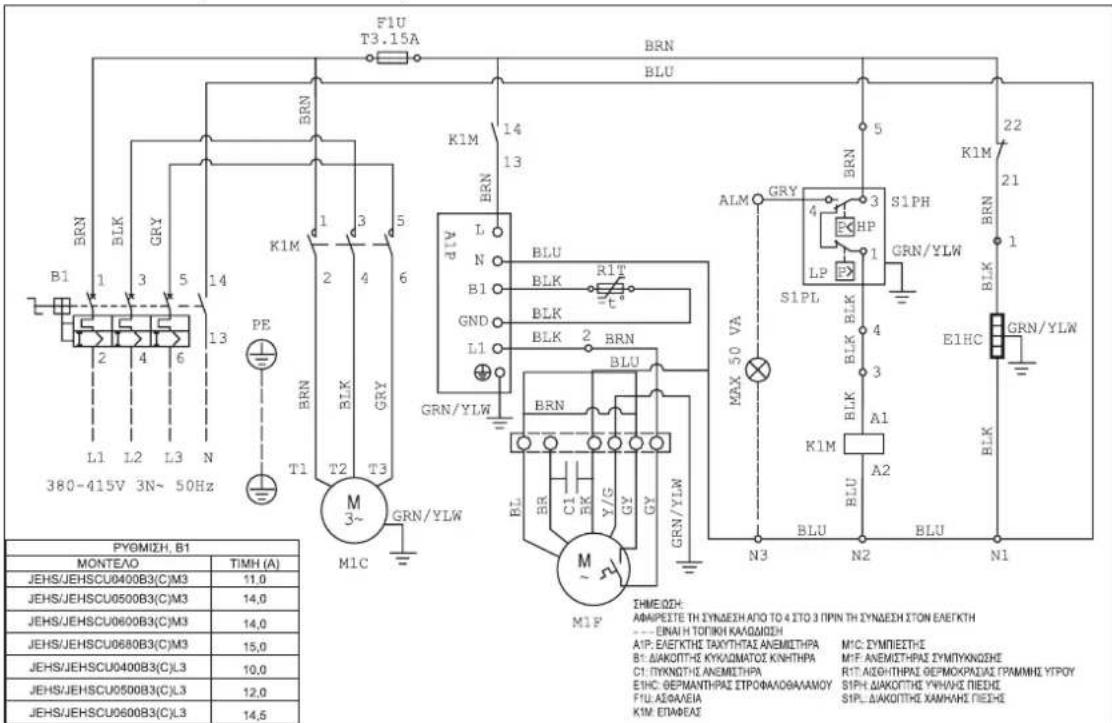

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 2 4 6 PE BRN BLK GRY M 3~ GRN/YLW M1C M1F ALM GRY S1PH HRP GRN/YLW S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

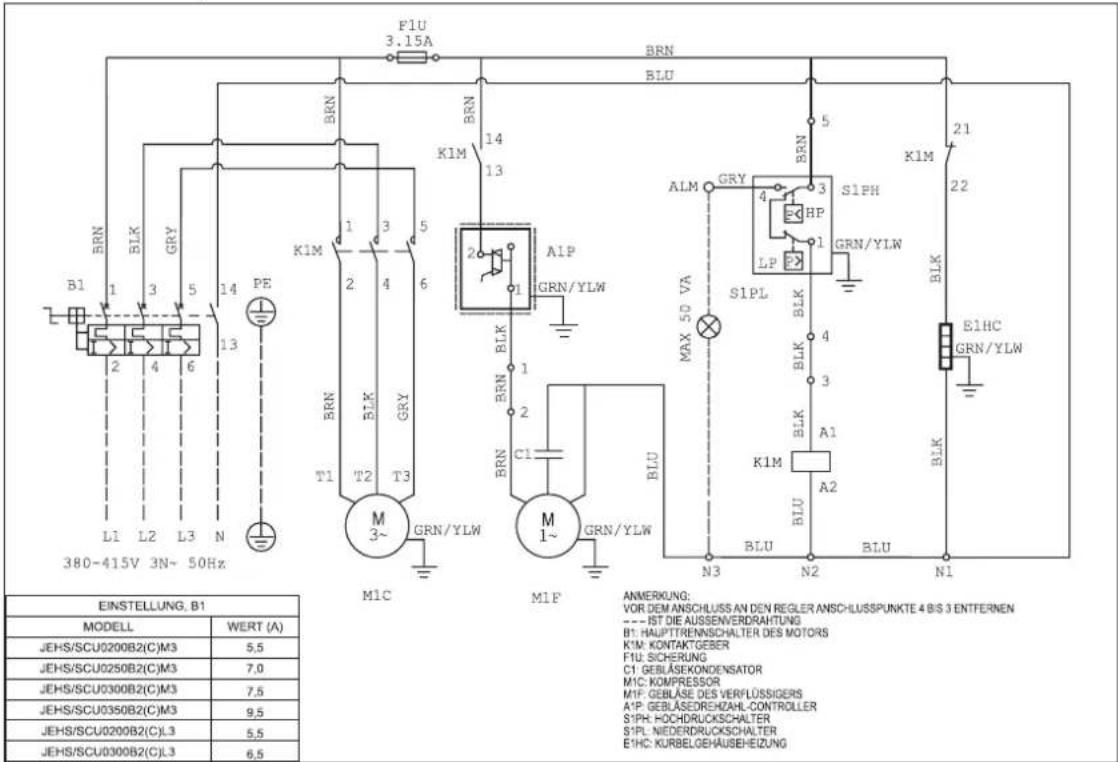

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN K1M 1 3 5 2 4 6 BRN T1 T2 T3 M 3~ GRN/YLW M1C BRN/YLW BRN/YLW BRN/YLW BRN/YLW ALM GRY S1PH GP GRN/YLW S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK ANMERUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 4 B/S 3 ENTFERNEN --- IST DIE AUSSEVERDRAHTUNG B1: HALUPTTRENNSCHALTER DES MOTORS K1M: KONTAKTGEBER F1U: SICHERUNG C1: GEBLÄSEKONDENSATOR MIC: KOMPRESSOR M1F: GEBLÄSE DES VERFLÜSSIGERS A1P: GEBLÄSEDREDAHL-CONTROLLER S1PH: HOCHDRUCKSCHALTER S1PL: NIEDERDRUCKSCHALTER E1HC: KURBELGEHÄUSEHEIZUNG

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 L N B1 1 3 5 14 2 4 6 PE BRN BLK GRY GND L1 T1 T2 T3 M 3~ GRN/YLW BRN/YLW M1C EINSTELLUNG, B1 MODELL WERT (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 FRS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLS/RLs BRN ALM GRY BRN S1PH HP GRN/YLW LP S1PL BLK BLK BLK 4 3 A1 K1M BLU A2 BLU N3 N2 BLU N1 MAX 50 VA BRN/YLM BRN/YLM M1F ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 4 BIS 3 ENTFERNEN --- IST DIE AUSSEINVERDRAHTUNG M1C KOMPRESSOR A1P: GEBLASEDREHZAH-CONTROLLER M1F: GEBLASE DES VERFLÜSSIGERS B1: HAUPTTRENNSCHALTER DES MOTORS R1T: TEMPERATURSENSOR DER FLÜSSIGKEITSLEITUNG C1: GEBLASEKONDENSATOR S1PH: HOCHORUCKSCHALTER E1HC: KURBELGEHÄUSEHEZUNG S1PL: NIEDERORUCKSCHALTER

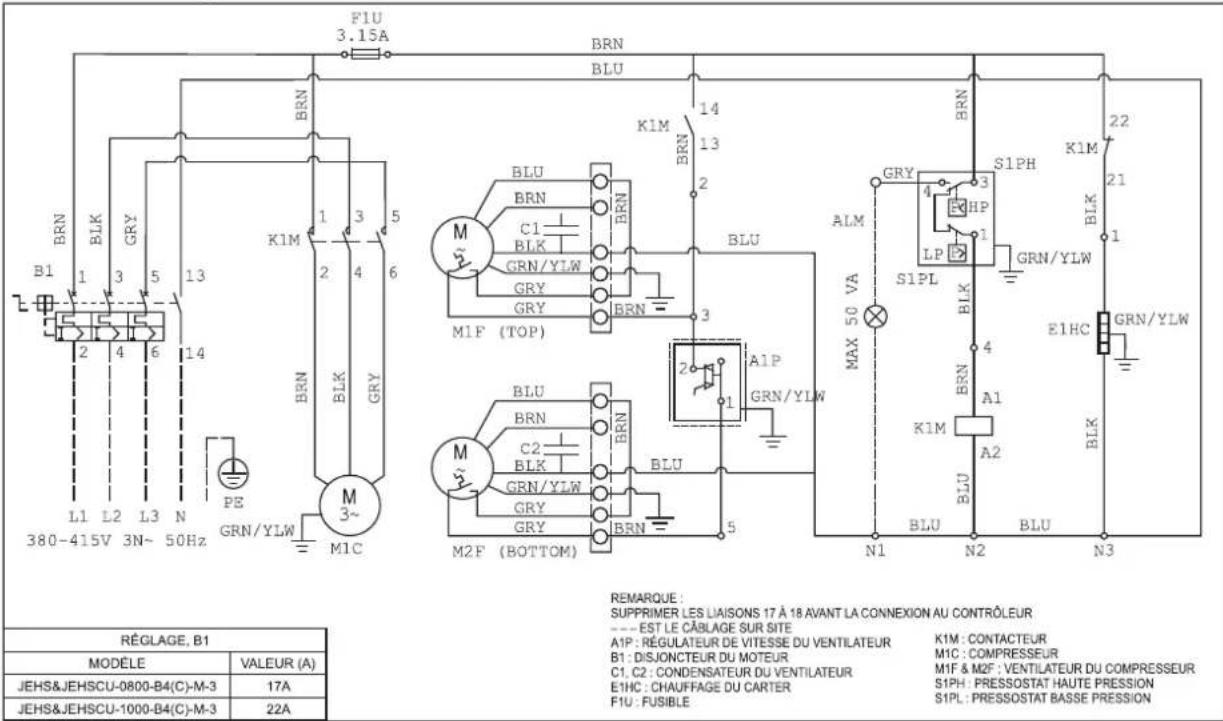

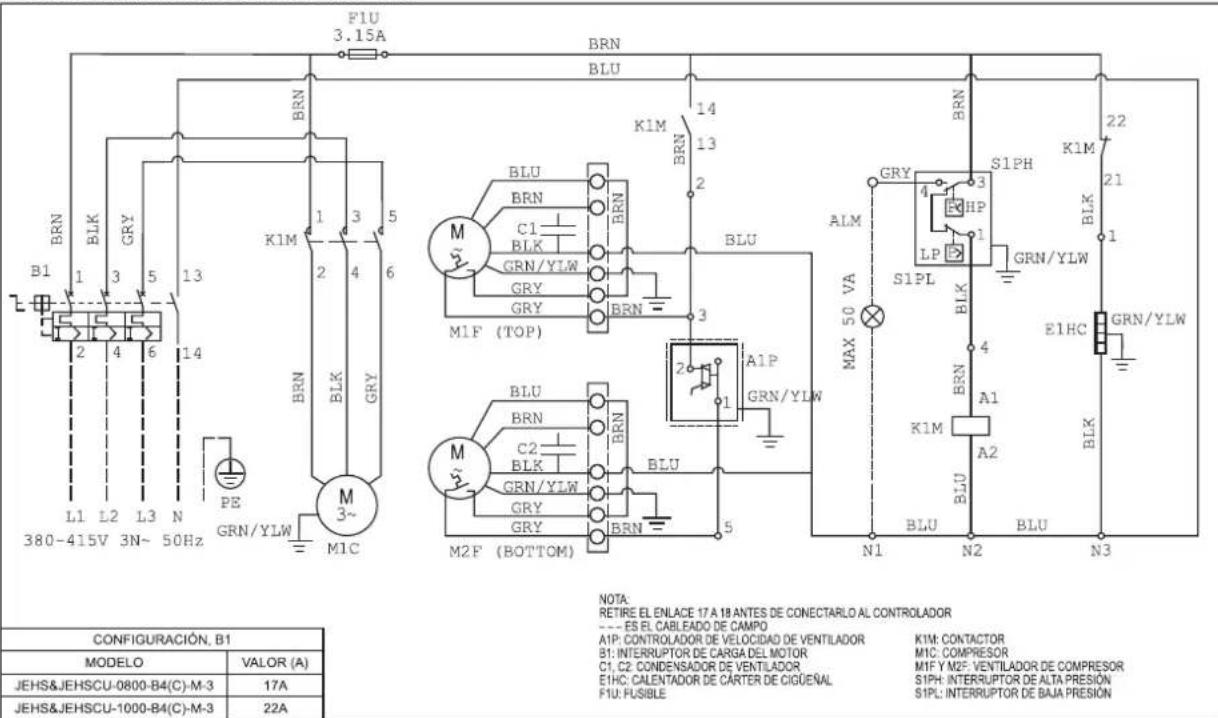

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY BRN M2F (BOTTOM) ALM S1PL BRN A1P GRN/YLW MAX 50 VA S1PH 4 HP LP GRN/YLW E1HC GRN/YLW BLK N1 N2 BLU N3 ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 17 BIS 18 ENTFERNEN --- IST DIE AUSSENVERDRAFTUNG A1P: GEBLÄSEDREHZAHL-CONTROLLER B1: HAUPTTRENNSCHALTER DES MOTORS C1, C2: GEBLÄSEKONDENSATOR E1HC: KURBELGEHÄUSEHEIZUNG F1U: SICHERUNG K1M: KONTAKTGEBER M1C: KOMPRESSOR M1F & M2F: KOMPRESSORGEBLÄSE S1PH: HOCHDRUCKSCHALTER S1PL: NIEDERDRUCKSCHALTER E1HC: GRN/YLW BLK BLU BLU BLU BLU BLU BLU M1C 3.15A BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

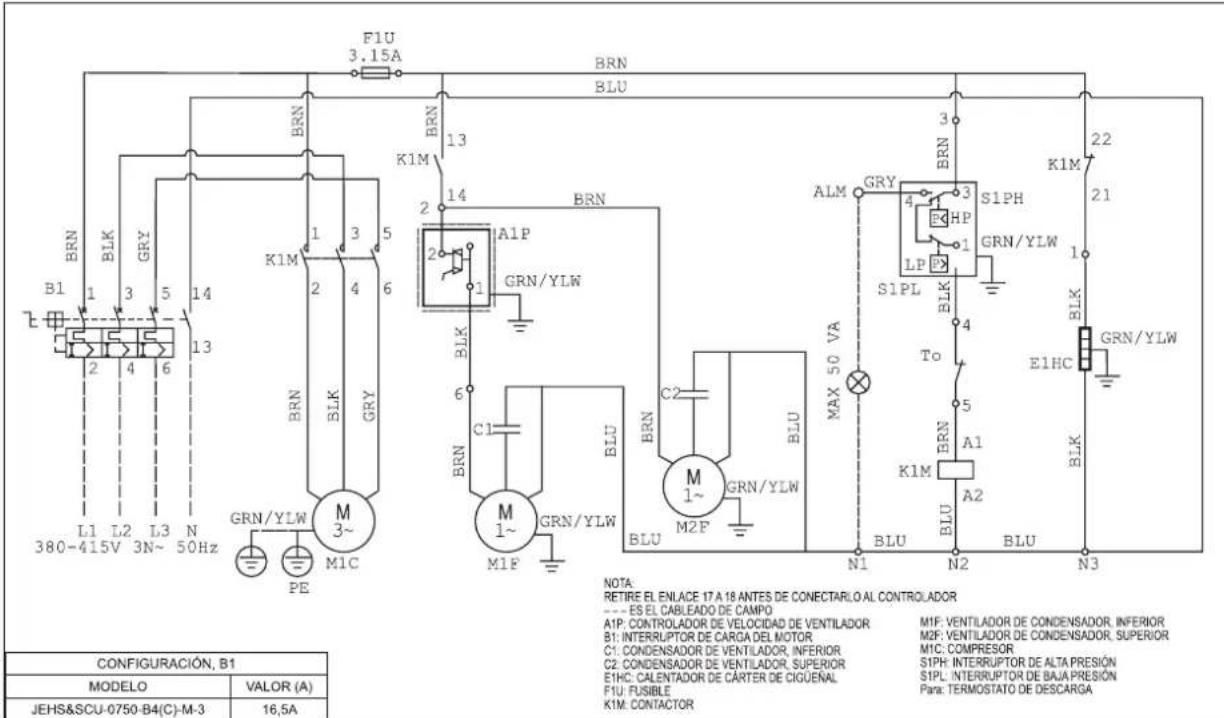

JEHSCU0750CL3

J&E Hall International for DAIKIN

Diagram of two air conditioning units with fan blades, connected by lines (no text or symbols)

Diagram of two air conditioning units connected by lines, with 'CORRECT!' text below (no other symbols or labels)

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

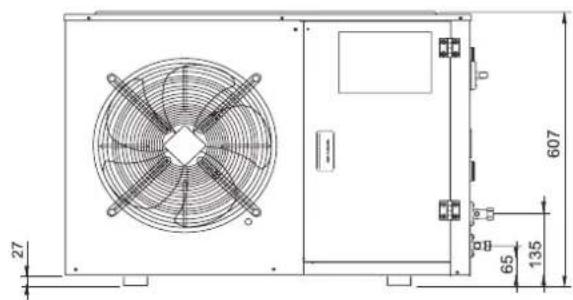

27 607 65 135

Série 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a mechanical air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of a fan assembly with internal blades and mounting brackets (no text or symbols)

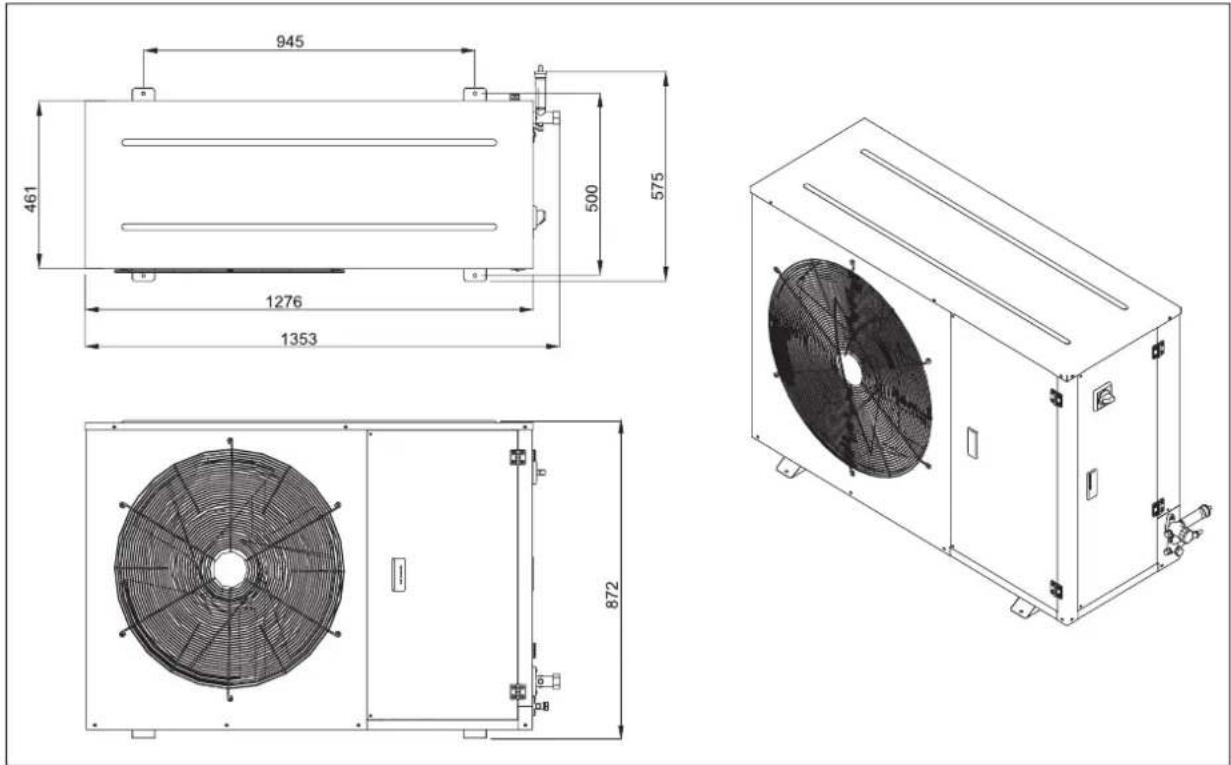

Série 3

945 461 500 575 1276 1353 872

Technical drawing of a dual fan installation with mounting holes and dimension label (no text or symbols beyond measurement markers)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

Basse Température

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a dual-panel HVAC unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 1 3 4 BRN 14 13 BRN 1 BRN C1 BRN BLK BLU R S C M1~ GRN/YLW M1F ALM GRY BRN 5 S1PH HP LP GRN/YLW BLK E1HC GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLU N3 N2 N1 REGLAGE, B1 MODELE VALEUR (A) JEHS/JEHSCU0200B(C)M1 13,0 JEHS/JEHSCU0250B(C)M1 13,0 JEHS/JEHSCU0300B(C)M1 17,0 JEHS/JEHSCU0350B(C)M1 21,0 220-240V 1~50Hz

Dreiphasig

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN ALM GRY S1PH 21 22 P HP LP GRN/YLW ORG E1HC L1 L2 L3 N 380-415V 3N~ 50Hz Q1M BLK BLK Q2M BRN/YLW A/S C/C BRN Q3M M1C MOC=3.58A BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BL l BORN DANS LE BOITIER ELECTRIQUE DU COMPRESSEUR B1 DISJONCTEUR DU MOTEUR K1M CONTACTEUR F1U : FUSIBLE Q1M : PROTECTEUR DE SURCHARGE EXTERNE Q2M : PROTECTEUR DE SURCHARGE EXTERNE Q3M : PROTECTEUR DE SURCHARGE INTERNE M1F MOC=0.85A LRC=4.25A REMARQUE SUPPRIMER LES LIAISONS 2 À 1 AVANT LA CONNXION AU CONTRÔLEUR --- EST LE CÂBLAGE SUR SITE ( ): BORNE DANS LE BOÎTIER ÉLECTRIQUE DU COMPRESSEUR M1C : COMPRESSEUR M1F : VENTILATEUR DU CONDENSATEUR A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION E1HC : CHAUFFAGE DU CARTER

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY M 3~ GRN/YLW M1C BRN/YLW BRN/YLW BRN/BLK A1P IGRN/YLW BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BL l BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLi BRN BLi BRN BLi BRN BLi BRN BLi BRN BLi BRN BLi BRN BLi FR1U : FUSIBLE FR1U : FUSIBLE FR1U : FUSIBLE FR1U : FUSIBLE FR1U : FUSIBLE FR1U : FUSIBLE

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 K1M 1 2 4 6 PE BRN T1 T2 T3 M 3~ GRN/YLW M1C BRN BLK BRN C1 BRN A1P GRN/YLW M1F GRN/YLW ALM GRY 4 HP LP S1PL BLK BLK S1PH GRN/YLW K1M 21 22 BLK E1HC GRN/YLW N3 N2 BLU N1 REMARQUE : SUPPRIMER LES LIAISONS 4 À 3 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE B1 : DISJONCTEUR DU MOTEUR K1M : CONTACTEUR F1U : FUSIBLE C1 : CONDENSATEUR DU VENTILATEUR M1C : COMPRESSEUR M1F : VENTILATEUR DU CONDENSATEUR A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION E1HC : CHAUFFAGE DU CARTER RÉGLAGE, B1 MODELE VALEUR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N BLU BLK R1" B1 BLK GND BLK 2 BRN L1 GRN/YLW BRN BLU BRN MAX 50 VA S1PL ALM GRY BRN S1PH HP GRN/YLW BRN/YLW 4 1 LP 4 3 A1 KLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK Blk BLk BLk BLk BLk BLk M1F M1F: SUPPRIMER LES LIASONS 4 À 3 AVANT LA CONNEXION AU CONTROLEUR --- EST LE CÂBLAGE SUR SITE A1P: RÉGULATEUR DE VITESSE DU VENTILATEUR M1C: COMPRESSEUR B1: DISJONCTEUR DU MOTEUR M1F: VENTILATEUR DU CONDENSATEUR C1: CONDENSATEUR DU VENTILATEUR R1T: CAPTEUR DE TEMPERATURE DE LA E1HC: CHAUFFAGE DU CARTER LIONE LIQUIDE FIU: FUSIBLE S1PH: PRESSOSTAT HAUTE PRESSION K1M: CONTACTEUR S1PL: PRESSOSTAT BASSE PRESSION

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) BRN BLU BRN A1P GRN/YLW BRN BRN ALM MAX 50 VA S1PL GLR LR GP LP GRN/YLW BRN BRN A1 K1M A2 BLU N1 N2 BLU N3 B1 L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M3~ REGLAGE, B1 MODELE VALEUR (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A REMARQUE : SUPPRIMER LES LIAISONS 17 À 18 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR B1 : DISJONCTEUR DU MOTEUR C1, C2 : CONDENSATEUR DU VENTILATEUR E1HC : CHAUFFAGE DU CARTER F1U : FUSIBLE K1M : CONTACTEUR M1C : COMPRESSEUR M1F & M2F : VENTILATEUR DU COMPRESSEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION

JEHSCU0750CL3

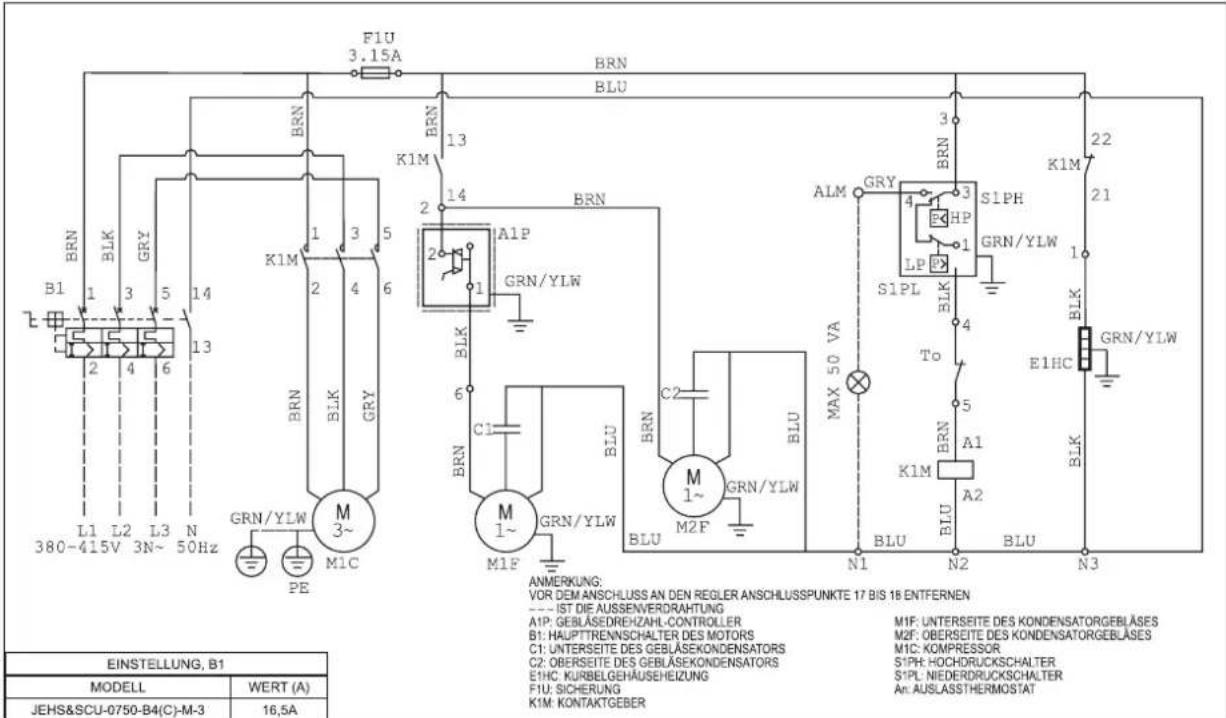

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 14 BRN 14 A1P GRN/YLW BRN 6 BRN C1 BRN M 1~ M1F GRN/YLW BLU BRN C2 BRN M 1~ M2F BLU MAX 50 VA S1PH GRN/YLW ALM GRY 4 HP LP BLK To A1 BRN K1M BLU A2 BLU N1 N2 N3 BRLK E1HC GRN/YLW REMARQUE: SUPPRIMER LES LIAISONS 17 À 18 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE A1P: RÉGULATEUR DE VITESSE DU VENTILATEUR B1: DISJONCTEUR DU MOTEUR C1: BAS DU CONDENSATEUR DU VENTILATEUR C2: HAUT DU CONDENSATEUR DU VENTILATEUR E1HC: CHAUFFAGE DU CARTER F1U: FUSIBLE K1M: CONTACTEUR M1F : BAS DU VENTILATEUR DU CONDENSATEUR M2F : HAUT DU VENTILATEUR DU CONDENSATEUR M1C : COMPRESSEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION À : THERMOSTAT DE DÉCHARGE RÉGLAGE, B1 MODELE VALEUR (A) JEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN 14 13 R1T R2T STINP3 131415617 A2P 222324 FRS485 good DHD0 BR BL OR 1E 1E 1E 1E 1E 1234156789108112 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Annexe

LISTE DE VÉRIFICATION AVANT DÉMARRAGE

J&E Hall International for DAIKIN

Diagram of two air conditioning units with fan-like heat sinks, connected by a line (no text or symbols)

Diagram of two industrial air conditioning units connected by lines, with no visible text or symbols.

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual air conditioning unit with two fans (no text or symbols)

Lage Temperatuur

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY M 3~ GRN/YLW M1C BRN BRN BRN/YLW BRN/YLW M1F BRN/YLW ALM GRY S1PH BRN/YLW S1PL MAX 50 VA BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN K1M 21 22 ALM GRY 3 S1PH HP GRN/YLW LP E1HC GRN/YLW S1PL BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 BRN/YLW M1C M1F BRN/YLW T1 T2 T3 BRN/YLW M3~ GLR/NYLW OPMERKING: VERWUDER VERBINDING VAN 4 NAAR 3 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER: --- IS DE VELDBEDRADING B1: MOTOR-CIRCUITONDERBREKER K1M: CONTACTSCHAKELAAR F1U: ZEKERING C1: VENTILATORCONDENSATOR M1C: COMPRESSOR M1F: VENTILATOR VAN CONDENSOR A1P: TOERENREGELAAR VENTILATOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK E1HC: VERWARMER CARTER JEHS/SCU0200B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN K1M 14 13 L N B1 1 3 5 14 2 4 6 PE BRN BLK GRIY T1 T2 T3 GRN/YLW M 3~ M1C INSTEILLING, B1 MODEL WAARDE (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 F1U T3.15A ALM GRY BRN S1PH HP GRN/YLW LP S1PL 4 3 A1 K1M BLU A2 BLU N3 N2 BLU N1 MAX 50 VA BRN/YLM BRN/YLM BRN/YLM OPMERKING: VERMUDER VERBINDING VAN 4 NAAR 3 VOORDAT U AANSLUITING MAKT OP DE CONTROLLER --- IS DE VELDBEDRADING A1P: TOERENREGELAAR VENTILATOR B1: MOTOR-CIRCUITONDERBREKER C1: CONDENSATOR VAN VENTILATOR E1HC: VERWARMER CARTER F1U: ZEKERING K1M: CONTACTSCHAKELAAR M1C: COMPRESSOR M1F: VENTILATOR VAN CONDENSOR R1T: TEMPERATURSENSOR VLOEISTOFLEIDING S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN KIM 14 13 2 BRN C1 BLK GRN/YLW M1F (TOP) M1M BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (TOP) M1F (TOP) M1M BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (TOP) M1F (TOP) B1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M1C M2F (BOTTOM) OPMERKING: VERWUDER VERBINDING VAN 17 NAAR 18 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER --- IS DE VELDBEDRADING A1P: TOERENREGELAAR VENTILATOR B1: MOTOR-CIRCUITONDERBREKER C1, C2: CONDENSATOR VAN VENTILATOR E1HC: VERWARMER CARTER F1U: ZEKERING KIM: CONTACTSCHAKELAAR M1C: COMPRESSOR M1F & M2F: VENTILATOR VAN COMPRESSOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 1 2 3 4 5 6 13 BRN 1 2 3 4 5 6 14 BRN/YLW GRN/YLW MLC PE GRN/YLW MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC MLC

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1NP 131 14 15 16 17 A2P 220 324 FRMMS and DIOX BL DR YE WTR 1 2 3 4 5 6 7 8 9 10 11 12 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (L1 L2 L3 N PE) 380-415V 3N~ 50Hz B1 BRN BLK GRY K1M 1 3 5 6 7 8 9 10 11 12 ALM GRY ALM MAX 50 VA S1PL GRN/YLW E1HC GRN/YLW A1P A2 BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BL UMLAAR OPMERKING: VERWANG JUMPER & NAAR & VAN DE DINNENTHERMOSTAAT 35 DE BEDRADING VELD A1P PAN SPEED CONTROLLER FLI FZIF FUSE M2F CONDENSOR FAW BTW SIPL LAGE DRIUKSONKELAAR A2P EXO CONTROLLER KIN RELAIS Q1R GEEN KVUTING THERVOSTAAT [J30 C] B1 MOTOR CIRCUIT BREAKER KIR RELAY S1NP LDRUKOPNEBER TUR SPANNING TRANSFORDATOR C1 C2 FAN CONDENSATOR M1C COMPRESSOR S1NC HUIDGE SENSOR RELAY R2T GEEN KVUTING TEMPERATURSENSOR E1HC CARTER RACHEL MIF CONDENSOR FANTOR S1PH HOEGEDRUK SWITCH R2T DAM PLOW TEMPERATUREURSENSOR Y1C HUIDGE SENSOR RELAY Y1E ELECTRONISC EXPANSICKLES Y1S WAGNEETVENTIL. JOHS/SCU0950B4CCL3 EVI I4.5

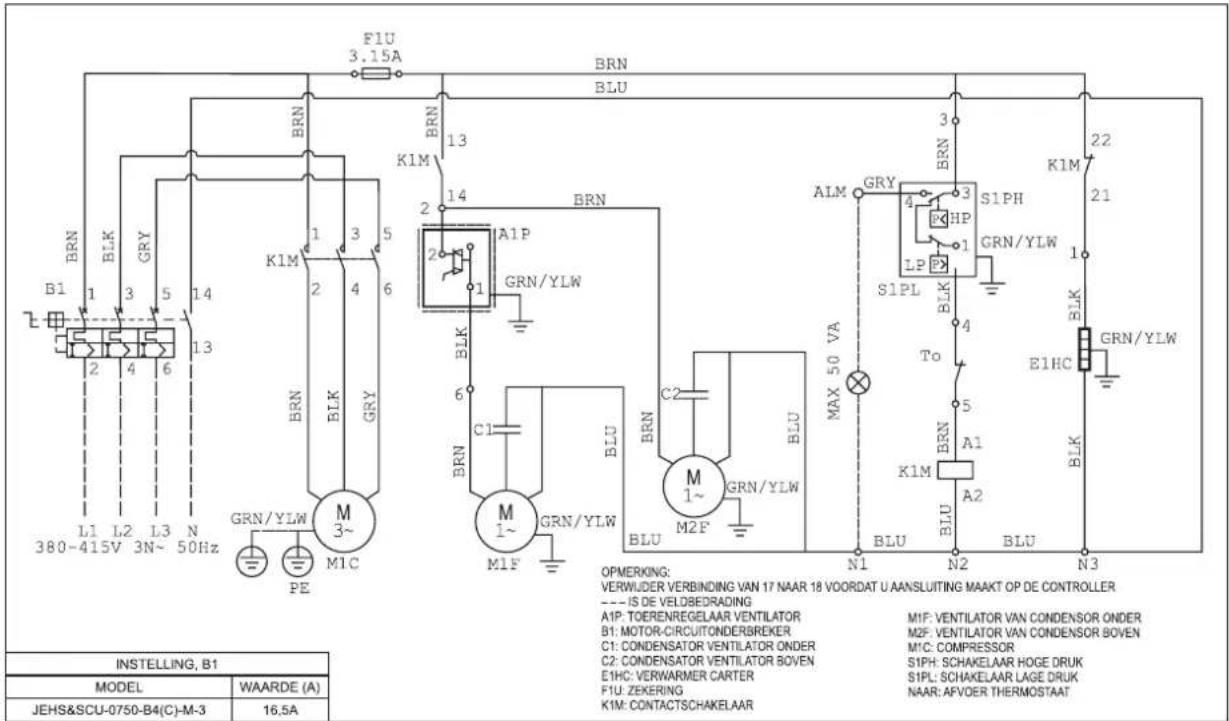

12. Bijlage

CONTROLELIJST VOORAFGAAND AAN OPSTARTEN

J&E Hall International for DAIKIN

Technical line drawing of two air conditioning units with fan-like blades, connected by wires (no text or symbols)

¡INCORRECTO!

Diagram of two air conditioning units with a labeled correct model (no text or symbols on the devices themselves)

¡CORRECTO!

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Serie 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a mechanical air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Serie 3

945 461 500 575 1276 1353 872

Serie 4
Temperatura Media

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Temperatura Baja

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel fan installation with dimension annotations (no text or symbols on the fan itself)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY M1C GRN/YLW M1F A1P IGRN/YLW BRN BLK BRN BLK BRN BLK M1~ GRN/YLW M1F ALM GRY S1PH S1PL LP GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk E1HC NOTA: RETIRE EL ENLACE 4A3 ANTES DE CONECTAR AL CONTROLADOR --- ES EL CABLEADO DE CAMPO B1: INTERRUPTOR DE CARGA DEL MOTOR K1M: CONTACTOR F1U: FUSIBLE C1: CAPACITADOR DE VENTILADOR M1C: COMPRESOR M1F: VENTILADOR DE CONDENSADOR A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR S1PK: INTERRUPTOR DE ALTA PRESION S1PL: INTERRUPTOR DE BAJA PRESION E1HC: CALENTADOR DE CARTER DE CIGUEÑAL CONFIGURACIÓN, B1 MODELO VALOR (A) JEHR/CCU0150B(C)M3 4,5 JEHR/CCU0225B(C)M3 7,0 JEHR/CCU0300B(C)M3 8,0 JEHR/CCU0175B(C)L3 4,5 JEHR/CCU0225B(C)L3 8,0

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN K1M 1 3 5 2 4 6 BRN T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY BRN S1PH HP GRN/YLW LP BLK BLK BLK BLK BLK BLK BLK BLU MAX 50 VA S1PL 4 3 4 3 BLK BLK BLK BLK BLU N3 N2 BLU N1 B1HC GRN/YLW B1-415V 3N-50Hz L1 L2 L3 N 380-415V 3N-50Hz CONFIGURACIÓN, B1 MODELO VALOR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 NOTA: RETIRE EL ENLACE 4 A 3 ANTES DE CONECTAR AL CONTROLADOR -- ES EL CABLEADO DE CAMPO B1: INTERRUPTOR DE CARGA DEL MOTOR KIM: CONTACTOR F1U: FUSIBLE C1: CAPACITADOR DE VENTILADOR MIC: COMPRESOR MIF: VENTILADOR DE CONDENSADOR AIP: CONTROLADOR DE VELOCIDAD DE VENTILADOR S1PH: INTERRUPTOR DE ALTA PRESIÓN SIFL: INTERRUPTOR DE BAJA PRESIÓN EHC: CALENTADOR DE CARTER DE CIGUEÑAL

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY BRN M2F (BOTTOM) A1P GRN/YLW BLU BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) ALM S1PL BRN A1 K1M A2 BLU N1 N2 BLU N3 B1 L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M1C NOTA. RETIRE EL ENLACE 17 A 18 ANTES DE CONECTARLO AL CONTROLADOR --- ES EL CABLEADO DE CAMPO A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR B1: INTERRUPTOR DE CARGA DEL MOTOR C1, C2: CONDENSADOR DE VENTILADOR E1HC: CALENTADOR DE CÁRTER DE CIGUEÑAL F1U: FUSIBLE K1M: CONTACTOR M1C: COMPRESOR M1F Y M2F: VENTILADOR DE COMPRESOR S1PH: INTERRUPTOR DE ALTA PRESIÓN S1PL: INTERRUPTOR DE BAJA PRESIÓN

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN 13 K1M 14 BRN 1 2 13 A1P GRN/YLW BRN 6 BRN C1 M1~ M1~ GRN/YLW BLU BRN C2 M1~ M2F BLU ALM GRY S1PH GRN/YLW 4 HP LP BLK To 4 BRN A1 K1M BLU A2 BLU N1 N2 N3 22 21 BLK GRN/YLW E1HC NOTA: RETIRE EL ENLACE 17 A 18 ANTES DE CONECTARLO AL CONTROLADOR --- ES EL CABLEADO DE CAMPO A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR B1: INTERRUPTOR DE CARGA DEL MOTOR C1: CONDENSADOR DE VENTILADOR, INFERIOR C2: CONDENSADOR DE VENTILADOR, SUPERIOR E1HC: CALENTADOR DE CARTER DE CIGUEÑAL F1U: FUSIBLE K1M: CONTACTOR NOTE: MIF: VENTILADOR DE CONDENSADOR, INFERIOR M2F: VENTILADOR DE CONDENSADOR, SUPERIOR M1C: COMPRESOR S1PH: INTERRUPTOR DE ALTA PRESIÓN S1PL: INTERRUPTOR DE BAJA PRESIÓN Para: TERMOSTATO DE DESCARGA CONFIGURACIÓN, B1 MODELO VALOR (A) JEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1NP3 131 415 617 A2P 220 324 FRMMS and DIOX 88 B, DR 16 W 19 S1 1 2 3 4 5 6 7 8 9 10 11 12 BRN BLU F2U 1A BRN BLU BRN/YLW GRY ALM GP HP S1PH GRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/TERRIPTOR DE LA REGION BAJA TRI TRANSPORANDOR DEL VOLTUE RIT SENSOR DE TEMPERATURA DE DESCARGA RIT LUNDA DE CAPAC Sensor DE TEMPERATURA RIT VALULA DE EXPAVION ELECTROVICA RIT ELECTROVILLA

12. Apéndice

J&E Hall International for DAIKIN

3.4 Tubature in loco

Nota importante

1. PT5 : BR: MARRONE; WH: BIANCO

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a multi-compartment air conditioning unit with two fans (no text or symbols)

Temperatura Bassa

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (1727 and 8), no readable text or symbols beyond measurement markers.

Technical line drawing of a dual-panel industrial cooling unit with two fans (no text or symbols)

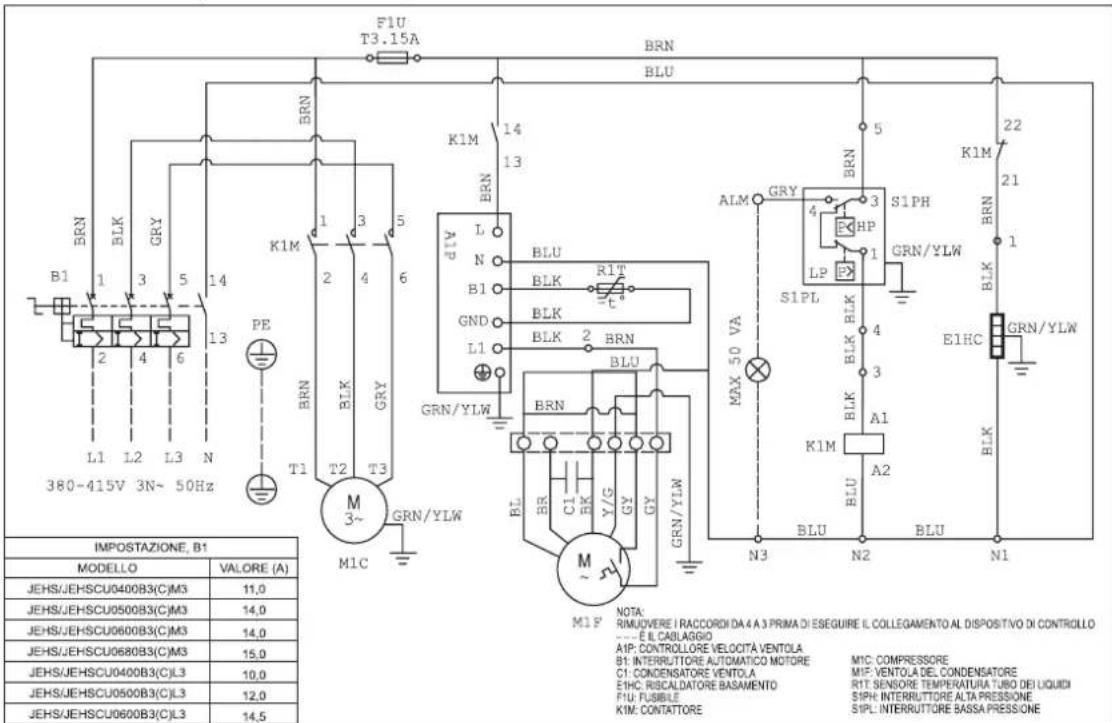

11. Dati elettrici

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE B1 1 2 3 4 5 6 T1 T2 T3 M 3~ GRN/YLW M1C BRN BRN A1P GRN/YLW BRN BLK BRN C1 M1F ALM GRY 4 HP S1PH GRN/YLW LP BLK BLK 4 3 A1 K1M BLU A2 BLU N3 N2 BLU N1 B1HC GRN/YLW BLK MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK B1HCC GRN/YLW INPOSTAZIONE, B1 MODELLO VALORE (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 NOTA: RIMUOVERE I RACCORDI DA 4 A 3 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO -- - E IL CABLAGGIO B1: INTERRUPTORE AUTOMATICO MOTORE K1M CONTATTORE F'U: FUSIBILE C1: CONDENSATORE VENTOLA M1C: COMPRESSORE M1F: VENTOLA DEL CONDENSATORE A1P: CONTROLLORE VELOCITA VENTOLA S1PH: INTERRUPTTORE ALTA PRESSIONE S1PL: INTERRUPTTORE BASSA PRESSIONE ETHC: RISCALDATORE BASAMENTO

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN K1M 14 13 L N B1 1 3 5 14 2 4 6 PE L1 L2 L3 N 380-415V 3N~ 50Hz BRN BLK GRY GND L1 BRN BLK GRY T1 T2 T3 M 3~ M1C GRN/YLW dTV L N BLU BLK RIT T BRN BRN BLK BLK BRN BRN/ YLW BL BR C1 BK Y/G GY GY GRN/YLM MAX 50 VA S1PL ALM GRY 3 S1PH 4 HP LP 4 GRN/YLW 4 BLK 3 A1 K1M BLU A2 BLU N3 N2 N1 BLK GRN/YLW E1HC GRN/YLW M1P NOTA: RIMUovere I RACCORDI DA 4 A 3 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO --- É IL CABLAGGIO A1P: CONTROLLORE VELOCITA VENTOLA B1: INTERRUITTORE AUTOMATICO MOTORE C1: CONDENSATORE VENTOLA E1HC: RISCALDATORE BASAMENTO F/U FUSIBLE M1C: COMPRESSORE M1F: VENTOLA DEL CONDENSATORE RIT: SENSORIE TEMPERATURA TUBO DEI LIQUIDI S1PH: INTERRUITTORE ALTA PRESSIONE S1PL: INTERRUITTORE BASSA PRESSIONE

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN BLU K1M 14 13 2 BRN C1 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) S1PH ALM GRY 4 HP LP GRN/YLW S1PL BLK E1HC GRN/YLW MAX 50 VA 4 BRN A1 K1M A2 BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN 13 K1M 14 BRN 1 2 3 4 5 6 13 BRN 1 2 3 4 5 6 14 BRN/YLW GRN/YLW M 3~ M1C PE L1 L2 L3 N 380-415V 3N~ 50Hz NOTA: RIMUOVERE I RACCORDI DA 17 A 18 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO --- É IL CABLAGGIO A1P: CONTROLLORE VELOCITÀ VENTOLA B1: INTERRUPTTORE AUTOMATICO MOTORE C1: PARTE INFERIORE CONDENSATORE VENTOLA C2: PARTE SUPERIORE CONDENSATORE VENTOLA E1HC: RISCALDATORE BASAMENTO F1U: FUSIBLE K1M: CONTATTORE S1PH: INTERRUTTORE ALTA PRESSIONE S1PL: INTERRUPTTORE BASSA PRESSIONE A: TERMOSTATO DI SCARICO

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1PR 131415617 A2P 222324 FR480 am DTR3 BR 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 BRN BLU F2U 1A BRN BLU BRN/YLW GRY ALM GP HP S1PH GRN/YLW BRN/YLW MAX 50 VA S1PL LP E1HC BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/T RSTITURE I PONTICELLI DA B A B SUL TERMOSTATO INTERNO- E IL CADLAGGIO DI CAMPO. AP: REGOLATORE DI VELOCITA DEL VENTILATORE AP: EXD CONTROLLER BI: TRANSITIONI DEL CIRCUO MOTOR- CI: CE CONDENSATORE VENTOLA EWC RESCALATORE CARTER FU FU FUSIBLE KM CONTATORE KIR RELE MIC COMPRESSORE MIF: VENTOLA CONDENSATORE TOP N2° CONDENSATORE FAN BTM QIR TERMOSTATO DI SCARICO (130 °C) SIMP. TRASIONUTONE DI PRESSIONE SINC RELE SENSIORE CORRETE SIMP. PRESSOSTATO ALTA PRESSIONE SIP: PRESSOSTATO DI MASSA PRESSIONE TIR. TRANSFORMATORE DI TENSIONE. RIT: SENSIORE DI TEMPERATURE DI SCARICO KIT: VAPORSE LINHA SENSIURE DI TEMPERATURE YIS: VALVILA DI ESFANSIONE ELETTRONICA YIS: ELETTRONVALVA B1 BLK GRY K1M BRN BLK GRY BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BR380-415V 3N- 50Hz L1 L2 L3 N PE A1 B2 C3 D4 E5 F6 G7 H8 I9 J0 K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 K14 K15 K16 K17 K18 K19 K20 K21 K22 K23 K24 K25 K26 K27 K28 K29 K30 K31 K32 K33 K34 K35 K36 K37 K38 K39 K40 K41 K42 K43 K44 K45 K46 K47 K48 K49 K50 K51 K52 K53 K54 K55 K56 K57 K58 K59 K60 K61 K62 K63 K64 K65 K66 K67 K68 K69 K70 K71 K72 K73 K74 K75 K76 K77 K78 K79 K80 K81 K82 K83 K84 K85 K86 K87 K88 K89 K90 K91 K92 K93 K94 K95 K96 K97 K98 K99 K100 K101 K102 K103 K104 K105 K106 K107 K108 K109 K110 K111 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80 B81 B82 B83 B84 B85 B86 B87 B88 B89 B90 B91 B92 B93 B94 B95 B96 B97 B98 B99 B100 YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY YIY ZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZEN ZENZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zen zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zin zn n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n n m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m m/mmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmllnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn tt ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Ann Inn BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB BB

12. Appendice

J&E Hall International for DAIKIN

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Temperatura Baixa

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel fan installation with dimension annotations (1727 and 8), no readable text or symbols beyond measurement markers.

Technical line drawing of a dual-chamber HVAC unit with two fans (no text or symbols)

11. Dados Elétricos

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN K1M 1 3 5 2 4 6 14 PE BRN T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY BRN S1PH GP LP GRN/YLW S1PL BLK 4 3 A1 K1M A2 BLU BLU N3 N2 BLU N1 E1HC GRN/YLW B1 L1 L2 L3 N 380-415V 3N~ 50Hz NOTA: REMOVER LIGAÇÃO 4 À 3 ANTES DE LIGAR AO CONTROLADOR --- E A LIGAÇÃO ELÉTRICA B1: DISJUNTOR DO MOTOR KIM: CONTACTOR F1U: FUSÍVEL C1: CONDENSADOR DA VENTONHA MIC: COMPRESSOR MIF: VENTONHA DO CONDENSADOR A1P: CONTROULADOR DE VELOCIDADE DA VENTONHA S1PH: INTERRUPTOR DE ALTA PRESSÃO S1PL: INTERRUPTOR DE BAIXA PRESSÃO E1HC: AQUECEDOR DO CÁRTER MODELO VALOR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N BLU BLK R1T L1 GND BLK 2 BRN GRN/YLM BRN BLU MAX 50 VA ALM GRY BRN S1PL HP LP BLK BLK 4 3 A1 K1M BLU A2 BLU BLK E1HC GRN/YLM BLK N3 N2 N1 B1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 PE BRN BLK GRY T1 T2 T3 M 3~ GRN/YLM M1C M1F NOTA: REMOVER LIGAÇÃO 4 A 3 ANTES DE LIGAR AO CONTROLADOR --- É ALIGAÇÃO ELÉTRICA A1P. CONTROLADOR DE VELOCIDADE DA VENTOINHA M1C: COMPRESSOR B1. DISJUNTOR DO MOTOR M1F: VENTOINHA DO CONDENSADOR C1: CONDENSADOR DA VENTOINHA R1F: SENSOR DE TEMPERATURA DA LINHA DE LÍQUIDO E1HC: AQUECEDOR DO CARTER S1PH: INTERRUPTOR DE ALTA PRESSÃO F1U: FUSÍVEL S1PL: INTERRUPTOR DE BAIXA PRESSÃO K1M: CONTACTOR

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) ALM GRY S1PH 4 HP LP GRN/YLW S1PL BLK E1HC GRN/YLW MAX 50 VA 4 BRN A1 K1M A2 BLU BLU N1 N2 BLU N3 B1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M3~ BRL BLR BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BL U BRL BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BLR BL RBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBML BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRS BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BBRL BB RLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LLBB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB LRRB SLPPH SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCT OR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTOR SPROCTNOTA: REMOVER LIGACAO 17 A 18 ANTES DE LIGAR AO CONTROLADOR --- E A LIGACAO ELÉTRICA AIP: CONTROLDOR DE VELOCIDA DA VENTONHA KIM: CONTACTOR BI: DISJUNTOR DO MOTOR M1C: COMPRESSOR C1, C2: CONDENSADOR DA VENTONHA M1F & M2F: VENTONHA DO COMPRESSOR E1HC: AQUECEDOR DO CARTER S1PH: INTERRUPTOR DE ALTA PRESSão F1U: FUSÍVEL S1PL: INTERRUPTOR DE BAIXA PRESSão

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN 13 K1M 14 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 13 A1P GRN/YLW BRN 1 2 3 4 5 6 BRN 13 ALM GRY 3 BRN S1PH HRN/YLW LP S1PL BLK 4 To 5 A1C BRN A2C BLK E1HC GRN/YLW M1~ M2F GRN/YLW M1~1~ M1F BLU MAX 50 VA BLU N1 N2 BLU N3 B1 L1 L2 L3 N 380-415V 3N~ 50Hz PE REFINÇÃO, B1 MODELO VALOR (A) JEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

Electrical schematic diagram of a BLU control circuit with labeled components and wiring specifications

12. Apêndice

J&E Hall International for DAIKIN

$$ = 3. 7 0 7 \mathrm{kW} $$

- List of parameters in scrolling sequence by pressing button

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Σειρά 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of a fan assembly with mounting bracket and side panel (no text or symbols)

Σειρά 3

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with fans and cooling fins (no text or symbols)

Χαμηλή θερμοκρασία

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (1727 and 8), no readable text or symbols beyond measurement markers.

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1 1 3 BRN K1M 14 13 BRN K1R C1 2 4 BLU BRN C2 5 1 BLU BRN S S BRN/BLK BRN/BLK BRN/BLW BRN/BLW M1~ M1C M1F M1~GRN/YLW M1F ALM GRY BRN 5 S1PH K1M 21 4 HP GRN/YLW 22 LP LP BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk MAX 50 VA B1: ΔΑΚΟΠΤΗΣ ΚΥΚΛΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ M1C: ΣΥΜΠΕΙΤΗΣ M1F: ΑΝΕΜΙΣΤΗΡΑΣ ΣΥΜΠΥΚΝΟΣΗΣ A1P: ΕΛΕΓΚΤΗΣ ΤΑΧΥΤΗΤΑΣ ΑΝΕΜΙΣΤΗΡΑ S1PH: ΔΑΚΟΠΤΗΣ ΥΨΗΛΗΣ ΠΕΞΗΣ S1PL: ΔΑΚΟΠΤΗΣ ΧΑΜΚΛΗΣ ΠΕΞΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΙΤΡΟΦΑΛΟΒΑΛΑΜΟΥ JEHR/JEHCCU0150B(C)M1 10,0 JEHR/JEHCCU0225B(C)M1 18,0 JEHR/JEHCCU0300B(C)M1 22,0 JEHR/JEHCCU0175B(C)L1 10,0 JEHR/JEHCCU0225B(C)L1 17,5 PYGMIISH, B1 MONTEAO TIMH (A) SHMEΩΩH: ΑΜΑΡΕΖΕ ΤΗ ΣΥΝΛΕΩΗ ΑΠΟ TO 4 ΙΤΟ 3 ΠΡΙΝ ΤΗ ΣΥΝΛΕΩΗ ΣΤΟΝ ΕΛΕΓΚΤΗ --- ENAI H TΟΓΙΚΗ ΚΑΔΩΔΩΣΗ B1: ΔΑΚΟΠΤΗΣ ΚΥΚΛΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ M1M: ΕΛΑΡΕΔΣ F1U: AΕΡΑΕΔΣ K1R: PEΛE EKKIN+CHΣ C1: ΠΥΚΝΟΤΗΣ ΕΚΚIN+CHΣ C2: ΠΥΚΝΟΤΗΣ ΛΕΙΤΟΥΡΓΑΣ C3: ΠΥΚΝΟΤΗΣ ΑΝΕΜΙΣΤΗΡΑ M1C: ΣΥΜΠΕΙΤΗΣ M1F: ΑΝΕΜΙΣΤΗΡΑΣ ΣΥΜΠΥΚΝΟΣΗΣ A1P: ΕΛΕΓΚΤΗΣ ΤΑΧΥΤΗΤΑΣ ΑΝΕΜΙΣΤΗΡΑ S1PH: ΔΑΚΟΠΤΗΣ ΥΨΑΗΛΗΣ ΠΕΞΗΣ S1PL: ΔΑΚΟΠΤΗΣ ΧΑΜΚΛΗΣ ΠΕΞΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΙΤΡΟΦΑΛΟΒΑΛΑΜΟΥ

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN K1M 1 2 3 4 BRN 14 13 BRN ALM GRY BRN S1PH GP HP GRN/YLW LP S1PL MAX 50 VA BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK B1 1 3 5 2 4 6 L N PE BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BL U BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BL R BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLR BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB BRN BLB FRMELQDH: ADPAPESTE TH SYNDZH AIO TO 4 ITO 3 IPIN TH SYNDZH STON EAEYKTH --- ENAIH TOTIKH KAALDQDH BI: ΔIAKOITHE KYKADMATOI KINHTHPA AIP: EAEYKTHE TAXYHTAI ANEMITHPA KIIM: ETAFAEAZ S1PH: ΔIAKOITHE YYPHNHE PNEZHE FIU: AZGAEEIA S1PL: ΔIAKOITHE XAMHNHE PIEDHE C1: TYKNOTHE AIEOYPHAZ C2: TYKNOTHE ANEMITHPA E1HC: GEPMANTHPAZ ETPOAALOBAAMOY MIC: SYMYIEITHE MIF: ANEMITHPAZ SYMYKNQDHE

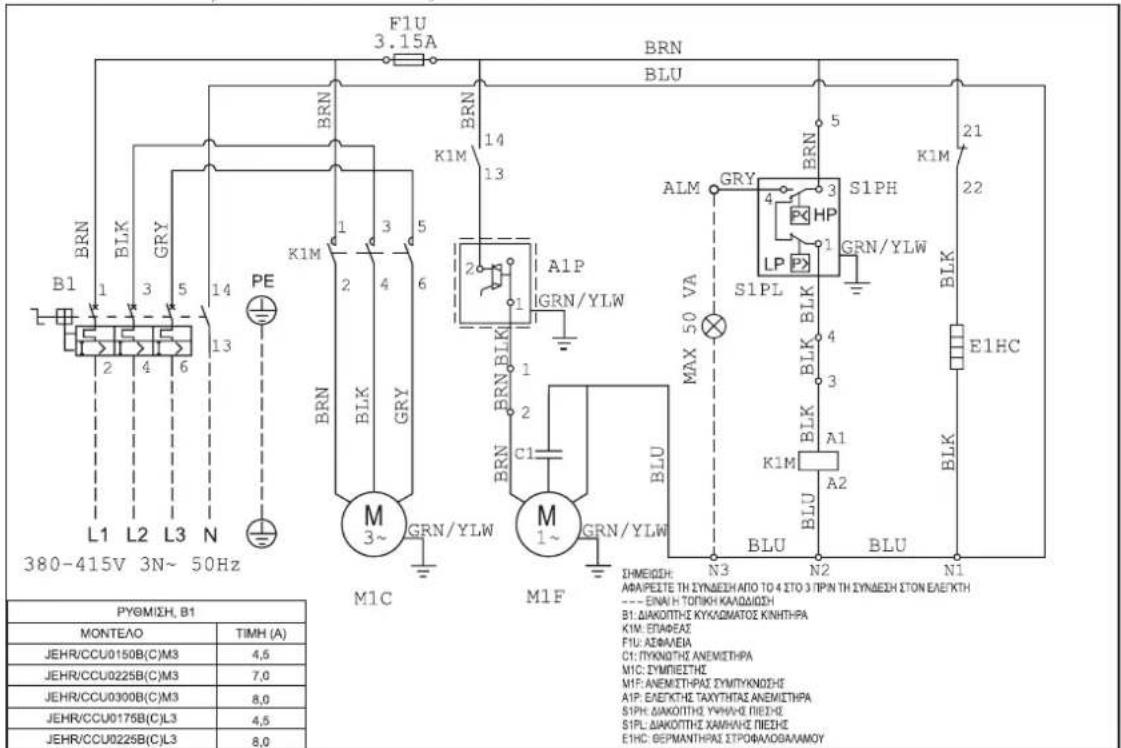

Τριφασικό

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 Pd HP GP LP Px GRN/YLW ORG E1HC B1 BLK GRY BLU PE 14 13 K1M 1 3 5 (1) (2N) (3L) Q1M BLK BLK BLK Q2M P/R RED Q2M A/S C/C GRN/YLW M1C 3~ Q3M BRN BRN/YLW BRN BLK BRN/YLW M1F MOC=0.85A LRC=4.25A MOC=3.58A DHEIΩDH: ΦΑΙΡΕΤΕ ΤΗ ΣΥΝΔΕΣΗ ΑΠΟ 2 ΣΤΟ 1 ΓΡΙΝ ΤΗ ΣΥΝΔΕΣΗ ΣΤΟΝ ΕΛΕΓΚΤΗ --- EINAI H TOTIKH KA/ΔΙΩΣΗ ( ): ΑΚΡΟΔΕΚΤΗΣ ΣΤΟ ΚΟΥΤΗ ΗΕΚΤΡΙΚΩΝ ΤΟΥ ΣΥΜΠΙΕΣΤΗ B1: ΔΙΑΚΟΠΤΗΣ ΚΥΚΛΩΜΑΤΟΣ KINHTHPA K1M: ΕΙΑΦΕΑΣ FU: AΣΦΑ/ΕΙΑ Q1M: ΠΡΟΣΤΑΣΙΑ ΕΣΩΤΕΡΙΚΗΣ ΥΠΕΡΦΟΡΤΟΣΗΣ Q2M: ΠΡΟΣΤΑΣΙΑ ΕΣΩΤΕΡΙΚΗΣ ΥΠΕΡΦΟΡΤΟΣΗΣ Q3M: ΠΡΟΣΤΑΣΙΑ ΕΣΩΤΕΡΙΚΗΣ ΥΠΕΡΦΟΡΤΟΣΗΣ C3: ΥΥΚΝΩΤΗΣ ANEMIETHPA M1C: ΣΥΜΠΙΕΣΤΗΣ M1F: ANEMIETHPAΣ ΣΥΜΠΥΚΝΩΤΗΣ A1P: ΕΛΕΓΚΤΗΣ ΤΑΧΥΥΓΓΑΣ ANEMIETHPA S1PH: ΔΙΑΚΟΠΤΗΣ ΥΨΥΛΗΣ ΠΕΞΗΣ S1PL: ΔΙΑΚΟΠΤΗΣ ΧΑΜΥΚΗΣ ΠΕΞΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΣΤΡΟΦΑΛΟΘΑΛΜΟΥ PYOMIZH, B1 MONTEAO TIMH (A) JEHR/JEHCCU0140B(C)IM3 4,0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN BLK GRY 13 2 4 6 13 BRN GLR GRY 1 2 4 6 2 1 1 A1P IGRN/YLW BRN BLK BRN BLK M 3~ GRN/YLW M1C M1F BRN BLK BRN BLK ALM GRY S1PH HR GP LP GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 KIM BRN ALM GRY S1PH GP LP GRN/YLW S1PL BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80 B81 B82 B83 B84 B85 B86 B87 B88 B89 B90 B91 BHMEΩDH: ΑΦΑΡΕΣΤΕ ΤΗ ΣΥΝΔΕΣΗ ΑΠΟ ΤΟ 4 ΙΤΟ 3 ΠΡΙΝ ΤΗ ΣΥΝΔΕΣΗ ΙΤΟ ΕΛΕΓΚΤΗ :--- ΕΝΑΙ Η ΤΟΠΙΚΗ ΚΑΛΩΔΩΣΗ B1: ΔΑΚΟΠΤΗΣ ΚΥΚΛΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ KIM: ΕΤΑΦΛΕΣ A F1U: ΑΦΑΦΛΕΙΑ C1: ΠΥΚΝΩΤΗΣ ΑΝΕΜΙΤΗΡΑ M1C: ΣΥΜΠΙΕΣΤΗΣ M1F: ΑΝΕΜΙΤΗΡΑΣ ΣΥΜΨΥΚΝΩΤΗΣ A1P: ΕΛΕΓΚΤΗΣ ΤΑΧΧΥΤΗΣ ΑΝΕΜΙΤΗΡΑ S1PRL: ΔΑΚΟΠΤΗΣ ΥΨΗΛΗΣ ΠΕΣΗΣ S1PRL: ΔΑΚΟΠΤΗΣ ΧΑΜΗΛΗΣ ΠΕΣΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΙΤΡΟΦΑΛΟΘΑΛΑΜΟΥPYGMIZH, B1MONTEAOTIMH (A)JEHS/SCU0200B2(C)M35.5JEHS/SCU0250B2(C)M37.0JEHS/SCU0300B2(C)M37.5JEHS/SCU0350B2(C)M39.5JEHS/SCU0200B2(C)L35.5JEHS/SCU0300B2(C)L36.5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN BLU K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) ALM S1PL BRN/YLW ALP GRN/YLW MAX 50 VA S1PH 4 HP LP ALM BRN/YLW E1HC BRN/YLW N1 N2 N3 PYΘΜΙΣΗ, B1 MONTEΛΟ TIMH (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW BRN BLK GRY BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLB FRMENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHEN CHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CINHANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANANAN ANAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHAHA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA HAA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H AA H A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A B E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I M I 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N SINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHAT INHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINIHTIHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINHATINH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INH AT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHAT INIHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATTIAHTIHATT IA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTA TTTTGTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGCTGACTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGCTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGACTTGAC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGTC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCC TGCCCC TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA SA TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TM TMTM TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC TC SC TNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN TN NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NT NTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTINTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTANTA ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR ANTERIOR SANTRAHNASTRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STRAVTHA STPRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRUTRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITRITROTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRSRTRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSRLTSLTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTRTARIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIRIKTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVISHTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVNDSTRAVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTARIVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAR IVSTRAVINDTAGSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFVA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA VSSFA

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 13 BRN 14 BRN 13 BRN 14 BRN 13 BRN 14 BRN 13 BRN 14 BRN 13 BRN 14 BRN 13 BRN 14 BRN 13 BRN 14 BRN 13 BRN 14 BRN 13 BRN 14

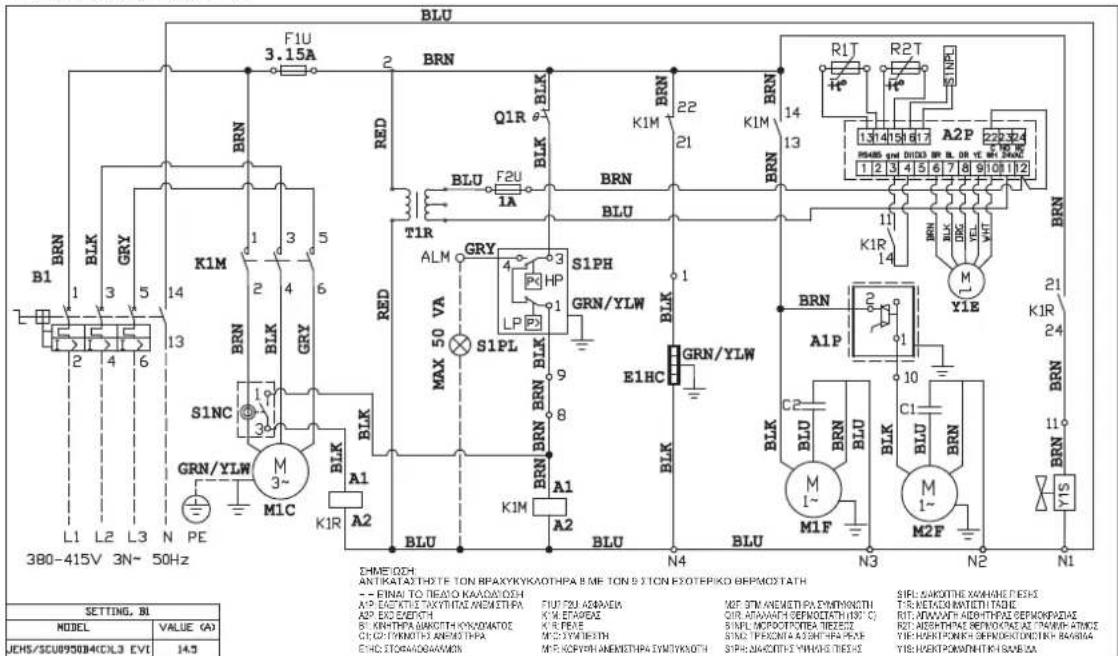

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

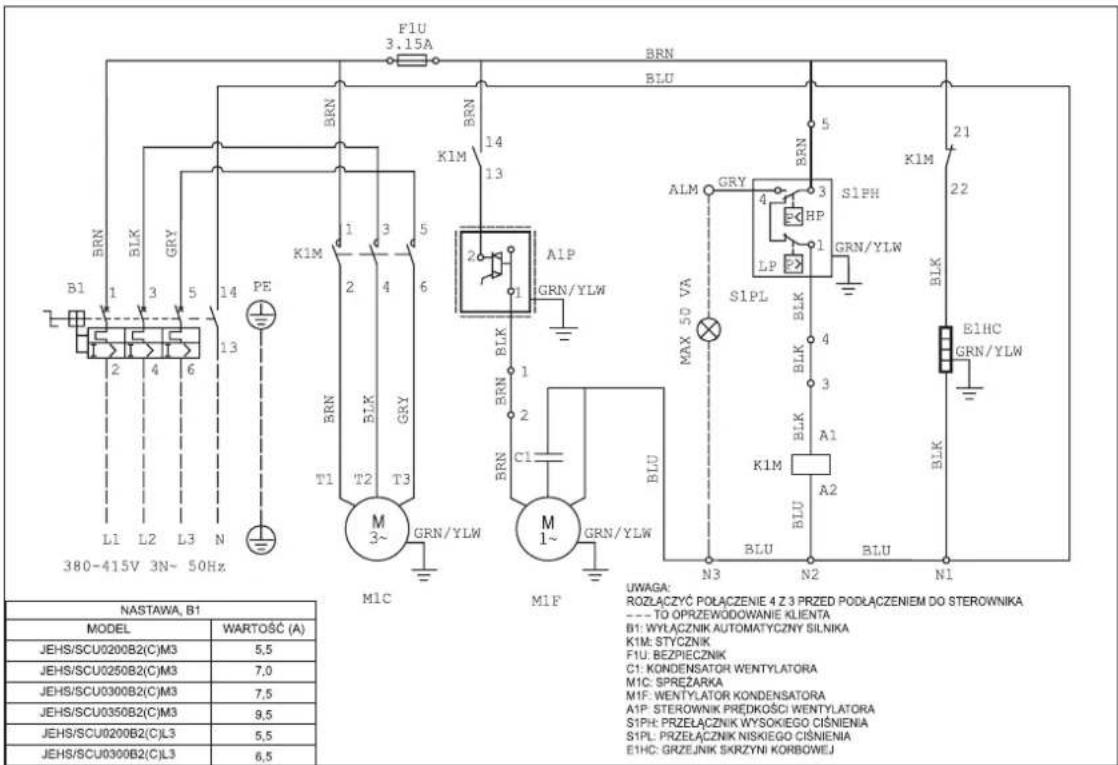

12. Παράρτημα

J&E Hall International for DAIKIN

NIEPRAWIDŁOWO! PRAWIDŁOWO!

NIEPRAWIDŁOWO! PRAWIDŁOWO!

$$ = 3. 7 0 7 \mathrm{kW} $$

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

POLSKI

Technical drawing of a dual fan installation with mounting holes and dimension label (no text or symbols beyond measurement markers)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Niskotemperaturowe

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel HVAC fan assembly with dimension annotations (no text or symbols on the fan bodies)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 2 4 6 PE BRN BLK GRY M 3~ GRN/YLW M1C M1F ALM GRY S1PH BRN/YLW LP BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 KIM BRN/YLW A1P BRN BLK T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY 3 S1PH GP HP GRN/YLW LP S1PL BLK MAX 50 VA BLK 4 3 A1 K1M A2 BLU BLU N1 N3 N2 N1 BHK E1HC GRN/YLW B1 L1 L2 L3 N 380-415V 3N~ 50Hz NASTAWA, B1 MODEL WARTOŚĆ (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 UWAGA: ROZŁACZYĆ POŁACZENIE 4 Z 3 PRZED PODŁACZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KIENTA B1: WYLACZNIK AUTOMATYCZNY SILNIKA K1M: STYCZNIK F1U: BEZPIECZNIK C1: KONDENSATOR WENTYLATORA M1C: SPREZARKA M1F: WENTYLATOR KONDENSATORA A1P: STEROWNIK PREDKOŚCI WENTYLATORA S1PH: PRZEŁACZNIK WYSOKIEGO CIŚNIENA S1PL: PRZEŁACZNIK NISKIEGO CIŚNIENA E1HC: GRZEJNIK SKRZYNI KORBOWEJ

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N B1 2 3 5 14 PE BRN BLK GRY 13 14 2 4 6 T1 T2 T3 GRY M1C M1P M1F WRTOŚĆ (A) NEHS/JEHSCU0400B3(C)M3 JEHS/JEHSCU0500B3(C)M3 JEHS/JEHSCU0600B3(C)M3 JEHS/JEHSCU0400B3(C)L3 JEHS/JEHSCU0500B3(C)L3 380-415V 3N~ 50Hz NASTAWA, B1 MODEL WARTOŚĆ (A) JEHS/JEHSCU0400B3(C)M3 JEHS/JEHSCU0500B3(C)M3 JEHS/JEHSCU0600B3(C)M3 JEHS/JEHSCU0400B3(C)L3 JEHS/JEHSCU0500B3(C)L3 11.0 14.0 14.0 15.0 10.0 12.0 14.5 ALM GRY BRN 5 S1PH GRN/YLW 22 4 HP LP S1PL 4 1 S1HC GRN/YLW 21 BLK E1HC GRN/YLW BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk RZOLACZYC POLACZENIE 4 Z 3 PRZED PODLACZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KLENTA A1P: STEROWNIK PREDKOŚCI WENTYLATORA M1C: SPREZARKA B1: WYRACZNIK AUTOMATYCZNY SILNIKA M1F: WENTYLATOR KONDENSATORA C1: KONDENSATOR WENTYLATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIK SKRZYNI KORBOWEJ S1PH: PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WENTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIK SKRZYNI KORBOWEJ S1PH: PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WENTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINI CIECZY E1HC: GRZEJNIK SKRZYNI KORBOWEJ S1PH: PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WENTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH: PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WENTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WENTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGOCISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WENTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WENTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WNTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WNTYLATOR KONDENSATORA RIT: CZUNIK TENERMATORY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WNTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATORY LINII CIECZY E1HC: GRZEJNIk SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WNTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATORY LINII CIECZY E1HC: GRZEJIKN SKRZYNI KORBOWEJ S1PH/ PRZEŁACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WNTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATORY LINII CIECZY E1HC: GRZEJIKN SKRZYNI KORBOWEJ S1PH/ PRZOELACZNIK WYSOKIEGO CISNIENIA F1U: BEZPIECZNIK KIM: STYCZNIK M1F: WNTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATORY LINII CIECZY E1HC: GRZEJIKN SKRZYNI KORBOWEJ S1PH/ PRZOELACZNIK WYSOKIEGO CISNIENIA F1U: BEEZPIECZNIK KIM: STYCZNIK M1F: WNTYLATOR KONDENSATORA RIT: CZUNIK TEMPERATORY LINII CIECZY E1HC: GRZEJIKN SKRZYNI KORBOWEJ S1PH/ PRZOELACZNIK WYSOKIEGO CISNIENIA F1U: BEEZPIECZNIK KIM: STYCZNIK M1F: MAX 50 VA BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN BLN

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) BRN BLU BRN A1P GRN/YLW ALM MAX 50 VA S1PH 4 HP LP GRN/YLW E1HC GRN/YLW A1 K1M A2 BLU BLU N1 N2 N3 NASTAWA, B1 MODEL WARTOŚĆ (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A L1 L2 L3 N PE 380-415V 3N~ 50Hz

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 1 2 13 GRY 14 BRN 14 BRN 14 BRN/YLW 6 A1P 2 1 BRN 6 C1 BRN 6 BRN/YLW 6 M1~ M1F M1~ WRN/YLW PE GRN/YLW M1~ GRN/YLW BLU BRN C2 BRN/YLW BLU ALM GRY 3 BRN 4 S1PH HP LP S1PL BLK To 4 A1 K1M BRN A2 BLU BLU N1 N2 N3 BHK E1HC GRN/YLW UWAGA: ROZŁACZYĆ POŁĄCZENIE 17 Z 18 PRZED PODŁĄCZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KIENTA A1P: STEROWNIK PREDKOŚCI WENTYLATORA B1: WYŁĄCZNIK AUTOMATYCZNY SILNIKA C1: DOLNY KONDENSATOR WENTYLATORA C2: GÓRNY KONDENSATOR WENTYLATORA E1HC: GRZEJNIK SKRZYNI KORBOWEJ F1U: BEZPIECZNIK K1M: STYCZNIK M1F: DOLNY WENTYLATOR KONDENSATORA M2F: GÓRNY WENTYLATOR KONDENSATORA M1C: SPREZARKA S1PH: PRZEŁĄCZNIK WYSOKIEGO CIŚNIENIA S1PL: PRZEŁĄCZNIK NISKIEGO CIŚNIENIA Do: TERMOSTATU ODPROWADZAJĄCEGO NEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Załącznik

LISTA KONTROLNA CZYNNOŚCI DO WYKONANIA PRZED ROZRUCHEM
