USER MANUAL IMC2000A HISENSE

Exterior view of a modern black and white industrial appliance with ventilation slots (no visible text or symbols)

IMC2000A

SI Navodila za uporabo ....2

GB Instruction manual ....30

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Pozor: nevarnost požara / vnetljivi materiali

Exploded view diagram of a device's internal components with numbered parts for identification

Warning sign depicting a flame symbol in a yellow triangle with black border

Oprez: opasnost od požara/zapaljivi materijali

Rashladno sredstvo izobuten (R600a) nalazi se u rashladnom krugu uređaja. Iako se radi o prirodnom plinu s visokom razinom ekološke kompatibilnosti, ipak je zapaljiv. Tijekom transporta i ugradnje uređaja pobrinite se da se nijedna komponenta rashladnog kruga ne ošteti.

Exploded view diagram of a device with numbered parts for identification

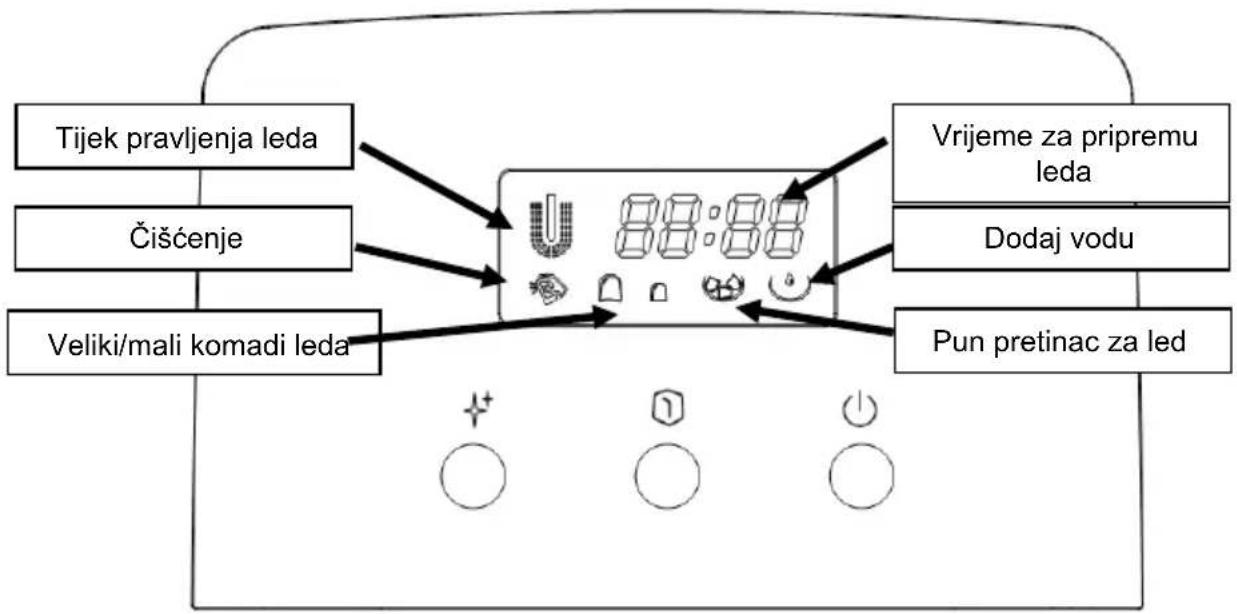

Upute za upravljačku ploču

	Gumb Start/Stop(uključivanje/isključivanje)
	Odabir veličine
	Gumb za čišćenje

1. Priključite na napajanje. Uređaj će najprije pokrenuti funkciju odmrzavanja. Nakon neaktivnosti, uređaj će automatski ući u stanje pripravnosti.
2. : Funkcija čišćenja. Pritisnite gumb CLEAN (čišćenje), a zatim pritisnite gumb Start/Stop. Uređaj će automatski aktivirati funkciju čišćenja oko 2,5 minute. Nemojte isključivati napajanje tijekom čišćenja. Nakon čišćenja, uređaj će automatski ući u stanje pripravnosti.
3. : Odaberite veličinu leda; zadani način pri pokretanju je podešen na velike komade leda. Za odabrani način rada prikazuje se ikona.
4. Start/Stop: Nakon što je napajanje uključeno, pritisnite gumb Start/Stop i uređaj će aktivirati funkciju pravljenja leda. Zadani način rada je način rada za pravljenje velikih komada leda.
5. Prikaz vremena: nakon što uređaj počne praviti led, počinje odbrojavanje. Izračun vremena počinje u minutama i bit će prikazan tijekom cijelog rada uređaja. Nakon što se na zaslonu prikaže 99:99, vrijeme će se ponovno resetirati na nulu i tako dalje.
6. Alarm za nedostatak vode: tijekom pumpanja, ako u roku od 5 sekundi nema protoka vode, prikazat će se ikona nedostatka vode i uređaj će prestati raditi.
7. Pun pretinac za led: Kada kompresor uređaja ne radi i infracrveni indikator je blokiran dulje od 5 sekundi, prikazat će se ikona za pun pretinac za led. Istodobno, uređaj će prestati raditi i ikona za pun pretinac za led treperit će 1/4 sekunde. Infracrvena detekcija se nastavlja; kada detekcija više nije blokirana, uređaj će nastaviti raditi.

Rukovanje uređajem

1. Otvorite poklopac i izvadite košaru. Dodajte vodu u spremnik. Napomena: U spremniku postoji maksimalna razina, "MAX". Voda ne smije prelaziti oznaku "MAX". Ako voda premaši ovu razinu, morat ćete otvoriti donji odvodni čep,
2. Uključite napajanje i pritisnite gumb Start/Stop za pokretanje uređaja.
3. Odaberite veličinu leda koji želite napraviti, a veliki komadi leda postavljeni su kao zadani način.

Čišćenje

Warning sign depicting a flame symbol in a yellow triangle with black border

Oprez: opasnost od požara/zapaljivi materijali

Rashladno sredstvo izobuten (R600a) se nalazi u rashladnom kolu uređaja. Iako je prirodni gas sa visokim stepenom ekološke kompatibilnosti, ipak je zapaljiv. Tokom transporta i instalacije uređaja, uverite se da se nijedna komponenta rashladnog kola ne ošteti.

U slučaju da je rashladno kolo oštećeno:

Izbegavajte otvoreni plamen ili izvore paljenja.

Temeljno provetrite prostoriju u kojoj se uređaj nalazi.

1. Pre prve upotrebe ledomata, sačekajte 2 sata nakon postavljanja i držite prozirni poklopac otvoren najmanje 2 sata

2. Ú ovom uređaju ne treba kořistiti čistu vodu; preporučuje se izvorska voda.

3. Uverite se da je napon u skladu sa opsegom napona navedenim na natpisnoj pločici i uverite se da je uzemljenje utičnice u dobrom stanju.

4. Nemojte prevrtati ovaj proizvod niti ga naginjati pod uglom od 45 °C.

5. Da biste se zaštitili od rizika od strujnog udara, ne sipajte vodu na kabl, utikač ili izlaz vazduha i ne potapajte uređaj u vodu ili bilo koju drugu tečnost.

6. Isključite uređaj iz utičnice nakon upotrebe ili pre čišćenja.

7. Držite uređaj najmanje 8 cm od drugih predmeta kako biste osigurali pravilno oslobađanje toplote.

8. Nemojte koristiti dodatnu opremu koju ne preporučuje proizvođač.

9. Nemojte koristiti uređaj u blizini plamena, grejnih ploča ili peći.

10. Nemojte često uključivati dugme za uključivanje (obezbedite interval od najmanje 5 minuta) kako biste izbegli oštećenje kompresora.
11. Ne koristite na otvorenom.
12. Nikada ne čistite praškom za ribanje ili tvrdim priborom.
13. Sačuvajte uputstvo za upotrebu.
14. Da biste izbegli kontaminaciju namirnica, pridržavajte se sledećih uputstava: Otvaranje vrata uređaja na duže vreme može bitno da poveća temperaturu u delovima aparata. – Redovno čistite površine koje dolaze u dodir sa namirnicama, kao i dostupni odvodni sistem. – Očistite rezervoare za vodu ako nisu korišćeni 48 sati; ispustite vodu iz sistema ako voda nije ispuštena 5 dana. – Ako je uređaj duže vreme prazan, isključite ga, odmrznite, očistite, osušite i ostavite vrata otvorena da biste sprečili nastanak buđi u unutrašnjosti uređaja.)
15. U vezi sa informacijama koje se odnose na upotrebu uređaja, pogledajte odeljke u nastavku.

Ovaj aparat označen je u skladu s Evropskom direktivom 2012/19/EU u vezi odlaganja otpadne električne i elektronske opreme (engl. skraćenica WEEE). Smernice iz te direktive opredeljuju zahteve i postupke za sakupljanje i recikliranje otpadne električne i elektronske opreme, važeće u celoj Evropskoj Uniji.

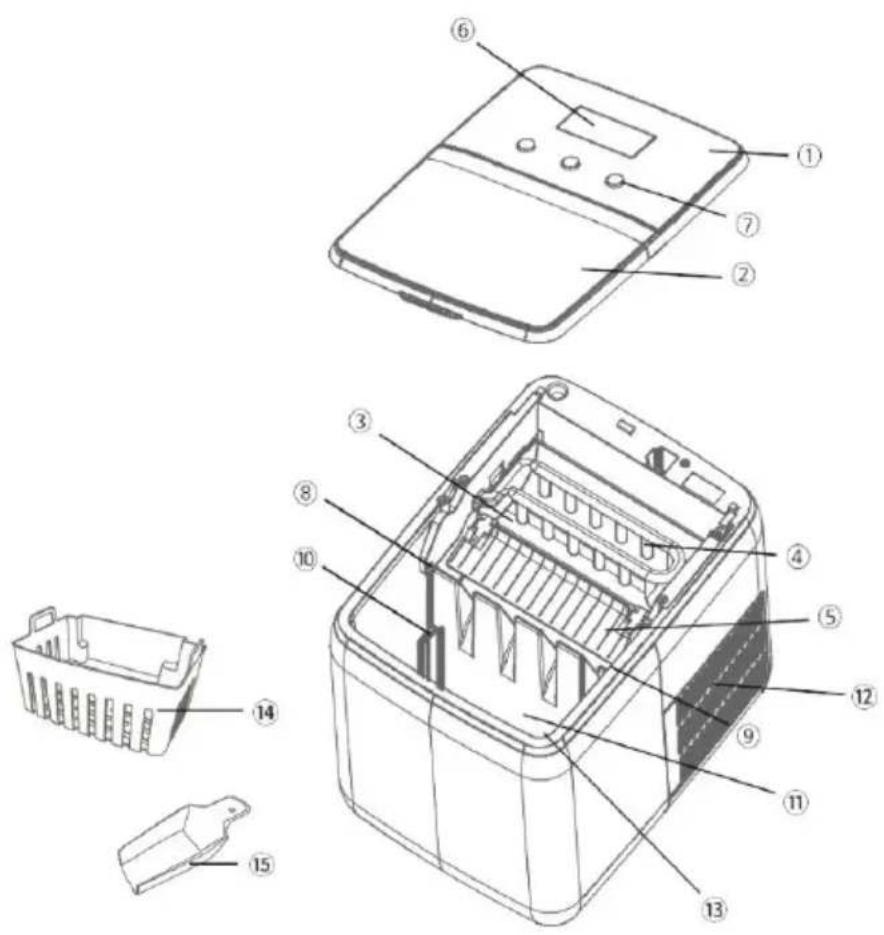

Opšti opis

1. Gornji poklopac
2. Kontrolni prozorčić
3. Posuda za led
4. Isparivač
5. Lopata za led
6. Ekran
7. Dugme

8. Infracrvena svetlosna dioda

9. Infracrvena svetleća dioda

10. "MAX" nivo vode
11. Rezervoar za vodu
12. Odvod vazduha
13. Odvodni čep
14. Korpa za led
15. Lopatica za led

Exploded view diagram of a device with numbered parts for identification

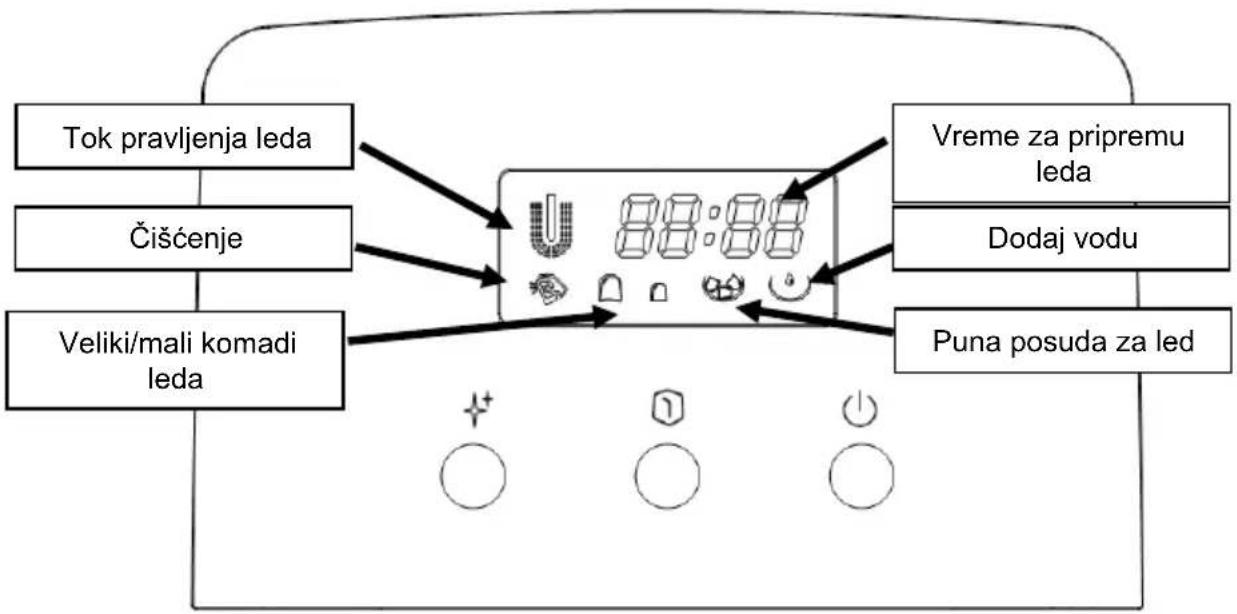

Uputstva za kontrolnu tablu

	Dugme Start/Stop
	Izbor veličine
	Dugme za čišćenje

Warning sign depicting a flame symbol in a yellow triangle with black border

Important safety instructions

Carefully read the instructions for use before using the appliance.

1. Read all instructions before use.
2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker itself or its power cord/plug.
3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or by a similarly qualified person, in order to avoid a hazard.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been given instructions on using the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
5. This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are supervised or have been given instructions regarding safe use of the appliance, and on condition that they understand the hazards involved. Children should not play with the appliance, and cleaning and user maintenance should not be carried out by children without supervision.
6. This appliance is intended for use in households and in similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– in farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
- Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Warning: Keep ventilation openings, in the enclosure of the appliance or in the built-in structure, clear of any obstruction.
- Warning: Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.
- Warning: Do not allow damage to the refrigerant circuit.
- Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING: Do not use multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- WARNING: When disposing of the appliance, do so only at an authorised waste disposal centre. Do not expose to any flame.

- WARNING: fill with potable water only.

1. The refrigerant (R600a) is flammable.

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Caution: risk of fire / Flammable materials

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance. Although it is a natural gas with a high level of environmental compatibility, it is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit become damaged.

In the event that the refrigerant circuit is damaged:

Avoid open flames or sources of ignition.

Thoroughly ventilate the room in which the appliance is situated.

1. Before using the Ice maker for the first time, please wait 2 hours after positioning it, and keep the transparent lid open for at least 2 hours

2. Pure water should not be used in this unit; spring water is recommended.

3. Ensure the voltage is compliant with the voltage range stated on the rating plate, and ensure the earthing of the socket is in good condition.

4. Do not upend this product or incline it over a 45°C angle.

5. To protect against the risk of electric shock, do not pour water on the cord, plug or air outlet, and do not immerse the appliance in water or any other liquid.

6. Unplug the appliance after using or before cleaning.

7. Keep the appliance at least 8cm from other objects to ensure proper heat release.

8. Do not use any accessories which are not recommended by the manufacturer.

9. Do not use the appliance close to any flames, hot plates or stoves.

10. Do not switch on the power button frequently (ensure a minimum of 5 mins interval) so as to avoid damage to the compressor.

11. Do not use outdoors.

12. Never clean with scouring powders or hard utensils.

13. Please keep the instruction manual.

14. To avoid contamination of food, please respect the following notes:

- Opening the door for long periods can cause a significant increase in the temperature of the compartments in the appliance.

- Regularly clean surfaces that can come into contact with food and clean any accessible drainage systems.

– Clean water tanks if they have not been used for 48 h; flush the water system with a water supply if water has not been drawn for 5 days.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean and dry the appliance, and leave the door open to prevent mould developing within the appliance.)

1. Regarding the information pertaining to the use of the appliance, please refer to the paragraphs below.

This equipment is labelled in compliance with the European Directive 2012/19/EC on waste electric and electronic equipment – WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic equipment effective in the entire European Union.

General description

1. Top lid
2. Viewing window
3. Ice tray
4. Evaporator
5. Ice shovel
6. Display
7. Button

8. Infrared light-receiving diode

9. Infrared light-emitting diode

10. "MAX" water level
11. Water reservoir
12. Air outlet
13. Drain plug
14. Ice basket
15. Ice scoop

Exploded view diagram of a device with numbered parts for identification

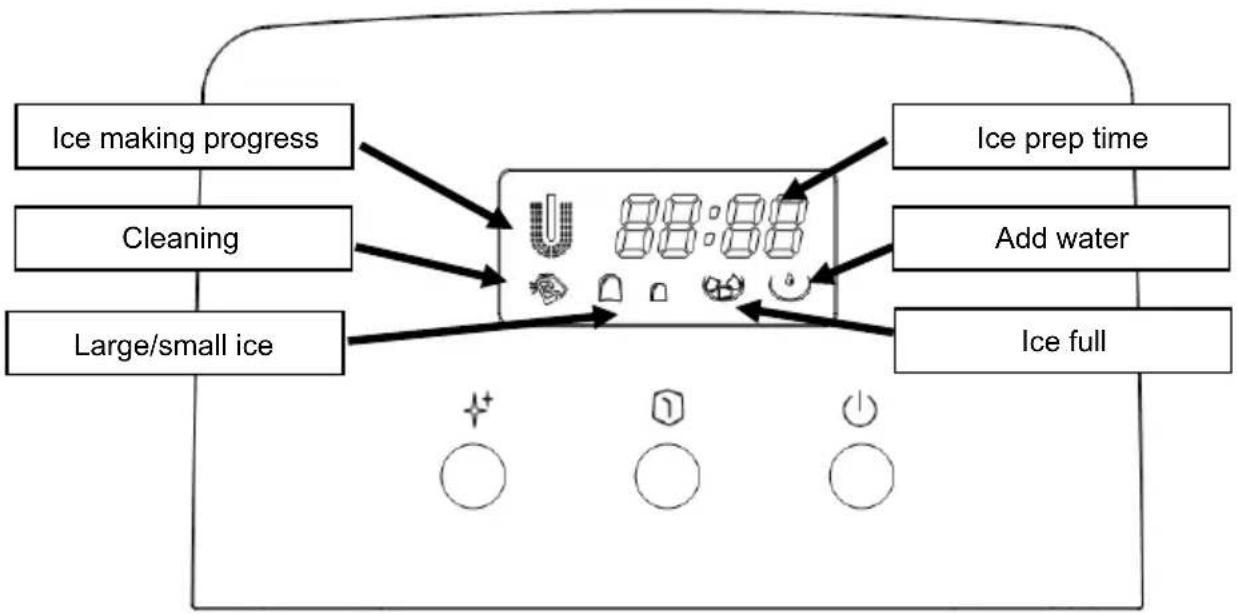

Control panel instructions

	Start/Stop button
	Size selection
	Clean button

1. Plug in the power supply. The machine will start the de-icing function first. After no operation, the machine will automatically enter standby mode.
2. ^+ : Cleaning function. Press the CLEAN button, and then press the Start / Stop button. The machine will automatically enter the cleaning function for about 2.5 minutes. Please do not turn off the power during cleaning. After cleaning, the machine will automatically enter standby mode.
3. : Select the ice size mode; the default mode at startup is large ice. The icon is displayed for the selected mode.
4. Start/Stop: After the power is plugged in, press the Start / Stop button, and the machine will start the ice making function. The default mode is large ice making mode.
5. Time display: after the machine starts to make ice, the time count begins. The calculation time starts in minutes, and will be shown throughout the operation of the machine. Once the display reaches 99:99, the time will be reset to zero again, and so on.
6. Water shortage alarm: during pumping, if no water flow is sensed within 5 seconds, the water shortage icon will be displayed, and the machine will stop working.
7. Ice full: When the compressor of the machine is not working and the infrared indicator is blocked for more than 5 seconds, the ice full icon will be displayed. At the same time, the machine will stop working and the ice full icon will flash in 1 / 4 seconds. Infrared detection continues; when the detection is no longer blocked, the machine will continue to work.

Using the appliance

1. Open the lid and take out the basket. Add water to the reservoir. Note: There is a maximum level, "MAX", in the reservoir. The water should not exceed the MAX position. If the water exceeds this level, you will need to open the bottom drain plug,
2. Plug in the power and press the Start/Stop button to start the machine.
3. Select the size of the ice you want to make, with large ice set as the default.

Cleaning

1. Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and outside surfaces of the ice maker. Do not spray the ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the enclosure of the appliance or in the built-in structure clear of obstruction. Do not use mechanical devices or alternative means to accelerate the defrosting process, besides those recommended by the manufacturer.
3. If you are reusing the machine after it has been idle for a period of time, it may not have enough water to pump for air retard; in this case, the water shortage indicator "Add water" will be on. Repress the Start/Stop button to restart the ice maker.
4. To ensure the cleanliness of ice, change the water in the water reservoir at least once per day. If the appliance is not used for a long time, drain the water out and clean the appliance.
5. If the compressor stops working due to a water shortage, water overfilling or interruption of power supply, it will take 3 mins to start up after being restarted.
6. Always use fresh water before starting ice production, whether it be during the initial installation or after a long shut-off period.
7. According to the actual use of the machine, the filter screen in the water tank shall be regularly cleaned after disassembly to prevent the water inlet from being blocked by incrustation or scale, as shown in the figure below. Take out the ice collecting tray and filter cover from the water tank in turn; clean the filter cover with clean water using a brush, and then put it back in place.

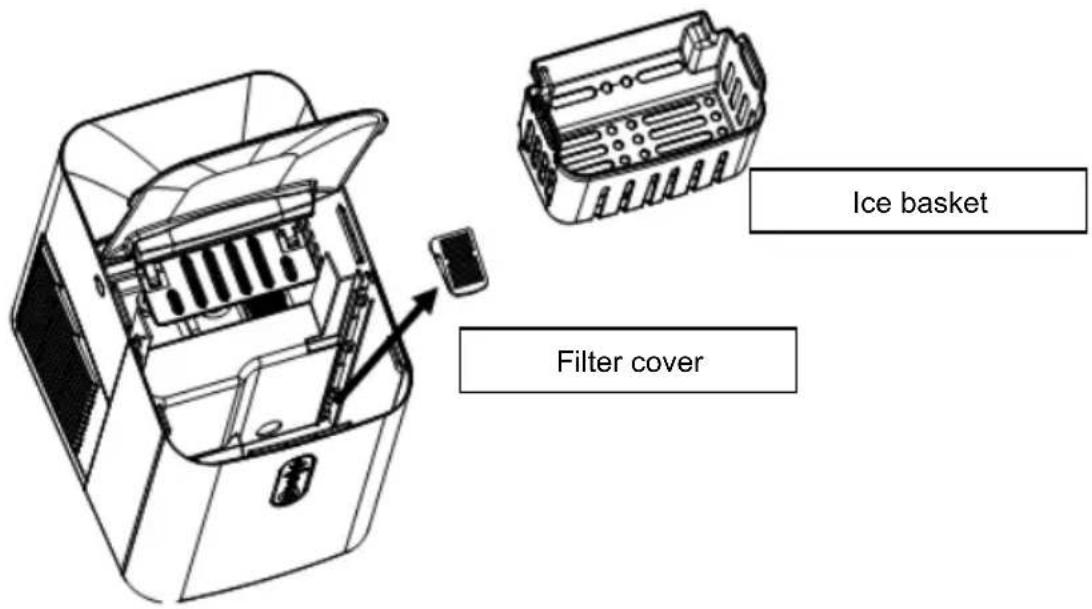

Ice basket Filter cover

Troubleshooting

1. Please note, if a power failure occurs due to disconnection of the power cord, or if the power button has been turned off during an ice making cycle, small ice chips may forms and get lodged in the automatic shovel, causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the interior, removing the ice chips, and then restarting.
2. If the ice shovel is not moving ice into the ice basket, check if the water reservoir is empty. If not, push the ice shovel gently, then press the Start/Stop button to restart.

Problem	Possible cause	Solution
The compressor works abnormally with a buzzing noise	The voltage is lower than recommended	Stop the ice maker and do not restart until the voltage is normal.
Water shortage indicator light is on	1. There is no water2. The pump is full of air	1.Add water until you reach the MAX position2.Press the Start/Stop button to restart
Indicator lights on display are not lit	Blown fuse/ No power	Replace fuse / Turn power on
The ice is too large and cubes are sticking together	1. Wrong ice size selected2. Ice from previous cycles could be left in the water tray	1.Select small size2.Take out the ice while in standby mode
The ice making process was correct, but no ice came out?	1. The compressor has no refrigerant2. Compressor is damaged3. Fan motor is damaged	Call the after-sales service.
All indicators are flashing at the same time.	The water box is blocked by ice.The motor is stuck, the motor falls off, or the motor is damagedMicro switch damaged	Take out the ice under the ice shovel, plug in the power again, and press the Start/Stop button. After 3 minutes, the machine will restart automatically.Call the after-sales service
Even though the ice is full, the machine does not display the ice full icon	Ice full sensor damagedSolar light interference	Replace the ice full sensorMove the appliance indoors to make iceCall the after-sales service

ENVIRONMENT

At the end of the appliance's useful life, do not discard it with common household waste. Take is to an authorized recycling centre. This will help preserve the environment.

WARRANTY AND REPAIR

For more information or in case of problems, please contact Hisense Call Centre in your country (phone number listed in the International Warranty Sheet). If there is no such centre in your country, please contact the local Hisense dealer or Hisense small domestic appliance department.

For personal use only!

Hisense

WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE.

We reserve the right to modifications.

RO

Warning sign depicting a flame symbol in yellow and black on white background

Atentie: risc de incendiu / Materiale inflamabile

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black on white background

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in a yellow triangle with black border

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Exploded view diagram of a device with numbered parts for identification

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black on a white background

Exploded view diagram of a device showing internal components and labeled parts in Chinese

Warning sign depicting a flame symbol in yellow and black on white background

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Exploded view diagram of a device showing internal components and labeled parts in Chinese

Warning sign depicting a flame symbol in a yellow triangle with black border

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black on white background

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol in yellow and black on white background

Exploded view diagram of a device with numbered parts for identification

Warning sign depicting a flame symbol with black outline and black border, commonly used in safety or hazard prevention.

Exploded view diagram of a device with numbered parts for identification
