USER MANUAL H25MOBS1HC HISENSE

Line drawing of a microwave oven with front panel, tower, and control panel (no text or symbols)

H25MOBS1HC

Instruction manual / Microwave oven

EN 3

Manual de utilizare / Microunde

PL 21

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTRUCTIONS FOR USE

These instructions are intended for the user.

They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

We reserve the right to any changes and errors in the instructions for use.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy & High voltage! Do not remove the cover.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Children should be supervised to ensure that they do not play with the appliance.
• Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Hisense service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.

• There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.

• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not

hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

5. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing bag in oven.
c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

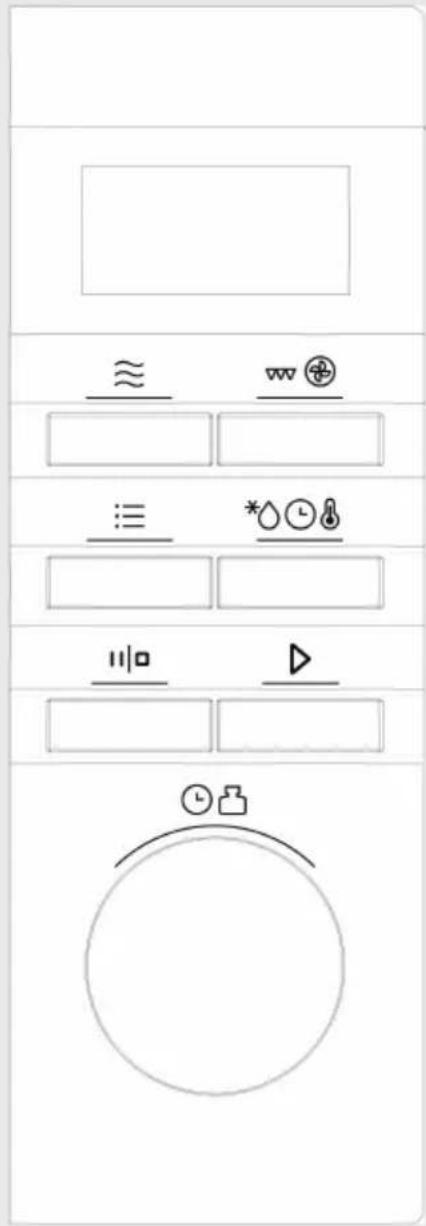

CONTROL PANEL

Diagram showing a control panel with icons for equivalence, weather, temperature, and navigation controls.

DISPLAY UNIT

Displays the selected functions and time.

KEYS

Micro Power

Conv/Combi

Grill/Combi

Auto Cooking

Defrost/Clock/Temp

Pause/Cancel

Instant/Start

ROTARY KNOB

Time

Weight

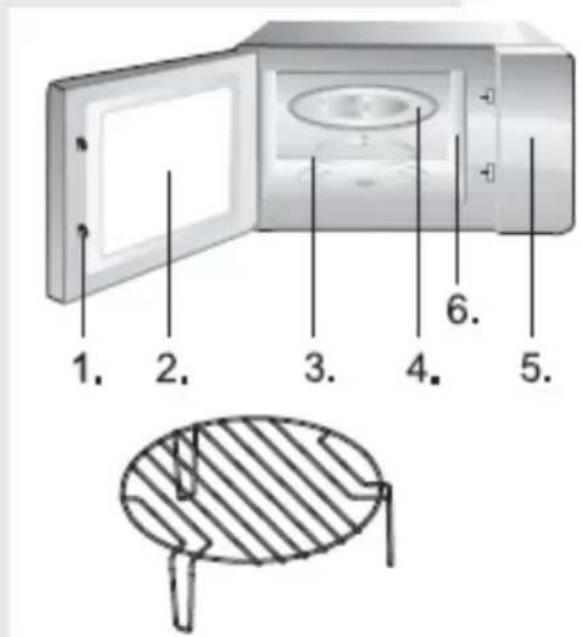

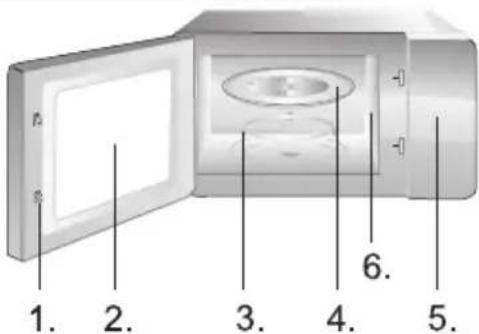

1. 2. 3. 4. 5. 6.

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Glass Tray
5. Control Panel
6. Wave guide (please do not remove the mica plate covering the wave guide)

Grill rack (Only be used for grill or for combination function and be placed on glass tray

BEFORE COOKING	The LED flashes 3 times when plugged in power supply.Then it flashes "1:00", and it is the default standby status.
TIME/WEIGHT KNOB	You can increase or decrease cooking time or weight during operation by turning Time/Weight knob.
PAUSE/CANCEL	At the initial or input stage: press once to cancel input programs and resume initial stage. During cooking: press once to stop oven operation, press twice to cancel cooking programs. When you reset cooking programs, should press this button to cancel all the former settings.
AUTO REMINDER	When your preset cooking procedure have finished, and three beeps sound will be heard to prompt you to take out food.If you do not press Pause/Cancel button once or open the door, the beep will be sounded at an interval of 3 minutes.
CLOCK SETTING	In standby mode, hold Clock/Defrost/Temp button 3 seconds to enter the clock setting status.The display shows the clock, in which the hour position is flashing, which means the clock input status.At this time, rotate Time/Weight Knob, input hours, reverse rotation is 23-22-0 hours cycle; forward rotation is: 0-1-23 hours, cycle; after setting the hour, press Clock/Defrost/Temp again, enter minute setting.Rotate the Time/Weight knob, enter the minutes, and reverse the rotation: 59-58-00 minutes, cycle; Forward rotation: 00-01-59 minutes, cycle; after setting the clock time.The last Press Clock/Defrost/Temp button again to confirm (or delay for 60 seconds).The clock will enter the running state. At this time, ":" flashes and displays once per second.
MICROWAVE COOKING	This function is for cooking and heating food. Pressing Micro Power button, LED will cycle to show 100P — 80P — 60P — 40P — 20P.

NOTE:

Different power is suitable for preparing different food.

HIGH 100% power output for quick and thorough cooking

M.High 80% power output for medium express cooking

Med 60% power output for steaming food

M.Low 40% power output for defrosting food

LOW 20% power output for keeping warm

CAUTION

a. The max time which can be set is 60 minutes
b. Never operate the oven empty.
c. If you turn the food during operation, press the Instant/Start button once and the preset cooking procedure will continue.
d. If you intend to remove the food before the preset time, you must press Pause/Cancel button once to clear the preset procedure to avoid unintended operation of next time use.
e. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

Example: To cook at P80 for 10 minutes.
	Steps Display
1	After power-up, the colon flashes	:
2	Select the desired microwave power by pressing Micro Power button consecutively	80P
3	Set cooking time by turning Time/Weight knob.	10:00
4	Press Instant/Start button to start and LED will count down to show running time.

CONVECTION AND GRILL COOKING

This function is used for grill food.

Press Conv. Combi/Grill. Combi button, LED display will cycle to show C...C1...C2...G...G1...G2.

Convection cooking

C	Convection, convection unit will be energized during entire operation time. In this mode, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly.
C1	Combination of Convection Grill and microwave cooking. 30% of time microwave output and 70% of time Convection Grill.
C2	Combination of Convection Grill and microwave cooking. 55% of time microwave output and 45% of time Convection Grill.

Example: Cook with convection function C. at 180°C for 20 minutes
	Steps Display
1 After power-up, the colon flashes :
2	Press Conv/Combi Grill/Combi button consecutively to select desired menu	C
3	Set the operating temperature by pressing Defrost/Clock/Temp button	180C
4	Set the cooking time by turning Time/Weight knob.	20:00
5 Press Instant/Start button start cooking

Grill cooking

G	Grill, the heat element will be energized during operation time. Which is applicable for rolling thin meats or pork, sausage, chicken wing as good brown color can be obtained
G.1	Combination of grill and microwave cooking. 30% of time microwave output and 70% of time grilling
G.2	Combination of grill and microwave cooking. 55% of time microwave output and 45% of time grilling

This function is used to defrost food. Press the Clock/Defrost/Temp button and the LED display will cycle to show Ad-1 Ad-2 Ad-3.

Ad-1	For defrosting meat, the weight range from 0.1 to 2.0 kg.
Ad-2	For defrosting poultry, the weight range from 0.2 to 3.0kg.
Ad-3	For defrosting seafood, the weight range from 0.1 to 0.9kg.

CAUTION

a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can be considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

Example: To defrost 0.4kg poultry
	Steps	Display
1 After	power-up, the colon flashes	:
2	Press Clock/Defrost/Temp button to set the food kind.	d.2
3	Turn Time/Weight knob to set the defrost weight	0.4
4 Start	cooking by pressing Instant/Start
5	In half way during defrosting, beep sound will be heard two times to prompt you turn over the food. Open the door and turn over the food. Then close the door.Press Instant/start button again to continue defrosting

The oven has default cooking menu for simple operation. When the LED flash colon, press the Auto Cooking button and LED will cycle to show A.1, A.2 ..... A.8

Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced.

Display Kind Method
AC-1 Rice Cooking weight 0.1/0.2/0.3kgs
AC-2	Fresh Vegetable	Cooking weight 0.2-0.8kgs
AC-3	Frozen Vegetable	Cooking weight 0.2-0.8kgs
AC-4 Popcorn Cooking weight 0.1kgs
AC-5 Beverage Cooking weight 1/2cups
AC-6 Potato Cooking weight 0.45/065kgs
AC-7 Pizza Cooking weight 1/2 pieces
AC-8 Fish Cooking weight 0.2-0.7kgs

CAUTION

a. The temperature of food before cooking would be 20-25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.
c. When cooks potatoes, advice to cover food with wrap paper, which avoid to evaporate food water.

Example: Cook 0.45 kg potatoes
	Steps Display
1 After power-up, the colon flashes 1:00
2	Press Auto Cooking button to set the cooking menu	AC-6
3	Set cooking weight by turning Time/Weight knob	0.45
4	Start cooking by pressing Instant/Start button and LED will count down to show running time.

AUTOMATIC STARTING (DELAYED FUNCTION)

If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps:

1. Setting the current clock;
2. Setting the cooking menu and time.

Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20
	Steps Display
1 After power-up, the colon flashes		1:00
1.1	Press and hold Clock/Defrost/Temp button for 3 seconds	00:00
1.2	Set hours by turning Time/ Weight knob 12:00
1.3	Press Clock/Defrost/Temp button again to confirm hours	12:00
1.4	Set minutes by turning Time./ Weight knob 12:30
1.5	Press Clock/Defrost/Temp button once or waiting for 60 seconds, and enter to clock status.	12:30
2 Set the cooking menu and time
2.1	Select cooking power by pressing Micro Power button	100P
2.2	Turn Time/Weight knob to set cooking time 9:30
2.3	Press and hold Defrost/Clock button for 3 seconds to return to current clock.
3	Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4
4	Press Clock/Defrost/Temp button to confirm the delayed menu.Now the program has been activated. And the menu will be started at 14:20.
5	You may check the preset starting time by pressing Clock/Defrost/Temp button.

MULTI-SEQUENCE COOKING

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow:

Example: You want cook food with 100P microwave for 3 minutes then 20P for 9 minutes. This is 2 sequence setting.
	Steps	Display
1 100P	microwave for 3min
1.1	Press Micro Power button to select power level.	100P
1.2	Turn Time/Weight knob to set cooking time.	3:00
2 20P	for 9min
2.1	Press Micro Power button to select desired power level	20P
2.2	Turn Time/Weight knob to set cooking time.	9:00
3 Start	cooking by pressing Instant/Start

CAUTION

a. When microwave 100 power cooking is finished, microwave oven will begin next operation automatically.
b. Max 4 sequences can be set per time, repeat the steps

Use this feature to lock the control panel when you are cleaning or so that children cannot use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1) Set lock---Hold Pause/Cancel button about 3 seconds.
2) Cancel lock---Hold Pause/Cancel button about 3 seconds.

CHILD LOCK FUNCTION

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

ENVIRONMENT Do not throw away the appliance with the normal

household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen

6. Dents in Cavity
   If any of the above are visible, DO NOT use the oven.

7. This Microwave Oven weighs 13.5 kg and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.
9. DO NOT place anything on top of the oven.
10. Keep the oven at least 20 cm away from both sidewalls and 30 cm away from top wall to ensure the correct ventilation.
11. DO NOT remove the turn -table drive shaft.
12. As with any appliance, close supervision is necessary when used by children.

13. Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered.
    The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz).
    WARNING! THIS APPLIANCE MUST BE EARTHED!

14. This oven requires 1.1 kVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V, 10 Amp Fuse.

SPECIFICATIONS

Power consumption.... 220-240V \~50Hz, 1400W

Output power 900W

Operating Frequency 2450MHz

Outside Dimensions 482 x 282 x 400n

Oven Capacity.... 25 litres

Uncrated Weight....Approx. 13.5 kg

Noise level..... Lc < 58 dB (A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

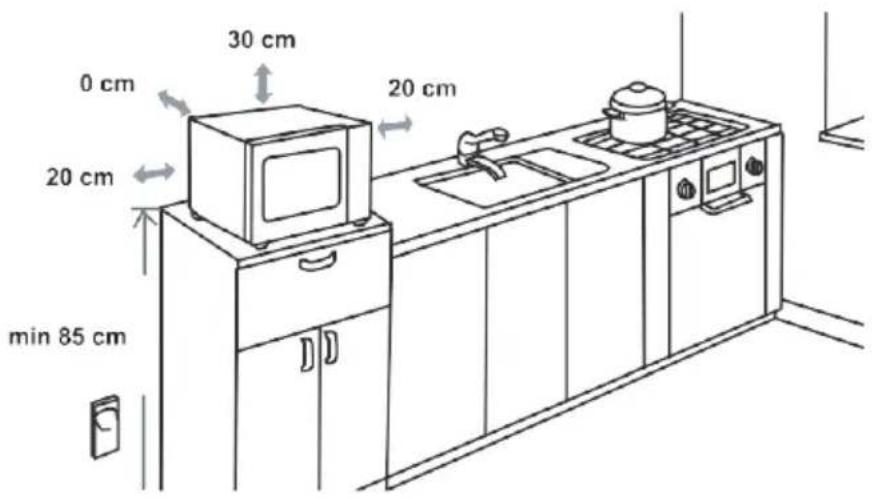

MOUNTING DIMENSIONS

0 cm 30 cm 20 cm 20 cm min 85 cm 20 cm

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.

b) Place the radio, TV, etc. as far away from your microwave oven as possible.

c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the information on the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

GUARANTEE & SERVICE

If you need information or if you have a problem, please contact the Hisense Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Hisense dealer or contact the Service department of Hisense domestic appliances.

For personal use only!

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

Hisense

SZANOWNY KLIENCIE

Diagram showing a layout with labeled boxes and icons, including symbols like Wi-Fi, timer, and play button.

DISPLAY UNIT

≈ Micro Power ∞● Conv/Combi Grill/Combi ≡ Auto Cooking *◇○● Defrost/Clock/Temp ||o Pause/Cancel ▷ Instant/Start

POKRETŁO

1. 2. 3. 4. 5. 6.

Diagram showing a layout with labeled boxes and icons, including symbols like '≈', '≡', and '×' with directional arrows.

ANZEIGEEINHEIT

Simple line drawing of a circular object with diagonal hatching and two legs, no text or symbols present.

Diagram showing a layout with labeled icons and symbols, including basic layout elements and a circular diagram with clock and play buttons.

Diagram showing a layout with labeled icons and symbols, including basic layout elements like '≈', '≡', and '||□'.

EKRAANIÜKSUS

Simple line drawing of a round table with three legs and a shaded top surface (no text or symbols)

Diagram showing a layout with labeled boxes and icons, including symbols like '≈', '≡', and '×' with directional arrows.

UNITÉ D'AFFICHAGE

Simple line drawing of a speech bubble with three legs and a handle (no text or symbols)

Diagram showing a sequence of labeled icons and symbols, including basic electrical or mechanical components.

DISPLAY

Simple line drawing of a circular object with diagonal hatching and two legs, no text or symbols present.

Diagram showing a layout with labeled icons and a circular diagram below, likely representing a system or layout design.

Simple line drawing of a round table with three legs and a diagonal stripe on top (no text or symbols)

Diagram showing a layout with labeled icons and symbols, including basic layout elements like '≈', '≡', and '||□'.

Simple line drawing of a round table with three legs and a diagonal stripe on top (no text or symbols)

LIETOŠANAS NORĀDĪJUMI

PIRMS GATAVOŠANAS

C...C1...C2...G...G1...G2.

Diagram showing a layout with labeled icons and symbols, including horizontal bars, circles, and directional arrows.

DISPLAY

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)
