USER MANUAL WCIC 3C33 P WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT. In order to receive a more complete assistance, please register your appliance on: www.whirlpool.eu/register

You can download the Safety Instructions and the User Manual, by visiting our website docs.whirlpool.eu/docs and following the Instructions on the back of this booklet.

Before using the appliance carefully read Safety Instructions guide.

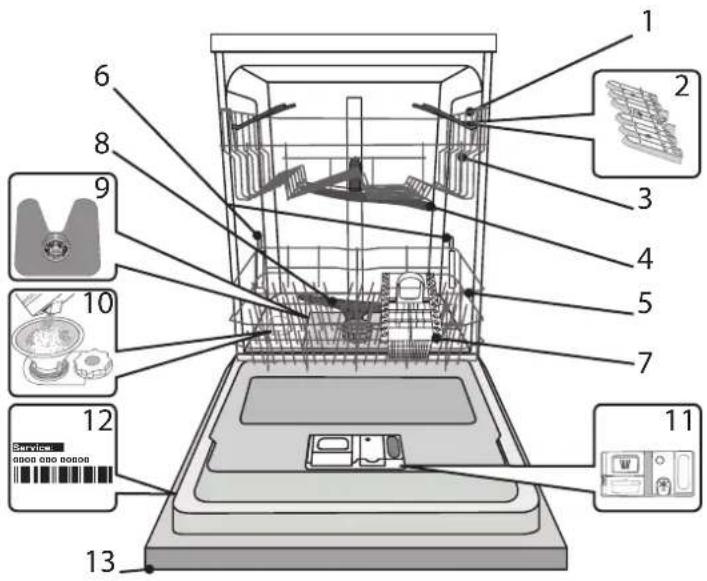

PRODUCT DESCRIPTION

APPLIANCE

Labeled diagram of a washing machine with numbered parts and service icons

1. Upper rack
2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Power Clean® support
7. Cutlery basket
8. Lower spray arm
9. Filter Assembly
10. Salt reservoir
11. Detergent and Rinse Aid dispensers
12. Rating plate
13. Control panel

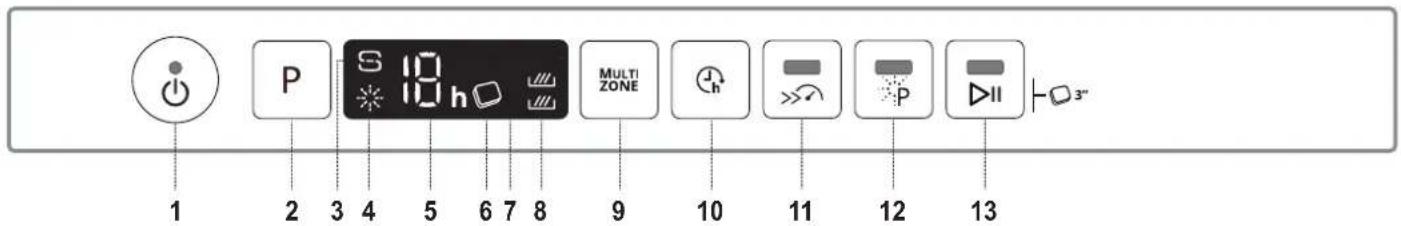

CONTROL PANEL

1 2 3 4 5 6 7 8 9 10 11 12 13 MULTI ZONE P 10 h P 3"

1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light

7. Display

8. Multizone indicator lights

9. Multizone button
10. Delay button
11. Turbo button with indicator light
12. Power Clean® button with indicator light
13. START/Pause button with indicator light / Tab

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

- It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.

- It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light ☑ in the control panel is lit.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate rose visible (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
  • The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

B

Diagram of a refrigerator interior with labeled parts and a hand holding the lid, showing internal compartments and a water level indicator.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
   NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

• If you see bluish streaks on the dishes, set a low number (1-2).
• If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

Diagram of a cleaning or cleaning device with labeled parts D and C, showing hand placement and cleaning process.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program		Drying phase	NaturalDry	Available options*)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco 50°	ECO	√	√		3:10 9.5 0.85
2. 6thSense®	50-60°	√	√	MULTI ZONE >>	1:25 - 3:00 7.0 - 14.0 0.90 - 1.40
3. Intensive 65°		√	√	MULTI ZONE >>	2:50 14.0 1.50
4. Fast Wash&Dry 5		√	√	— MULTI ZONE	1:25 11.5 1.10
5. Crystals	45°	√	√	MULTI ZONE	1:40 11.5 1.20
6. Rapid 30' 50°		-	-	h MULTI ZONE	0:30 9.0 0.50
7. Silent	50°	√	√		3:30 15.0 1.15
8. Prewash	-	-	-	MULTI ZONE	0:12 4.5 0.01

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail] Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 6th SENSE®

For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.

3 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

4 FAST WASH&DRY

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.

5 CRYSTALS

Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

6 RAPID 30'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

7 SILENT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

8 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

Notes:

Please note that cycle Rapid 30' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI ZONE

MULTIZONE

If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent.

Select the program and then press the MULTIZONE button: the symbol of the chosen rack will appear on the display. By default the appliance washes dishes in all racks.

To wash only the specific rack, press this button repeatedly: shown on the display (only lower rack)

shown on the display (only upper rack)

shown on the display (option is OFF and the appliance will wash dishes in all racks).

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly. If upper rack is removed, please apply detergent directly to tub instead of detergent dispenser.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/PAUSE button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches off.

The DELAY function cannot be set once a wash cycle has been started.

TURBO

This option can be used to reduce the duration of the main programs while maintaining the same washing and drying performance levels.

After selecting the program, press the TURBO button and the indicator light will switch on. To deselect the option, press the same button again.

POWER CLEAN®

Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles. Press this button to activate POWER CLEAN (the indicator lights up).

TABLET (Tab)

This setting allows you to optimize the performance

of the program according to the type of detergent used.

Press the START/PAUSE button for 3 seconds (the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

NaturalDry

NaturalDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture, thus door will not be opened when the option of TURBO is on.

As additional steam protection, special designed protection foil is added together with the dishwasher. To see how to mount protection foil please refer to (INSTALLATION GUIDE).

NaturalDry functionality could be disabled by the user as follows:

1. Go to the Dishwasher software menu pressing and holding P button (6 sec).
2. You switched to NaturalDry Control Menu, you could change status of NaturalDry functionality by pressing P button:
   E-enabled d-disabled

To confirm the change and exit from the Control Menu please press and hold P button (3 sec).

LOADING THE RACKS

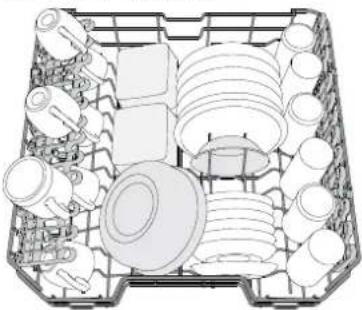

UPPER RACK

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

(loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model:

- to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down.

- to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Technical line drawing of a mechanical assembly or assembly (no visible text or symbols)

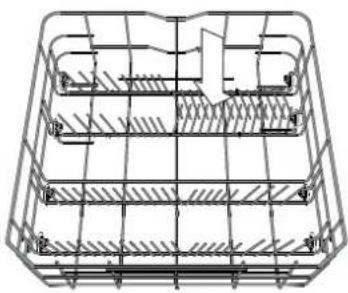

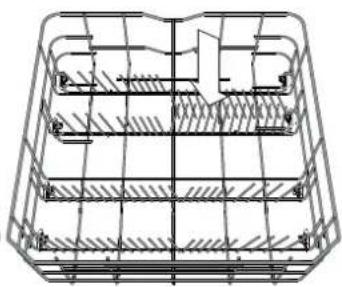

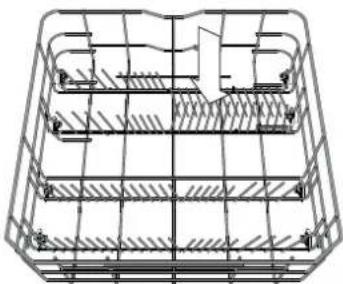

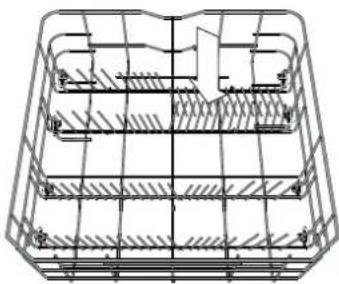

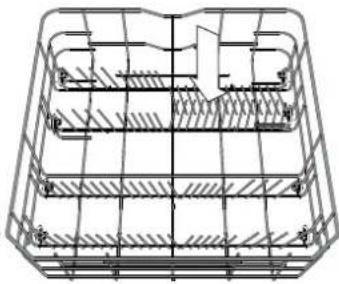

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

Diagram of a shopping basket with plates and a door, no text or symbols present

Technical line drawing of a multi-tiered mechanical or structural component (no text or symbols)

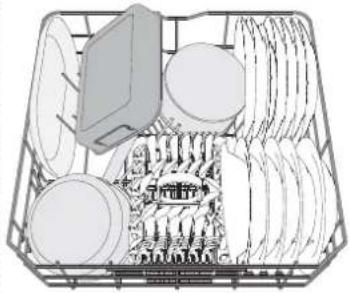

(loading example for the lower rack)

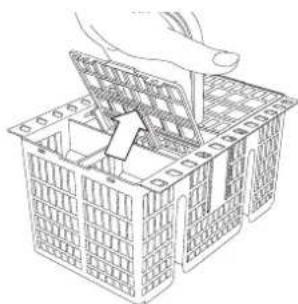

CUTLERY BASKET

It is fitted with top grids for improved cutlery arrangement. It must only be positioned at the front of the lower rack.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

Line drawing of a hand placing a plastic sheet into a wireframe basket (no text or symbols)

POWER CLEAN®

Power Clean ^® uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying

pans or baking pans in upright position, thus taking up less space.

Placing the pots/casseroles faced to the Power Clean® component please activate the POWER CLEAN® on the panel.

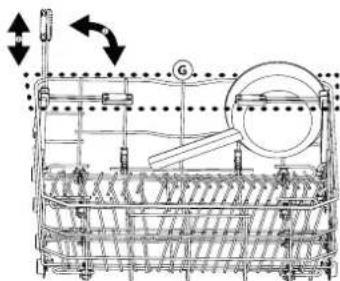

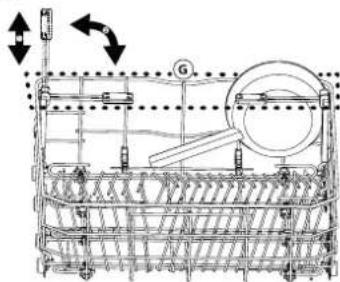

How to use Power Clean®:

1. Adjust the Power Clean® area G folding down the rear plate holders to load pots.

2. Load pots and casseroles inclined vertically in Power Clean® area. Pots have to be inclined towards the power water jets.

Technical line drawing of a mechanical device with gears and shafts, no visible text or symbols

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

1. LOAD THE RACKS (see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
  The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

- When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.

- In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.

- Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

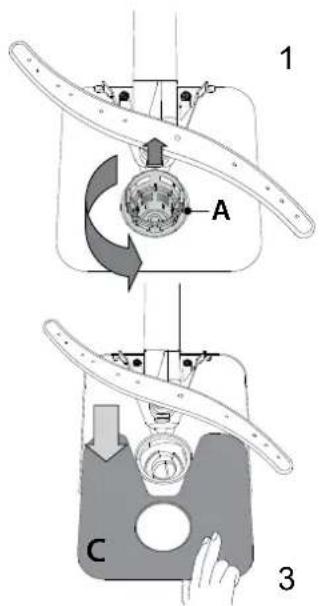

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).

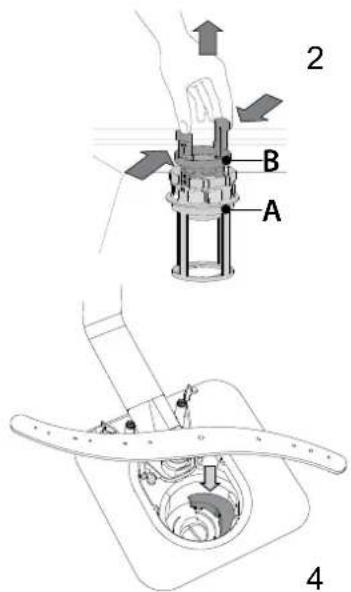

2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

1 A C 3

2 B A 4

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

Technical diagram showing a mechanical assembly with labeled components and a hand holding a tool, possibly illustrating a turning or positioning process.

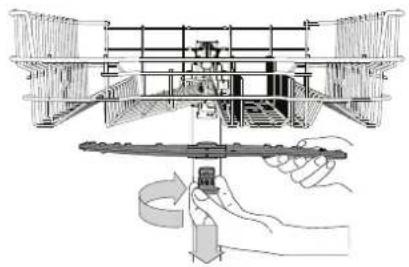

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols present)

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
  • Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service whose contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty. (After refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness - see table, page 2.
Rinse aid indicator is lit	Rinse aid dispenser is empty. (After refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns.Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The dishwasher door is not closed.NaturalDry pin is not pulled in.	Vigorously push the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows:9 or12and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows:3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is	not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).	the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate	wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).
	There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water.Display shows:H,6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely.Display shows:15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.

Policy and standard documentation and additional product information can be found by:

• Visiting our website docs.whirlpool.eu/docs and parts-selfservice.europeanappliances.com
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu

Technical diagram of a refrigerator with labeled components and wiring connections

400011483000B

12/2024 ks - Xerox Fabriano

®/TM/ © 2024 Whirlpool, Produced under license

PŘÍRUČKA

PRO KAŽDODENNÍ POUŽITÍ

DĚKUJEME VÁM, ŽE JSTE SI ZAKOUPILI VÝROBEK

Illustration of a hand pouring granular material into a bowl on a heating scale, with a sliced food item nearby (no text or symbols)

Diagram of a refrigerator interior with labeled parts and a hand holding the lid, showing internal compartments and a dial indicator.

Diagram of a food processing machine with labeled components and hand actions for handling food

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels visible)

Pure electrical circuit lines without any symbols

SKLOPNÉ OPĚRKY S NASTAVITELNOU POLOHOU

Illustration of a person holding a tool, surrounded by abstract geometric patterns (no text or symbols)

DOLNÍ KOŠ

Cross-sectional diagram of a shopping basket with coins and a tray (no text or symbols)

Technical line drawing of a multi-layered mechanical or architectural structure with no visible text or symbols

Line drawing of a hand placing a grid-like object into a rectangular frame (no text or symbols)

FUNKCE „POWER CLEAN“ VE SPODNÍM KOŠI

Technical line drawing of a mechanical device with no visible text or symbols

DENNÍ POUŽÍVÁNÍ

1. ZKONTROLUJTE PŘIPOJENÍ K VODOVODNÍ SÍTI

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

Návštěvou našeho webu docs.whirlpool.eu/docs a parts-selfservice.europeanappliances.com

Weighted Model 10000000 Control Panel 100000000 Control Panel 100000000 Control Panel 100000000 Control Panel 100000000 Control Panel 100000000 Control Panel 100000000 Control Panel 100000000 Control Panel 100000000 Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Panel Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Painting Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Control Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints Power Supply Controlled Paints

400011483000B

12/2024 ks - Xerox Fabriano

®/TM/ © 2024 Whirlpool. Vyrobeno v licenci.

BEDIENUNGSANLEITUNG

GUIDE

Illustration of a hand pouring granular material into a bowl on a scale, with a sliced fruit nearby (no text or symbols)

Diagram showing two views of a shared air conditioner unit with labeled components A and B, including hand placement and interior layout.

Diagram of a food processing machine with labeled components and processing steps

Top-down technical diagram of a mechanical assembly with multiple components (no text or labels visible)

Pure electrical circuit lines without any symbols

KLAPPBARE KLAPPEN MIT VERSTELLBARER POSITION

Technical line drawing of a mechanical assembly with no visible text or symbols

UNTERKORB

Cross-sectional diagram of a shopping basket with coins and a tray, no text or symbols present

Technical line drawing of a multi-layered mechanical or architectural structure with no visible text or symbols

Line drawing of a hand placing a grid-patterned plastic component into a wireframe basket (no text or symbols)

POWER CLEAN IM UNTERKORB®

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with gears and shafts, no visible text or symbols

TÄGLICHER GEBRAUCH

Diagram of a mechanical device with a lever and rotating arm, showing internal components (no text or symbols)

Illustration of a hand using a tool to press down a mechanical component on a gas stove (no text or symbols)

MERCI D'AVOIR CHOISI UN PRODUITWHIRLPOOL.

Diagram of a refrigerator interior with numbered parts and labeled icons including a washing machine, refrigerator, and washing machine.

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram showing front and side views of a refrigerator with labeled parts A and B, including a hand holding a bag.

Diagram of a device with labeled parts D and C, showing hand placement and cleaning process

OPTIONS ET FONCTIONS

Technical line drawing of a mechanical assembly with multiple components (no text or symbols)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows, likely illustrating a system or process.

Technical line drawing of a mechanical component with layered structure (no text or symbols)

PANIER INFÉRIEUR

Diagram of a multi-tiered basket with circular components and a central structure (no text or symbols)

Technical line drawing of a multi-layered mechanical or architectural structure with no visible text or symbols

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

POWER CLEAN SUR LE PANIER INFÉRIEUR

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with gears and shafts, no visible text or symbols

UTILISATION QUOTIDIENNE

1. VÉRIFIER LE BRANCHEMENT DE L'EAU

INTERRUPTIONS IMPRÉVUES

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols present)

Diagram of a kitchen appliance with numbered parts and labeled accessories, likely for assembly or labeling purposes.

1. Gornja košara
2. Pomični preklopi
3. Mehanizam za podešavanje gornje košare po visini
4. Gornji nosač prskalica
5. Donja košara
6. Potporni Power Clean
7. Košara za pribor za jelo
8. Donji nosač prskalica
9. Sklop filtra
10. Spremnik za sol
11. Spremnici za deterdžent i sredstvo za ispiranje
12. Natpisna pločica
13. Upravljačka ploča

UPRAVLJAČKA PLOČA

12345678910 S 10 h MULTI ZONE 11 12 13

Illustration of a hand pouring granular material into a bowl on a stand, with a slice of food nearby (no text or symbols)

Technical diagram showing two views of a refrigerator with labeled parts A and B, including hand gestures and appliance labels.

1. Otvorite dozator B tako da pritisnete i povučete jezičac na poklopcu.
2. Pažljivo uvedite sredstvo za ispiranje do referente oznake maksimalne količine (110 ml) prostora za punjenje, pazite da ne dođe do prolijevanja. Ako se to dogodi, suhom krpom odmah očistite proliveno.
3. Pritisnite poklopac dok se ne zatvori uz klik.
   Sredstvo za ispiranje NIKADA ne ulijevajte izravno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste potpuno zadovoljni rezultatima sušenja, možete podesiti količinu upotrijebljenog sredstva za ispiranje.

Diagram of a food processing machine with labeled components and parts, including handshells, feed, and waste bins.

1. Prilikom doziranja deterdženta pogledajte ranije navedene informacije kako biste stavili odgovarajuću količinu. Unutar dozatora D nalaze se oznake koje vam pomažu prilikom doziranja.
2. Uklonite ostatke deterdženta s ru- bova spremnika prije no što poklo- pac zatvorite tako da sjedne.
3. Poklopac spremnika za deterdžent zatvorite tako da ga povučete dok se mehanizam za zatvaranje ne učvrsti.

Technical line drawing of a mechanical assembly with multiple components and housing (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

POMIČNI PREKLOPI S PODESIVIM POLOŽAJEM

Technical line drawing of a mechanical assembly with no visible text or symbols

DONJA KOŠARA

Diagram of a shopping basket with circular items and decorative patterns (no text or symbols)

Technical line drawing of a multi-tiered mechanical or architectural structure with grid lines and hatching (no text or symbols)

Line drawing of a hand placing a plastic sheet into a wireframe basket (no text or symbols)

POWER CLEAN U DONJOJ KOŠARI

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with gears and shafts, no visible text or symbols

SVAKODNEVNA UPORABA

1. PROVJERA PRIKLJUČKA ZA VODU

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press down a gas stove burner (no text or symbols visible)

Donji krak mlaznice može se skinuti tako da se povuče prema gore.

SUSTAV OMEKŠAVANJA VODE

Diagram of a refrigerator interior with numbered parts and labeled items including washing machine, battery pack, and refrigerator.

Illustration of a hand pouring granular material into a bowl with a slice of food on a stand (no text or symbols)

Diagram of a refrigerator interior with labeled parts A and B, showing front and side views with icons and labels.

Diagram of a food processing machine with labeled components and parts, including hand tool, funnel, and waste bin

Technical line drawing of a mechanical assembly with multiple components and housing (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows

ÁLLÍTHATÓ MAGASSÁGÚ LEHAJTHATÓ POLCOK

Technical line drawing of a mechanical assembly with no visible text or symbols

ALSÓ KOSÁR

Diagram of a multi-tiered kitchen appliance basket with cutlery and dish arrangement (no text or labels)

Technical line drawing of a multi-tiered mechanical or architectural structure with grid lines and hatching (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

POWER CLEAN® AZ ALSÓ KOSÁRBAN

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with no visible text or symbols

MINDENNAPI HASZNÁLAT

1. ELLENÖRIZZE A VÍZBEKÖTÉST

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component on a gas stove (no text or symbols visible)

Technical diagram of a refrigerator with labeled components and status bar at bottom

400011483000B

12/2024 ks - Xerox Fabriano

Diagram of a kitchen appliance with numbered parts and labeled icons, including a refrigerator, washing machine, and server.

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced food item (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand operating controls and a hand holding a bag.

Diagram of a refrigerator interior with labeled parts and hand icons, including hand cleaning and cleaning steps.

Technical line drawing of a multi-compartment storage unit with cylindrical and housing components (no text or labels)

Technical diagram of a structural assembly with pipes and supports, no visible text or symbols

Illustration of a mechanical device with a cylindrical component and coiled spring (no text or symbols)

Diagram of a shopping basket with coins and a tray, showing interior compartments (no text or symbols)

Technical line drawing of a multi-layered mechanical or architectural structure with no visible text or symbols

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

POWER CLEAN IN ONDERSTE REK

Technical schematic diagram of a mechanical device with labeled components and directional arrows indicating motion or force.

DAGELIJKS GEBRUIK

1. WATERAANSLUITING CONTROLEREN

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

M2504 mm/100mm Control panel M2504 mm/100mm Control panel M2504 mm/100mm Control panel M2504 mm/100mm Control panel M2504 mm/100mm Control panel M2504 mm/100mm Control panel M2504 mm/100mm Control panel M2504 mm/10

400011483000B

12/2024 ks - Xerox Fabriano

Diagram of a refrigerator interior with numbered parts and labeled service badge

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced seed or nut nearby (no text or symbols)

Diagram of a refrigerator interior with labeled parts and a hand holding a tray, showing internal compartments and a dial indicator.

Diagram of a food delivery or cleaning device with labeled components and directional arrows indicating parts of the interior.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural or piping system with labeled components and directional arrows, likely illustrating a mechanical or electrical system.

SKLÁPACIE KLAPKY S NASTAVITEL'NOU POLOHOU

Technical line drawing of a mechanical assembly with layered components and no visible text or symbols

SPODNÝ KÔŠ

Diagram of a shopping basket with coins and a tray, no text or symbols present

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Line drawing of a hand placing a small electronic component into a grid-patterned plastic crate (no text or symbols)

FUNKCIA POWER CLEAN® V SPODNOM KOŠI

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with gears and a wheel, showing no text or symbols

KAŽDODENNÉ POUŽÍVANIE

1. SKONTROLUJTE PRIPOJENIE K VODOVODU

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a gas stove (no text or symbols visible)

Spodné ostrekovacie rameno možno vybrat potiahnutím nahor.

SYSTÉM NA ZMÄKČOVANIE VODY

Illustration of a hand pouring granular material into a bowl on a stand, with a separate side view showing a whole grain (no text or symbols)

Ko to storite, zaženite program brez posode.

Diagram showing two labeled views (A and B) of a refrigerator interior with hand operating controls and a hand holding a bag.

Diagram of a food processing machine with labeled parts and processing steps

Exploded view diagram of a mechanical assembly (no text or labels)

Technical diagram showing a mechanical assembly with labeled components and directional arrows, likely illustrating a process or assembly.

Da košaro znižate v spodnji položaj pritisnite na ročici A na straneh košare in jo pomaknite navzdol.

Technical line drawing of a mechanical assembly with no visible text or symbols

SPODNJA KOŠARA

Diagram of a multi-tiered kitchen sink with plates and dish, no text or symbols present

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

(primer zlaganja posode v spodnjo košaro)

KOŠARICA ZA PRIBOR

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

SISTEM POWER CLEAN V SPODNJI KOŠARI

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with gears and a wheel, showing no text or symbols

VSAKODNEVNA UPORABA

1. PREVERJANJE PRIKLOPA VODE

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Labeled diagram of a kitchen appliance with numbered parts and corresponding product images

1. Gornja korpa
2. Sklopiva krilca
3. Podešivač visine gornje korpe
4. Gornja prskalica
5. Donja korpa
6. Potporni Power Clean
7. Korpa za pribor za jelo
8. Donja prskalica
9. Sklop filtera
10. Rezervoar za so
11. Posude za deterdžent i sredstvo za ispiranje
12. Natpisna pločica
13. Kontrolna tabla

KONTROLNA TABLA

12345678910 MULTI ZONE 1112 13

1. Dugme za uključivanje-isključivanje/ponovno podešavanje sa svetlosnim indikatorom
2. Dugme za biranje programa
3. Svetlosni indikator za dopunu soli
4. Svetlosni indikator za sredstvo za ispiranje
5. Broj programa in indikator zakasnitve
6. Svetlosni indikator za tabletu (Tab)

7. Ekran

8. Svetlosni indikator za „Multizone“

9. Dugme za „Multizone“
10. Dugme za Odlaganje
11. Dugme za „Turbo“ funkciju sa svetlosnim indikatorom
12. Dugme „Power Clean“ sa svetlosnim indikatorom
13. Dugme za Početak/Pauzu sa svetlosnim indikatorom / tableta (Tab)

PRVA UPOTREBA

SO, SREDSTVO ZA ISPIRANJE I DETERDŽENT

SAVETI U VEZI SA PRVOM UPOTREBOM

Illustration of a hand pouring granular material into a bowl on a heating scale, with a slice of food being added (no text or symbols)

1. Uklonite donju korpu i odvrnite poklopac rezervoara (u smeru suprotnom od smera kretanja kazaljki na satu).
2. Samo prvi put kada ovo radite: napunite rezervoar za so vodom.
3. Postavite levak (vidite sliku) i napunite rezervoar za so do ivice (oko 1 kg); nije neu običajeno da malo vode iscuri.
4. Uklonite levak i obrišite ostatke soli sa otvora.

Vodite računa da poklopac bude čvrsto zavijen, tako da deterdžent ne može da uđe u posudu tokom programa pranja (to može da ošteti omekšivač za vodu tako da se ne može popraviti).

Kad god je potrebno da dodate so, obavezno je da obavite proceduru pre početka ciklusa pranja da bi se izbegla korozija.

PODEŠAVANJE TVRDOĆE VODE

Da bi omekšivač za vodu radio kako treba, neophodno je da tvrdoća vode bude podešena na osnovu stvarne tvrdoće vode u vašoj kući. Ove informacije možete dobiti od lokalnog snabdevača vodom.

Diagram showing two views of a refrigerator with labeled compartments and a hand holding a fan above the interior panel.

1. Otvorite posudu B tako što ćete pritisnuti i povući na gore jezičak na poklopcu.
2. Pažljivo sipajte sredstvo za ispiranje do oznake za maksimum (110 ml) na prostoru za punjenje - izbegavajte prosipanje. Ako se to dogodi, odmah obrišite prosuto suvom krpom.
3. Pritisnite poklopac dok se ne začuje zvuk škljocanja.
   NIKADA ne sipajte sredstvo za ispiranje direktno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste u potpunosti zadovoljni rezultatima sušenja, možete da podesite količinu sredstva za ispiranje koja se koristi.

Diagram of a food delivery or processing device with labeled parts and exploded view indicators

1. Za odmeravanje deterdženta pogledajte prethodno pomenute informacije kako biste sipali odgovarajuću količinu. U posudi D nalaze se oznake koje vam mogu pomoći u doziranju deterdženta.
2. Uklonite ostatke deterdženta sa ivica posuda pre nego što i zatvorite poklo-pac dok se ne začuje zvuk škljocanja.
3. Zatvorite poklopac posude za deterdžent povlačenjem na gore dok uređaj za zatvaranje ne bude čvrsto na mestu.

Top-down technical diagram of a mechanical assembly with gears, cylinders, and housing (no text or labels)

(primer punjenja gornje korpe)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows, likely from an engineering or manufacturing context.

SKLOPIVA KRILCA SA PODESIVIM POLOŽAJEM

Sklopiva krilca možete da sklopite ili rasklopite i tako pronadete najbolji raspored posuđa na rešetki.

Technical line drawing of a mechanical assembly with no visible text or symbols

DONJA KORPA

Diagram of a shopping basket with coins and a tray, showing interior compartments (no text or symbols)

Technical line drawing of a multi-tiered mechanical or structural component (no text or symbols)

(primer punjenja donje korpe)

KORPA ZA PRIBOR ZA JELO

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

POWER CLEAN u donjoj korpi

Power Clean ^® koristi posebne vodene mlaznice u unutrašnjem zadnjem delu za intenzivnije pranje veoma prljavih predmeta. Donja korpa ima prostornu zonu, poseban držač koji se može izvući i nalazi se u zadnjem delu korpe,

Pure electrical circuit lines without any symbols

a može se koristiti za tiganje ili plehove u uspravnom položaju, koji tako zauzimaju manje prostora.

Prilikom postavljanja šerpi/posuda za pečenje okrenutim prema komponenti Power Clean® aktivirajte POWER CLEAN na tabli.

Kako se koristi Power Clean®:

1. Podesite Power Clean® oblast (G) tako što ćete saviti zadnji držač za tanjire i postaviti šerpe.

2. Šerpe i posude za pečenje postavite tako da budu vertikalno nagnute u Power Clean® oblasti. Šerpe moraju da budu nagnute prema snažnim vodenim mlaznićama.

Technical line drawing of a mechanical device with no visible text or symbols

SVAKODNEVNA UPOTREBA

1. PROVERITE PRIKLJUČAK NA VODOVODNU MREŽU

Proverite da li je mašina za pranje sudova povezana na dovod vode i da li je slavina otvorena.

2. UKLJUČITE MAŠINU ZA PRANJE SUDOVA

Otvorite vrata i pritisnite dugme UKLJUČI/ISKLJUČI.

3. NAPUNITE KORPE (videti PUNJENJE KORPI)

4. PUNJENJE POSUDE ZA DETERDŽENT

5. IZABERITE PROGRAM I PRILAGODITE CIKLUS

Izaberite najprikladniji program u skladu sa vrstom posuđa i nivoom zaprljanosti (videti OPIS PROGRAMA) pritiskom na dugme P. Izaberite željene opcije (videti OPCIJE I FUNKCIJE).

6. POČETAK

NEODGOVARAJUĆE POSUĐE

• Drveno posuđe i pribor.
• Osetljive ukrašene čaše, umetničke rukotvorine i antičko posuđe. Dekoracija na njima nije otporna.
• Delovi od sintetičkog materijala ne podnose visoke temperature.
• Posuđe od bakra i kalaja.
• Posuđe zaprljano pepelom, voskom, mašću za podmazivanje ili mastilom.

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Da biste uklonili gornju prskalicu, okrenite plastični prsten za zaključavanje u smeru kretanja kazaljki na satu. Gornja prskalica se ponovo postavlja tako da strana sa više otvora bude okrenuta na gore.

Illustration of a hand using a tool to press or install a mechanical component on a gas stove (no text or symbols visible)

Weggle load inhibitor control control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit control unit

400011483000B

12/2024 ks - Xerox Fabriano

®/TM/ © 2024 Whirlpool, Proizvedeno pod licencom
