USER MANUAL DIGITRADIO BT 2 TECHNISAT

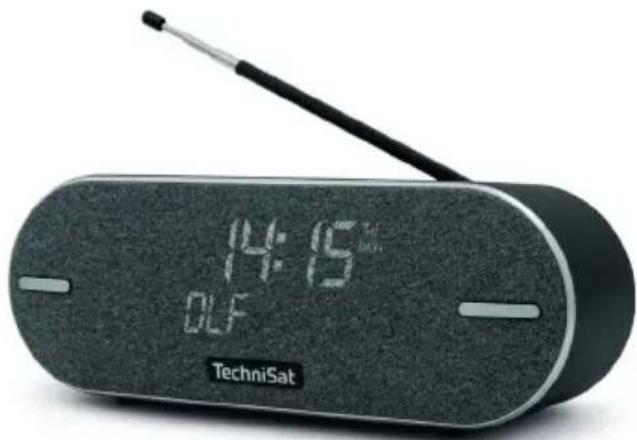

Operating instructions

DIGITRADIO BT 2

Premium Bluetooth speaker with DAB+/FM radio

14:15 0LF TechniSat

TechniSat

1 Illustrations

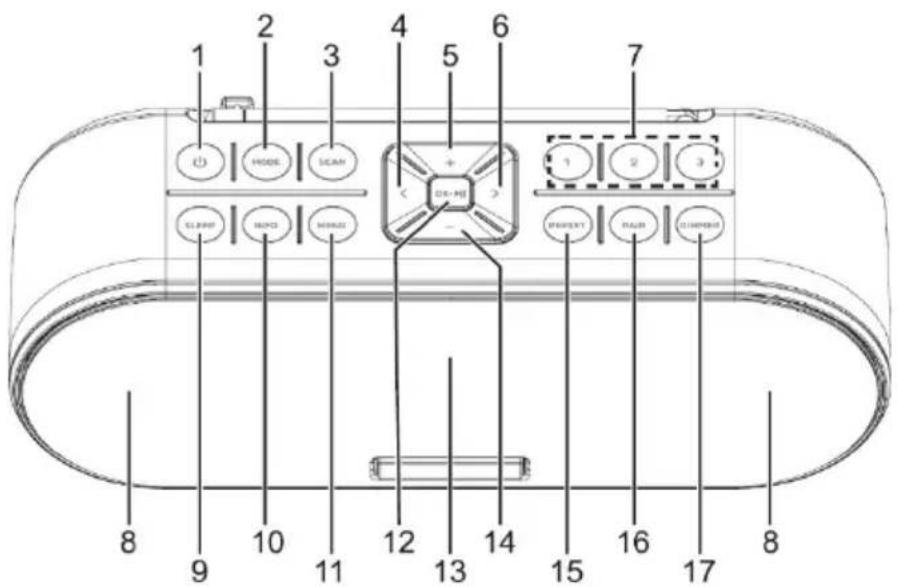

1.1 Front/top view

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 8 NODE SCAN SLABS SUPS HOLD PARENT PALL COMPRESS

1 ⏻ Switch on/off
2 MODE Source switching
3 SCAN Channel scan
4 / Back
5 Volume +
6 ▶ / Next
7 Preset 1 - 3 (favourites memory)
8 Loudspeaker
9 SLEEP
10 INFO
11 MENU
12 OK/▶II.
13 Display
14 Volume -
15 PRESET (Favourite memory 1 - 30)
16 PAIR
17 DIMMER

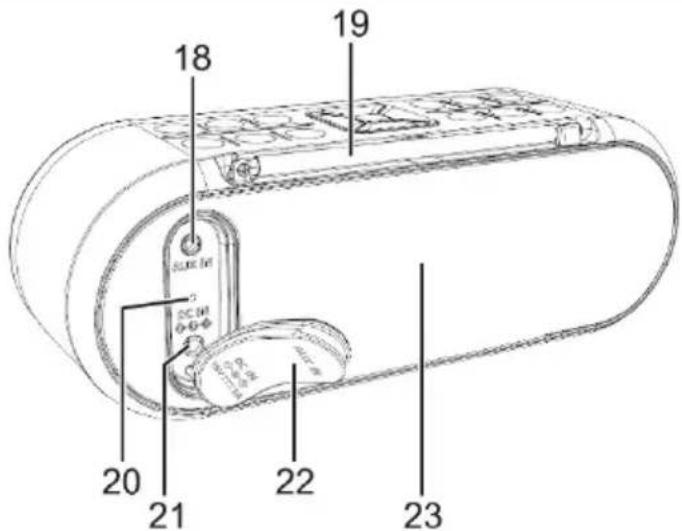

1.2 View from behind

18 19 20 21 22 23

18 AUX-IN 3.5 mm stereo jack
19 Antenna
20 Charging LED
21 Power supply connection DC-IN 15 V, 1 A
22 Silicone cover
23 Passive bass diaphragm

2 Table of contents

1 Figures....2

1.1 Front/top view 2

1.2 View from behind....4

2 Table of contents ....5

3 Safety instructions 9

3.1 Foreword....9

3.2 Characters and symbols used 10

3.3 Intended use....12

3.4 Safe handling of the product....12

3.4.1 Legal information 17

3.4.2 Service notes 19

4 Description of the DIGITRADIO BT 2....21

4.1 The scope of delivery....21

4.2 The special features of the DIGITRADIO BT 2....21

4.3 Preparing the DIGITRADIO BT 2 for operation .....22

4.3.1 Charge battery....22

4.3.2 Align antenna....24

4.4 General device functions .....25

4.4.1 Switch on the device....25

4.4.2 Switch off the device 26

4.4.3 Source selection 26

4.4.4 Setting the volume 26

5 Menu operation....27

6 The DAB+ (digital radio) function 28

6.1 What is DAB+ 28

6.2 DAB+ (digital radio) reception....28

6.2.1 Carry out a complete search....29

6.2.2 Set manually....30

6.2.3 Select transmitter....32

6.2.4 Store DAB+ stations in a memory location....32

6.2.5 Recalling DAB+ stations from a memory location 33

6.2.6 Overwriting/deleting a programme position memory 33

6.2.7 Volume adjustment (DRC)....33

6.2.8 Delete inactive transmitters ....34

7 FM (VHF) operation....35

7.1 Switch on FM radio mode....35

7.2 FM (VHF) reception with RDS information ....35

7.3 Automatic station search ....36

7.4 Manual station search....36

7.5 Search setting....37

7.6 Audio setting....38

7.7 Storing FM stations in a memory location 38

7.8 Recalling FM stations from a memory location....39

7.9 Overwriting/deleting a programme position memory 39

8 Bluetooth....40

8.1 Switch on Bluetooth operation....40

8.2 Pairing an external device 40

8.3 Slide on coupling 42

8.4 AUX-IN....42

9 Other functions....43

9.1 Sleep timer....43

9.2 Equaliser....44

9.3 Dimmer 44

10 System settings....44

10.1 Time 44

10.1.1 Set time/date manually....45
10.1.2 Time update....45
10.1.3 Setting the time format....46
10.1.4 Set date format....47
10.2 Language....47
10.3 Factory setting 48
10.4 SW version 48
11 Cleaning....49
12 Eliminate errors....50
13 Technical data....52
14 Disposal instructions....55

3 Safety instructions

3.1 Foreword

Dear customers,

Thank you for purchasing a TechniSat digital radio. These operating instructions are intended to help you familiarise yourself with the extensive functions of your new device and make optimum use of them. It will help you to use the device safely and as intended. It is intended for any person who installs, operates, cleans or disposes of the device.

Keep the operating instructions in a safe place for future reference.

You can find a current version of the operating instructions in the download area of your product on the TechniSat website www.technisat.de.

We hope you enjoy your TechniSat digital radio!

Yours

TechniSat Team

3.2 Signs and symbols used

in these operating instructions:

Indicates a safety instruction which, if disregarded, can lead to serious injuries. can lead to injuries or death. Observe the following signal words:

DANGER - Serious injuries with fatal consequences

WARNING - Serious injuries, possibly fatal

ATTENTION - Injuries

Indicates a note that you must observe to avoid device defects, data loss/misuse or unintentional operation. It also describes additional functions for your device.

Warning of electrical voltage. Follow all safety instructions to avoid electric shock. Never open the appliance.

On the device:

Indoor use - Appliances with this symbol are only suitable for indoor use.

Protection class II - Electrical appliances in protection class II are electrical appliances that have continuous double and/or reinforced insulation and no connection options for a protective conductor. The housing of an insulated electrical appliance of protection class II can partially or completely form the additional or reinforced insulation.

Your appliance bears the CE mark and fulfils all required EU standards.

Electronic devices/equipment do not belong in household waste, but must be disposed of properly in accordance with Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE). At the end of its life, please dispose of this device at the designated public collection points. Batteries/rechargeable batteries must be removed before disposing of the device and disposed of separately from the device.

Observe all notes and safety instructions in these operating instructions. Keep the operating instructions in a safe place for future reference. Pass the operating instructions on to the buyer when selling the product.

Direct current symbol. This device is operated with direct current and/or converts alternating current into direct current.

3.3 Intended use

The DIGITRADIO BT 2 is designed to receive DAB+/UKW radio programmes. Music media can be streamed via a Bluetooth connection. The device may only be operated with the accessories supplied (mains adapter, batteries, cable, aerial, etc.). Any other use of these accessories is not permitted. The device is designed for private use and is not suitable for commercial purposes.

3.4 Safe handling of the product

Please observe the following instructions to minimise safety risks, avoid damage to the appliance and contribute to environmental protection.

Please read all safety instructions carefully and keep them for future reference.

Always follow all warnings and instructions in these operating instructions and on the back of the appliance.

WARNING!

Never open the appliance!

Touching live parts is life-threatening!

WARNING!

Choking hazard! Do not leave the packaging and its parts to children. Choking hazard due to film and other packaging materials.

Observe all the following instructions for the intended use of the appliance and to prevent appliance defects and personal injury.

• Do not repair the appliance yourself. Repairs may only be carried out by trained specialists. Please contact our customer service centres.
• The device may only be operated in the specified ambient conditions.
• Do not expose the appliance to dripping or splashing water. If water has got into the

device, disconnect it from the power supply and contact the service centre

- Do not expose the appliance to heat sources that heat the appliance in addition to normal use.

- In the event of a conspicuous appliance defect, odour or smoke development, significant malfunctions or damage to the housing, contact Service immediately.

- The appliance may only be operated with the mains voltage printed on the rating plate. Never attempt to operate the appliance with a different voltage. Only use the original mains adapter supplied.

- As this appliance is disconnected from the mains by unplugging the mains adapter/mains plug, it is essential that it is easily accessible at all times.

- If the appliance or the power supply unit is damaged, it must not be put into operation.

- Do not operate the appliance near bathtubs, showers, swimming pools or running/splashing water. There is a risk of electric shock and/or device defects.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Never allow children to use this appliance unsupervised.
• Modifications to the appliance are prohibited.

Safety instructions in connection with rechargeable batteries WARNING!

The appliance is equipped with a modern, powerful and all

The device is equipped with a rechargeable battery that fulfils the safety requirements. Due to the higher hazard potential of modern rechargeable batteries, please ensure that you handle the device and the rechargeable battery with care and observe the following safety instructions.

• If possible, charge your device in a place with a smoke or fire alarm.
• Ensure that there are no flammable materials or objects in the immediate vicinity when charging.
• Do not operate the appliance outdoors or in damp rooms

and in places where very high temperatures are to be expected.

Do not expose the appliance to heat sources that heat the appliance in addition to normal use. The appliance may only be operated in the ambient conditions specified.

Important note on the disposal of batteries/rechargeable batteries:

Batteries/rechargeable batteries must be disposed of separately from the device and may contain toxic substances that are harmful to the environment. For the chemical composition, please refer to the technical data or the imprint on the battery.

It is therefore essential that you dispose of BaGeria/rechargeable batteries in accordance with the applicable legal regulations. Never dispose of batteries in normal household waste. You can dispose of used batteries free of charge at your specialist dealer or at special disposal centres.

For products with a battery compartment, you can remove the battery directly. If batteries are permanently installed, do not under any circumstances attempt to remove them yourself. In this case, contact the appropriate specialist personnel, e.g. a waste disposal company.

3.4.1 Legal information

Hereby, TechniSat declares that the radio equipment type

DIGITRADIO BT 2 is in compliance with Directive 2014/53/EU. The full text of the EU

Declaration of conformity is available at the following Internet address:

TechniSat is not liable for product damage due to external influences, wear and tear or improper handling, unauthorised repairs, modifications or accidents.

Subject to changes and printing errors. Status 02/23.

Reproduction and duplication only with the authorisation of the publisher.

The latest version of the manual is available in PDF format in the download area of the TechniSat homepage at www.technisat.de.

DIGITRADIO BT 2 and TechniSat are registered trademarks of:

This product is quality-tested and comes with a statutory warranty period of 24 months from the date of purchase. Please keep the invoice as proof of purchase. With

For warranty claims, please contact the dealer of the product.

Please note!

For questions and information or if there is a problem with this device, please contact our technical hotline:

Mon. - Fri. 8:00 - 18:00 under Tel.: [phone].

Repair orders can also be ordered directly online at www.technisat.de/reparatur.

If you need to return the device, please use only the following address:

The names of the companies, institutions or brands mentioned are trademarks or registered trademarks of their respective owners.

Images shown are for illustrative purposes only and may differ from the actual product.

4 Description of the DIGITRADIO BT 2

4.1 The scope of delivery

Please check that the scope of delivery is complete before commissioning: 1x DIGITRADIO BT 2 1x power supply unit 1x operating instructions

4.2 The special features of the DIGITRADIO BT 2

The DIGITRADIO BT 2 consists of a DAB+/UKW receiver with the following functions:

• You can store up to 30 DAB+ and 30 FM stations.
• The radio receives on the frequencies FM 87.5-108 MHz (analogue) and DAB+ 174.9-239.2 MHz (digital).
• Music playback via a Bluetooth connection.
• Mains and battery operation.

4.3 Preparing the DIGITRADIO BT 2 for operation

4.3.1 Charge battery

Before using the DIGITRADIO BT 2 for the first time, you should first fully charge the battery.

Make sure that the operating voltage of the power supply unit matches the local mains voltage before plugging it into the wall socket.

WARNING!

Do not touch the mains plug with wet hands, risk of electric shock!

ATTENTION!

Lay the mains cable so that nobody can trip over it.

Connect the supplied mains adapter to the socket labelled DC-IN (21) on the rear of the DIGITRADIO BT 2. To do this, lift the protective cover of the rear connections and fold it down.

Then connect the power supply unit to the mains.

The charging status is signalled in the display with [CHARGING]. The charging LED on the back lights up red.

Charging LED

Technical diagram showing a device control panel with labeled buttons and an arrow pointing to the 'OK' button.

The battery is fully charged when [BATTERY FULL] appears in the display and the charging LED lights up green.

If the battery charge level reaches a low level during normal operation, [BATTERY LOW, PLEASE CHARGE] appears in the display and the charging LED flashes red. Recharge the battery.

Once the battery is fully charged, unplug the mains adapter and close the silicone cover again to ensure dust/splash protection.

4.3.2 Align antenna

The number and quality of stations that can be received depends on the reception conditions at the installation site. Excellent reception can be achieved with the aerial.

Fold the antenna out of the holder on the back of the DIGITRADIO BT 2, straighten it and pull it out lengthways.
The exact alignment of the telescopic antenna is important, especially in the fringe areas of DAB+ reception. On the Internet, for example, you can find "www.dabplus.de" to quickly find the location of the nearest transmitter mast.
Start the first scan outdoors in the direction of the transmitter mast. If the weather is poor, DAB+ reception may only be possible to a limited extent.
Do not touch the aerial while a station is playing. This can lead to impaired reception and audio dropouts.

4.4 General device functions

4.4.1 Switch on the device

Press and hold the button ⏻ Switch on/off (1) to switch on the DIGITRADIO BT 2.

After switching on for the first time, the device automatically performs a complete search in DAB+ mode. During the scan, the display information shows the progress and the number of digital radio stations found.

10:00 10:00 DAB ); ) )

Once the station search is complete, the first DAB+ programme is played.

4.4.2 Switch off the device

Press and hold the button ⏻ Switch on/off (1) to switch off the device and the display goes out. The message [OFF] appears briefly on the display.

In mains operation, the display remains switched on and the battery is charged.

4.4.3 Source selection

The MODE button (2) can be used to switch between the sources DAB+ (digital radio), FM (FM), Bluetooth and AUX-IN. To do this, briefly press the button until the desired source is shown on the display.

4.4.4 Setting the volume

Set the volume using the Volume + and - buttons (5, 14). The set volume is shown on the display.

5 Menu operation

The menu provides access to all functions and settings of the DIGITRADIO BT 2. The menu is navigated using the MENU, ◀, ▶ and OK/▶II buttons. The menu is divided into submenus and contains different menu items or functions that can be activated depending on the selected source. To open the menu, simply press the MENU button (11). Use the ◀, ▶ buttons to select a function/option and then press the OK/▶II button to open it.

Close the menu: Press the MENU button several times (depending on which submenu you are in) until the current radio programme is displayed again. is displayed.

Settings are only saved by pressing the OK/▶button.

If the MENU button is pressed during this time, the settings are not accepted and saved (the MENU button takes on the function of a "Back" button and the menu is exited).

Functions and buttons to be pressed are described in these operating instructions

in

feU is shown. Display indications in [square brackets].

Some texts (e.g. menu entries, station information) may be too long to be shown on the display. After a short time, these will then be displayed as a loud text.

6 The DAB+ (digital radio) function

6.1 What is DAB+

DAB+ is a digital format that allows you to listen to crystal-clear sound without noise. Unlike conventional analogue radio stations, DAB+ broadcasts several stations on the same frequency. Further information can be found at www.dabplus.de or www.dabplus.ch.

6.2 DAB+ (digital radio) reception

Press the MODE button several times until [DAB+] appears on the display.

When DAB+ is started for the first time, a complete station search is performed. Once the scan is complete, the first station is played in alphanumeric order.

6.2.1 Carry out a complete search

The automatic scan Full scan scans all DAB+ bands III channels and thus finds all stations broadcast in the reception area.

Once the search is complete, the first station is played in alphanumeric order.

Press the SCAN button (3).

Alternatively:

Open the menu by pressing the MENU button and then use the ◀, ▶ buttons to select the [FULL SEARCH] entry. Press the OK/II button.

During the search, the display information shows the progress and the number of digital radio stations found.

10:00 10:00 T.II DAB ); ;)

Once the station search is complete, the first DAB+ programme is played.

6.2.2 Set manually

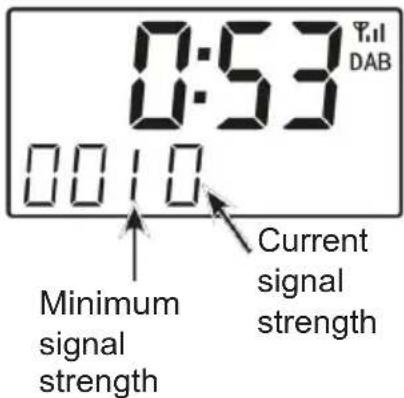

This menu item is used to check the reception channels and can be used to align the aerial. Furthermore, transmitters can be added manually.

Open the menu and use the ◀, ▶ buttons to select the entry [MANUAL] and press the OK/ button
Use the ◀, ▶ and OK/▶II buttons to select a channel (5A to 13F). The signal strength is now shown on the display. If a DAB+ station is received on a channel, the ensemble name of the station is displayed.

The antenna can now be aligned for maximum signal strength. The more "zeros" to the right of the minimum signal strength, the stronger the signal.

0:53 DAB 00:10 Minimum signal strength Current signal strength

Transmitters whose signal strength is below the required minimum signal strength are not transmitting a sufficient signal. If necessary, realign the aerial or change the location.

If there are stations on the set frequency or channel that have not yet been saved in the station list, these will now also be saved.

6.2.3 Select transmitter

Press the ◀, ▶ buttons to switch between the available stations. Press OK/▶to play the station.

6.2.4 Store DAB+ stations in a memory location

The favourites memory can store up to 30 stations in the DAB+ range.

First select the desired channel (see point 6.2.3).
To store this station in a memory location, press and hold the PRESET button (15) during playback until the first memory location is displayed. Then use the ◀, ▶ buttons to select a favourite memory (1...30). Press the OK/▶II button to save.
Repeat this process to save additional channels. Alternatively:
Press and hold the Preset 1, 2 or 3 buttons.

6.2.5 Retrieve DAB+ stations from a memory location

To recall a station that you have previously stored in the favourite memory, briefly press the PRESET button (15) and use the ◀, ▶ buttons to select a station memory (1...30). Press the OK/▶ button to play the station.

If no station is stored in the selected programme position, [EMPTY] appears in the display.

6.2.6 Overwriting/deleting a programme position memory

Simply save a new channel to a favourite memory location as described.

All memory locations are deleted when the factory settings are called up.

6.2.7 Volume control (DRC)

The [DRC] menu item is used to set the compression rate, which compensates for dynamic fluctuations and the associated volume variations.

Open the menu and use the ◀, ▶ buttons to select the [DRC] entry.

Press the OK▶button.

DRC high -High compression

DRC low -Low compression

DRC off -compression switched off.

Confirm by pressing the OK/▶ button.

6.2.8 Delete inactive transmitters

This menu item is used to remove old and no longer receivable channels from the channel list.

Open the menu and use the ◀, ▶ buttons to select the entry [DELETE INACTIVE SENDERS].

Press the OK button.

You will be prompted to [DELETE] whether the inactive transmitters should be deleted.

Use ◀, ▶ to select the entry [Y] (Yes) and confirm by pressing the OK/▶ button.

7 FM (VHF) operation

7.1 Switch on FM radio mode

Press the MODE button several times until [FM] appears on the display.

When switching on for the first time, the frequency 87.5 MHz is set.
If you have already set or saved a station, the radio will play the last station set.
The station name appears for RDS stations.

7.2 FM (VHF) reception with RDS information

RDS is a procedure for transmitting additional information about FM stations. Broadcasters with RDS transmit their station name or programme type, for example. This is shown on the display. The device can display the RDS information RT (radio text), PS (station name), PTY (programme type).

7.3 Automatic station search

Press the SCAN button (3) to start the channel scan. Alternatively:
Press and hold the ◀, ▶ buttons to start the channel scan.

If an FM station with a sufficiently strong signal is found, the search stops and the station is played. If an RDS station is received, the station name and, if applicable, the radio text will appear.

To tune to weaker stations, please use the manual station search.

74 Manual station search

Briefly press the ◀, ▶ buttons several times to set the desired transmitter or frequency.

The display shows the frequency in steps of 0.05 MHz.

7.5 Search setting

The sensitivity of the search run can be set in this menu item.

Open the menu and use the ◀, ▶ buttons to select the entry [SEARCH SETTING]. Press OK/▶

Select whether the search should only stop for strong channels [ONLY STRONG CHANNELS] or for all channels (including weak channels) [ALL CHANNELS].

With the All channels setting, the automatic search stops at every available channel. This can result in weak stations being played back with noise. However, more stations are also found in this way than with the "Only strong stations" setting.

Confirm by pressing the OK/▶ button.

7.6 Audio setting

Open the menu and use the ◀, ▶ buttons to select the entry [AUDIO SETTING]. Press OK/▶II
Use ◀, ▶ to select the entry [STEREO ALLOWED] or [MONO ONLY] to play back in stereo or only in mono sound when FM reception is weak.
Confirm by pressing the OK/▶button.

7.7 Store FM stations in a memory location

The programme memory can store up to 30 stations in the FM range.

First select the desired channel.
To store this station in a memory location, press and hold the PRESET button (15) during playback until the first memory location is displayed. Then use the ◀, ▶ buttons to select a favourite memory (1...30). Press the OK/▶II button to save.
Repeat this procedure to save additional transmitters.

Alternative:

Press and hold the Preset 1, 2 or 3 buttons.

7.8 Recalling FM stations from a memory location

To recall a station that you have previously stored in the favourite memory, briefly press the PRESET button (15) and use the ◀, ▶ buttons to select a station memory (1...30). Press the OK/▶ button to play the station.

If no station is stored in the selected programme position, [EMPTY] appears in the display.

7.9 Overwriting/deleting a programme position memory

Simply save a new channel to the respective memory location as described.

All memory locations are deleted when the factory settings are called up.

8 Bluetooth

In Bluetooth mode, you can play music from a connected smartphone or tablet via the speakers of the DIGITRADIO BT 2. To do this, both devices must first be "paired" with each other.

8.1 Switch on Bluetooth operation

Press the MODE button several times until [BT] appears on the display.

When switching on for the first time, an external device (smartphone/tablet) can be coupled.

If an external device that is within range has already been paired, the connection is established automatically. Depending on the connected device, music playback may start automatically.

8.2 Pairing an external device

To pair an external device, e.g. a smartphone or tablet, with the DIGITRADIO BT 2, proceed as follows:

Start Bluetooth mode as described in section 8.1.

The display shows [CONNECT].

Now start the search for nearby Bluetooth devices on your external device. You may need to activate the Bluetooth function on your external device first.

To activate the Bluetooth function on your external device and perform a search, please refer to the operating instructions for your external device.

During the pairing process, both devices should be within 10cm of each other.

The entry DIGITRADIO BT 2 should now appear in the list of Bluetooth devices found on your external device. Tap on it to complete the pairing process. Once the pairing process has been successfully completed, you will hear a confirmation tone.

Depending on the Bluetooth protocol of your external device, you can control the music playback using the playback buttons on the DIGITRADIO BT 2:

Play/pause	- Button	OK/II
Next title	- Button	▶
Previous title	- 2x button	◀
Title from the beginning	- Button	◀
Volume	- Keys	Volume +/-

Alternatively, you can use the playback controls of the music app on your external device.

8.3 Revive coupling

To cancel an active pairing, briefly press and hold the PAIR button (16) until

[CONNECT] appears on the display. Please note that the device to be decoupled must be connected to the DIGITRADIO BT 2 if you want to decouple it.

You can then pair a new device as described in section 8.2.

Alternatively, you can also set up the pairing on your external device. Follow the instructions in the operating instructions for your external device.

84 AUX-IN

You can also play back an external device via the analogue AUX input. Connect the external device to the AUX connection (18) of the DIGITRADIO BT 2 using a 3.5 mm stereo jack cable.

Set the volume of the external device to a high level and then adjust the volume on the DIGITRADIO BT 2.

If the volume on the external device is too low, noise may occur during sound reproduction.

9 Further functions

9.1 Sleep timer

The sleep timer switches the DIGITRADIO BT 2 off automatically after the set time or into standby mode (in mains operation).

Press the SLEEP button (9).
Use ◀, ▶ to select a time period after which the DIGITRADIO BT 2 should switch off. You can choose between Off, 10, 20, 30, 60, 70, 80 and 90 minutes.
Press the OK/▶ button to accept the setting.

9.2 Equaliser

You can use the equaliser to adjust the sound to suit your preferences.

Open the menu and use the ◀, ▶ buttons to select the entry [SYSTEM] > [EQ]. Press OK/▶II

Use the ◀, ▶ buttons to select an EQ preset and confirm with OK/▶.

9.3 Dimmer

The display brightness can be set using the DIMMER button (17).

In battery mode, the display is always switched off after a few seconds of inactivity. To operate the device, first press any button to switch the display back on.

10 System settings

10.1 Time of day

Open the menu and use the ◀, ▶ buttons to select the entry [SYSTEM] > [TIME]. Press OKHI

10.1.1 Set time/date manually

Depending on the time update setting (point 10.1.2), you must set the time and date manually.

In the [Time] submenu, use the ◀, ▶ buttons to select the [Set time/date] entry. Press the OKHbutton.
The first digits (hours) of the time flash and can be changed using the ◀, ▶ can be changed.
Press the OK/▶ button to accept the setting.
The next digits (minutes) of the time then flash and can also be changed as described above.
After each additional setting, press the OK/▶ button to skip to the next setting.
Proceed as described above for the date.

10.1.2 Time update

In this submenu, you can specify whether the time update should be automatic, via DAB+ or FM (FM) or whether you want to enter it manually (point 10.1.1).

In the [Time] submenu, use the ◀, ▶ buttons to select the entry [AUTOM. UPDATE]. Press the OK/▶ button.
Use the ◀, ▶ buttons to select the following options:
[UPDATE FROM ALL] (update via DAB+ and FM)
[DAB+] (update only via DAB+)
[FM] (update only via FM)
[NO UPDATE] (time/date must be entered manually, see point 10.1.1).
Press the OK/▶ button to save the setting.

10.1.3 Setting the time format

In the Set 12/24 hours submenu, you can activate the 12 or 24 hour format.

In the [Time] submenu, use the ◀, ▶ buttons to select the [SELECT 12/24 HOUR FORMAT] entry. Press the OK/▶ button.

Use ◀, ▶ to select one of the following options:

[24 STD]

[12 STD]

Press the OK/▶ button to save.

10.1.4 Set date format

In the Date format submenu, you can specify the format for displaying the date.

In the [Time] submenu, use the ◀, ▶ buttons to select the entry [DATE FORMAT]. Press the OK/▶ button.

Use ◀, ▶ to select one of the following options: [DD-MM-YYYY] (day, month, year) [MM-DD-YYYY] (month, day, year)

Press the OK/▶ button to save.

10.2 Language

Open the menu and use the ◀, ▶ buttons to select the entry [SYSTEM] > [LANGUAGE] and press OK/▶

Use ◀, ▶ to select one of the available languages and confirm your selection by pressing the OK/▶ button.

10.3 Factory setting

If you change the location of the device, e.g. if you move house, you may no longer be able to receive the saved channels. In this case, you can delete all saved channels by resetting to factory settings and then start a new channel search.

Open the menu and use the ◀, ▶ buttons to select the entry [SYSTEM] > [Factory setting]. Press OK/▶II

Use ◀, ▶ to select the entry [J] to carry out the factory setting and press OK/▶II

All previously saved channels and settings are deleted. The device is now in the factory settings.

104 SW version

Under SW version you can query the currently installed SW version.

Open the menu and use the ◀, ▶ buttons to select the entry [SYSTEM] > [SW-VERSION].

Press OK/▶. The current SW version is displayed.

11 Cleaning

To avoid the risk of electric shock, do not clean the appliance with a wet cloth or under running water. Disconnect the mains plug and switch off the appliance before cleaning!

Do not use scouring pads, scouring powder or solvents such as alcohol or petrol.

Do not use any of the following substances: Salt water, insecticide ammonia, chlorinated or acidic solution ammonia.

Clean the housing with a soft cloth moistened with water. Do not use spirits, thinners, etc.; they could damage the surface of the device.

Rub the cotton cloth gently over the surface.

12 Eliminate errors

If the device does not work as intended, check it using the following table.

Symptom	Possible cause/remedy
Device cannot be switched on.	The device is not supplied with power. Connect the power adapter correctly to the socket and to the device. Charge the battery.
No sound can be heard.	Increase the volume.
The display does not switch on.	Disconnect the appliance from the mains and reapply power.
Reception via DAB+/FM is poor.	Change the position of the antenna or the DIGITRADIO BT 2.
Device cannot be operated.	Disconnect the appliance from the mains and reapply power.
Poor Bluetooth connection and dropouts	Do not exceed the maximum range of 8 metres via Bluetooth.
Device switches off automatically.	In DAB+, Bluetooth and AUX-IN mode, the device is switched off to save power. switched off if no sound has been played for 15 minutes.

If you are still unable to rectify the fault after the checks described, please contact the technical hotline.

13 Technical data

Reception paths	DAB+, FM, Bluetooth, AUX
Power supply	Via external mains adapter supplied Integrated Li-Ion battery 11.1 V, 2,200 mAh, 24.42 Wh
Frequencies	FM: 87.5-108 MHzDAB+: 174-240 MHzBluetooth: 2.402-2.480 GHz Transmission power: 7.24 dbm EIRP
Bluetooth version	5.0A2DP, AVRCP
Protection class	IPX5
Power consumption (mains operation)	Operation: max. 15 WStandby: 0.5 W (battery charged)
Music performance	2 X 10 W RMS
Working temperature	0 °C ~ 35 °C
Storage conditions	-10°C ~ 50°C / < 95% air humidity
Weight (kg)	1,1
Dimensions (WxHxD) mm	240 x 90 x 80

Technical data of the supplied power supply unit

Manufacturer	TechniSat Digital GmbH, Julius-Saxler-Straße 3, D-54550 Daun
Model identifier	R122-1501000ED
Input voltage	AC 100 - 240 V
Input alternating current frequency	50/60 Hz
Output voltage	DC 15.0 V
Output current	1,0 A
Output power	15,0 W
Consistent efficiency in operation	84,3 %
Efficiency at low load	76,0 %
Power consumption at no load	0,06 W

Chemical composition of the battery

Lithium cobalt oxide	40-45 %
Graphite	20-23 %
Carbom nanotubes	4-5 %
Methyl ethyl carbonate	2-3 %
Phosphate(1-),hexaf luoro-,lithium	2-3 %
Copper	6-8 %
Aluminium	3-5 %
Nickel	2-3 %
Poly(vinylidene flouride)	2-3 %

Technical changes and errors excepted.

14 Disposal instructions

The packaging of your appliance consists exclusively of recyclable materials. Please sort them accordingly and return them to the "Dual System". This product is labelled in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) and must not be disposed of with normal household waste at the end of its service life, but must be handed in at a collection point for the recycling of electrical and electronic equipment.

The symbol on the product, the instructions for use or the packaging indicates this. The materials are recyclable according to their labelling. By reusing, material recycling or other forms of recycling old appliances, you are making an important contribution to protecting our environment.

Please ask your local authority for the responsible disposal centre. Make sure that the empty batteries and electronic scrap are not disposed of in

The product must not be disposed of with household waste, but must be disposed of properly (take back by specialised dealers, hazardous waste).

Important note on the disposal of batteries/rechargeable batteries:

Batteries/rechargeable batteries may contain toxic substances that are harmful to the environment and must be disposed of separately from the device. For the chemical composition, please refer to the technical data or the imprint on the battery. It is therefore essential that you dispose of batteries in accordance with the applicable legal regulations. Never dispose of batteries in normal household waste. You can dispose of used batteries free of charge at your specialist dealer or at special disposal centres.

For products with a battery compartment, you can remove the battery directly. If batteries are permanently installed, do not under any circumstances attempt to remove them yourself. In this case, contact the appropriate specialist personnel, e.g. a waste disposal company.

We hereby advise you to delete all personal data stored on the device on your own responsibility before disposing of the device.

1 Illustrations ......2

Diagram of a device control panel with labeled buttons and an arrow pointing to the left button.

8.1 Bluetooth-werking inschakelen....40

Technical diagram showing a device control panel with labeled buttons and an arrow pointing to the leftmost button.

7 FM-bediening (VHF)

7.1 Schakel de FM-radiomodus in
