USER MANUAL NorFrost INFINITY 178 TNF SS NODOR

Modern kitchen interior with glossy black cabinets and a potted plant, no visible text or symbols

NODOR

always innovating

EN INSTRUCTIONS FOR USE

ES INSTRUCCIONES DE USO

FR MODE D'EMPLOI

2 Proper use of the refrigerator

2.1 Placement 6
2. 2 Levelling feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Levelling door
2.4 Changing the Light
2.5 Starting
2.6 Energy saving tips....

3 Structure and functions

3.1 Key components 1
3.2 Functions 12-

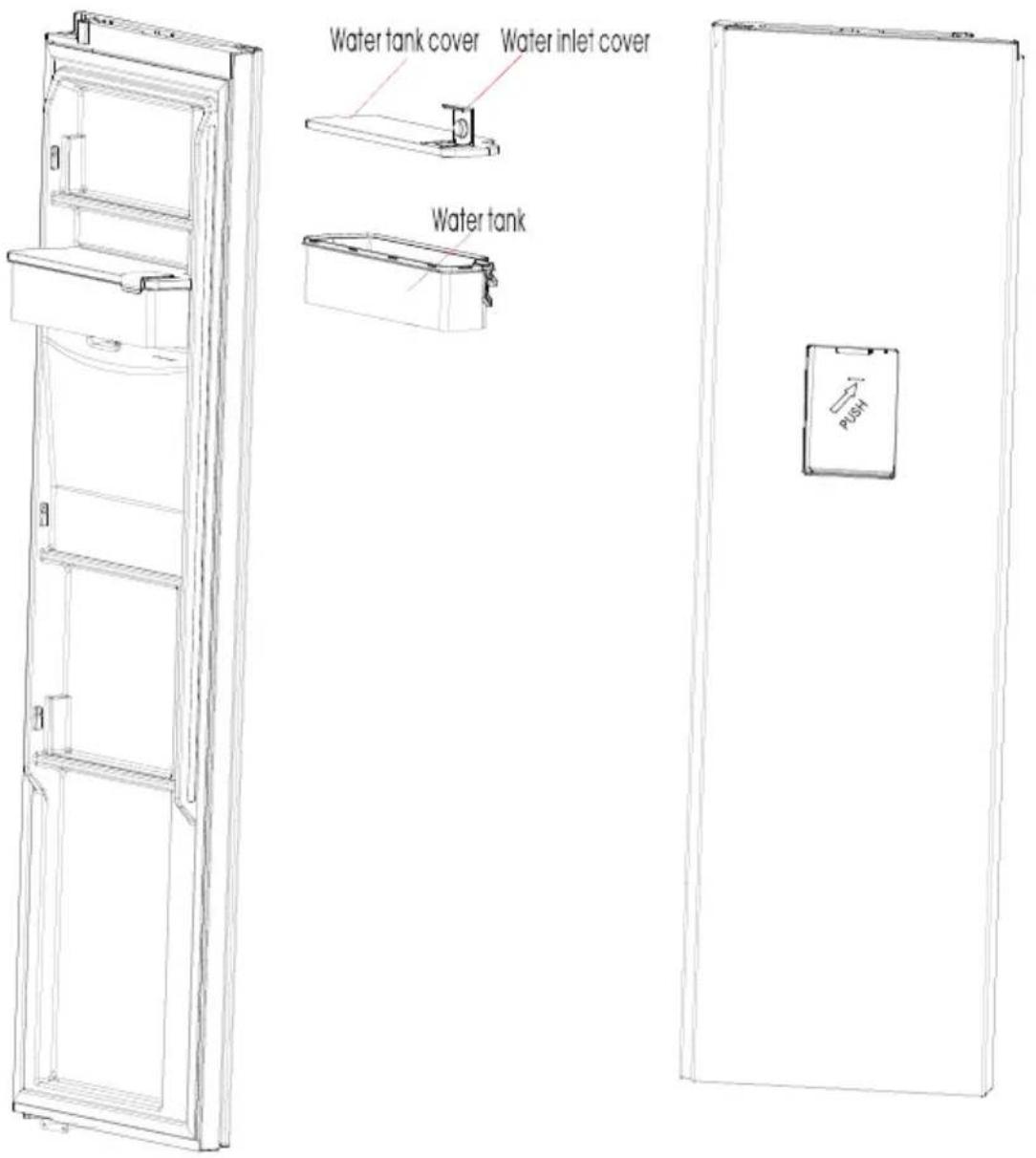

3.3 Uage of water dispenser....

4 Maintenance and care of the refrigerator

4.1 Overall cleaning
4.2 Cleaning of door dray....

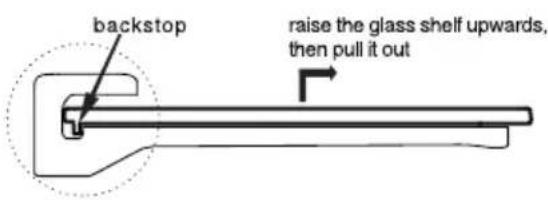

4.3 Cleaning of glass shelf . . . . . . . . . . . . . . . . . . . . . . .
4.4 Defrosting....1
4.5 Out of operation....

5 Trouble shooting

5.1 Trouble shooting

1 Safety Warnings

1.1 WARNING

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Warning: risk of fire / flammable materials

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

CHILDREN should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer: -Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

FOR EU standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

THE necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

TO avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star comparisons are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star co mp arment: this refrigerating appliance is not suitable for freezing foodstuffs.(note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

FOR a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

ANY replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

This product contains two light sources of energy efficiency class (G).

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING: Connect to potable water supply only. (Suitable for ice making machine)

TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks)

1. 2 Meaning of safety warning symbols

	This is a prohibition symbol.Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
Prohibition symbol
	This is a warning symbol.It is required to operate in strict observance of instructions marked with this symbol; or otherwise da mage to the product or personal injury may be caused.
Warning symbol
	This is a cautioning symbol.Instructions marked with this symbol require special caution Insufficient caution may result in slight or moderate injury, or damage to the product.
Note symbol

This manual contains lots of important safety information which shall be observed by the users.

1. 3 Electricity related warnings

Diagram showing hand gesture, checkmark, and cartoon character on a door panel

Simple line drawing of a plug with a circular socket and an exclamation mark (no text or symbols)

Simple line drawing of a room with a monitor and appliances, no text or symbols present

Line drawing of a refrigerator with a top-mounted appliance (no text or symbols)

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.

The power plug should be firmly contacted with the socket or else fires might be caused.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

• Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.
• Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.
• Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a cabinet with a sad face, broken down by tools and a crossed-out cross (no text or symbols)

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a child climbing a ladder inside a storage cabinet, with no text or symbols present.

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a distressed figure with a hat and crossed-out box, accompanied by a warning symbol (no text or labels)

- Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.

1.5 Warnings for placement

Illustration showing a hand holding a tray with a bottle labeled 'Zahlfluss' and a box, with a crossed-out cross symbol and an exclamation mark.

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

Blood Dried Biological protect

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber Batter

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warning for energy

Warning for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of the refrigerator

2.1 Placement

Simple line drawing of a person lifting a large box next to a rectangular block (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a potted plant and sun, no text or symbols present

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a door (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

30cm -10cm 10cm

- This refrigerator needs to be installed independently and cannot be used as a built-in. Otherwise, it will cause problems such as failure to install into the cabinet, the performance and life of the product are reduced. And the manufacturer does not provide basic product warranty. - The top space of the refrigerator shall be greater than 30cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

905mm 577mm 125° 970mm 1470mm CE-BCD533WE

- Spare enough space for convenient opening of the doors and drawers.

905mm 617mm 1010mm 125° 1470mm CE-BCD592WE

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

2.2 Levelling feet.

1) Precautions before operation: Before operation of accessories, it shall be er Before adjusting the leveling feet, precautions

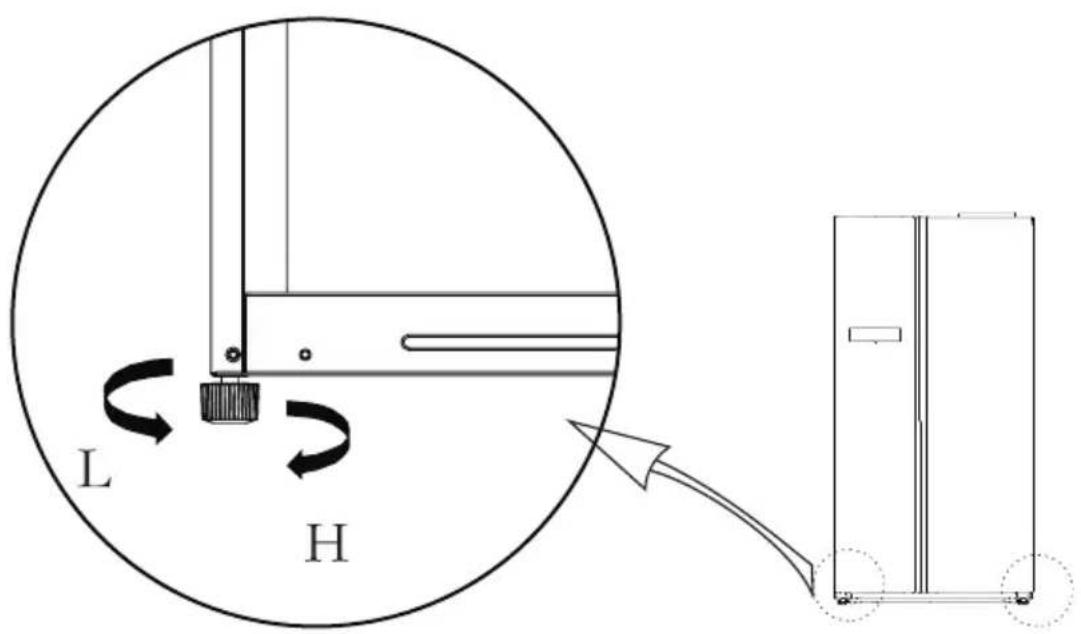

2) Schematic diagram of the levelling feet

L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

3) Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator. b. Turn the feet counterclockwise to lower the refrigerator. c. Adjust the right and left feet based on the refrigerator.

2.3 Levelling door

1)Precautions before operation:

Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the door, precautions shall be taken to prevent any personal injury.

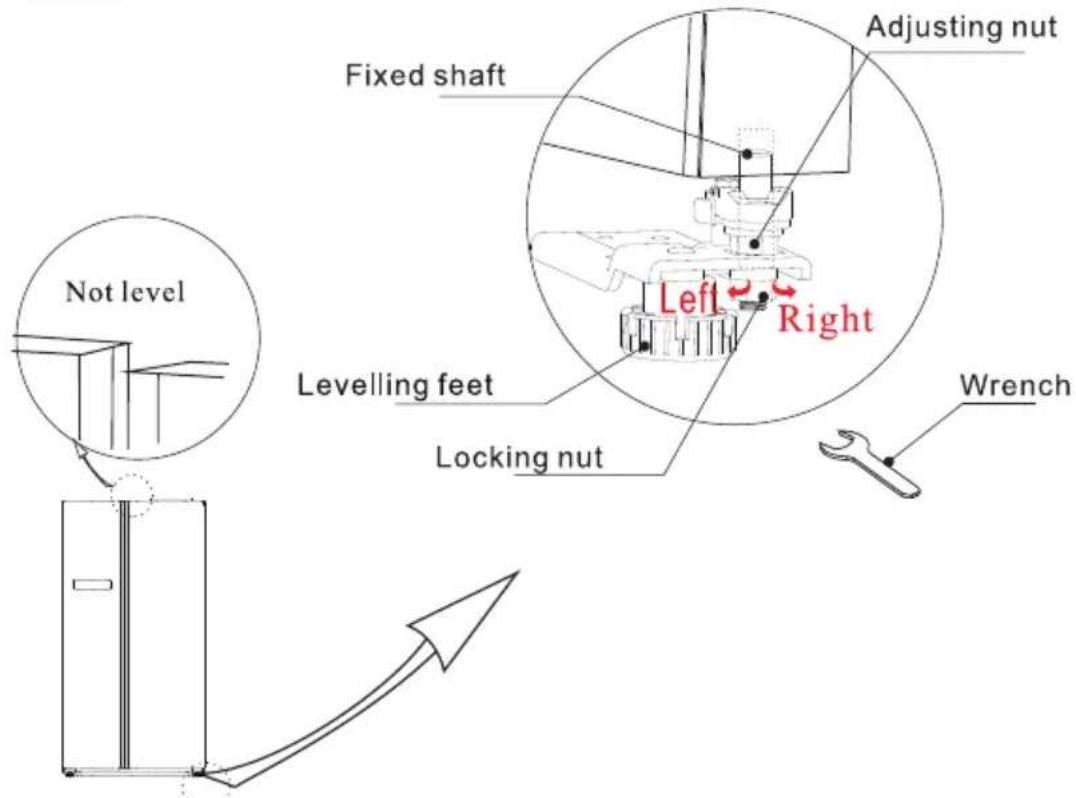

2) Schematic diagram of levelling the door body

List of tools to be provided by the user
	wrench

Fixed shaft Adjusting nut Left Right Wrench Not level Levelling feet Locking nut

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

When the fridge door is low:

Open the door, use a wrench to loosen the locking nut and to rotate the adjusting nut anti-clock to raise the height of the door. Once the doors are aligned, then tighten the locking nut by rotating it anti-clockwise.

When the fridge door is high:

Open the door, use a wrench to rotate the adjusting nut clockwise to lower the height of the door. Once the doors are aligned, then tighten the locking nut by rotating it anti-clockwise.

2.4 Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Light source in this product is replaceable only by qualified engineers.

	1. Please take out the plug before removal.		2. Remove the lampshade with a screwdriver.
	3. Take down the lamp panel.		4. Remove the connection terminal.

2.5 Starting

Simple line drawing of a smiling cabinet with closed eyes and a power outlet connected to its side (no text or symbols)

• After transportation, please let the product stay for more than 2 hours before turning on the power, otherwise it will lead to a decrease in cooling capacity or a damage to the product.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

3.1 Key components

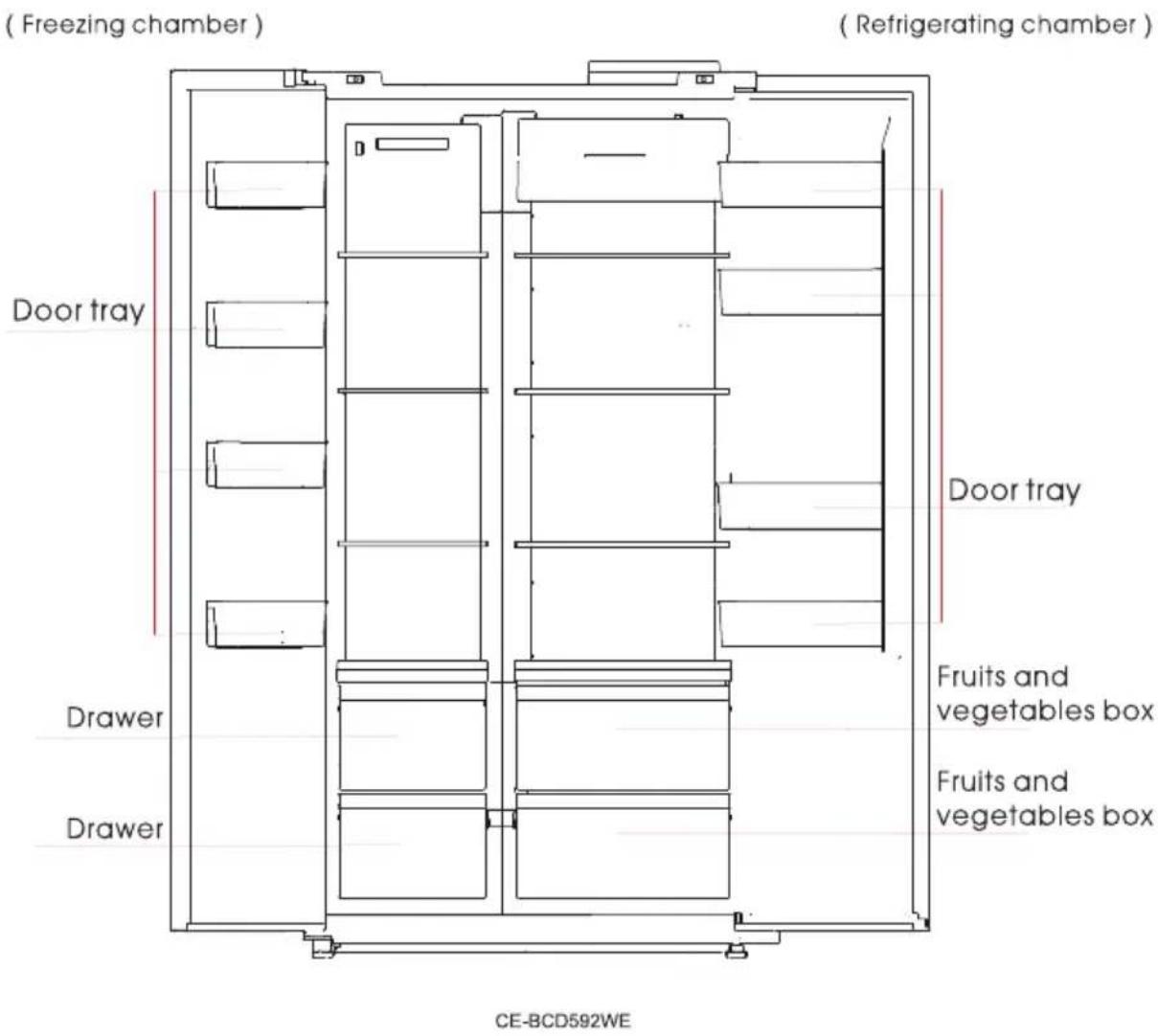

(Freezing chamber) (Refrigerating chamber) Door tray Door tray Draver Draver Fruits and vegetables box Fruits and vegetables box CE-BCD592WE

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

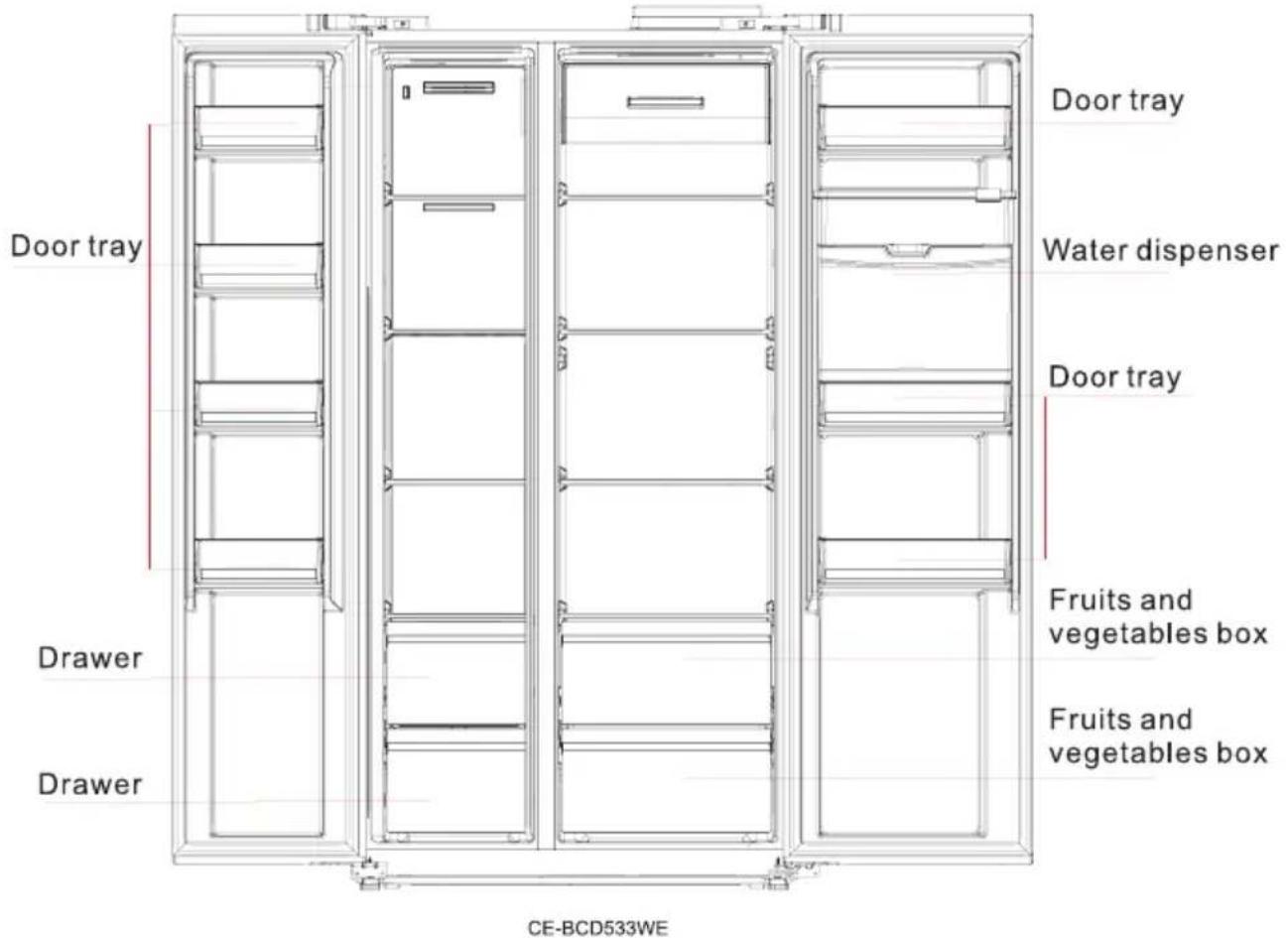

Door tray Water dispenser Door tray Fruits and vegetables box Fruits and vegetables box CE-BCD533WE

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term, suggested storage time 3 days to 5 days.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a proper storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time.

Two-Star freezing area

- Two-Star freezing area is located under the freezer door two bottle frame (16L or so), temperature ≤ -12°C, suitable for storing ice cream and so on, external hard inside soft, taste times good.

Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

3.2 Functions

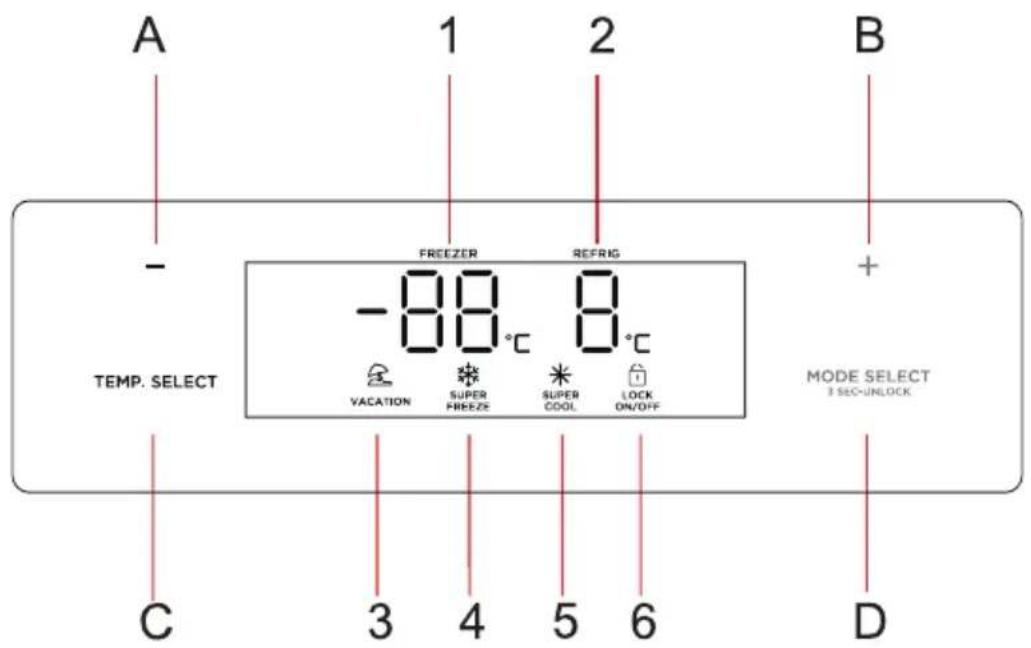

A 1 2 B - FREEZER REFRIG -88°C 8°C VACATION SUPER FREEZE SUPER COOL LOCK ON/OFF TEMP. SELECT C 3 4 5 6 D MODE SELECT 3 SEC-UNLOCK

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

1. Display

1.Freezer compartment temperature 4.Quick Freezing icon
2. Refrigerating compartment temperature 5. Quick Refrigerating icon
3. Vacation icon 6. On/Off icon

2.Button

A. Temperature adjusting up button
B. Temperature adjusting down button
C. Temperature adjusting button
D. Mode setting (Lock/unlock controls)

3.Operation

1) Lock/Unlock

In the unlocked state, long press the button MODE SELECT for 3 seconds, enter the lock state; In the locked state, long press the button MODE SELECT for 3 seconds, enter the unlocked state. All the following functions must be operated in the unlocking status.

2) vacation mode

Click the button MODE SELECT to enter the vacation mode. Icon lights up, the vacation mode will start after locking the control panel.

Under vacation mode, the refrigerating compartment is turned off and temperature area display - the freezer compartment temperature is set at -18 °C.

3) Super Cooling mode

Click the button MODE SELECT to enter the quick cooling mode. Icon lights up, the Super Cooling will start after locking the control panel, Super Cooling mode will not run for more than 6h.

4) Super Freezing mode

Click the button MODE SELECT to enter the Super Freezing mode. Icon lights up, the Super Freezing mode will start after locking the control panel, Super Freezing mode will exit 26h.

5) Temperature setting of refrigerating chamber

Click temperature adjusting button TEMP. SELECT, refrigerating compartment temperature will blink. Then click the button - or + again to set the temperature, and will hear one beep. Setting scope is between 2°C and 8°C. Every time you click the button, the temperature will be changed 1°C. After adjusting, New temperature setting will take effect after locking the control panel.

6) Temperature setting of freezing chamber

Click temperature adjusting button TEMP. SELECT, freezer compartment temperature will blink. Then click the button - or + again to set the temperature, and you will hear one beep. Setting scope is between -16^ and -24^ . Every time you click the button, the temperature will be changed 1^ , New temperature setting will take effect after locking the control panel. Recommended setting: refrigerating chamber 5^ , freezing chamber -18^ .

7) Storage upon power failure

In case of power failure, the instant working state will be locked and maintained till re-electrification.

8) Opening warning and alarm control

when open the refrigerator doors, the opening music will play.

9) Error code

The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have cold storage function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of the appliance.

Error Code	Fault Description
E1	Temperature sensor failure of refrigerating chamber
E2	Temperature sensor failure of freezing chamber
E5	Freezing defrost sensor detection circuit error
E6	Communication error
E7	Ambient temperature sensor error
EH	Humidity sensor failure

Note: The quick-freezing function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the quick-freezing function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

3.3 Usage of water dispenser

Water tank cover Water inlet cover Water tank PUSH

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

1) First open Water inlet cover, fill with drinking water to "MAX" marked as the maximum amount of water.
2) Use the cup to push the trigger to the inside, the water will flow out, when the trigger back to the original position, the water stops.
3) Water dispenser can only be used for pure water, not suitable for beverages or fruit juice.
Tips: Please do not remove the water tank from the door directly for water filling.

4 Maintenance and care of the refrigerator

4.1 Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

(⚠️ Please unplug the refrigerator for defrost and cleaning.)

Gas Alcohol Bassani

4.2 Cleaning of door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
• After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.
• Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

4.3 Cleaning of Glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.
• Adjust or clean the shelves according to your requirement. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.
  Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

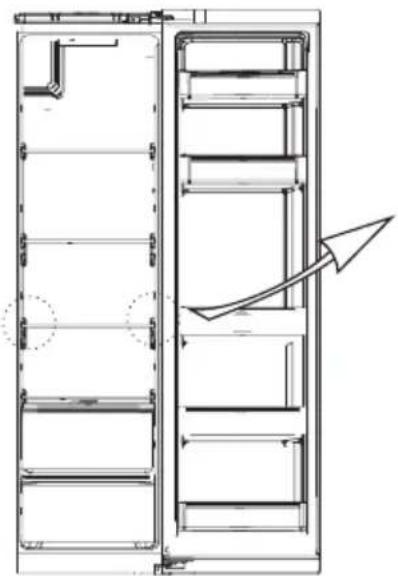

Technical line drawing of a door frame with internal compartments and a directional arrow indicating movement (no text or symbols)

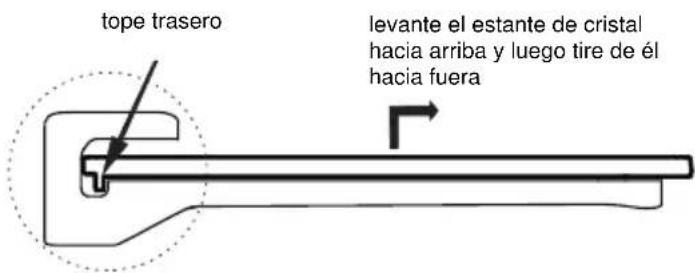

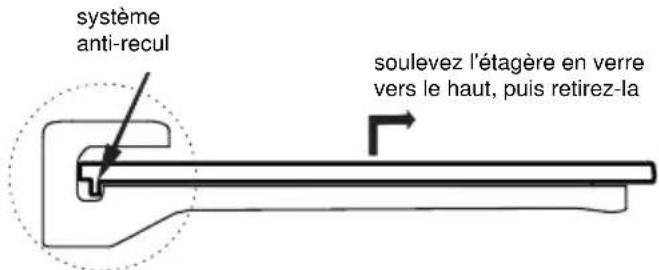

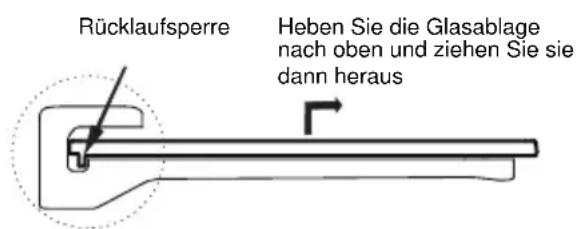

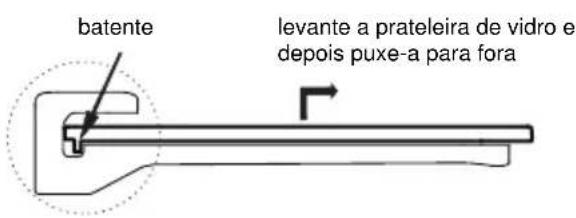

backstop raise the glass shelf upwards, then pull it out

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

4.4 Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4.5 Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired

5 Trouble shooting

5.1 You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summerwhen the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packages Too much food is placedThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot cabinet	Heat dissipation of the built-in condenser via the housing, which is normalWhen housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

ÍNDICE

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture, checkmark, and robot face with Chinese labels

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a kitchen appliance with a door and side table (no text or symbols)

Line drawing of a refrigerator with a washing machine on top (no text or symbols)

Simple line drawing of a cabinet with a sad face, scattered items including a cross and a wrench, and a no-smoking symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Illustration of a child climbing a ladder inside a refrigerator with no text or symbols on the main subject (no readable text or symbols)

Simple line drawing of a trash can with a stack of boxes and a warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, boxes, and an exclamation mark (no text or symbols on the tray itself)

Freezing chamber Freezer !

Simple line drawing of a person lifting a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to sun and crossed-out symbols (no text or labels)

Simple line drawing of a refrigerator and a door (no text or symbols)

-30cm -10cm 10cm

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Line drawing of a double door refrigerator with open doors and internal shelves (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level storage or lifting cabinet with internal compartments and structural ribs (no text or symbols)

Warning sign depicting a flame symbol in a yellow triangle with black border

Diagram showing hand gesture with checkmark and finger pointing at a smiling emoji, alongside a checkmark icon and a gift box.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a kitchen appliance with a door and stove (no text or symbols)

Simple line drawing of a refrigerator with a door and wheels, no text or symbols present

Simple line drawing of a refrigerator with a sad face, scattered items including a cross, battery, and tools (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

Simple line drawing of a child climbing a ladder inside a refrigerator (no text or symbols)

Simple line drawing of a trash can with a stack of boxes and a warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, boxes, and an icon (no text or symbols)

Bened Drugs Biological products

Freezing chamber F-er

Simple line drawing of a person lifting a large box next to a rectangular box (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun and an '×' symbol (no text or labels)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

30cm -10cm 10cm

905mm 6'7mm 1010mm 125° 1470mm CE-BCD592WE

Simple line drawing of a smiling refrigerator with eyes closed, connected to an electrical outlet (no text or symbols)

Illustration of various alcohol and beverage items including a gas vial, alcohol spray bottle, and a kettle (no text or symbols)

Line drawing of two hands holding a rectangular object with arrows indicating upward and downward motion (no text or symbols)

Technical line drawing of a door frame with internal compartments and structural ribs (no text or symbols)

Warning sign depicting a flame symbol in a yellow triangle with black border

Diagram showing hand gesture, checkmark, and robot interacting with a device

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a kitchen appliance with a monitor and fan (no text or symbols)

Line drawing of a refrigerator with a washing machine on top (no text or symbols)

Simple line drawing of a refrigerator with a sad face, scattered items including a cross and a wrench, and a no-smoking symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a shelf with no text or symbols

Simple line drawing of a trash can with a warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, a jar, and a box, with a crossed-out circle and exclamation mark (no text or symbols on the items)

Bellev Drain Bilginal product

Freezing chamber Freezer !

Simple line drawing of a person lifting a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbol (no text or labels)

Simple line drawing of a refrigerator and a door (no text or symbols)

30cm -10cm 10cm

Simple line drawing of a cartoon refrigerator with eyes closed and smiling, connected to an electrical outlet (no text or symbols)

Illustration of various household items including a gas cylinder, soap dispenser, and a kettle with steam (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a door frame with internal compartments and a directional arrow indicating movement (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture, checkmark, and robot interaction with a door panel

Simple line drawing of a plug with a circular socket and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and cabinet, no text or symbols present

Simple line drawing of a refrigerator with a door and lid, no text or symbols present

Simple line drawing of a cabinet with a sad face, scattered items including a cross and a wrench, and a no-smoking symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Illustration of a child climbing a ladder inside a refrigerator with no text or symbols present

Simple line drawing of a distressed figure with a stack of boxes and a crossed-out symbol (no text or labels)

Illustration of hands holding a tray with a bottle, containers, and a cross symbol (no text or labels)

Bened Drug Biological products

Simple line drawing of a person carrying a large box next to a rectangular block (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a smiling refrigerator with eyes closed, connected to a power outlet (no text or symbols)

Illustration of various household items including a gas vial, alcohol lamp, and kettle (no text or symbols)

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a vertical storage cabinet with internal compartments and an arrow indicating direction (no text or symbols)
