USER MANUAL WBVR144NFD Wisberg

Climate classification SN / N / GT / T
Freezer compartment volume 18 L
Fourstar compartment volume 16 L
Voltage 220-240V~
Frequency 50Hz
Rated current 1.3A
Security class I
Power usage 140W
Defrost power 160W
Energy consumption £16 0.347 kWh/24h
Energy consumption £32 0.673 kWh/24h
Temperature rise time 11 h
Refrigerant	R600a,36g
Insulating agent	Cyclopentane
Freezing capacity (Kg/24h)	12
Product code	942082

Wisepick Productions B.V.
Weera 664
3012CN, Rotterdam
The Netherlands

WBVR144NFD

WISBERG
WBVR144NFD

Serial Number

Batchcode:

Climate classification SN / N / ST / T
Freezer compartment volume 18 L
Fourstar compartment volume 14 L
Voltage 220-240V~
Frequency 50Hz
Rated current 1.3A
Security class I
Power usage 140W
Defrost power 160W
Energy consumption E16 0.273 kWh/24h
Energy consumption E32 0.54 kWh/24h
Temperature rise time 1 h
Refrigerant	R600μ,36g
Insulating agent	Cyclopenture
Freezing capacity (Kg/24h)	12
Product code	942085

Wispick Productions B.V.
Weera 664
3012CN, Rotterdam
the Netherlands Marks in China

ENERG Wilsberg Wilsberg (NEWR)4-NERD A B C D E F G D 166 kWh/annum 161 L 39°C AuCo

Climate classification -	Klimaatklasse / Classification climatique / Klimaklassifizierung
Freezer storage volume -	Opslagvolume vriezer / Volume de stockage du congélateur / Gefrierspeichervolumen
Fourstar storage volume -	Fourstar-opslagvolume / Volume de stockage Fourstar / Vier-Sterne-Speichervolumen
Voltage -	Spanning / Tension / Spannung
Frequency -	Frequentie / Fréquence / Frequenz
Rated current -	Nominale spanning / Tension nominale / Nennspannung
Security class -	Veiligheids klasse / Classe de sécurité / Sicherheitsklasse
Power usage -	Stroomverbruik / Consommation d'énergie / Stromverbrauch
Energy consumption E16 -	Energieverbruik E16 / Consommation d'énergie E16 / Energieverbrauch E16
Energy consumption E32 -	Energieverbruik E32 / Consommation d'énergie E32 / Energieverbrauch E32
Temperature rise time -	Temperatuur stijging tijd / Temps de montée en température / Temperaturanstiegszeit
Refrigerant -	Koelmiddel / Réfrigérant / Kältemittel
Insulating agent -	Isolatiemiddel / Agent isolant / Isoliermittel
Freezing capacity -	Vriescapaciteit / Capacité de congélation / Gefriervermögen
Product code -	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

VOORWOORD

4

1. VEILIGHEID 5

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

1. VEILIGHEID

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

Simple line drawing of a vertical container with a black checkmark on the side (no text or symbols)

Simple line drawing of a rectangular sign with an 'X' symbol in the center, likely indicating cancellation or rejection.

5. Wacht

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of a screwdriver with no text or symbols

Line drawing of an adjustable wrench with handle and screw (no text or symbols)

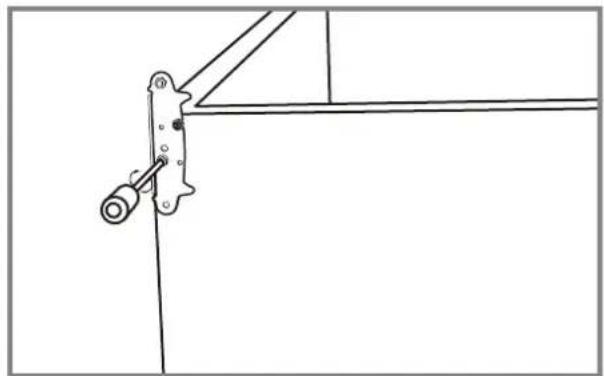

Diagram of a screwdriver being inserted into a mechanical clamp or bracket (no text or symbols present)

Pure technical diagram of a 3D mechanical part with dashed curved line and arrow indicating direction (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols

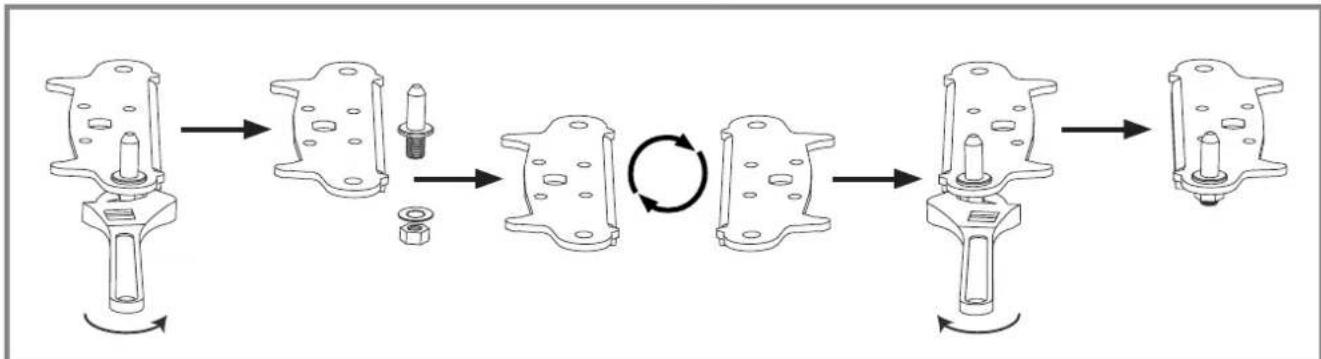

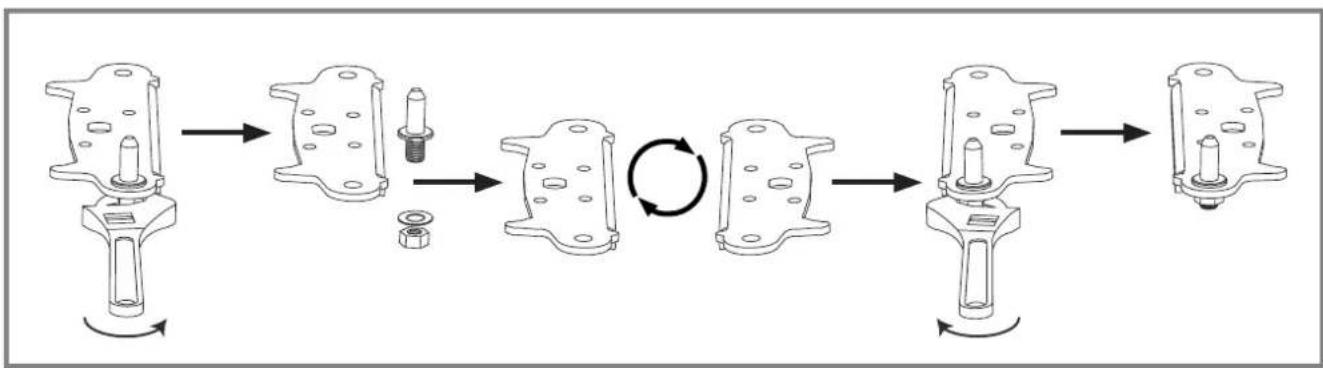

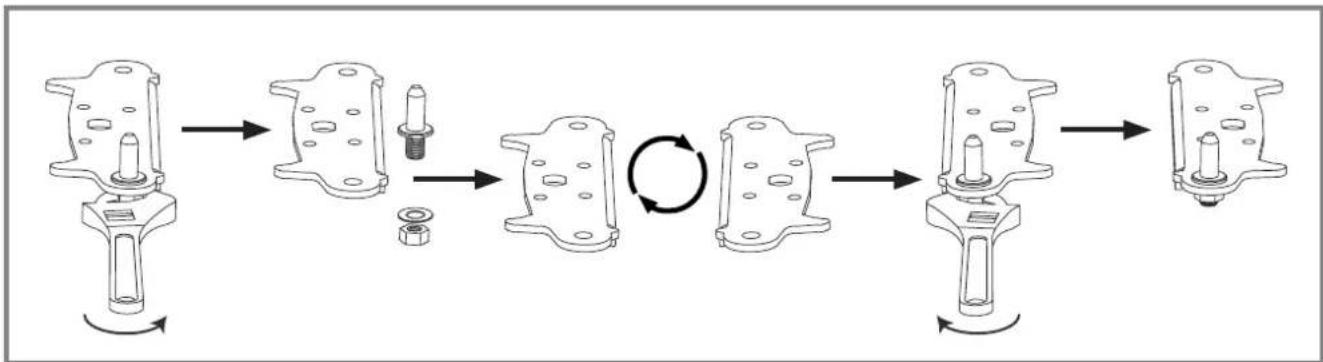

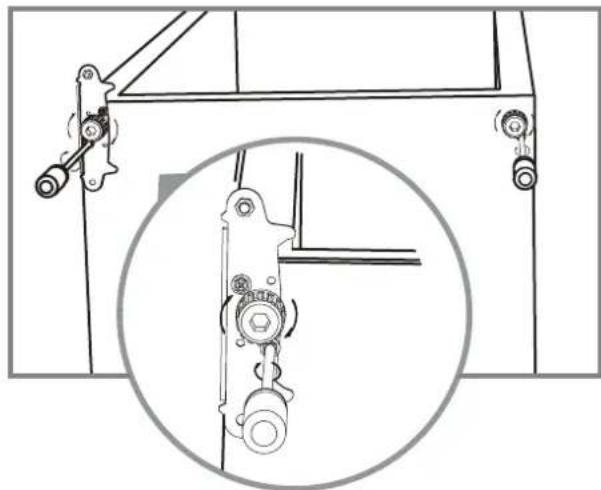

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

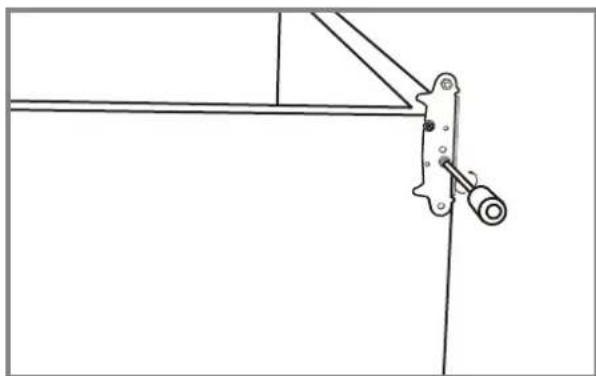

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing a rotating component (no text or symbols)

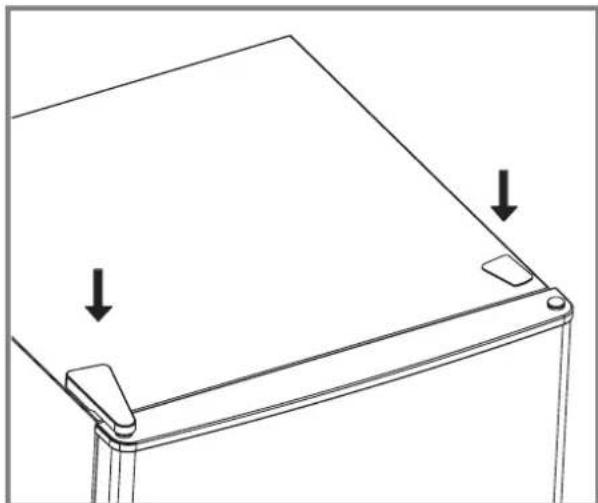

Line drawing of a mechanical component with two downward arrows indicating force or movement (no text or symbols)

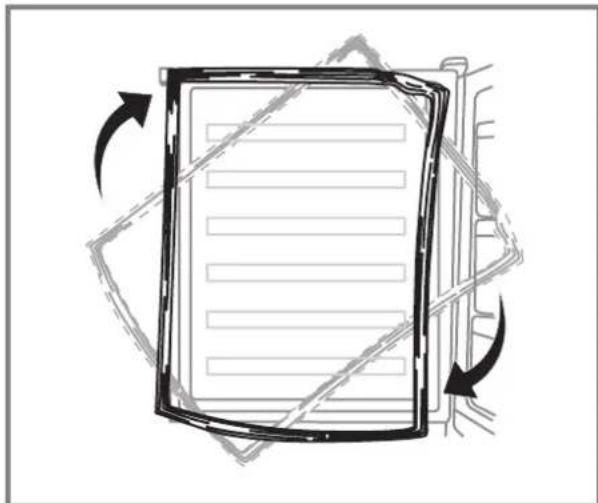

Diagram of a document being rotated by a curved arrow, showing page layout and rotation direction (no text or symbols)

4. GEBRUIK

4.1 VOORZORGSMAATREGELEN BIJ GEBRUIK

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

USER MANUAL

FREEZER

WBVR144NFE

WBVR144NFD

WISBERG

TABLE OF CONTENTS

FOREWORD 22

1. SAFETY 23

1.1 Intended use and anticipated unintended use 23
1.2 Safety warnings and regulations 23
1.3 Safety instructions: installation 24
1.4 Safety instructions: use 25

2. PRODUCT FEATURES 26

2.1 Dimensions 26
2.2 Guarantee 27
2.3 Technical Data 27

3. INSTALLATION 28

3.1 Installing the appliance 28
3.2 Door reversal instructions 29

4. USE 32

4.1 Precautions for use 32
4.2 Setting the temperature 32
4.3 Storage of food 33

5. MAINTENANCE AND CLEANING 34

6. TROUBLESHOOTING 35

7. TAKING OUT OF SERVICE 37

8. SAFE DISPOSAL 37

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at wisberghome.com if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. SAFETY

1.1 INTENDED USE AND ANTICIPATED UNINTENDED USE

- This appliance is only intended for use indoors.

- This appliance is not intended for use as a built-in appliance.

- This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, offices and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2 SAFETY WARNINGS AND REGULATIONS

WARNING!

- Keep the vents in the appliance housing open.

- Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.

- Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.

- Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.

- Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.

- It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

- Do not use this appliance with extension leads or power strips.

- Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.

- Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.

- Never pull on the power cable to move the appliance or to unplug it from the earthed socket.

- Keep the power cable away from heat, oil, sharp edges or moving parts.

• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.
• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
  • Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3 SAFETY INSTRUCTIONS: INSTALLATION

CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
• Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N, ST and T.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.4 SAFETY INSTRUCTIONS: USE

CAUTION!

• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

2.1 DIMENSIONS

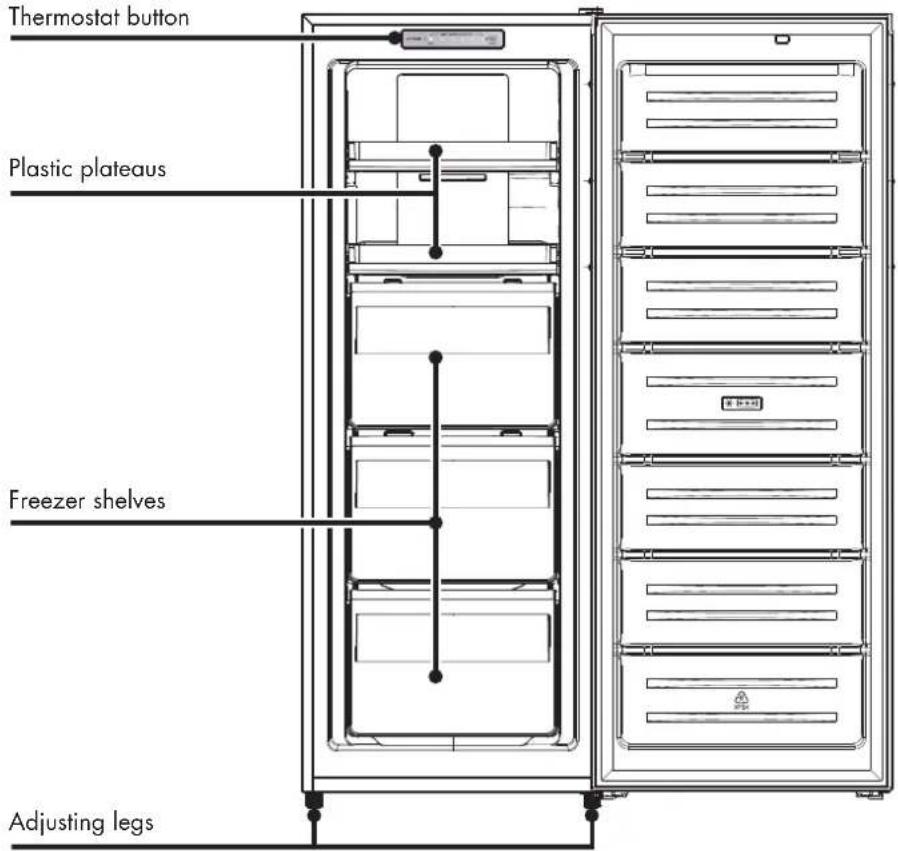

Thermostat button Plastic plateaus Freezer shelves Adjusting legs

W G H

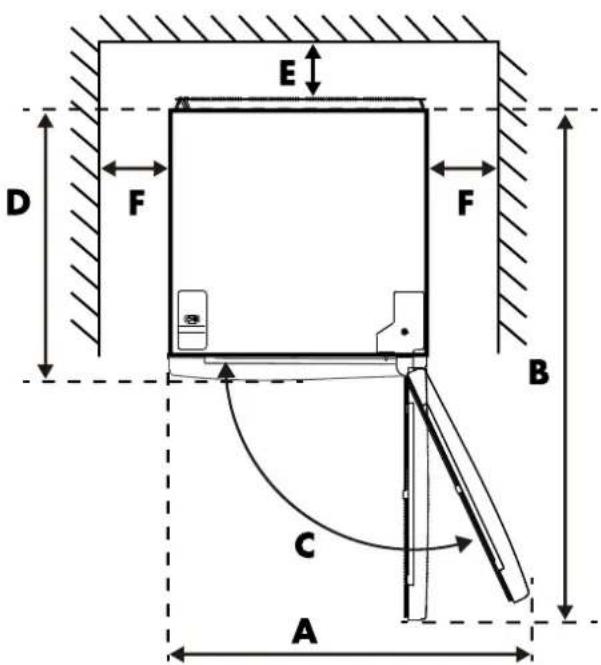

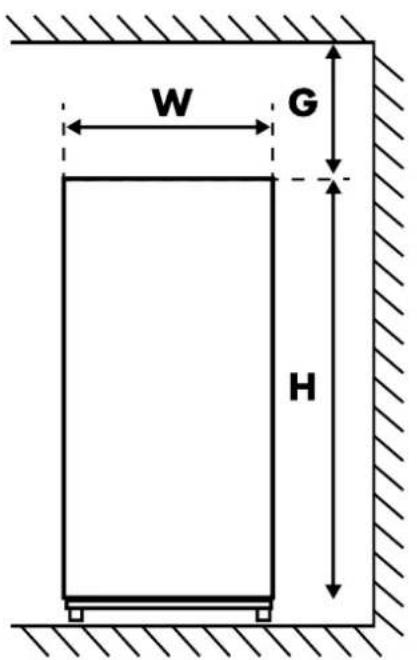

• Figure 1. Front view • Figure 2. Top view

E D F F B C A

W D H A B C(°) E F G
55cm 59,4cm 144cm	84cm 115cm	115		°	min. 5cm	min. 10cm min.	5cm

*Figures 1 and 2 illustrate the space required for the appliance.

2.2 GUARANTEE

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit wisberghome.com. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit wisberghome.com.

2.3 TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1 INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 10 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.

- Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

- It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

• Always place the appliance on a moisture-resistant and dry surface.

- Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Storing food

See Section 4 "Use".

Simple line drawing of a vertical container with a black checkmark on the side (no text or symbols)

Simple line drawing of a rectangular sign with an 'X' symbol in the center, likely indicating cancellation or rejection.

3.2 DOOR REVERSAL INSTRUCTIONS

• To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a firm surface so that it does not slip away as you reverse the door.
• Keep all removed parts to remount the door later.
• Do not lay the appliance down flat. This can damage the cooling system. If the appliance does have to be placed on its back or side for some time during this process, it must be able to stand upright for four hours before connecting it to prevent damage to the internal components.

Necessary tools:

Line drawing of a screwdriver with a pointed tip (no text or symbols)

• Crosshead screwdriver

Line drawing of a screwdriver with no text or symbols

- Flat head screwdriver

Line drawing of an adjustable wrench with a handle and spring (no text or symbols)

- Adjustable spanner

1. Unplug and empty the appliance.

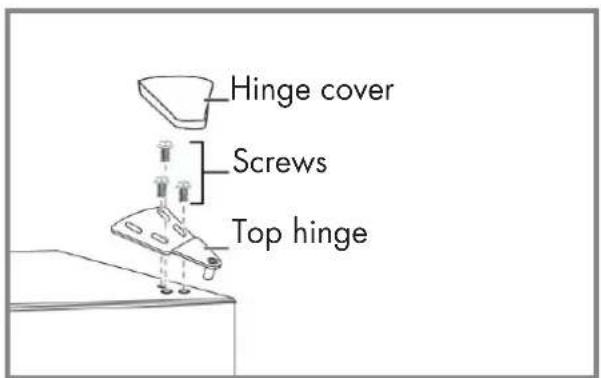

2. Remove the cover of the right hinge. Unscrew the top hinge and dismantle it.

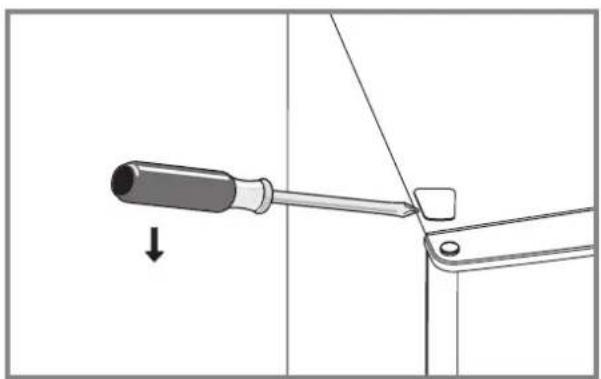

3. Dismantle the cover of the left hinge.

Hinge cover Screws Top hinge

Diagram showing a screwdriver inserted into a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

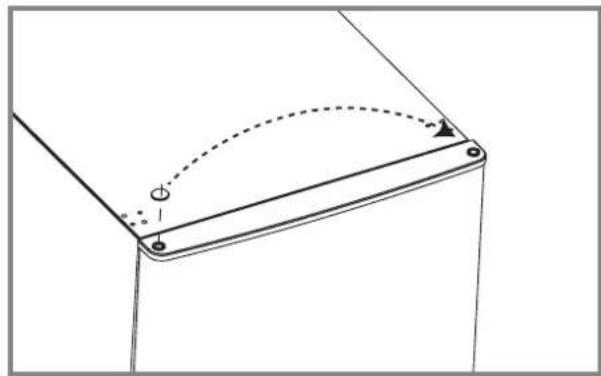

1. Dismantle the cover of the door and mount it on the other side. Lift the door off the hinge and place it on a soft surface to avoid scratches.

1. First dismantle both adjusting legs. Then dismantle the hinge bracket on the bottom right-hand side of the appliance. Unscrew the hinge pin from the bracket. Turn the bracket over and screw the hinge pin back on.

Pure technical diagram of a 3D mechanical part with dashed curved line and mounting holes (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols


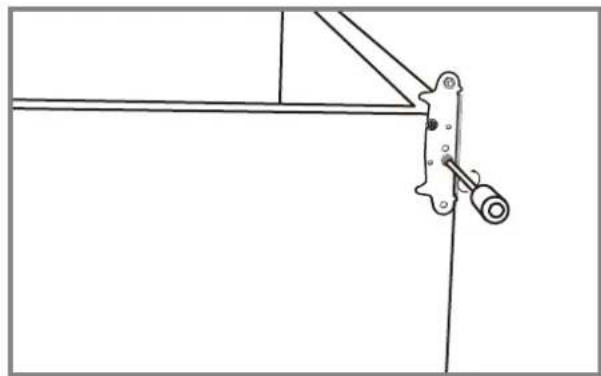

1. Install the hinge bracket on the other side of the device. Then replace the two adjusting legs.

Pure technical line drawing of a mechanical bracket or hinge assembly without any text, numbers, or symbols

1. Remount the door. Make sure the door is level horizontally as well as vertically so that the gaskets close properly on all sides before tightening the top hinge.

Technical line drawing of a mechanical device with a magnified inset showing a gear mechanism (no text or symbols)

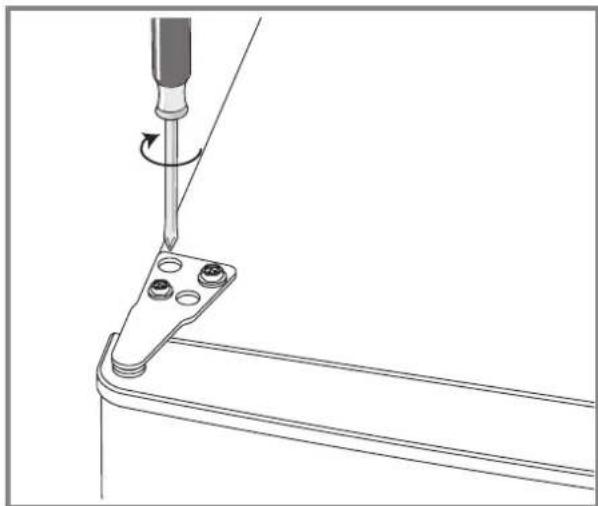

1. Put the hinge bracket in place and screw it to the top of the appliance.

* use a spanner to tighten if necessary.

Technical line drawing of a mechanical assembly with a tool and rotating component (no text or symbols)

1. Place the two covers over the hinge points.

Line drawing of a mechanical component with two downward arrows indicating force or movement (no text or symbols)

1. Remove the refrigerator and freezer door gaskets, then rotate and reattach them. Check that the door is level both horizontally and vertically when the door is closed. If necessary, readjust the adjusting legs.

Diagram of a document being rotated by arrows, showing page layout and rotation (no text or symbols)

4. USE

4.1 PRECAUTIONS FOR USE

• On first use or after a long period of downtime: run the appliance for at least four hours at position '-22' before placing products in the freezer. After 24 hours, set the temperature control at '-18'.
• The appliance may not operate optimally (risk of thawing or too high a temperature in the freezer) if it is in a place where the ambient temperature is below the minimum of the temperature range for which the appliance is designed for a longer period of time. The information about the temperature range (climate type) of the appliance is stated on the type plate, which is explained in section 1.3.
• The interior temperature may be affected by factors such as the location of the cooling unit, the ambient temperature and the frequency with which the door is opened. Adjust the temperature setting if desired.
• If vibration noise occurs because the appliance is positioned against the wall or if the wall becomes black due to air circulation around the compressor, you should place the appliance away from the wall.
• Do not place filled glass or can packages in the freezer to avoid breakage due to volume expansion.
• Do not place electrical appliances in the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
• Only use the power cable installed on the appliance from the factory. Do not change the power cable. The power cable may only be replaced by an authorised service technician.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

4.2 SETTING THE TEMPERATURE

1. Temperature setting

The freezer temperature can be set by pressing the 'Set' button. The temperature setting is confirmed if the 'Set' button is not pressed within 5 seconds. After this, the desired temperature is set and this is shown on the display.

The following settings are possible:

-14, -16, -18, -20 and -22 and 'Super Freeze'. The recommended setting is -18 °C.

SMART TEMPERATURE CONTROL -14 -16 -18 -20 -22 °C SET SUPER SUPER/3s

2. Super Freeze

Press the 'Set' button for 3 seconds to select the 'Super Freeze' mode, after which the 'Super' symbol lights up on the display. Press the 'Set' button again for 3 seconds to turn off 'Super Freeze' mode, after which the 'Super' symbol on the display goes out.

When 'Super Freeze' mode is on, the temperature inside the compartment cools down quickly, which prevents the loss of nutritional value of the food and keeps freshness intact.

* The appliance uses more energy than usual in 'Super Freeze' mode. The most energy-efficient mode for this appliance is -18 °C

3. Door alarm

If the door remains open for more than 90 seconds, the door alarm goes off. You can turn this off by closing the door properly or by pressing the 'Set' button.

4. Temperature alarm

If the temperature in the freezer exceeds -6 °C for more than 6 hours, the alarm goes off. In addition to the alarm going off, the 5 indicator lights on the temperature display also flash (the 'Super' light and the 4 digit lights from '-14' to '-20'). The alarm goes off automatically when the temperature drops below -10 degrees. You can also press the 'Set' button to stop the alarm.

4.3 STORAGE OF FOOD

• The freezer is suitable for freezing fresh food and storing frozen food for a long time.
• The maximum amount of food that can be frozen in 24 hours is for this appliance: 12 kg.
• The freezing process takes 24 hours. Do not add any other food to freeze during this period.
• The temperature of the freezer is kept below -18°C. This allows food to be stored for a long time. The storage period on the packaging must be observed.
• The ideal temperature setting for the freezer is -18^ . It is possible to set it colder, but in principle this is not necessary. A lower temperature does not mean that food will last longer, but every degree lower does mean more energy consumption.
• Allow hot food to cool to room temperature before putting it in the freezer.
• Only freeze fresh and thoroughly cleaned foods.
• Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.
• Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.
• Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.
• Ice lollies, if eaten directly from the freezer, can cause frostbite.
• It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.
• It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.
• Pack the food airtight into food freshness bags before distributing it evenly over the freezer drawers.
• Packaging bags you use should be dry, in case several packaging bags are frozen together.
• Ensure there is sufficient space between foods. Putting them too close together blocks the cold airflow, affecting the cooling effect.
• To prevent cross-contamination and odour transfer, food should be packed in suitable materials that are sturdy, flavourless, impermeable to air and water, non-toxic and pollution-free.

Tips for buying frozen goods

• When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as "best before" on the front of the package.
• Ensure that frozen food packaging is in perfect condition.
  • Always buy frozen products at the end of your shopping trip or visit to the supermarket.
• Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.
• Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.
• Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.
• Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control knob to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not remove objects from the freezer compartment if your hands are wet/damp as this
- may cause grazes or frostbite.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

DEFROSTING

This freezer is a no-frost freezer. This means that defrosting is automatic. If ice does form in the freezer, please contact our customer service as this should not happen.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
  • Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: wisberghome.com

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all.	- The control knob for the temperature is wrong.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is installed in a place where the ambient temperature is less than 10°C, such as a balcony, garage or storage room.- The power has failed.	- Set the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.- Try to open the door of the appliance as little as possible to keep the food safe and fresh for hours. If you know about the power failure beforehand: Set the thermostat button in the high mode an hour in advance, so that the food is frozen completely. (Do not add any other food to freeze during this period!) Set the temperature mode back to the original setting in good time when the power supply is restored.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the appliance.	- There is spoiled food in the appliance.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The compressor works continuously.	- Too many products are stored at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the next section.
The side panels are hot.	- This is normal.The heat exchanger components are on the side of the appliance.Immediately after installation, the sides become hot, after the fridge reaches its internal temperature,the temperature of the side panels will decrease.
Abnormal noise	- The appliance is not stable/level.- The appliance is making contact with the wall or other objects.- 'Super Freeze' mode has been turned on.	- Readjust the appliance's adjusting legs.- Move the appliance slightly.- This is normal. 'Super Freeze' mode uses the maximum power of the appliance.
The temperature cannot be set.	- 'Super Freeze' mode has been turned on.	- See Section 4 'Use' to deactivate 'Super Freeze' and set the temperature.
The appliance freezes too much.	- The temperature of the appliance is set too high.- 'Super Freeze' mode has been turned on.	- See Section 4 for information on how to set the temperature.The recommended temperature setting for this appliance is -18°C.- See Section 4.3 for information on how to turn off 'Super Freeze' mode.
The alarm goes off.	- The door is open.- The temperature in the appliance is too high.- In addition to the alarm going off, the 5 indicator lights on the temperature display also flash (the 'Super' light and the 4 digit lights from '-14' to '-20').	- Make sure the door is completely closed and stays closed.- Press the 'Set' button to deactivate the alarm.- Lower the ambient temperature by opening windows or doors or using blinds. Allow hot food to cool to room temperature before putting it in the freezer. See Section 4.4 for more information.

Contact the service centre if the fault occurs again.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

MANUEL D'UTILISATION

CONGÉLATEUR

WBVR144NFE

WBVR144NFD

WISBERG

TABLE DES MATIÈRES

AVANT-PROPOS

40

1. SÉCURITÉ 41

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

1. SÉCURITÉ

1.1 UTILISATION PRÉVUE ET UTILISATION INVOLONTAIRE PRÉVISIBLE

Simple line drawing of a rectangular container with a black checkmark on the side (no text or symbols)

Diagram showing a document with a black 'X' symbol and a horizontal line above it, likely indicating cancellation or error.

3.2 INVERSION DU SENS DE ROTATION DE LA PORTE

Line drawing of a screwdriver with a pointed tip (no text or symbols)

- Tournevis cruciforme

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

- Clé à molette

Line drawing of a screwdriver with no text or symbols

- Tournevis plat

Diagram showing a screwdriver being inserted into a mechanical clamp or bracket (no text or symbols present)

Pure technical diagram of a 3D mechanical part with dashed curved line and circular features (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing a gear mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing a rotating component (no text or symbols)

Line drawing of a flat-panel table with two arrows indicating downward force or alignment (no text or symbols)

Diagram of a door frame with directional arrows indicating rotation or movement (no text or symbols)

4. UTILISATION

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

GEBRAUCHSANLEITUNG

GEFRIERSCHRÄNK

WBVR144NFE

WBVR144NFD

WISBERG

INHALTSVERZEICHNIS

VORWORT

58

1. SICHERHEIT 60

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

1. SICHERHEIT

Simple line drawing of a vertical container with a black checkmark on the side (no text or symbols)

Diagram showing a device with a black 'X' symbol on its screen, likely indicating cancellation or error.

5. Warten

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

Line drawing of a screwdriver with no text or symbols

Diagram showing a screwdriver being inserted into a mechanical clamp or bracket (no text or symbols present)

Pure technical line drawing of a mechanical bracket with dashed curved line and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up of a hanging component (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket with a rotating component (no text or symbols)

Line drawing of a flat-panel electronic device with two downward arrows indicating mounting points (no text or symbols)

Diagram of a document being rotated by a curved arrow, showing page layout and rotation direction (no text or symbols)

4. BENUTZUNG

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

Wisberg contact details

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China
