USER MANUAL 304994 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

⚠️ Important safety guidelines for this appliance

- This appliance is meant exclusively for personal use and for the intended purpose. It is not intended for commercial use.

- Do not use the appliance outdoors and keep it away from heat sources (e.g., electric stove) and direct sunlight. Please do not keep the product close to water sources (e.g., washbasin).

- Do not use the ice cube maker with wet hands.

- Keep it on an suitable surface so that it does not tip over.

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

- Operate the appliance only with the voltage indicated on the appliance label.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance may be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

- Cleaning and user maintenance should not be carried out by children, unless they are older than 8 years and supervised.

- Keep the appliance and the cable out of the reach of children aged less than 8 years.

- In the interest of child safety, please do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around. Danger of suffocation!

- Fill the water tank only with drinking water without any additives.

- Do not move the appliance when it is being operated.

- If the mains power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service personnel or by an equally qualified person, so as to prevent any risk.

- Children should use or clean the appliance only under supervision or guidance.

- This appliance is designed exclusively for making ice cubes using drinking water! Any improper use can result in property damage and physical injury!

- The water level should not exceed the maximum mark!

- Do not damage the coolant circuit.

- Do not block or close the ventilation openings of the appliance.

• After transporting and before using it for the first time, switch off the appliance and place it at the desired location and leave it for 2 hours so that the coolant can sink down to the correct place.

The compressor can be damaged if you do not do this.

- The appliance is intended for household and similar applications such as:

- in staff kitchens in shops, offices and other workplaces

- in farm houses, by guests in hotels, motels and other accommodation

• in bed and breakfast hotels

- in catering and similar wholesale applications.

- At the end of its service life, dispose of the appliance in accordance with local regulations because it uses flammable gases and coolants.

- Children aged 3 to 8 years are allowed to load and unload cooling units.

- The insulation blowing agent used for this appliance is flammable. In order to prevent any damage to the environment or user health from uncontrolled waste disposal, you have to properly dispose of this product to ensure sustainable reuse of raw materials and proper handling of the flammable insulation blowing agent. You should dispose of this product only by handing it over to a recycling facility. Please contact your local authorities or the nearest recycling facility for detailed information regarding the correct disposal of this appliance.

- Keep the ventilation openings in the appliance housing or in the structure free from obstacles.

- Do not use any other mechanical devices or other tools than those recommended by the manufacturer to speed up the defrosting process.

- Do not use any electrical devices in the food compartments of this appliance, unless recommended by the manufacturer.

- Do not keep any flammable objects such as aerosol sprays with flammable gas in the appliance.

- Warning: Fire hazard! Flammable material!

- Warning: When installing the appliance, ensure that the power cable is not jammed or damaged.

- Warning: Do not insert multiple sockets or portable power adapters on the rear panel of the appliance.

- To avoid contamination of food, please note the following:

- Opening the door for a long time can significantly increase the temperature in the compartments of the appliance.

- Regularly clean the surfaces that may come in contact with food and any accessible drainage systems.

• Clean the water tanks if they have not been used for 48 hours.
• Rinse the water system connected to the water supply if it has not been used for 5 days.
• Switch the cooling unit off if it is not being used. Then defrost, clean, dry it and leave the door open to prevent mould formation in the unit.

Warning sign depicting a flame symbol in yellow and black on a white background

Warning! Fire hazard!

Flammable material!

Thank you for choosing an BRANDSON product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Ice cube maker
• Ice cube scoop
• User manual

2. Technical data

Power supply 220-240 V AC, 50 Hz

Power consumption 150 W

Water filling capacity Max. about 3.4 l

Daily production about 12-14 kg

Features Automatic warning when water level is low

3. Product details

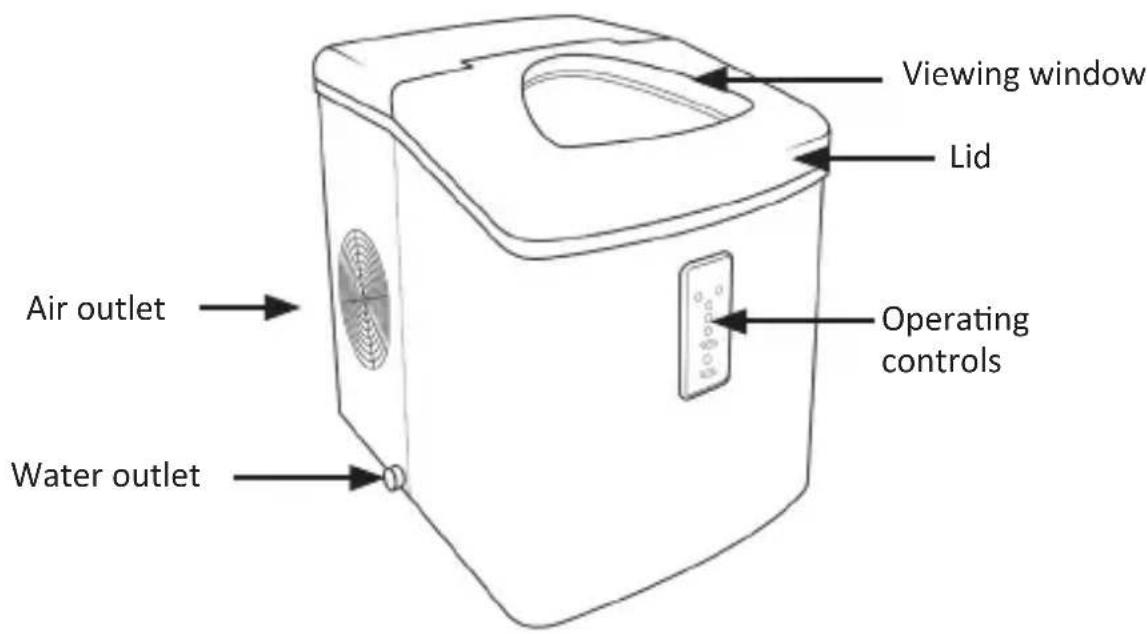

Viewing window Lid Air outlet Operating controls Water outlet

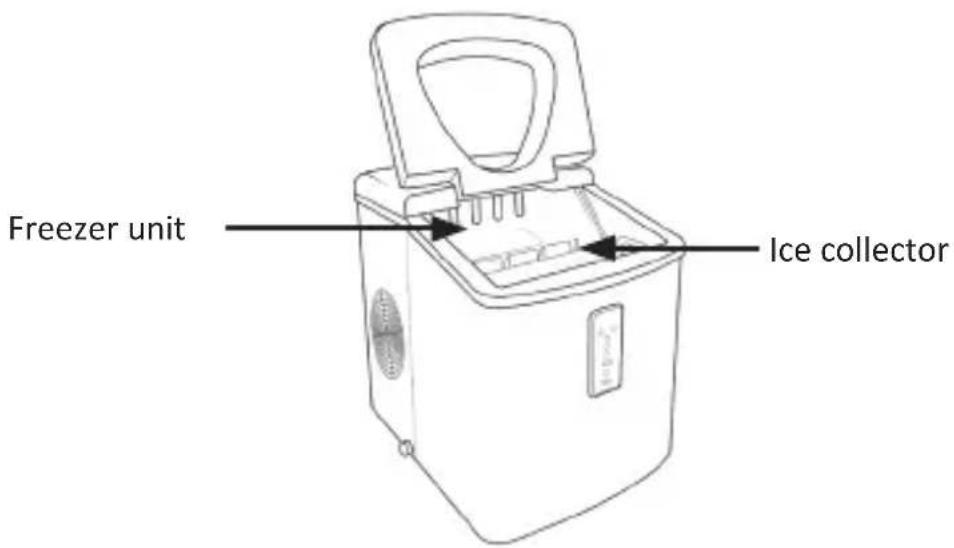

Freezer unit Ice collector

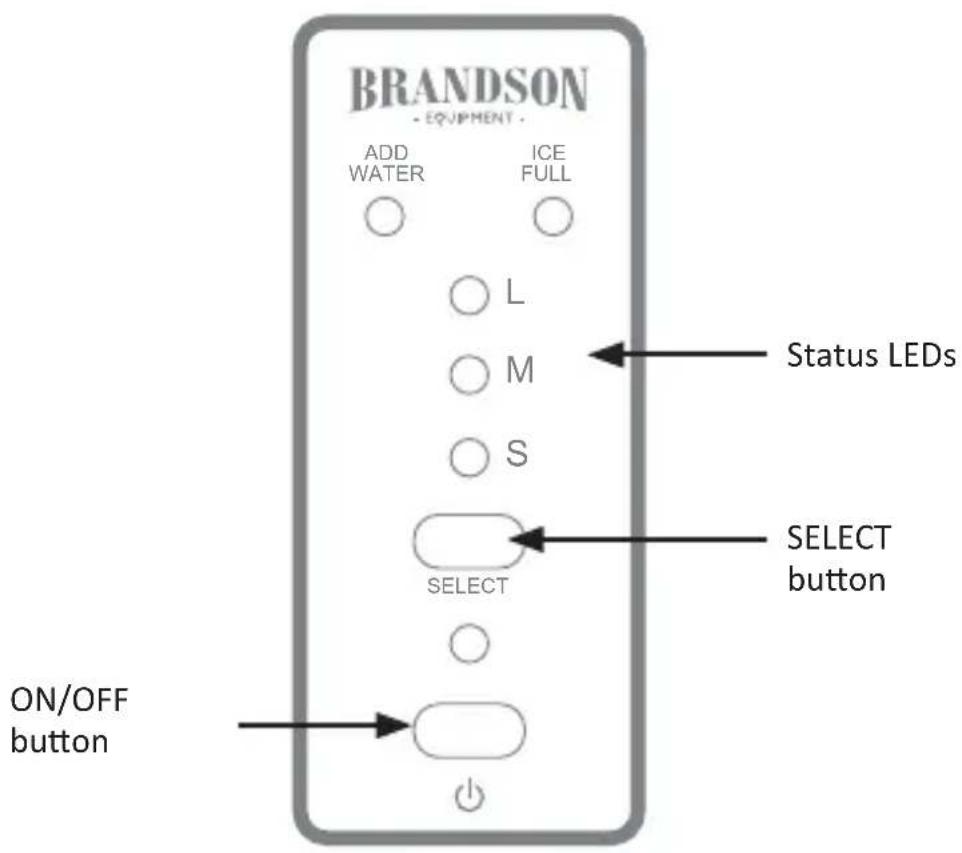

1. Operating controls


BRANDSON EQUIPMENT ADD WATER ICE FULL L M S SELECT ON/OFF button Status LEDs SELECT button

Status LEDs

LED Meaning
S Ice cube size "Small"
M Ice cube size "Medium"	(small)
L Ice cube size "Large"
ON/OFF The appliance is turned on
ADD WATER Lights up when the water tank is empty
FULL ICE Lights up when the ice collector is full

5. Initial use

Check if the product and the components are intact and if the appliance is working properly when using it for the first time Remove the appliance out of the packaging and connect it to a properly installed earthed socket.

Wipe the surface of the appliance using a slightly dampened cloth. To remove any manufacturing residues, wipe the water tank once thoroughly before using it for the first time.

Do not operate the appliance unattended and check it for damage and proper assembly before using it each time.

6. Usage

Making ice cubes

• Open the lid of the appliance and remove the ice-collector.
• Fill the ice cube maker now with water. Ensure that you do not exceed the maximum mark. Use only drinking water without additives for making ice cubes.

Note: As far as possible, use water with a temperature of 8^ C to 25^ C.

Then replace the ice collector and close the lid of the appliance.

- Then press the "ON/OFF" button to start the appliance. The freezing process takes approximately 10 to 15 minutes.

Note: Due to the rapid freezing process, it may happen that the ice cubes appear slightly milky. The air trapped in the water can get into the ice cube. However, the air does not affect the quality of the ice cube.

The appliance pauses automatically when the collector is full (the LED "FULL ICE" lights up). The process continues if enough ice cubes are taken out or they melt. The ice cube maker stops when there is no water in the water tank. The "ADD WATER" LED lights up. You can stop the appliance manually by pressing the "ON/OFF" button. The "ON/OFF" LED stops glowing.

7. Cleaning and Care

To retain the fresh taste, we recommend you to clean the ice cube maker once a week if you are using it regularly.

• Stop the ice making cycle by pressing the "ON/OFF" button. Then disconnect the plug from the socket and allow the appliance to return to room temperature.
• If water is still left in the freezer unit, press the ice tray back carefully so that all the water flows back into the water tank.
• To drain excess water, place the appliance with the left side on an edge and place a bucket underneath, or place the appliance over the sink. Now open the drain on the left side of the appliance. Caution! Please note: Once the plug is removed, water flows out of the water tank!
• Remove the ice collector.
• Clean the inside of the appliance using a soft cloth dipped in warm water and vinegar. Then rinse it with clean water and allow it to dry completely.
• Close the drain again. Wash the ice collector in warm, soapy water. Rinse and dry it afterwards.

- Clean the outside of the appliance with a soft, slightly moist cloth. Use a mild dish washing detergent if necessary.

NOTE: Do not use any organic solvents, boiling water, cleaning agents, strong acids and bases, etc., for cleaning.

- Please empty the water tank and dry it for storage if the ice maker is not used for long durations.

8. Troubleshooting

Error Cause Troubleshooting
"ADD WATER" LED lights up	Low water levelSensor is blockedPump is faulty	Fill the water tankClean the sensorPlease contact our customer service department
"FULL ICE" LED lights up	Ice collector is full and the light barrier is blockedLight barrier is faulty	Empty the collectorCheck the light barrier
Ice cubes are sticking to each other	Water temperature is too low	Fill the water tank with water at a temperature of between 8°C and 25°C
The ice-making process seems to run as usual, but no ice is produced	Water temperature is too highAmbient temperature is too highCooling system is not working	Fill the water tank with water at a temperature of between 8°C and 25°CMake sure that you operate the appliance only in an ambient temperature between 10°C and 32°CPlease contact our Customer service department

PLEASE NOTE!

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Never expose the appliance to high outside temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damages before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Get in touch with our customer service department in such cases.

Please follow the local regulations and restrictions. Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification. This appliance is not intended to be used by individuals (including children) with reduced physical, sensory, or mental capabilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the appliance from any such authorised person.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the

product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304994 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
