Supreme Steam Ultra - Iron RUSSELL HOBBS - Free user manual and instructions

Product Type	Steam Iron
Brand	Russell Hobbs
Model	Supreme Steam Ultra
Power Supply	Mains (power cord)
Temperature Adjustment	Adjustable thermostat with positions ● (cold), ●● (medium), ●●●/max (hot)
Indicator Light	Indicates heating up and temperature maintenance
Water Tank	With max level mark
Steam Functions	Steam ironing, dry ironing, spray, steam boost, vertical steam
Steam Control	Continuously adjustable from ☒ (no steam) to ☑ (maximum steam)
Soleplate	Smooth surface (avoid scratching)
Safety	Cut-off protection in case of overheating
Maintenance	Self-cleaning once a month (more often in hard water); do not use descaling liquid
Recommended Water	Tap water except in hard water areas (use demineralized water compatible with steam iron)
Usage	Household use only
Storage after use	On the heel, after complete cooling, cord wrapped around the heel
Warranty	Limescale-related defects may not be covered (chargeable repair)
Recycling	Do not dispose of with household waste; take to appropriate collection center

Frequently Asked Questions - Supreme Steam Ultra RUSSELL HOBBS

How to fill the water tank of the iron?

Unplug the appliance, set the thermostat to • and the steam control to ✉. Open the filling hole cover and pour water slowly to avoid a steam lock. Do not exceed the max marking. Close the cover and wipe up spilled water.

What type of water to use in the iron?

You can use tap water. If you live in a hard water area, use demineralized water (not chemically softened). Ensure it is suitable for steam irons.

How to use the steam function?

Set the thermostat to ⚙ or higher (hot temperature). Set the steam control to the desired position. Wait for the light to go out before starting to iron.

How to use the steam boost?

The thermostat must be on or higher. Lift the iron off the fabric and press the button. Wait 4 seconds between each burst to allow steam to build up.

How to use vertical steam?

Set the thermostat to max and the steam control to ✉. Ensure adequate ventilation behind the fabric. Lift the iron off the fabric and press the button. Wait 4 seconds between bursts.

How to clean and descale the iron?

Use the self-cleaning function at least once a month (more often in hard water). Set the thermostat to max, steam control to ✉, hold the iron over a sink, press the self-cleaning button and move the iron. Keep away from escaping water and steam. Do not use descaling liquid.

How to dry iron?

If dry ironing for 20 minutes or more, empty the tank first. Set the steam control to . Wait for the light to go out then start ironing.

What to do if the iron smokes on first use?

Do not worry, it is normal. The smoke will stop when the appliance dries out. Iron an old piece of cotton cloth to clean the soleplate.

What safety precautions should be observed?

Never leave the iron plugged in unattended. Use on a stable, heat-resistant surface. Unplug before filling, cleaning or after use. Do not iron clothing being worn. Avoid touching hot surfaces.

How to store the iron after use?

Set the thermostat to • and the steam control to ✉. Unplug, empty water, close cover. Place the iron on its heel, let it cool completely. Wipe off moisture, wrap cord around heel and store on heel to prevent corrosion.

USER MANUAL Supreme Steam Ultra RUSSELL HOBBS

Black and white image of a steam iron with brand name 'SUPREME STEAM PRO' and certification marks (no additional text or symbols)

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Use and store the appliance out of reach of children under 8 years.

Use the iron, or set it on its heel, on a stable, level, heat-resistant surface, preferably an ironing board.

Don't leave the iron unattended while plugged in, or while it's standing on the ironing board.

Unplug the iron before filling, before cleaning, and after use.

Don't operate the appliance if it's dropped or damaged, or if it malfunctions or leaks.

If the cable is damaged, return the iron, to avoid hazard.

The surfaces of the appliance will get hot during use.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don't iron clothing while it's being worn – you'll injure the wearer.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't scratch the soleplate – avoid buttons, zips, etc.
• The appliance has a protective thermal fuse, which will blow if it overheats. If this happens, the appliance will stop working, and must be returned for repair.

HOUSEHOLD USE ONLY

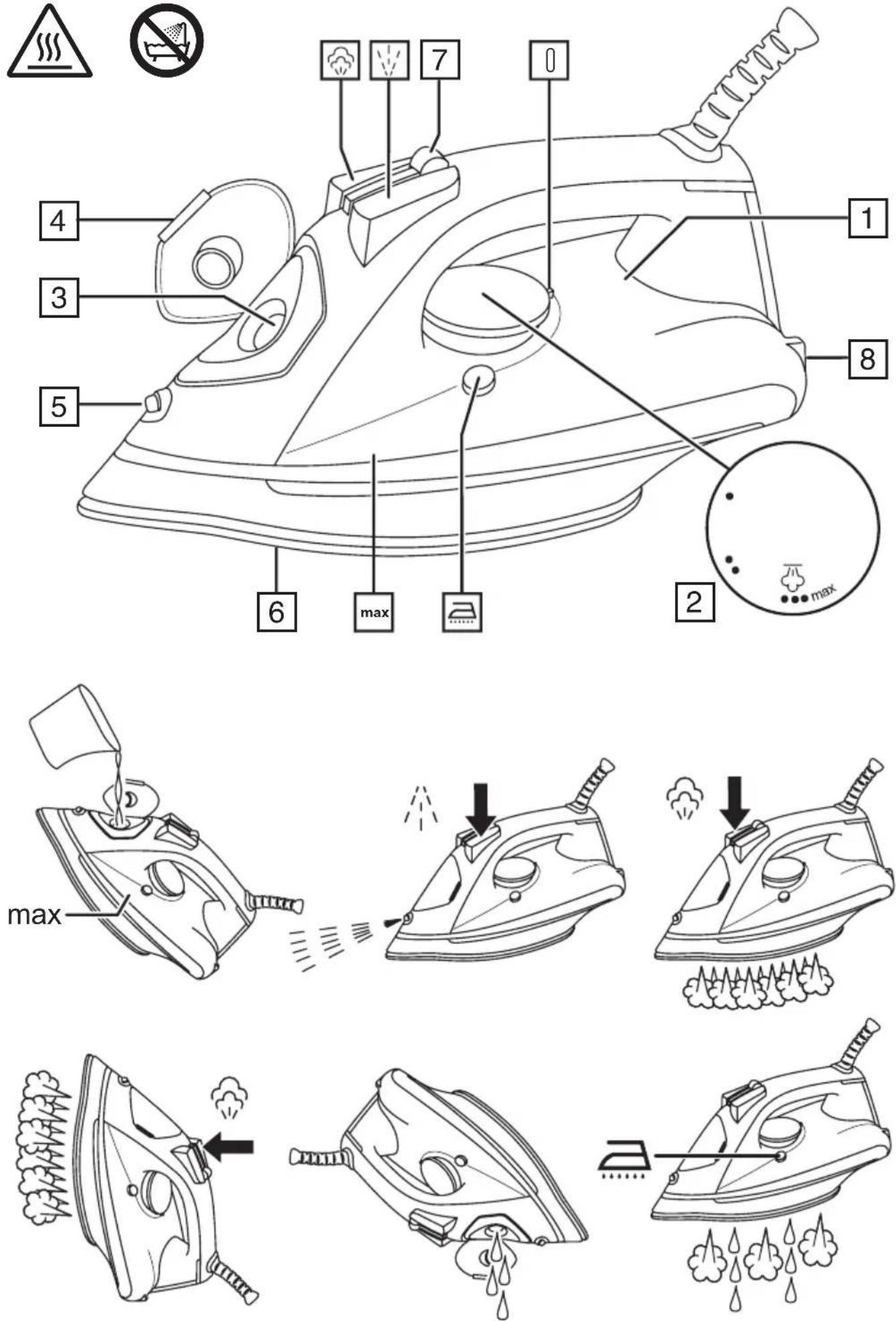

PARTS

1. Light
2. Temperature control
3. Water inlet

4. Cover

5. Spray nozzle

6. Soleplate
7. Steam control
8. Heel

BEFORE USING FOR THE FIRST TIME

• Remove labels, stickers and packaging from the iron and soleplate.
• Don't worry if the iron smokes a bit at first, it'll stop as the element cures.
• Iron an old piece of cotton fabric, to clean the soleplate.

PREPARATION

1. Check for textile care symbols (☒, ☐, ☐, ☐).
2. Iron fabrics needing low temperatures 📄 first, then those that need medium temperatures 📄, and finish with those needing high temperatures 📄.

FILLING

You may use the iron with tap-water, but if you live in a hard water area, you should use distilled water (not chemically descaled or softened water).

If you buy distilled water, check that it's suitable for use in irons.

1. Unplug the iron.
2. Set the temperature control to ●. Set the steam control to ✗.
3. Open the cover.
4. Pour slowly, to let the air in the reservoir escape, otherwise you'll cause an air lock and the water will overflow.
5. Don't fill past max, or water will escape in use.
6. Wipe up any spillage.

SWITCH ON

1. Set the temperature control to ●. Set the steam control to ✗.
2. Sit the iron on its heel.
3. Put the plug into the power socket (switch the socket on, if it's switchable).
4. Turn the temperature control to bring the setting you want next to the mark. The light will come on.
5. When the iron reaches the temperature you set, the light will go off. It'll then cycle on and off as the thermostat operates to maintain the temperature.

TEMPERATURE SETTING GUIDE

Label marking Dot setting
cool – nylon, acrylics, polyester	●
warm – wool, polyester mixtures	●●
hot – cotton, linen	●●●/max
do not iron	-

If the instructions on the fabric label differ from this guide, follow the instructions on the label.

STEAM IRONING

1. If you intend to use steam, the temperature setting must be 🏠 or higher.
2. Set the steam control to the setting you want (☒ = no steam, ☑ = high).
3. Wait till the light goes off, then start ironing.

SPRAY

Water spotting affects some fabrics. Test this out on a hidden part of the fabric.

1. Lift the iron off the fabric.
2. Aim the spray nozzle at the fabric.
3. Press the 🎨 button – you may have to press it 2 or 3 times to pump water through the system.

SHOT OF STEAM

If you intend to use steam the temperature control must be at 📋 or higher.

1. Lift the iron off the fabric.
2. Press the 📋 button.
3. Leave 4 seconds between shots, to let the temperature build up.

DRY IRONING

If you're going to be dry ironing for 20 minutes or more, empty the reservoir first, to avoid spontaneous bursts of steam.

1. Set the steam control to ✗.
2. Wait till the light goes off, then start ironing.

VERTICAL STEAMING

Remove wrinkles from hanging clothes, hanging curtains, and furnishing fabrics.

• Check that there's adequate ventilation behind the fabric, otherwise moisture may build up, causing mildew.
• Check that there's nothing behind the fabric that may be damaged by the steam.
• Check that pockets, turn-ups, and cuffs are empty.

• Check that there's water in the reservoir.

• Set the temperature control to max. Set the steam control to ✗.

• Hold the iron close to (but not touching) the fabric.
• Press the 📋 button (you're using the "shot of steam" function vertically).
• Leave 4 seconds between shots, to let the temperature build up.

AFTER USE

1. Set the temperature control to •. Set the steam control to ✗.
2. Unplug the iron.
3. Open the cover.
4. Hold it over a sink, turn it upside down, and drain the water from the reservoir, via the water inlet.
5. Close the cover.
6. Sit the iron on its heel.
7. Leave it to cool down completely.
8. When it's cold, wipe off any moisture, and wind the cable round the heel.
9. Store the iron on its heel, to avoid corrosion and damage to the soleplate.

SELF CLEAN

To avoid scale build up, use the self clean function at least monthly in normal water areas, more often in hard water areas.

Products returned under guarantee with faults due to scale will be subject to a repair charge.

You'll need a basin or a large bowl to catch the water coming out of the soleplate.

1. Fill the reservoir to the max mark.
2. Set the temperature control to max. Set the steam control to ✗.
3. Sit the iron on its heel.
4. Put the plug into the power socket and wait till the light goes out.
5. Hold the iron over the basin or bowl with the soleplate down.
6. Press the ⚡, and hold it down.
7. Gently move the iron to and fro, over the basin or bowl.
8. Water and steam will wash scale and dust through the soleplate, and into the sink.
9. When the reservoir is empty, release the 📄 button.

ANTI-SCALE

The anti-scale agent incorporated in the iron helps prevent the build-up of scale.

Don't use a descaling solution, or you'll destroy the anti-scale.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
