USER MANUAL 302208 Bearware

Abstract red graphic design resembling a stylized bear or bear silhouette (no text or symbols)

BEARWARE

Thank you for choosing a BEARWARE product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• Multi-functional projection alarm clock
• Power adapter
• User manual

2 Technical data

Power supply	2 1.5V AAA batteries or alternatively 1 DC 4.5 V power adapter with coaxial connector (3.5 mm / 1.25 mm)
Dimensions (HxWxD) approx. 110mm x 150mm x 58mm
Weight 181g (without batteries)
Features	Indoor temperatureDate displayAlarm functionTemperature in °C and °FHumidityForecast iconsSnooze functionMin/max values of temperature and humidityTemperature table for the last 12 hoursBack light (works only with mains power)12/24 hour time formats

3 Initial use

Open the battery compartment at the back of the weather station and insert the 2 1.5V AAA batteries into the battery slots and close the battery compartment again. You can also operate the device with a 4.5 V DC power adapter with coaxial connector. Plug the supplied power adapter to a properly connected power socket and to the projection alarm clock.

Note: The back light works only when used with a power adapter.

4 Product details

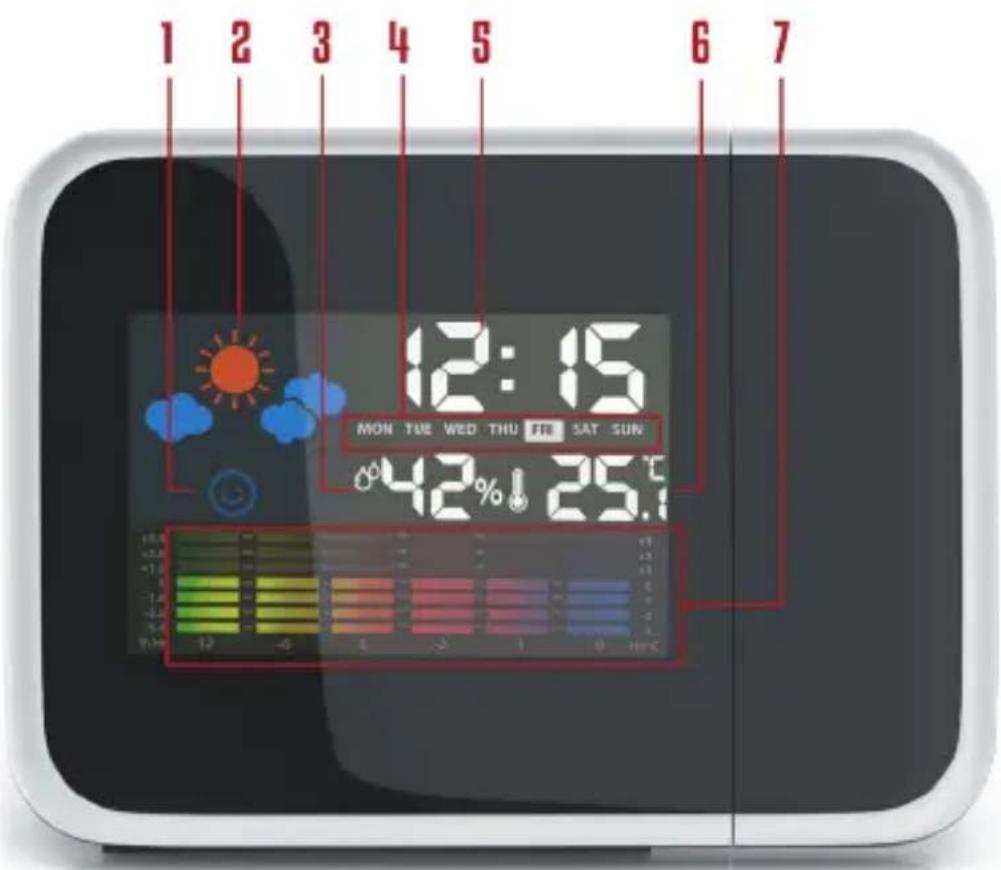

1 2 3 4 5 6 7 12:45 MON TUE WED THU FE SAT SUN 42% 25.9 -12 -4 1 0 Mon C

No. Description
1 Trend icon
2 Weather pictogram
3 Humidity
4 Weekday display
5 Time display
6 Temperature (°C)
7 Temperature table (°C) for the last 12 hours

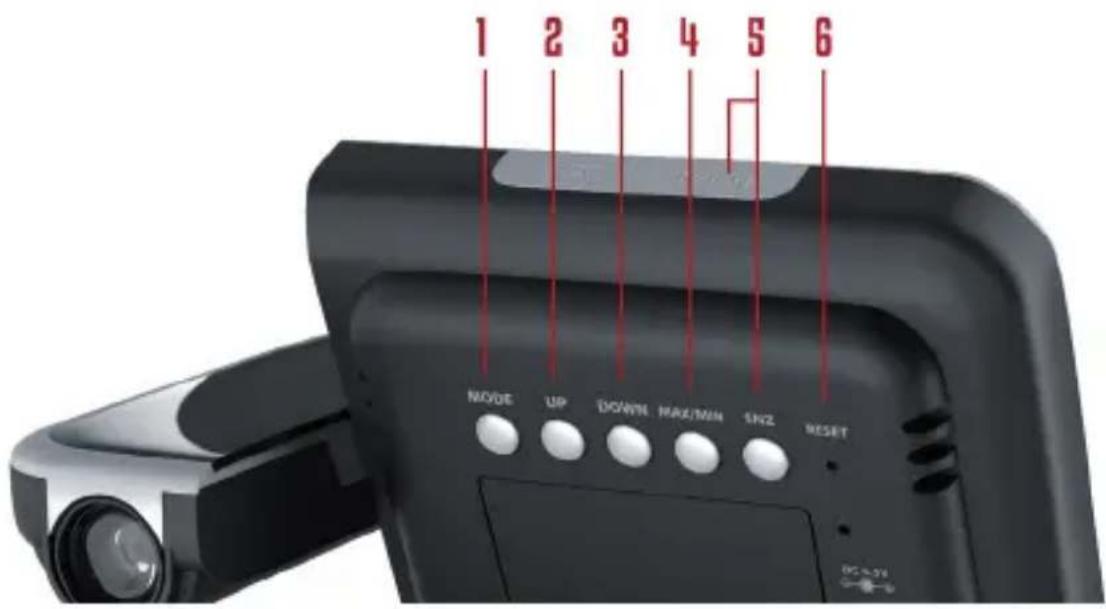

1 2 3 4 5 6 MODE UP DOWN MAX/MIN SN2 RESET DC+3V

No. Description
1	“MODE” button - Settings (Time / Hour format / Calendar / Alarm)
2 “UP”	button - Set preferences
3 “DOWN” button - Set preferences
4 “Max/Min” button - Temperature / Humidity
5 “SNZ/LIGHT” button - Activate the Snooze function / backlight
6 “Reset” button - Reset

5 Additional functions

In normal mode, you can change between the date, alarm time and time using the "MODE" button. If you do not press any button for 8 seconds, the display automatically changes back to the time.

5.1 Time

Proceed as follows to set the time:

- Press the "MODE" button till the time is shown in the display.

• Once the time is displayed, press and hold the "MODE" button till the time on the display starts to flash. The settings can be done using the "UP" and "DOWN" buttons. Confirm using the "MODE" button. The sequence for setting the time is as follows: Hours -> Minutes.
• Then press the "MODE" button to save the settings and to exit the menu.
• Note: If you want to change between the 12 and 24 hour format, you have to press and hold the "UP" button for 3 seconds.

5.2 Calendar/date

• Press the "MODE" button till the date is shown in the display.
• Press and hold the "MODE" button till the date starts to flash. The settings can be done using the "UP" and "DOWN" buttons. Confirm using the "MODE" button. The sequence for setting the date is as follows: Year -> Month -> Day.
• Then press the "MODE" button to save the settings and to exit the menu.

5.3 Alarm

• Press the "MODE" button till the alarm time is shown in the display.
• Press and hold the "MODE" button till the alarm time starts to flash on the display. The settings can be done using the "UP" and "DOWN" buttons. Confirm using the "MODE" button. Press the "UP" button to switch the alarm on/off. The sequence for setting the alarm is as follows: Hours -> Minutes.

5.4 Temperature and humidity

- Press the "MAX/MIN" button to see the maximum temperature and humidity. Press the button again to see the minimum temperature and humidity. Pressing the button again displays the current values.

- Press the "DOWN" button to change between °C and °F.

5.5 Projection/Snooze/Light

• Press the "Snooze/Light" button during the alarm to enable the "Snooze" function.
• Press the "Snooze/Light" button to turn on the back light and the projector.
• Note: The back light works only with mains power.
• Move the "Focussing wheel" at the back of the projection arm to focus the projection.

6 Additional information

• Replace the battery if the display becomes dim or the alarm sound is too low.
• If you notice that the product does not contain batteries, then you should not use it.
• If the LCD display does not show any image or it is faulty, try to remove and insert the battery again.

7 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

12 English

8 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

9 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302208/20170105FZ004 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30719 Hanover
