Product type	Electrical outlet with countdown timer
Brand	Bearware
Model	304274
Power supply	230 V AC, 50 Hz
Maximum current	16 A
Maximum power	3680 W (400 W for inductive loads with capacitors)
Weight	102 g
Timer functions	Countdown 2H, 4H, 6H, 8H; continuous on/off; light sensor (turns on in darkness)
Light sensor	Yes, built-in
LED indicator	Status LED
Intended use	Household use, dry indoor only
Maintenance	Clean with a soft dry cloth; do not use water
Safety	Do not open, do not insert objects, do not use with power strips or extension cords, unplug during storms or when not in use
Inductive load compatibility	Limited to 400 W (motors with capacitors)
Ambient temperature	Between 5 °C and 40 °C
Protection	Do not cover the light sensor
Warranty	Subject to correct use; repair by qualified personnel only
Disposal	Do not dispose of with household waste; follow the WEEE directive (2012/19/EU)

Frequently Asked Questions - 304274 Bearware

How to use the timer on the Bearware 304274 outlet?

Turn the function dial to the desired position: 2H, 4H, 6H, 8H for countdown, ON for continuous on, OFF to turn off, moon symbol to turn on in darkness until sunrise.

Can I plug a powerful device into this outlet?

Yes, but observe the maximum load of 16 A / 3680 W. For inductive loads like motors, limit to 400 W.

What should I do if the outlet does not turn on with the light sensor?

Check that the sensor is not covered. Set the dial to the moon position. The outlet only turns on in darkness. Make sure the outlet is plugged in and the status LED is on.

How to clean the Bearware 304274 outlet?

Always unplug the outlet before cleaning. Use a soft, dry cloth. Never use water or liquids, as they could damage the device.

Can I use the outlet outdoors?

No, the outlet is designed for dry indoor use only. Protect it from moisture, water, and snow.

What should I do if the outlet stops working?

First check the connection and the status of the connected device. If the status LED does not light up, unplug the outlet and check the fuses. Never attempt to repair it yourself; contact a specialist or customer service.

Is it safe to leave the outlet plugged in permanently?

It is recommended to unplug the outlet during prolonged absence or storms. The outlet is only de-energized when the plug is disconnected.

Can I plug multiple devices via a power strip into this outlet?

No, do not use the outlet with power strips or extension cables. Plug it directly into a properly installed wall outlet.

What does the status LED mean?

The status LED lights up as soon as the outlet is plugged in and powered. It indicates that the device is ready to operate.

How to dispose of the outlet at end of life?

Do not dispose of the outlet with household waste. Follow the WEEE directive: take it to a public collection point or return it to the retailer for recycling.

USER MANUAL 304274 Bearware

ADDITIONAL SAFETY GUIDELINES FOR THIS DEVICE

• This device is designed only for domestic use. It is not intended for commercial use.
• Do not open the device. Do not insert any objects into the openings!
• This product is not intended to be used by individuals (including children) with reduced physical, sensory, or mental capabilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the device from any such authorised person.

• Children should be supervised to ensure that they do not play with the device!

- Using accessories and device components that are not expressly recommend-

ed by the manufacturer may result in in- juries or damage and in loss of warranty.

• Do not immerse the device in water or other liquids during cleaning or operation. Do not hold it under running water!
• Do not attempt to repair the device yourself. Hand over the product for maintenance and repair to an authorised dealer or qualified customer service personnel.
• Use the device only in dry indoor areas!
• Never place the product near heat sources, such as fireplace or grill! Keep it away from fire.
• Avoid using it in very humid climate or in a very dry surrounding!
• Do not expose the device to extreme heat (more than 40^ ) and cold (under 5 °C) and to direct sunlight.
• The mains voltage has to match the specifications on the type plate.

• Ensure that the device is always easy to access and reach.

• Disconnect the mains plug in case of prolonged absence or severe thunderstorms in order to protect the electronics.

• Do not use the device if it has fallen down! Have it checked by a technician.
• Protect the housing from damage and do not open the product by yourself. No not attempt to replace any parts or to repair the device by yourself.
• Connect the device only to a properly installed socket.
• Do not use the device in combination with power strips or extension cords.
• The socket is not suitable for inductive loads, such as electric motors.
• Only for use in dry rooms.
• Do not cover the light sensor.
• Disconnected only when the plug is removed
• Do not connect in series

Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Socket with countdown timer
• User manual

2. Technical data

Electric supply 230 V AC, 50 Hz
Maximum load 16 A / 3680 W	^*
Weight	102 g
Functional features	Countdown function4 different timer functionsLight sensor

* Only suitable upto 400 W when connecting inductive loads with motor capacitors

3. Product details

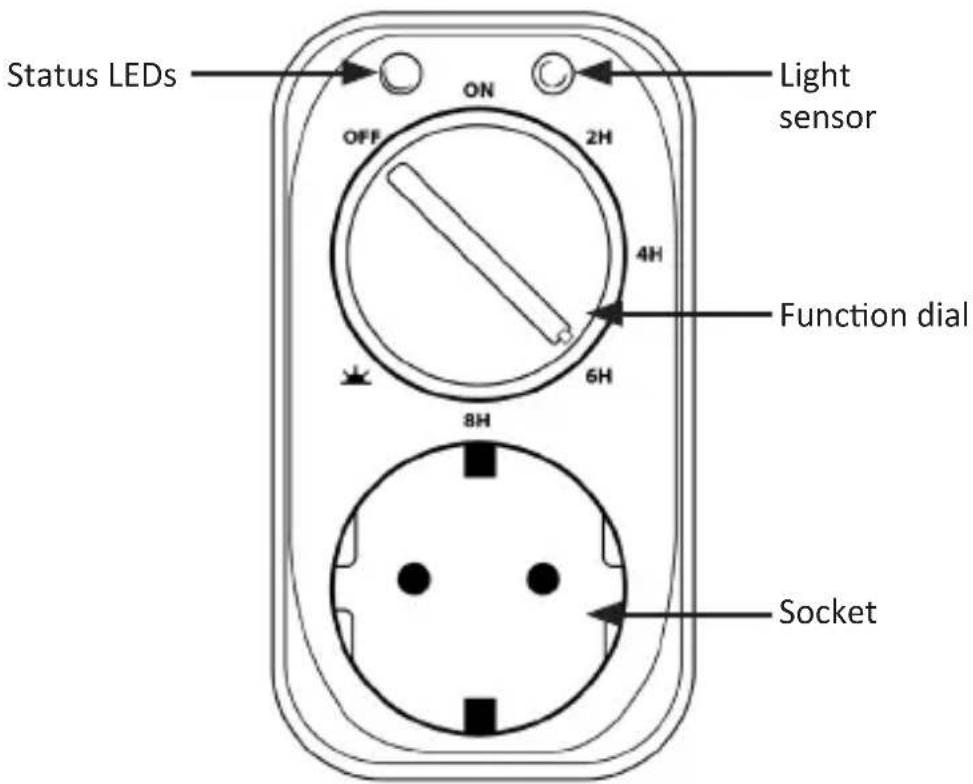

Status LEDs ON OFF 2H 4H 6H Function dial 8H Socket Light sensor

4. Initial use

Take the device out of the package and remove all the packaging material. Check the scope of delivery for completeness and damage.

Connect the product to a properly installed socket. Connect a desired device that you want to control with the countdown timer. To start the countdown, select the desired countdown function using the function dial. The table below describes the functions of the settings:

2H, 4H, 6H, 8H Switched on for the configured duration once it is dark
ON Continuously switched on
OFF Continuously switched off
	Switched on once it is dark until sunrise

NOTE: Note that the device starts the configured countdown only once it is dark. As soon as the socket is switched on using the timer, the status LED starts glowing.

14 English

5. Cleaning and Care

Before cleaning, disconnect all the connected devices and unplug the product from the socket. Clean the device with a soft dry cloth. Never use water for cleaning.

Caution! Ensure that fluids do not get into the housing!

6. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the device is not being used or during thunderstorms. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Never expose the device to high outside temperatures. Please do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way.

Please follow the local regulations and restrictions.

Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. Use the device only for the intended purpose. Improper use could lead to hazards.

The specifications of the device may be changed without prior notice. The device should only be used by those who have read and understood this user manual.

7. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sep-

arately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

Correct disposal of this product

Within the EU, this symbol indicates that this product must not be disposed of with household waste. Used devices contain valuable materials that should be recycled to prevent harm to the environment or human health caused by uncontrolled disposal of waste. Please dispose your old devices via appropriate collection centres or send the device for disposal back to the place where you bought it. It will then be sent for recycling.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304274 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
