USER MANUAL 305748 Bearware

Thank you for choosing an Bearware product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Dimmer socket
  Remote control
• User manual

2. Technical data

Electric supply 250V ~AC 50 Hz
Maximum power 300 W
Frequency range 433.92 MHz
Battery remote control Type 27A 12V battery
Maximum transmission power (EIRP) -1	079 dBm
Ambient temperature 0-35° Celsius

3. Important tips

• Only for incandescent lamps and dimmable LEDs
  The maximum switching power is 300 W
  The device is suitable for indoor use only
• Please plug the device into approved sockets only, not into extension cords
• Please do not connect in series
• Free of electrical current only when the plug is removed
• Use the device only in a dry condition
• Specified maximum electrical power may not be exceeded
• Please do not use for consumers with motor capacitor (e.g., refrigerator, etc.)

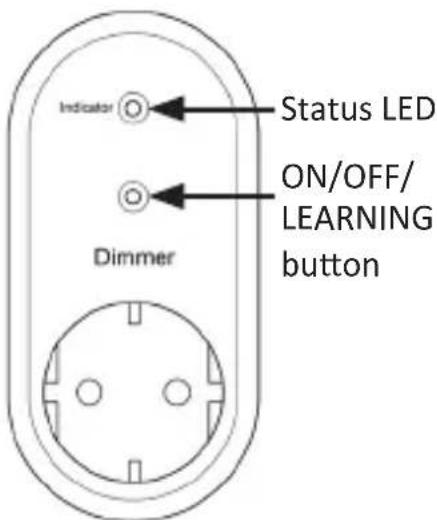

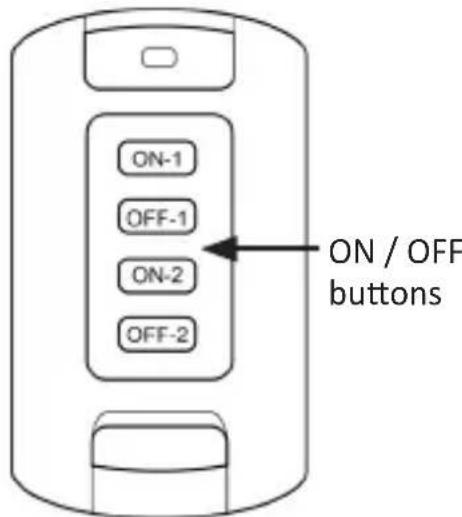

4. Product details

5. Functions

The Bearware dimmer socket allows you to adjust the brightness of light bulbs individually. The dimmer can be easily controlled using the remote control and works with almost all incandescent lamps and dimmable LEDs having a maximum power of up to 300 watts.

6. Initial use

Take the product out of the package and remove all the packaging material. Connect the bulb or the dimmable LED whose brightness needs to be controlled using the dimmer to the device.

Then plug the dimmer into a properly installed earthed socket. Remove the plastic tab from the remote control before using the device.

7. Programming the remote control

1. Connect the dimmer to the power socket.
2. Bring the remote control close to the dimmer and press and hold the "ON/OFF/LEARNING" button on the dimmer until the status LED of the dimmer flashes slowly.
3. Then press the desired ON button of the transmitter to pair the device.
4. Once the device is successfully paired, the LED on the connected receiver flashes twice, the code is confirmed and the LED stops flashing. The device is now ready to be used.

8. Operation

Remote control

Please press the remote control ON button to switch on the device. Press and hold the remote control ON button until the desired brightness is reached. Press the remote control OFF button to switch off the device.

Controlling several devices with one remote control

You can control two different devices using the remote control. Connect the remote control to other wireless sockets for this purpose.

CAUTION! It is not advisable to program the ON/OFF receiver and dimmer receiver simultaneously to the same control button on the transmitter, or more than 1 dimmer receiver to the same control button. On the other hand, dimmer 1, for example, programmed to "1-ON" and "1-OFF" and dimmer 2 to "2-ON" and "2-OFF" is correct.

Clearing code memory

Press and hold the "ON/OFF/LEARNING" button until the LED flashes continuously. Then release the button and press it again. The LED on the connected receiver flashed twice to confirm.

9. Warranty

The manufacturer provides a warranty of two years for this product with regards to workmanship and material. Repairs should only be carried out by an authorized customer service centre. The original sales document should be enclosed as proof.

The following are excluded from warranty: normal wear and tear, modifications, reworks, damage caused by carelessness, external influences, applications for which the product was not designed or products dismantled completely or partially.

10. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the product away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The product should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the product for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons.

Any repair or modification to the product, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should only be used by those who have read and understood this user manual. The specifications of the product may be changed without any special prior notification.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic products to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU
WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305748 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, Germany; http://downloads.ganziinfach.de/search/model/305748
