USER MANUAL 304908 Bearware

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can get the most from the product you have purchased.

1. Scope of delivery

• Thermometer
• Measuring rod
• User manual

2. Technical data

Power supply 1x 1.5 AAA battery
Temperature range -26°C to 250°C
Timer range 00:01 min -	99:59 min (up and down)
Accuracy ± 1°C
Features • Beep sound when the temperature is reached• LC display• Timer and temperature mode

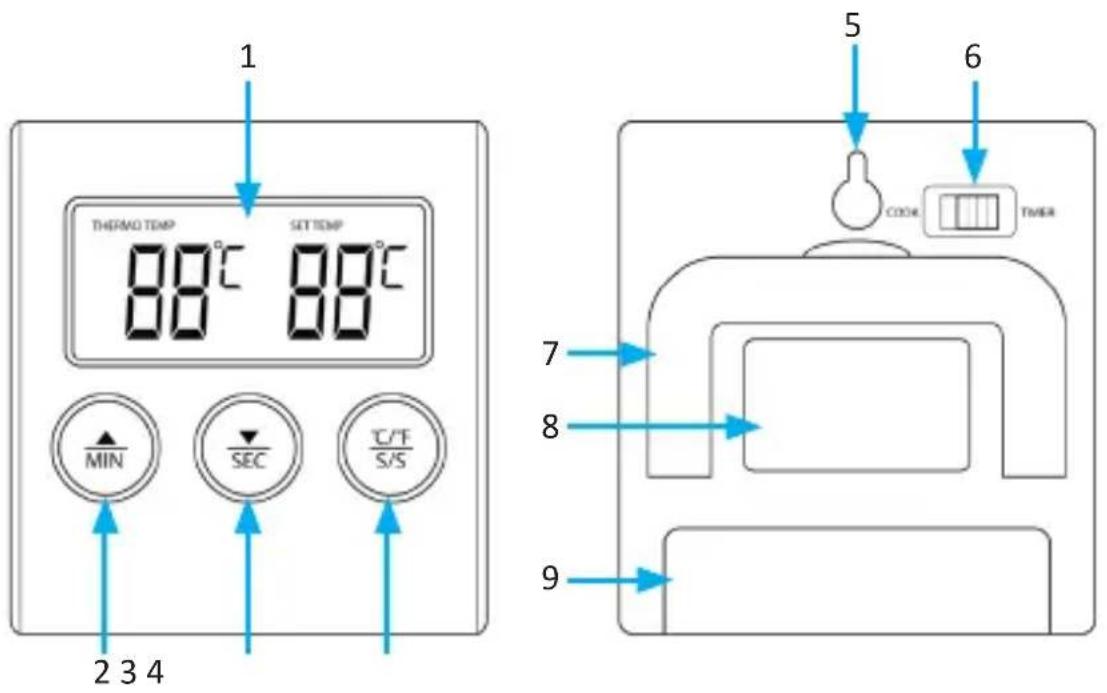

3. Product details

1 THermo temp 88°C 88°C SET TEMP MIN SEC C/F/S 2 3 4 5 6 COOL TIMER 7 8 9

Number Name
1 Display
2 "Min/UP" button
3 "Sec/DOWN" button
4 "°C/°F/S/S" button
5 Wall bracket
6 "Timer/Temperature" switch
7 Stand
8 Magnetic bracket
9 Battery compartment

4. Modes

You can use the device as a grill thermometer or as a timer. The respective functions are explained in the sections below.

4.1 Timer mode

Move the "Timer/Temperature" switch (6) on the back of the device in the direction of "TIMER" to enable the timer mode.

• The minute and seconds are shown in the display.
- To set the countdown time, press the "Min/UP" and "Sec/DOWN" buttons.
- Press the "°C/°F/S/S" button to start and stop the timer.

- To reset the timer, please press and hold the "Min/UP" and "Sec/DOWN" buttons simultaneously.

- If the time is not set and the timer is started, the timer starts counting upwards.

4.2 Thermometer mode

Move the "Timer/Temperature" switch (6) on the back of the device in the direction of "COOK" to enable the thermometer mode.

- Connect the thermometer cable to the device.

PLUGIN START

• The temperature at the end of the probe is shown on the left in the display ("THERMO TEMP").
• When using the device in an oven or grill, insert the probe with the wire into the device where you want to measure the temperature. The thermometer has to be outside the oven or grill. Do not expose the thermometer to high temperatures.
• Be careful in case of open fire: This wire is heat-resistant but not in case of an open fire. In this case, you need to protect the wire.
• To use the alarm setting, adjust the temperature at the right of the display (SET TEMP) using the "Min/UP" and "Sec/DOWN" buttons. You hear an alarm once the set temperature is reached.
• Be careful when using the device as the probe and wire can be very hot.
• The probe (but not the wire) can be immersed in any liquid such as oil or water.

5. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

6. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

7. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304908/20200915FZ009 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
