304946 - Ice crusher Arendo - Free user manual and instructions

Product type	Ice crusher
Brand	Arendo
Model	304946
Power supply	220-240 V ~ 50/60 Hz
Power consumption	80 W
Dimensions (L x W x H)	465 x 172 x 290 mm
Weight	3700 g
Bowl capacity	3.5 L
Hourly output	up to 12 kg
Safety lock	Yes (requires container)
Non-slip feet	Yes
Blades	Stainless steel (estimated)
Use	Indoor only
Cleaning	Soft damp cloth, rinse with hot water
Maintenance	Unplug before cleaning
Warranty	2 years (estimated)
Included accessories	Instruction manual
WEEE number	DE 67896761
Manufacturer	WD Plus GmbH, Hanover
Cable length	Approximately 1 m (estimated)
Color	White/Silver (estimated)

Frequently Asked Questions - 304946 Arendo

How to start the ice crusher?

Place the container under the bottom opening, plug in the appliance, and set the ON/OFF switch to the ON position. The appliance only operates if the container is inserted correctly.

What to do if an ice cube gets stuck in the crushing unit?

Set the switch to OFF, unplug the appliance, then pour hot water through the feed chute until the ice cube melts or falls.

How to clean the ice crusher?

Unplug the appliance. Clean the base station with a slightly damp soft cloth. Rinse the feed chute by pouring hot water through it. Never immerse the appliance in water.

Can I crush other foods besides ice?

No, this appliance is designed only for crushing ice. Do not attempt to insert other foods or objects.

Does the appliance work without the container?

No, the ice crusher has a safety lock: it only operates if the container is inserted correctly.

What is the maximum ice cube capacity?

Fill the hopper of the feed chute up to the top edge. Do not pack the ice with your hands or any object.

Can I leave the appliance unattended?

No, never leave the ice crusher unattended, especially in the presence of children or animals.

What to do if the power cord is damaged?

If the cord or plug is damaged, do not use the appliance. It must be replaced by the manufacturer, its service agent, or a qualified person.

How to store the appliance?

Unplug it, clean it, then store it in a dry place, away from heat and out of reach of children.

Is the appliance suitable for children?

Children over 8 years old may use it under supervision. Children must not play with the appliance or perform cleaning without supervision.

USER MANUAL 304946 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Warning sign depicting a lightning bolt symbol in a triangular hazard symbol

Warning symbol image with exclamation mark inside triangle

Line drawing of a mechanical device with arrows indicating flow or movement (no text or symbols)

Warning sign depicting a lightning bolt symbol in a triangular hazard triangle

Warning symbol with exclamation mark inside a triangle

Important safety guidelines for this appliance

Basic safety precautions should always be followed when using electrical appliances, including the following:

• Read all the instructions given in the user manual completely.
• To protect against electrical hazards, do not immerse the ice crusher in water or other liquids.
• Disconnect the plug from the mains socket when the appliance is not in use or before you assemble, disassemble or clean it.
• Avoid contact with moving parts. Never insert your fingers or other utensils into the inlet or outlet.
• Do not operate the ice crusher or any other electrical appliance with

a damaged cable or plug, or if the appliance is not working, has been dropped or the cable or the plug has been damaged.

• Send the appliance back for inspection, repair or adjustment to the nearest authorised service centre.
• Close supervision is required if the ice crusher is used by children or near children.
• Do not use the product outdoors.
• Do not allow the mains cable to protrude over table or other sharp corners or to touch hot surfaces.
• Check the inlet shaft for the presence of foreign bodies before use after disconnecting the power (appliance switched off and mains plug disconnected).

arendio

• Use only the accessories included in the package. Using any other accessory may cause a fire and result in an electrical shock or injury.
• Keep it on an suitable surface so that it does not tip over.
• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Operate the appliance only with the voltage indicated on the appliance label.
• Children should be supervised to ensure that they do not play with the appliance.

- This appliance may be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

- Cleaning and user maintenance must not be carried out by children unless they are older than 8 years and supervised.

- Do not use this appliance with wet hands.

- If the mains power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service personnel or by an equally qualified person, so as to prevent any risk.

• Keep this user manual in a safe place, and do not throw it away.
• Do not insert any body parts, hair or other extremities into the ice crusher.
• Remember that the blade unit is sharp and can cause injuries! Always use the appliance carefully.

Thank you for choosing an Arendo product. Please read the following user manual carefully to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Ice crusher
• User manual

2. Technical data

Power supply 220-240 V AC 50/60	Hz
Power consumption 80 W
Dimensions (H x W x D) approx. 465 mm x 172 mm x 290 mm
Weight 3700 g
Capacity (blender jar) about 3.5 L
Output per hour up to 12 kg
Features • Non-slip base	• Safety lock (cannot be used without container)

3. Initial use

Take the appliance out of the packaging and remove all the packaging material. Clean the appliance as described in "Cleaning and Care". Do not use any aggressive or strong cleaning agents.

Allow the appliance to dry completely and connect the mains plug to a properly installed socket. The appliance is now ready for use.

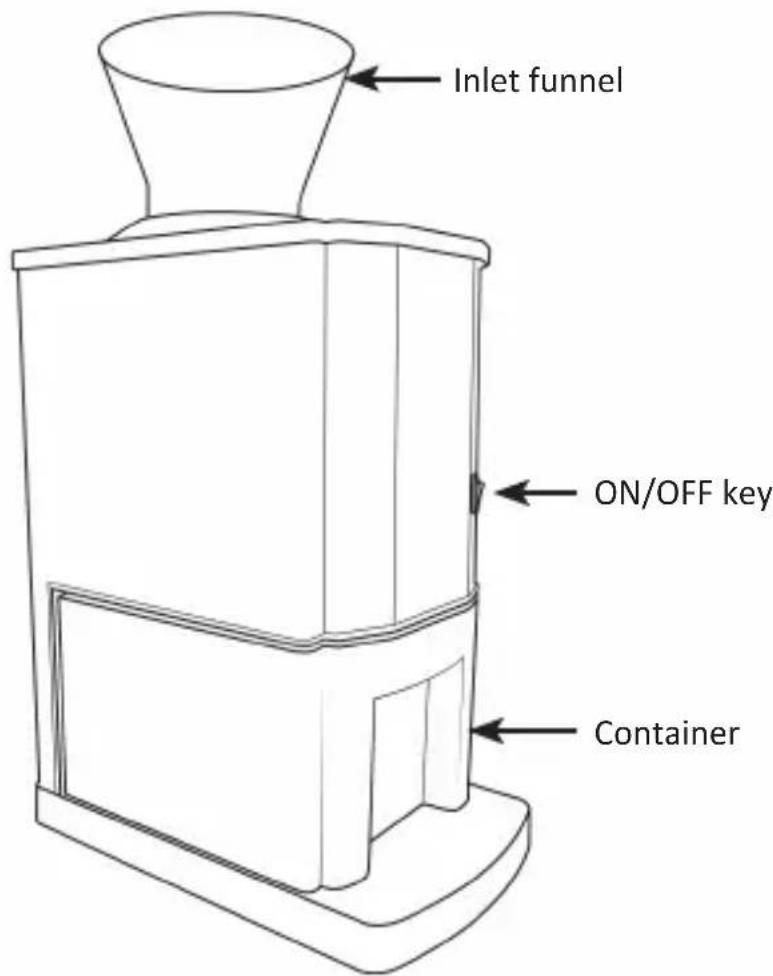

4. Product details

Inlet funnel ON/OFF key Container

5. Initial use

1. Place the container below the lower opening of the ice crusher Connect the appliance and shift the ON/OFF switch to the ON position.

Note: The ice crusher works only when the container is placed correctly.

1. To start crushing the ice, fill the inlet funnel at most up to the upper edge with ice cubes.

Caution! Do not try to push the ice by hand or using some other object into the blades!

Line drawing of a small industrial machine with arrows indicating downward flow or compression, no text or symbols present.

If a large cube gets stuck in the crushing unit such that the blades cannot reach it, switch OFF the power and disconnect the mains plug from the socket.

Then pour hot water down the inlet funnel till the ice melts or falls down. Connect the unit back into the socket, switch the power ON and continue to put the cubes through the inlet funnel.

6. Cleaning and Care

Unplug the power cord from the mains outlet. Clean the base unit with a slightly dampened soft cloth.

Pour hot water through the upper inlet funnel to rinse it after each use.

Caution! Do not use liquids to clean the base unit and the power connections. Do not use any aggressive, strong or abrasive cleaning agents.

Never immerse the appliance in water.

7. Important safety guidelines for this appliance

- Check the appliance for damage every time before use. Do not operate the appliance if the cable, the plug or the appliance show any visible signs of damage.

- Do not make any modifications or repairs to the appliance.

- Caution! The blade unit is very sharp!

- Plug the appliance only into a properly installed power socket!

- Never leave the ice crusher unattended; keep it out of reach of animals and children wherever you use or store it.

• Children should not play with the appliance.

- This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

- Keep the ice crusher out of the reach of children under 8 years of age.

- Keep it on an suitable surface so that it does not tip over.

- Do not keep the ice crusher next to heat sources (e.g., electric stove).

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

- Do not move the appliance when it is being operated.

- Ensure that the power cable does not come into contact with any hot surfaces.

• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.
• Never touch the plug with wet hands.
• Protect the appliance against fire.
• Do not immerse the cable, the plug or the entire appliance in water or any other liquids.
• Switch off the appliance and disconnect the mains plug when you want to replace any accessories or to move the appliance to another location.
• Remove the power plug from the socket when the appliance is not being used, during cleaning and assembly.
• If the power cord is damaged, this must be replaced by the manufacturer or by a qualified person in the event of a defect, in order to prevent damage.
• Do not insert any body parts or items that they are not intended for the purpose, into the appliance.

8. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow.

Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims.

The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environmen

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304946 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

Warning sign depicting a lightning bolt symbol in a triangular hazard symbol

Warning symbol image with exclamation mark inside triangle

Line drawing of a mechanical device with arrows indicating flow or movement, no text or symbols present

Warning sign depicting a lightning bolt symbol in a triangular hazard symbol

Warning symbol image with exclamation mark inside triangle

Line drawing of a portable food maker with spools and a funnel, showing directional arrows (no text or symbols)

Warning sign depicting a lightning bolt symbol in a triangular hazard triangle

Warning symbol with exclamation mark inside triangle

Line drawing of a mechanical device with arrows indicating flow or movement, no text or symbols present
