USER MANUAL 304002 Mybeo

• Read all the safety instructions given in this manual thoroughly before using the product.
• Use the device only for the intended purpose.
• Please do not immerse the device and the adpater in water or other liquids to protect against electric shock.
• Do not pull the power cable to disconnect the plug from the socket. Always hold the plug.
• Do not allow the power cord to come into contact with hot surfaces.
• Always disconnect the mains plug from the socket when emptying the tanks or when the device is not being used.
• Close supervision is required for any device that is used by children or

near children. Never leave the device unattended when it is connected to the power supply or to the ironing board.

- If the device is not working properly, disconnect it from the power supply. Contact an authorised customer service representative.

- The device must be used on a level, stable surface.

- The device should not be used if it has been dropped at some time, if there are any visible signs of damage or if it is leaking. The device should be sent back to the manufacturer or an authorized service centre before using it any further.

- If the power cable is damaged, then it should be replaced by the manufacturer, his customer service depart-

ment or an equally qualified person, so as to prevent any risk.

- The device can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities and/or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and have understood the resultant dangers. Children should not play with the device. Cleaning and user maintenance should not be performed by children without supervision.

- The device should not be left unattended when it is connected to the mains.

- The plug must be disconnected from

the socket before emptying the water tank.

- Do not use the device without the water tank.

- The device should be operated only with the provided mains adapter.

- The minimum temperature of the water is 7 °C, the maximum temperature of the water is 25 °C;

Thank you for choosing a mybeo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Dehumidifier
  • AC adapter (5.5mm coaxial connector)
• User manual

2. Technical data

Power supply • 100-240 V	50/60 Hz (mains adapter)• 9V DC 2.5A (via the 5.5mm coaxial connector mains adapter/adapter supplied model No.: GQ24-090250-AG)
Power consumption 23 W
Tank capacity 600 ml
Operating temperature 5°C to 50°C
Working range < 15m2
Features • about 300 ml per day (30 °C, 80% humidity)• Status LED• Removable water tank• Sleep mode

3. Important precautions

To use your device sensibly and properly, please read this user manual carefully and make sure that you understand the product before using it.

1. Check if the voltage on the rating plate of the product matches your mains voltage.
2. The device should not be used if it has been dropped, there are visible signs of damage or if it is leaking. It should be sent back to the manufacturer or his authorized service centre before using it any further.
3. Always disconnect the plug when the device is not being used. Always disconnect using the plug and do not pull the cable.

4. Always disconnect the mains plug before emptying the water tank.

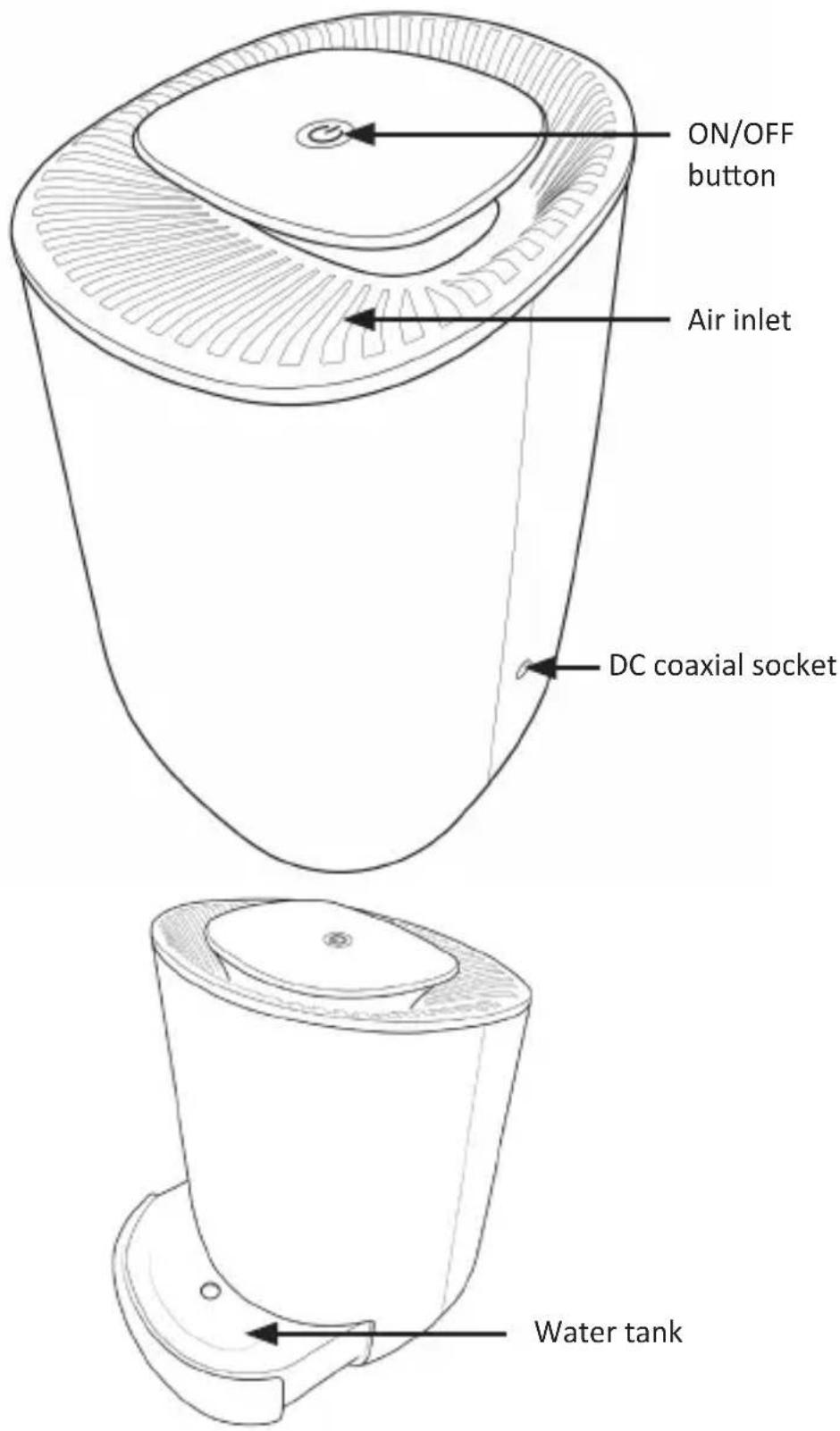

5. Product details


ON/OFF button Air inlet DC coaxial socket Water tank

5. Initial use

Take the device and the accessories out of the package and remove all packaging material.

1. Connect the mains adapter to a suitable socket and the device.
2. Press the "ON/OFF button" at the top of the device to switch it on. The status LED glows green during operation.

5.1 Sleep mode

If you switch on the "sleep" mode and want to operate the device without the status LED glowing, then press and hold the "ON/OFF" button for about 3 seconds. The status LED stops glowing, but the dehumidifier continues to work. Press the "ON/OFF button" again to switch on the LED.

6. Water tank is full

The water tank has a maximum capacity of 600 ml, out of which 300 ml can be dehumidified from the air per day.

Once the water tank is full, the status LED changes from green to red and the device switches off automatically. Switch off the dehumidifier when the water tank is full by pressing the "ON/OFF button".

Remove the water tank from the rear of the device and empty it, for example, via the drain. After emptying the tank, place it back in the device to start using it again.

7. Cleaning and Care

• Switch off the device and disconnect the mains plug before cleaning.
• The product should not be treated with liquids or immersed in liquids.
• Drain the remaining water from the water tank before cleaning!
• Wipe the dehumidifier only with a dry lint-free cloth.
• Do not use any strong or aggressive cleaning agents. Do not use vinegar or any other descaling agents to clean the water tank!

8. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304002/20191104ZS034 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

ATTENTION!
