USER MANUAL 304777 Titanwolf
User Manual
Gaming-Headset
ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.
Thank you for choosing a Titanwolf product. Please read the following user manual carefully so as to get the most from the purchased product.
1. Scope of delivery
- Gaming Headset
- User manual
2. Technical data
| Driver 50 mm | |
| Cable length approx. 2.20 m | |
| Maximum input power 30 mW | |
| Frequency range 20 ~ 20000 Hz | |
| Impedance 32 Ω ± 15 % | |
| Speaker sensitivity 119 ± 3 dB | |
| Microphone sensitivity - 38 ± 3 dB | |
| Port USB type A | |
| Features | Removable flexible microphoneWired remoteRGB light |
3. Initial use
Remove the headset from the packaging and connect it to your computer.
Please connect the USB port of the headset properly to a USB input on your device.
The driver is then automatically installed and the device will then be ready for use.

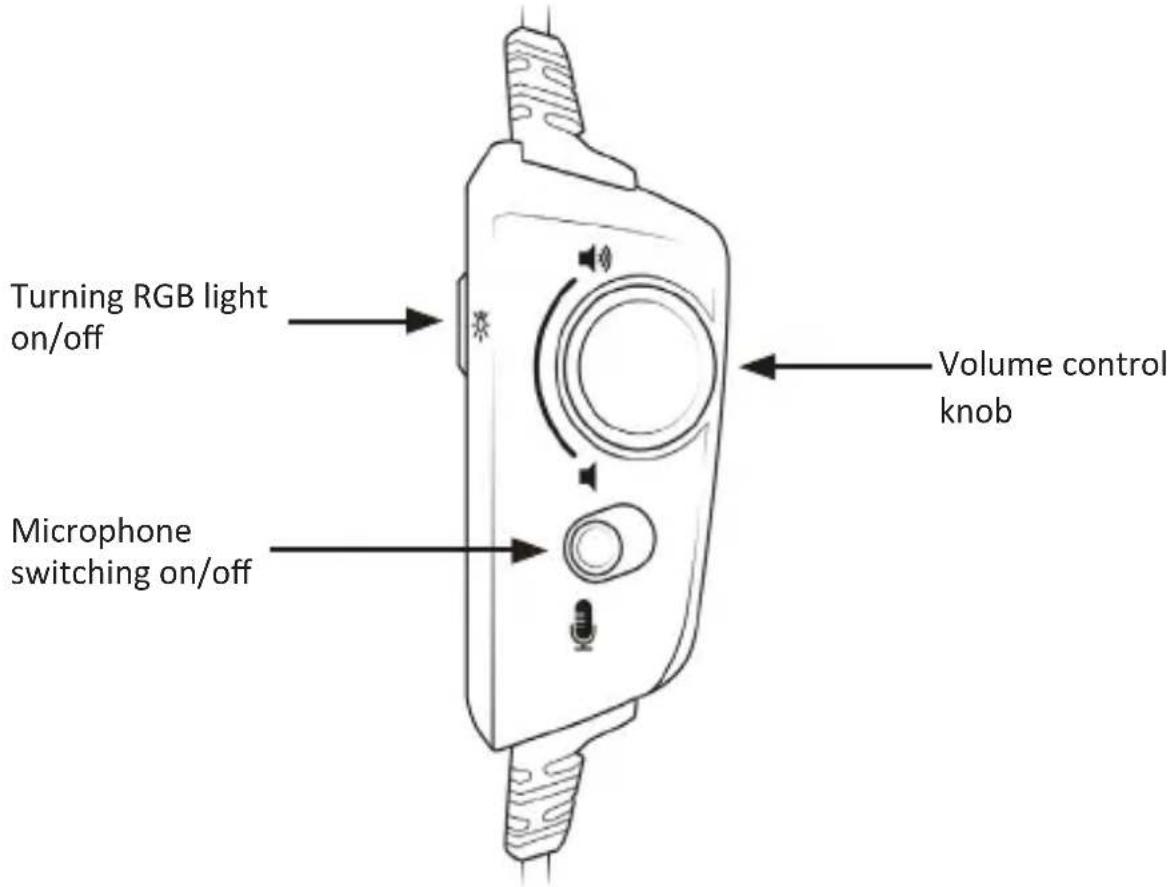

4. Wired remote
You can turn the RGB light on or off on the earcups of the headset. To do this, press the "RGB light on/off" switch on the wired remote.
6. Microphone
If you want to use the headset without the microphone, you can remove the microphone. This is connected using a 3.5mm jack with the earcup. Carefully remove the microphone from the earcup.
Switching the microphone on / off
You can switch the headset's microphone on or off. To do this, press the "Microphone on/off" switch on the wired remote.
7. Safety instructions and disclaimer
Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.
Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it.
The device should not be used if it has been subjected to impact or has been damaged in any other manner. Please follow the national regulations and restrictions. Do not use the devices for purposes other than those described in this manual.
This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims.
The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.
8. Disposal instructions
In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.
According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life.
The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.
WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761
The company WD Plus GmbH hereby certifies that the device 304777/20200624SZ232 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
Activer/désactiver le microphone
Titanwolf.Gaming
www.ganzeinfach.de
