55EA8809 - Television LG - Free user manual and instructions

Screen size	55 inches (140 cm)
Resolution	Full HD 1920 x 1080
Panel technology	OLED
Color technology	4 Color Pixel (white sub-pixel)
3D	Passive Cinema 3D
3D glasses provided	4 pairs included
2D to 3D conversion	Yes
Tuners	DVB-T / DVB-T2 / DVB-C / DVB-S / DVB-S2 / analog
HbbTV	Yes
CI+ interface	Yes
HDMI	4 x HDMI 1.4
USB	2 x USB 2.0 + 1 x USB 3.0
Wi-Fi	Built-in
Smart TV	webOS
Remote control	Magic Remote with gyroscopic pointer and voice command
Total audio power	100 W (2.2 channels)
Audio brand	Harman Kardon
Typical consumption	97 W
Standby consumption	0.4 W
Energy class	A
Dimensions with stand (W x H x D)	1,230 x 790 x 233 mm
Weight	18 kg

Frequently Asked Questions - 55EA8809 LG

What is the screen technology of the LG 55EA8809?

The LG 55EA8809 uses a 55-inch OLED panel (140 cm) with a Full HD 1920 x 1080 resolution. Its 4 Color Pixel technology adds a white sub-pixel to improve brightness and color range. The screen is integrated into a very thin Art Frame, making it look like a painting hung on the wall.

How does 3D work on the LG 55EA8809?

This TV uses Cinema 3D passive technology: the glasses are lightweight, battery-free, and do not require synchronization with the TV. It is compatible with native 3D content and offers real-time 2D to 3D conversion. 4 pairs of Cinema 3D glasses are included in the box.

What tuners and TV signals does this TV support?

The LG 55EA8809 includes DVB-T / DVB-T2 / DVB-C / DVB-S / DVB-S2 tuners as well as an analog tuner, covering terrestrial, cable, and satellite signals. It supports HbbTV and has a CI+ slot for pay-TV decoding modules.

What ports are available on the LG 55EA8809?

Connectivity includes:

• 4 HDMI 1.4 ports
• 2 USB 2.0 ports and 1 USB 3.0 port
• 1 LAN (RJ-45) port
• Built-in Wi-Fi and Bluetooth

Optical and analog audio outputs are also present for connecting a soundbar or amplifier.

How can I access apps and the Internet on this TV?

The LG 55EA8809 is equipped with the webOS Smart TV system with an integrated app store and web browser. Internet connection is via built-in Wi-Fi or the LAN port. The Magic Remote with a gyroscopic pointer allows easy navigation through menus and apps.

How can I connect a smartphone or tablet to this TV?

Several wireless options are available: Wi-Fi Direct, Miracast, NFC (tag for quick pairing), and Intel WiDi. The Smart Share function allows streaming of photos, videos, and music from a compatible device. The TV is DLNA certified for local network sharing.

What is the audio system of the LG 55EA8809?

The TV features a Harman Kardon audio system with 2.2 channels for a total power of 100 W (30 W + 30 W + 20 W + 20 W) with an integrated subwoofer. The Virtual Surround Plus technology simulates surround sound without additional external speakers.

Can TV programs be recorded on a USB stick?

Yes, the PVR (recording) function is available via the TV's USB ports. Connect a USB stick or external hard drive to schedule or start a recording from the program guide. Time-shift playback (Time Shift) is also supported.

What is the Magic Remote and how do I use it?

The Magic Remote is LG's gyroscopic remote control: it works like a mouse by pointing at the screen to click on menu items. It includes a microphone for voice control and standard navigation buttons. Simply shake it slightly to activate the on-screen pointer.

What is the power consumption of the LG 55EA8809?

The typical consumption is 97 W in normal operation, with standby consumption of only 0.4 W. This TV is rated energy class A. OLED technology is naturally energy-efficient on dark content because the turned-off pixels consume nothing.

What are the dimensions and weight of the LG 55EA8809?

With the stand, the TV measures 1,230 x 790 x 233 mm and weighs 18 kg. Its ultra-thin Art Frame design gives it a painting-like appearance when mounted on the wall. The wall mount is VESA compatible; refer to the manual for the exact template dimensions.

Does the LG 55EA8809 have a built-in camera?

Yes, this model includes a built-in camera allowing gesture control to operate certain navigation functions without a remote control. It can also be controlled via the LG TV Remote app on iOS or Android smartphones, over Wi-Fi on the local network.

USER MANUAL 55EA8809 LG

Please read this manual carefully before operating your set and retain it for future reference.

EA98**

EA88**

www.lg.com

P/NO : MFL67785705 (1309-REV02)

Printed in Korea

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand
A-4 Assembling the AV Cover
A-4 Attaching the Video Call Camera
A-5 Tidying cables

A-7 MAKING CONNECTIONS

A-7 Antenna Connection
A-9 Satellite dish Connection
A-10 HDMI Connection
A-12 - ARC (Audio Return Channel)
A-13 DVI to HDMI Connection
A-15 MHL Connection
A-18 Component Connection
A-19 Composite Connection
A-20 Headphone Connection
A-22 Audio Connection
A-22 - Digital optical audio connection
A-25 - Canvas speaker connection
A-26 USB Connection
A-28 CI module Connection
A-30 Euro Scart Connection

COMMON

LANGUAGE LIST

English

Deutsch

Français

Italiano

Español

Português

Nederlands

Ελληνικά

Slovenščina

LANGUAGE

B-1 SPECIFICATIONS

COMMON

SETTING UP THE TV

Image shown may differ from your TV.

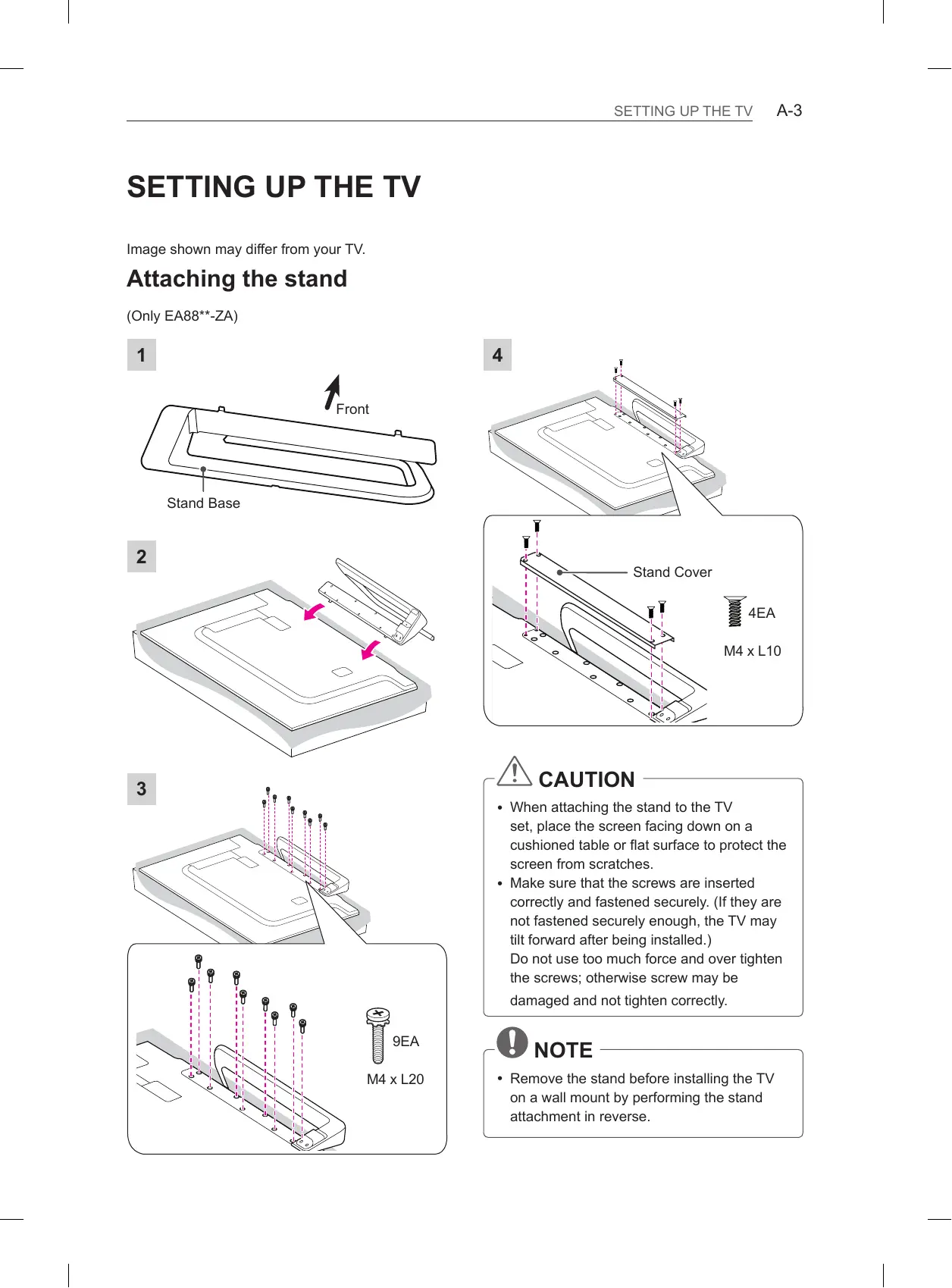

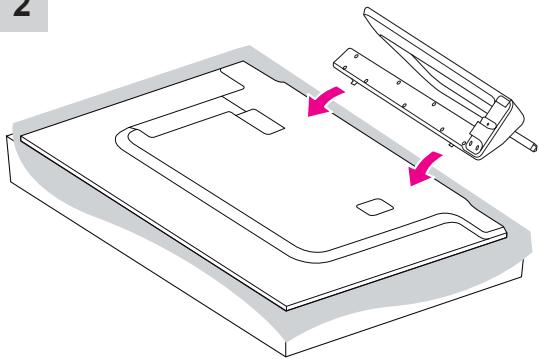

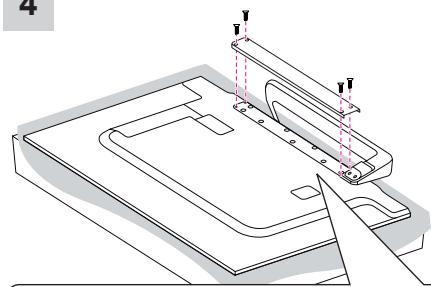

Attaching the stand

(Only EA88**-ZA)

1

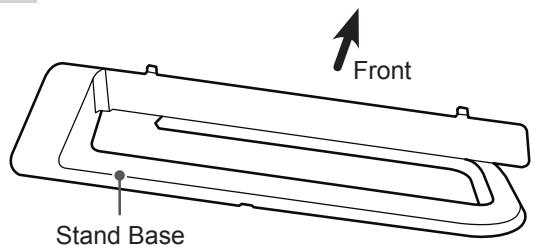

Front Stand Base

4

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical illustration of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

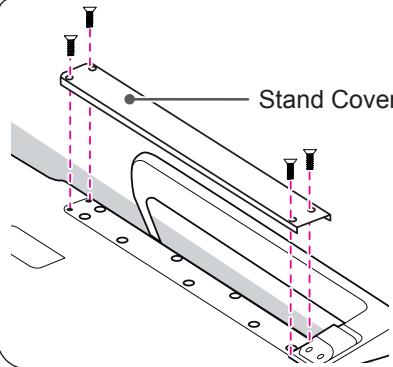

Stand Cover

4EA M4 x L10

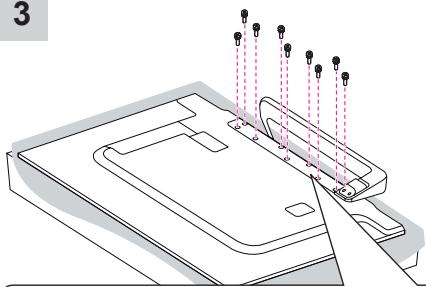

3

Technical illustration of a mechanical assembly with multiple pins and a handle, no visible text or symbols

CAUTION

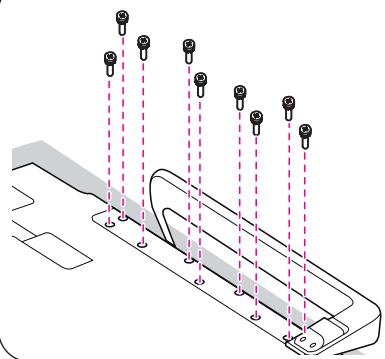

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.)
  Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Technical line drawing of a mechanical component with multiple mounting holes and dashed alignment lines (no text or symbols)

9EA M4 x L20

NOTE

- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Assembling the AV Cover

(Only EA98**)

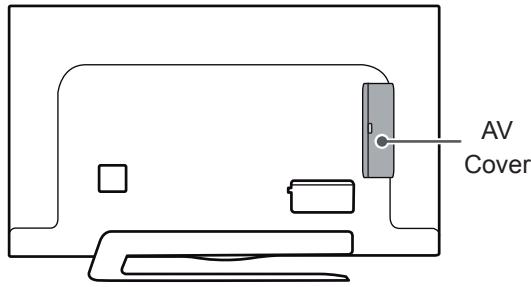

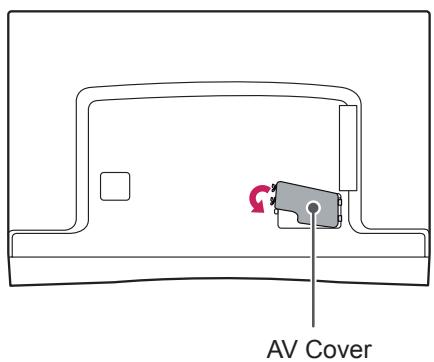

1 Assemble the AV Cover as shown.

AV Cover

(Only EA88**-ZA)

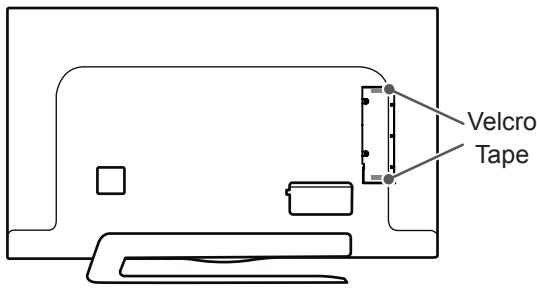

1 Attach the Velcro Tapes as shown.

Velcro Tape

2 Assemble the AV Cover as shown.

AV Cover

Attaching the Video Call Camera

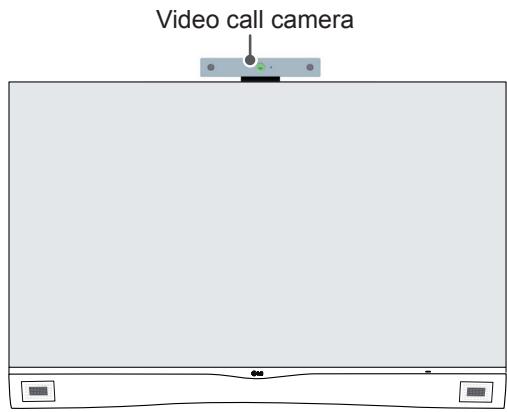

1 Unfold the stand and put it on the top center of the TV set.

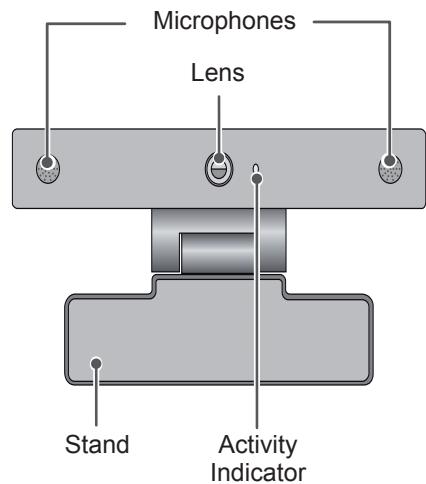

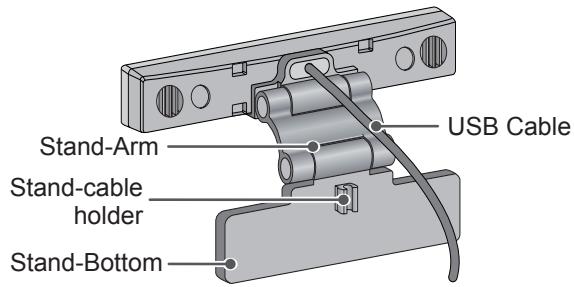

Video call camera

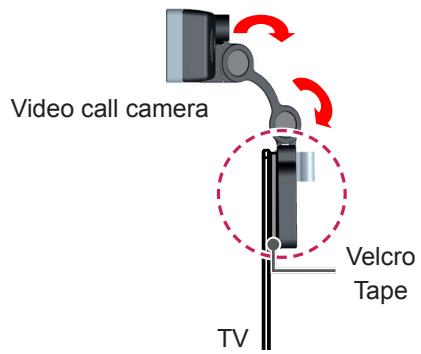

2 Bend the stand of the Video call camera. Attach the stand of the Video call camera to the back of the display with a Velcro Tape.

Video call camera Velcro Tape TV

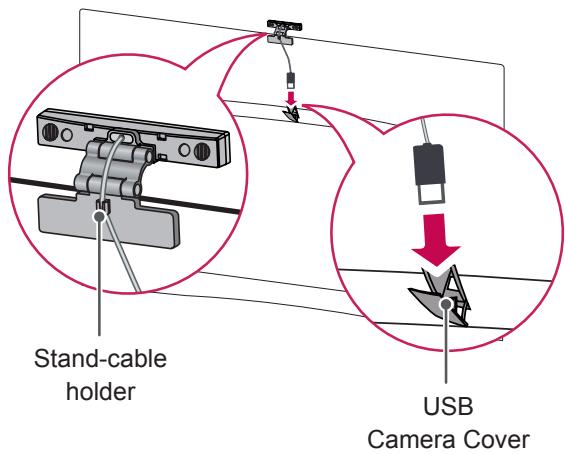

3 Insert the Video call camera's cable into the Stand-cable holder. Please open the USB Camera Cover for Video call camera's cable connection. The camera shall be connected to the CAM terminal as shown. (Image shown may differ from your TV.)

Stand-cable holder USB Camera Cover

NOTE

• For the best quality video and audio outputs, install the camera on the top-center of your TV.
• Set up with the television switched off.
• When using external speakers, allow sufficient space between the microphones and the speakers.
• The TV must be connected to a network for Skype to work.
• Make sure to connect the Video call camera cable to the CAM port with the USB trident logo on the cable facing the front.

Tidying cables

(Only EA98\*\*)

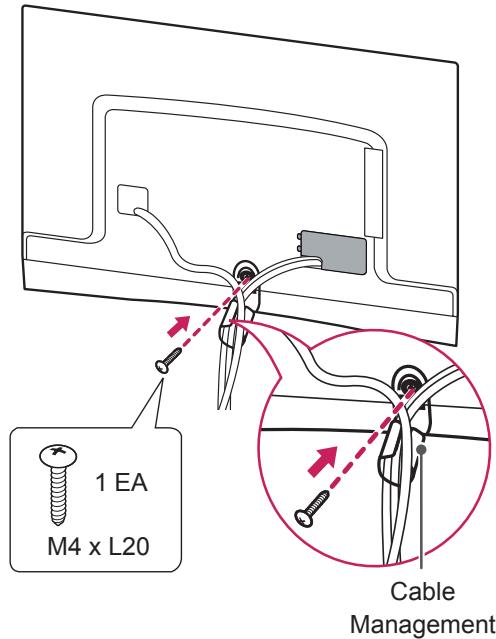

1 Fix the Cable Management with Cable Management Screw and arrange the cables.

1 EA M4 x L20 Cable Management

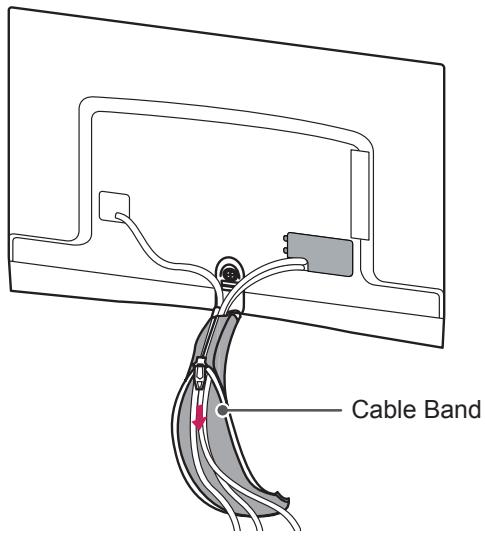

2 Wrap the arranged cables with the Cable Band, then pull the zip down.

Cable Band

CAUTION

- Do not move the TV by holding the Cable Management and Cable Band, as the Cable Management and Cable Band may break, and injuries and damage to the TV may occur.

(Only EA88**-ZA)

** Stand Type **

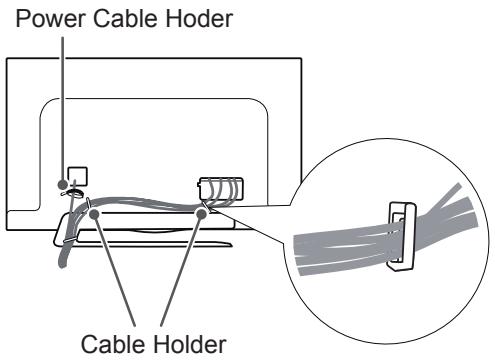

1 Use Cable Holder to neatly secure and position cables together.

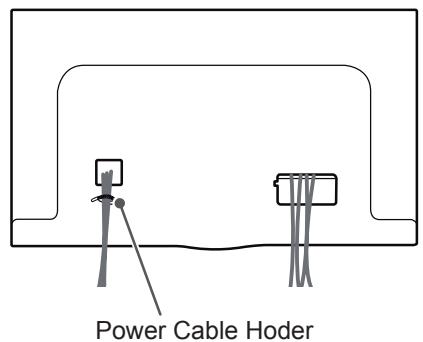

Power Cable Hoder Cable Holder

** Wall Mount Type **

Power Cable Hoder

CAUTION

- Do not move the TV by holding the Cable Holder and Power Cable Holder, as the Cable Holder and Power Cable Holder may break, and injuries and damage to the TV may occur.

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses diagrams for the 55EA98** models.

Antenna Connection

Wall Antenna Socket IN ANTENNA/ CABLE

English

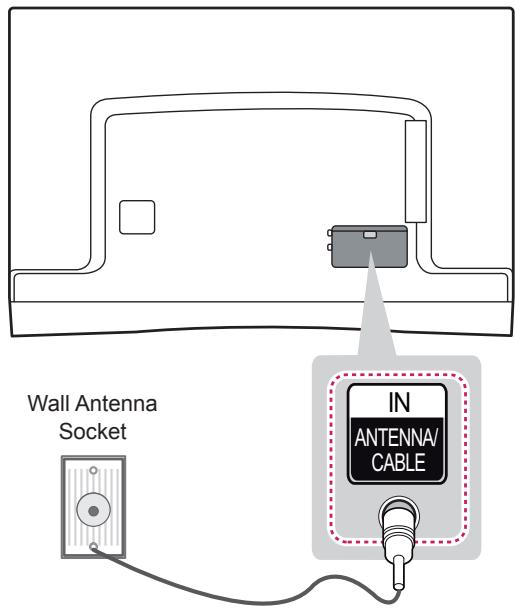

Connect the TV to a wall antenna socket with an RF cable (75 ).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Deutsch

Satellite dish Connection

(Only satellite models)

Satellite Dish IN 13 / 18 V == 700mA Max LNB IN Satellite

English

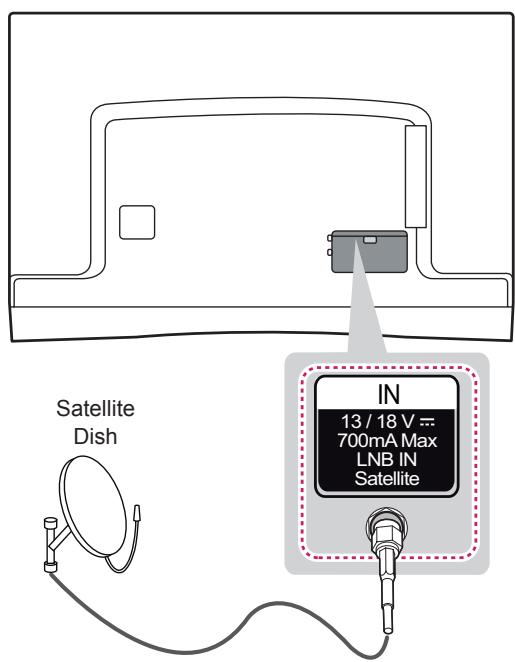

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 ).

Deutsch

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

• It is recommended to use the TV with the HDMI connection for the best image quality.
• Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
• Supported HDMI Audio format : Dolby Digital, DTS, PCM (Up to 192 KHz, 32 KHz / 44.1 KHz / 48 KHz / 88 KHz / 96 KHz / 176 KHz / 192 KHz)

Deutsch

ARC (Audio Return Channel)

English

• An external audio device that supports SIMPLINK and ARC must be connected using HDMI/DVI IN 1 (ARC) port.
• When connected with a high-speed HDMI cable, the external audio device that supports ARC outputs optical SPDIF without additional optical audio cable and supports the SIMPLINK function.

Deutsch

DVI to HDMI Connection

IN rh AV2 (Audio in) HDMI/DVI IN 4(MHL) 3 2 1(ARC) (*Not Provided) AUDIO OUT DVI OUT

DVD / Blu-Ray / HD Cable Box / PC

English

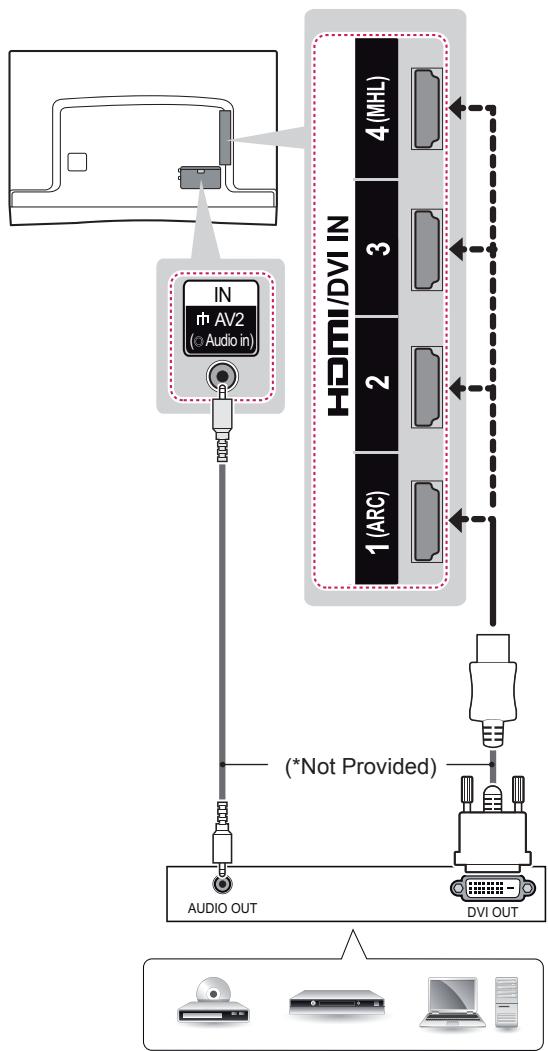

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

• Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
• When using the DVI/HDMI cable, single link is supported.

Deutsch

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

NOTE

• Connect the mobile phone to the HDMI/DVI IN 4 (MHL) port to view the phone screen on the TV.
• The MHL passive cable is needed to connect the TV and a mobile phone.
• This only works for the MHL-enabled phone.
• Some applications can be operated by the remote control.
• For some mobile phones supporting MHL, you can control with the magic remote control.
• Remove the MHL passive cable from the TV when:
• The MHL function is disabled
• Your mobile device is fully charged in standby mode

Deutsch

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

NOTA

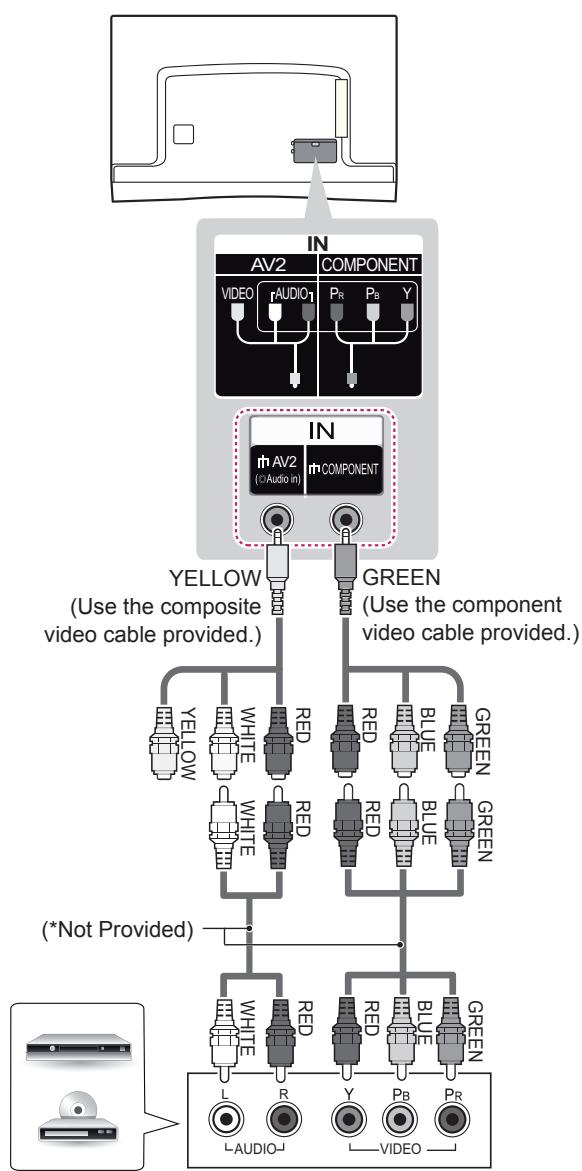

Component Connection
    note1["(Use the composite video cable provided.)"]
    note2["(Not Provided)"]
    note1 --> note1a["YELLOW"]
    note1 --> note2a["WHITE"]
    note1 --> note2b["RED"]
    note2 --> note1a
    note2 --> note2b
    note1 --> note1a
    note1 --> note2a
    note2 --> note1a
    note2 --> note2b
    note1 --> note1a
    note1 --> note2a
    note2 --> note1a
    note2 --> note2a

DVD / Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE

- If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

Deutsch

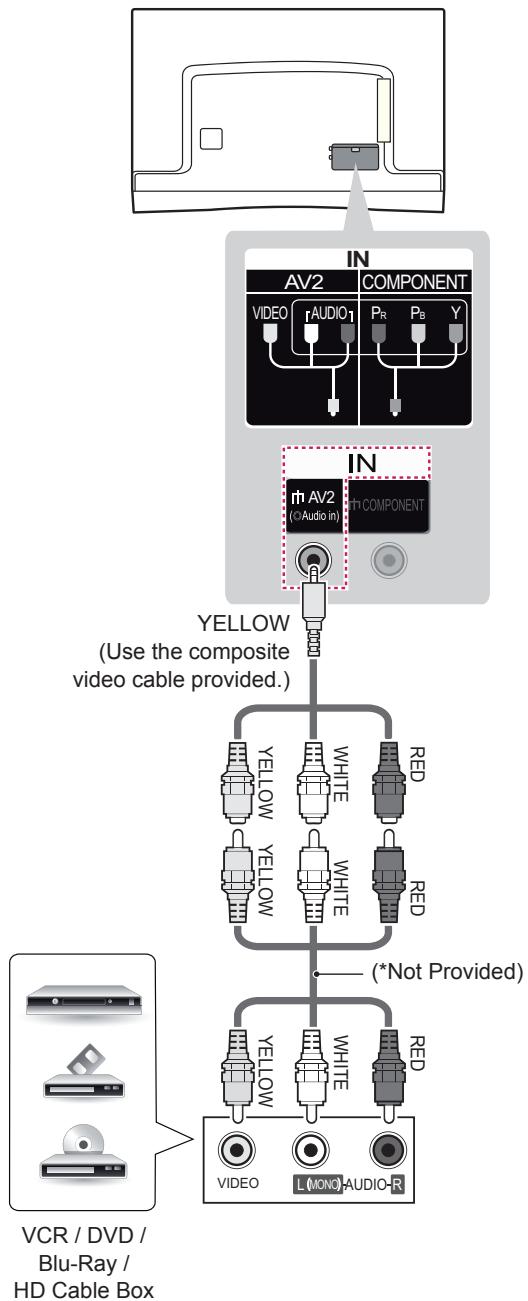

Composite Connection
    AT

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

Deutsch

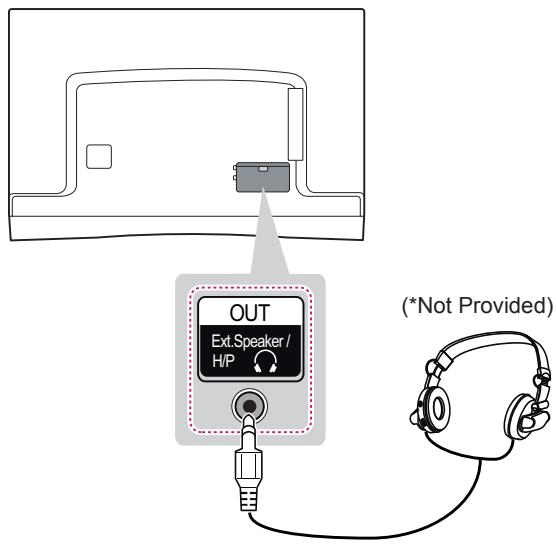

Headphone Connection

OUT Ext.Speaker / H/P (*Not Provided)

English

Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown.

NOTE

• AUDIO menu items are disabled when connecting a headphone.
• Optical Digital Audio Out is not available when connecting a headphone.
  • Headphone impedance: 16 Ω
• Max audio output of headphone: 0.627 mW to 1.334 mW
  • Headphone jack size: 0.35 cm

Deutsch

Digital Audio System / Canvas Speaker (Only EA88**-ZC/ZF)

English

You may use an external audio system instead of the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

NOTE

• Do not look into the optical output port. Looking at the laser beam may damage your vision.
• Audio with ACP (Audio Copy Protection) function may block digital audio output.

Deutsch

Canvas speaker connection

(Only EA88**-ZC/ZF)

TV Canvas Speaker (Use the Canvas Speaker provided.) Optical cable (Use the Optical cable provided.)

English

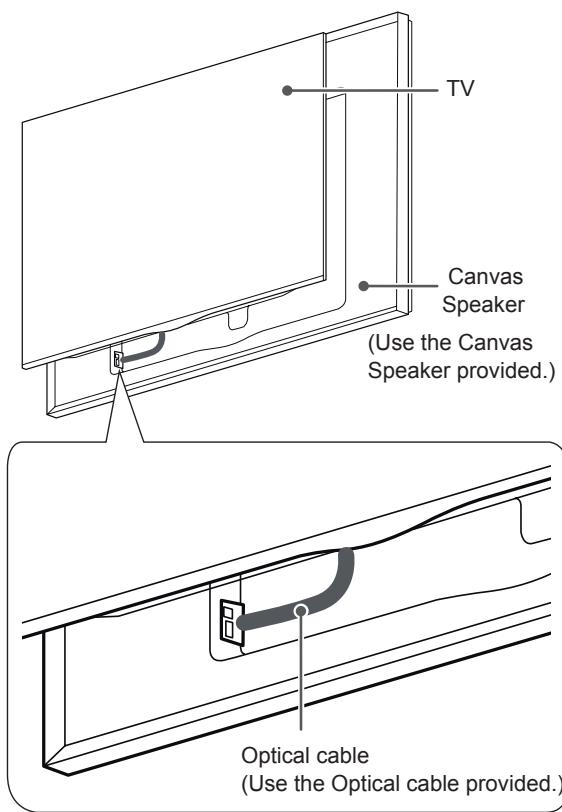

Connect the Canvas speaker and the TV set with the optical cable as shown.

Deutsch

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files.

NOTE

• Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB IN port on the TV directly.
• Connect the external power source if your USB is needed.

Deutsch

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

NOTE

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

Deutsch

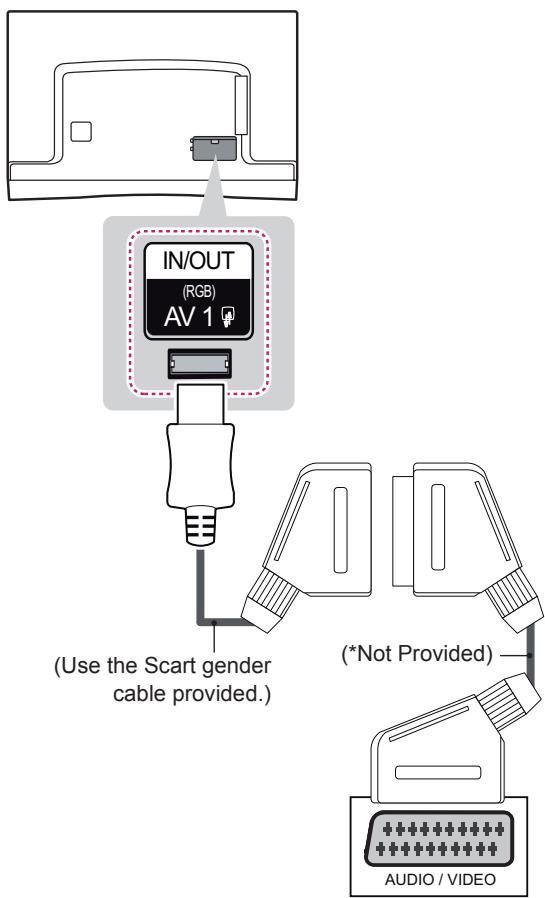

Euro Scart Connection

IN/OUT (RGB) AV 1 (Use the Scart gender cable provided.) (*Not Provided) AUDIO / VIDEO

English

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Current input mode\Output Type	AV1(TV Out ^1 )
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

• Any Euro scart cable used must be signal shielded.
• When watching digital TV in 3D imaging mode, only 2D out signals cannot be output through the SCART cable. (Only 3D models)

Deutsch

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Deutsch

OWNER'S MANUAL OLED TV

Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 - Viewing 3D Imaging (Only 3D models)

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

12 Unpacking

16 Separate purchase

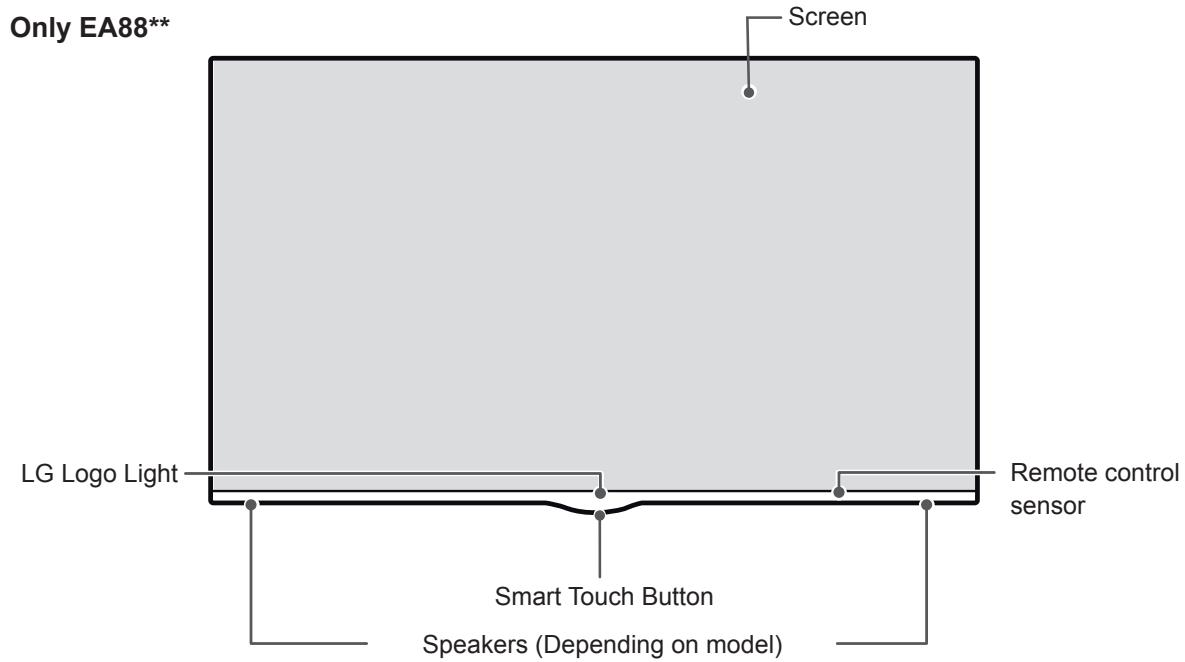

17 Parts and buttons

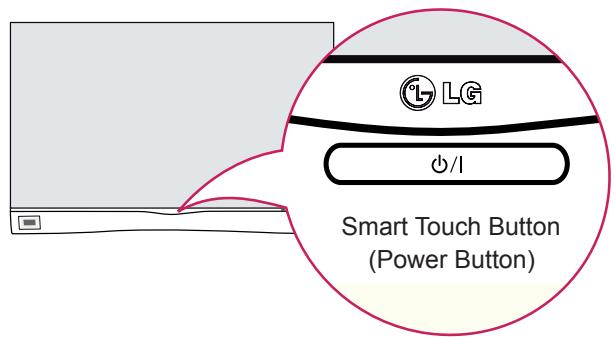

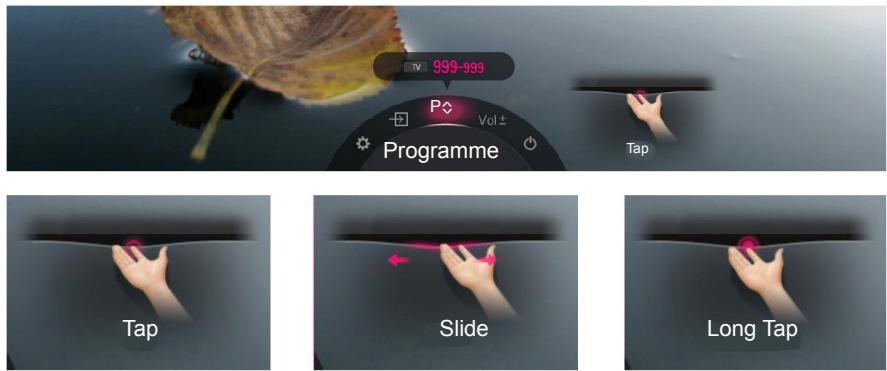

18 - Using the Smart Touch Button

19 Lifting and moving the TV

20 Mounting on a table

21 Mounting on a wall

22 Video call camera

22 - Overview

24 REMOTE CONTROL

25 MAGIC REMOTE CONTROL FUNCTIONS

26 Registering Magic Remote Control

26 How to use magic remote control

26 Precautions to Take when Using the Magic Remote Control

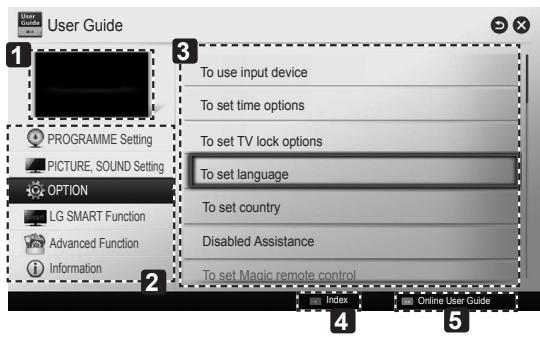

27 USING THE USER GUIDE

28 MAINTENANCE

28 Cleaning your TV

28 - Screen, frame, cabinet and stand

28 - Power cord

29 TROUBLESHOOTING

30 EXTERNAL CONTROL DEVICE SETUP

30 SPECIFICATIONS

WARNING

- If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

- If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

- The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY DIGITAL PLUS

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

dts® 2.0+Digital Out

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

- Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

- Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

- Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.

This plug must remain readily attached and operable when TV is in use.

- Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

- Make sure to connect Mains cable to compliant AC mains socket with Grounded

earth pin. (Except for devices which are not grounded on earth.)

Otherwise possibility you may be electrocuted or injured.

- Insert power cable plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

- Ensure the power cord does not come into contact with hot objects such as a

heater.

This may cause a fire or an electric shock hazard.

- Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

- Bend antenna cable between inside and outside building to prevent rain from

flowing in.

This may cause water damaged inside the Product and could give an electric

shock.

- When mounting TV onto wall make sure to neatly install and isolate cabling from

rear of TV as to not create possibility of electric shock/fire hazard.

	·Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
	·Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
	·Keep the anti-moisture packing material or vinyl packing out of the reach of children.Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
	·Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
	·Dispose of used batteries carefully to ensure that a small child does not consume them.Please seek Doctor- Medical Attention immediately if child consumes batteries.
	·Do not insert any metal objects/conductors (like a metal chopstick/cutlery/ screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.You may be electrocuted.(Depending on model)
	·Do not put or store inflammable substances near the product.There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
	·Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention.Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
	·Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
	·Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen.You may be injured or the product can be damaged.
	·Never touch this product or antenna during a thunder or lighting storm.You may be electrocuted.
	·Never touch the wall outlet when there is leakage of gas, open the windows and ventilate.It may cause a fire or a burn by a spark.
	·Do not disassemble, repair or modify the product at your own discretion.Fire or electric shock accident can occur.Contact the service centre for check, calibration or repair.
	·If any of the following occur, unplug the product immediately and contact your local service centre.- The product has been impacted by shock- The product has been damaged- Foreign objects have entered the product- The product produced smoke or a strange smellThis may result in fire or electric shock.
	·Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time.Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.
	·Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

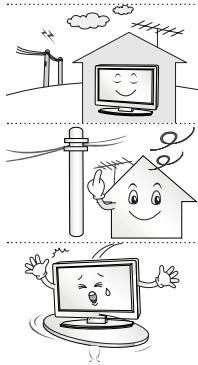

Illustration of three cartoon scenes: a smiling house, a wind turbine with motion lines, and a sad computer monitor (no text or symbols)

• Install the product where no radio wave occurs.

- There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

- Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

- If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
• Only use the attachments / accessories specified by the manufacturer.

- When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

- We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

- Only use the specified type of battery. This could cause damage to the remote control.

- Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace and electric heaters.
• Do not place non-rechargeable batteries in charging device.

- Make sure there are no objects between the remote control and its sensor.

- Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

- When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

	·Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)It may cause mechanical failure or could give an electric shock.
	·Please follow the installation instructions below to prevent the product from overheating.- The distance between the product and the wall should be more than 10 cm.- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).- Do not install the product on a carpet or cushion.- Make sure the air vent is not blocked by a tablecloth or curtain.Otherwise, this may result in fire.
	·Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
·Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
	·Prevent dust collecting on the power plug pins or outlet.This may cause a fire hazard.
	·Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
	·Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.
	·Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.
	·When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
·As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
	·When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.
	·When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

- When moving or unpacking the product, work in pairs because the product is heavy.

Otherwise, this may result in injury.

- Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.

- The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

- You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

- Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game or computer screen) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. It can remain for long time or never disappear.

The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television's screen for a prolonged period (1 or more hours for OLED).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

- Generated Sound

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Viewing 3D Imaging (Only 3D models)

WARNING

Viewing Environment

- Viewing Time

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

• Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
• Do not watch 3D videos if you feel nausea, are pregnant and/or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
• If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.
• Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

- Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

- Infants/Children

• Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
• Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
• Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

- Teenagers

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

- Elderly

- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

NOTE

• Image shown may differ from your TV.
- Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.
- New features may be added to this TV in the future.
- The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
- The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set. (Depending on model)
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

HDMI	USB
A ≤ 10 mm	A ≤ 10 mm
	A ≤ 8 mm (Only EA88**-ZA)
B ≤ 18 mm	B ≤ 18 mm

EA98**

Owner's manual

Remote control, Batteries (AAA)
(Depending on model) (See p. 24)

Magic remote control, Batteries (AA)
(See p. 25)

Cinema 3D Glasses
The number of 3D glasses may differ depending on the model or country.

Component video cable
(See p. A-18)

Composite video cable
(See p. A-18, A-19)

Scart gender cable (See p. A-30)

AV cover
(See p. A-4)

Cable Band
(See p. A-5)

Cable Management (See p. A-5)

Cable Management Screw
1EA, M4 x L20 (See p. A-5)

Polishing cloth
(Depending on model) Use this to remove dust from the cabinet.

Video call camera (See p. 22)

Tag on

EA88\*\*

Owner's manual

Remote control, Batteries (AAA)
(Depending on model) (See p. 24)

Magic remote control, Batteries (AA)
(See p. 25)

Cinema 3D Glasses
The number of 3D glasses may differ depending on the model or country.

Component video cable
(See p. A-18)

Composite video cable
(See p. A-18, A-19)

Scart gender cable (See p. A-30)

Stand Cover
(Only EA88**-ZA)
(See p. A-3)

Stand Base
(Only EA88**-ZA)
(See p. A-3)

AV Cover
(Only EA88**-ZA)
(See p. A-4)

Stand Screws
9EA, M4 x L20
(Only EA88**-ZA)
(See p. A-3)

Stand Screws
4EA, M4 x L10
(Only EA88**-ZA)
(See p. A-3)

Cable Holder
2EA
(Only EA88**-ZA)
(See p. A-6)

Polishing cloth
(Depending on model)
Use this to remove
dust from the cabinet.

Video call camera
(See p. 22)

Tag on

Velcro Tape

2EA

(Only EA88**-ZA)

(See p. A-4)

Ferrite core

(Only EA88**-ZC/ZF)

(See p. 15)

NOTE

(Only EA88\*\*-ZC/ZF)

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

How to use the ferrite core

1 Use the ferrite core to reduce the electromagnetic interference in the power cable. Wind the power cable on the ferrite core once.
2 Place the ferrite core close to the TV.

[to a wall plug]

Pure electrical circuit lines without any symbols

[to the TV]

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items.

These devices only work with certain models.

AN-MR400
Magic remote

AG-F***
Cinema 3D glasses

AG-F***DP
Dual play glasses

AN-VC5**
Video call camera

Illustration of a sound sync device with three circular buttons and two cylindrical components (no text or symbols)

LG Audio Device

Tag on

AN-BL***
Wireless IR Blaster
Compatibility
AN-MR400
Magic remote
AG-F***
Cinema 3D glasses
AG-F***DP
Dual play glasses
AN-VC5**
Video call camera
LG Audio Device
Tag on
AN-BL***
Wireless IR Blaster
55EA98**
55EA88**

•

•

•

•

•

•

•

•

•

•

•

•

•

•

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Parts and buttons

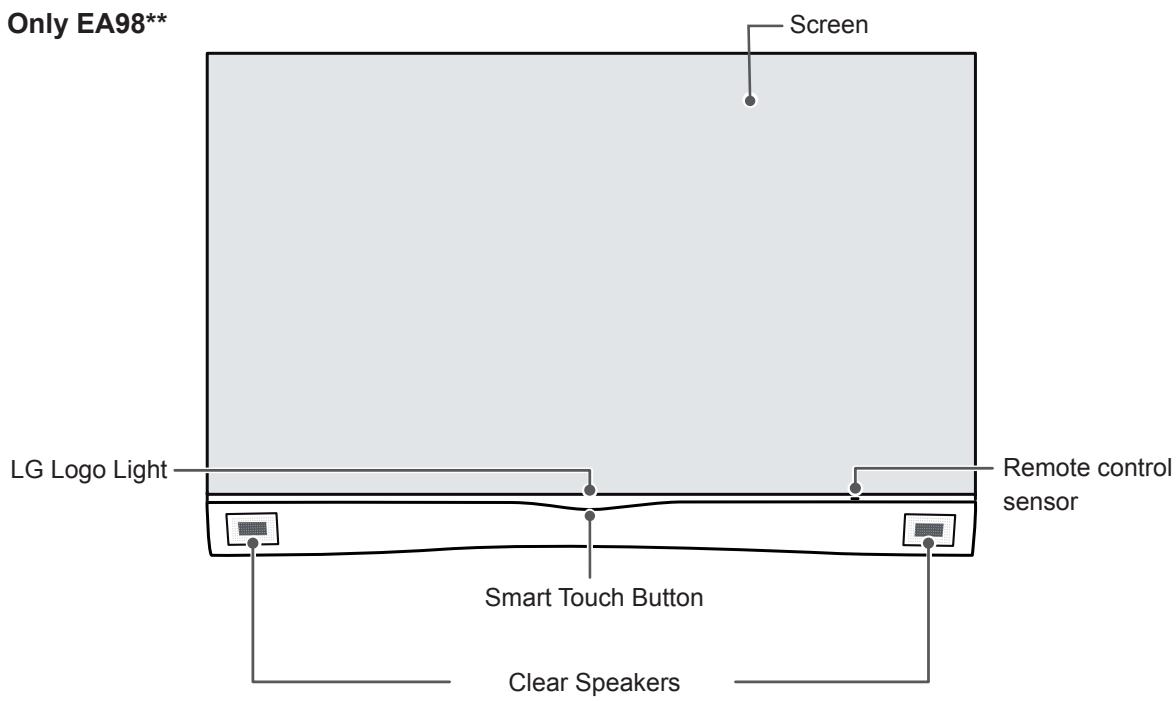

Only EA98** Screen LG Logo Light Remote control sensor Smart Touch Button Clear Speakers

Only EA88** Screen LG Logo Light Smart Touch Button Speakers (Depending on model) Remote control sensor

Button	Description
∅ / I	Turns the power on or off.

NOTE

- You can set the LG Logo Light to on or off by selecting OPTION in the main menus.

Using the Smart Touch Button

1 To Turn the TV On.

- Gently press the smart touch button just below the LG logo light at the bottom of the TV.

2 To Turn the TV Off.

- If the touch menu is not displayed on the screen, press the smart touch button for about two seconds.

LG Ø/1 Smart Touch Button (Power Button)

Diagram showing a hand pressing a button labeled '###' on a circular background, likely indicating a step or instruction.

安全 安全 安全

NOTE

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.
• Only press the smart touch button gently with your finger.
• If you touch any other part except the smart touch button, the TV may not respond.
• Do not press the smart touch button with two or more fingers. This may cause the product to malfunction. It is recommended that you only press the button with one finger.

3 To Use the Smart Touch Button.

• Press: Selects the menu you want.
• Press and hold: Returns to the previous step. If no previous step is available, press and hold turns off the TV.
• Slide Left/Right: Moves between Programme, Input, Settings, Power Off and Volume menus. If you want to change the programme or volume setting more quickly, slide your finger left or right to go the Programme or Volume menu, and press and hold the menu for about 2 seconds.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

- Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

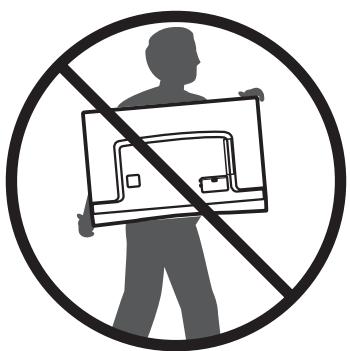

Symbol of a person holding a device with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

- (Depending on model) Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating hand gesture application on a screen, showing selection of 'X' and confirmation steps.

• When transporting a large TV, there should be at least 2 people.

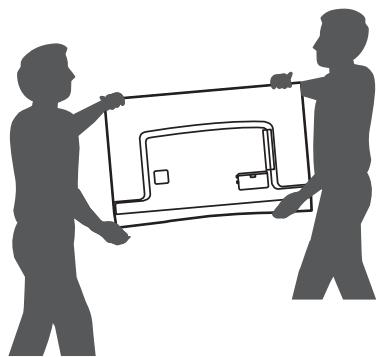

• When transporting the TV by hand, hold the TV as shown in the following illustration.

Silhouette of two people exchanging a car (no text or symbols visible)

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing/bending of frame chassis as it may damage screen.
• Be sure to keep your TV upright instead of laying or tilting it while moving the TV.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

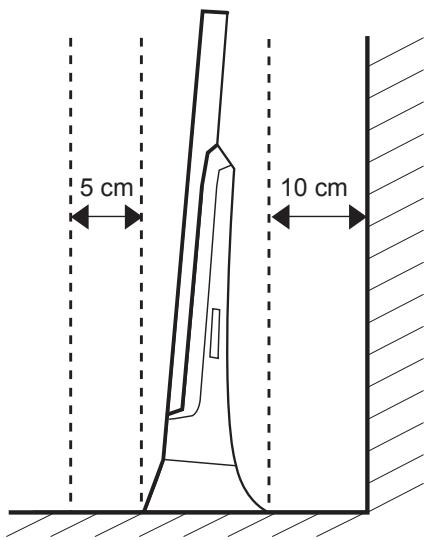

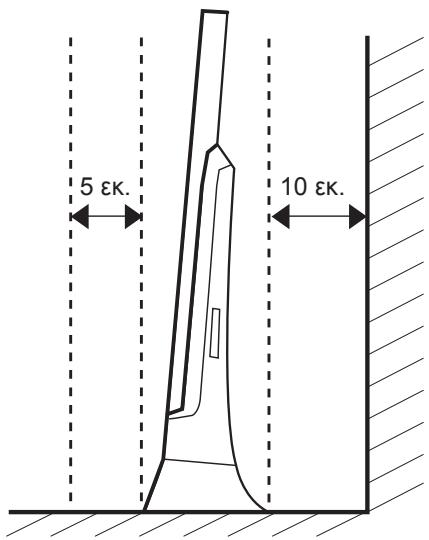

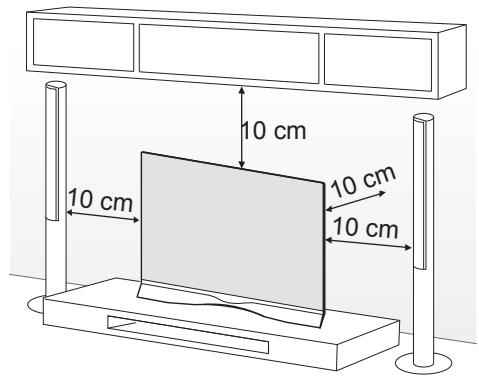

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

5 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a wall

(Only EA88**-ZA)

To use the desk-type stand safely, make sure to securely attach it to a wall.

Isometric line drawing of a flat-screen monitor with a red dashed oval highlight and control lever (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and spring assembly

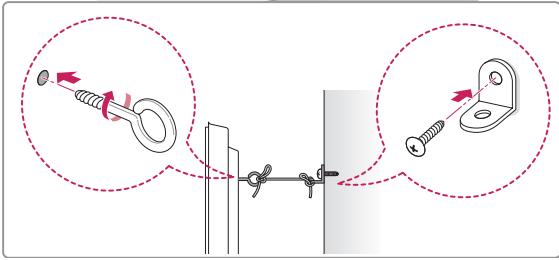

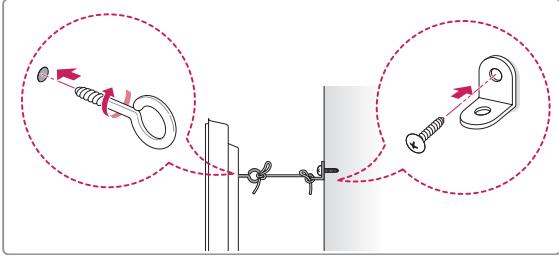

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

- Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

(Only EA88\*\*-ZA)

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.

LG recommends that wall mounting be performed by a qualified professional installer.

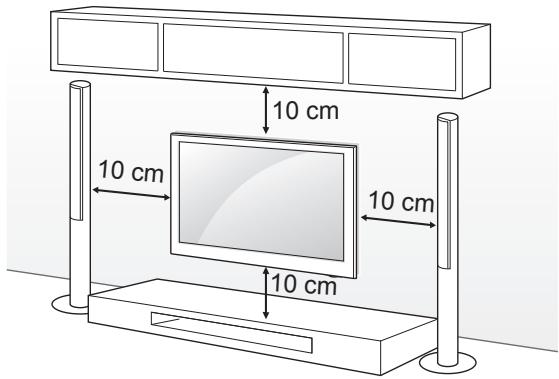

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	55EA88**-ZA
VESA (A)	210
Standard screw	M6
Number of screws	2
Wall mount bracket	AW-55EA88S

Pure diagram of a mechanical part with no text, numbers, or symbols

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

Video call camera

Product Handling

• Do not let the camera get wet. Liquid getting into the camera could cause a short circuit.
• Wipe the camera gently with a dry cloth to remove any dust or dirt. If the product is very dirty, spray a mild detergent on the cloth first.
• Do not clean with thinner, alcohol, benzene or any other volatile agent.
  These may damage the product's surface or affect its operation.
• Do not disassemble, repair or alter the product. Incorrect disassembly may cause a fire, electric shock, or injury.
• Do not shake the camera.
• Do not pull on the cable.

Installation Instructions

• Make sure you have enough space for connections when installing the product.
• Do not install in a dusty, dirty or moist area.
• Do not install in direct sunlight or near a heat source.
• Magnetic objects, such as speakers, may interfere with the camera's operation.
• Install the product in a place with moderate temperature and humidity. The recommended temperature range is 0 °C (32 °F) to 40 °C (104 °F).
• Strong electromagnetic waves from other devices could interfere with the camera's operation.
• Remove all the protective plastic bags (Vinyl) before use.

The product and company names contained in this manual may or may not be registered trademarks or copyrights, and are only used for identification or explanatory purposes. All trademarks reserved.

Overview

Microphones Lens Stand Activity Indicator

Stand-Arm Stand-cable holder Stand-Bottom USB Cable

NOTE

• For best results when using external speakers, only use the front right/left (stereo) speakers when using Skype.
• When making a video call with Skype using a PC, the Skype software version for Windows should be 4.2 or newer.
  (Visit the Skype homepage (www.skype.com) for operating systems other than Windows, e.g. OS X, Linux, etc.)
  • Video calls can not be made to a Mac that runs Skype 2.8 or lower.
• Content can be changed or deleted depending on Content Provider.
• Please visit the content providers web site for specific information on their services.
• The software update screen will automatically appear when an update is available.
• For some models, you cannot use input devices such as a keyboard and mouse while using Skype (premium content).

No emergency calls with Skype

Skype is not a telephone replacement service, and cannot be used for emergency service dialing.

REMOTE CONTROL

(Depending on model)

The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the

⊕ and ⊖ ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

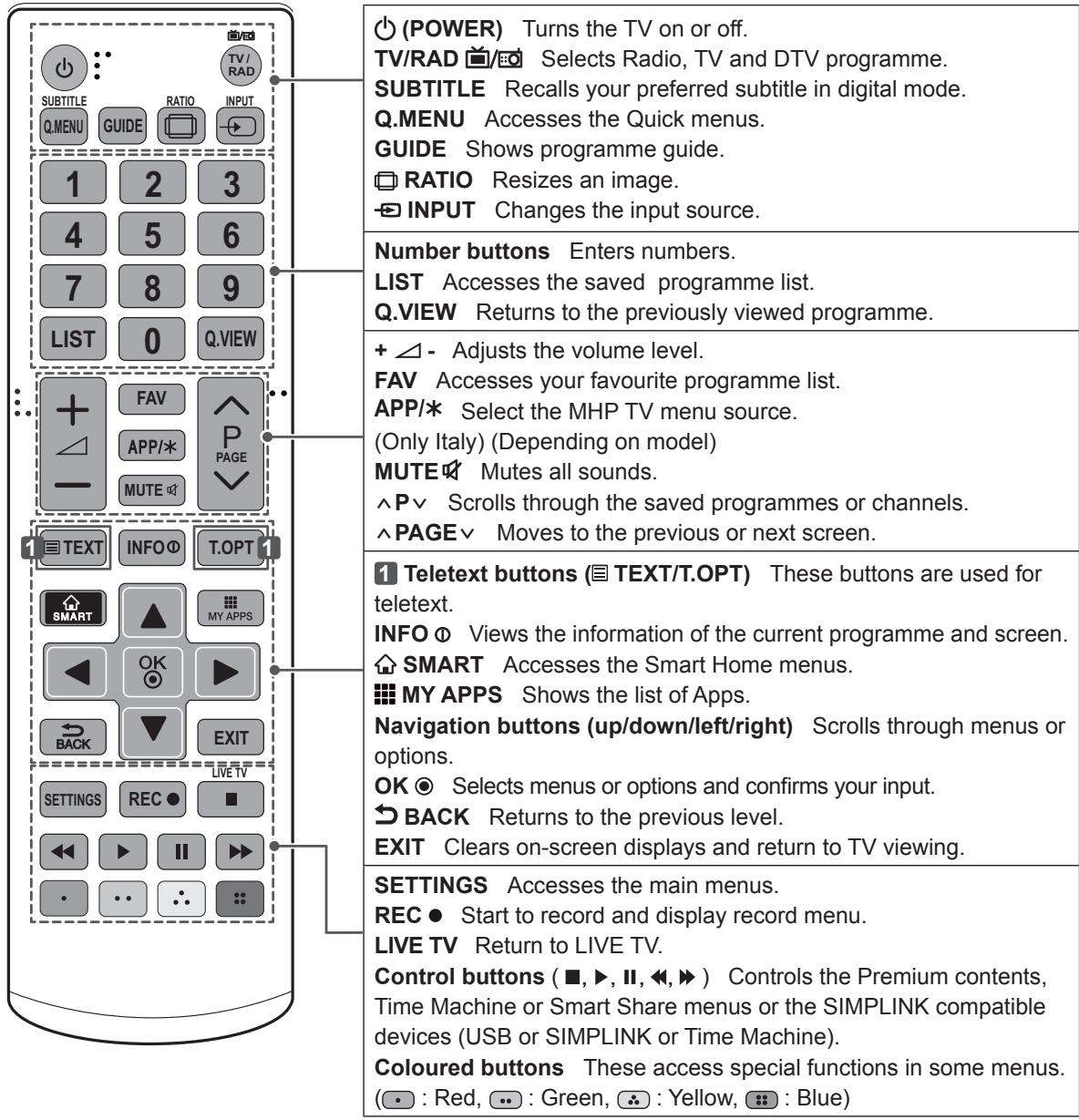

(POWER) Turns the TV on or off. TV/RAD Selects Radio, TV and DTV programme. SUBTITLE Recalls your preferred subtitle in digital mode. Q.MENU Accesses the Quick menus. GUIDE Shows programme guide. RATIO Resizes an image. INPUT Changes the input source. Number buttons Enters numbers. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme. + △ - Adjusts the volume level. FAV Accesses your favourite programme list. APP/* Select the MHP TV menu source. (Only Italy) (Depending on model) MUTE Mutes all sounds. ^P▼ Scrolls through the saved programmes or channels. ^PAGE▼ Moves to the previous or next screen. 1 Teletext buttons (TEXT/T.OPT) These buttons are used for teletext. INFO Views the information of the current programme and screen. SMART Accesses the Smart Home menus. MY APPS Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Returns to the previous level. EXIT Clears on-screen displays and return to TV viewing. SETTINGS Accesses the main menus. REC Start to record and display record menu. LIVE TV Return to LIVE TV. Control buttons (■, ▶, □, ◀, ▶) Controls the Premium contents, Time Machine or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine). Coloured buttons These access special functions in some menus. (● : Red, ⬤ : Green, ⬣ : Yellow, ⬇ : Blue)

MAGIC REMOTE CONTROL FUNCTIONS

This item is not included for all models.

When the message “Magic Remote Control battery is low. Change the battery.” is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching

⊕ and ⊖ ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control toward the remote control sensor on the TV.

To remove the batteries, perform the installation actions in reverse.

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

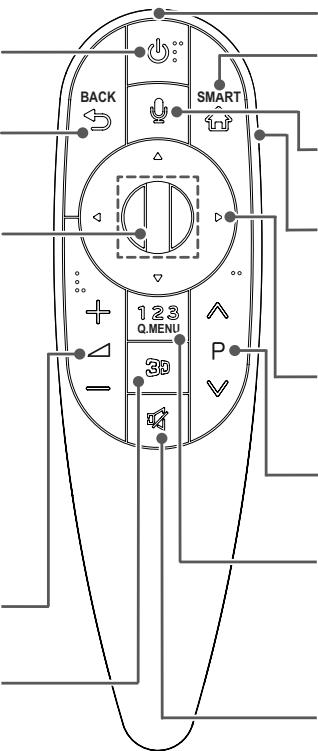

(POWER)

Turns the TV on or off.

BACK

Returns to the previous level.

Wheel(OK)

Selects menus or options and confirms your input.

Scrolls through the saved programmes.

If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic Remote Control works as a regular remote control.

To display the pointer again, shake the Magic Remote Control from side

to side.

Adjusts the volume level.

Used for viewing 3D video.

BACK SMART 123 Q. MENU P 30 44

Pointer (RF transmitter)

SMART

Accesses the Smart Home.

(Voice recognition)

(Depending on model)

LIGHTING ON/OFF

Turns the light on and off.

If you set it to ON, the light

automatically turns off in 5 seconds.

Navigation buttons (up/down/left/right)

Scrolls through menus or options.

^P∨

Scrolls through the saved programmes or channels.

123/Q.MENU

Accesses the quick menus.

Accesses the Universal Control.

(This feature is not available in all countries.)

(MUTE)

Mutes all sounds.

Voice recognition(Depending on model)

Network connection is required to use the voice recognition function.

The recognition rate may vary depending on the user's characteristics (voice, pronunciation, intonation and speed) and the environment (noise and TV volume).

1 Press the Voice recognition button.
2 Speak when the voice display window appears on the left of the TV screen.

NOTE

• The voice recognition may fail when you speak too fast or too slow.
• Use the Magic remote control no further than 10 cm from your face.

Registering Magic Remote Control

It is necessary to ‘pair’ (register) the magic remote control to your TV before it will work.

How to register the Magic Remote Control

1 To register automatically, turn the TV on and press the Wheel(OK) button. When registration is completed, the completion message appears on the screen.
2 If registration fails, turn the TV off and back on, then press the Wheel(OK) button to complete registration.

How to re-register the Magic Remote Control

BACK

SMART

1 Press and hold the BACK ➕ and SMART ➕ buttons together for 5 seconds to reset, then register it by following “How to register the Magic Remote Control” above.
2 To re-register the Magic Remote Control, press and hold the BACK ➕ button for 5 seconds toward the TV. When registration is completed, the completion message appears on the screen.

How to use magic remote control

1 If the pointer disappears, move the Magic Remote Control slightly to left or right. Then, it will automatically appear on the screen.
» If the pointer has not been used for a certain period of time, it will disappear.
2 You can move the pointer by aiming the Pointer Receiver of the Magic Remote Control at your TV then move it left, right, up or down.
» If the pointer does not work properly, leave the Magic Remote Control for 10 seconds then use it again.

1 More 2

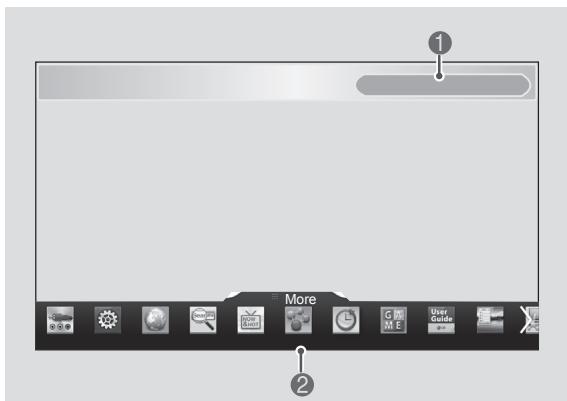

If you press Wheel(OK) on the Magic Remote Control, the following screen appears. Shows information about the current programme and screen.
② You can select More Menu.

Precautions to Take when Using the Magic Remote Control

• Use the Magic Remote Control within the maximum communication distance (10 m). Using the Magic Remote Control beyond this distance, or with an object obstructing it, may cause a communication failure.
• A communication failure may occur due to nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz) as the Magic Remote Control.
• The Magic Remote Control may be damaged or may malfunction if it is dropped or receives a heavy impact.
• Take care not to bump into nearby furniture or other people when using the Magic Remote Control.
• Manufacturer and installer cannot provide service related to human safety as the applicable wireless device has possibility of electric wave interference.
• It is recommended that an Access Point (AP) be located more than 1 m away from the TV. If the AP is installed closer than 1 m, the Magic Remote Control may not perform as expected due to frequency interference.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

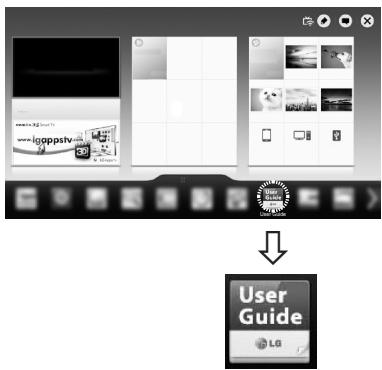

1 Press SMART 🏠 button to access the Smart Home menu.
2 Select User Guide and press Wheel(OK).

www.goppsfv User Guide

User Guide

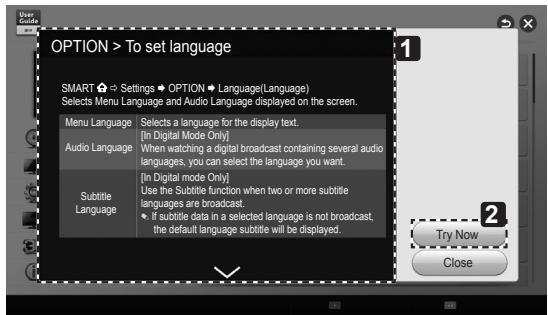

OPTION > To set language SMART ⬇️ Settings ⬇️ OPTION ⬇️ Language(Language) Selects Menu Language and Audio Language displayed on the screen. Menu Language Selects a language for the display text. Audio Language [In Digital Mode Only] When watching a digital broadcast containing several audio languages, you can select the language you want. Subtitle Language [In Digital mode Only] Use the Subtitle function when two or more subtitle languages are broadcast. ▶ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed. Try Now Close

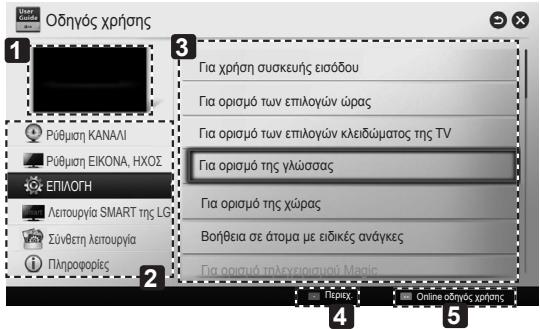

1 Shows the description of the selected menu. You can use ^/√ to move between pages.
2 Moves to the selected menu directly from the User Guide.

User Guide User Guide 1 PROGRAMME Setting PICTURE, SOUND Setting OPTION LG SMART Function Advanced Function Information To use input device To set time options To set TV lock options To set language To set country Disabled Assistance To set Magic remote control 2 3 4 5 Index Online User Guide

1 Shows the current watching programme or input source screen.
2 Allows to select the category you want.
3 Allows to select the item you want. You can use ^/√ to move between pages.
4 Allows to browse the description of the function you want from the index.
5 Provides the detailed information on the functions of LG Smart TV when the Internet is connected. (It may not be available depending on the country/language.)

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

CAUTION

(Only EA98**)

• When cleaning your TV, do not spray water directly on the left and right speakers at the bottom of the TV.
• Do not let any water enter your TV and keep it dry.

» Otherwise, this may cause damage to the product, such as corrosion.

Illustration of a hand spraying a substance with a prohibition symbol, next to a simple line drawing of a curved object (no text or symbols present)

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem	Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed (⊕ to ⊕,⊖ to ⊖).
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Automatic Standby or Off Time feature is activated in the TIME settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI/DVI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control.Reconnect the HDMI cable.Restart the PC with the TV on.
If Skype doesn’t start	Check whether the Video Call Camera is properly connected to the USB port on the TV.Check the network connection status.
If the Notification Window is not displayed when a call is received	Check that your status is not set as “Do not disturb”.When using certain TV functions, incoming calls can’t be received (e.g. during a software update, etc.).Check ‘Privacy Settings’ is “Allow calls from people in my contact list only”.
If there’s echo (e.g. when you hear your own voice played back through the speakers)	Change the home theater audio setting to stereo rather than surround.Reduce the speaker volume.Too much echo in the room can decrease audio quality.Test microphone using the ‘Echo / Sound Test Service’.
If you’re not able to receive any video or if it is of low quality	Internet or network congestion can degrade video quality.Using wireless can also degrade video quality. We recommend using a wired internet connection.Screen quality can decrease when using Zoom-In. We recommend you use minimum zoom during video calls.Check whether the call quality information is marked as “critical”. If this is the case, video quality can be degraded.
If the call ends abruptly	When certain TV functions are activated, the call may be disconnected. (e.g. Sleep timer, etc.)Do not unplug the Video Call Camera during a call.
If the Skype menu does not appear on the Premium menu	Connect the camera to your TV, then update the software. For details about how to update the software, refer to your TV manual.
Other issues	Issues may arise from network congestion of problems with the Skype network.For further inquiries about Skype functions, visit www.skype.com.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com.

SPECIFICATIONS

Wireless LAN module(TWFM-B006D) specification
Standard	IEEE802.11a/b/g/n
Frequency Range	2400 to 2483.5 MHz5150 to 5250 MHz5725 to 5850 MHz (for Non EU)
Output Power(Max.)	802.11a: 11 dBm802.11b: 14 dBm802.11g: 10.5 dBm802.11n - 2.4GHz: 11 dBm802.11n - 5GHz: 12.5 dBm
Bluetooth module (BM-LDS401) specification
Standard	Bluetooth Version 3.0
Frequency Range	2400 ~ 2483.5 MHz
Output Power (Max.)	10 dBm or lower
• Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

BENUTZERHANDBUCH OLED TV

Illustration of a wind turbine and a house with a smiling computer monitor, no text or symbols present.

Pure electrical circuit lines without any symbols

[an den Fernseher]

Separat erhältlich

Sound Sync

LG Audiogerät

Tag on

AN-BL***
Kabelloser IR-Blaster

Kompatibilität

Illustration of a hand pressing down on a circular surface with a finger (no text or symbols)

No Use No Use

HINWEIS

Symbol of a person holding a device with a diagonal line crossing through, no text or numbers present.

Diagram illustrating hand positioning and stress application on a screen, with labeled correct and incorrect states.

Silhouette of two people exchanging a large rectangular device (no text or symbols visible)

Isometric line drawing of a flatboard with a magnified inset showing two dots and a dashed ellipse (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and mounting details

goppshy User Guide

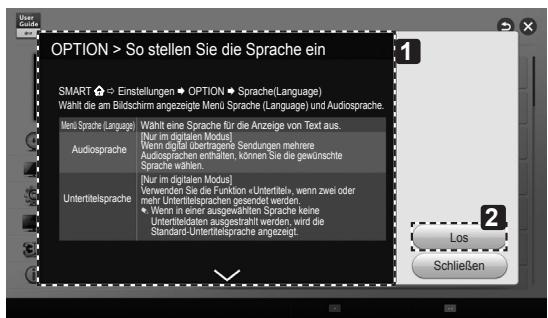

Benutzerhandbuch

Illustration of a hand holding a spray gun next to a circular object with a diagonal line and no visible text or symbols

Netzkabel

Illustration of three cartoon scenes: a smiling house, a wind turbine with motion lines, and a sad computer monitor (no text or symbols)

Illustration showing two steps of installing a cartoon-style electrical outlet, with hands performing maintenance (no text or symbols present)

Magic remote, piles (AA)

(voir p. 25)

Magic remote, piles (AA)

(voir p. 25)

Pure electrical circuit lines without any symbols

[vers la TV]

Achat séparé

Illustration of a sound recording device with circular buttons and two cylindrical components (no text or symbols)

Hand pressing a button on a surface, no text or symbols visible

###

REMARQUE

Symbol of a person holding a device with a diagonal line crossing through, enclosed in a circle (no text or numbers present)

Diagram illustrating hand gesture application on a screen, showing selection of 'X' and confirmation steps.

Silhouette of two people carrying a large rectangular object, no text or symbols visible

Isometric line drawing of a flatboard with a magnified inset showing two dots and a dashed ellipse (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and spring assembly

goppshy User Guide

Illustration of a hand spraying a circular object with a diagonal line, next to a curved line and a magnified view (no text or symbols)

Illustration of three cartoon scenes: a smiling house, a wind turbine, and a computer monitor (no text or symbols)

Illustration showing two different electrical installation methods: one with a plug and sparkles, the other with hands inserting wires (no text or symbols present)

Three grayscale field scenes with vertical streaks under a cloudy sky, framed by a dotted border (no text or symbols)

Pure electrical circuit lines without any symbols

[al televisore]

Acquisto separato

Sound Sync

Dispositivo audio LG

Tag on

AN-BL***

Raggio IR wireless

Compatibilità	55EA98**	55EA88**
AN-MR400Telcomando Magic	•	•
AG-F***Occhiali 3D Cinema	•	•
AG-F***DPOcchiali Dual play	•	•
AN-VC5**Telecamera per videochiamate	•	•
Dispositivo audio LG	•	•
Tag on	•	•
AN-BL***Raggio IR wireless	•	•

Symbol of a person holding a device with a crossed-out box, enclosed in a circle (no text or numbers present)

Diagram illustrating hand gesture application on a screen, showing selection of 'X' and confirmation steps.

Silhouette of two people holding a large rectangular object, no text or symbols visible

Isometric line drawing of a flatboard with a red dashed oval and four dots, mounted on a stand (no text or symbols)

Diagram illustrating cable fastening techniques with magnified insets showing rope and nut assembly

Pure geometric diagram showing a rectangular shape with an internal horizontal line labeled 'A' and a small dot, no text or symbols present.

ATTENZIONE

Illustration of a hand spraying a nozzle with a prohibition symbol, next to a blank screen (no text or symbols present)

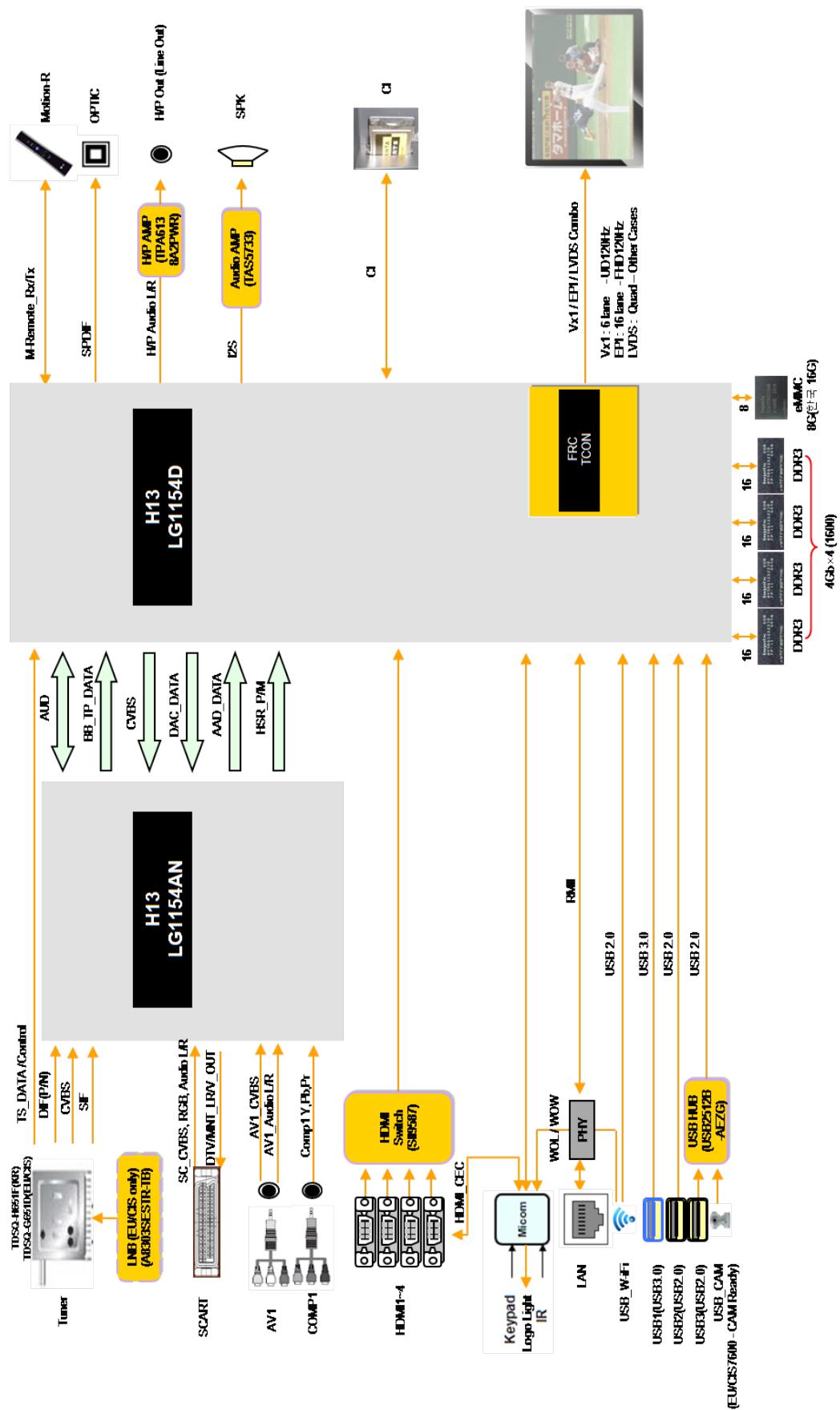

H13_DIAGRAMMI A BLOCCHI (ESTERNO)

MANUAL DE USUARIO TV OLED

Illustration of a wind farm and a house with a smiling computer monitor, no text or symbols present.

Pure electrical circuit lines without any symbols

[a la TV]

Compra por separado

Illustration of a sound synch with two labeled components (no text or symbols on the main diagram)

Diagram showing a hand pressing a button labeled '###' on a circular background, likely indicating a step or instruction.

No. Yes

NOTA

Symbol of a person holding a device with a diagonal line crossing through it, no text or numbers present.

Diagram illustrating hand positioning and stress application on a device, with labeled correct and incorrect states.

Silhouette of two people holding a rectangular object, no text or symbols present

Simple line drawing of a monitor with a stand and a dotted oval highlight on the screen (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and spring assembly

Illustration of a hand spraying a substance with a circular object and a ruler extending into it (no text or symbols)

MANUAL DE INSTRUÇÕES TV OLED

Illustration of a hand holding a device and a sad face, with an electrical outlet nearby (no text or symbols)

Illustration of three cartoon scenes: a smiling house, a wind turbine, and a computer monitor (no text or symbols)

Pure electrical circuit lines without any symbols

[à TV]

Illustration of a sound synch with three circular buttons and two cylindrical objects (no text or symbols)

Symbol of a person holding a device with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Diagram illustrating hand gesture application on a screen, showing selection of 'X' and confirmation steps.

Silhouette of two people carrying a large rectangular object, no text or symbols visible

Isometric line drawing of a flat-screen monitor with a red dashed oval highlight and control stand (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and spring assembly

goppshift User Guide

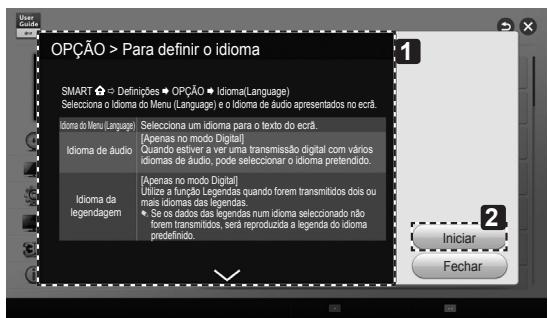

Manual do Utilizador

Illustration of a hand spraying a circular object with a diagonal line, next to a blank screen (no text or symbols)

Cabo de alimentação

Illustration of three cartoon scenes: a hand holding a phone, a sad computer with a frowning expression, and a smartphone with a smiling face (no text or symbols)

Illustration of a wind farm and a house with a smiling computer monitor, no text or symbols present.

Pure electrical circuit lines without any symbols

[bij de TV]

Illustration of a sound synch with three circular buttons and two cylindrical objects (no text or symbols)

LG Audio-apparaat

Tag on

AN-BL***

Draadloze IR-blaster

Compatibiliteit

AN-MR400

Magic-afstandsbediening

AG-F***

Cinema 3D-bril

AG-F***DPDual Play-bril

AN-VC5**

Video Call Camera (Webcam)

LG Audio-apparaat

Tag on

AN-BL***

Draadloze IR-blaster

55EA98**
55EA88**

•

m = 311

.

•

.

.

.

Illustration of a hand pressing down on a horizontal surface with a circular frame (no text or symbols)

No. Yes

OPMERKING

Symbol of a person holding a device with a crossed-out box, enclosed in a circle (no text or numbers present)

Diagram illustrating hand gesture application on a screen, showing correct and incorrect states with X marks

Silhouette of two people exchanging a large rectangular device (no text or symbols visible)

Illustration of a flat-screen monitor with a red dashed oval highlight on the screen (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and spring assembly

goppshy User Guide

Illustration of a hand spraying a circular object with a diagonal line, next to a blank screen (no text or symbols)

Netsnoer

7,295,673; 7,460,668; 7,515,710; 7,519,274"

dts® 2.0+Digital Out

Illustration showing a hand holding a switch and a sad face inside a device connected to an electrical outlet (no text or symbols present)

Illustration of a wind turbine and a smiling house with a smiling face, no text or symbols present.

Pure electrical circuit lines without any symbols

[στην τηλεόραση]

Illustration of a sound synch with three circular buttons and two cylindrical objects (no text or symbols)

Συσκευή ήχου LG

Tag on

AN-BL***

Ασύρματο Blaster IR

Illustration of a hand pressing down on a circular surface with a finger (no text or symbols)

No. No.1

ΣΗΜΕΙΩΣΗ

Symbol of a person holding a device with a crossed-out box, enclosed in a circle (no text or numbers present)

Diagram illustrating hand gesture application on a screen, showing selection and confirmation steps with X marks

Silhouette of two people carrying a large rectangular object, no text or symbols visible

10 εK. 10 εK. 10 εK. 10 εK.

5 εk. 10 εk.

Isometric line drawing of a flatboard with a magnified inset showing two dots and a dashed ellipse (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and spring assembly

10 εK. 10 εK. 10 εK.

Registration 1 2

www.goppsfv User Guide

Οδηγός χρήσης

Illustration of a hand spraying a circular object with a diagonal line, next to a blank screen (no text or symbols)

Καλώδιο τροφοδοσίας

Illustration of three cartoon scenes: a house with smiling face, a smiling house with wind and steam, and a computer monitor with angry expression (no text or symbols)

Pure electrical circuit lines without any symbols

[do televizorja]

Naprodaj ločeno

Illustration of a sound synch with two speakers and a cylindrical device (no text or symbols)

Avdio naprava LG

Tag on

AN-BL***

Hand holding a red object against a dark background, labeled 'Dotik' at the bottom (no other text or symbols)

Drsenje

Dolg dotik

Symbol of a person holding a device with a diagonal line crossing through, no text or numbers present.

Diagram illustrating hand positioning and stress application on a screen, with labeled correct and incorrect states.

Silhouette of two people carrying a large rectangular object, no text or symbols visible

Isometric line drawing of a flatboard with a magnified inset showing two dots and a dashed ellipse (no text or symbols)

Diagram illustrating cable fastening technique with magnified views showing pin and mounting details

1 Vstavite in privijte očesne vijake ali nosilce in vijake na hrbtno stran televizorja.

goppshy User Guide

Illustration of a hand spraying a substance with a prohibition symbol, next to a curved line and square markers (no text or symbols present)

Napajalni kabel

Product specifications may be changed without prior notice due to upgrade of product functions.

MODELS		55EA98**	55EA88**
		55EA9809-ZA55EA980V-ZA55EA980W-ZA	55EA8809-ZA55EA880V-ZA55EA880W-ZA
Dimensions(W x H x D)	With stand (mm)	1227 x 798.5 x 192	1230 x 790 x 233
	Without stand(mm)	-	1230 x 715 x 25.4
Weight	With stand (kg)	17.2	18.0
	Without stand (kg)	-	13.2
Power consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power requirement		270 W	265 W
MODELS		55EA88**
		55EA8809-ZC55EA880V-ZC55EA880W-ZC	55EA8809-ZF55EA880V-ZF55EA880W-ZF
Dimensions(W x H x D)	With stand (mm)	-
	Without stand(mm)	1230 x 715 x 25.4
Weight	With stand (kg)	-
	Without stand (kg)	12.4	13.2
Power consumption		AC 100-240 V~ 50 / 60 Hz
Power requirement		265 W
CI Module Size (W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Satellite Digital TV	Digital TV	Analogue TV
Television system	DVB-S/S2	DVB-T/T2^1 DVB-C^2	PAL/SECAM B/G/I/D/K, PAL I', SECAM L/L'
Programme coverage	C-Band, Ku-Band	VHF, UHF	VHF: E2 to E12UHF: E21 to E69CATV: S1 to S20HYPER: S21 to S47
Maximum number of storable programmes	6,000	1,200
External antenna impedance	75 Ω

1 T/T2 : Terrestrial
2 C: Cable

Video Call Camera specification
Dimensions (W x H x D)		112 mm x 56 mm x 38 mm
Weight		107.8 g
Video	Lens	Focus	More than 100 cm
		Field of Vision	61.25° in diagonal
	Effective pixels	1920 x 1080
	Output format	H.264, MJPEG, YUV
	Output Image	Full-HD, HD, VGA, QVGA, QQVGA
Audio	Microphone	2
Interface		USB
Environmental conditions	Operating Temperature	0 °C - 40 °C (32 °F - 104 °F)
	Operating Humidity	0 % - 80 %
	Storage Temperature	-20 °C - 70 °C (-4 °F - 158 °F)
	Storage Humidity	0 % - 90 %

• The specifications shown above may be altered without prior notice to improve quality.
• This product follows Skype Encoding Camera Specification (SECS) 2.1.

CAUTION

• Video calls through a LG TV cannot be made using the following devices :

• ASUS Skype Video Phone Touch SV1TS
• ASUS Skype Video Phone Touch SV1TW
• AIGURU_SV1 Skype video Phone
  * The list of devices that are not supported may be amended without prior notification.

HDMI/DVI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 480	31.469 / 31.5	59.94/ 60
720 x 480	31.469 / 31.5	59.94 / 60
720 x 576	31.2515.625	5050
1280 x 720	37.50044.96 / 45	5059.94 / 60
1920 x 1080	33.72 / 33.7528.12526.97 / 2733.716 / 33.7556.25067.43 / 67.5	59.94 / 6050.0023.97 / 242529.976 / 30.005059.94 / 60

Component port connecting information

Component ports on the TV	Y	P_B	P_R
Video output ports on DVD player	Y	P_B	P_R
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr
Signal	Component
480i/576i	O
480p/576p	O
720p/1080i	O
1080p	O(50 Hz / 60 Hz only)

HDMI-PC supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350	31.468	70.09
640 x 480	31.469	59.94
720 x 400	31.469	70.08
800 x 600	37.879	60.31
1024 x 768	48.363	60.00
1152 x 864	54.348	60.053
1280 x 1024	63.981	60.020
1360 x 768	47.712	60.015
1920 x 1080	67.5	60.00

3D supported mode

• Video, which is input as below media contents is switched into the 3D screen automatically.
- The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images.

3D supported mode automatically
Input	Signal	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
HDMI	640x480	31.469 / 31.5	59.94 / 60	Side by Side(Half), Top & Bottom, Side by Side(Full)
		62.938 / 63		Frame Packing, Line Alternative
	480p	31.469 / 31.5		Side by Side(Half), Top & Bottom, Side by Side(Full)
		62.938 / 63		Frame Packing, Line Alternative
	576p	31.25	50	Side by Side(Half), Top & Bottom, Side by Side(Full)
		62.5		Frame Packing, Line Alternative
	720p	37.50	50	Side by Side(Half), Top & Bottom, Side by Side(Full)
		44.96 / 45	59.94 / 60
		75	50	Frame packing, Line Alternative
		89.91 / 90	59.94 / 60
	1080i	28.125	50	Side by Side(Half), Top & Bottom, Side by Side(Full)
		33.72 / 33.75	59.94 / 60
		56.25	50	Frame packing, Field Alternative
		67.432 / 67.50	59.94 / 60
	1080p	26.97 / 27	23.97 / 24	Side by Side(Half), Top & Bottom, Side by Side(Full)
		28.125	25
		33.72 / 33.75	29.976 / 30
		43.94 / 54	23.97 / 24	Frame packing, Line Alternative
		56.25	25
		67.432 / 67.5	29.976 / 30
		56.25	50	Side by Side(Half), Top & Bottom
		67.432 / 67.5	59.94 / 60
USB	1080p	33.75	30	Side by Side(Half), Top & Bottom, Checker Board, MPO(Photo), JPS(Photo)
DLNA	1080p	33.75	30
	Signal			Playable 3D video format
DTV	Frame Compatible			Side by Side(Half), Top & Bottom
3D supported mode manually
Input	Signal			Playable 3D video format
	Resolution	Horizontal Frequency (kHz)	Verticla Frequency (Hz)
DTV	HD / SD	-	-	2D to 3D, Side by Side(Half), Top & Bottom
ATV(CVBS)	SD	-	-
Component	HD / SD	-	-
HDMI-PC	1024X768	48.36	60
	1360X768	47.71
	1920X1080	67.5		2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving
	Others	-	-	2D to 3D, Side by Side(Half), Top & Bottom
HDMI-DTV	480P	31.5	60	2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving
	576P	31.25	50
	720p	37.5	50
		45	60
	1080i	28.12	50	2D to 3D, Side by Sied(Half), Top & Bottom
		33.75	60
	1080p	27	24	2D to 3D, Side by Side(Half), Top & Bottom,Checker Board, Row Interleaving, Column Interleaving
		28.12	25
		33.75	30
		56.25	50	2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving
		67.5	60
USB ,DLNA (Movie)	Under 704x480	-	-	2D to 3D
	Over 704x480 interlaced	-	-	2D to 3D, Side by Side(Half), Top & Bottom
	Over 704x480 progressive	-	50 / 60	2D to 3D, Side by Side(Half), Top & Bottom,Checker Board, Frame Sequential, Row Interleaving, Column Interleaving
		-	others	2D to 3D, Side by Side(Half), Top & Bottom,Checker Board, Row Interleaving, Column Interleaving
USB, DLNA (Photo)	Under 320x240	-	-	2D to 3D
	Over 320x240	-	-	2D to 3D, Side by Side(Half), Top & Bottom
Miracast/Widi	1024X768p	-	30 / 60	2D to 3D, Side by Side(Half), Top & Bottom
	1280x720p	-	30 / 60
	1920X1080p	-	30 / 60
	Others	-	-	2D to 3D

LG

Life's Good

Please contact LG First. If you have any inquiries or comments, please contact LG customer information centre.

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB®

Digital Video Broadcasting

LG Customer Information Centre

Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
België	015 200 255	Norge	800 187 40
Luxembourg	0032 15 200 255	Polska	801 54 54 54
България	07001 54 54	Portugal	808 78 54 54
Česká Rep.	810 555 810	România	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	España	902 500 234
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01806 11 54 11(0,20€ pro Anruf aus dem Festnetz der DTAG; Mobilfunk: max. 0,60€ pro Anruf)	Schweiz	0848 543 543
Еллáδα	801 11 200 900,210 4800 564	United Kingdom	0844 847 5454
		Россия	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	0818 27 6955	Украина	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805,2255(GSM)
Беларусь	8 820 0071 1111
Latvija	80200201	Узбекистан	8 800 120 2222
Lietuva	880008081	Кыргызстан	8 0000 710 005

www.lg.com
