USER MANUAL CA20FMW7NB CANDY

MANUEL D'INSTRUCTION

Modèle : CA20FMW7NB

Installation et raccordement

Warning symbol of a triangle with steam and horizontal line indicating heat or smoke (no text)

Line drawing of a cabinet or enclosure with front panel and side door (no text or symbols)

1.

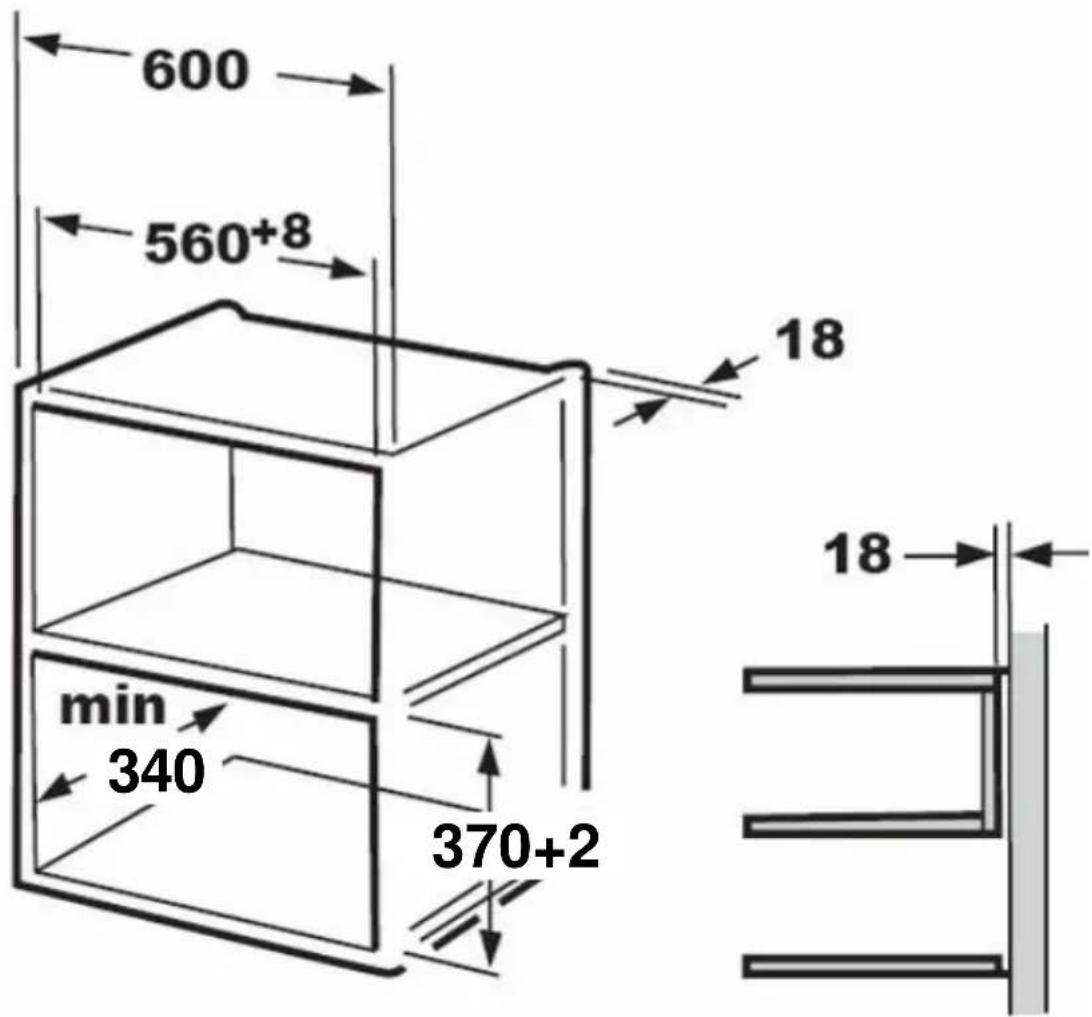

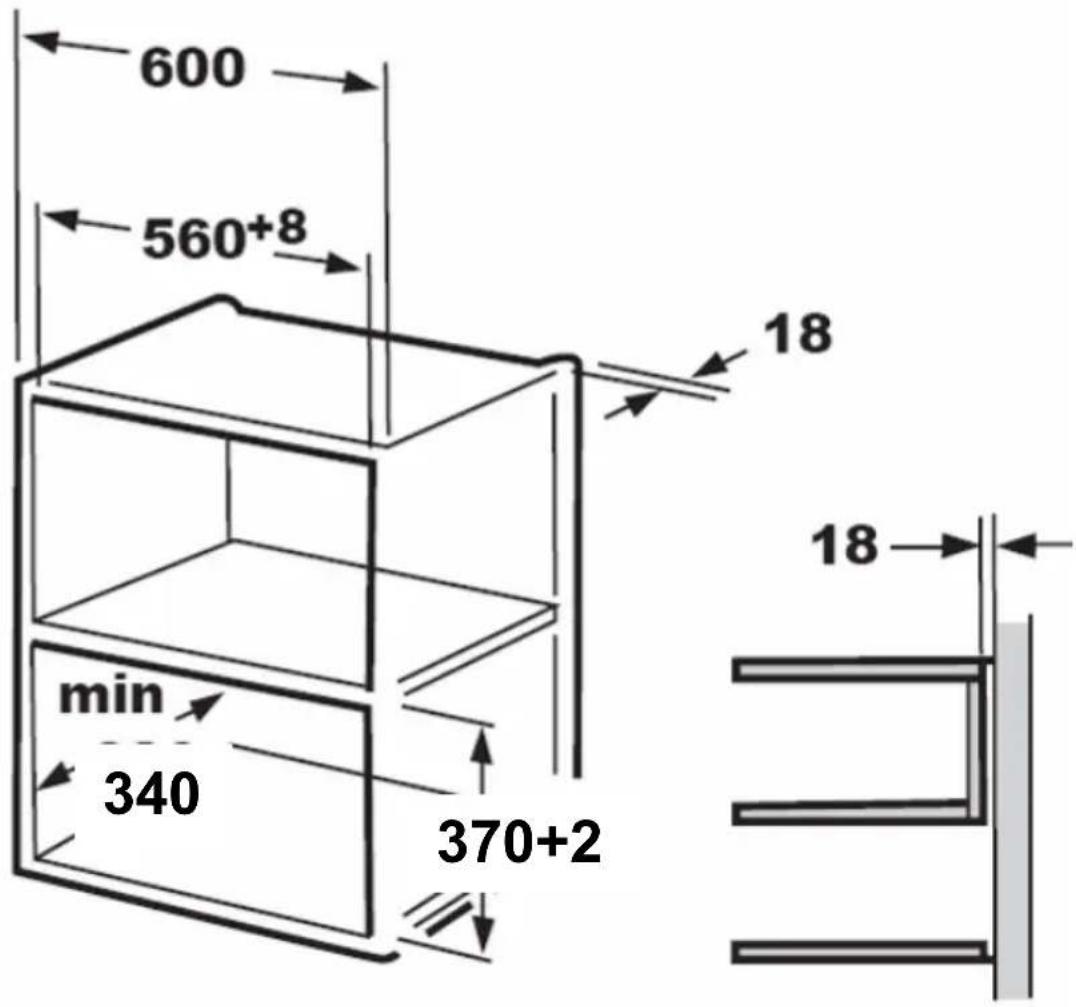

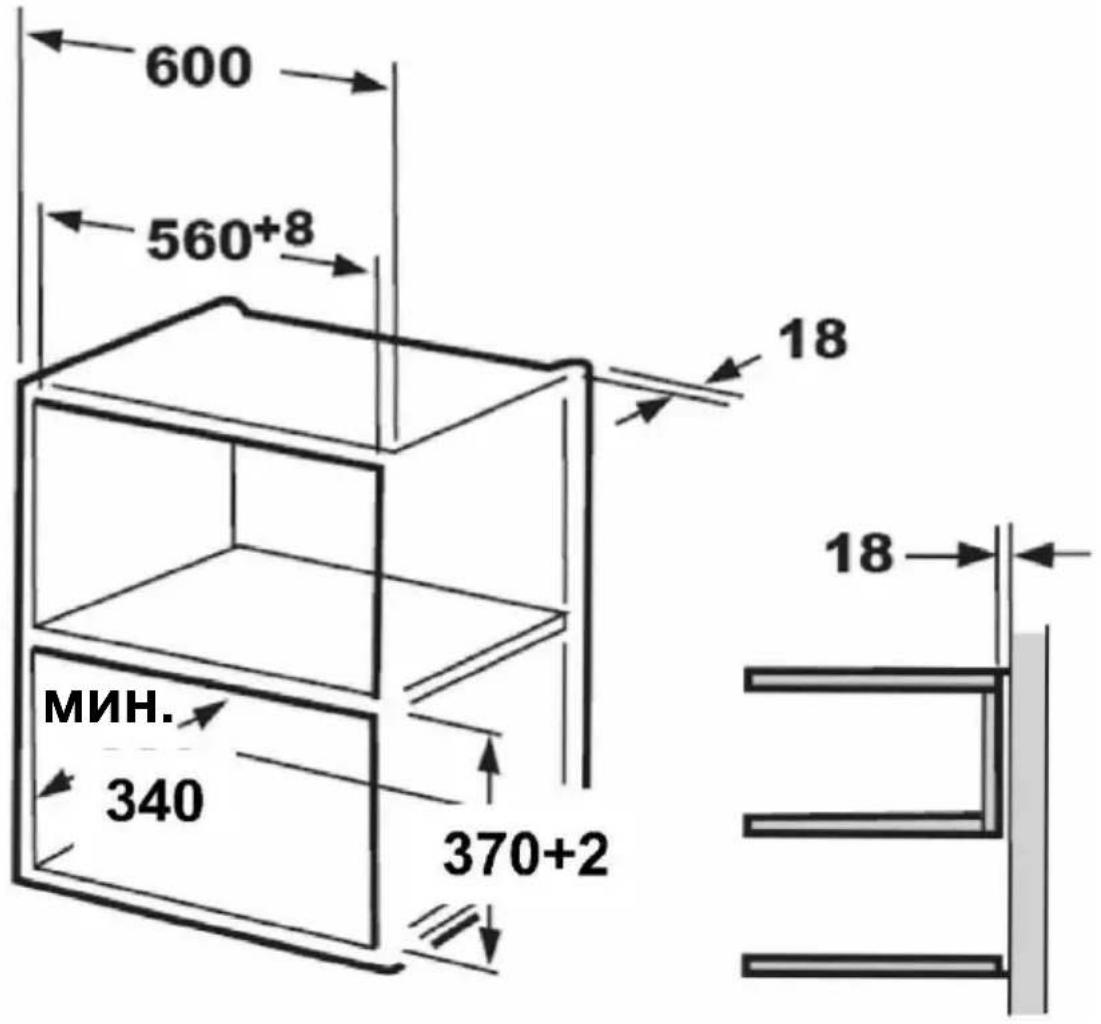

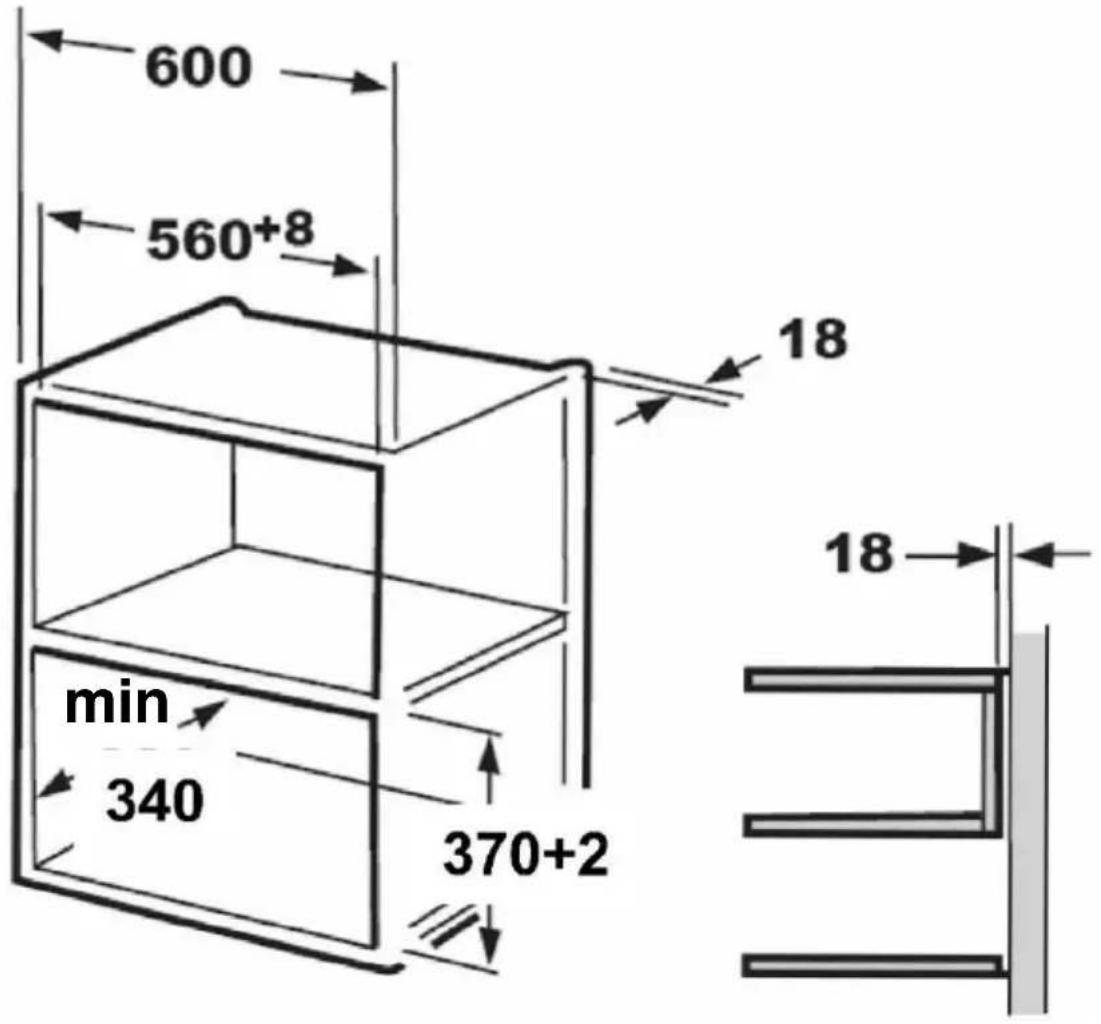

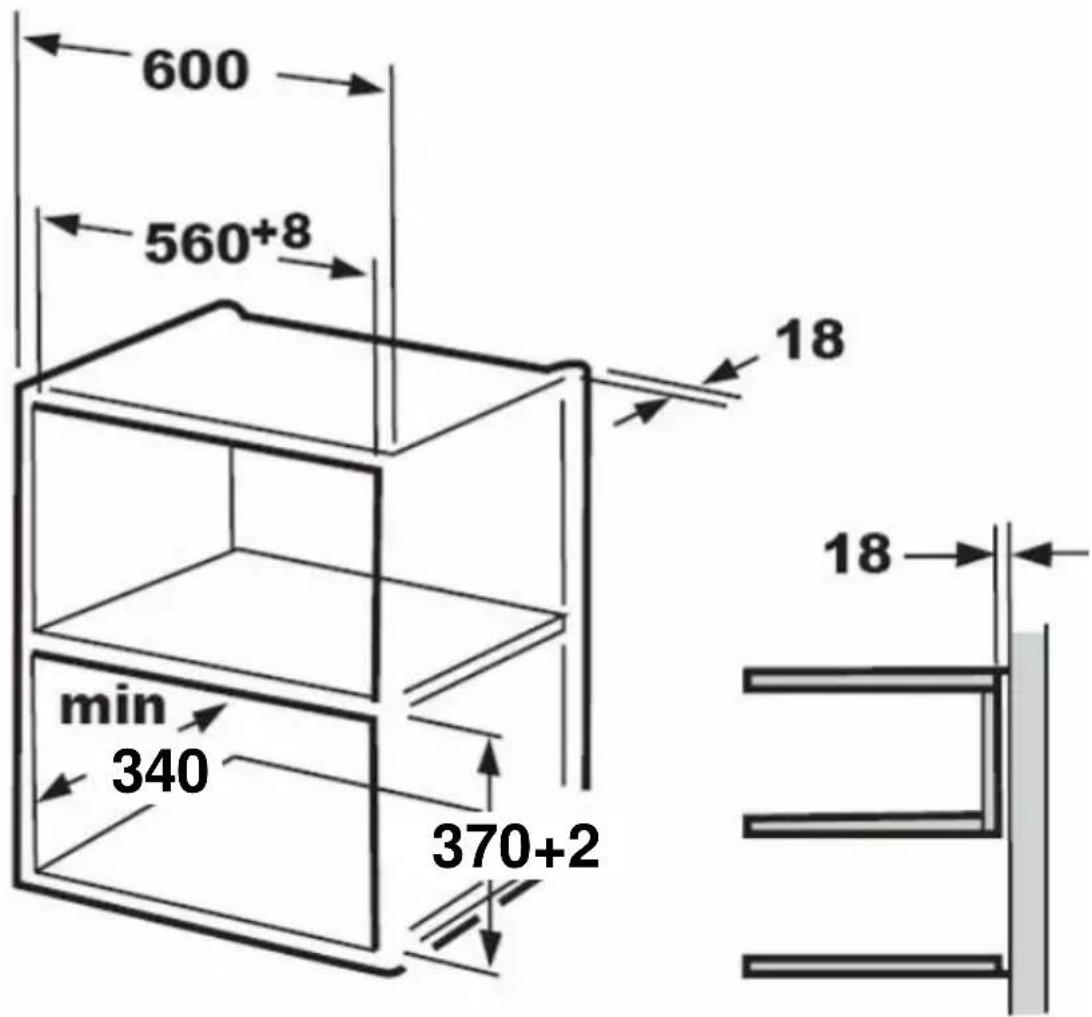

600 560+8 min 340 370+2 18 18

1.

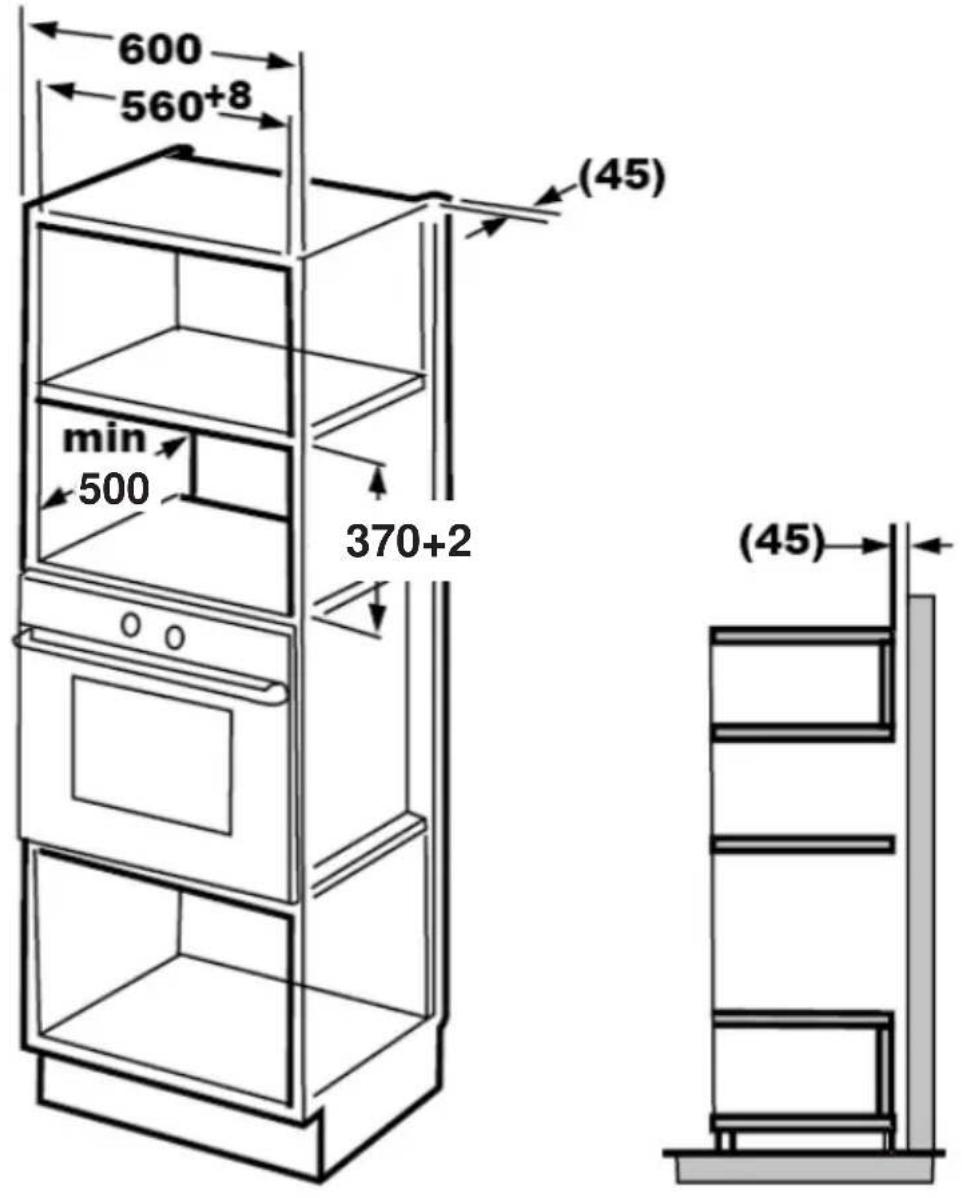

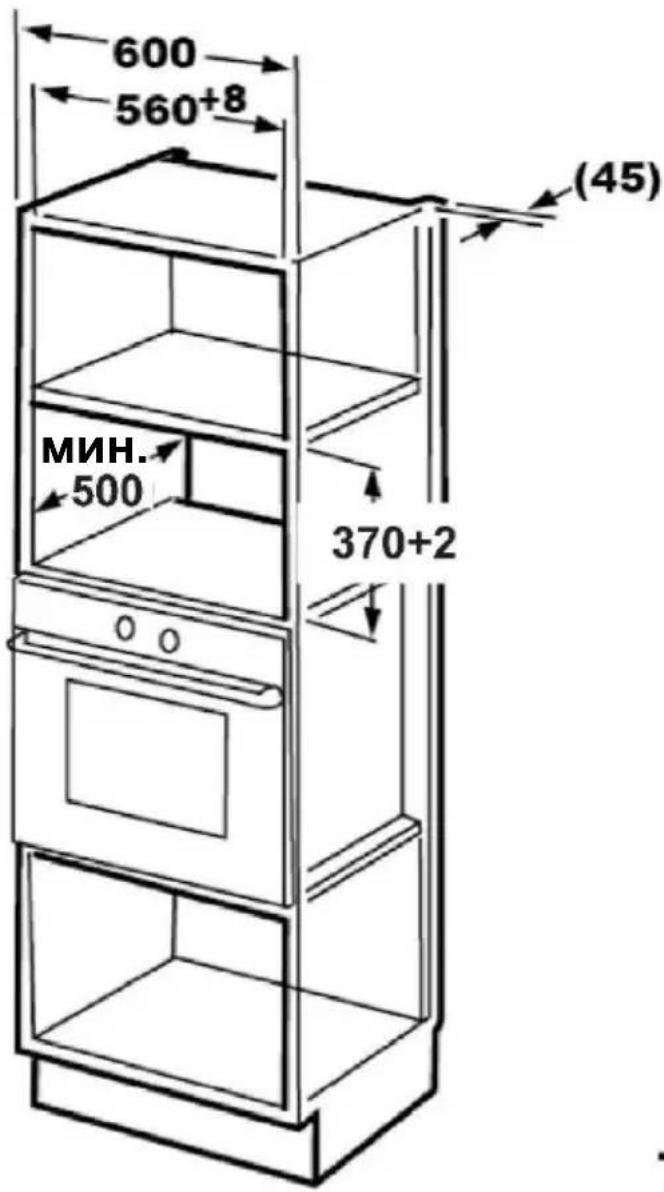

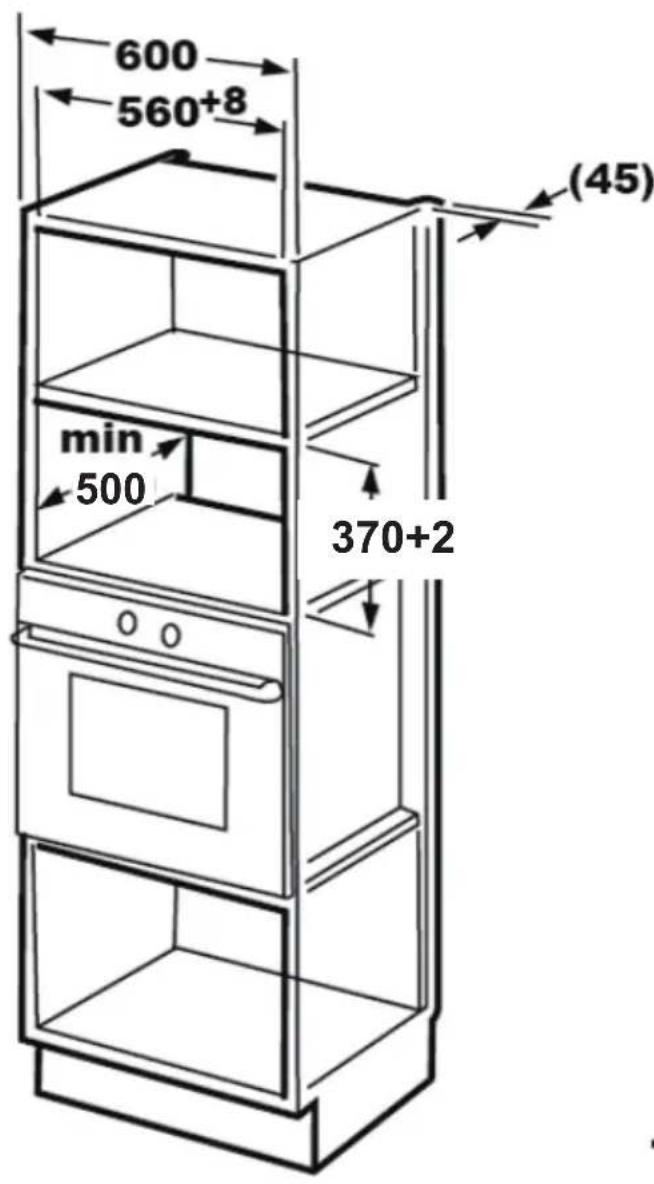

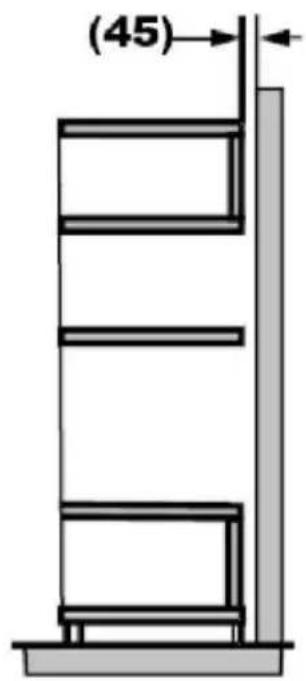

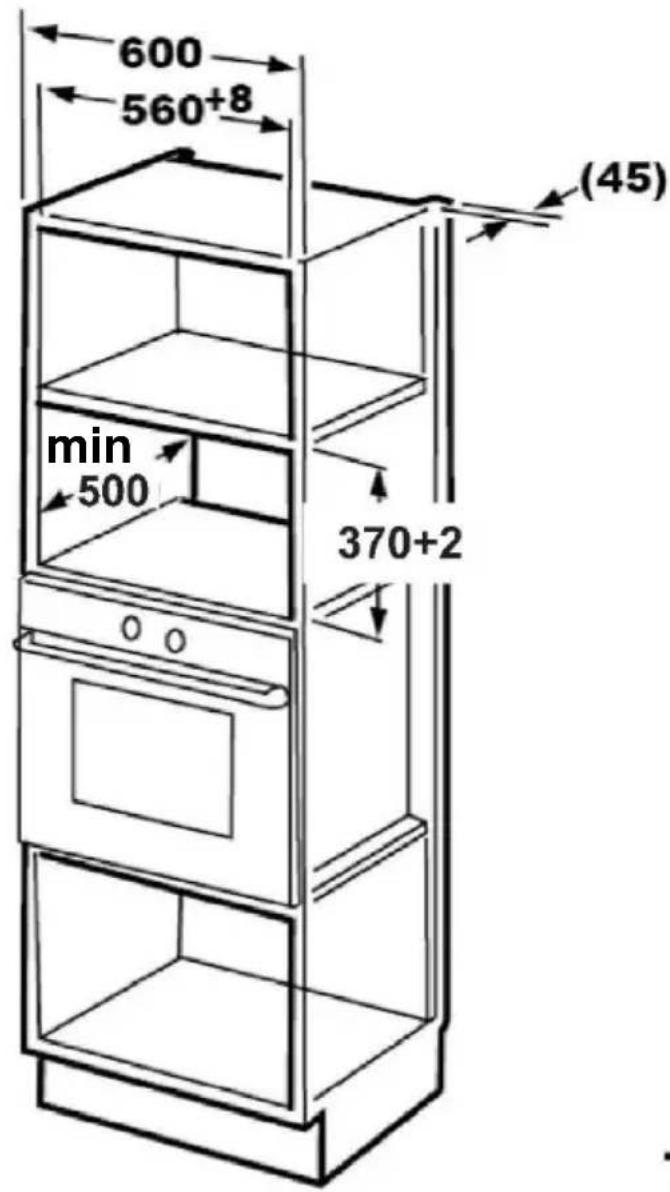

600 560+8 min 500 (45) 370+2 (45)

Remarque :

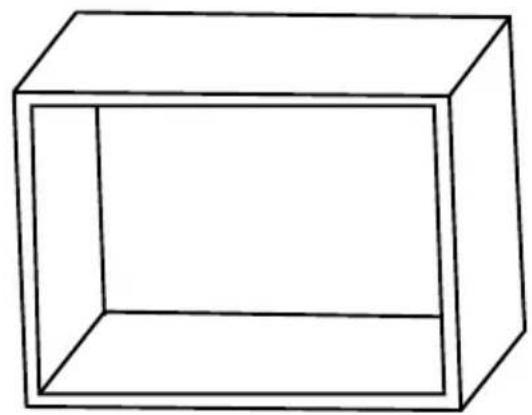

Simple line drawing of a 3D rectangular prism (no text or symbols)

BOTTOM CHANNEL TEMPLATS FOR 2014 TO 2015, 1987-2003 (ISO: 10.0000) FOR 2014 TO 2015, 1987-2003 (ISO: 10.0000) FOR 2014 TO 2015, 1987-2003 (ISO: 10.0000) FOR 2014 TO 2015, 1987-2003 (ISO: 10,000) FOR 2014 TO 2015, 1987-2003 (ISO: 10,000) FOR 2014 TO 2015, 1987-2003 (ISO: 10,000) FOR 2014 TO 2015, 1987-2003 (ISO: 20,000) FOR 2014 TO 2015, 1987-2003 (ISO: 20,000) FOR 2014 TO 2015, 1987-2003 (ISO: 20,000) FOR 2014 TO 2015, 1987-2003 (ISO: FRONT)

8:8:8:8 Energy Power Volume Audio G

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

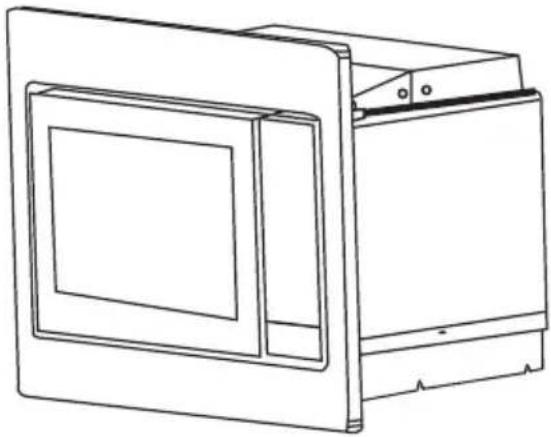

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

1.

600 560+8 min 500 (45) 370+2 (45)

Nota:

Simple line drawing of a 3D rectangular box (no text or symbols)

BOTTOM CARRYE TEMPLATE FRONT

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

1.

600 560+8 min 500 (45) 370+2 (45)

Nota:

Simple line drawing of a 3D rectangular box (no text or symbols)

BOTTOM CABLES TEMPLATS FOR 12.000mm x 100mm x 150mm x 200mm x 250mm x 300mm x 350mm x 400mm x 450mm x 500mm x 550mm x 600mm x 650mm x 700mm x 750mm x 800mm x 850mm x 900mm x 950mm x 1000mm x 1050mm x 1100mm x 1150mm x 1200mm x 1250mm x 1300mm x 1350mm x 1400mm x 1450mm x 1500mm x 1550mm x 1600mm x 1650mm x 1700mm x 1750mm x 1800mm x 1850mm x 1900mm x 1950mm x 2000mm x 2050mm x 2100mm x 2150mm x 2200mm x 2250mm x 2300mm x 2350mm x 2400mm x 2450mm x 2500mm x 2550mm x 2600mm x 2650mm x 2700mm x 2750mm x 2800mm x 2850mm x 2900mm x 2950mm x 3000mm x 3050mm x 3100mm x 3150mm x 3200mm x 3250mm x 3300mm x 3350mm x 3400mm x 3450mm x 3500mm x 3550mm x 3600mm x 3650mm x 3700mm x 3750mm x 3800mm x 3850mm x 3900mm x 3950mm x 4000mm x 4050mm x 4100mm x 4150mm x 4200mm x 4250mm x 4300mm x 4350mm x 4400mm x 4450mm x 4500mm x 4550mm x 4600mm x 4650mm x 4700mm x 4750mm x 4800mm x 4850mm x 4900mm x 4950mm x 5000mm x FRONT

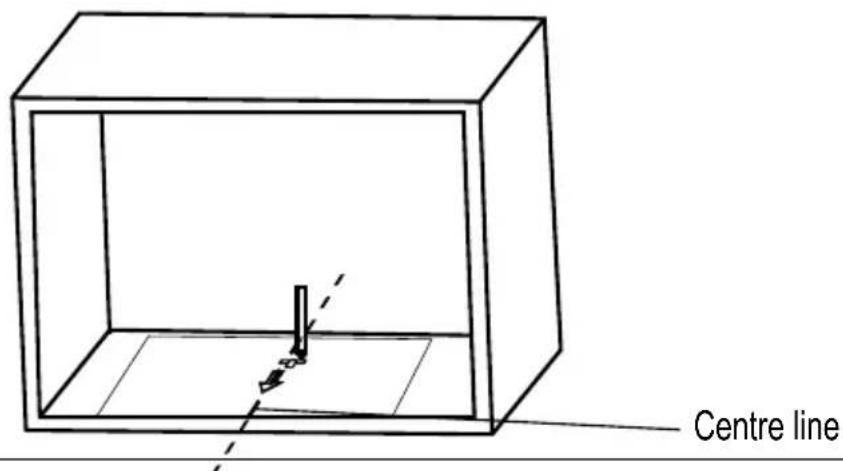

Simple line drawing of a 3D box with a vertical rod and angle marker, no text or symbols present

Linea centrale

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a cabinet or enclosure with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

1.

600 560+8 min 500 (45) 370+2 (45)

Nota:

Linha central

8:8:8:8 S * # ||| #

Prima “Micro-ondas/Grill/Combi.”, o ecrã exibirá “P100”.

Prima “Micro-ondas/Grill/Combi.”, o ecrã exibirá “P100”.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Pokyny pro instalaci

Line drawing of a cabinet or enclosure with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

1.

600 560+8 min 500 (45) 370+2 (45)

Poznámka:

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Simple line drawing of a 3D rectangular box (no text or symbols)

BUTTON CABLE TEMPLATE FOR THE ORDER BY: 12340000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 RIGHT FRONT

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Warning symbol of a triangle with steam and horizontal line (no text or numbers)

Paigaldusjuhised

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

1.

600 560+8 min 500 (45) 370+2 (45)

Märkus.

Simple line drawing of a 3D rectangular box (no text or symbols)

BOTTOM CARPET TEMPLATE FRONT

Warning symbol of a triangle with steam and horizontal line inside (no text or numbers)

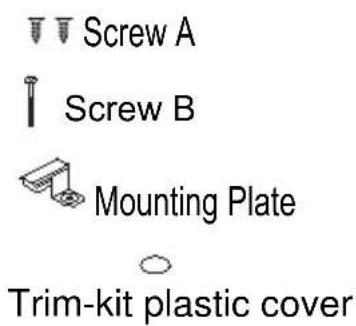

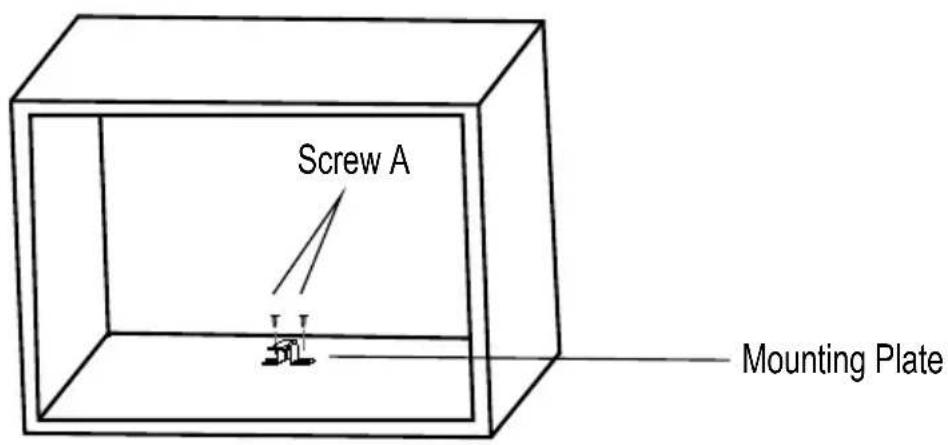

Illustration of screw and bracket components (no text or symbols)

A varžtas

B varžtas

Montavimo plokště

Apdailos rinkinio plastikinis dangtis

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

1.

600 560+8 min 500 (45) 370+2 (45)

Pastaba.

Simple line drawing of a 3D rectangular box (no text or symbols)

BOTTOM CHERM TEMPLATE 100mm x 200mm x 300mm x 400mm x 500mm x 600mm x 700mm x 800mm x 900mm x 1000mm x 1100mm x 1200mm x 1300mm x 1400mm x 1500mm x 1600mm x 1700mm x 1800mm x 1900mm x 2000mm x 2100mm x 2200mm x 2300mm x 2400mm x 2500mm x 2600mm x 2700mm x 2800mm x 2900mm x 3000mm x 3100mm x 3200mm x 3300mm x 3400mm x 3500mm x 3600mm x 3700mm x 3800mm x 3900mm x 4000mm x 4100mm x 4200mm x 4300mm x 4400mm x 4500mm x 4600mm x 4700mm x 4800mm x 4900mm x 5000mm x 5100mm x 5200mm x 5300mm x 5400mm x 5500mm x 5600mm x 5700mm x 5800mm x 5900mm x 6000mm x 6100mm x 6200mm x 6300mm x 6400mm x 6500mm x 6600mm x 6700mm x 6800mm x 6900mm x 7000mm x 7100mm x 7200mm x 7300mm x 7400mm x 7500mm x 7600mm x 7700mm x 7800mm x 7900mm x 8000mm x 8100mm x 8200mm x 8300mm x 8400mm x 8500mm x 8600mm x 8700mm x 8800mm x 8900mm x 9000mm x 9100mm x 9200mm x 9300mm x 9400mm x 9500mm x 9600mm x 9700mm x 9800mm x 9900mm x1

Simple line drawing of a 3D box with a vertical rod inserted into the interior (no text or symbols)

Centrinė linija

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a cabinet or enclosure with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

1.

600 560+8 min 500 (45) 370+2 (45)

Piezīme.

Simple line drawing of a 3D rectangular prism (no text or symbols)

BOTTOM CHEMISTRY TEMPLATE 1. Top 200mm x 100mm x 150mm x 200mm x 250mm x 300mm x 350mm x 400mm x 450mm x 500mm x 550mm x 600mm x 650mm x 700mm x 750mm x 800mm x 850mm x 900mm x 950mm x 1000mm x 1050mm x 1100mm x 1150mm x 1200mm x 1250mm x 1300mm x 1350mm x 1400mm x 1450mm x 1500mm x 1550mm x 1600mm x 1650mm x 1700mm x 1750mm x 1800mm x 1850mm x 1900mm x 1950mm x 2000mm x 2050mm x 2100mm x 2150mm x 2200mm x 2250mm x 2300mm x 2350mm x 2400mm x 2450mm x 2500mm x 2550mm x 2600mm x 2650mm x 2700mm x 2750mm x 2800mm x 2850mm x 2900mm x 2950mm x 3000mm x 3050mm x 3100mm x 3150mm x 3200mm x 3250mm x 3300mm x 3350mm x 3400mm x 3450mm x 3500mm x 3550mm x 3600mm x 3650mm x 3700mm x 3750mm x 3800mm x 3850mm x 3900mm x 3950mm x 4000mm x 4050mm x 4100mm x 4150mm x 4200mm x 4250mm x 4300mm x 4350mm x 4400mm x 4450mm x 4500mm x 4550mm x 4600mm x 4650mm x 4700mm x 4750mm x 4800mm x 4850mm x 4900mm x 4950mm x 5000mm x FRM

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no readable text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 min 340 370+2 18 18

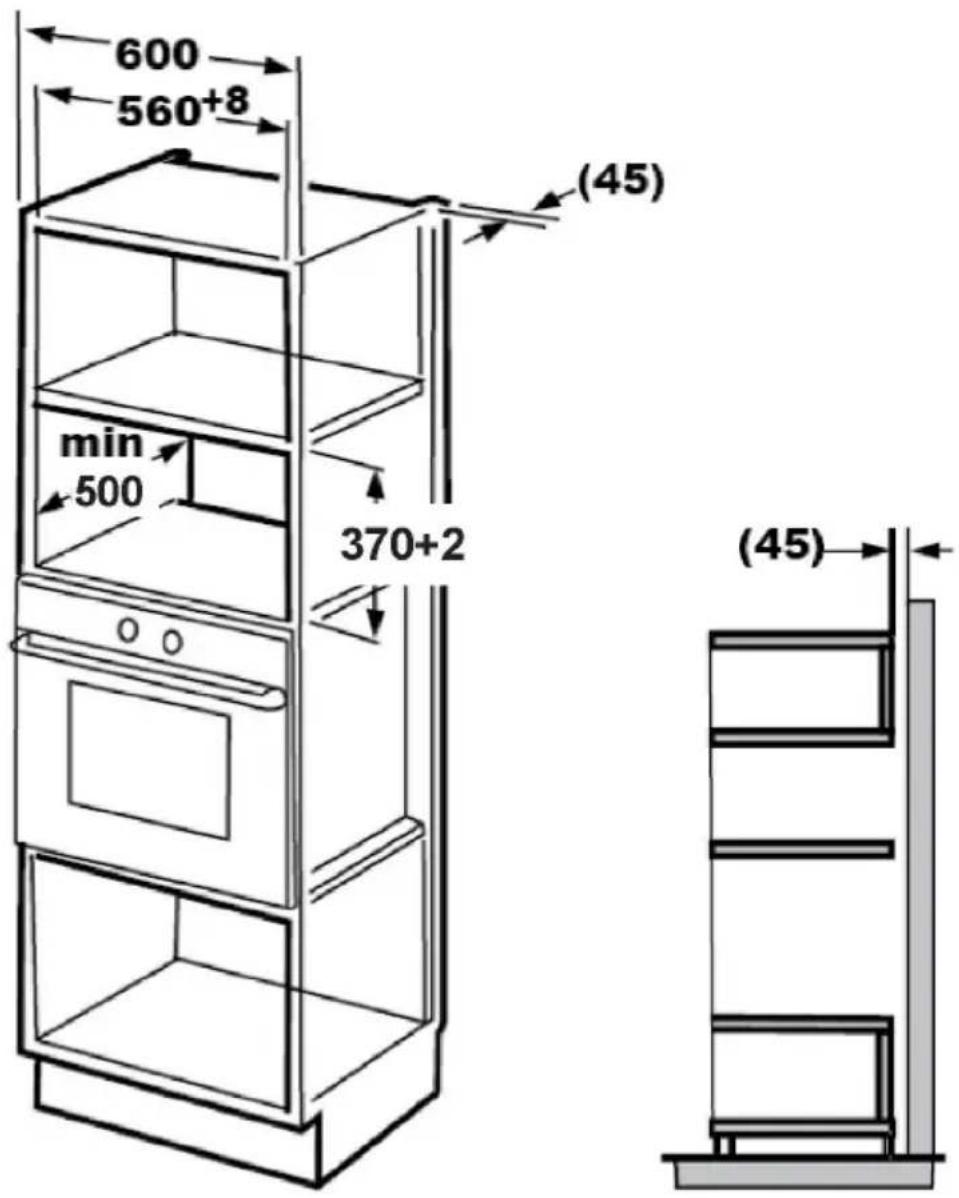

1.

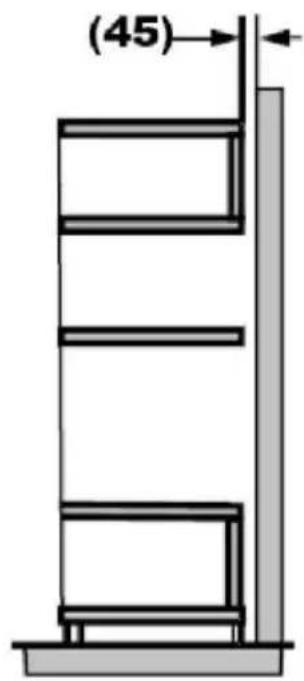

600 560+8 min 500 (45) 370+2 (45)

Примітка.

Simple line drawing of a 3D rectangular prism (no text or symbols)

BOTTOM CARBENE SIMPLATE FLAM

Simple line drawing of a 3D rectangular box with internal vertical and horizontal lines, no text or symbols present.

Центральна лінія

Symbol of a waste bin with no text or labels, crossed by two diagonal lines (no text or numbers present)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 18 min 340 370+2 18

1.

600 560+8 min 500 (45) 370+2 (45)

Poznámka:

Simple line drawing of a 3D rectangular box (no text or symbols)

ROTION CARROT TEMPLATE FRONT

8:0:8:8 Auto

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CA20FMW7NB
Rated Voltage:	230 V~50 Hz
Rated Input Power(Microwave):	1250 W
Rated Output Power(Microwave):	800 W
Rated Input Power(Grill):	1000 W

Low power consumption data according to Commission Regulation (EU) 2023/826.

Condition	Power consumption	Period after which the equipment reaches automatically the condition
Standby mode with information or status display	0.8W	20 Min

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.( For appliance with type Y attachment)

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

GB

1. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
2. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. Only use utensils that are suitable for use in microwave .ovens
5. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
6. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
8. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
9. The oven should be cleaned regularly and any food deposits removed.
10. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

GB

1. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

2. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

3. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. The appliance shall not be cleaned with a steam cleaner.

4. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

5. The microwave oven is intended to be used built-in.

GB

1. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)
2. Steam cleaner is not to be used.
3. Surface of a storage drawer can get hot.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
6. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
7. WARNING: Accessible parts may become hot during use. Young children should be kept away.
8. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

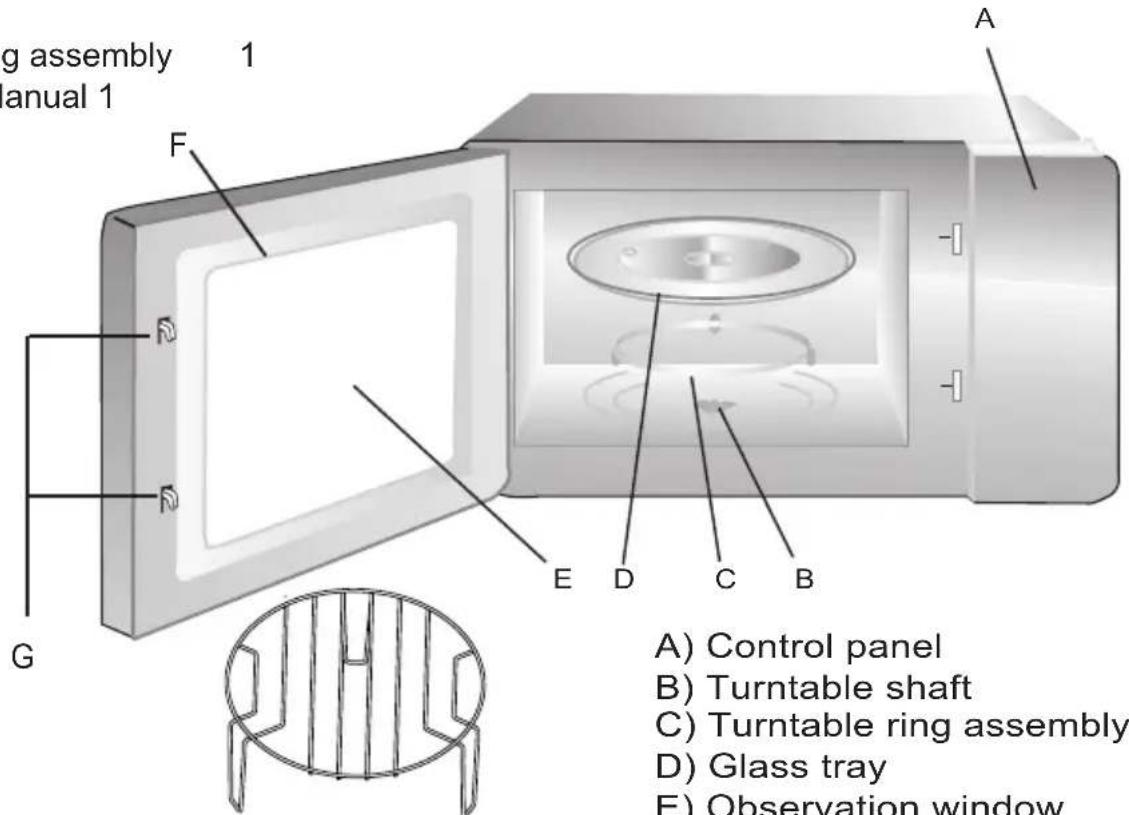

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

g assembly manual 1 1 F G A A) D D C B E B A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

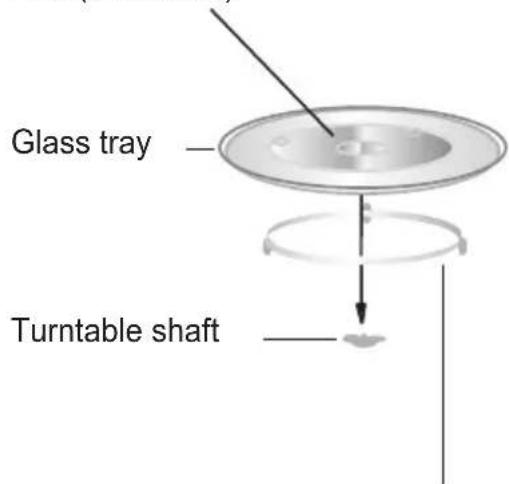

Turntable Installation

Hub (underside)

Glass tray Turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Warning symbol with steam inside a triangle (no text or numbers)

Installation Instructions

Please Read the Manual Carefully Before Installation

Pleasenote

Electricalconnection

The oven is fitted with a plug and must only beconnectedtoaproperlyinstalledearthed socket. Thesocketmustonlybeinstalled replacedbyaqualifiedelectrician,andin Iftheplugisnolongeraccessiblefollowing bepresentontheinstallationsidewitha andtheconnectingcablemustonlybe accordancewiththeappropriateregulations installation,anall-poleisolatingswitchmust contactgapofatleast3 mm.

The fitted cabinet must not have a back wallbehindtheappliance.

A gap must be maintained between the wall and the base of the unit above. Specific gap size could be referenced by the diagrams.

Minimuminstallationheight:85 cm.

Do not cover ventilation slots and suction holes.

Note:

Do not trap or bend the power cable.

Screw A Screw B Mounting Plate Trim-kit plastic cover

Line drawing of a cabinet or enclosure with front panel and side door (no text or symbols)

1.

600 560+8 18 min 340 370+2 18

1.

600 560+8 min 500 (45) 370+2

(45)

Note:

The bracket and bottom cabinet template are needed when installing in installation .both s

B. Pre are the cai inet

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

Simple line drawing of a 3D rectangular prism (no text or symbols)

BOTTOM-CANED TEMPLATE FRONT

1. Make the marks on the bottom plane of cabinet according to marks"a" of the template.

Centre line

1. Remove the bottom cabinet template and fix the mounting plate with screw A.

Screw A Mounting Plate

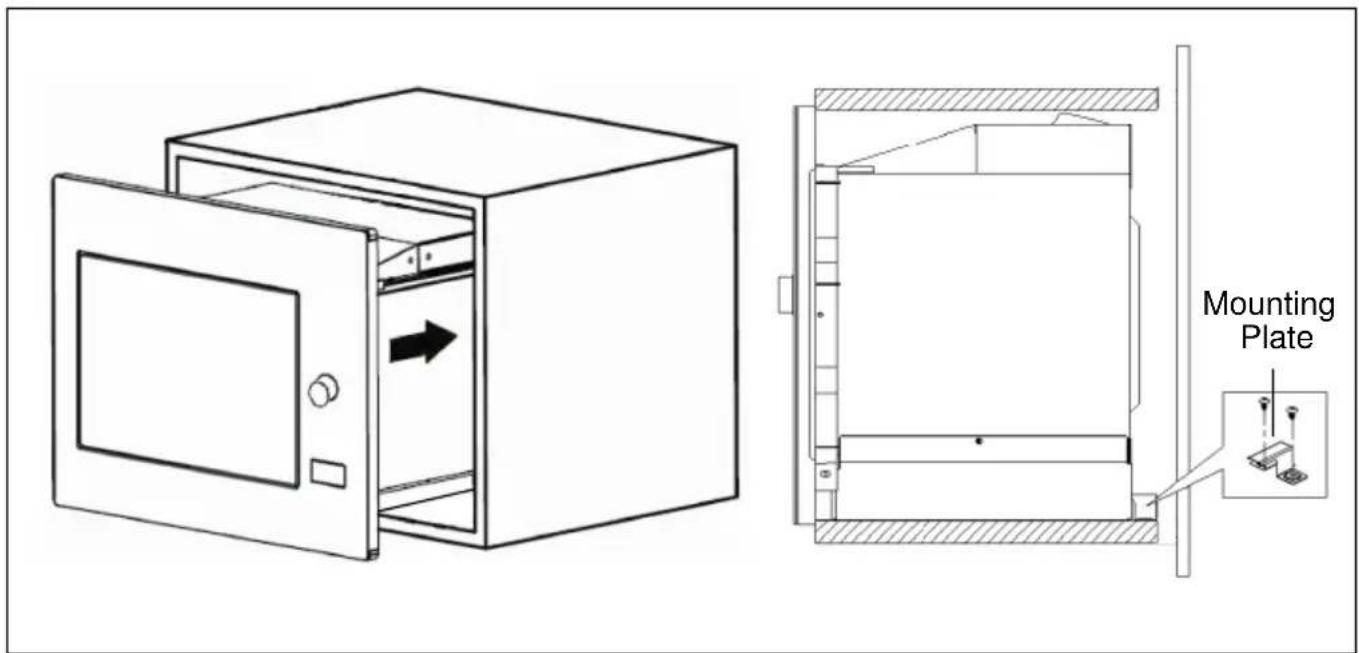

.Install the oven

1. Install the oven to the cabinet

2. Make sure the back of the oven is locked by mounting plate.

3. Do not trap or kink the power cord.

Mounting Plate

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

Screw B Installation Hole

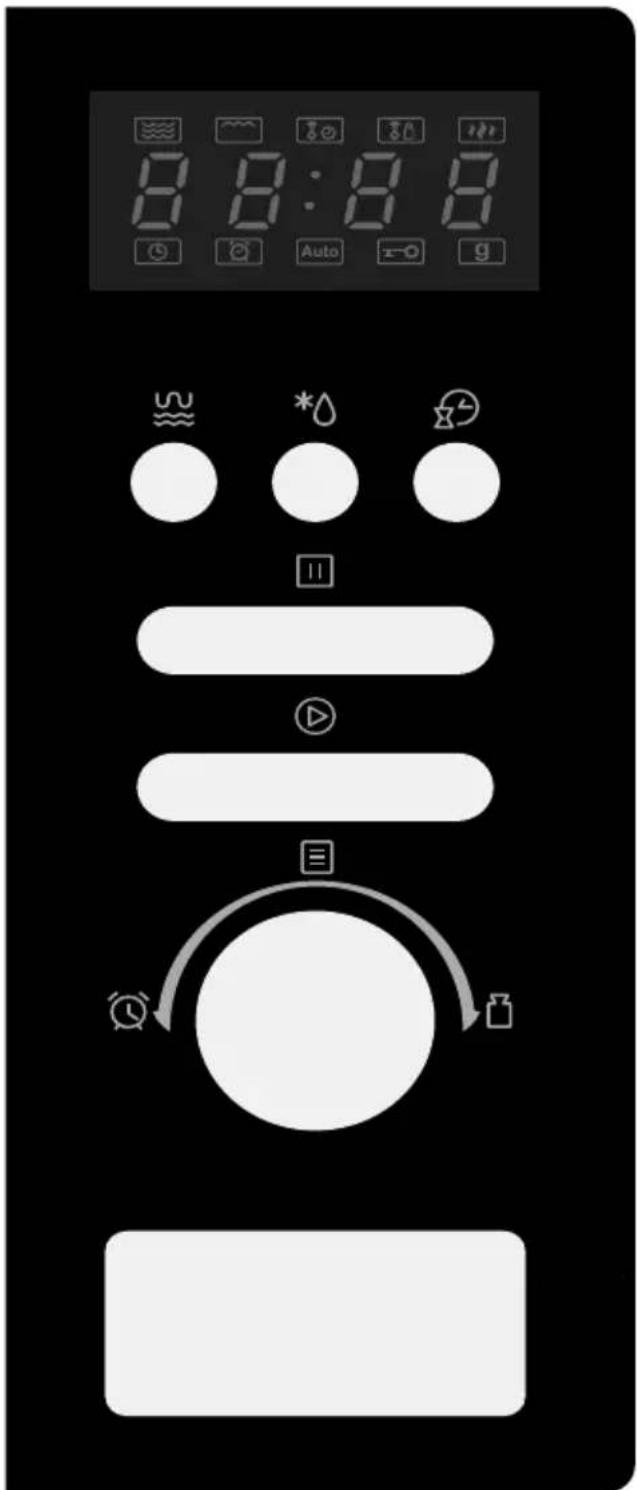

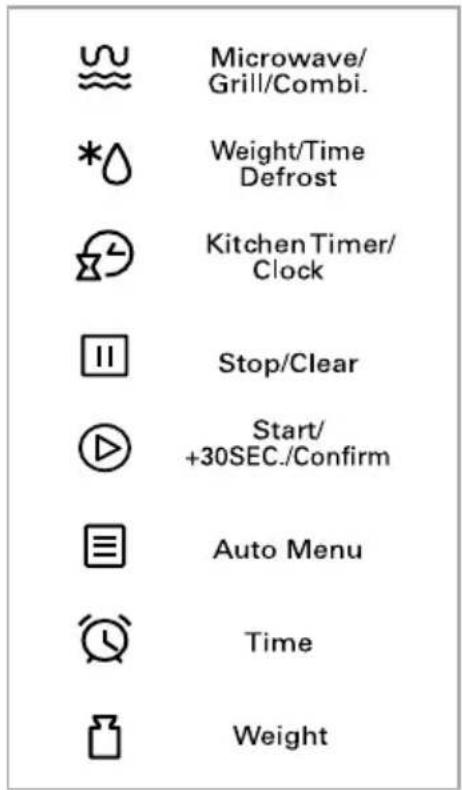

Control Panel

8:8:8:8 Auto 9

Microwave/ Grill/Combi. Weight/Time Defrost Kitchen Timer/ Clock Stop/Clear Start/ +30SEC./Confirm Auto Menu Time Weight

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press " Kitchen Timer/Clock" twice to select clock function. The hour figures will flash.
2) Turn " " to adjust the hour figures. The input time should be within 0--23.
3) Press "Kitchen figure check will Tash.
4) Turn " " to adjust the minute figures. The input time should be within 0--59.
5) Press "Kttchiers Tichec Csteding. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " Microwave/Grill/Combi. ", the screen will display "P100".Press

" Microwave/Grill/Combi. " repeatedly or turn " "to choose the power you want, and "P100", "P80" "P50", "P30", "P10"... "C-2" will display for each added press. Then press" Start/+30Sec./Confirm" to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " Microwave/Grill/Combi. " once, and the screen displays"P100".
2) Press " Microwave/Grill/Combi. " once again or turn" " to choose 80% microwave power.
3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".
5) Press " Start/+30Sec./Confirm " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

"Microwave/Grill/Combi." Pad instructions

Order	Display	Microwave Power	Grill Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%
6	G	0%	100%
7	C-1	55%	45%
8	C-2	36%	64%

3. Grill or Combi. Cooking

Press " Microwave/Grill/Combi. ", the screen will display "P100". Press

" Microwave/Grill/Combi. " repeatedly or turn " "to choose the power you want, and "P100", "P80" "P50", "P30", "P10", "G", "C-1", "C-2" will display for each added press.

Then press " Start/+30Sec./Confirm " to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " Microwave/Grill/Combi. " once, and the screen displays "P100".

2) Press " Microwave/Grill/Combi. " repeatedly or turn " " to choose combi. 1 mode.

3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "C-1".

4) Turn " 🔍 " to adjust the cooking time until the oven displays "10:00".

5) Press " Start/+30Sec./Confirm " to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, and then please "Start/+30Sec./Confirm" to continue cooking. oven is not operated, it will continue cooking.

GB

4. Quick Start

1) In waiting state, press "Start/+30Sec./Confirm" to start cooking with 100% power. Each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave, grill, combination cooking or time defrost state, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100% microwave power, then press " Start/+30Sec./Confirm " to start cooking.

5. Defrost By Weight

1) Press "Weight/Time Defrost" once, and the oven will display "dEF1".
2) Turn " 🔍" to select the weight of food from 100 to 2000 g.
3) Press " Start/+30Sec./Confirm " to start defrosting.

6. Defrost By Time

1) Press " Weight/Time Defrost " twice, and the oven will display "dEF2".
2) Turn " 🔍 " to select the defrost time. The MAX time is 95 minutes.
3) Press " Start/+30Sec./Confirm " to start defrosting. The defrost power is P30, and it will not be changed.

7. Kitchen Timer

1) Press "Kitchen Timer/Clock" enthe will display 00:00.
2) Turn " 🔍 " to enter the correct timer.(The maximum cooking time is 95 minutes.)

3) Press " " to Confirm 80 Section Confirm

4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times.

If the clock be set (24-hour system), the screen will display the current time.

Note: The kitchen time is different from 24-hour system. Kitchen Timer is a timer.

8. Auto Menu

1) Turn " 🔥 " right to choose the menu, and "A-1" to "A-8" will display, which means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.

2) Press " Start/+30Sec./Confirm " to confirm.

3) Turn " 🔍 " to choose the default weight as the menu chart.

4) Press " Start/+30Sec./Confirm " to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g, you can operate the oven as the following steps.

1) Turn " clockwise till "A-6" displays.

2) Press " Start/+30Sec./Confirm " to confirm.

3) Turn " " to select the weight of fish till "350" displays.

4) Press " Start/+30Sec./Confirm " to start cooking.

The menu chart:

Menu	Weight	Display
A-1 Pizza	200 g	200
	400 g	400
A-2 Meat	250 g	250
	350 g	350
	450 g	450
A-3 Vegetable	200 g	200
	300 g	300
	400 g	400
A-4 Pasta	50g(with 450 ml cold water)	50
	100g(with 800 ml cold water)	100
A-5 Potato	200 g	200
	400 g	400
	600 g	600
A-6 Fish	250 g	250
	350 g	350
	450 g	450
A-7 Beverage	1 cup(120 ml)	1
	2 cups(240 ml)	2
	3 cups(360ml)	3
A-8 Popcorn	50 g	50
	100 g	100

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section automatically.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, you can operate the oven as the following steps:

1) Press " Weight/Time Defrost " twice, and the oven will display "dEF2".

2) Turn " 🔍 " to select the defrost time till "5:00" displays.

3) Press " Microwave/Grill/Combi. " once, and the screen displays "P100".

4) Press " Microwave/Grill/Combi. " once again or turn " " to choose 80% microwave power.

5) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".

6) Turn " 🔍 " to adjust the cooking time till the oven displays "7:00".

7) Press "Start/+30Sec./Confirm" to start cooking, and buzzer will sound once for the first section. Then defrosting time counts down. Buzzer will sound once again on the second cooking. When the cooking finishes, buzzer will sound five times.

10. Inquiring Function

1) In states of microwave, grill and combination cooking, press "Microwave/Grill/Combi.", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

2) In cooking state, press " Kitchen & Other Clock and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press " Stop/Clear " for 3 seconds. There will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display " [::]:". And lock indicator lights. Lock quitting: In locked state, press " Stop/Clear " for 3 seconds. There will be a long "beep" denoting that the lock is released.

GB

12. Specifications

1) " Start/+30Sec./Confirm " must be pressed to continue cooking if the door is opened during cooking;
2) Once the cooking programme has been set, "Start/+30Sec./Confirm" is not pressed in 1 minutes. The current time will be displayed. The setting will be cancelled.
3) The buzzer sounds once by efficient press, inefficient press will be no response.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble Possible Cause Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed well.	Close door well.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

FR FR

CANDY

Микровълнова фурна

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 18 МИН. 340 370+2 18

1.

600 560+8 (45) МИН. 500 370+2

(45)

Забележка:

Simple line drawing of a 3D rectangular box (no text or symbols)

Simple line drawing of a rectangular box with a vertical line inside and a diagonal line extending from its side (no text or symbols)

Централна линия

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

FR Open Book

CANDY

DODATKOWE INFORMACJE

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

600 560+8 18 min 340 370+2 18

1.

600 560+8 min 500 (45) 370+2

(45)

Uwaga:

Simple line drawing of a 3D rectangular box (no text or symbols)

BOTTOM CHANNEL TEMPLATE PRZCD

Simple line drawing of a rectangular box with internal lines and a small vertical rod, no text or symbols present.

Linia środkowa

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)
