Product type	Outdoor surveillance camera
Brand	TP-Link
Model	VIGI C430I
Resolution	4 megapixels (2560 × 1440)
Dimensions	67 × 67 × 167 mm
Weight	380 g
Power supply	12 V DC or PoE (802.3af/at)
Night vision	Yes, up to 30 meters
Viewing angle	Horizontal: 90°, vertical: 50°
Main features	Motion detection, alarm, continuous recording, remote access via VIGI app
Remote management	VIGI app, web browser, VIGI Security Manager
NVR compatibility	Works with TP-Link VIGI NVR and other brands
Installation	Wall or ceiling mounting, simplified PoE power supply
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products or solvents.
Security	Password protection, data encryption, secure HTTPS access
Spare parts and repairability	Limited TP-Link warranty, no spare parts available. Contact support in case of defects.
General information	Operating temperature: -30°C to 60°C, IP67 protection rating

Frequently Asked Questions - VIGI C430I TP-LINK

How to activate the VIGI C430I camera?

To activate the camera, connect it to the network and power (PoE or 12V DC). Use the VIGI app or VIGI Security Manager to set a password and activate the device. Follow the instructions in the app.

Is the camera compatible with an NVR from another brand?

Yes, the VIGI C430I camera can be used with NVRs from other brands. First activate the camera via VIGI Security Manager or the VIGI app, then add it to the NVR according to its manual.

What power supply to use for the camera?

The camera supports two types of power supply: 12 V DC (power adapter) or PoE (Power over Ethernet, standard 802.3af/at). Ensure the power supply complies with PS2 or LPS class according to IEC 62368-1.

How to reset the camera to factory settings?

Press and hold the Reset button on the camera for about 10 seconds until the LED flashes. The camera will reboot and return to default settings.

How to access the camera remotely?

Download the VIGI app on your smartphone, log in with your TP-Link ID, then add the camera following the instructions. You can also access it via a web browser by entering the camera's IP address.

What to do if the camera does not connect to the network?

Check that the Ethernet cable is properly connected and that the power is active. Ensure the PoE router/switch is delivering power. Use VIGI Security Manager to detect the camera on the local network. If necessary, reset the camera.

Does the camera support SD card recording?

The datasheet does not mention an SD card slot. Recording is typically done on an NVR or NAS server. Check the official product page to confirm this feature.

How to update the camera firmware?

Download the latest firmware from the TP-Link website (https://www.tp-link.com/download-center/). Log in to the camera's web interface, go to Settings > Update, and select the downloaded file.

What are the exact dimensions of the camera?

The dimensions of the VIGI C430I are approximately 67 × 67 × 167 mm (without bracket). The weight is approximately 380 g.

Is the camera suitable for outdoor use?

Yes, the VIGI C430I camera is designed for outdoor use. It has an IP67 protection rating (dust and water resistance) and operates in a temperature range of -30°C to 60°C.

USER MANUAL VIGI C430I TP-LINK

For technical support, the user guide and more information, please visit https://www.tp-link.com/support.

7106509961 REV1.4.0@2022 TP Link

Images may differ from your actual products.

CONTENTS

01 / English
05 / Deutsch
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Nederlands

33 / 日本語
37 / 한국어
41 / 繁體中文
45 / ไทย
49 / Tiếng Việt
53 /

Mount Your Camera

Mount your camera according to the diagrams in the Quick Start Guide included in the package.

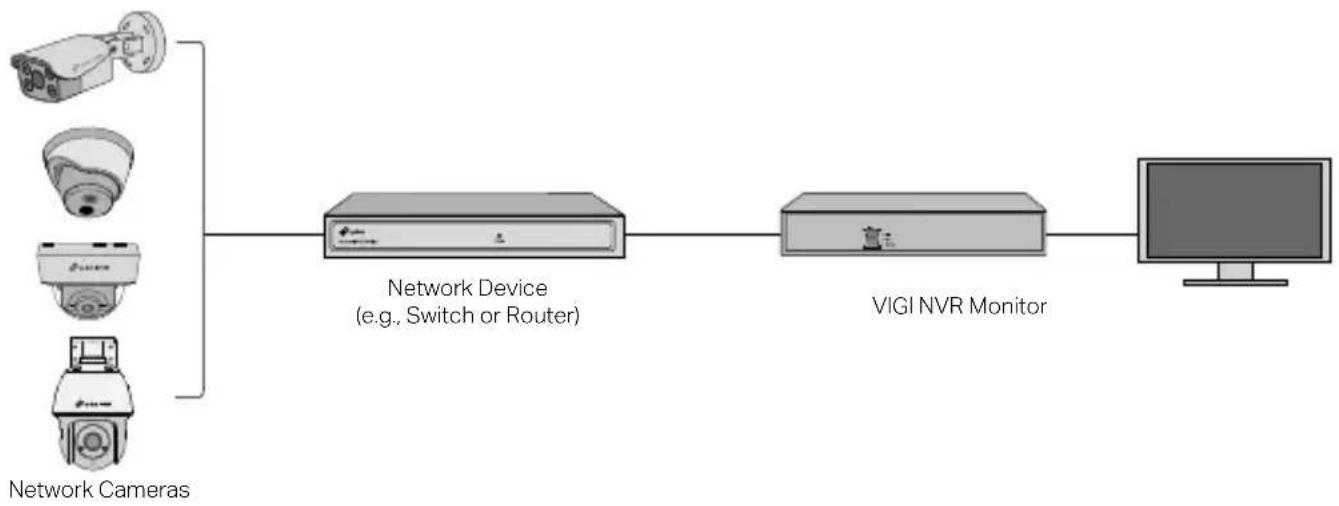

Use Your Camera with an NVR

The camera works with an NVR for easier batch access and management. Here we use a VIGI NVR as an example.

1 Connect your cameras to the same network as your NVR (as shown above).

English

2 Power on your cameras with the PoE power supply or an external power supply.

Note: The camera's standard power supply is 12V DC or PoE (802.3af/at). The power source should comply with Power Source Class 2 (PS2) or Limited Power Source(LPS) of IEC 62368-1. Some models do not support DC power supply. You can check the detailed specifications on the product page at https://www.tp-link.com/.

3 Add your cameras with the NVR.

Before you start, make sure the NVR is working properly. Then add your camera with the NVR.

1) Go to the NVR management page, right click on the screen, and click Add Camera.

2) Select your camera and click + to add your camera directly. If you have disabled Plug & Play on your NVR, create a password or use a preset password for your camera.

Done! You can now view live video and manage cameras.

Using your cameras with other NVR brands

1 Power on your cameras and connect them to the network.
2 Activate the camera using the VIGI Security Manager or VIGI app (refer to the next section).
3 Refer to the NVR's User Manual to add cameras.

More Management Methods

You can also access and manage your cameras via any of the methods below.

Method 1: Via the VIGI App

Remotely view live video, manage cameras, and get instant alerts.

1 Download and install the VIGI app.

2 Open the VIGI app and log in with your TP-Link ID. If you don't have an account, sign up first.
3 Tap the + button on the top right and follow the app instructions to activate and add your cameras.

Method 2: Via a Web Browser

Note: Some models do not support web management. You can check the detailed specifications on the product page at https://www.tp-link.com/.

View live video and modify camera settings via a web browser.

1. Find the camera's IP address on your router's client page.
2. On your local computer, open a web browser and enter https://camera's IP address

English

(https://192.168.0.60 by default).

1. Select your Country/Region and Time Zone.
2. Set a password to activate the camera.

Done. You can view the live video on the Preview page, and go to the Settings page to change camera settings.

Method 3: Via the VIGI Security Manager (Windows only)

View live video and modify camera settings on your computer.

1 Download the VIGI Security Manager on your computer at https://www.tp-link.com/download-center/
2 Install the VIGI Security Manager and open it.
3 Cameras on the same network as your computer can be automatically discovered. Go to Settings > Discovered Devices, click + Add to activate your discovered cameras by setting passwords, and follow the instructions to add your cameras.

For frequently asked questions, please refer to https://www.tp-link.com/support/faq/2850/

./https://www.tp-link.com

.הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכchia

./https://www.tp-link.com

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

https://www.tp-link.com/download-center/

English: Safety Information

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.

For indoor camera

- Keep the device away from water, fire, humidity or hot environments.

- Adapter shall be installed near the equipment and shall be easily accessible.

For outdoor camera

- Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.

- Adapter shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	銅Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenylethers (PBDE)
PCB ○○	○○○○
外殼 ○○	○○○○
電源供應器	-○○○○○
其他及其配件	-○○○○○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

English:

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the

Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.

The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
