USER MANUAL DFF176B1SLDB DANBY

OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO

FROST FREE REFRIGERATOR

Owner's Manual....1 - 12

RÉFRIGÉRATEUR SANS GIVRE

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9

Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com

f in x p

Printed in China | Imprimé en Chine | Impreso en China

2025.10.23

Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.

You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and fill out a survey to receive a FREE 2 MONTH WARRANTY EXTENSION. Follow the link below: www.danby.com/support/product-registration

Model Number:

Serial Number:

Date of Purchase:

Need Help?

1. Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at: www.danby.com/support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.

PARTS & SERVICE DISCLAIMER: Danby does not guarantee availability of all parts indefinitely, service manuals for every model, or availability of service technicians in all areas.

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
• Dispose of properly in accordance with federal or local regulations.
• Follow handling instructions carefully.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

WARNING: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

DANGER: Do not add a lock to the door or lid. This can cause child entrapment and harm.

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
  • Bed and breakfast type environments;
  • Catering and similar non-retail applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

INSTALLATION INSTRUCTIONS

LOCATION

• Two people should be used when moving the appliance.
• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.
• Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
• Do not use the appliance near water, for example in a wet basement or near a sink.
• This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• This appliance is only intended for free-standing installation. It is not intended to be built into a cabinet or counter without following the minimum air circulation requirements.
• Minimum air circulation requirement: Allow 12.7 cm (5 inches) of space on all sides of the appliance including the top and back.
• WARNING - Placing this appliance into any enclosed location with a door or without the minimal amount of air space described above will VOID YOUR WARRANTY, increase energy usage, and reduce this appliance's performance and lifespan.

LEVELING INSTRUCTIONS

There are two adjustable legs on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

1. Turn the leveling legs counter-clockwise as far as they will go, until the top of the foot is touching the bottom of the cabinet.
2. Slowly turn the leveling legs clockwise until the appliance is level.

OPERATING INSTRUCTIONS

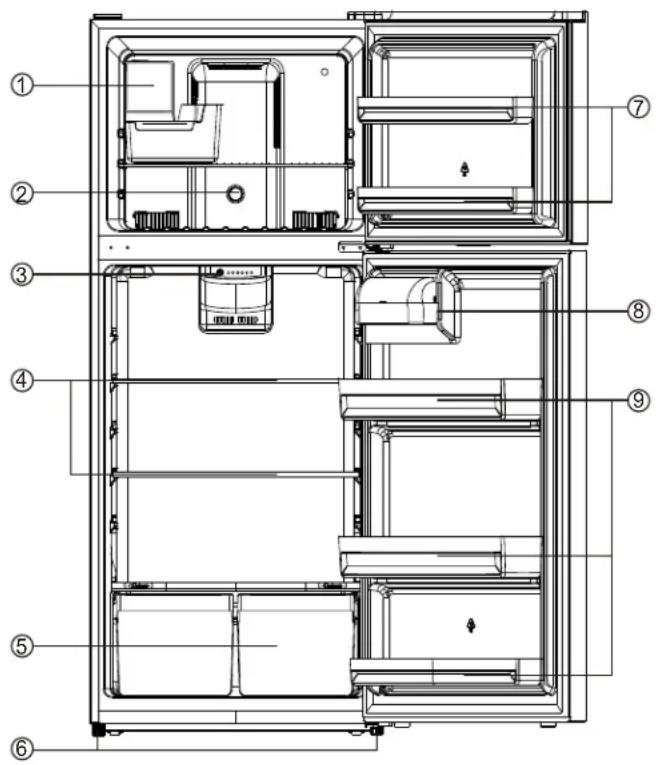

PRODUCT FEATURES

1. Ice maker (not included)
2. Freezer Temperature Control
3. Refrigerator Temperature Control
4. Refrigerator Shelves (2)
5. Crisper Drawers (2) Glass Crisper Cover (not shown)
6. Leveling Legs (2)
7. Freezer Door Bins (2)
8. Covered Tray
9. Refrigerator Door Bins (3)

TEMPERATURE CONTROL REFRIGERATOR

The refrigerator temperature control is located on the upper back section of the refrigerator compartment.

The temperature control will regulate the actual cooling cycle while the control knob in the freezer compartment will adjust the distribution of the cold air between the freezer and refrigerator compartments.

On First Set Up

• Set the refrigerator temperature to "Coldest" - Press the "SET" button until the appropriate light illuminates, hold the "SET" button for 3 seconds.
• Leave at "Coldest" setting for 4 hours before placing food into the unit.
• Set the refrigerator temperature to "Colder" as this is the recommended setting.

NOTE:

Setting the temperature to "OFF" will cease the cooling function however, it will not turn off the power to the unit.

• Set the freezer temperature to "Coldest" by turning the knob.
• Leave at "Coldest" setting for 4 hours before placing food into the unit.
• Set the freezer temperature to "Colder" by turning the knob as this is the recommended setting.

ICE MAKER

This appliance is not equipped with an ice maker.

Technical diagram of a refrigerator interior with numbered components for identification

If the appliance is placed on its back or side during this process it must be allowed to stand upright for 6 hours before plugging in to avoid damage to internal components.

Required Parts:
	Left hinge Left		over
	Left middle stoppers (x2)		Left middle stopper metal block (x2)
	The cover of the middle hinge's hole on the right of the refrigerator door

1. Turn off your refrigerator, and remove all items from the door trays.

2. Remove the screw hole from the left of the cabinet. Remove the upper hinge cover and the upper hinge from the top right side of the cabinet remove the freezer door from the cabinet.

3. Remove the right top hinge cushion with the flathead screwdriver and put it into the left side of the freezer door.

4. Carefully lift off freezer door.

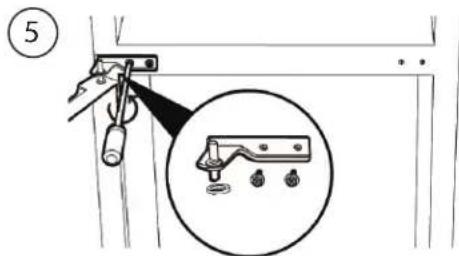

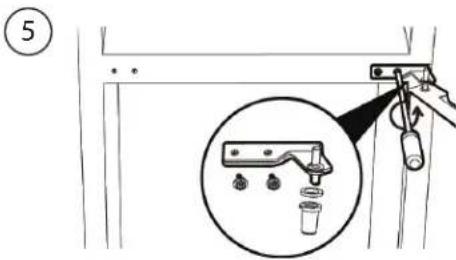

5. Remove the center hinge from the cabinet. Remove the refrigerator door from the cabinet. (Tip: Paying attention to saving the sleeves of middle hinge in case you need to reverse your refrigerator door again and don't let cushion of the middle hinge loosen.)

6. Move the screw hole covers from the cabinet to the center right side of cabinet.

7. Have someone help you lay down your refrigerator.

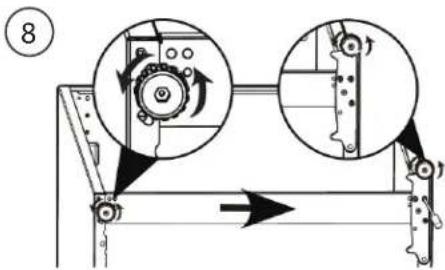

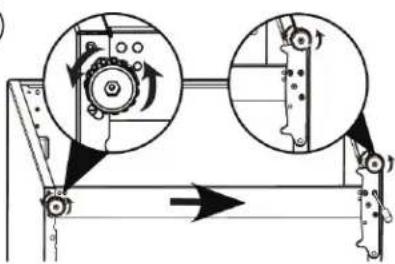

8. Remove your refrigerator's front feet by hand then remove the lower hinge with the Phillips screwdriver.

Required Tools:
	Flathead screwdriver
	Phillips screwdriver
	Wrench

②

③

⑤

⑥

8

OPERATING INSTRUCTIONS

1. Reassemble the bottom hinge:

a. Remove the bottom hinge pin from the lower hinge with a wrench.

b. Turn the bottom hinge over.

c. Reinstall the bottom hinge pin into the other side of the lower hinge.

1. Reinstall the lower hinge on the opposite side of your refrigerator with a Phillips screwdriver. Then reinstall the front feet by hand.

2. Remove the middle stopper and metal block on the bottom of the refrigerator door with a Phillips screwdriver. Save these parts in case you need to reverse your refrigerator door again.

3. Install the middle stopper and metal block from your spare parts bag on the opposite side of the refrigerator door.

4. Have two capable people lift your refrigerator upright, then place your refrigerator on the lower hinge.

5. Align the middle hinge, making sure that the pin is in the hole on your refrigerator door, then secure in place with screws and a Phillips screwdriver.

6. Put the cover of the middle hinge's hole from accessory bag in the right of refrigerator door.

7. Remove the middle stopper and metal block on the bottom of the freezer door with a Phillips screwdriver. Save these parts in case you need to reverse your freezer door again.

8. Install the middle stopper and metal block from your spare parts bag on the opposite side of the freezer door.

9. Place the freezer door on the middle hinge.

10. Reconnect the top hinge assembly. Align the top hinge with the freezer cabinet and door, then secure with screws and a Phillips screwdriver. Install the top hinge cover from your spare part bag with screws and a Phillips screwdriver, then reinstall then reinstall the hole cover you removed previously on the other side.

11. Wait two hours before turning on the refrigerator. This reduces the chance of a malfunction in the cooling system from handling or transport.

⑨

a.

Hinge pin Wrench

b.

C.

10

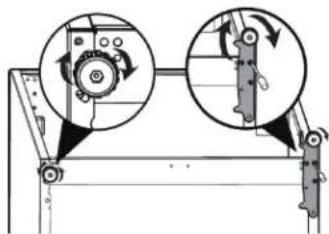

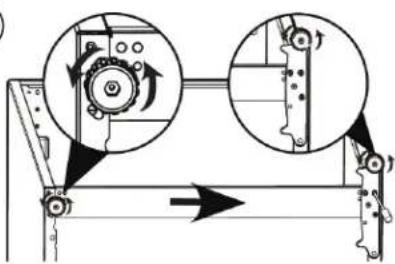

Mechanical diagram showing two rotating gears with directional arrows, no text or symbols present

11

Diagram showing a mechanical component with a screw and a pin inserted, labeled with number 11 (no text or symbols on the diagram itself)

12

14

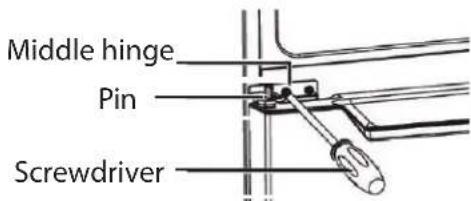

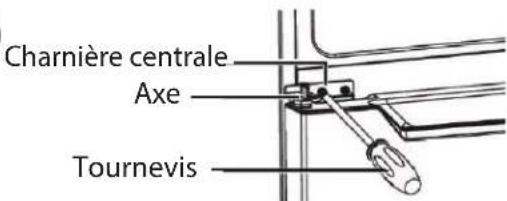

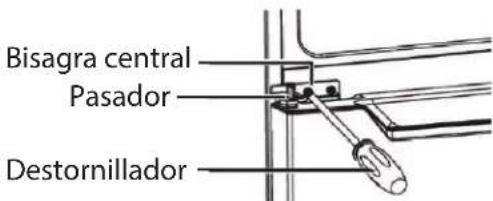

Middle hinge Pin Screwdriver

15

Technical line drawing of a mechanical bracket or bracket (no text or symbols)

16

17

18

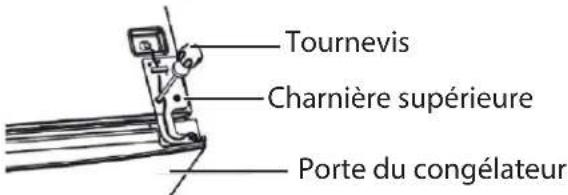

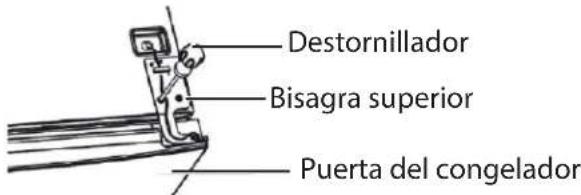

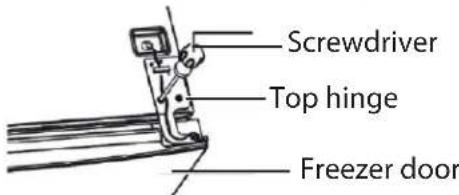

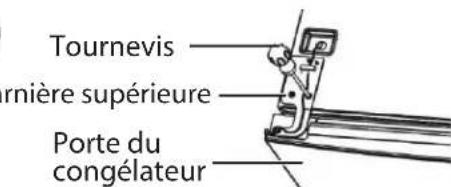

Screwdriver Top hinge Freezer door

19

Hinge cover Hole cover

OPERATING INSTRUCTIONS

DOOR REVERSAL INSTRUCTIONS (LEFT TO RIGHT SWING)

If the appliance is placed on its back or side during this process it must be allowed to stand upright for 6 hours before plugging in to avoid damage to internal components.

Required Parts:
	Right hinge Ri		hinge cover	[SAC5]	Pin sleeve
	Right middle stoppers (x2)		Right middle stopper metal block (x2)
	The cover of the middle hinge's hole on the left of the refrigerator door

Required Tools:
	Flathead screwdriver
	Phillips screwdriver
	Wrench

1. Turn off your refrigerator, and remove all items from the door trays.
2. Remove the screw hole from the right of the cabinet. Remove the upper hinge cover and the upper hinge from the top left side of the cabinet remove the freezer door from the cabinet.
3. Remove the left top hinge cushion with the flathead screwdriver and put it into the right side of the freezer door.
4. Carefully lift off freezer door.
5. Remove the center hinge from the cabinet. Remove the refrigerator door from the cabinet. (Tip: Don't let the cushion of the middle hinge loosen.)
6. Move the screw hole covers from the cabinet to the center left side of cabinet.
7. Have someone help you lay down your refrigerator.

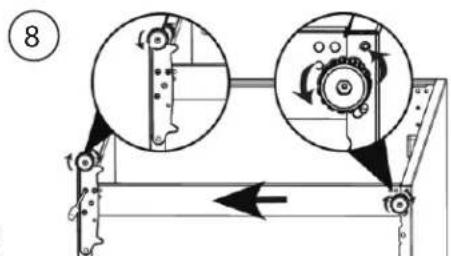

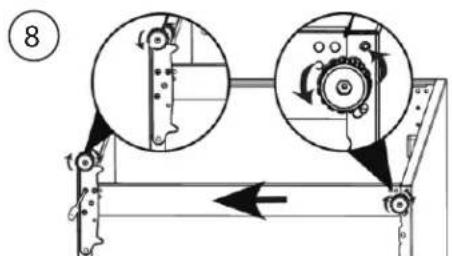

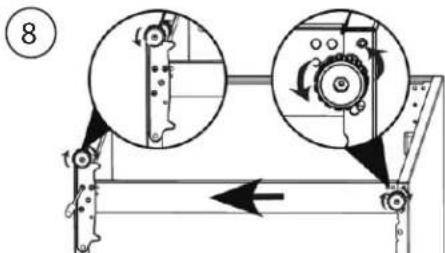

8. Remove your refrigerator's front feet by hand then remove the lower hinge with the Phillips screwdriver.

②

③

⑤

⑥

8

OPERATING INSTRUCTIONS

1. Reassemble the bottom hinge:

a. Remove the bottom hinge pin from the lower hinge with a wrench.

b. Turn the bottom hinge over.

c. Reinstall the bottom hinge pin into the other side of the lower hinge.

1. Reinstall the lower hinge on the opposite side of your refrigerator with a Phillips screwdriver. Then reinstall the front feet by hand.

2. Remove the middle stopper and metal block on the bottom of the refrigerator door with a Phillips screwdriver. Save these parts in case you need to reverse your refrigerator door again.

3. Install the middle stopper and metal block from your spare parts bag on the opposite side of the refrigerator door.

4. Have two capable people lift your refrigerator upright, then place your refrigerator on the lower hinge.

5. Align the middle hinge, making sure that the pin is in the hole on your refrigerator door, then secure in place with screws and a Phillips screwdriver.

6. Put the cover of the middle hinge's hole from accessory bag in the left of refrigerator door.

7. Remove the middle stopper and metal block on the bottom of the freezer door with a Phillips screwdriver. Save these parts in case you need to reverse your freezer door again.

8. Install the middle stopper and metal block from your spare parts bag on the opposite side of the freezer door.

9. Place the freezer door on the middle hinge.

10. Reconnect the top hinge assembly. Align the top hinge with the freezer cabinet and door, then secure with screws and a Phillips screwdriver. Install the top hinge cover from your spare part bag with screws and a Phillips screwdriver, then reinstall then reinstall the hole cover you removed previously on the other side.

11. Wait two hours before turning on the refrigerator. This reduces the chance of a malfunction in the cooling system from handling or transport.

⑨

a.

Hinge pin Wrench

b.

C.

10

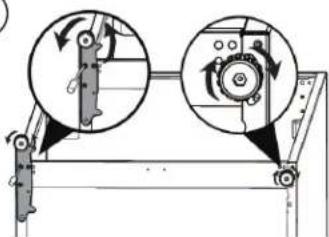

Mechanical assembly diagram showing two circular components with rotating parts, no text or symbols present

11

Line drawing of a device with a screwdriver inserted into a housing (no text or symbols)

12

14

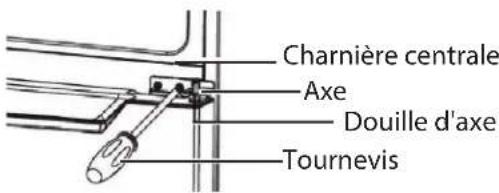

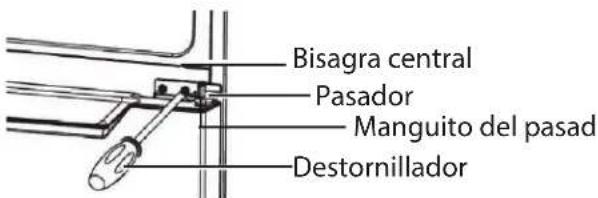

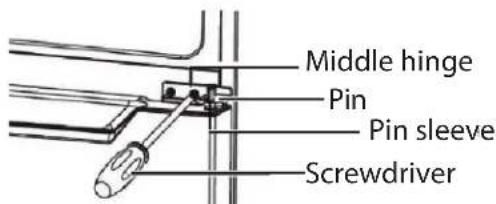

Middle hinge Pin Pin sleeve Screwdriver

15

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

16

Line drawing of a device with three components: a battery, a switch, and a cylindrical component (no text or symbols)

17

Technical line drawing of a mechanical assembly with a cylindrical component and a separate view showing a tool (no text or symbols)

18

Screwdriver Top hinge Freezer door

19

Hole cover Hinge cover

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
• Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located near the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

MOVING

• Remove all contents.
• Use tape to secure the shelves inside the appliance.
• Turn the adjustable legs up to avoid damage.
• Tape the door shut.
• Be sure the appliance stays in the upright position during transportation. Protect the outside of the appliance with a blanket.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

FREQUENTLY ASKED QUESTIONS

What are the standard wattage and amps used?

This information can be found on the rating plate located on the back of the cabinet.

I had my fridge on its side to bring it home. Do I have to let it sit? And for how long?

Yes, please allow it to sit upright for 6 hours before plugging it in.

How much does it cost to run the freezer?

Reference the energy card attached to the front of the appliance or go to www.danby.com and visit the corresponding product page to find a copy of the energy card.

The refrigerator smells like new plastic. How do I make it go away?

It is common for new appliances to have a slight plastic smell. Ensure that you have removed all packing material from the fridge. Clean the inside of the cabinet by following the cleaning instructions included in the owner's manual. Once completed, place an open box of baking soda in the refrigerator to absorb any remaining odour.

Can I use an extension cord?

No, an extension cord may not be used.

How do I set the temperature?

I am having trouble opening the door; why?

The refrigerator door may be difficult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the refrigerator and the warm air that has just entered the refrigerator when it was opened. The pressure will equalize within a few minutes.

Please reference Temperature Control in the Operating Instructions section of the manual.

The recommended operating temperature for the refrigerator and the freezer sections is "Colder".

TROUBLESHOOTING

No power

• A fuse may be blown or the circuit breaker tripped
• Plug not fully inserted into the wall outlet

Internal temperature not cold enough

• Temperature setting is too warm
- The door is not shut properly or opened excessively
• Recently added a large quantity of warm food to the cabinet
- Close proximity to heat source or direct sunlight
- Ambient temperature or humidity is very high

Refrigerator runs continuously

• Temperature setting is too cold
- The door is not shut properly or opened excessively
• Recently added a large quantity of warm food to the cabinet
- Close proximity to heat source or direct sunlight
- Ambient temperature or humidity is very high

Refrigerator makes a gurgling noise when operating

- This noise is completely normal. The refrigerant inside the appliance will make a gurgling noise as it changes from a liquid to a gas and back again.

Door will not close properly

• Unit is not level
  • Door is reversed and not properly installed
• Gasket is dirty
• Baskets are out of position

Limited "In-Home" Warranty

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

Terms of Warranty

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months

During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service

Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Exclusions

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

General Provisions

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4. Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5. Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7. Service calls resulting in customer education.
8. Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Technical diagram of a refrigerator internal compartments with numbered labels pointing to different sections

Temperature Control | Contrôle de la température

HOLD 3 SEC ON/OFF MAINTENRED SECPOUR ACTIVIRES/ACTIVI

RECOMMENDED/RECOMMANDÉ

TEMP CONTROL CONTRÔLE DE LA TEMP

RECOMMENDED/RECOMMANDÉ

Simple line drawing of a mechanical setup with two devices and an upward arrow, no text or symbols present.

3

Diagram of a mechanical or electronic component with curved arrows indicating motion or force direction (no text or symbols)

5

Diagram showing a hand holding a tool with a magnified inset highlighting a mechanical component with pins and bolts.

6

Diagram showing a mechanical or electrical component with two circular holes and an arrow indicating direction, possibly illustrating a process or assembly.

8

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

CONSIGNES D'UTILISATION

Mechanical diagram showing two rotating gears with directional arrows, no text or symbols present

11

Diagram showing a mechanical component with a screw and a pin inserted, labeled with number 11 (no text or symbols on the diagram itself)

12

14

Charnière centrale Axe Tournevis

15

Technical line drawing of a mechanical bracket or bracket (no text or symbols)

16

17

18

Simple line drawing of a mechanical assembly with two components and an upward arrow (no text or symbols)

③

⑤

⑥

8

OPERATING INSTRUCTIONS

Mechanical assembly diagram showing two circular insets of a rotating component (no text or symbols)

11

Line drawing of a device with a screwdriver inserted into a component (no text or symbols)

12

14

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

16

Line drawing of a device with three components: a battery, a switch, and a cylindrical component (no text or symbols)

17

Technical line drawing of a mechanical assembly with a cylindrical component and two separate parts (no text or symbols)

18

Technical diagram of a refrigerator interior with numbered components for identification

Simple line drawing of a table with a device and two hanging objects, no text or symbols present.

3

Simple line drawing of a mechanical or electronic component with no text, numbers, or symbols

5

Diagram showing a mechanical assembly with a magnified inset highlighting a component detail.

6

Diagram showing two circular components with dashed outlines, connected by an arrow (no text or symbols)

8

Mechanical assembly diagram showing two circular components rotating a mechanical component with directional arrows (no text or labels)

OPERATING INSTRUCTIONS

Mechanical assembly diagram showing two rotating components with directional arrows (no text or labels)

11

Diagram showing a mechanical component with a screw and two inserted pins, labeled with number 11 (no text or symbols on the diagram itself)

12

14

Bisagra central Pasador Destornillador

15

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

16

17

18

Pure mechanical diagram showing a lever and guide mechanism without any text or symbols

19

Cubierta de bisagra

Simple line drawing of a mechanical assembly with two components and an upward arrow (no text or symbols)

③

⑤

⑥

8

OPERATING INSTRUCTIONS

Mechanical diagram showing two rotating components mounted on a frame, with no visible text or symbols.

11

Line drawing of a device with a screwdriver inserted into a housing (no text or symbols)

12

14

Bisagra central Pasador Manguito del pasad Destornillador

15

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

16

Line drawing of a device with three components: a battery, a switch, and a plug (no text or symbols)

17

Technical line drawing of a mechanical component with a cylindrical tool inserted (no text or symbols)

18

Destornillador Bisagra superior Puerta del congelador

19

Tapa del orificio Tapa de la bisagra

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9 Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com
