| Product Type | Wi-Fi 6 (802.11ax) Wireless Access Point |
| Brand | Fortinet |
| Model | FortiAP 431G |
| Dimensions (approx.) | 200 x 200 x 40 mm |
| Weight (approx.) | 500 g |
| Power Supply | PoE (Power over Ethernet) 802.3af/at or 12V DC power adapter (not included) |
| Power Consumption | ≤ 15 W |
| Network Interfaces | 1 x 10/100/1000 Ethernet port (RJ45) with PoE-in |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum Data Rate | Up to 2.4 Gbps (aggregate) |
| Antennas | 4 internal MIMO 4x4 antennas |
| Wireless Security | WPA3, WPA2, IEEE 802.1X, MAC filtering, client isolation |
| Management | Integrated FortiGate (as managed AP), web interface, CLI, FortiCloud |
| Operating Environment | Indoor, operating temperature: 0°C to 40°C |
| Operating Humidity | 10% to 90% non-condensing |
| Mounting | Ceiling or wall (mounting kit included) |
| Certifications | FCC, ISED, CE, RoHS |
| Package Contents | Access point, mounting kit, quick start guide |
| Maintenance and Cleaning | Disconnect before cleaning, use a soft dry cloth, do not use chemical products |
| Spare Parts and Repairability | No spare parts available; repair by authorized center only |
| General Information | One-year limited warranty (unless extended) |
Frequently Asked Questions - FortiAP 431G Fortinet
User questions about FortiAP 431G Fortinet
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Access Point in PDF format for free! Find your manual FortiAP 431G - Fortinet and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FortiAP 431G by Fortinet.
USER MANUAL FortiAP 431G Fortinet
Register your device to access FortiGuard updates, cloud management, firmware upgrades, technical support and warranty coverage.
https://support.fortinet.com
FORTINET.
This guide covers: FAP-431C, FAP-459C
February 15, 2024
Copyright © 2022 Fortinet, Inc. All rights reserved. Fortinet®, FortCane®, FortCard® and FortBoard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names here may also be registered and/or common law trademarks of Fortinet. All other products or complex categories may be trademarks of their respective owners. Performance and other metrics related to commercial properties or equipment, including equipment, materials, and equipment, all other products or equipment, services, and other related work variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding within contract, signed by Fortinet's Cereal Counsel, with a purchaser that expressly warrants that the identified product will perform business as a deposit within the first quarter of 2022. The full name of registrant(s) is/are: Fortinet, Inc. (1998), 630-645-650. This material is not yet reproduced under Section 1 of the Company's章程 or similar regulatory authority without distribution or distribution in such binding written consent shall be acting on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same deal conditions as in Fortinet's internal laws test. In no event does Fortinet make any commitment related to failure delivering evalues, features or development, and circumstances may change such that any forward-looking statements therarch are not accurate. Fortinet disclaims in full terms of the use of this material for sale or distribution of any securities or financial instruments discussed in this report. This material is not suitable for sale or distribution of any securities or financial instruments, modify transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable.
For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf
The Essentials
Default Logins
https://192.168.1.2
Username: admin
Password: leave blank
https://fortilan.forticloud.com
Username: user-defined
Password: user-defined
Admin Guide
For a detailed FortiAP setup and configuration information, refer to the Admin Guide on https://docs.fortinet.com/product/fortiap
Customer Service
For contracts, licensing, product registration and account management, contact FortiCare Support at https://www.fortinet.com/support/contact
Self-service Resources
Access our knowledge base, forums, videos and technical experts at https://www.fortinet.com/support/support-services/forticare-support
Thank you for choosing Fortinet
Package Contents
FortiAP 431G / 433G
FAP-431G*, FAP-433G**
FortiAP Device*
QuickStart Guide
FortiAP
Antenna Device**
9/16" Ceiling Mounting Bracket
15/16" Ceiling Mounting Bracket
8x Mounting Screws with 8x Anchors
8x Antennas** (4x detachable, 4x non-detachable)
Setup Options
Power the FortiAP device with a 802.3af/at PoE injector, FortiGate PoE port or the optional (not included) 12V 4A power adapter.
FortiLAN Cloud
Note: Use your FortiCloud credentials to log in, then click Inventory, Import AP Key and enter the Cloud Key on the device sticker
Direct Connection
Note: To self-configure, preauthorize the FortiAP on your FortiGate Otherwise once connected, wait for the FortiAP to appear on the Managed FortiAP page in FortiOS.

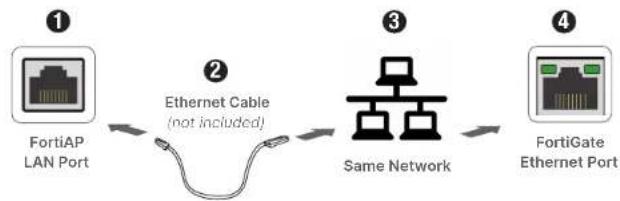

Network Connection
Note: Connect to the FortiAP using 192.168.1.2 with username admin and set a password. Specify the FortiGate IP using:
cfg -a AC_IPADDR=0.0.0.0
cfg -c
where 0.0.0.0 is the FortiGate IP.
Bracket Installation Antenna Installation
(FAP-433G only)
The FortiAP mounts on a ceiling using the provided T-rail mounting brackets which come in two standard sizes: 1.43cm (9/16in) and 2.38cm (15/16in).
- Select the bracket for the T-rail size: 1.43cm (9/16in) or 2.38cm (15/16in)
- With the ports facing you, slide the bracket left to right
- Securely hand tighten the antenna fastening collar
- Repeat for the remaining antennas

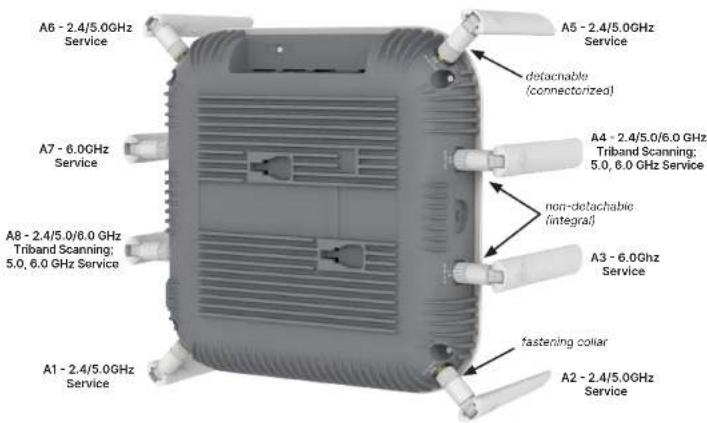

Note: There are 8 external antennas, 4 detachable (connectorized) on each corner and 4 non-detachable (integral) on the sides of the device
Interfaces - FAP 431G / 433G
① LED STATUS
Power
Off: Device is off
Green: Device is on and connected to a controller
Amber: Device is on and not connected to a controller
LAN
Off: LAN is not connected
Green: LAN is connected
Blinking Green: LAN data activity
WIFI
Off: WiFi not broadcasting
Green: SSID broadcasting
Blinking Green: Wireless data activity
② OPTIONAL POWER (12V DC) Optional 12V DC 4A adapter
③ RESET system reset
4 CONSOLE (RJ-45) CLI management
⑤ LAN2 / POE 5G (RJ-45) 5 Gbps 802.3at/802.3bt PoE Ethernet interface
6 LAN1 / POE 5G (RJ-45) 5 Gbps 802.3at/802.3ot PoE Ethernet interface
Cautions and Warnings
Environmental specifications
Ambient operating temperature: 0°C to 50°C
Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity and Altitude)
Caution: This equipment is to be used in a Network Environment 0 per I-CD1K 02.101. This product is connected only to Hol networks without routing to the outside plant.
The product is intended to be supplied by a Used Direct Plug-In Power Unit marked LPS or Class 2 and rated 12Vdc, 4A or by 65Vdc from PoE
Suitable for use in environmental air space in accordance with Section 300-22(CI) of the National Electrical Code, and Sections 2-128, 12-010(3) and 17, 10G of the Canapier Electrical Code, Part I, CSA G27.1.
Federal Communication Commission (FCC) - USA
This device complies with Part 15 of the FCC Rules. Opera, or is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference resolved including interference that may cause unobserved operation.
This equipment has been tested and found to comply with the limits for a Class B digital service pursuant to Part 15 of the ECO Rules. These links are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates use, and can receive radio frequency energy, and it is not installed and uses in accordance with the instruction manual, if may cause harmful interference to reduce communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Excellent or reliable the reaching antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit, different from that to which the receiver is connected.
Consult the dealer of an experienced radio/TV technician for rep
WARNING: Any change or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
for operation within b-10-b26Hz frequency range, it is restricted to industrial environment.
This equipment complies with ROS radiation on exposure limits set forth or an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transistor.
This device meets all the other requirements specified in Part. 10, Section 13.407 of the O22 Hanes.
or BID Indoor Access Part, & DNI-4 Indoor AP
- OC regulations read at the operation of this device to indoor use only.
The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft. Expect that operation of this device is permitted in large aircraft with a stock price 10,000 feet lower than 5,000 feet (25 Chg bps).
Operation at transmitters in the 0.32% - 0.17% GHz band is prohibited for control of or communications with unmanned aircraft systems.
Industry Canada Equipment Standard for Digital Equipment (ICES) - Canada
This Class B digital operator complex with Canadian ESLS-003.
The device complies with SEE's license-exempt PGSs. Operation is subject to the following two conditions
(1) This device may not cause harmful interference, and
(7) this device must accept any information received, including information that may cause undesired operation.
for product available in the USA/Canada market, only channel 1-1 can be operated. Selection of other channels is not possible.
This equipment complies with SLD radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operates with minimum distance 30cm between the radiator & your body.
This radio transmitter (IC: 72908-3916705646) has been approved by Innovation, Science and Economic Development. Canada is operate with the antenna types listed below, with the maximum permissible gain indicated. An antenna types no included in this list that have a gain greater than the maximum gain included for any type listed are strictly prohibited for use with the device.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still consists with the e.i.p. limits specified for coin-to-point and non-pain-to-point operation as appropriate.
The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 6470-6725 MHz shall comply with the e.i.p. init. and
Where applicable, antenna type(s), antenna models(s), and worst-case angle(s) necessary to remain compliant with the oil pump station mask requirement set forth in section 6.2.2.3 shall be clearly indicated.
Caution: The advice for the band S150 MP50 MHP is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.
Caution: For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 9726-5252 MHz and 240 V/2V MHz shall be such that the equipment still complies with the a.u.c. limit, or devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 9726-5650 MHz shall be such that the equipment still complies with the a.u.c. limit as appropriate.
This device has been designed to operate with an antenna having a maximum gain of 5.65 dBi for 2.4GHz, 5.94 dB for 5GHz and 5.50 dBi for 6GHz. Antenna having a higher gain is strictly prohibited per regulator of IED. The required antenna impedance is 50 ohms.
Under SHD regulations, this radio transmitter may only operate using an antenna of a type and maximum gain lossary gain approval for the transmitter by ISO. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent is locally radiated power (e.g. p) is not more than that necessary for successful communication.
The radio transmitter (IC: 72809-3915T05649) has been approved by ISED to operate with the antenna types listed below with the maximum permitted gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly controlled for use with this device.
This device and its antennae must not be co-located or operating in conjunction with any other antenna of transmitter except in accordance with IC multi-transmitter producer procedures.
Device shall not be used for control of or communications with unmanned aircraft systems. Operation shall be limited to indoor use only. Operation on oil platform, automobile, train, maritime vessels and aircraft shall be prohibited except for large aircraft flying score 3.045 m (10,000 pc).
FAP-4310
Note: The BUT has eight internal antennas
| Antenna RF Chain Brand Model | Antenna Net Gain (dB) | Frequency Range | |||
| ANTC (CH) | Radio 1.20 OH, Band 2.50 OH, Radio 2.50L CHD | ANTC Band 4310C | 1.41 2.4-2.89 0Hz | ||
| 6.50 5.16-5.29 GHz | |||||
| 4.50 5.26-5.39 GHz | |||||
| 4.50 5.17-5.39 GHz | |||||
| 3.91 5.785-5.8 GHz | |||||
| ANTI (GB) | Band 1.50 OH, Band 2.50 OH, Band 2.50L CHD | ANTG Band 4310C | 1.72 2.4-2.89 0Hz | ||
| 5.80 5.16-5.29 GHz | |||||
| 3.91 5.35-5.39 GHz | |||||
| 3.72 5.47-5.79 GHz | |||||
| 3.73 5.785-5.8 GHz | |||||
| ANTJ (LF) | Band 1.50 OH, Band 2.50 OH, Radio 2.50L CHD | ANTG Band 4310C | 1.74 2.4-2.89 0Hz | ||
| 4.80 5.16-5.29 GHz | |||||
| 4.85 5.26-5.39 GHz | |||||
| 4.51 5.47-5.79 GHz | |||||
| 4.50 5.785-5.8 GHz | |||||
| ANTC (GB) | Band 1.50 OH, Band 2.50 OH, Band 2.50L CHD | ANTG Band 4310C | 3.90 7.4-4.28 0Hz | ||
| 3.18 5.16-5.29 GHz | |||||
| 3.59 5.35-5.39 GHz | |||||
| 3.58 5.47-5.79 GHz | |||||
| 3.55 5.785-5.8 GHz | |||||
| ANTJ (HF) | Radio 1.20 OH, Band 2.50 OH, Band 2.50 L ChD | ANTC Band 4310C | 3.50 2.4-2.89 0Hz | ||
| 4.98 5.16-5.29 GHz | |||||
| 4.98 5.26-5.39 GHz | |||||
| 4.38 5.47-5.79 GHz | |||||
| 4.50 5.785-5.8 GHz | |||||
| 4.518 5.895-6.2 GHz | |||||
| 4.30 5.905-6.52 GHz | |||||
| 4.50 5.895-6.87 GHz | |||||
| 4.50 5.875-7.2 GHz | |||||
| ANTC (FEI) | Radio 1.20 OH, Band 2.50 OH, Band 2.50 L ChD | ANTG Band 4310C | 4.76 5.47-5.79 GHz | ||
| 4.38 5.47-5.79 GHz | |||||
| 4.32 5.895-6.2 GHz | |||||
| 4.32 5.425-6.52 GHz | |||||
| 4.34 5.895-6.71 GHz | |||||
| 4.34 5.875-7.2 GHz | |||||
| ANTG (FH) | Band 1.50 OH, Band 2.50 OH, Band 2.50 L ChD | ANTG Band 4310C | 3.42 7.1-4.89 GHz | ||
| 4.17 5.16-5.29 GHz | |||||
| 4.31 5.26-5.39 GHz | |||||
| 3.30 5.47-5.79 GHz | |||||
| 4.30 5.26-5.46 GHz | |||||
| 4.30 5.305-6.42 GHz | |||||
| 4.30 5.425-6.82 GHz | |||||
| 4.30 5.895-6.87 GHz | |||||
| 4.30 5.875-7.2 GHz | |||||
| ANTF (LEA) | Band 1.20 OH, Band 2.50 OH, Band 2.50 L ChD | ANTG Band 4310C | 3.09 5.17-5.79 GHz | ||
| 3.46 5.26-5.89 GHz | |||||
| 3.315 5.47-6.2 GHz | |||||
| 3.24 5.425-6.52 GHz | |||||
| 4.20 5.025-6.72 GHz | |||||
| 4.50 5.875-7.2 GHz | |||||
| ANTF (RF-4) | LANO Phone W/DC, Band 4310C | 4310C | Antenna Type Connection Channel | ||
| RFA P/WD-4310C | |||||
FAP-4330
Note: The EUT has eight external antennas.
| Antenna PF Chain Brand Model | Antenna Not Gain (dB) | Frequency Range | |||
| ANTG | Radio 250 C-0Radio 250 C-1Radio 250 C-3 | MASC AIR PULB-4100-5000-AU | 0.63 2.4~2.4Hz | 5 GHz | |
| 0.81 1.1~2.2Hz | 5 GHz | ||||
| 0.87 2.2~2.8Hz | 5 GHz | ||||
| 0.81 3.7~3.7Hz | 5 GHz | ||||
| 0.45 0.725~1.5GHz | 5 GHz | ||||
| ANT1 | Radio 200 C-1Radio 200 C-1Radio 200 C-1 | MASC AVEF BEX-4100-5000-AU | 0.63 2.4~2.4Hz | 5 GHz | |
| 0.81 1.1~2.2Hz | 5 GHz | ||||
| 0.87 2.2~2.8Hz | 5 GHz | ||||
| 0.81 3.7~3.7Hz | 5 GHz. | ||||
| 0.45 0.725~1.5GHz | 5 GHz | ||||
| ANT2 | Radio 200 C-2Radio 200 C-2Radio 200 C-2 | MASC AIR PULB-4100-5000-AU | 0.63 2.4~2.4Hz | 5 GHz | |
| 0.81 1.1~2.2Hz | 5 GHz | ||||
| 0.87 2.2~2.8Hz | 5 GHz | ||||
| 0.81 3.7~ 3.75 GHz | 5 GHz | ||||
| 0.45 0.725~1.5 GHz | 5 GHz | ||||
| ANT3 | Radio 200 C-3Radio 200 C-3Radio 200 C-3 | MASC AVEF BEX-4100-5000-AU | 0.63 2.4~2.4Hz | 5 GHz | |
| 0.81 1.1~2.2Hz | 5 GHz | ||||
| 0.87 2.2~2.8Hz | 5 GHz | ||||
| 0.81 3.7 ~3.75 GHz | 5 GHz | ||||
| 0.45 0.725~1.5 GHz | 5 GHz | ||||
| ANT4 | Radio 350 H-CHRadio 350 C-2Radio 350 C-2Radio 350 C-2Radio 350 C-2 | MASC AIR PULB-4100-5000-AU | 0.11 2.4~2.4Hz | 5 GHz | |
| 2.27 5.1~2.4 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 MHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| ANT5 | Radio 350 D-31Radio 350 D-1 | MASC AVEF BET-4100-300-425 | 2.81 3.7~3.7Hz | 5 GHz | |
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.83 3.7~3.75 GHz | 5 GHz | ||||
| 2.83 3.7~3.75 GHz | 5 GHz | ||||
| 2.83 3.7~3.75 GHz | 5 GHz | ||||
| 2.74 6.25~1.5 GHz | 5 GHz | ||||
| 2.74 6.25~1.5 GHz | 5 GHz | ||||
| 2.74 6.25~1.5 GHz | 5 GHz | ||||
| ANT6 | Radio 350 H-CHRadio 350 C-2Radio 350 C-1Radio 350 C-2 | MASC AVEF BET-4100-3000-AU | 2.81 3.7~3.7Hz | 5 GHz | |
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.83 3.7~3.75 GHz | 5 GHz | ||||
| 2.83 3.7~3.75 GHz | 5 GHz | ||||
| 2.71 6.25~1.5 GHz | 5 GHz | ||||
| 2.71 6.25~1.5 GHz | 5 GHz | ||||
| 2.81 3.7~3.7~1.5 GHz | |||||
| ANT7 | Radio 350 D-31Radio 350 D-3 | MASC AVEF BET-4100-3000-AU | 2.89 3.7~3.7Hz | 5 GHz | |
| 2.83 3.7~3.75 GHz | 5 GHz | ||||
| 2.81 3.7~3.75 GHz | 5 GHz | ||||
| 2.71 6.25~1.5 GHz | 5 GHz | ||||
| 2.61 6.25~1.5 GHz | 5 GHz | ||||
| 2.81 6.25~1.5 GHz | |||||
| ANT8 Flux: -48.57Vpass KNO for AP | COS | Antenna Type Connection Gain (dB) | |||
| PFA FFS/HC 3.0 | |||||
European Conformity (CE) - EU
This is a Case B product. In a domestic environment, its product may cause no interference, in which case, he user may be required to take adequate measures.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Simplified EU Declaration of Conformity
This declaration is only valid for Fortheet products (including, combinations of software, hardware and hardware), provided by Formet or Forinets, augmented partners to the end customer directly for use within the EU or securities that have implemented the EU Directive and/or spectrum regulation. Any I online products not obtained directly from Forinet or Forinets authorized partners may not comply with EU Directives and Forinets makes no assurances for such products.
Былгароки
This product is in compliance with Direct vs 2014/53/EU.
Español
West perklas rate in commercial site on Directive 2014/53/UF
Slovensky
Note: The full declaration or conformity for this product is available at the link below.
https://site.onlinet.com/ProductRegulator/EU
The device is restricted to macro use only when operating in the b100 to S250 MHz frequency range in the following countries.
| AT | BE | BG | HR | CY | CZ | DK | |
| EE | FI | FR | DE | EL | HU | IE | |
| IT | LV | LT | LU | MT | NL | PL | |
| PT | RO | SK | SI | ES | SE | UK (NI) |
Compliance with 2014/53/EU Radio Equipment Directive (RED)
In accordance with Article 3. (a), 3.1(a), 3.2 of the FED, the following table provides information on the frequency bands uses and the maximum FF transmit power of the product for sale in the U.C.:
| Frequency Range (MHz) Max. Transmit Power (dBm) |
| Plutonic 2406-2408MH-10 |
| Sigma 2406-2408M ±10 |
| WAN-5ACH-2415-2417MH-25 |
| WAN-OHIO-30-300MH-23 |
| WAN-OHIO-300-300MH-25 |
| WAN-OCH-5755-5875MH-18.5 |
| WAN-OCH-5855-5875MH-25 |
UK Conformity Assessed (UKCA) – United Kingdom
The product transmits within the frequency ranges and less than or equal to the power based below:
| Frequency Range (MHz) Max. Transmit Power (dBm) | |
| Dowcress 2402-2403VHIL 10 | |
| Zigarc 5006-2408VIL 10 | |
| WLAN 2.5VIL 2412-2417VHIL 20 | |
| WLAN 50VIL 2419-2423VIL 20 | |
| WLAN 50VIL 2420-2423VHIL 20 | |
| WLAN 50VIL 2425-2427VHIL 10.5 | |
| WLAN 50VIL 2428-2431VHIL 20 | |
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
The product is in compliance with Statutory Instrument 1206 Radio Equipment Regulations 2017
Operations in the 5.15-6.35GHz card are restricted to indoor usage only
The full Declaration of Controversy for this product is viable to the link below:
https://a.nel.com/products/Regulinkp.LK
