USER MANUAL RL3B303SAWE HISENSE

Technical diagram of a refrigerator with numbered components for identification

HINWEIS

HINWEIS

QR code image containing encoded data, no visible human-readable text

HINWEIS

SCD ADRM Wi-Fi

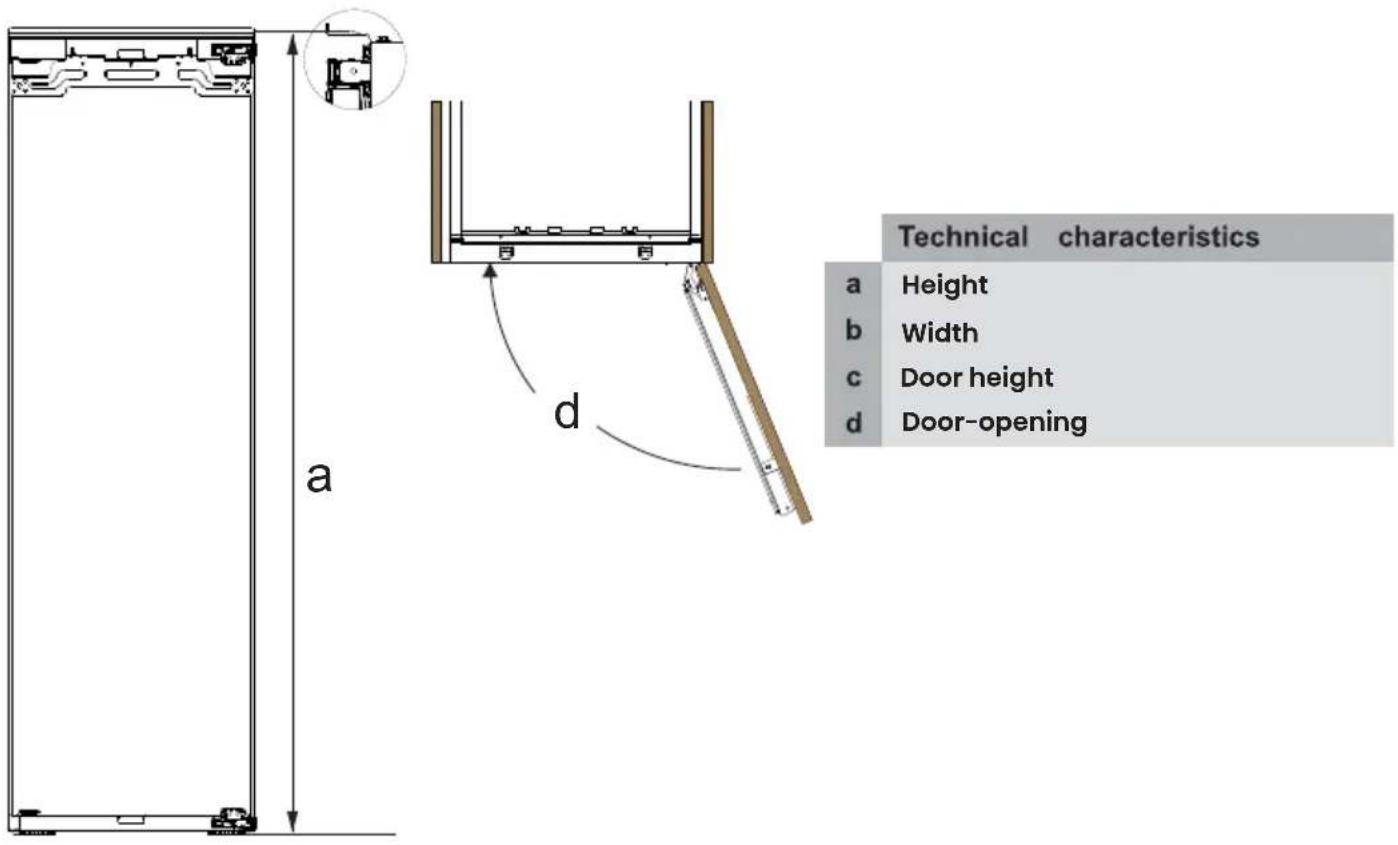

Technical line drawing of a rectangular electronic device with dimension label 'a' and an inset close-up showing internal components (no text or symbols beyond the label)

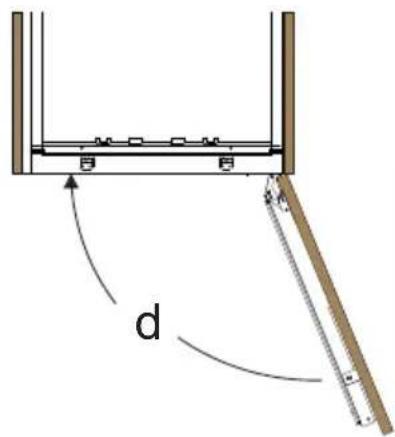

d

Line drawing of an open refrigerator with shelves and door, showing internal structure and ventilation direction (no text or symbols)

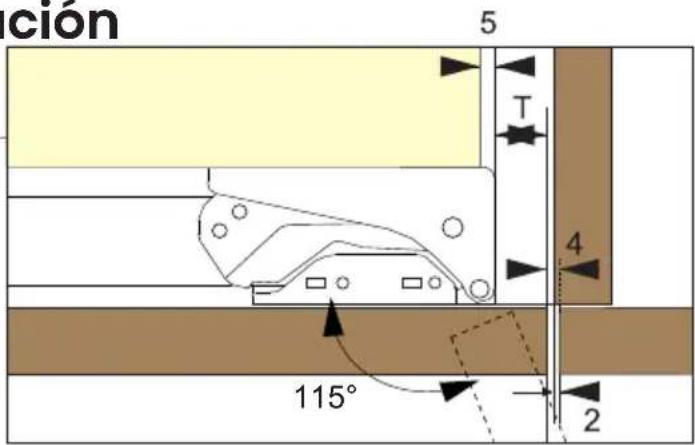

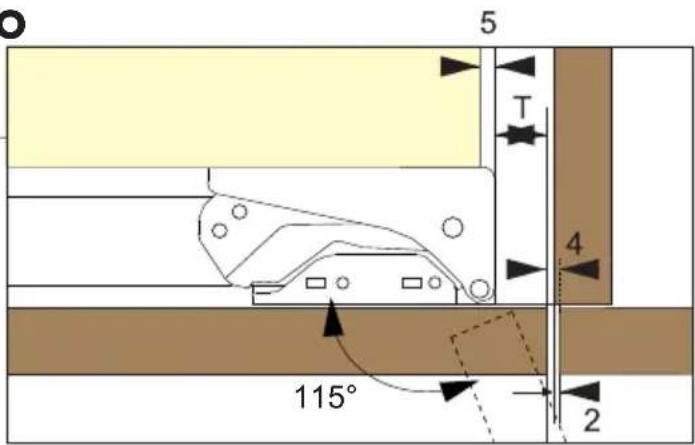

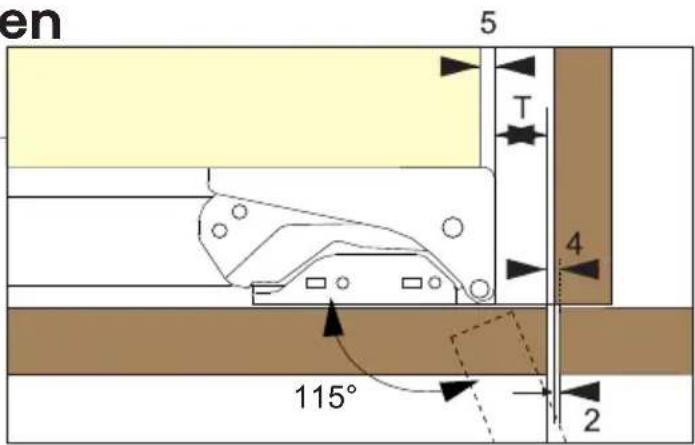

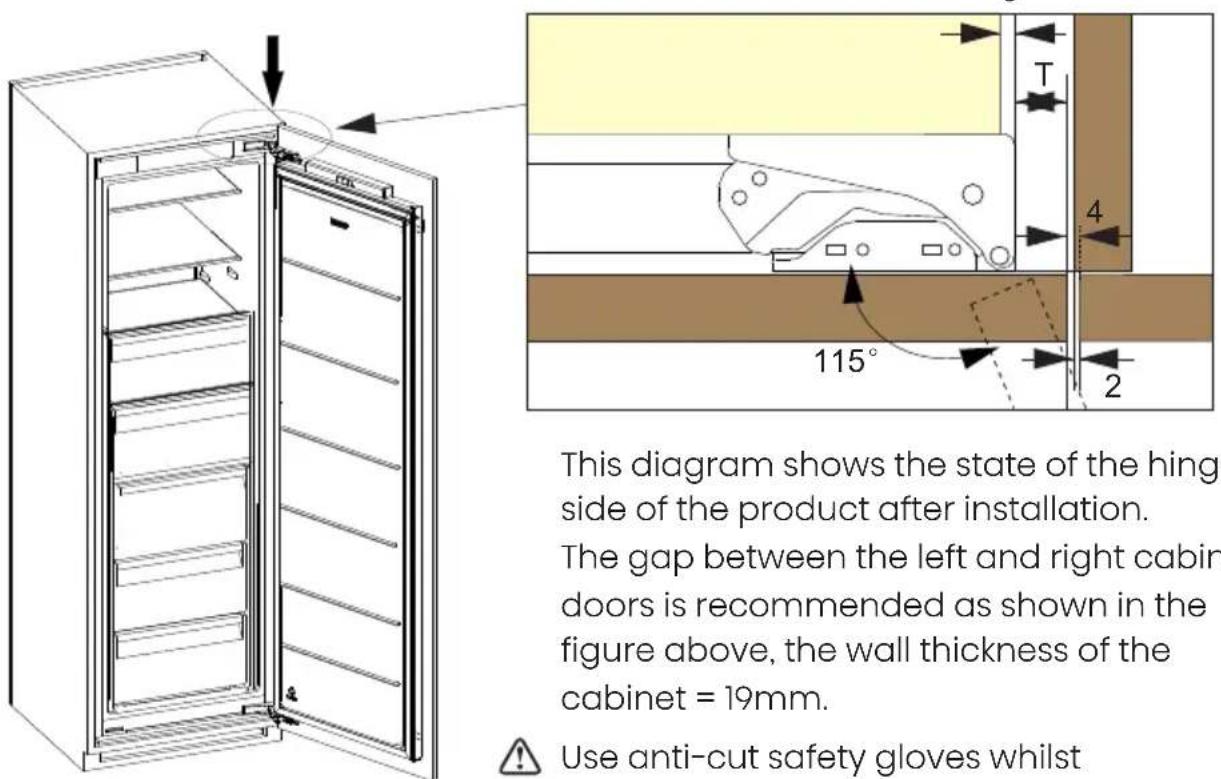

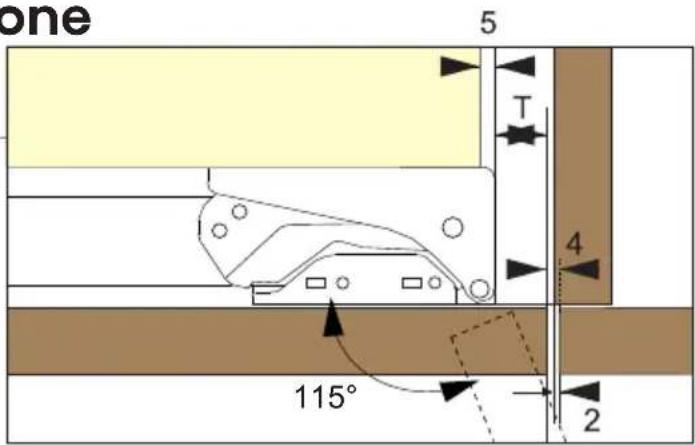

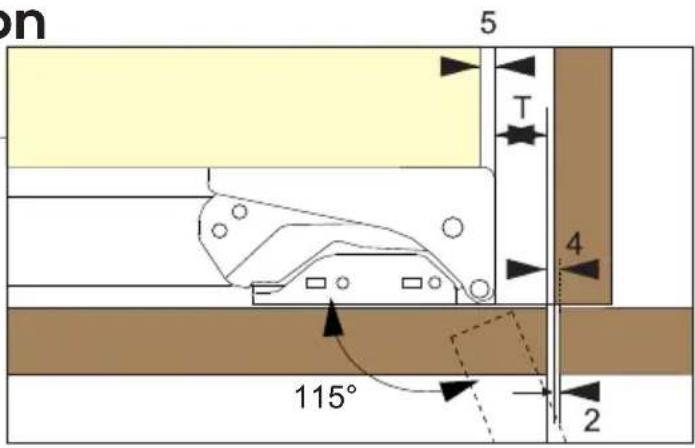

en 5 T 4 115° 2

Line drawing of a pair of scissors (no text or symbols)

Wasserwaage

Pure technical line drawing of a rectangular frame with internal circular cutouts (no text or symbols)

Winkelmaß

Simple line drawing of a right-angle ruler with measurement markings (no text or symbols)

Lineal

Seil

Pure diagram of a coiled wire or filament without any text, numbers, or symbols

Stift

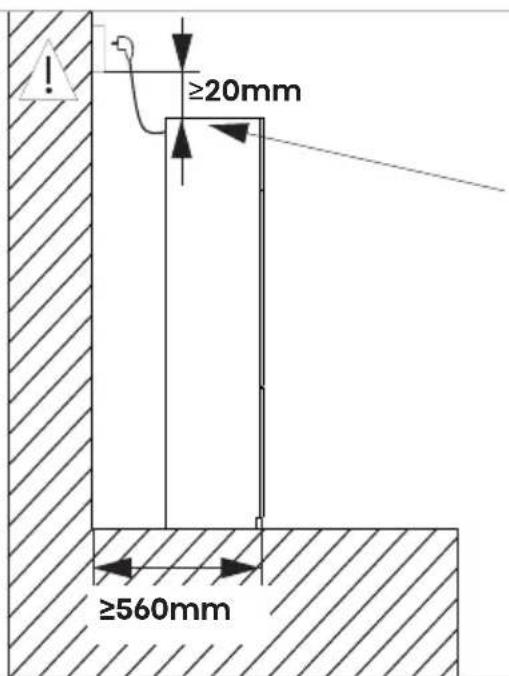

≥20mm ≥560mm

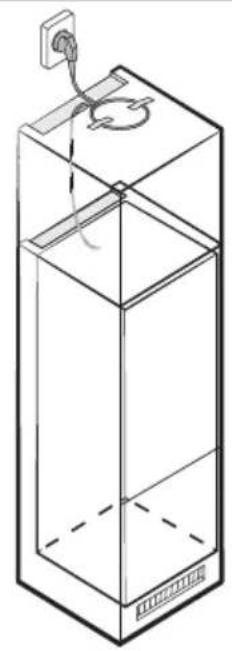

Isometric line drawing of a rectangular container with internal structure and a hanging outlet (no text or symbols)

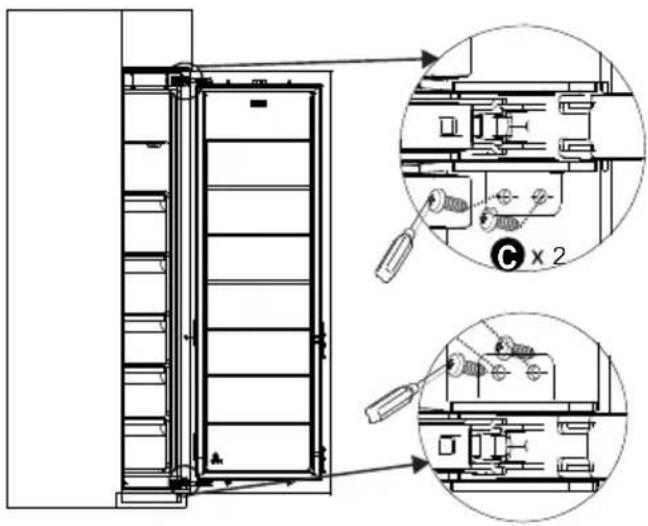

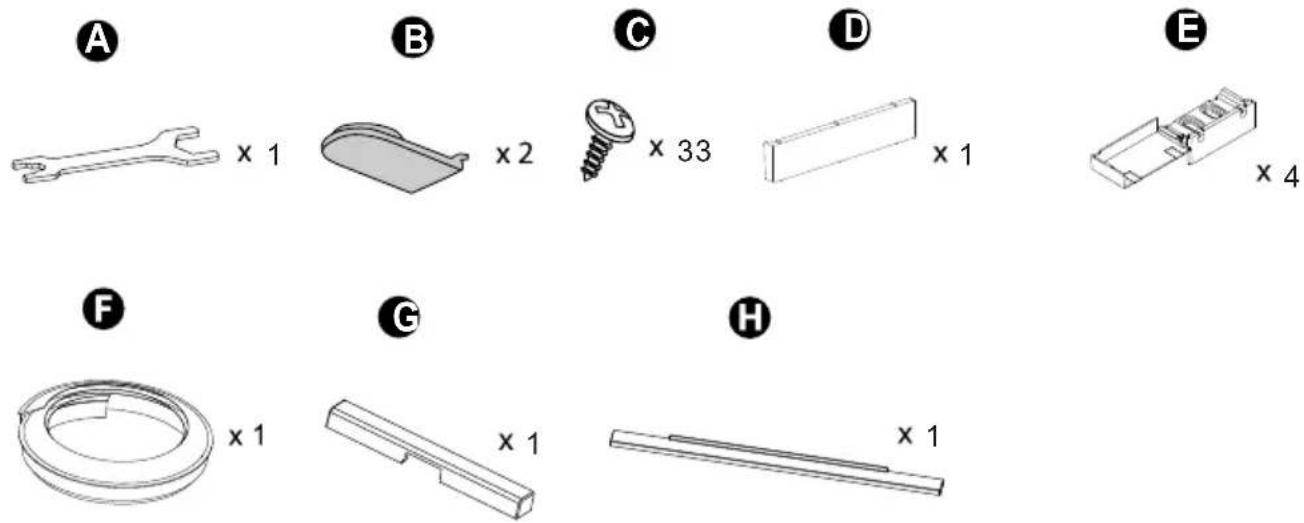

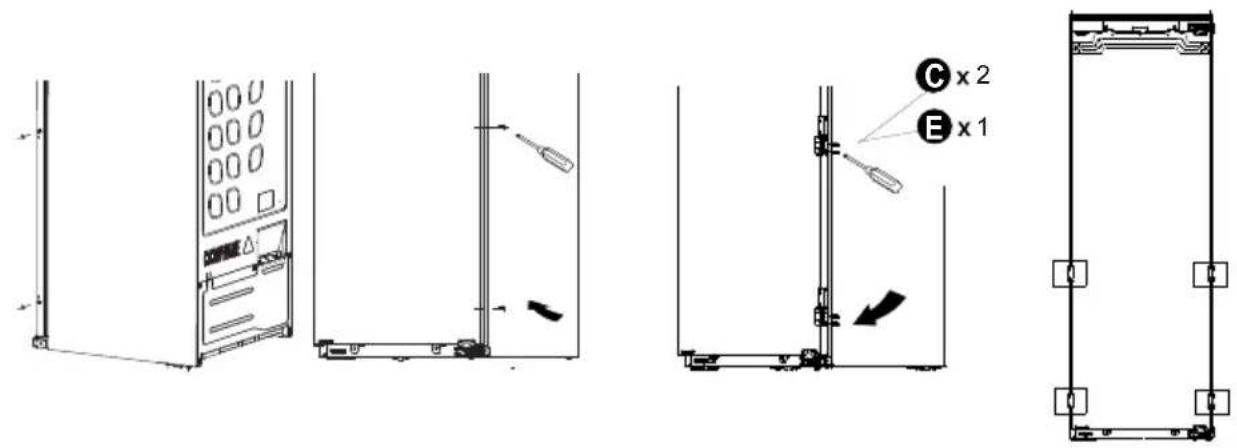

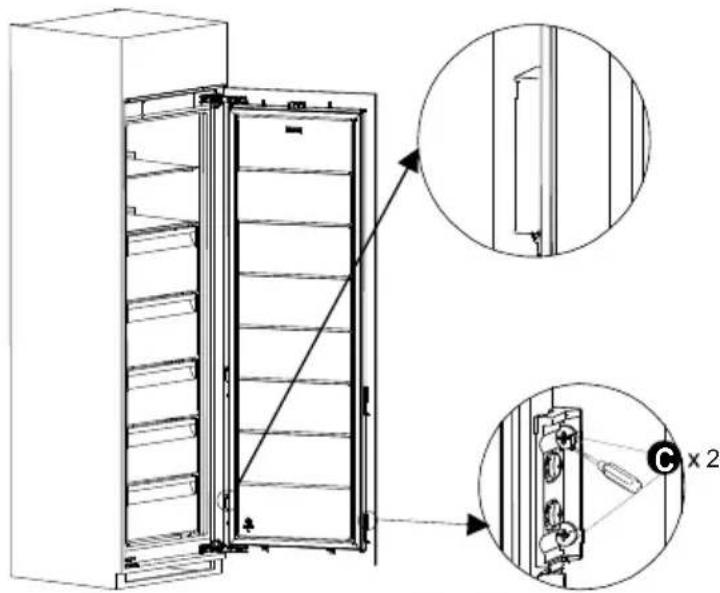

C x 2 E x 1

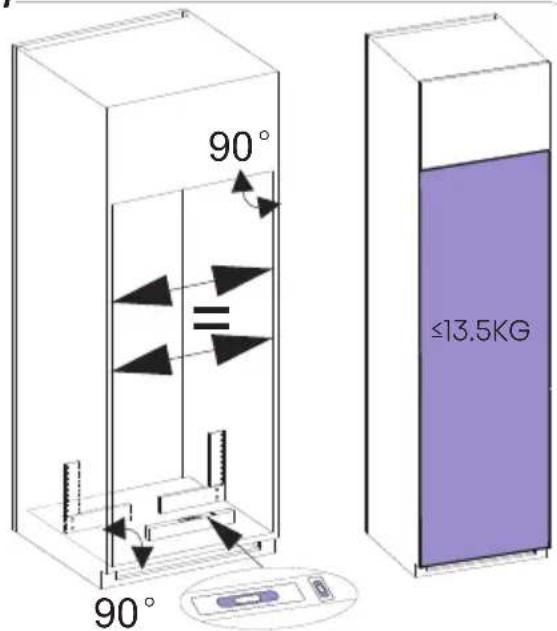

90° 90° ≤13.5KG

Technical line drawing of two mechanical components with mounting brackets and a directional arrow indicating motion (no text or symbols)

Technical diagram showing three-step installation of a window frame with labeled components and directional arrows indicating assembly or positioning.

Simple diagram of a purple rectangle inside a dashed border with an arrow indicating rotation (no text or symbols)

Simple diagram showing a purple rectangle with an arrow pointing to it, enclosed in a dashed border (no text or symbols)

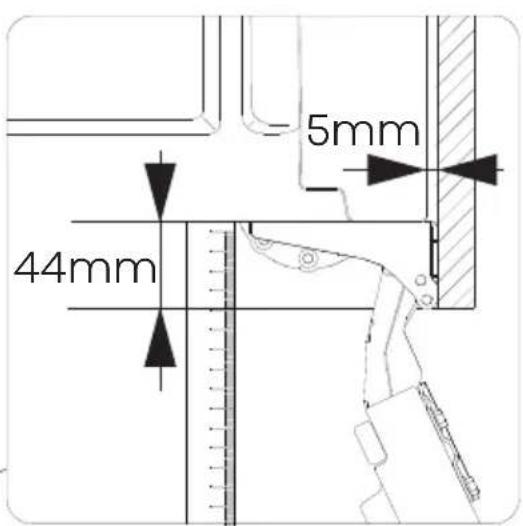

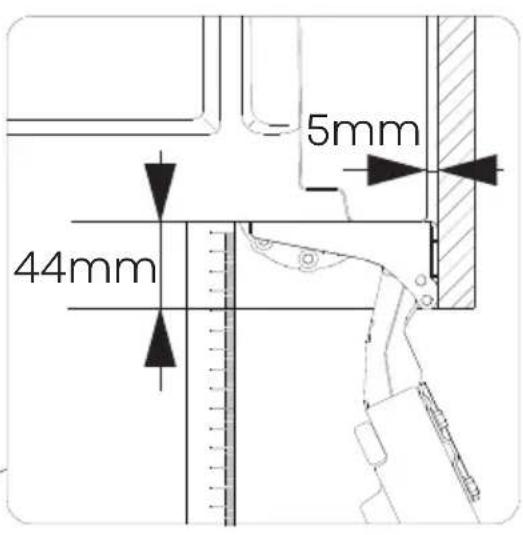

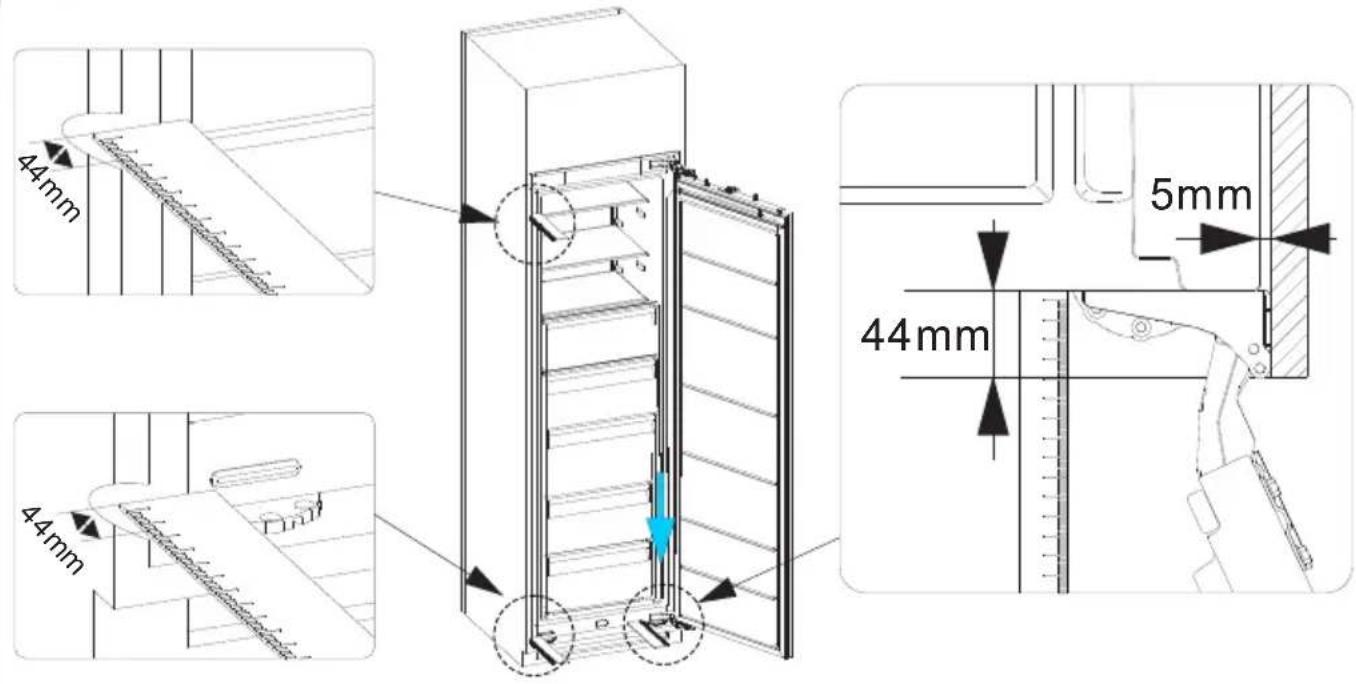

44mm 44mm

44mm 5mm

Technical diagram showing a window frame assembly with labeled components and a magnified inset highlighting a component labeled 'C x 2' and 'B x 2'.

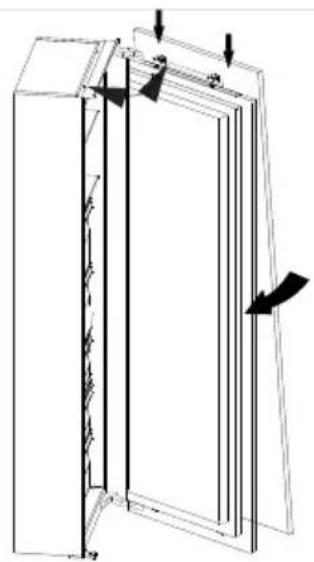

Diagram of a door with arrows indicating force or movement, showing internal structure and no text or symbols

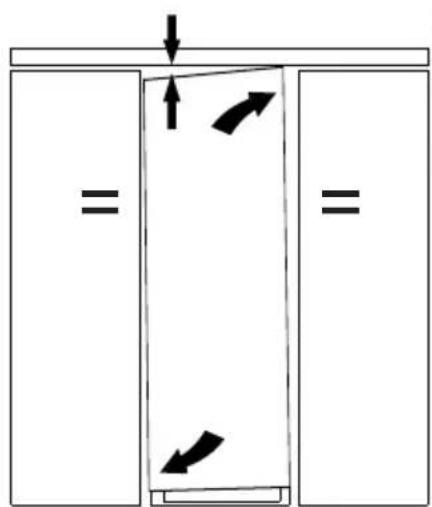

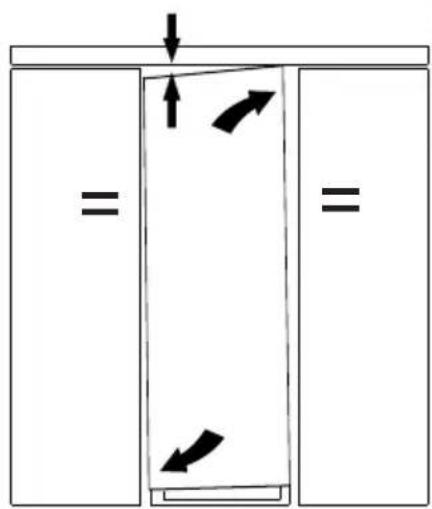

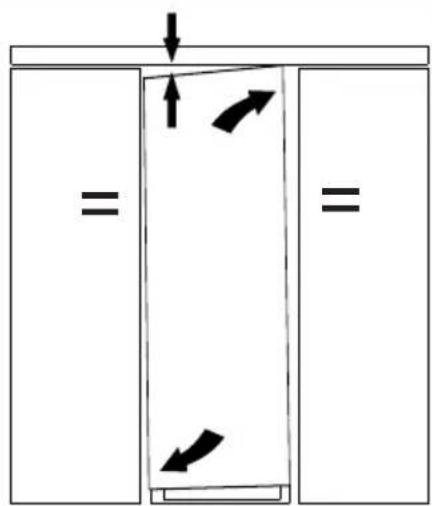

Diagram showing a rectangular structure with equal signs and directional arrows, possibly indicating force or movement in a mechanical or electrical system.

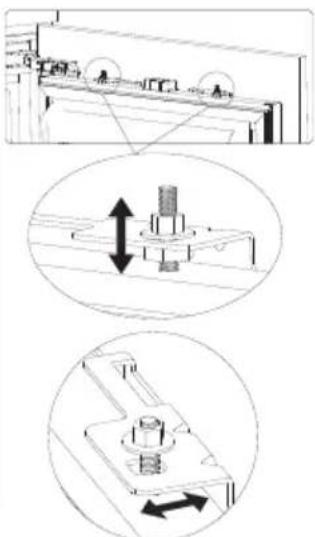

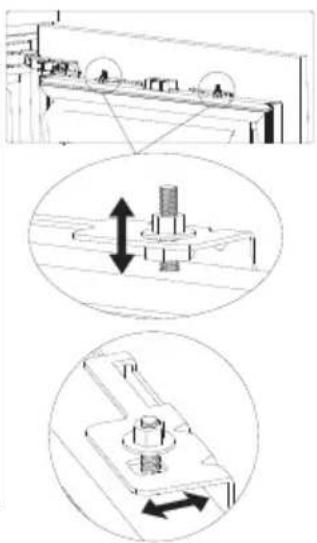

Technical diagram showing mechanical assembly with two views of a bolted component (no text or labels)

Technical line drawing of a refrigerator interior showing internal structure and mounting details (no text or symbols)

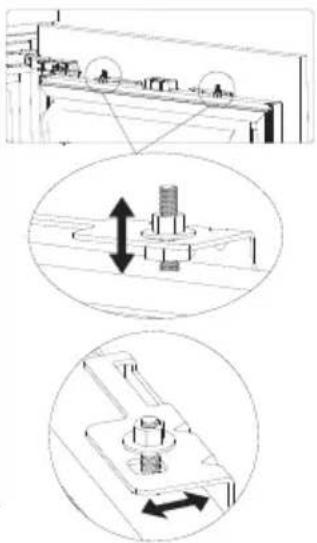

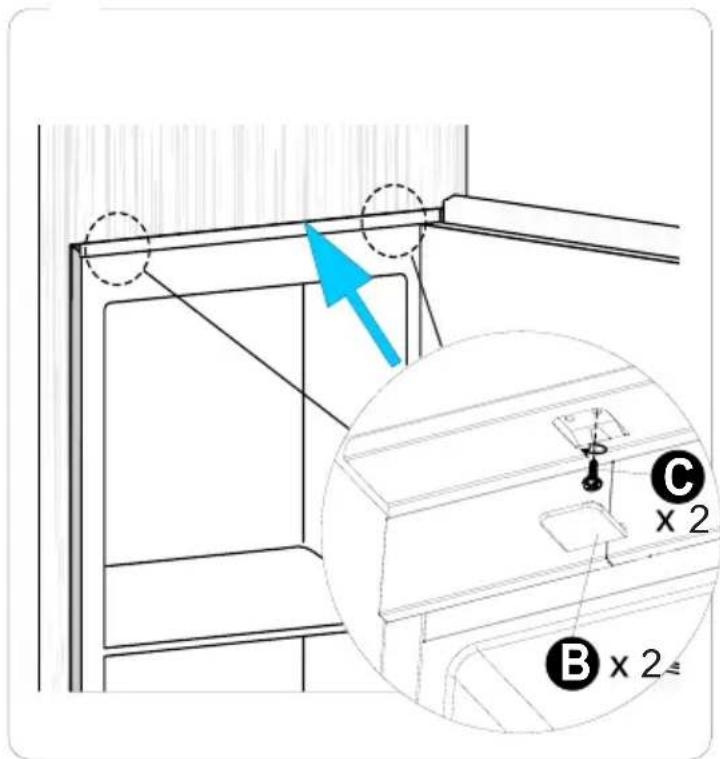

Technical diagram showing internal components of a device with zoomed-in views and labeled parts

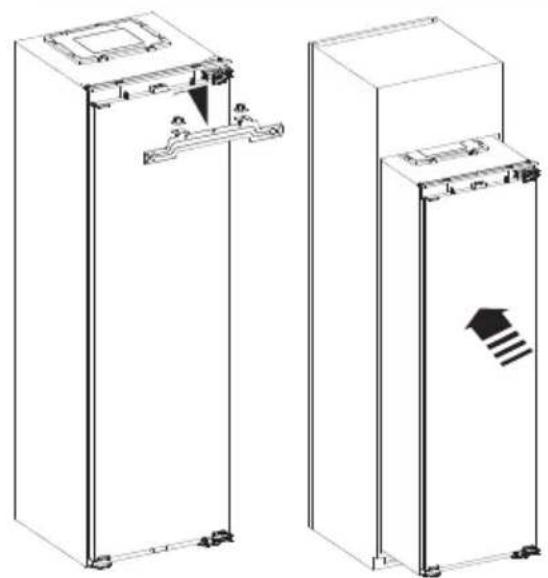

Technical diagram showing a 3D box with internal components and an inset view of a mechanical component (no text or symbols)

D x 1 G x 1 H x 1

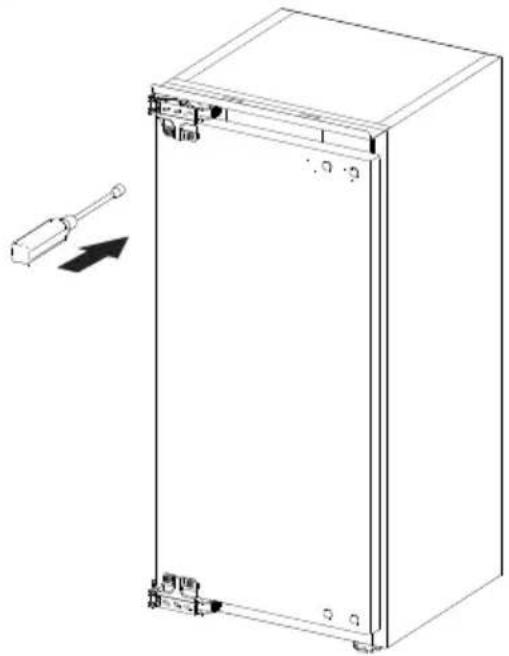

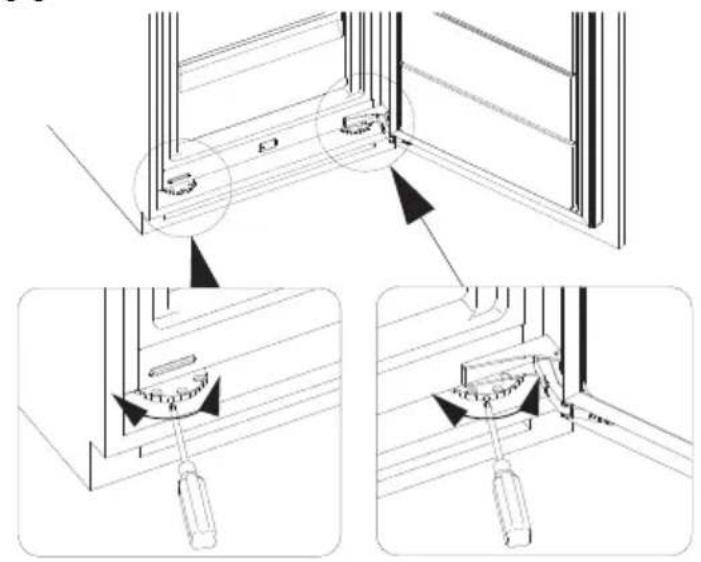

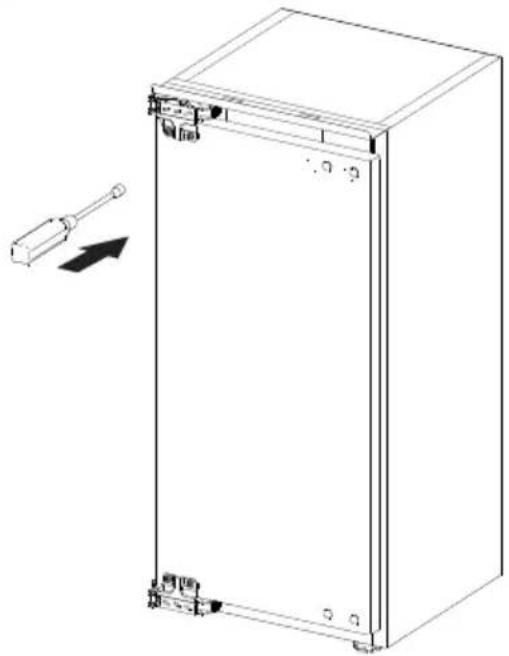

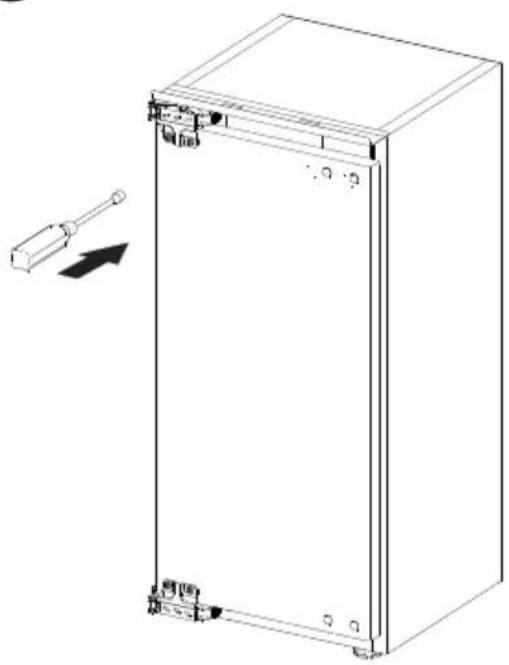

Diagram of a refrigerator with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

2

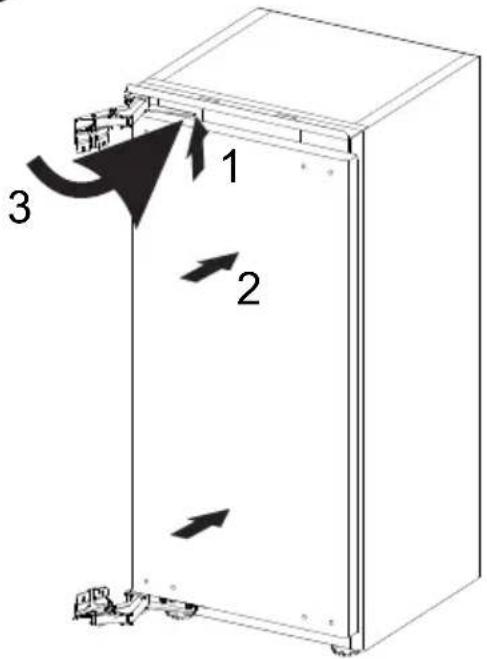

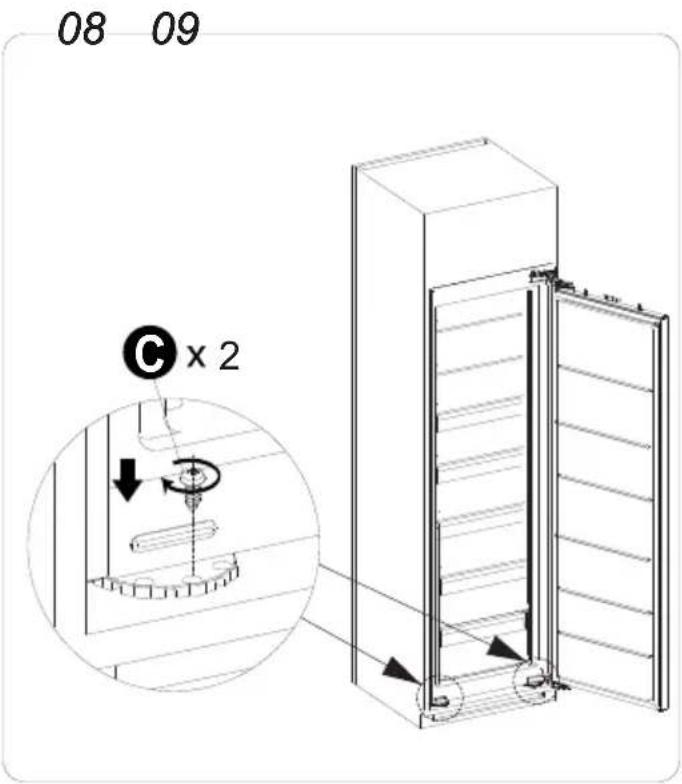

Technical diagram of a refrigerator with labeled parts and directional arrows indicating motion or movement

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5

1 2 3

4

Diagram of a refrigerator interior with labeled parts including door, shelf, and control switches

6

Line drawing of a rectangular electronic device with a switch and screwdriver, no text or symbols present

Before operating this unit, please read this manual thoroughly, and retain for future reference.

EN

English

Contents

Safety and warning information 01

Description of the appliance....12

Electronic controls....13

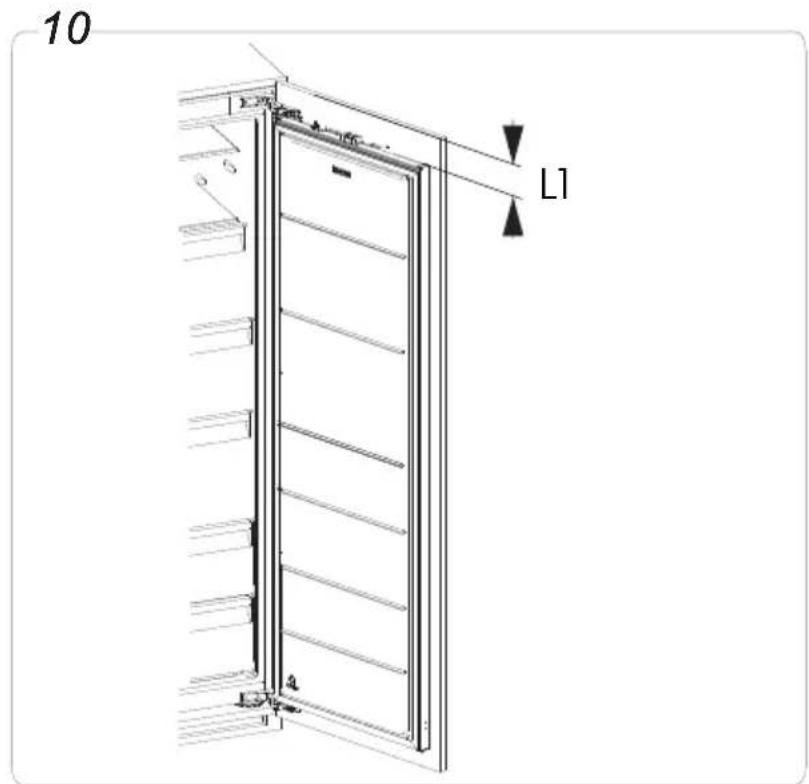

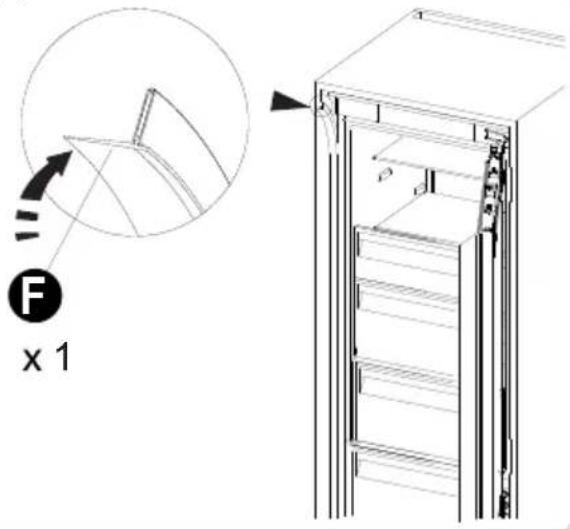

First use and installation....17

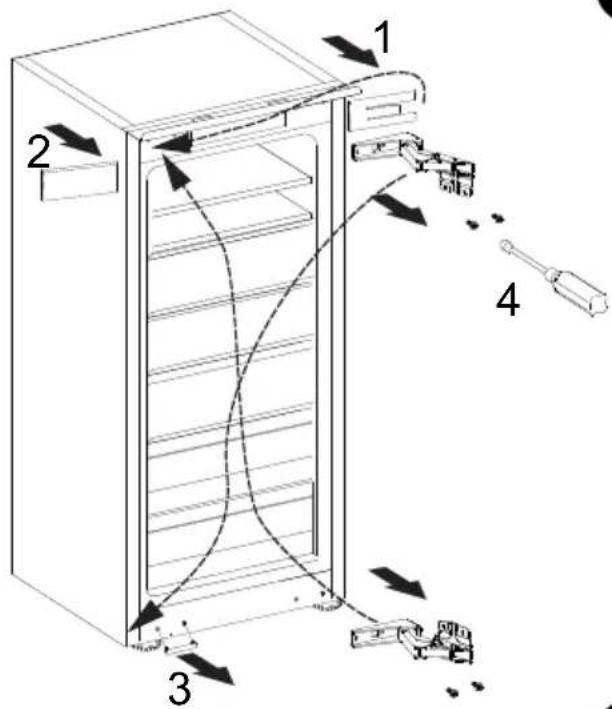

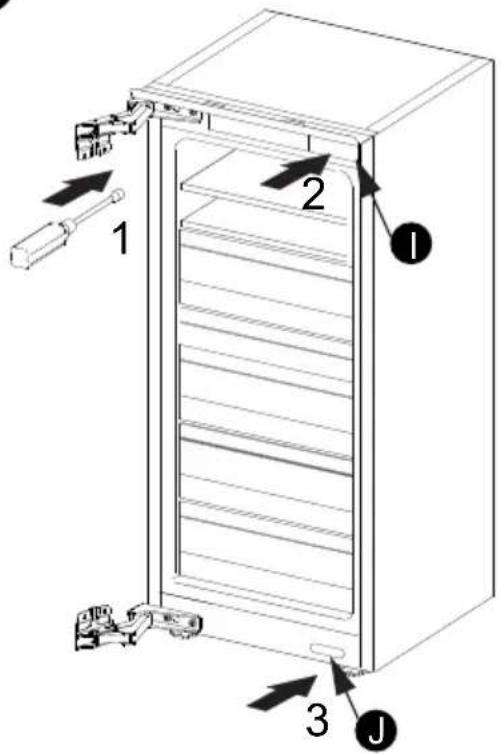

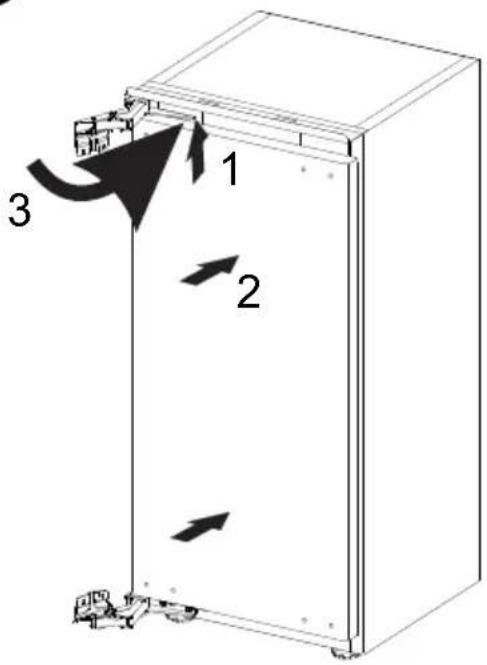

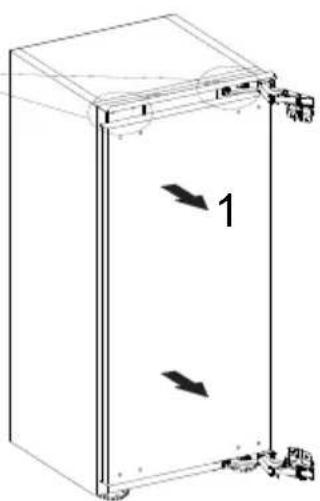

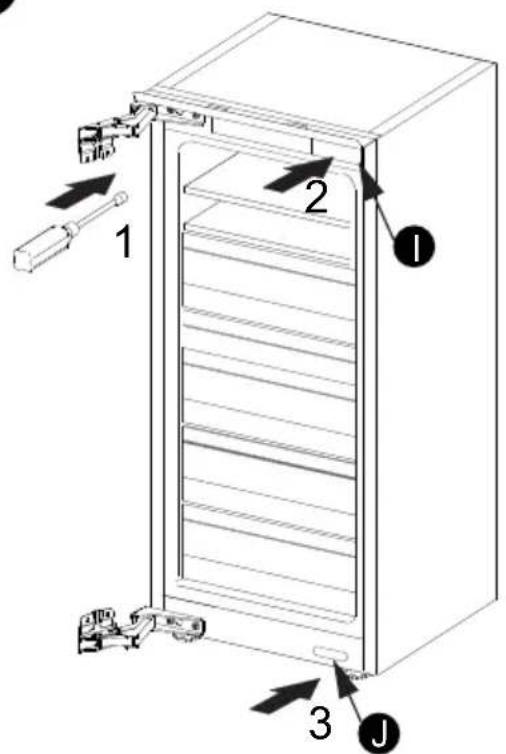

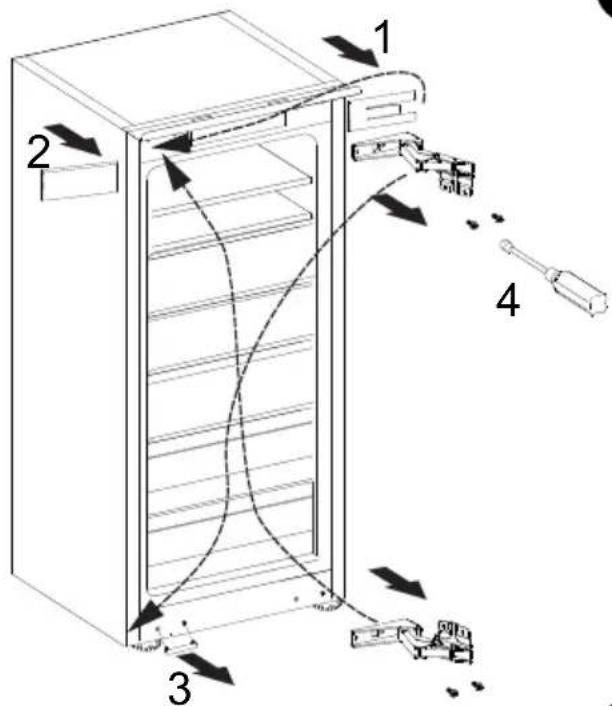

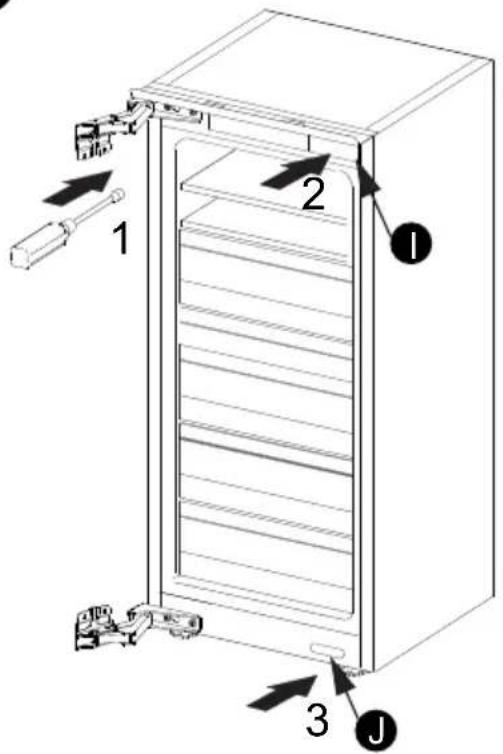

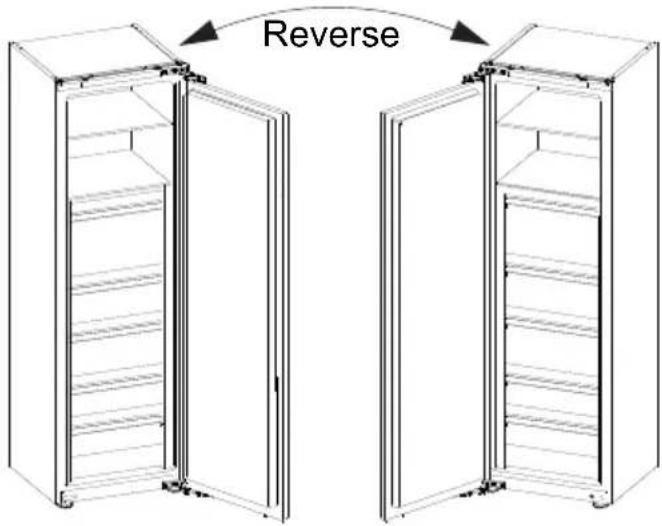

Reverse the door....28

Daily use.... 31

Helpful hints and tips....32

Cleaning and care....33

Troubleshooting....34

Disposal of the appliance....37

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Safety and warning information

Safety for children and others who are vulnerable people

According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Keep all packaging away from children as there is risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

Safety and warning information

General safety

- WARNING

This appliance is intended to be used in residential household and similar applications such as

1. staff kitchen areas in shops, offices and other working environments;
2. farm houses and by clients in hotels, motels and other residential type environments;
3. bed and breakfast type environments;
4. catering and similar non-retail applications.

- WARNING

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- WARNING

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Safety and warning information

General safety

- WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING

Do not damage the refrigerant circuit.

- WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- WARNING

The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

- WARNING

When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Safety and warning information

Replacing the illuminating lamps

- WARNING

The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit become damaged. The refrigerant (R600a) is flammable.

- WARNING

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Safety and warning information

WARNING

Risk of fire / flammable materials

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp cover.

Safety and warning information

Electrical safety

1. The fridge is only applied with power supply of single phase alternating current of 220\~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A. C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Daily use

• Do not store flammable gases or liquids in the appliance, there is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket, do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.

Safety and warning information

• The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance in direct sunlight.
• Keep burning candles, lamps and other items with naked flames away from the appliance and do not set the appliance on fire.
• The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. You should take care when move it as the appliance is heavy.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Never use the base, drawers, doors etc. to stand on or as supports.
• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.

Safety and warning information

• Frozen food must not be refrozen once it has been thawed out.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.
• Never cover or obstruct the ventilation slats on the appliance.
• In order to sense the temperature near the appliance and make the appliance run better, add temperature sensor outside the box of appliance.
• The WiFi module is installed in the control box at the top of appliance. In order to avoid interference and cause weak signal, it is recommended to cancel large-area metal products or water-containing drinks around the top of the box.

CAUTION

Care and cleaning

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

Do use a plastic scraper instead of a sharp objects to remove frost from the appliance.

Safety and warning information

Installation

• For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it.
• Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
• Wherever possible, the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of fire, follow the instructions relevant to installation.
• The appliance must not be locate close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Transmitting frequency band(s) and max allowed transmitting power in the operating frequency band(s): 2400-2483.5MHz, less than or equal t 20dbm.

Safety and warning information

- This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.

• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

• If the appliance is Frost Free.

• If the appliance contains freezer compartment.

In case of malfunction

If a malfunction occurs on the appliance, please look first in the “Trouble shooting” section of these instructions. If the information given there does not help, please do not perform any further repairs yourself. Under no circumstance should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

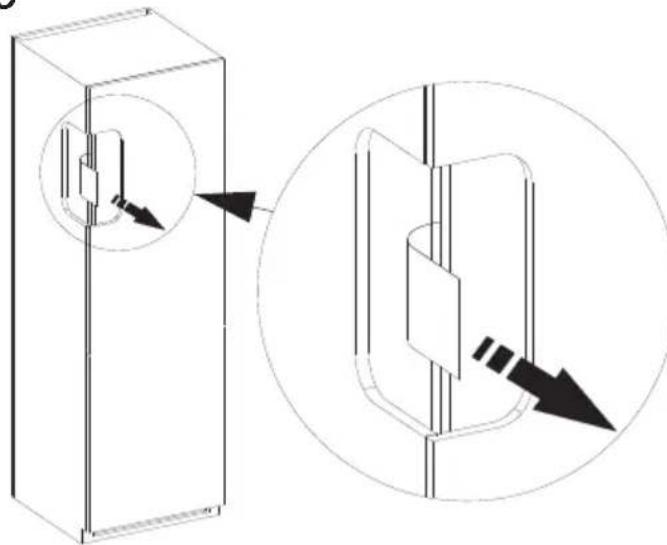

Remove transport packaging

The appliance and the interior fittings are protected for transportation. Pull off the adhesive tape on the left and right side of the door. You can remove any remnants of adhesive using white spirit. Remove all adhesive tape and packing pieces from the interior of the appliance.

Safety and warning information

NOTE

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. (This clause applies only to the EU region.)

Description of the appliance

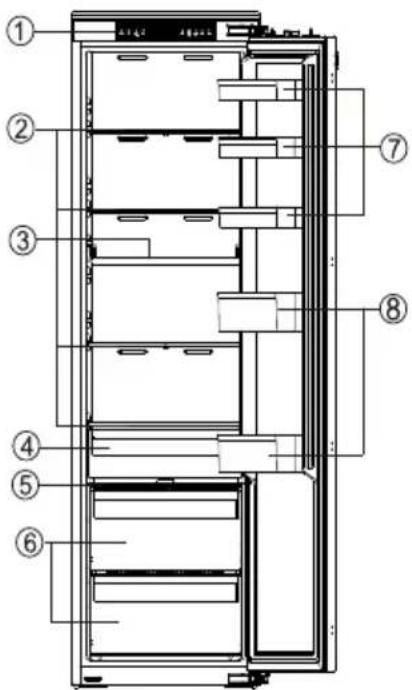

View of the appliance

① Electronic control
② Storage shelves
③ Bottle rack
④ 0 °C fresh box
⑤ Vegetable drawer cover
⑥ Vegetable drawer
⑦ Upper door rack
⑧ Lower door rack

NOTE: This 0 °C Fresh BOX is an ice

greenhouse, the temperature

requirements range: average -3 to 3

degrees. The food may freeze.

Technical diagram of a refrigerator with numbered components for identification

NOTE

• Due to constant modification of our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same.
• To get the best energy efficiency of this product, please place all shelves, drawers and baskets on their original position as the illustration above.

Electronic controls

All functions and controls of the unit are accessible from a control panel conveniently located on the roof of the cabinet. A display circuit board allows easy configuration of features and settings in a simple and intuitive manner.

Display Controls

Use your appliance according to the following control regulations, your appliance has the corresponding functions and models as the display panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no button have been pressed and the doors are closed after one minute, the backlighting will turn off.

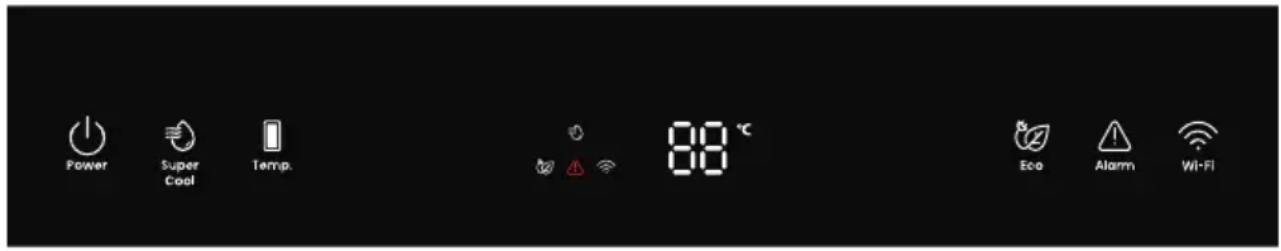

Power Super Cool Temp. 88 °C Eco Alarm Wi-Fi

Electronic Control(located at the top of appliance)

1. Power

If you want to stop using it, you can turn the appliance off by pressing "Power" button for 3 seconds.

Press and hold "Power" button for 3 seconds to turn the standby function on or off.

When the standby function is on, the display panel will show “--”.

Important!

Do not store any food in the fridge during this time. If you will not use the refrigerator for a long time, please pull the plug.

NOTE

When the power function is on, the refrigerator stops cooling and the light is off.

2. Eco

Press the “Eco” button to turn on the energy saving function, the “Eco” icon will be illuminated.

When the Eco function is on, the temperature of the refrigerator is 6^ C. When Eco function is on, you can turn it off by pressing the “Temp” button or pressing the “Eco” button and the refrigerator temperature setting will revert back to the previous setting.

3. Super Cool

Super Cool

The Super Cool feature helps to keep food stored in the refrigerator at the setting

temperature during periods of high usage, large grocery loads, or temporarily warm room temperatures. The Super Cool feature lowers the temperature in the fridge compartment.

Electronic controls

1. Press the "Super Cool" button to activate this function. the fridge temperature indicator will display 2°C.
2. Super cool will automatically turn off after about 6 hours.
3. When super cool function is on, you can turn it off by pressing the "Super Cool" button or pressing the "Temp" button. When the Super Cool function is manually turned off, the setting temperature will revert back to the previous setting.

4. Fridge Compartment Temperature

Temp.

Press the "Temp" button repeatedly to cycle through the available temperature settings from 8°C to 2°C.

NOTE

Each press of the button decrease the setting temperature by one degree.

NOTE: Setting Compartment

Temperatures: When you set a temperature, you are setting an average temperature for the entire compartment.

The actual compartment temperatures may vary from the temperatures displayed depending on the amount and placement of

stored food, and the surrounding room temperature.

Recommended Temperature Settings Fridge Compartment: 4°C

5. Alarm

High temperature alarm: Alarm If the temperature inside the appliance is too high, an alarm will sound to alert you and the “⚠️” icon will illuminated.

In non-standby function, the temperature inside the box is detected after 24 hours of powering on. If the temperature remains too high for 4 hours, the high temperature alarm will be triggered.

Switching off the alarm:

If you want to switch off the acoustic alarm, briefly press the "Alarm" button. The " 🔊" icon will remain illuminated until the actual temperature in the appliance drops below the alarm level.

When the appliance reaches an adequate temperature, then the "icon will extinguished, high temperature alarm cleared.

If you have not cancelled the high temperature alarm, the" ▲icon will remain illuminated, and the buzzer will sound three times per minute.

After more than 10 minutes, the alarm will stop.

Door Open Alarm:

If a door is open for longer than 1

Electronic controls

minutes, an alarm will sound to alert you. The alarm will sound 5 times every minute in the first and second minutes. Starting from the third minute, the alarm will sound once per second. If the alarm beeps for a long time, the buzzer will stop after 10 minutes of opening the door. To turn off the alarm, close all doors completely.

6. Demo mode

Demo mode is for store display, and it prevents the refrigerator from generating cool air. In this of Cooling off Mode, the refrigerator may seem like it is working but it will not make cool air. If there is no button operation for 10 seconds, it will keep display "OF", otherwise it will display the set temperature.

To switch off demo mode, press and hold "Power" and "Wi-Fi" buttons at same time for three seconds and the buzzer beeps 3 times.

7. Wi-Fi

Connecting your refrigerator to Wi-Fi Connect Life app

Connect Life is a smart home app that allows you to communicate with your smart appliances using a smartphone or tablet.

Installation

1. Open the Apple App Store (IOS) or

the Google Play Store (Android) on your smartphone.

1. Search for the “ConnectLife” app. You will see an app with the following icon:

1. Download and install the ConnectLife app provided by Connect Life, LLC.

Alternatively, you can scan the following QR code with your smart phone or tablet to find the ConnectLife app:

QR code image containing encoded data, no visible human-readable text

NOTE

• The distance between your appliance and the Wi-Fi router can impact the performance. If they are too far apart pairing your appliance might fail or take longer.
• The appliance supports 2.4 GHz Wi-Fi networks only. The Wi-Fi network

Electronic controls

SSID must be visible.

• The surrounding wireless environment other connected devices) can affect the performance of your network.
- Your appliance Wi-Fi connection may experience interruptions due to external factors such as your home network environment or Internet service provider.

Connecting your refrigerator

After installing the Connectlife app, sign in or create an account and follow these steps:

1. Ensure the appliance is powered on and the display panel is active. You'll know it's ready when the panel lights up.

4°C Eco Alarm Wi-Fi

1. Press and hold the Wi-Fi button for 3 seconds until you hear a beep and see the "💡" light flashing after it constantly on for a few seconds.

3 sec 4°C Eco Alarm Wi-Fi

1. Ensure Bluetooth is enabled on your phone and open the ConnectLife app. Look for the pop-up indicating that a new appliance has been found. Tap the button on the pop-up and follow the instructions to proceed.
2. If a pop-up doesn't appear, tap the button called "Add appliance" or "+" in the app.
3. Locate "Refrigerator" in the device list and select it.
4. Follow the instructions in the app to connect your refrigerator. Once the setup is complete, your refrigerator will appear on your home screen.

NOTE

• The appliance will remain in pairing mode for a maximum of 5 minutes.
• The factory reset your network settings, press and hold the Wi-Fi button for 6 seconds. You will hear two beeps once the appliance is reset.
  • After resetting, the appliance will automatically go into pairing mode.
• A solid Wi-Fi light indicates the appliance is successfully connected to the home network.

First use and installation

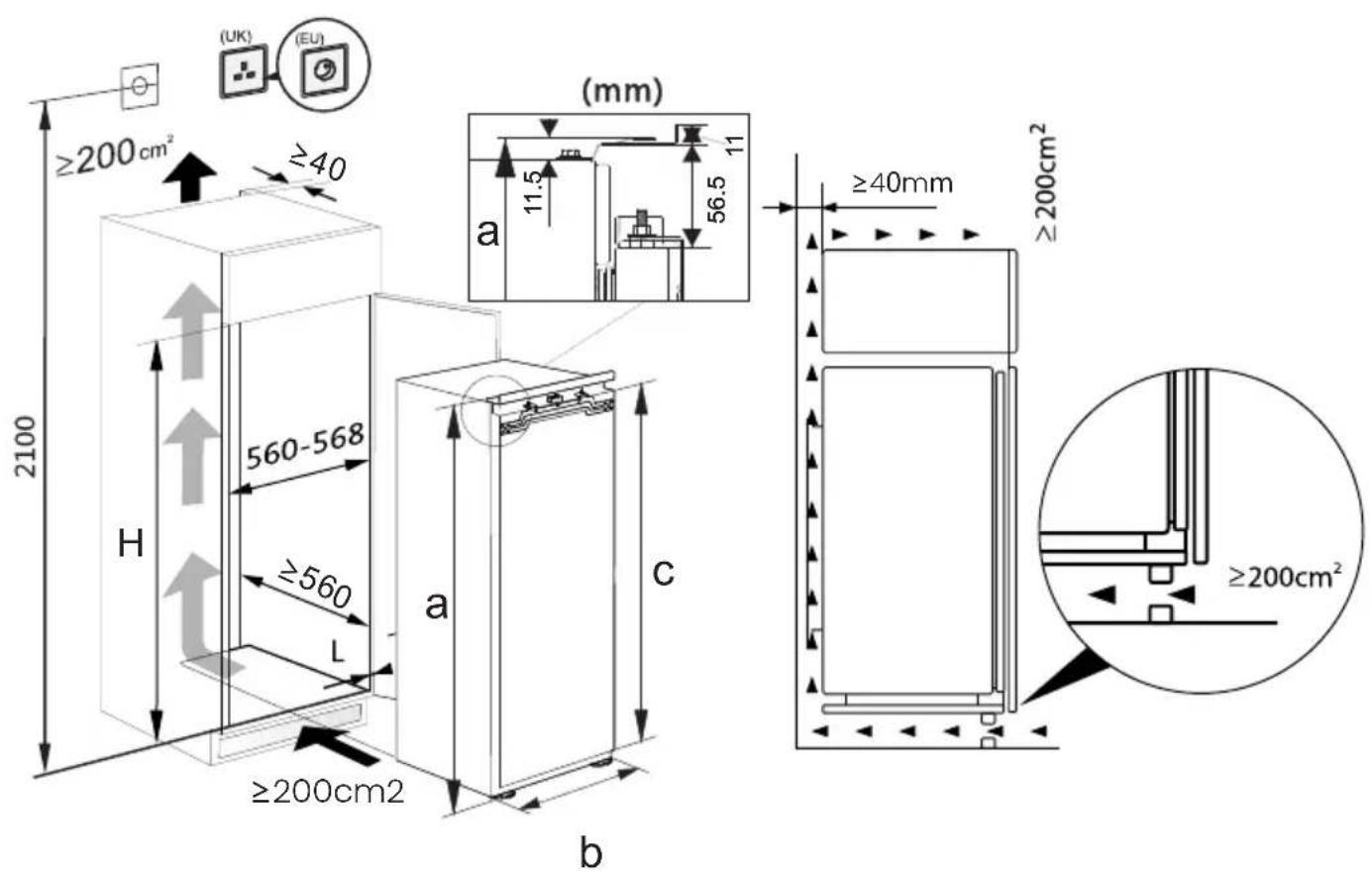

Built-In Fridge

(UK) (EU) ≥200cm² ≥40 (mm) 11.5 56.5 a 11 2100 H 560-568 ≥560 L ≥200cm2 a c ≥40mm ≥200cm² ≥200cm² b

Please ensure there is enough space of the cabinet for the refrigerator, it is necessary for the installation, repairs and air circulation. Before installation, please confirm that the cabinet size.

First use and installation

Technical characteristics a Height b Width c Door height d Door-opening

Model higth	H(cabinet height)	a	b	c	d
1772	1772 ~ 1780	1772	540	1669	≤ 115^

NOTE

• Your product is designed and built for domestic household use only. The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions provided.
• Parameters provided in table are design parameters. Because of the various reasons there will a slight deviation between actual dimension and design parameter. The data listed are only for reference.

First use and installation

Installation instructions

This diagram shows the state of the hinge side of the product after installation. The gap between the left and right cabin doors is recommended as shown in the figure above, the wall thickness of the cabinet = 19mm. Use anti-cut safety gloves whilst

This diagram shows the state of the hinge side of the product after installation.

The gap between the left and right cabinet doors is recommended as shown in the figure above, the wall thickness of the cabinet = 19mm.

⚠️ Use anti-cut safety gloves whilst performing the installation.

PART LIST(Accessories package)

A x 1 B x 2 C x 33 D x 1 E x 4 F x 1 G x 1 H x 1

First use and installation

You may need:

cross screwdriver
straight screwdriver
electric portable drill
spanner

Ø 2,8 mm

scissors

Line drawing of a pair of scissors (no text or symbols)

Spirit level

Simple line drawing of a rectangular frame with two circular cutouts and internal geometric shapes (no text or symbols)

square

Simple line drawing of a right-angled rectangular ruler with measurement markings (no text or symbols)

ruler

string

Pure diagram of a coiled wire or coil without any text, numbers, or symbols

pen

First use and installation

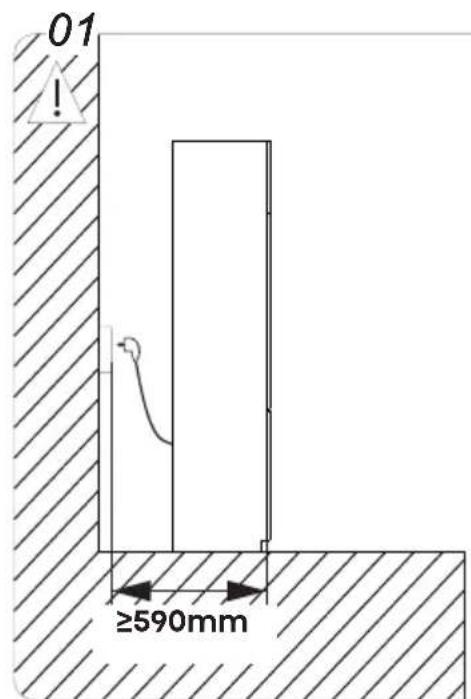

01 ! ≥590mm

Consideration for socket outlet location and required space

≥20mm ≥560mm

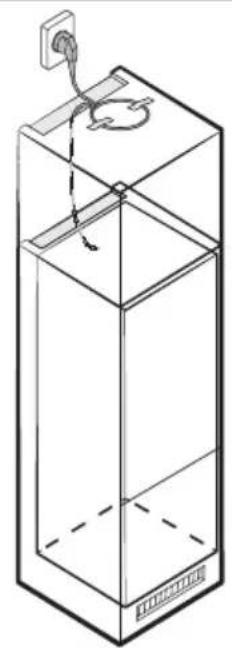

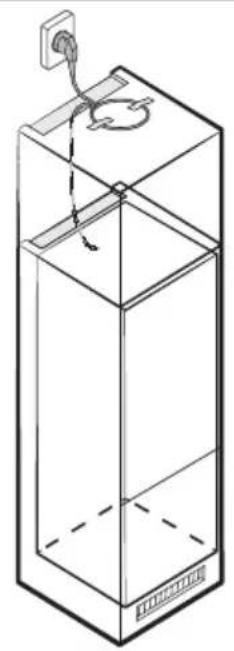

Isometric line drawing of a rectangular container with internal components and a hanging outlet (no text or symbols)

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

02

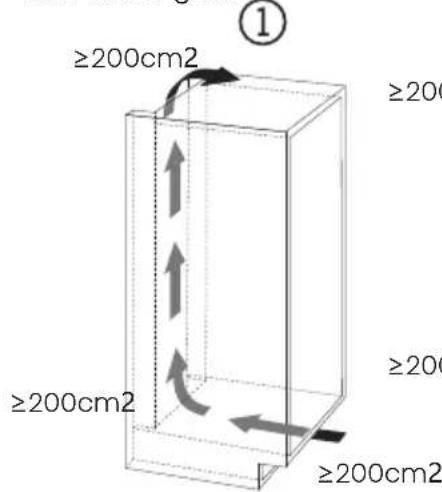

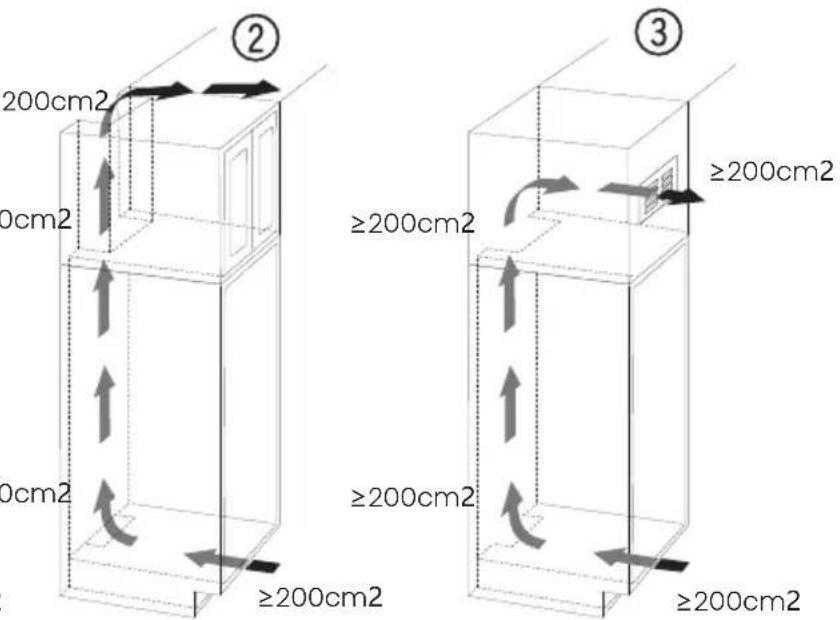

Types of air outlet

1. Directly above the appliance
2. Above the top unit
3. From the front of the top unit with decor grille

≥200cm2 ① ≥200cm2 ≥200cm2 ≥200cm2

200cm2 200cm2 ≥200cm2 ≥200cm2 ≥200cm2 ② ③ ≥200cm2 ≥200cm2 ≥200cm2

When using decor grilles, it must be taken into account that the clear ventilation cross-section corresponds to the sum of the individual openings in the grille. A cut-out section of merely 200 cm ^2 for installing the ventilation grille is thus not sufficient.

First use and installation

03

C x 2 E x 1

1. Lever screw covers on both sides of the door, and then disassemble screws I with the cross screwdriver, as shown in the instruction figure.
2. Screw the removed screws I into the holes on both sides of the door shell that were not originally fitted with screws I, and then remove the screws I. Because screw C is relatively long, it is not easy to directly insert the reinforcing iron inside the door shell for the first time.
3. Fix four connecting boards E (each side of door needs two) with the special screws C provided in the plastic bag. Four screws C are required on both the left and right sides of the door body, making a total of eight screws.

04

90° 90° ≤13.5KG

1. Check the flatness level of the cabinet with the spirit level.
2. Check the squareness of the cabinet with the square.
3. The weight of the cabinet door is less than 13.5kg.

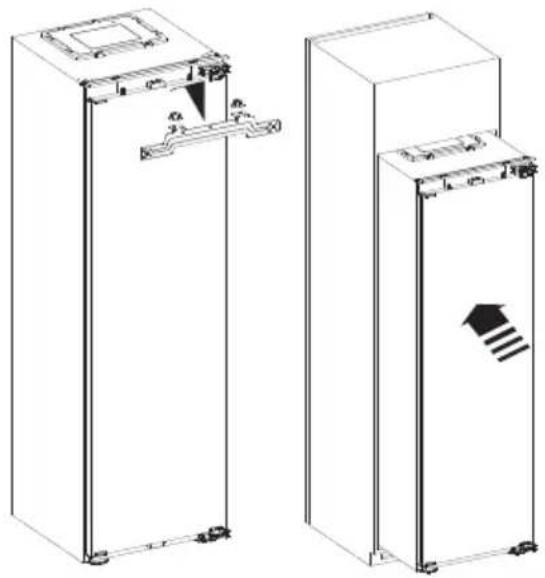

05

Technical line drawing of two mechanical components with mounting brackets and a directional arrow indicating motion (no text or symbols)

1. Use wrench A to loosen the nut and remove the connecting plate from the door.
2. Slowly and carefully push the unit into the installation compartment. Great care needs to be taken to avoid scratching floor because of the metal compressor supporting board.

First use and installation

06

Technical line drawing showing three views of a window frame with adjustment tools (no text or symbols)

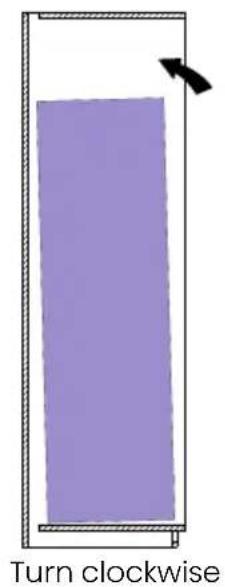

Turn clockwise

Turn counter clockwise

When the refrigerator is tilted forward or backward, turn the adjustable feet to adjust. When turned clockwise, the refrigerator tilts backward, and when turned counterclockwise, the refrigerator tilts forward.

07

44mm 44mm 5mm 44mm

Adjust the position of the refrigerator as shown in the instruction figure. (44mm indicates the distance between the front of the cabinet and the front of the refrigerator, 5mm refers to the distance between the right wall of the cabinet and the side of the refrigerator box)

First use and installation

08 09 © x 2

Tighten the adjustable feet with screw C.

Technical diagram showing a window frame structure with labeled components and an inset view of a device with cross-sectional view B×2= and C×2.

Tighten the top hinge brackets and place the screw covers B.

10 L1

"L1" is the distance from the top of the cabinet door to the top of the refrigerator door, "T" is the lap size of the cabinet door and the side wall, refer to the diagram on page 19, "R" is the distance from the top of the cabinet door to the center of the hole on the connecting plate.

First use and installation

11

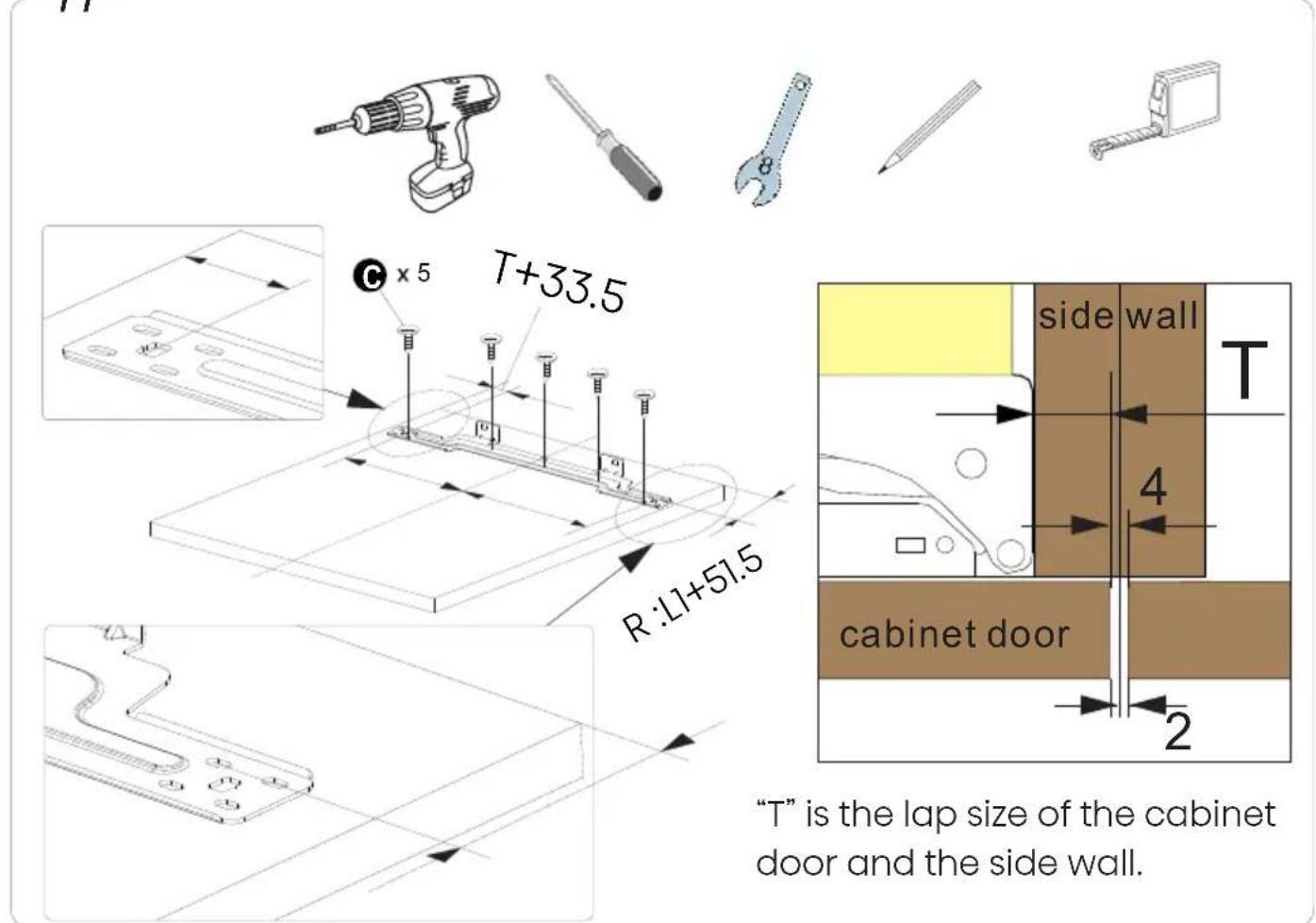

T+33.5 C x 5 R : L1+51.5 side wall T 4 cabinet door 2 "T" is the lap size of the cabinet door and the side wall.

12

Technical line drawing of a door with arrows indicating force or movement (no text or symbols)

Pure diagram of a rectangular object with internal arrows and horizontal lines, no text or symbols present

Technical diagram showing mechanical assembly with two circular views of a component, no visible text or symbols

Open the door to degree above 45^ , refer to the instruction figure, hang the cabinet door was assembled onto the fridge door. Then, adjust the gaps at left and right, top and bottom.

Confirm the balancing and the gaps are even.

First use and installation

13

Technical line drawing of a refrigerator with internal compartments and mounting hardware (no text or symbols)

To ensure the linkage between the fridge door and the cabinet door, you need to install connecting boards E. Using a cross screwdriver and the screws in the accessory kit, secure the connecting boards E to the cabinet door as shown in the instruction figure. Install the cabinet door in four places as follows. After installation, cover the lip of the connecting boards E.

14

Technical diagram showing internal components of a refrigerator with close-ups and labeled parts, including a magnified view of the interior.

Using a cross screwdriver, attach the upper and lower hinges to the inside of the cabinet to increase overall stability, as shown in the instruction figure.

First use and installation

15

Technical diagram showing a mechanical component with an inset view of its cross-section (no text or symbols present)

To ensure the doors are fully closed/sealed, conduct a test on both doors following the installation of cabinet door, such as using a sheet of paper in-between the unit door and its seal and closing the cabinet door and seeing if there is any tension observed when pulling the sheet of paper—the sheet should hold in place and not fall out.

16

F x 1

Cut the right length of the rubber strip F and attach it to the side of the refrigerator.

17
D x 1

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

H

x 1

Technical line drawing of an open refrigerator with shelves and door (no text or symbols)

G
x 1

Install three decorative strips refer to the instruction figure.

Reverse the door

The side in which the door opens can be changed from the right side (as supplied) to the left side, if the installation site allows for it.

Reverse

WARNING

When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

Tools you will need:

1. 8mm socket driver

1. Cross-shaped screwdriver

1. Putty knife or thin-blade screwdriver

PART LIST(Accessories package)

NOTE

You should rest the appliance on soft foam packaging or similar material to avoid damage. Stand the refrigerator upright. Open the upper door to take out all racks (to avoid racks damaged) and then close the door.

1

Diagram of a refrigerator with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

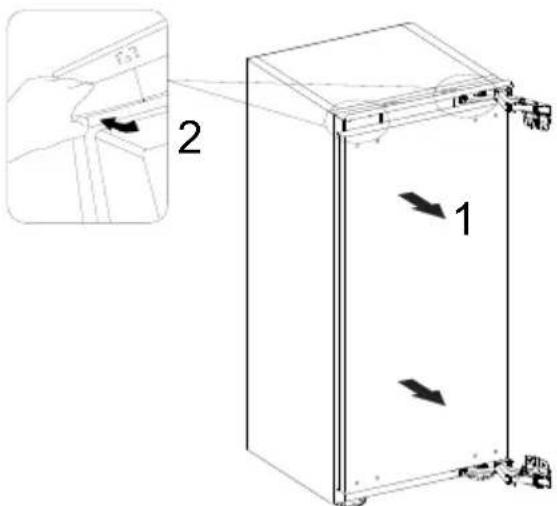

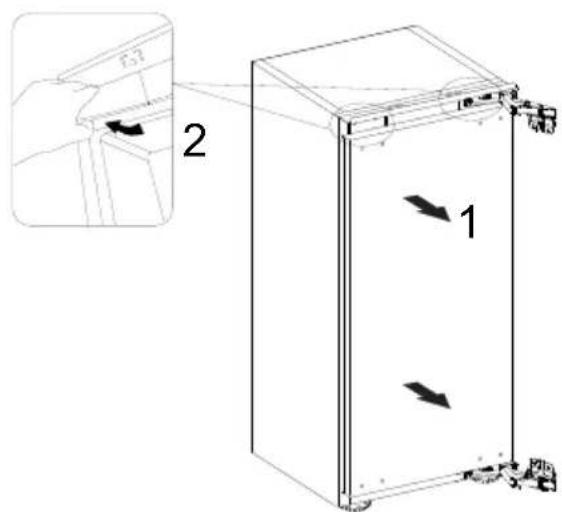

2

Technical diagram of a refrigerator with labeled parts and directional arrows indicating motion or movement

Reverse the door

3

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5

1 2 3

4

Technical diagram of a refrigerator with labeled parts including door, shelf, and control panel

6

Line drawing of a rectangular refrigerator with a switch and arrow indicator (no text or symbols)

Please be careful your hands when take out the hinge

Reverse the door

NOTE

When reversing the door, the cabinet installation can refer to Built-In Fridge Freezer installation instructions.

1. To ensure the doors are fully closed/sealed, conduct a test on both doors following the installation of decor door, such as using a sheet of paper in-between the unit door and its seal and closing the decor door and seeing if there is any tension observed when pulling the sheet of paper-the sheet should hold in place and not fall out.

2. For reversing the door, the hole covers need to be removed from the current location and refitted to cover the new holes. If these break when removing and can be replaced by accessory bag.

Cleaning before use

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and neutral soap in order to remove the typical smell of a brand new product, then dry thoroughly.

Installation Positioning

WARNING

Before installing, read the instructions carefully for your safety and the correct operation of the appliance.

• Position the appliance away from sources of heat such as stoves, radiators, direct sunlight, etc.
• Maximum performance and safety are guaranteed by maintaining the correct indoor temperature for the class of unit concerned, as specified on the rating plate.
• The appliance operates well in the corresponding climate type. The appliance may not work properly if it is left for a longer period at a temperature above or below the indicated range.

Important!

It is necessary to have good ventilation around the refrigerator to allow for the dissipation of heat, high efficiency, and low power consumption. For this reason, sufficiently cleared space should be available around the refrigerator.

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Leveling

The appliance should be level in order to eliminate vibration. To make the appliance level it should be upright and adjusters should be in stable contact with the floor. Also adjust the level by unscrewing the appropriate level adjustment in the front (use your fingers or a suitable spanner).

Reverse the door

Electrical connection

CAUTION

Any electrical work required to install the appliance should be carried out by a qualified or authorized person.

WARNING

This appliance must be grounded. The manufacturer declines any liability should these safety measures not be observed.

Daily use

Accessories 1)

Movable shelves/trays

- Various glass, plastic storage shelves or wire trays are included with your appliance. Different models have different combinations and different models have different features. - The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

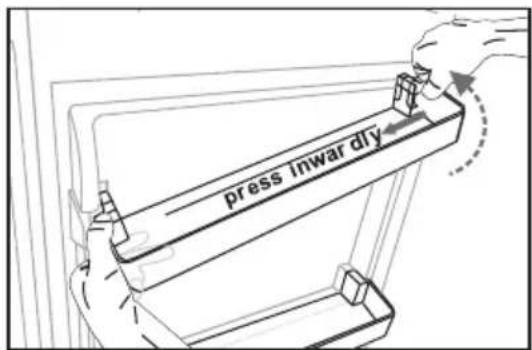

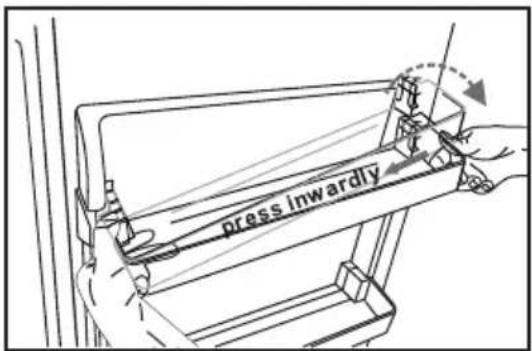

Positioning the door racks

• To permit the storage of food packages of various sizes, the door racks can be placed at different heights. • To adjust, gradually pull he rack in the direction of the arrows until it comes free, then reposition as required.

press inward dry

Remove the door rack

press inwardly

Install the door rack

0 °C Fresh Box

- The temperature there is about -3 3^ . - It is used to store fish, meat and other erodible food. - Note: The actual temperature of 0^ Fresh Box may lower than zero, so it is normal that liquid in this drawer was frozen.

Vegetable Drawer

- For storing fruit and vegetables.

Refrigerator compartment 2)

- For storing food that does not need to be frozen and different sections suitable for different kinds of food.

Helpful hints and tips

Noises during operation

Clicks-Whenever the compressor switches on or off, a click can be heard.

Humming-As soon as the compressor is in operation, you can hear it humming.

Bubbling-When refrigerant flows into thin tubes, you can hear bubbling or splashing noises.

Splashing-Even after the compressor has been switched off this noise can be heard for a short time.

Energy saving tips

• Do not install the appliance near stoves, radiators or other sources of warmth.
• Keep the time the appliance is open to a minimum.
• Do not set the temperature colder than necessary.
• Make sure the side plates and back plate of the appliance are at some distance from the wall, and follow the instructions relevant to installation.
• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as it would produce an effect on energy consumption.

Hints for fresh food refrigeration

• Do not store warm foods or evaporating liquids in the appliance.
• Do cover or wrap the food, particularly

if it has a strong flavor or door.

- Position food so that air can circulate freely around it.

Hints for refrigeration

• Meat (all types): wrap in polyethylene (plastic) bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer provided.
• Butter and cheese: these should be placed in aluminum foil or polyethylene (plastic) bags while removing as much air as possible.
• Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Switching off your appliance

• Empty the appliance.
- Pull out the power plug.
- Clean and dry the interior thoroughly,
- Ensure that all doors are wedged open slightly to allow air to circulate.

Cleaning and care

For hygienic reasons, the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

WARNING

Danger of electrical shock!

The appliance must not be connected to the main power during cleaning. Before cleaning, switch the appliance off and remove the plug from the main power supply, or shut off the circuit breaker or fuse.

Exterior cleaning

To maintain good appearance of your appliance, you should clean it regularly.

• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.

- Clean the doors and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

CAUTION

Do not use sharp objects as they are likely to scratch the surface.

Do not use Thinner, Car detergent Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the

appliance and may cause fire.

Interior cleaning

- You should clean the appliance interior regularly. It will be easier to clean when food stocks are low.

Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place.

- Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follow.

- Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open.

Ventilate the room thoroughly to accelerate the process.

- When defrosting is completed, clean your freezer as described above.

CAUTION

Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Cleaning and care

Defrosting

Fridge compartment

- This compartment defrosts automatically. The defrosting water runs to the drain tube via a collection container at the back of the appliance.

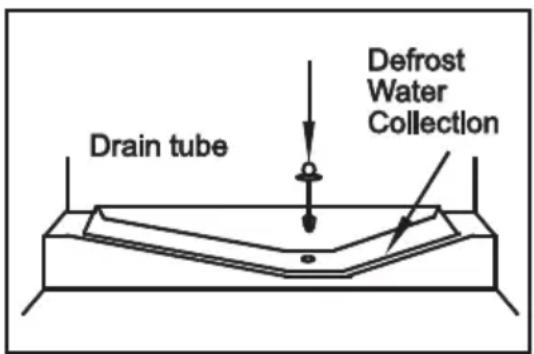

Defrost Water Collection Drain tube

Door seals cleaning

• Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash the seals with a mild detergent and warm water. Rinse and dry them thoroughly after cleaning.

CAUTION

Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light

To replace the LED light, the below steps can be followed:

1. Unplug your appliance.
2. Remove light cover by pushing up and out.
3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.
4. Replace LED light and snap it correctly in place.

Note

- This product contains a light source of energy efficiency class G.

WARNING

The LED light must not be replaced by the user! If damaged, contact the customer heipline for assistance.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.

Troubleshooting

WARNING

- Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem	Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.
	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
	It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
Odours from the compartments	The interior may need to be cleaned.
	Some food, containers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal:Compressor running noises.Air movement noise from the small fan motor in the freezer compartment or other compartments.Gurgling sound similar to water boiling.Popping noise during automatic defrosting. Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action:The cabinet is not level.The back of appliance touches the wall.Bottles or containers fallen or rolling.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:Temperature setting is set colder than necessary.Large quantity of warm food has recently been stored within

Troubleshooting

Problem	Possible cause & Solution
The motor runs continuously	the appliance. · The temperature outside the appliance is too high. · Doors are kept open too long or too often. · After your installing the appliance or it has been switched off for a long time.
A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that the door can be fully closed. To remove the frost, please refer to the “Cleaning and care” chapter.
Temperature inside is too warm	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.
Temperature inside is too cold	Increase the temperature by following the “Display controls” chapter.
Doors can’t be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.
Water drips on the floor	The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked, or the water is not fully inserted into the connector. You may need to pull the refrigerator away from the wall to check the pan and spout.
The light is not working	· The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. · The control system has disabled the lights due to the door being kept open too long, close and reopen the door to reactivate the lights.

Troubleshooting

Problem

Possible cause & Solution

Unable to connect appliance to WiFi network

The password for home Wi-Fi network was entered incorrectly. Make sure the password is correct and connect again.The home Wi-Fi router frequency is not 2.4GHz. The appliance only supports 2.4GHz radio frequency. Set up a dedicated 2.4GHz Wi-Fi SSID and connect the appliance to it.The router and appliance kept far apart causing the poor network. Consider either moving the router closer to the appliance or purchasing Wi-Fi range extender and installing it.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment o human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Disposal of the appliance

To avoid contamination of food, please respect the following instructions.

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order	Tograpstragets type	temp.[°C]	Appropriate food
1	Fridge	+2~+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
2	(***)*-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months - nutrition values and taste decrease with time), suitable for frozen fresh food.
3	***-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 3 months - nutrition values and taste decrease with time). Not suitable for freezing fresh food.
4	**-Freezer	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 2 months - nutrition values and taste decrease with time). Not suitable for freezing fresh food.

Disposal of the appliance

Order	Target storage type	temp.[°C]	Appropriate foodCompartme
5	*-Freezer	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended time is 1 month-nutrition values and taste decrease with time). Not suitable for freezing fresh food.
6	0-star	-6~0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably not later than 3 days). Partially packed/wrapped up encapsulated processed foods (non-freezable foods)
7	chill	-3~+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0°C for 15 days, it is not recommended to store above 0°C).
8	Fresh Food	0~+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days).
9	Wine	+5~+20	Red wine, white wine, sparkling wine etc.

Disposal of the appliance

NOTE

Please store different foods according to the compartments or target storage temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Warning

- Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean.

Hisense

life reimagined

Technical diagram of a refrigerator interior with numbered components for identification

NOTA

NOTA

QR code image containing encoded data, no visible human-readable text

NOTA

Hand pointing at a touchscreen interface with icons for Earth, Ocean, and Wi-Fi symbols

Line drawing of an open refrigerator with shelves and door, showing internal structure and ventilation direction (no text or symbols)

ción 5 T 4 115° 2

Line drawing of a pair of scissors (no text or symbols)

Nivel de burbuja

Pure technical line drawing of a rectangular frame with internal circular cutouts (no text or symbols)

escuadra

Simple line drawing of a right-angle ruler with two circular end points (no text or symbols)

regla

cordel

Pure diagram of concentric coiled lines without any text, numbers, or symbols

bolígrafo

≥20mm ≥560mm

Isometric line drawing of a rectangular container with internal structure and a hanging outlet (no text or symbols)

C x 2 E x 1

Technical line drawing of two rectangular electronic devices with internal components and mounting brackets (no text or symbols)

Technical diagram showing window frame installation with labeled components and close-up views

Simple diagram of a purple rectangle inside a rectangular frame with an arrow indicating direction (no text or symbols)

Simple diagram showing a purple rectangle with a black arrow pointing to its top edge, enclosed in a dashed border (no text or symbols)

44mm 44mm

44mm 5mm

Technical diagram showing a window frame assembly with labeled components and a magnified inset highlighting a component 'C' x 2 and 'B x 2'.

Technical line drawing of a door frame with arrows indicating force or movement (no text or symbols)

Diagram showing a rectangular structure with arrows indicating direction and equality symbols, likely illustrating a physics or engineering concept.

Technical diagram showing mechanical assembly with three circular views of a component, no visible text or symbols

Technical line drawing of a refrigerator with internal compartments and mounting fixtures, showing cross-sectional views (no text or symbols)

Technical diagram showing internal components of a refrigerator with close-ups and labeled parts, including a magnified inset of the main frame.

Technical diagram showing a 3D box with internal components and an inset view of a mechanical component (no text or symbols)

D x 1 G x 1 H x 1

Diagram of a refrigerator with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

2

Technical diagram of a refrigerator with labeled parts and directional arrows indicating motion or movement

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5

1 2 3

4

Technical diagram of a refrigerator with labeled parts including handle, lock, and door indicators

6

Line drawing of a rectangular electronic device with a switch and screwdriver, no text or symbols present

Technical diagram of a refrigerator with numbered components for identification

REMARQUE

REMARQUE

QR code image containing encoded data, no visible human-readable text

REMARQUE

Line drawing of an open refrigerator with shelves and door, showing internal structure and ventilation direction (no text or symbols)

on 5 T 4 115° 2

Line drawing of a pair of scissors (no text or symbols)

Niveau à bulle

Simple line drawing of a rectangular frame with two circular cutouts and a central rectangle (no text or symbols)

équerre

Simple line drawing of a right-angle ruler with measurement markings (no text or symbols)

règle

corde

Pure diagram of a coiled wire or coil without any text, numbers, or symbols

stylo

Isometric line drawing of a rectangular container with internal structure and a hanging outlet (no text or symbols)

C x 2 E x 1

Technical line drawing of two vertical rectangular devices with internal components and a directional arrow indicating motion (no text or symbols)

Technical diagram showing window frame installation steps with labeled components and directional arrows

Simple diagram of a purple rectangle inside a rectangular frame with an arrow indicating direction (no text or symbols)

Simple diagram showing a vertical purple rectangle with an arrow pointing to the right side (no text or symbols)

Technical diagram showing a window frame structure with labeled components and an inset view of a device with cross-sectional view B×2= and C×2.

Technical line drawing of a door frame with directional arrows indicating movement (no text or symbols)

Diagram showing a rectangular object with internal flow arrows and equals signs, likely illustrating fluid or material movement.

Technical diagram showing mechanical assembly with three circular views of a component, no visible text or symbols

Technical line drawing of a refrigerator with internal compartments and mounting fixtures, showing cross-sectional views (no text or symbols)

Technical diagram showing internal components of a refrigerator with close-ups and labeled parts, including a magnified view of the interior.

Technical diagram showing a 3D box with internal components and an inset view of a mechanical component (no text or symbols)

D x 1 G x 1 H x 1

Diagram of a refrigerator with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

2

Technical diagram of a refrigerator with labeled parts and directional arrows indicating movement or flow

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5

1 2 3

4

Diagram of a refrigerator interior with labeled parts including door, shelf, and control switches

6

Line drawing of a rectangular electronic device with a switch and screwdriver, no text or symbols present

Technical diagram of a refrigerator with numbered components for identification

NOTA

NOTA

QR code image containing encoded data, no visible human-readable text

NOTA

Line drawing of an open refrigerator with shelves and door, showing internal structure and ventilation direction (no text or symbols)

one 5 T 4 115° 2

Line drawing of a pair of scissors (no text or symbols)

Pure technical line drawing of a rectangular frame with internal circular cutouts (no text or symbols)

quadrato

Simple line drawing of a right-angle ruler with two circular end points (no text or symbols)

righello

stringa

Pure diagram of concentric coiled lines without any text, numbers, or symbols

penna

≥20mm ≥560mm

Line drawing of a rectangular container with internal structure and a hanging outlet (no text or symbols)

C x 2 E x 1

90° 90° ≤13.5KG

05

Technical line drawing of two rectangular electronic cabinets with internal components and mounting feet (no text or symbols)

Technical diagram showing window frame installation with labeled components and close-up views

Simple diagram of a purple rectangle inside a rectangular frame with an arrow indicating direction (no text or symbols)

Simple diagram showing a purple rectangle with a black arrow pointing to its top edge, enclosed in a dashed border (no text or symbols)

44mm 44mm 5mm 44mm

Technical diagram showing a window frame structure with labeled components and an inset view of a device with cross-sectional view B×2= and C×2.

Technical line drawing of a door frame with arrows indicating force or movement (no text or symbols)

Pure diagram of a rectangular container with internal arrows indicating flow or movement, no text or symbols present.

Technical diagram showing mechanical assembly with three circular views of a component, no visible text or symbols

Technical line drawing of a refrigerator with internal compartments and mounting fixtures, showing cross-sectional views (no text or symbols)

Technical diagram showing internal components of a refrigerator with close-ups and labeled parts, including a magnified view of the interior.

Technical diagram showing a 3D box with internal components and an inset view of a mechanical component (no text or symbols)

D x 1 G x 1 H x 1

Diagram of a refrigerator with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

2

Technical diagram of a refrigerator with labeled parts and directional arrows indicating motion or movement

Invertire la porta

3

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5

1 2 3

4

Technical diagram of a refrigerator with labeled parts including handle, lock, and door indicators

6

Line drawing of a rectangular electronic device with a switch and screwdriver, no text or symbols present

Technical diagram of a refrigerator with numbered components for identification

OPMERKING

OPMERKING

QR code image containing encoded data, no visible human-readable text

OPMERKING

Line drawing of a pair of scissors (no text or symbols)

Waterpas

Simple line drawing of a rectangular frame with two circular cutouts and internal compartments (no text or symbols)

vierkant

Simple line drawing of a right-angle ruler with two circular base holes (no text or symbols)

liniaal

koord

Pure diagram of a coiled wire or coil without any text, numbers, or symbols

pen

≥20mm ≥560mm

Isometric line drawing of a rectangular container with internal structure and a hanging outlet (no text or symbols)

C x 2 E x 1

Technical line drawing of two vertical rectangular devices with internal components and a directional arrow indicating motion (no text or symbols)

Technical diagram showing window frame installation with labeled components and close-up views

Simple diagram of a purple rectangle inside a rectangular frame with an arrow indicating direction (no text or symbols)

Simple diagram showing a purple rectangle with a black arrow pointing to its top edge, enclosed in a dashed border (no text or symbols)

44mm 44mm

44mm 5mm

Technical diagram showing a window frame structure with labeled components and an inset view of a device with cross-sectional view B×2= and C×2.

Technical line drawing of a door frame with arrows indicating force or movement (no text or symbols)

Diagram showing a rectangular structure with arrows indicating direction and equality signs, likely illustrating a physical or mathematical concept.

Technical diagram showing mechanical assembly with three circular views of a component, no visible text or symbols

Technical line drawing of a refrigerator with internal compartments and mounting fixtures, showing cross-sectional views (no text or symbols)

Technical diagram of a refrigerator with close-up views and component annotations

Technical diagram showing a mechanical component with an inset close-up of its internal structure (no text or symbols present)

D x 1 G x 1 H x 1

Line drawing of a refrigerator with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

2

Line drawing of a rectangular refrigerator with two arrows indicating directional flow (no text or symbols)

Omkeren van de deur

3

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5

1 2 3

4

Technical diagram of a refrigerator with labeled parts including door, shelf, and control switches

6

Line drawing of a rectangular electronic device with a switch and arrow indicator (no text or symbols)

near binnendrukken

Technical diagram of a refrigerator with numbered components for identification

NOTA

NOTA

QR code image containing encoded data, no visible human-readable text

NOTA

Line drawing of an open refrigerator with shelves and door, showing internal structure and ventilation direction (no text or symbols)

5 T 4 115° 2

Line drawing of a pair of scissors (no text or symbols)

Nível

Pure technical line drawing of a rectangular frame with internal circular cutouts (no text or symbols)

esquadro

Simple line drawing of a right-angle ruler with two circular end points (no text or symbols)

régua

fio

Pure diagram of concentric coiled lines without any text, numbers, or symbols

caneta

≥20mm ≥560mm

Isometric line drawing of a rectangular container with internal structure and a hanging outlet (no text or symbols)

C x 2 E x 1

90° 90° ≤13.5KG

Technical line drawing of two 3D cabinet components with mounting brackets and internal structural details (no text or symbols)

Technical diagram showing window frame installation with labeled components and close-up views

Simple diagram of a vertical purple rectangle with an arrow indicating direction, enclosed in a dashed border (no text or symbols)

Simple diagram showing a purple rectangle with a black arrow pointing to its top edge, enclosed in a dashed border (no text or symbols)

44mm 44mm 5mm 44mm

Technical diagram showing a window frame structure with labeled components and an inset view of a mechanical component labeled 'C x 2' and 'B x 2'.

Technical line drawing of a door frame with arrows indicating force or movement (no text or symbols)

Diagram showing a rectangular structure with arrows indicating direction and equality symbols, likely illustrating a physics or engineering concept.

Technical diagram showing mechanical assembly with three views of a component (no text or symbols)

Technical line drawing of a refrigerator with internal compartments and mounting fixtures, showing cross-sectional views (no text or symbols)

Technical diagram showing internal components of a refrigerator with close-ups and labeled parts, including a magnified inset view.

Technical diagram showing a mechanical component with an inset view of its internal structure (no text or symbols present)

D x 1 G x 1 H x 1

Diagram of a refrigerator with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

2

Technical diagram of a refrigerator with labeled parts and directional arrows indicating motion or movement

Inverter a porta

3

Diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

5

1 2 3

4

Technical diagram of a refrigerator with labeled parts including door, shelf, and control switches

6

Line drawing of a rectangular electronic device with a switch and screwdriver, no text or symbols present
