Product Type	Garage Door Remote Control
Brand	LiftMaster
Model	64LM / 64LMC
Frequency	390 MHz (fixed code)
Power Supply	12V battery, type 10A14
Battery Life	At least 1 year
Number of Buttons	3 (smooth, ribbed and top buttons)
Compatibility	LiftMaster garage door openers and light controls with fixed code 390 MHz
Programming Method	Dip switches or smart/learn button
Functions	Activation of open, close and stop (for commercial doors)
Housing Material	Plastic
Safety	Keep out of reach of children; do not allow children to operate
Warning	Risk of serious injury if used without caution; installer must install an inversion edge for commercial doors
Maintenance	Clean with a dry cloth; replace battery if necessary
Spare Parts	12V battery (10A14), visor clip (29C128)
Repairability	No user-serviceable parts; do not modify
Compliance	FCC and Industry Canada
Technical Support	1-800-528-9131
Website	www.liftmaster.com
Battery Replacement	Remove the old battery and insert a new 12V battery
Intended Use	Operate a garage door or gate

Frequently Asked Questions - 64LM LiftMaster

How to program the 64LM remote with an existing opener?

You can program the remote in two ways: by Dip switches (matching the +, 0, - positions with those on the opener) or by smart/learn button (pressing the opener's button then the remote's button within 30 seconds).

How to change the battery of the 64LM remote?

Slide the battery compartment cover to access the battery. Replace it with a 12V battery type 10A14. Ensure correct polarity and dispose of the old battery according to regulations.

Which opener models are compatible with the 64LM?

The 64LM remote is compatible with all LiftMaster products using a fixed code at 390 MHz, including garage door openers and light controls.

How to use the remote with a 3-channel commercial receiver?

For a 423LM receiver, use the smart/learn button (A, B, C) to program each remote button in OPEN, CLOSE and STOP modes. Make sure the receiver's slide switch is set to N.C.

What to do if the remote stops working?

First check the battery (replace if necessary). Then ensure the Dip switches match those on the opener. If the problem persists, contact technical support at 1-800-528-9131.

How to set the Dip switches on the 64LM remote?

Use a pencil or screwdriver to set the switches to positions +, 0, -. They must match exactly the switches located on the back of the opener's motor.

What safety precautions should be observed?

Always keep remotes out of reach of children. Only operate the door when it is visible and clear. For commercial doors, an inversion edge must be installed to prevent injuries.

How long does the remote's battery last?

The 12V battery should provide enough power for at least one year of normal use.

Where can I buy spare parts for the 64LM?

Available spare parts are the 12V battery (ref. 10A14) and the visor clip (ref. 29C128). You can order them from your LiftMaster dealer or on the www.liftmaster.com website.

Is the 64LM remote compatible with other brands?

No, the 64LM remote is designed exclusively for LiftMaster products using a fixed code at 390 MHz. It is not compatible with other brands.

USER MANUAL 64LM LiftMaster

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product that uses a 390 MHz fixed code. The single-button remote control will activate one device, the 2-button remote control will activate up to 2 devices, and the 3-button remote control will activate up to 3 devices.

BEFORE YOU BEGIN

Locate the dip switches on your remote control

Single-Button and 3-Button Remote Controls:

Slide the battery cover open to access the dip switches in the remote control.

2-Button Remote Control:

The 2-button remote control has two sets of dip switches.

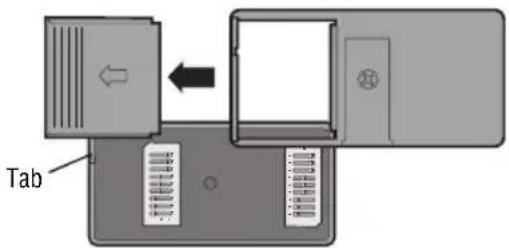

Slide the battery cover open to access the dip switches for the smooth button. Remove the screw on the back of the remote control and remove the cover by pressing the tab. This will access the dip switches for the ribbed button.

3-Button Mini Remote Control:

The large top button is recommended for use with a garage door opener and/or light control product. The other push buttons can be used to operate another garage door opener and/or light control product.

Access the dip switches by turning the remote over and removing the back of the case. Be careful to avoid moving circuit board components.

Single and 3-Button Remote Controls

2-Button Remote Controls

Tab

Mini Remote Controls

Diagram showing a device with a left-side arrow pointing to a labeled card or folder icon.

Use a pen or screwdriver to slide the dip switches.

Programming the remote control to an existing remote control

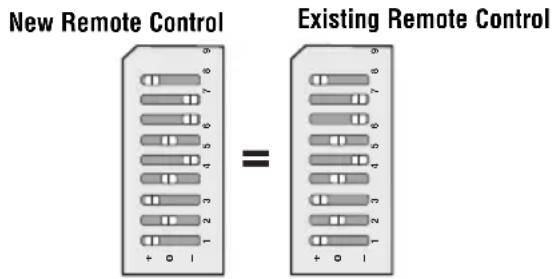

Locate the dip switches in the new and old remote controls. Place remote controls side by side and set the dip switches in the remote controls to matching positions (+,0,-).

Programming a 3-button remote control

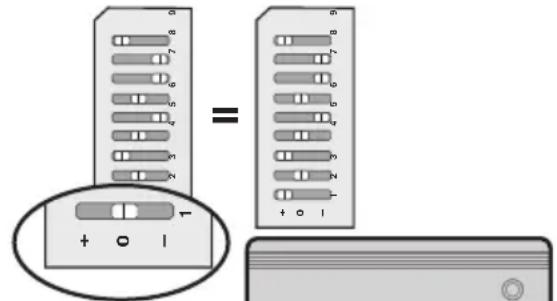

When programming a single or 2-button remote control to a 3-button remote control it is very important to set dip switch #1 to the correct position. The dip switch in the single or 2-button remote control MUST correspond to the buttons on the 3-button remote control as shown.

Example: If you are programming a single-button remote control to the middle button on the 3-button remote control, dip switch #1 in the single-button remote control MUST be set to "0" in order for both buttons to work.

Programming the remote control without an existing remote control

Set the dip switches in the remote controls to any position you want (+,0,-).

Programming with Smart/Learn button

1 Press and release the Smart/Learn button on your product. The LED will light.
2 Within 30 seconds press and hold the button on the remote control that you wish to activate your product.

Programming is complete.

Repeat the steps above for each button and/or remote control you would like to program.

Programming with dip switches

1 Check the dip switch settings on the back of your product.
2 Use a pen or screwdriver to slide the dip switches in the remote control to match the dip switches on the back of the product.

When the dip switches have been set press the remote control button to activate your product.

New Remote Control = Existing Remote Control

Single or 2-Button 3-Button Remote Control Remote Control

Diagram showing equivalence between two electronic device panels with labeled buttons and a central display.

Dip switch #1 must correspond to the 3-button remote control buttons

New Remote Control

1 Smart/Learn Button

Hand inserting a button into an electrical outlet (no text or symbols visible)

2

Line drawing of a hand holding a credit card (no text or symbols visible)

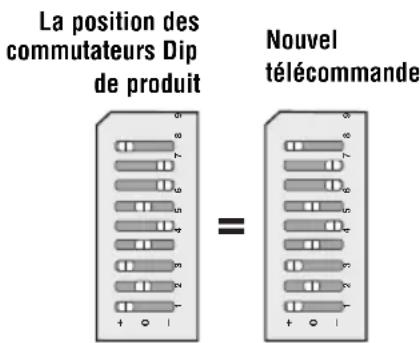

Dip Switch Settings From Product

Diagram showing two identical electrical or electronic components with labeled pins and a equality symbol between them.

WARNING

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 33LM 3-button remote controls can also be used with a 423LM 3-channel receiver and a 3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

1 Use a screwdriver to pry open the receiver cover.
2 Verify that the slide switch on receiver is set to the N.C. position (other wise the commercial door operator will not operate).

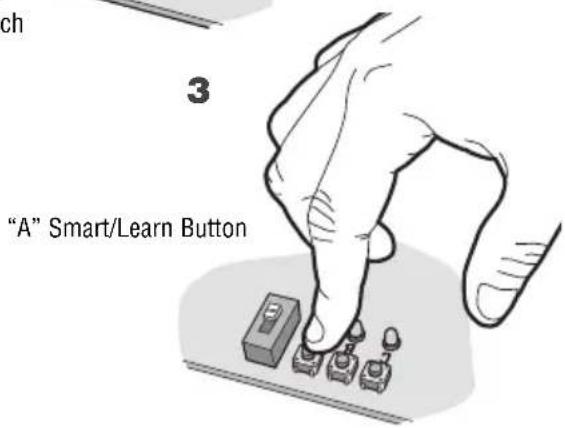

3 Press and release the Smart/Learn button labeled "A" on the receiver. The adjacent LED will flash.
4 Within 30 seconds press and release the red button on the remote control. The red button is now programmed for CLOSE mode.

NOTE: If the remote control button is not pressed within 30 seconds, the LED next to the selected Smart/Learn button will turn OFF. In that case, press the Smart/Learn button again to repeat programming.

1

2 N.C. Slide Switch

"A" Smart/Learn Button 3

Hand holding a card with a finger, no visible text or symbols

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver Smart/Learn button "B" to program the CLOSE mode; and again with the green button on the remote control and the receiver Smart/Learn button "C" to program the OPEN mode.

5 Replace the receiver cover.

5 6

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

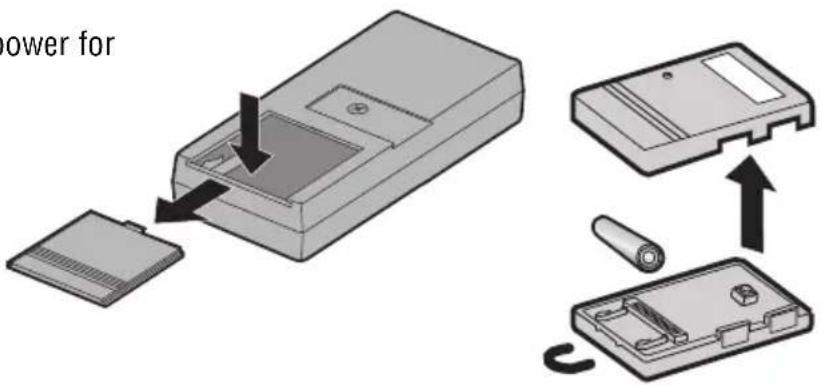

The 12 volt battery should produce power for 1 year.

Dispose of old batteries properly.

power for

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

REPLACEMENT PARTS

Visor clip 29C128

12V battery 10A14

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

www.liftmaster.com

LiftMaster®
