USER MANUAL Breakfast X2 303874 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Important safety guidelines for this appliance

- Please read the following user manual carefully and ensure that you understand the instructions.

- Operate the toaster in accordance with the voltage specified on the device identification label.

- Do not touch the surface when in operation under any circumstances. There is a risk of burns!

- In order to protect against electric shock, please do not immerse the cable, the plug or any part of the device in water or in any other liquid.

- Supervision is necessary when the device is being used by children or being used in the vicinity of children.

• Remove the plug from the power socket when the device is not in use or when you intend to clean it.
• Do not use this device with a damaged cable or plug, or when in a faulty condition. If the power cord is damaged, it has to be replaced by the manufacturer, a customer service agency or an adequately qualified person.
• Keep the power cord away from hot surfaces. Never let the power cord hang over the edge of a table.
• The device must not be kept or used on or near hot surfaces (such as, for example, hotplates) or open gas flames.
• Use the product only for intended applications.

- The introduction of any other material, such as metal foils or other utensils, is strictly prohibited, as this could lead to fire or electric shock. Use the device only to brown toasted bread and bread slices or to warm up bread rolls.

- Bread may burn if it is toasted several times, or touches one of the heating elements. Therefore, never place the device close to or below flammable materials. The device must be kept under constant supervision when in operation.

- Using accessories which are not recommended by the manufacturer of the device may lead to injuries.

- Always keep the toaster on a heat-resistant and level surface. Ensure that the toaster does not topple over!

• Immediately remove the power plug from the power socket if you notice smoke or fire!
• Do not insert fingers or objects into the long slot under any circumstances. The heating elements conduct voltage! There is a risk of injury!
• Make sure that you remove the bread very carefully after toasting is complete, in order to avoid injury.
• Do not use this device with external timers or separate remote controls.
• Children should be supervised to ensure that they do not play with the device.
• This device may be used by children above the age of 8 years and by persons with impaired physical, sensory or mental capabilities or lack

of experience and knowledge, only if they are supervised or have been instructed about the use of the device and have understood the hazards involved. Cleaning and user maintenances should not be performed by children.

• Keep the device and the power cord out of the reach of children below 8 years of age.
• Do not use the toaster outdoors!
• The toaster is suitable for use in households and similar environments, such as, for example:

- staff kitchens in businesses, offices and other working environments

- on farms

- by customers in hotels, inns and other residential areas

- in guest houses.

• Read through the user manual carefully and keep it in a safe place, as it contains important details!
• Use only standard toast sizes. If the toast is too small, you may burn your fingers when removing the toast!

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy your purchased product for a long time.

1. Scope of supply

• Four slot toaster
• User manual

2. Technical data

Power supply 220-240 V AC 50/60Hz
Power consumption 1370-1630 W
Features • Adjustable degree of	toastingDefrosting modeFunction for reheating already toasted bread/toastTwin-crumb collectorTwo separately adjustable twin-slots
Ambient temperature 5-40°C

3. Commissioning

Note: The toaster may emit a burning smell when it is being used for the first time while the heating elements are warming up. This is not a hazard or a defect. When using the toaster for the first time, wait until the device has heated up and the smell has disappeared. When using the toaster for the first time, it is advisable to switch on the toaster without inserting any toast.

Take the device out of the package and remove all the packaging material. Before using the toaster for the first use time, connect it to a properly wired power socket. Set the rotary switch provided for adjusting the degree of browning to the highest setting and switch on the toaster by pressing the slide switch down.

Repeat this procedure until the burning smell is no longer noticeable. Press the "STOP" button to interrupt toasting.

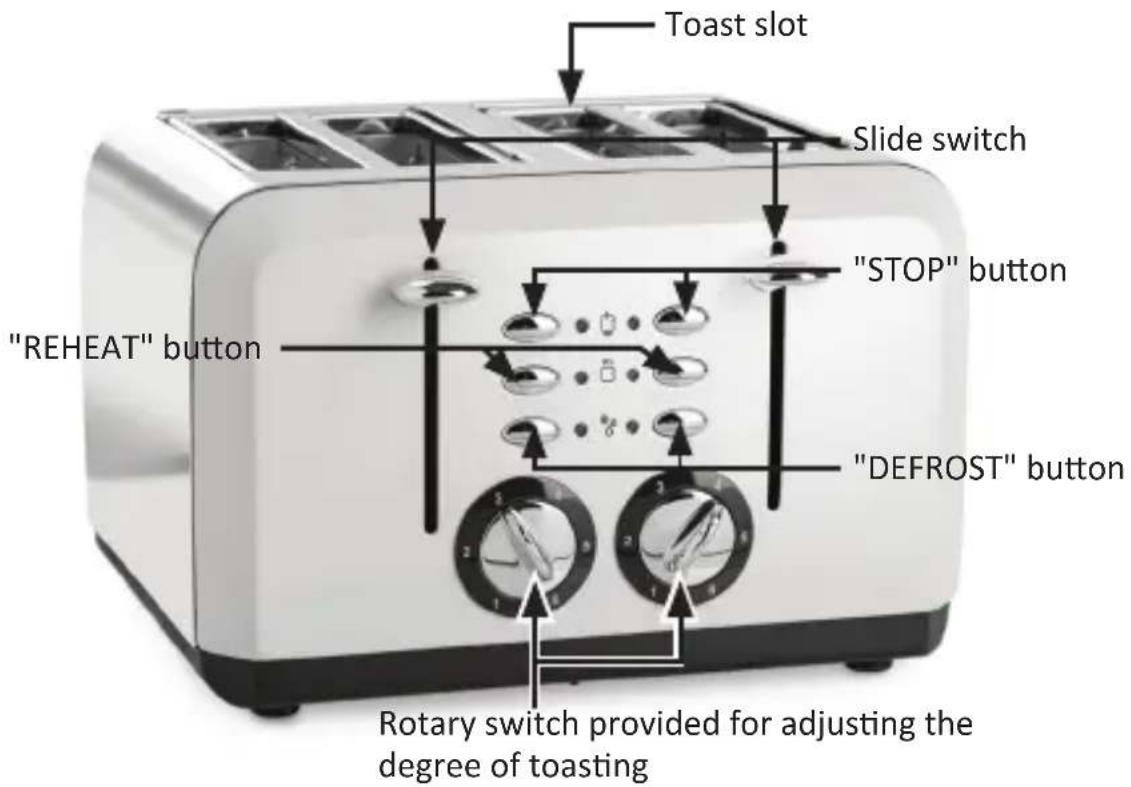

4. Product details

Toast slot Slide switch "STOP" button "REFHEAT" button "DEFROST" button Rotary switch provided for adjusting the degree of toasting

5. Commissioning and use

Connect the power cord to a properly wired power socket. First proceed as described in Section "3 Commissioning".

Ensure that the power plug has been inserted. Insert up to four toast slices into the toasting slots. Turn the "rotary switch provided for adjusting the degree of toasting" to the desired level and press the "slide switch" down until it snaps in place. The heating elements warm up and the toasting process begins.

Once the process is complete, the "slide switch" automatically jumps back to its original position. This means that the toasting process has finished and the bread slices can be taken out carefully.

If the degree of toasting is not satisfactory, adjust it using the "rotary switch provided for adjusting the degree of toasting" and repeat the toasting again. In this case, ensure that the toast does not get burnt. If the desired degree of toasting has already been attained, you may then end the process at any time by pressing the "STOP" button.

6. Adjusting the Degree of toasting

The "rotary switch provided for adjusting the degree of toasting" allows you to specify the duration after which the toaster should automatically shut down. The longer the device is switched on, the darker will be the bread at the end of the browning time.

Note: In order to get optimal browning results, we recommend that you use only settings 1 to 4 for toast and sandwiches.

Level Browning
1-2 low browning
3-4 medium browning
5-6 high browning

7. Reheating

The toaster can be used to reheat the bread slices if they cool down too quickly. To do this, press down the "slide switch" until it clicks in place and press the "REHEAT" button. When bread which has already been toasted becomes too cool or has been forgotten about, the toaster can be used to reheat it without affecting the degree of browning too much.

8. Defrosting

Frozen toast bread can be defrosted directly in the toaster. To do this, insert the frozen toast into the "toast slot" and then press down the "slide switch" until it reaches the limit stop. Switch the device to the defrosting mode using the "DE-FROST" button. To set the duration of the defrosting process, use the rotary switch provided for adjusting the degree of browning.

9. Interrupting toasting

If the bread starts to smoke or you want to stop the toasting process, you can press the "STOP" button. In this case, the toaster interrupts the toasting process immediately.

10. Cleaning and maintenance

Before cleaning the toaster, unplug it completely from the mains by removing the power plug. Wait until the device has cooled down completely. Clean only the surface with a slightly damp cloth. Never use a metal polish for this purpose! Do not immerse the device in water under any circumstances!

Ensure that crumbs do not collect in the toaster. Bread crumbs can be removed by taking the crumb collector out of the toaster and cleaning it with a damp cloth. Ensure that you afterwards re-insert the crumb collector correctly.

Caution! Remember to empty the crumb collector on a regular basis. If a large amount of crumbs are allowed to build up, this may lead to a fire! It is also advisable to turn the toaster upside down and shake it, since crumbs may accumulate outside the crumb collector in case of frequent use.

The internal components of the toaster can be easily damaged. Do not touch the components with tools or other objects under any circumstances!

1. Troubleshooting

Possible Faults Solution
The toaster does not function	Insert the mains plug into the power socket If there is no improvement, have the device checked by a specialist!
The toast is too bright or too dark after toasting	Select a different degree of browning.
Smoke is emitted from the toaster during toasting	· The degree of browning you have selected is too high for the type of bread used. Immediately press the "STOP" button to stop toasting.· The toaster is dirty. A piece of toast has been caught in the heating surfaces. Clean the device· The crumb collector is overfull and crumbs begin to smoke. Empty the collector!
The toast is immediately ejected after toasting has started	Ensure that you have engaged the slide switch correctly in the lowest position. If the device still ejects the toast in the same way at the next attempt, please contact a technician or the manufacturer of the device.
The power cord is damaged	In this case, you should no longer use the device! Contact an authorised technician or the manufacturer of the device, in order to have the cable properly replaced!

12. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

13. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product303250/303251/303874/305894/304307 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

ATTENTION!

Warning symbols with exclamation mark and steam symbol inside triangular warning triangles

Warning symbols: one warning with exclamation mark, another with steam symbol inside triangle

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

www.arendo.de
