Brand	Tineco
Model	Pure One X Dual
Product type	Cordless handheld vacuum cleaner
Power supply	21.6V Lithium-ion battery
Power consumption	260 W
Dustbin capacity	0.4 L
Runtime in AUTO mode	Approximately 45 minutes
Runtime in MAX mode	Approximately 12 minutes
Charging time	3 to 4 hours
Main filter	Washable HEPA filter
Pre-filter	Washable mesh filter
Cleaning modes	AUTO (dust detection) and MAX
Dust sensor	Yes, red/blue light indicator
Connectivity	Wi-Fi, Tineco app (iOS/Android)
Display	LED indicator (blue/red)
Weight	Approximately 1.5 kg (estimated)
Warranty	2 years (limited)
Included accessories	LED anti-tangle brush, mini turbo brush, 2-in-1 brush, soft brush, flexible tube, pre-filter cleaning tool, hair cleaning tool
Usage	Indoor household use only
Operating temperature	4°C to 40°C
HEPA filter maintenance	Clean every 3 months, replace every 12 months
Pre-filter maintenance	Clean every month, replace every 6 months

Frequently Asked Questions - Pure One X Dual TINECO

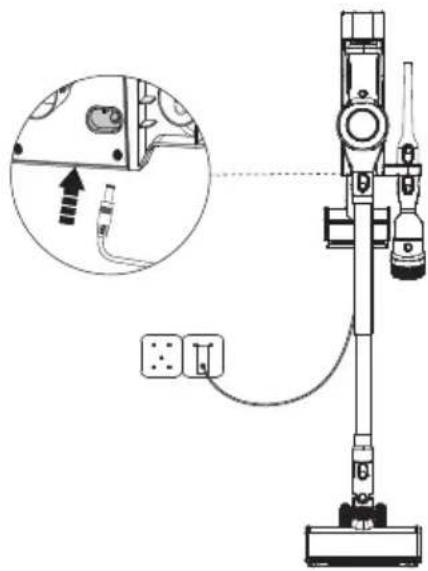

How to recharge the battery of the Pure One X Dual vacuum cleaner?

Place the main body on the provided wall mount, plug the AC adapter into the charging port. The blinking blue light indicates charging. Full charge takes about 3 to 4 hours.

What cleaning modes are available and how to select them?

The device offers two modes: AUTO (automatic dust detection, adaptive power) and MAX (maximum power). By default, the device starts in AUTO mode. Press the AUTO/MAX button to switch modes.

How to empty the dustbin?

Press the unlock button on the side of the dustbin, then empty the contents into a trash bin. Close the flap before reinserting the dustbin.

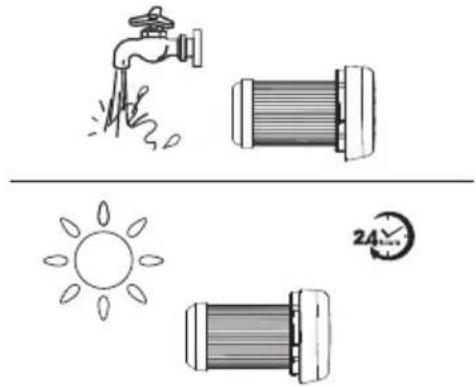

How to clean the HEPA filter?

Turn the HEPA filter to the left to remove it. Wash it under running water and dry it completely before reinstalling. It is recommended to clean it every 3 months and replace it every 12 months.

What does the fast flashing red light mean?

A fast flashing red light indicates an issue: the brush roller is tangled, the air duct is partially blocked, or the dust sensor is covered. Refer to the troubleshooting guide to resolve the problem.

How to use the Tineco app with the vacuum?

Download the Tineco app from the App Store or Google Play. Activate Wi-Fi on the device by pressing and holding the trigger (blue light flashes), then follow the instructions in the app to connect and control the vacuum.

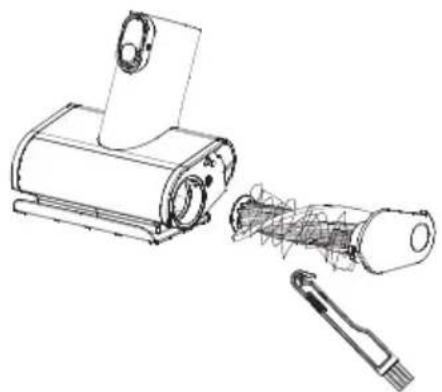

How to clean the brush roller?

Slide the button to open the roller end cover, turn it clockwise to remove it. Remove hair and debris with the provided cleaning tool, then reinsert the roller by pushing until it clicks.

What is the battery life?

The 21.6V lithium-ion battery provides approximately 45 minutes of runtime in AUTO mode and 12 minutes in MAX mode. Charging time is 3 to 4 hours. To extend battery life, fully recharge the battery every 3 months if not in use.

Can the vacuum pick up liquids?

No, this vacuum is designed only for dry indoor use. Never vacuum flammable or combustible liquids (gasoline, etc.). Also avoid vacuuming hot objects or ash.

What to do if the device does not turn on?

First check that the battery is charged. If the red light flashes slowly, recharge it. If the device is overheated, let it cool down before restarting. Also ensure there is no obstruction blocking the tube or brush.

USER MANUAL Pure One X Dual TINECO

Smart Vacuum Cleaner

Instruction Manual

Manual De Uso

Mode D'emploi

White Tineco vacuum cleaner with black and silver body, mounted on a base (no visible text or symbols)

*Actual product may differ from illustration.

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
(1) 2017年1月1日至2018年1月1日，公司与关联方累计发生关联交易的总金额为人民币45,639.87万元。
|
|
|
|
|
|
[Non-Text]

CONTENTS

Important Safety Instructions....2

Specifications....5

Overview......6

Accessories....7

Assembly 9

Operation....11

Maintenance 16

Troubleshooting....20

Warranty 21

Important Safety Instructions

Z

SAVE THESE INSTRUCTIONS

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.

4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.

5. Use only as described in this manual. Use only manufacturer's recommended attachments.

6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.

7. Do not handle charger, including charger plug, and charger terminals with wet hands.

8. Do not block openings. Stop use if openings become blocked. Clean and remove any blocked objects according to the manual instructions.

9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.

10. Use extra care when cleaning on stairs.

11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

13. Do not use without a filter.

14. Prevent unintentional activation. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.

15. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
19. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
20. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
21. Do not expose a battery pack or appliance to fire or excessive heat. Exposure to fire or temperatures above 266^ F ( 130^ C) may cause an explosion.
22. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
23. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
24. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
25. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
26. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.

FCC Supplier's Declaration of Conformity

Tineco / PURE ONE X SERIES

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation.

Tineco INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Note

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate this equipment.

IC Note

This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) this appliance may not cause interference.
(2) this appliance must accept any interference, including interference that may cause undesired operation of the appliance.

-This Class B digital apparatus complies with Canadian ICES-003.

-This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Specifications

Product PURE ONE X SERIES
Voltage 21.6V	==
Rated Power 260W
Dustbin Capacity 0.4L
Charging Time 3-4 hrs
AC Input 100-240V~

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste!
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

Overview

Z

Technical line drawing of a portable device with handle and control panel (no text or symbols)

A B C D E F G H

A. Dust sensor

B. Dust empty release button

C. Dustbin

D. AUTO/MAX button

E. Trigger lock

F. Dustbin release button

G. Trigger

H. HEPA Filter

Accessories

Note:

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
• To identify what should be included with your purchase, please refer to the "Included Accessories" located on the packaging box.
• As shown below, there are many components compatible with this model. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Technical line drawing of a mechanical assembly or device with no visible text or symbols

Anti-tangle LED power brush

Ideal for both hard floors and carpets. Picks up ground-in dirt with no hair wrap.

Mini power brush

For vacuuming upholstered furniture, mattresses etc. Vacuums pet hair and removes ingrained dirt.

Line drawing of a handheld device with a bulb and handle (no text or symbols)

2-in-1 dusting brush

Switches between a wide and a soft brush by pressing the release button. The soft brush is most effective on hard-surface furniture while the wide brush is effective for upholstered furniture, curtains, etc.

Line drawing of a cylindrical mechanical component with a flanged end (no text or symbols)

Crevice tool

For corners, nooks, and other hard-to-reach places such as around car seats, picture frames, and cupboards.

Line drawing of a mechanical component with fins and a handle (no text or symbols)

Soft dusting brush

Angled bristles on a slender, oval-shaped rim provide anti-static, cushioned contact. Suitable for dusting shelves, lighting, delicate surfaces, electronics and more.

Technical line drawing of a cylindrical mechanical component with flanged ends and a central shaft (no text or symbols)

Flexible long crevice tool

Easy to bend, easy to reach tight spots. Suitable for cleaning dust behind and beneath furniture, around refrigerators, and many other tight gaps.

Line drawing of a mechanical component with no visible text or symbols

Full-size LED soft-roller power brush

Perfect for hard floors, especially sensitive wood floor.

Picks up coarse and fine dirt at the same time.

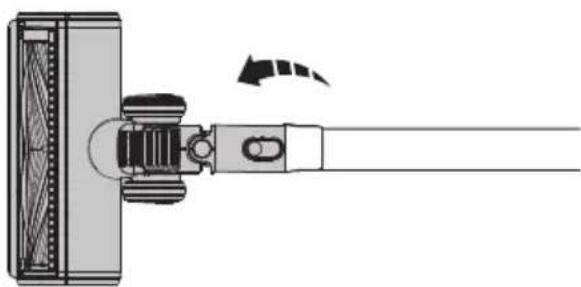

Multi-angle folding tube

An articulated joint makes it adjustable to allow for flexibility when cleaning from high to low.

Simple line drawing of a cylindrical object with a textured center and flanges (no text or symbols)

Flexible extension hose

Excellent extension and flexibility to access hard-to-reach spaces; perfect for in-care use.

Compatible with all non-motorized Tineco accessories.

Line drawing of a mechanical device with a curved handle and circular base (no text or symbols)

Pre-filter cleaning tool

A dirty filter is a leading cause of suction loss, and this device is designed to make your filter last much longer. Place the dirty filter inside the pre-filter cleaning tool and close the lid. Run the appliance in MAX mode, and rotate the side cover.

Hair cleaning tool

Use the end with the small blade to remove hair and debris wrapped around the roller.

Use the end with the brush to clean the brush window, and the dustbin, as required.

Assembly

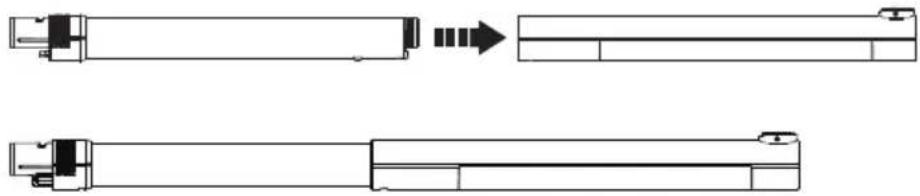

Tube Installation

Technical line drawing of a mechanical component with two views and an arrow indicating transformation (no text or symbols)

Insert tube.

Technical line drawing of a mechanical device with a shaft and connector, showing motion direction (no text or symbols)

Diagram of a handheld device with a lever and handle, showing motion direction (no text or symbols)

Insert to the main body. Press the release button to remove the tube.

Brush Installation

Diagram of a mechanical assembly with a shaft and connector, showing motion direction (no text or symbols)

Diagram of a mechanical device with a lever and rotating arrow (no text or symbols)

Insert the power brush. Press the release button to remove the power brush.

Dustbin Installation

Illustration of a handheld device with a left-side arrow indicating motion or change (no text or symbols present)

To clean the dustbin more thoroughly, press the dustbin release button to detach from the appliance.

Diagram showing a hand holding a device with labeled parts and directional arrows indicating motion or movement.

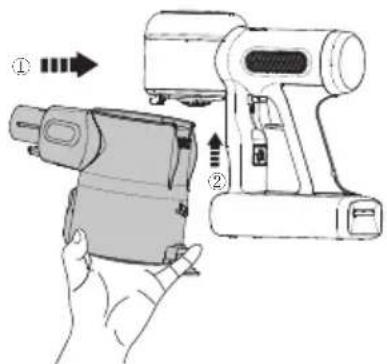

When re-attaching the dustbin, hold on an angle and slot the top of the dustbin into the hook on the main body. Push upwards until the hook is fixed into the slot on the dustbin and then it clicks back into place.

Wall-mounted Dock Installation

47.25" (120cm)

Determine the best wall location for mounting the dock. We recommend placing it 47.25" (120cm) from the lower screw hole to the floor (may need to be adjusted based on the actual situation).

Technical line drawing of a mechanical device with arrows indicating motion and a 'click' label (no text or symbols beyond the label)

Assemble the two bracket components, with a "click" to signify correct assembly. Once this is complete, use the screws provided by Tineco to affix the dock to the wall.

Warning:

• Ensure the wall surrounding the mounting area is free of gas, water pipes, electrical cables and wires.
• To avoid the dock falling, ensure it is firmly installed.

Operation

Preparing for Use

Note:

• Before the first use, please charge the appliance (see "Charging the Battery") for 3-4 hours in an area where the ambient temperature is between 39.2^ (4^) and 104^ (40^) .
• Select an accessory and attach it to the appliance before use (see "Accessories").

Line drawing of a hand operating a portable electric shaver device (no text or symbols)

Line drawing of a hairdryer with an inset close-up showing the handle (no text or symbols)

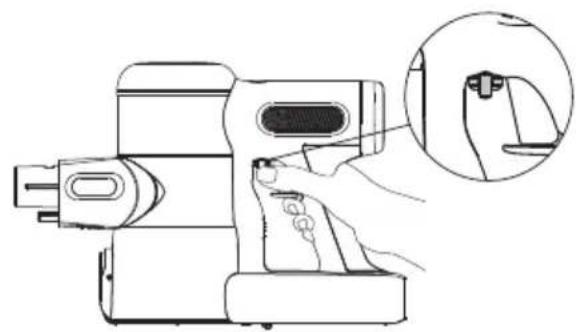

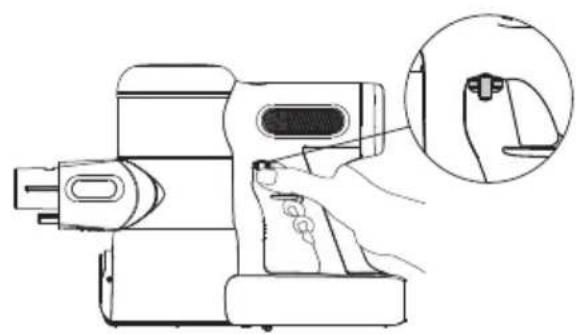

Pull the trigger to activate the suction. Pull the trigger lock to hold the trigger for continuous power mode.

- Place the appliance on the wall-mounted dock for convenient storage and recharging after use.

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

click

Place the main body on the dock. To avoid bristle damage, always place attachments on the dock after use.

Cleaning Mode Selection

Z

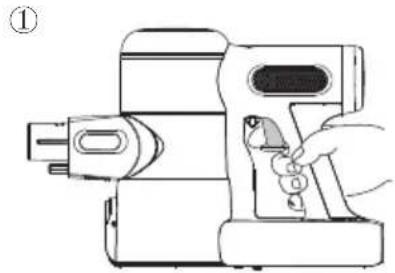

AUTO Mode

- In AUTO mode, the indicator color changes according to the amount of dust detected. When blinking red indicates dust is detected, the brighter red light indicates more dust, whereas blinking blue indicates no dust is detected. This mode automatically provides the best cleaning solution.

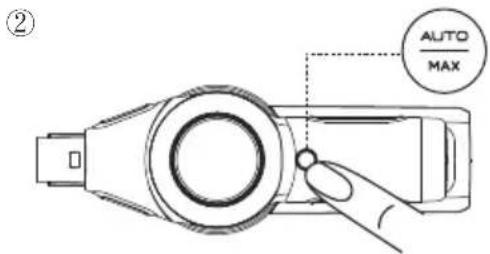

To enter AUTO mode:

Line drawing of a hand operating a portable air purifier device (no text or symbols)

The default setting on startup is AUTO. The appliance then takes 3 seconds to initially detect blockages or dust. If no dust is detected, power is reduced to conserve energy.

② AUTO MAX

When in MAX mode, press the AUTO/MAX button to enter AUTO mode.

MAX Mode

AUTO MAX

In AUTO mode, press the AUTO/MAX button to enter MAX mode.

APP

- All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site.

① ② (WI-FI)

1. Pull the trigger to ensure the appliance battery has sufficient charge.
2. Long press to activate WiFi connection (blinking blue light), follow the guide in App for more details.

App Function Introduction

Battery

Battery level in real time.

Cleaning report

Displays the dust amount, working hours and working status.

Suction adjustment

When in manual mode, swipe the phone screen to adjust suction power.

Reminder of filter status

Records the severity of the dirty filter and provides a cleaning reminder as required.

Contact us

You can contact the Customer Service about any problems during the working hours.

Feedback

If you have any comments, please send us your feedback.

Emptying the Dustbin

Line drawing of a hand operating a portable electric shaver with a circular base and wheels (no text or symbols)

Press the release button on the side of the dustbin to empty the contents.

Line drawing of a hand holding a spray gun with an upward arrow indicating motion (no text or symbols)

Close and click the dustbin flap back into place.

Charging the Battery

Technical line drawing of a mechanical device with a cable and connector (no text or symbols)

Diagram of a laboratory apparatus with labeled components and an inset showing wiring connections and a close-up view of the device's internal structure.

Place the main body on the dock, plug in the adaptor and charging port. The main body indicator blinking blue indicates that it is charging correctly.

Warning:

• Only use the Tineco-provided adapter to charge the appliance.
• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)\~104°F (40°C).

Runtime

• When in AUTO mode, the runtime is approximately 45 minutes. When MAX power is used, the runtime is approximately 12 minutes.
• Estimated runtime data was obtained by a Tineco Laboratory using one battery and non-motorized accessories.

Charging Time

• A full charge takes approximately 3-4 hours.
- Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2^ (4^) to 104^ (40^) .

Indicator

When in Use

AL/TO MAX AL/TO MAX

Slowly blinking red light for 6s: low power.

Rapidly blinking red light: see troubleshooting.

Connect to Network

Blinking blue light: Connecting to the network.

Solid blue light: Successfully connected.

During Charging

Breathing blue light: charging.

Fully Charged

In 5 minutes: solid blue light.

After 5 minutes: light off.

Maintenance

Note:

• Clean the dustbin and filters after each use.
• Use the cleaning tool to thoroughly clean the pre-filter when the indicator blinking red rapidly. To maintain high performance, wash and dry the pre-filter monthly, replacing it every 6 months.

Wash and dry the HEPA filter every 3 months, replacing it every 12 months.

Dustbin and Mesh Filter

1

Technical line drawing of a handheld device with an arrow indicating motion (no text or symbols present)

Press the dustbin release button to remove the dustbin.

2

Line drawing of hands operating a spray gun (no text or symbols present)

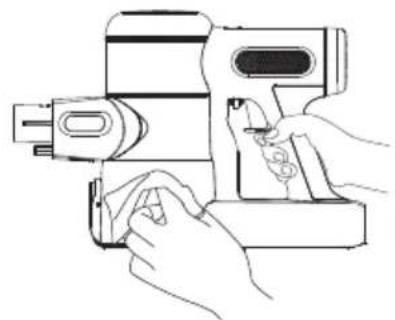

Clean with a damp cloth, taking care to prevent water entering the appliance main body and battery.

3

Mesh filter Pre-filter

4 24 hours

Turn counter-clockwise to remove the filters. Clean the dustbin and mesh filter with a damp cloth. Air dry completely before reinstalling.

5

Technical diagram of a hair dryer with labeled parts and directional arrows indicating motion or movement.

After cleaning, insert the clean pre-filter into the mesh filter properly and it clicks into place. Install the clean filter and dustbin back into the main body, then close the dustbin flap.

Technical illustration of a mechanical device with cross-sectional view and no visible text or symbols

Warning:

Do not wash the dustbin as it contains a dust sensor. If it comes into contact with water, please dry it with a hair dryer.

Pre-filter

Technical line drawing of a mechanical device with downward arrow indicating force or movement (no text or symbols)

Ensure the appliance is switched off before cleaning, and remove the dirty pre-filter from the mesh filter-holder.

Mechanical device with crossed-out lines and an upward arrow, no visible text or symbols

Do not turn the appliance upside down when removing or installing the filter to prevent dust from entering the motor.

Technical illustration of a handheld device with directional arrows indicating assembly or operation (no text or symbols present)

Replace a clean filter to the main body. Put the dirty pre-filter into the cleaning tool and connect the cleaning tool to the main body.

Line drawing of a handheld device with a hand operating it (no text or symbols)

Run the appliance in MAX mode, and rotate the side cover to clean the dirty pre-filter.

HEPA Filter

Line drawing of hands operating a handheld device with a lock icon, no text or symbols present

Turn the HEPA to the left and gently pull out for cleaning. Do not use the appliance without first installing the HEPA filter.

Line drawing of a hand using a handheld device to cut a device with a diagonal line crossing (no text or symbols)

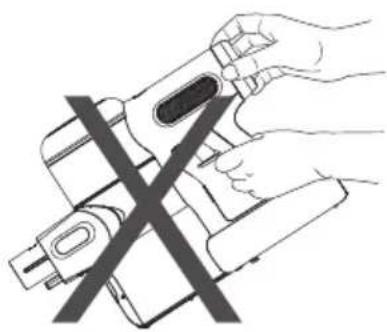

Do not place the appliance as above when removing or installing the HEPA filter, to prevent dust from entering the motor.

Illustration showing a faucet, a rolled-up cylinder, a sun, and a timer with '24' indicating time.

The HEPA filter can be washed under running water and must be completely dry before reinstalling.

Exploded view diagram of a mechanical component showing internal structure and mounting features (no text or labels)

* The HEPA is detachable. Simply rotate to remove and replace.

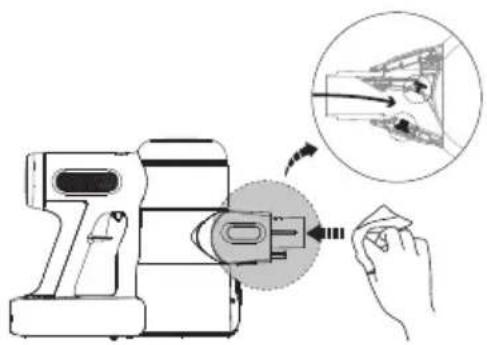

Dust Sensor

Illustration of a hand using a sewing machine to adjust a sewing machine component, with an inset showing the process (no text or symbols present)

To avoid dust accumulation which can affect cleaning performance, wipe the suction mouth with a damp cloth.

Mini Power Brush

Line drawing of a hand holding a device with a curved arrow labeled 'B' and 'S' indicating direction (no text or symbols beyond labels)

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Press against the roller end cover downward. Pull out the brush roller.

Technical line drawing of a mechanical device with internal components and a tool (no text or symbols)

Remove the debris wrapped around the roller with the Tineco Hair Cleaning Tool.

click

Fully reinsert the brush roller at an angle and push upward until it clicks securely back into place.

Brush Roller

Technical illustration of a mechanical device with internal components and directional arrows (no text or symbols)

Slide the switch to open the brush roller end cover, and rotate it clockwise to be able to pull out the brush roller.

Illustration of a hand operating a mechanical device with a tool (no text or symbols visible)

After removing the brush roller, gently clean the brush window, suction mouth and the row of plastic teeth.

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Fully reinsert the brush roller into the brush window and the end cover can be rotated counter-clockwise until it clicks securely back into place.

Warning:

The power brush contains electrical components which must not be soaked or washed with water.

Troubleshooting

Problem Possible cause Solution
The appliance does not turn on	No power Charge the battery
	Auto protection for overheating Restart after cooling down
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Check and remove blockages
Weak suction power	Dustbin and filters are full Clean the dustbin and filters
	The pre-filter is not installed Install the pre-filter
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages
	The brush roller tangled with hairs or fibers	Clean the brush roller
Rapidly blinking red for 6s then off during charging	Charging error	Check if the adaptor is in good condition
	The adaptor is not designed for this appliance	Use the original adaptor
Rapidly blinking red and shut down	Air channel completely blocked Remove blockages
Rapidly blinking red	Brush roller tangled Clean the brush roller
	Air channel partly blocked Remove blockages
Solid red during use	Dust sensor blocked Remove blockages
	Dustbin not installed properly Install the dustbin properly
Appliance shut down during use [1432]	Battery is overheated Restart after cooling down
Slowly blinking red	No power Charge the battery
Battery won't charge	The adaptor is not correctly inserted	Reinsert the adaptor correctly
	The adaptor is not designed for this appliance	Use the original adaptor
Abnormal motor sounds	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

Register: We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To register, please enter the whole serial number (found on the base of the main body).

Failure to register your product won't diminish your warranty rights.

E********

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or an authorized agent.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

Technical line drawing of a portable air purifier device with no visible text or symbols

A B C D E F G H

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a handheld device with a circular button and handle (no text or symbols)

Simple line drawing of a cylindrical tool or tool with a handle and circular end (no text or symbols)

Boquilla para ranuras

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical shaft or rod with flanged ends and a central hole (no text or symbols)

Line drawing of a mechanical component with a top view and base plate (no text or symbols)

Simple line drawing of a cylindrical object with a central dark band and two side protrusions (no text or symbols)

Line drawing of a handheld device with a curved handle and circular base (no text or symbols)

Pure diagram of a mechanical component with no text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Inserte el tubo.

Diagram of a handheld device with a lever and connector, showing motion direction (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Diagram of a mechanical assembly with a connector and shaft, showing directional arrows (no text or symbols)

Diagram of a mechanical device with a lever and rotating arrow (no text or symbols)

Diagram of a handheld device with a left-side arrow indicating motion or change (no text or symbols present)

Diagram showing two hand gestures labeled ① and ② for a device operation or assembly, with directional arrows indicating movement.

Technical line drawing of a mechanical device with directional arrows and a labeled 'click' point (no text or symbols beyond basic diagram)

Line drawing of a hand operating a portable electric shaver device (no text or symbols)

Line drawing of a handheld device with an inset close-up showing the handle (no text or symbols)

Technical line drawing of a mechanical device with directional arrows and numbered components (no text or symbols)

click

Line drawing of a hand operating a portable air gun (no text or symbols)

① ② (WI-FI)

Line drawing of a hand operating a portable electric shaver with a circular base and handle (no text or symbols)

Line drawing of a hand holding a spray gun with an upward arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a cable and connector, showing no text or symbols

Diagram of a laboratory apparatus with labeled components and an inset showing wiring connections and a close-up view of the device's internal structure.

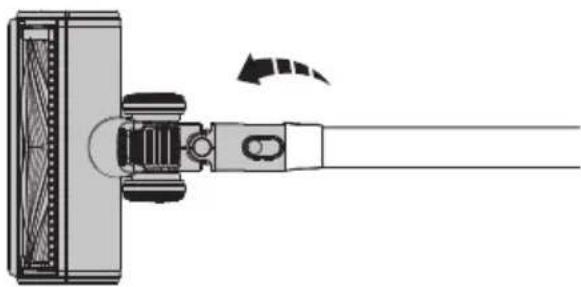

Technical line drawing of a handheld device with a left-side indicator (no text or symbols)

Line drawing of hands operating a handheld device (no text or symbols present)

4 24 hours

Technical diagram of a handheld device with numbered parts and directional arrows indicating motion or assembly.

Technical illustration of a mechanical device with a close-up inset showing a hand turning a valve (no text or symbols present)

Advertencia:

Technical line drawing of a mechanical device with downward arrow indicating force or movement (no text or symbols)

Mechanical device with crossed X-shaped lines indicating a crossed mechanism, no text or symbols present

Technical illustration of a handheld device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand operating a handheld device with a circular button and handle (no text or symbols)

Line drawing of hands operating a handheld device with a scroll wheel (no text or symbols)

Illustration of hands using a handheld device to cut a device with a diagonal line crossing (no text or symbols)

Illustration showing a faucet spraying water, a cylindrical container, a sun, and a timer with '24' clock (no text or symbols on objects)

Exploded view diagram of a mechanical component showing internal structure and mounting features (no text or labels)

Line drawing of a hand operating a sewing machine with a magnified inset showing the process (no text or symbols)

Line drawing of a hand operating a mechanical device with a tool, showing a force arrow labeled 'S' (no text or symbols on the device itself)

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with exploded view showing internal components (no text or symbols)

Diagram of a mechanical device with a slide and a click symbol, no readable text or labels present

Technical illustration of a mechanical device with internal components and directional arrows (no text or symbols)

Illustration of a hand operating a device with a tool, no text or symbols visible

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Technical line drawing of a portable device with internal components and mounting points (no text or symbols)

A B C D E F G H

Pure mechanical diagram showing a lever and base structure without any text, numbers, or symbols

Line drawing of a handheld device with a bulb and circular ports (no text or symbols)

Simple line drawing of a cylindrical object resembling a stylus or tool (no text or symbols)

Suceur plat

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical shaft or rod with flanged ends and a central hole (no text or symbols)

Long suceur plat flexible

Line drawing of a mechanical component with no visible text or symbols

Tube flexible multi-angle

Simple line drawing of a cylindrical object with a textured center and two side connectors (no text or symbols)

Line drawing of a mechanical device with a cylindrical component and a handle (no text or symbols)

Technical line drawing of a mechanical component with two views and an arrow indicating transformation (no text or symbols)

Insérez le tube.

Diagram of a mechanical device with a lever and adjustment arrow (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Diagram of a mechanical assembly with a connector and shaft, showing internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with a lever and adjustment mechanism (no text or symbols)

Technical line drawing of a handheld device with a left-side arrow indicating motion (no text or symbols present)

Diagram showing a hand holding a handheld device with labeled parts and directional arrows indicating motion or movement.

Installation de la station murale

120 cm

Technical line drawing of a mechanical device with directional arrows and a labeled 'click' point (no text or symbols beyond basic diagram)

Line drawing of a hand operating a handheld electric shaver (no text or symbols)

Line drawing of a handheld device with a hand inserting a cable into it, showing internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with directional arrows and a labeled click point indicator

Line drawing of a hand operating a sewing machine (no text or symbols)

① ② (WI-FI)

Line drawing of a hand operating a portable electric shaver with a circular arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a spray gun with an upward arrow indicating motion (no text or symbols)

Diagram of a handheld device with cable and connector, showing internal components and wiring (no text or symbols)

Technical diagram of a mechanical testing setup with labeled components and an inset showing cable connection details.

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Mechanical device diagram showing a cross-shaped mechanism with an upward arrow and internal components (no text or symbols)

Diagram showing a hand tool interacting with a device, with no visible text or symbols.

Line drawing of a hand operating a handheld device with a circular button and handle (no text or symbols)

Line drawing of hands operating a handheld device with a lock and directional arrows indicating action (no text or symbols)

Line drawing of a hand using a device to cut a device with a diagonal line crossing (no text or symbols)

Illustration showing a faucet, a rolled-up cylinder, a sun, and a speedometer with '24' indicating 24 hours (no text or symbols on objects)

Exploded view diagram of a mechanical component showing internal parts and assembly (no text or labels)

Illustration of a hand using a sewing machine to adjust a component, with an inset showing the process (no text or symbols present)

Line drawing of a hand operating a mechanical device with a tool, showing a curved arrow labeled 'θ' (no text or symbols on the device itself)

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

Retirez le rouleau brosse.

Technical line drawing of a mechanical device with internal components and a tool (no text or symbols)

Diagram of a mechanical device with a slide and a click symbol, showing motion direction (no text or labels)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Illustration of a hand operating a mechanical device with a tool (no text or symbols visible)

Technical line drawing of a mechanical device with wheels and a central component (no text or symbols)

tinecoglobal
