USER MANUAL AL G25 Yard Force

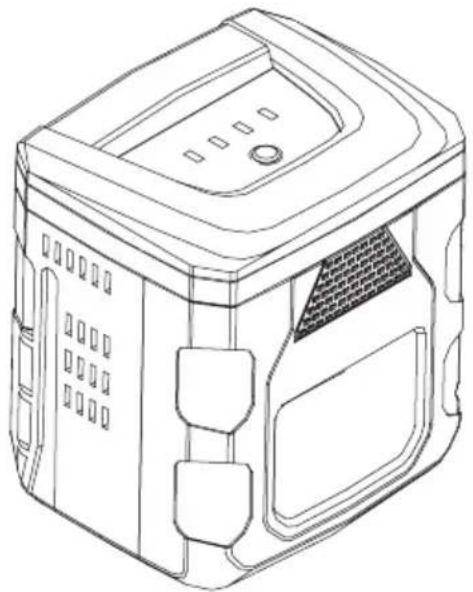

Line drawing of a 3D printer or scanner device with ventilation slots and control buttons (no text or symbols)

Line drawing of a 3D printer or scanner device with front panel, buttons, and ventilation slots (no text or symbols)

SYMBOLS

GB

Safety symbols

The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures.

WARNING: Be sure to read and understand all safety instructions within this operator's manual, including all safety alert symbols such as "DANGER", "WARNING", and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

SAFETY ALERT SYMBOLS: Indicate DANGER, WARNING, or CAUTION. May be used in conjunction with other symbols or pictographs.

Symbol meanings

This page depicts and describes safety symbols that may appear on this product. Read, fully understand and follow all instructions on the machine before attempting to assemble and operate.

SYMBOLS

To reduce the risk of injury, user must read instruction manual carefully.

Do not throw into water.

Do not throw on fire.

Do not subject the battery to strong sunlight over long periods of time. Do not leave on a heater (max.45°C).

Li-Ion

Batteries contain Li-ion. Do not dispose of waste batteries in domestic waste. Contact local authority to find out how to dispose of batteries.

The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.

GB

GENERAL SAFETY WARNINGS GENERAL SAFE

GB

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save these instructions for later use.

• These safety warnings apply only for lithium-ion batteries!
• Do not open the battery. Danger of short-circuit-ing.
• Whilst the battery is designed for use in all weather conditions, it is recommended to keep the contacts away from water and moisture. Contacts, which are connected though water or moisture for a longer period of time, may cor- rode or discharge the battery. This may result in loss of power and lifetime.
• Although the battery is suitable for use in all weather conditions, it should not be fully sub-merged in water, nor stored in a wet enviro-ment. Should this occur, allow battery to fully dry before re-use.
• Do not subject cells or batteries to mechanical shock.
• In case of damage and improper use of the bat- tery, vapours may be emitted. Ventilate the ar- ea and seek medical help in case of complaints. The vapours can irritate the respiratory system.
• Use the battery only in conjunction with your Yard force power tool. This measure alone protects the battery against dangerous overload.
• Use only original Yard force batteries with the volt-age listed on the nameplate of your power tool. When using other batteries, e.g. imitations, reconditioned batteries

or other brands, there is danger of injury as well as property damage through ex- ploding batteries.

- The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

Battery tool use and care

• Before any work on the machine itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals togeth- er may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

GB

INTENDED USE

GB

The contained lithium-ion battery is intended for use with Yard force cordless tool and recommended for use with Yard force 40/60V series battery charger.

TECHNICAL DATA

Battery pack Model AL	G25 AL G40 AL	G50 AL M40
Battery voltage 40V 40V	40V 60V ===	===	===	===
Battery capacity 2.5Ah	4.0 Ah 5.0 Ah 4.0	Ah
Battery charging time	50 min 80 min 100	min 100min
Battery charger Model	AL G03C AL M01C

OPERATION

Power indicator

This Li-Ion battery pack is equipped with a power indicator which is used to show the battery pack's remaining charge. Press the power indicator button to check battery charge as below. The LEDs will stay lit for approximately 4 seconds.

To obtain the best life from the battery

1. Never allow the battery to completely discharge before recharging. The battery pack should be placed on the charger whenever the battery pack is noticeably running down or the tool no longer performs a task it previously performed.
2. Avoid conducting short charges. Make sure that the battery is fully charged each time by allowing the charger to complete its full charging cycle.
3. Avoid allowing loose items like screws or nails etc. to be stored with battery packs as these or similar items can short battery packs and cause a fire or explosion
4. Always unplug the charger when not in use and store in a dry and secure place.
5. Avoid charging or storing your battery in temperatures below 5°C and above 45°C.
6. After use, allow the battery to pack to cool down for approximately 30 minutes before attempting to recharge.

MAINTENANCE AND STORAGE

Maintenance and Cleaning

Occasionally clean the battery using a soft, clean and dry brush.

Transport

The contained lithium-ion battery is subject to the Dangerous Goods Legislation requirements and is suitable for ground transportation by the user without further conditions.

When being transported by third parties (e.g.: air transport or forwarding agency), special require-ments on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is absolutely re-quired. Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possible additional national regulations.

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

GB
