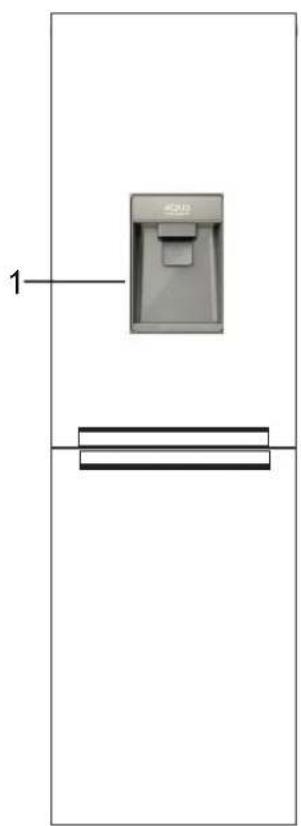

1. Dispenser's paddle

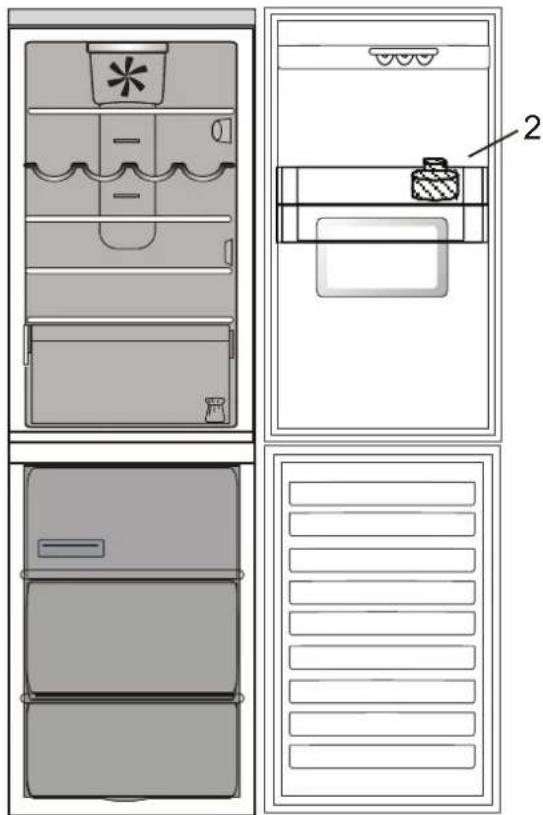

2. Water filter

WATER FILTER

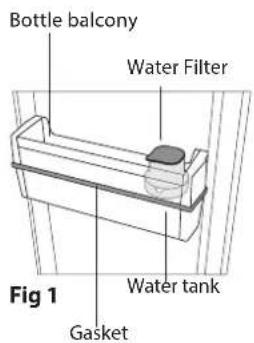

The water filter use an active carbon cartridge that reduces the amount of chlorine, sediments, dirt, rust and cloudiness in the drinking water. The filter must be installed in the bottle balcony. It is removable.

Fig 2

CARBON CARTRIDGE ACTIVATION

Before to use filter, the CARBON FILTER CARTRIDGE must be activated and installed. Remove the carbon filter from the packaging (which you can find in fruits and vegetables crisper) and activate it in this way;

1.submerge underwater for 10 minutes;
2. remove it from water and shake it vigorously for 10 seconds to activate.

FILTER INSTALLATION

Remove filter from balcony and open it to insert the carbon cartridge:

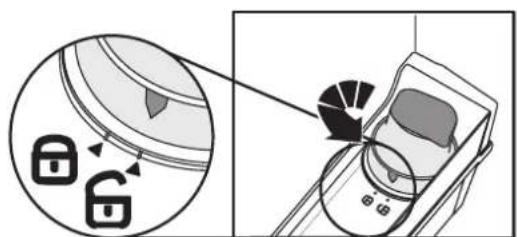

• Unlock the whole filter turning it anticlockwise (Fig 3);

Fig 3

• Remove the filter from the balcony (Fig. 4);
• Remove the funnel from the filter housing rotating it anticlockwise (Fig 5. a - b).

Fig 4

Fig 5

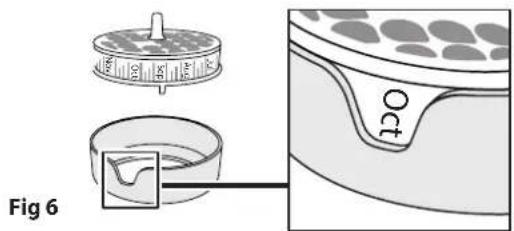

After activated, insert the carbon cartridge in the filter housing with the current month facing through the window (eg. If you are in october, face Oct month in the window) - See Fig. 6.

Close the filter (Fig. 7):

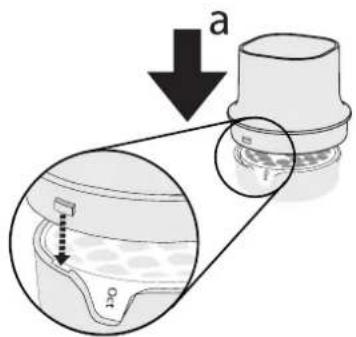

a) insert the funnel on filter housing (with carbon filter in), as shown in Fig. 7a;
b) rotate the funnel clockwise to fix it, as shown in Fig. 7b.

b
Fig 7

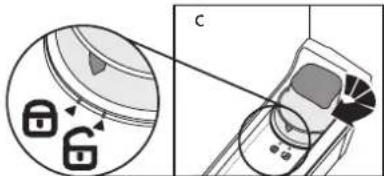

Then place the whole filter in the bottle balcony and lock it following the sequence in Fig 8.

Fig 8

FILLING AND FILTERING WATER

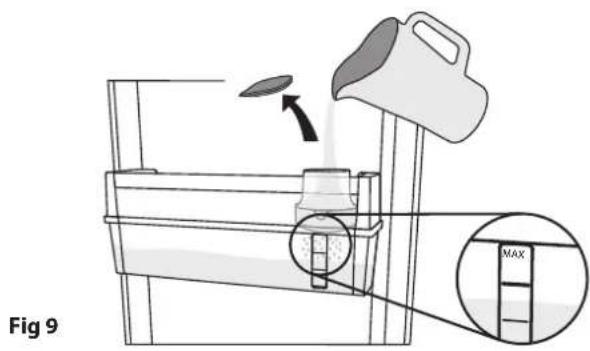

Remove the cap and pour water into the funnel (Fig. 9): the water fill will be filtered and will fill the water tank.

You can fill up to 3 litres. Don't overfill water (the max water level is indicated on the tank).

Note: fill water only in the tank. Do not insert juice, coke or other drink because they can damage the filter and the dispenser functionality.

dispensing water

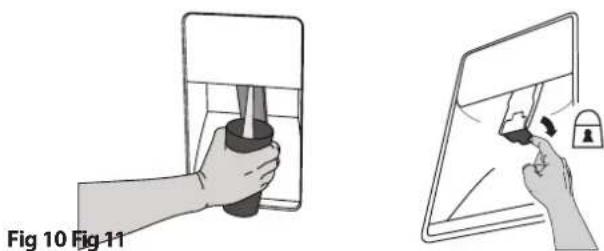

To dispense water press the paddle with a glass (Fig. 10) and release the paddle to stop dispensing.

Note: possible black dots in the filtered water or in filter area are normal and not dangerous, they are due the normal carbon filter functionality.

DISPENSER CHILD LOCK: You can lock the dispenser's paddle to avoid children dispensing water (flip the small lever behind the paddle as shown in (Fig. 11).

REPLACING THE CARBON CARTRIDGE

The carbon filter lasts max 2 months for continuous use (up to 225 lt).

To replace the carbon cartridge:

• unlock the filter and remove it from the balcony;

• remove the funnel from filter housing rotating it anticlockwise;

-remove the old carbon cartridge and insert the new one after activated, with current month faced in the window).

(You can follow the procedure described in Carbon filter activation and Filter installation - Fig. 3, 4, 5, 6, 7, 8).

CLEAN THE TANK

It is suggested to periodically remove the tank to clean it (see Fig 12 and description below):

• unlock the filter (a) and remove it (b);

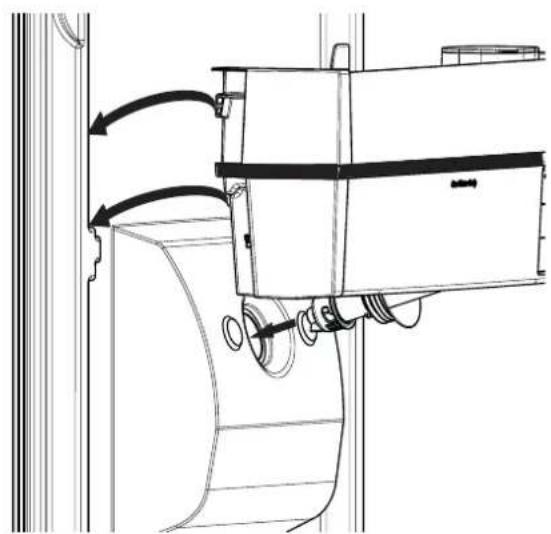

• remove the bottle balcony (c) then remove the tank (d) and the gasket.

Fig 12

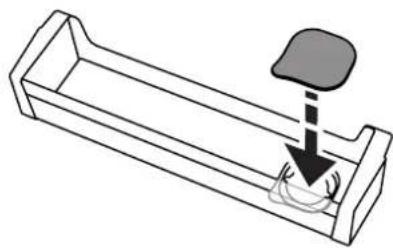

In case you decide to remove completely the water filter and tank from your fridge, you can remove the whole filter and the tank, using the balcony to normally store water bottles. In this case please use the filter cap to cover the hole on the balcony (see Fig. 13).

Fig 13

Wash the tank and the gasket with water only. At the end of cleaning, mount the gasket on the water tank. Make sure to correctly assembly the gasket on the tank (see Fig. 14).

Fig 14

Then mount the bottle balcony on the water tank and assembly them on the door as suggested in Fig 15. Once assembled, mount the filter with the carbon cartridge (as described in Fig 5, 6, 7, 8).

Fig 15

REEMPLACEMENT DE LA CARTOUCHE AU CHARBON

-OTKIOUoyeΦHNTbpa(a)IroN3BaTeTe(b);

-иЗадente paФта 3a 6уТИнкn (c), cneI KoETO OTePaHete pe3epBoapa (d) n YIITbTHHeHMeTo.

Ovr.12

B cnyaYe peuHTe da oTcpaHInTe n3qno BoDnna fNtbp n pe3epBoapa O T xnaDnHnKa C,MOKete Da n3BaJnte ceJeNa fNtbp n pe3epBoapa, KaTo n3NoI3BaTe paTa 3a HopMaIIHO cbXpaHeHne Ha 6ytnKn C Boda. B To3n Cnyaai N3noI3BaIte KanaayKaTa Ha fNtbpA, 3a da noKpniTe OTbopa H paTa (Bx. qur.13).

MnTe pe3epBoapa n ynnbTHeHneTo caMo c Boga.CnEd
NouCTBaHETo NoCTaBeTe yNtBTHHeHneTo Ha pe3epBoapa 3a
BOda.YBepTe ce,ue CTe 3akpeHHn yNtBTHHeHneTo npabUNHO 3a
pe3epBoapa (BX. fnr.14).

Φnr.14

CneToba noCTaBe Ta 6yTuKn BbPxy pe3epBoap a 3Ba n Tn npKpeTe KbM BpaTuKaTa, KaTo e Noka3aHo Ha m.15.CneToba noCTaBe Te BbrHeHOBata HnITpnpaHa KaceTa (KaKTo e Noka3aHo Ha fnr.5,6,7,8).

Ovr.15

1. Lopatica spremnika

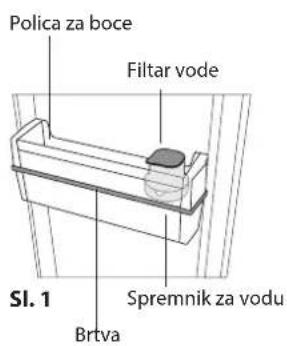

2. Filtar vode

FILTAR VODE

Filtar vode upotrebljava ulozak s aktivnim uglienom koji smanjue kolićinu klora, taloga, prljavstine, hrde i zamucenosti u pitkoj vodi. Filtar se mora postaviti u ladicu za boce. Moze se ukloniti.

UKLJUCIVANJE UGLJENOG ULOSKA
Pripe upotrebe filtra, FILTR S UGLJENIM ULOSKOM mora se
uključiti i postaviti. Ugljeni filtar izvadite iz pakiranja (možete ga
naci u pretincu za odžavanje svježine voć i povrca) i uključite ga na
sljedeci način;

1.uronite ga na 10 minuta u vodu;
2. izvadite ga iz vode i snažno protresite 10 sekundi kako bi se uključio.

POSTAVLJANJE FILTRA
Uklonite filtrar iz ladice i otvorite ga kako bi umetnuli ugljeni uložak:

WYMIANA WKladu WELOWEGO
