Product type	Electric sit/stand desk
Brand	IKEA
Model	UPPSPEL 505.432.50
Adjustable height	Yes, from 72 to 120 cm
Maximum load	70 kg
Power supply	220-240 V AC, 50/60 Hz
Standby power consumption	Less than 0.1 W
Noise level	Below 55 dB(A)
Operating temperature range	+10°C to +40°C
Storage temperature range	-18°C to +70°C
Humidity	20% to 80% at 40°C
Power unit	24.0 V DC, 240 W
Usage	Indoor, dry locations
Motor cycle	2 minutes max continuous operation, then 18 min rest
Control panel lock	Yes, press button for 10 s
Position memory	Up to 4 positions
Reset	Yes, via down arrow button
Error codes	E01, E02, E07, E08, E13, H01, RST, 888/000
Maintenance	Check screws after 1 week, unplug before repair
Manufacturer	IKEA of Sweden AB

Frequently Asked Questions - UPPSPEL 505.432.50 IKEA

How to adjust the desk height?

Press the up or down arrow button to raise or lower the desk. Hold the button down for continuous movement. The LED screen shuts off after 10 seconds of inactivity; press any button to wake it up.

How to save a height position?

Press the Ⓞ button until the screen displays 'S'. Then press one of the memory buttons 1, 2, 3 or 4 to save the current position. The screen will confirm with 'S-1', etc.

How to lock the control panel?

Press the lock button (likely the Ⓞ button or a specific button) for 10 seconds until the screen shows 'LOC'. To unlock, repeat the same operation until the height is displayed.

How to reset the desk?

Press the down arrow button until the desk reaches the lowest position. Press the down arrow again until the screen shows 'RST'. Press the down arrow a third time: the desk lowers slightly and then stops. The screen shows '72' when the reset is complete.

What is the maximum load?

The maximum load is 70 kg (154 lbs). Do not exceed this limit to avoid damaging the desk.

What to do if the desk does not work?

Check that the power unit is properly plugged in and that the cables between the legs and the power supply are securely connected. Try plugging a lamp into the same outlet to check the voltage. If the problem persists, contact IKEA customer service.

What does error code H01 mean?

Error code H01 indicates overheating. Unplug from the wall outlet, wait 18 minutes for the motor to cool down, then plug back in. If the problem persists, perform a reset.

Can the desk be used outdoors?

No, the desk is designed for indoor use only, in dry rooms (office or similar environment).

How to maintain the desk?

After about one week of use, check that all screws are properly tightened. For cleaning, always unplug the power supply. Do not use abrasive products. Do not attempt to repair the product yourself.

Is it possible to lift people with this desk?

No, it is strictly forbidden to use the desk to lift people. This poses a risk of serious injury.

USER MANUAL UPPSPEL 505.432.50 IKEA

An electro-mechanically height adjustable work-surface with control interface to adjust height up and down.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Electrical sit and stand desk

Advice and instructions for UPPSPEL

Input:220-240VAC, 50/60Hz

Standby power consumption:<0.1 W.

Sound level:Lower than 55 dB(A).

Height setting interval:72-120 cm/28.3-47.2 inch.

Maximum load:70kg/154lbs.

Temperature Interval at usage:+50 up to +104 °F/+10 °C up to + 40 °C.

Temperature interval at storage:0 up to 158 °F/-18 °C up to 70 °C.

Humidity:20% up to 80% at 104 °F/40 °C.

Power supply unit:24.0V DC, 240 W.

This appliance shall only be used together with the included power supply unit.

Every person who is responsible for this table at installation or employment of the table in daily use or in service and repair work should carefully read these instructions. Keep these instructions close to your sit/stand table.

Installation instructions

• The table is assembled according to separate assembly instructions.
• Connect the electrical cable to a power source.

NOTE! The electrical cable must have full mobility.

- The table is now ready for use. The motors stop automatically when the table reaches its lowest and highest position respectively.

Usage

• The table shall only be used as a gaming table with the possibility to continuously adjust the working height between sitting and standing position.
• The table shall only be used indoors and in dry premises (office environment or similar).

The table must not be overloaded - maximum load is 70KG/154lbs. The system may be run continuously for a maximum of 2 minutes. Afterwards, the motors must stand idle for approx. 18 minutes before they can be used again.

QUICK GUIDE

Follow these instructions when adjusting table height:

1. Make sure no objects are in the way of the table.
2. In order to move the table up/down, press the up and down arrow button respectively.
3. The display switches off when not in use for about 10 seconds. Press any button to wake the controller up.

Safety regulations

• When the table is moving up/down, keep the necessary safety distance to avoid the risk of being squeezed between the moving table top and fixed objects in the surrounding area.
• When the table is moving up/down, the user shall make sure that nobody is injured and that no object is damaged. The table top must not bump into a fixed object, causing the table to overturn. Always remove any chair before the table is moved up/down.
• The table tripod must not be altered or reconstructed in any way. In service and repair work of the table, the electrical cable must always be disconnected from the power source.
• Modifications to the legs are absolutely forbidden!
• The table must not be used as a hoisting device for persons.

Maintenance and repair instructions

• After approx. 1 week of use, check that the screws are properly tightened.
• If the table cannot be lowered or raised, check that all electrical connections are connected properly.
• If any part of the electrical system is replaced, the electrical cable must first be disconnected from the power source. Replace the electrical part and then connect the electrical cable to the power source. The table is now ready for use.

If the table still does not work, please contact your nearest IKEA store or customer service.

Manufacturer:

IKEA of Sweden AB

Address:

Box 702, SE-343 81 ÄLMHULT

SAVE THESE INSTRUCTIONS

Product servicing

Do not attempt to repair this product yourself, since opening or removing protective covers may expose you to dangerous voltage points or other risks.

Troubleshooting guide

NOTE!

Always disconnect the cable from the wall socket before maintenance!

Symptom Check Try
The desk does not move.	Is the main power supply connected to the legs?	Try to connect a lamp or similar to the main power supply to check that the supply voltage is OK.
	Are all plugs mounted correctly between the legs and power supply?	See assembly instructions. Check all connections.
	Is there visible damage to the cables, controls or the legs? Damaged parts must be exchanged - Contact IKEA Customer Service.
The desk stops and can only then move in the opposite direction.	Is the desk in its fully raised or lowered position? When the desk has reached its upper position it can only move downwards.
	Is there a lot of weight on the desk compared to when the desk functioned normally?	Remove some of the load and try again.
The desk will only move downwards even though the desk is not overloaded.		Perform Basic settings.
The desk does not move up to its fully raised position. It always stops at the same position.		The system has a new end stop position upwards. Perform Basic settings to remove this stop.
The desk only moves a little bit upwards and stops.	Have the correct screws been used when mounting the frame to the legs?	Check if any screw used has the correct length (assembly instruction). If the screw is too long it can damage the leg.
	Are all connections correct? Check all connections.
	Does the desk have too much weight on it? Reduce the weight	load and try again. A Basic setting might be needed before the desk will move upwards.
The USB doesn't work. Contact your nearest IKEA store or customer service.

Basic Setting:

Push the arrow down button until the legs have reached the lowest position and keep pressure on the button for 6 seconds more. Upon certain errors, this must be done twice in succession. Now the desk is in initial position.

Initialisation instructions:

Step 1. Continuously press the ▼arrow down button for a few seconds until the desk reaches its lowest position.

Step 2. Continuously press the ▼arrow down button a second time until the display shows "RST".

Step 3. Continuously press the ▼arrow down button a third time until the desk moves slightly downwards.

When the desk stops moving and the display shows "72", it is ready to use.

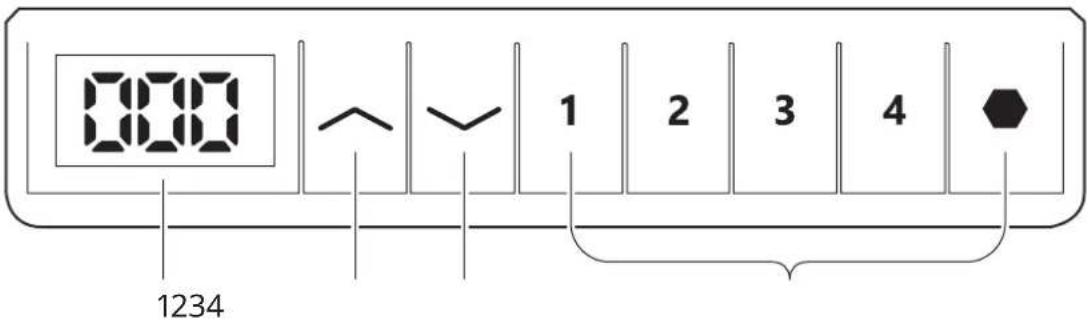

Height Adjustment Controller

1. LED Display: Press any key once to wake up the LED display.
2. Up key ▲arrow up: Press and hold to raise the desk.
3. Down key √ (Arrow down): Press and hold to lower the desk.
4. Memory setting: + 1, 2 3 4

• To save this current height: Press the button Ⓞ, the display will show
"S-", then press preferred memory button 1, 2, .This will bind the height to this number.

• For Example, if you press 1, the display will show "S-1" etc...
  • Memory button 1, 2, 3, 4

Note:

The desk's movement can be stopped at any time by pressing any button. Height settings will remain even if the desk's power is cut.

Reset process:

Step 1: Press/hold the ▼ down button for a few seconds until the table reaches its lowest position.

Step 2: Press/hold the ▼ down button a second time until the display shows "RST".

Step 3: Press/hold the down button a third time until the table slowly lowers. Once the table stops moving and the display shows "72", your desk is ready to use.

Lock/Unlock controller:

Lock the controller: Press and hold the symbol for 10 seconds until the display shows "LOC".

Unlock the controller: Press and hold the symbol for 10 seconds until the display shows the actual height of the table.

Highest /lowest limit setting

1. To save the current height as the highest limit:

Step 1: Press the button, the display will show "S-".

Step 2: Press ▲ arrow up button until the display flashes.

Step 3: Press the button 📄 again, the highest limit setting is completed when the display shows "999".

2. To save this current height as the lowest limit:

Step 1: Press the button ☐, the display will show "S-".

Step 2: Press √arrow down button until the display flashes.

Step 3: Press the button 📄 again, the lowest limit setting is completed when the display shows "000".

3. To cancel the limits:

Step 1: Press the button, the display will show "S-".

Step 2: Press the button 📋 again, the limit setting is canceled/removed when the display shows "555".

Adjust the Minimum height

1. Follow RESET process, go to the reset situation, it shows RST.

2. Press for 5 seconds, the screen shows height and flashes

3. Then, press ▲ or ▼ to adjust the height to what you need, and wait for 5 seconds, the screen displays RST, successfully adjust.

Error Code Instructions

Error Code Reason Solution
E01E02	Overcurrent protection/short circuit	Remove the excess load on the desk first. Then, see instructions for Reset/Initialisation.
E07E08	Motor line open circuit error Make sure all the cables connect well first.	Then, see instructions for Reset/Initialisation.
E13 Overcurrent protection/short Circuit See instructions for Reset/Initialisation.
H01 Over-heating Unplug from the wall socket and re-plug – or wait 18 minutes to let the motors cool before using them again.
RST Power failure See instructions for Reset/Initialisation.
888/000 Controller error Please contact IKEA Customer Service.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fills and minimise any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
