USER MANUAL VFC320BX VEDETTE

Simple line drawing of a refrigerator with two legs and a horizontal stripe (no text or symbols)

VFC320BX

Table des matières

CONSIGNES DE SÉCURITÉ -1-

DESCRIPTION DE L'APPAREIL -9-

INSTALLATION -10-

UTILISATION DE VOTRE APPAREIL -18-

STOCKAGE DES ALIMENTS -22-

UTILISATION AU QUOTIDIEN -23-

ZONE LA PLUS FROIDE DU REFRIGERATEUR -25-

DÉPANNAGE -26-

ÉLIMINATION CORRECTE DE CE PRODUIT -30 -

Technical diagram of a refrigerator with numbered parts for identification

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and railings (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of two mechanical bracket components with a base mount (no text or symbols)

Technical line drawing of two mechanical clamping components with no visible text or symbols

5 5

Diagram showing two stages of a device with labeled components and directional arrows indicating process flow.

Two technical line drawings of a mechanical component with no visible text or symbols

Three-step diagram showing a screwdriver inserted into a bracket, with a small device on a base and a tool inserted into a wall (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

5 5

Pure mechanical diagram showing symmetrical supports and a curved beam (no text or symbols)

Technical line drawings of two structural frame components (no text or symbols)

unscrew screw

5 5

Simple line drawing of a rectangular frame with vertical supports and a small inset box (no text or symbols)

Simple line drawing of a rectangular frame with four legs and a small inset box, no text or symbols present.

Simple line drawing of a rectangular electronic device with ports and an angled arm (no text or symbols)

Simple line drawing of a rectangular electronic device with ports and cables (no text or symbols)

Simple line drawing of a rectangular object with arrows indicating rotation or movement (no text or symbols)

5 5

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket with mounting base (no text or symbols)

Technical line drawing of a mechanical bracket or mounting bracket (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket with a diagonal line (no text or symbols)

Espace à respecter

Doors Lengthen Shorten

Two vertical signs with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

Illustration showing a hand installing or adjusting a shelf panel and a mechanical device with two upward arrows (no text or symbols)

Conseils et astuces

ÉLIMINATION CORRECTE DE CE PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

CORRECT DISPOSAL OF THIS PRODUCT -28-

This product is for household use only!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

SAFETY INFORMATION

When using an electrical appliance, basic precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
6. WARNING: Do not damage the refrigerant circuit.

SAFETY INFORMATION

1. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
2. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

3. This appliance is intended to be used in household and similar applications such as:

4. staff kitchen areas in shops, offices and other working environments;

5. farmhouses and by clients in hotels, motels and other residential type environments;
6. bed and breakfast type environments;
7. catering and similar non-retail applications.
8. Placed the appliance against a wall with a free distance not exceeding 75 mm and more than 50 mm.
9. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
10. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
11. To avoid contamination of food, please respect the following instructions:
12. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
13. Clean regularly surfaces that can come in contact with food and accessible drainage systems.
14. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

SAFETY INFORMATION

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing

1. Unplug the appliance from outlet when not in use, before putting on or taking off parts, before cleaning.

2. Make sure to place the plug all the way into socket when connecting your appliance.

3. Insert the plug into a single grounded socket.

4. Never use the appliance in place where combustible and inflammable materials are kept.

5. For safety reason, be sure to repair or replace parts at an authorized service dealer.

6. The motor is permanently lubricated and will require no oil.

7. The appliance must be positioned so that the plug is accessible.

8. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

9. Ensure the refrigerator is unplugged before cleaning or if the product is not in use.

SAFETY INFORMATION

1. To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.
2. It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
3. Do not place hot food or drink into the refrigerator before it cools down to room temperature.
4. Close the door immediately after putting in any items so the inside temperature will not rise dramatically.
5. Keep appliance away from any heat source or direct sunlight.
6. To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.
7. Do not place any other appliance on top of the refrigerator, and do not wet it.
8. To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water.
9. Do not use outdoors or in wet conditions.
10. Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
11. Keep the cord away from heated surfaces.

SAFETY INFORMATION

1. Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this Product.

2. Connect your refrigerator to an independent electrical socket and use a safe ground wire.

3. When the frost in freezer is removed, or when there is no electricity or when refrigerator ceases to be used, it should be cleaned in order to prevent it from smelling.

4. Defrost the freezer at least once a month because too much frost may affect refrigeration.

5. Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

6. Children should be supervised to ensure that they do not play with the appliance.

7. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

8. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

9. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

SAFETY INFORMATION

1. Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. Old refrigerators can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

2. WARNING! Risk of fire-flammable material. Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance.

3. This refrigerating appliance is not intended to be used as a built-in appliance.

4. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

5. Regarding the information of the method for replacing illuminating LED light, thanks to refer to the below paragraph of the manual.

SAFETY INFORMATION

1. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

2. If you are discarding an old freezer or refrigerator with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.

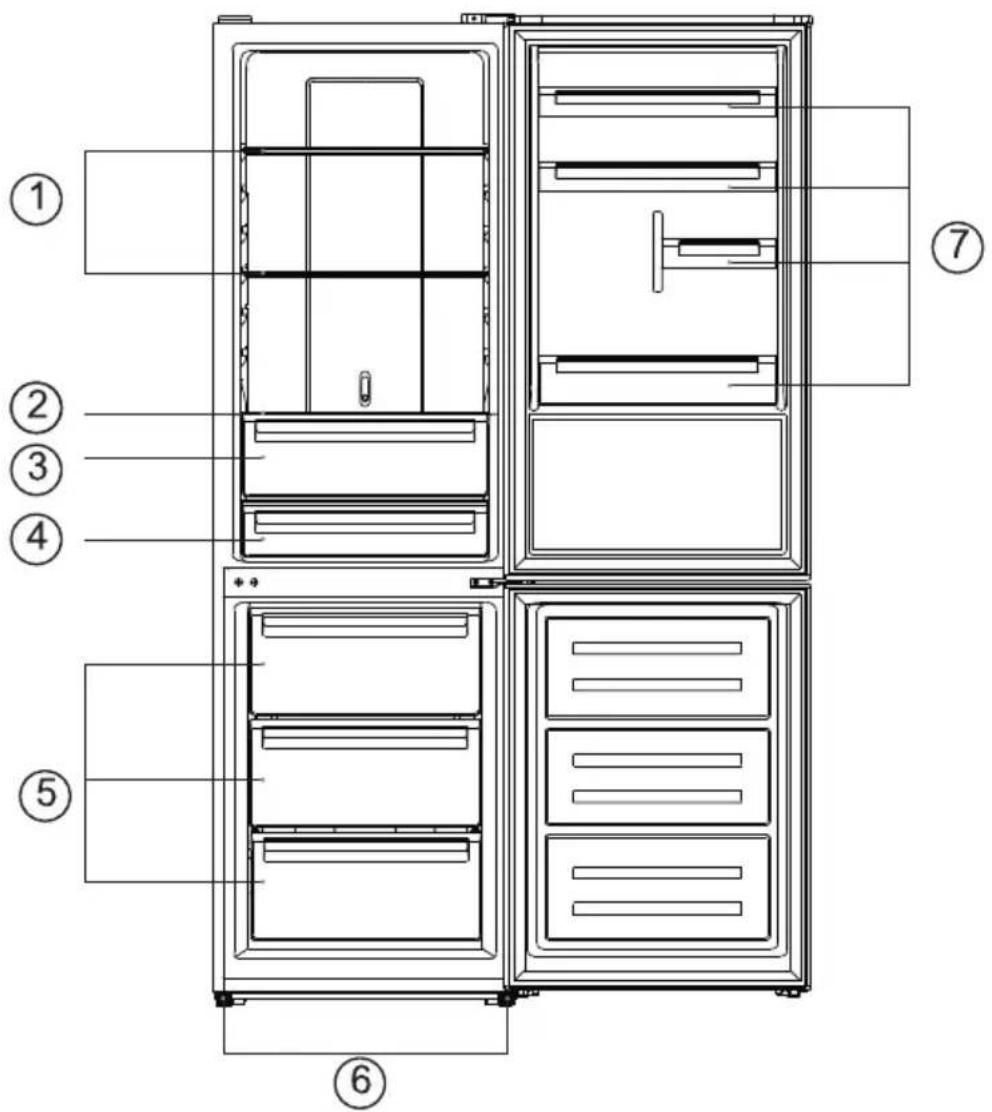

Technical diagram of a refrigerator with numbered parts for identification

1.Fridge Shelves
2.Crisper Cover
3.Crisper
4.Fresh convertible box
5.Freezer Drawers
6.Leveling Feet
7.Fridge Balconies

5 5

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open easily;
• Select a location with level (or nearly level) flooring:
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Keep at least 50mm gap at two sides and back. this refrigerating appliance is not intended to be used as a built-in appliance

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

5 5

Door Reversibility

Before reversing the door, please be prepared below tools and materials: straight screwdriver, cross screwdriver, spanner and the components included in the poly bags:

Left Aid-Closer on Upper Door x 1

Left Aid-Closer on Lower Door x 1

Left Aid-Closer on Lower Door×1

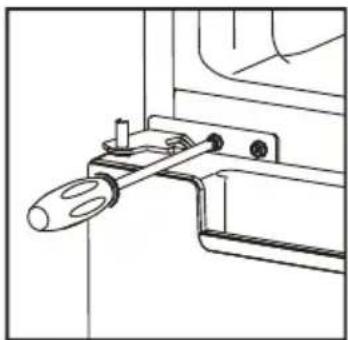

1. Unscrew top hinge cover and disconnect connectors of door switch and harness.

Technical line drawing of a mechanical clamp or bracket assembly with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Unscrew top hinge

Technical line drawing of a screwdriver inserted into a workbench (no text or symbols)

1. Remove the pin with a screwdriver and filp the hinge bracket. Then refit the pin to hinge bracket

Technical line drawing of two mechanical bracket components with mounting holes and a cylindrical shaft (no text or symbols)

Technical line drawing of two mechanical bracket components with mounting holes and a base mount (no text or symbols)

5 5

1. Move door switch from right hinge cover to left hinge cover in accessory bag.

Simple line drawing of a device with a handle and connector, connected to a small component (no text or symbols)

Diagram showing a device with a plug and outlet, connected to a container with internal components (no text or symbols)

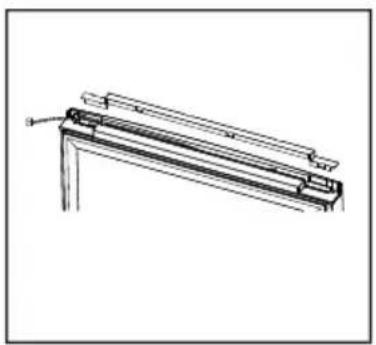

1. Detach cover in top of upper door and move harness from right side to left side, then replace the cover.

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a metal frame or support structure (no text or symbols)

1. Move top left cover to right side

Line drawing of a screwdriver inserted into a workbench (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Take off the upper door, take out the screw from the middle hinge by cross screwdriver, then take off the lower door.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

5 5

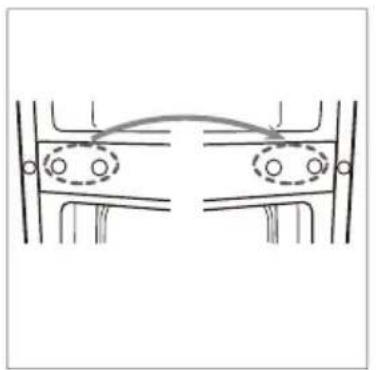

1. Move the hinge hole covers from the left side to right side.

Pure mechanical diagram showing two vertical supports with circular features and an arrow indicating direction (no text or symbols)

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Line drawing of a simple wooden table frame with legs and feet, no text or symbols present

Pure technical line drawing of a structural frame or bracket (no text or symbols)

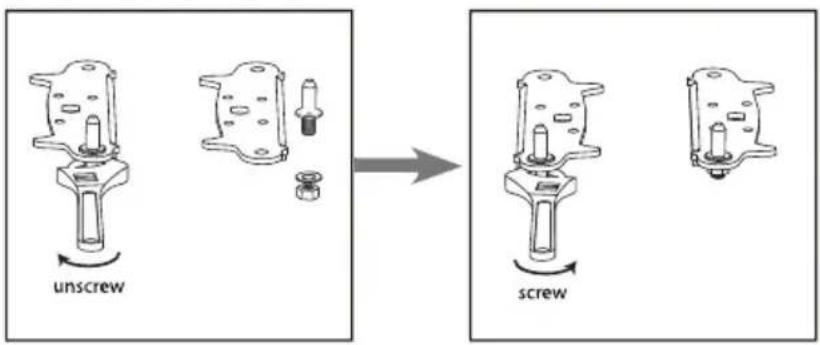

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

unscrew screw

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical frame or bracket assembly (no text or symbols)

Technical line drawing of a rectangular frame with mounting holes and a small inset detail (no text or symbols)

1. Remove aid-closers from bottom of upper and lower doors, then take new aid-closers from accessory bag and install them to left side.

Line drawing of a computer drive chassis with a cable and indicator lights (no text or symbols)

Line drawing of a computer drive casing with ports and a label (no text or symbols present)

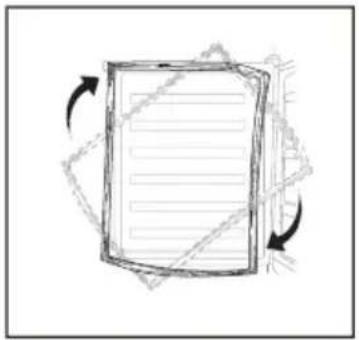

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Abstract diagram showing a document with arrows indicating rotation or movement (no text or symbols)

5 5

1. Install the lower door, adjust and fix the middle hinge onto the cabinet.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

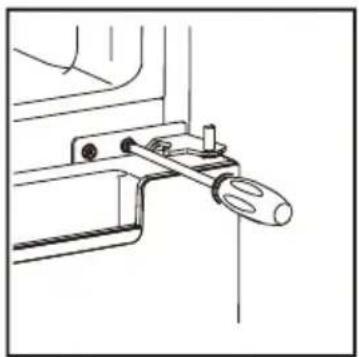

1. Replace upper door, please ensure the door align with the cabinet to make sure door gasket seal the cabinet tightly. Then connect door with cabinet by tightly fixed top hinge.

Technical line drawing of a screwdriver inserted into a bracket with mounting holes (no text or symbols)

1. Connect harnesses from door and cabinet. Then replace top hinge cover. Before screw the cover, connect terminals of door switch.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Simple line drawing of a screwdriver inserted into a clamp (no text or symbols)

5 5

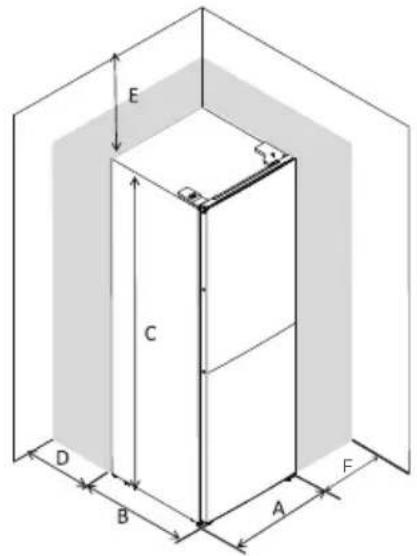

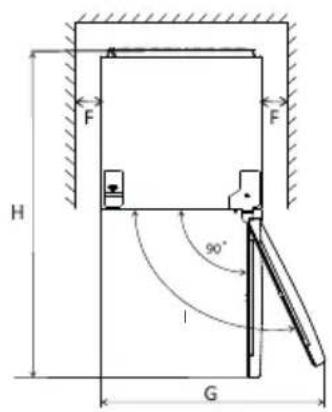

Space Requirement

Keep enough space of door open.

Keep at least 50mm gap at two sides and back.

E C D B A F

F H G 90° F

A	600
B	690
C	1845
D	min=50
E	min=50
F	min=50
G	1200
H	1290
I	135°

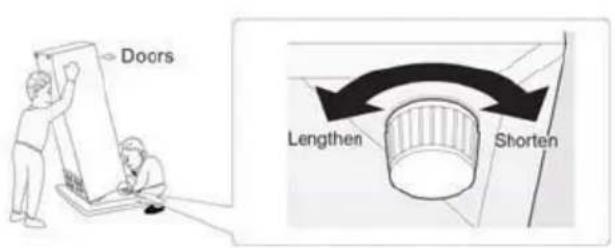

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Docrs Lengthen Shorten

Two labeled diagrams showing checkmark and cross symbols on vertical bars, likely indicating selection or cancellation.

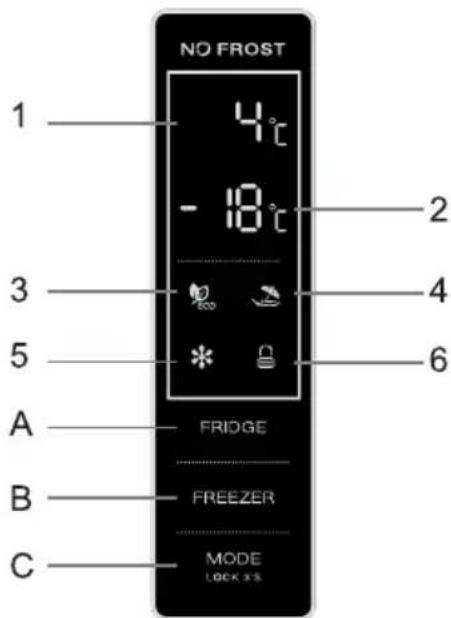

Using the Control Panel

NO FROST 1 4°C - 18°C 2 3 4 5 6 A FRIDGE B FREEZER C MODE LOCK x8

1.1 Key Operation (A & B & C)

FRIDGE

: Temperature control of fridge compartment This key is available in user defined mode and SUPER mode, not available in ECO mode and VACATION mode. Short touching this key to select fridge temperature.

FREEZER

: Temperature control of freezer compartment This key is available in user defined mode and VACATION mode, not available in SUPER mode and ECO mode. Short touching this key to select freezer temperature.

MODE LOCK 3'S

: Running mode select / Locking / Unlocking Keep touching this key for 3s to lock or unlock the control panel. In "Unlocking" status, short touching this key to select running mode (ECO mode / VACATION mode / SUPER mode / user defined mode).

1.2 Display(1&2)

1) Setting temperature display of fridge compartment This area will display setting temperature of fridge compartment. If E0,E1,E2,E3,E5 displays in this area, please call service.
2) Setting temperature display of freezer compartment This area will display setting temperature of freezer compartment.

1.3 Indicators(3&4&5&6)

3) ECO mode indicator This light is on when ECO mode is selected.
4) VACATION mode indicator This light is on when VACATION mode is selected.
5) SUPER mode indicator This light is on when SUPER mode is selected.
6) Locking / Unlocking indicator This light is on when control panel is locked.

5

2 Illustion of the key

2.1 Operation and display

• Control panel will be 100% lit up for 3s, which operates exactly as per the setting before the power off. After that, operations are available.
• Before your operation, make sure the control panel is in unlocking status.
• In locking status, locking indicator will flash for 3s when you short touching any operation key, but operations are not available.
  • Control panel will be locked 25s after the last operation.
  • Control panel will 100% light off 2 minutes after the last operation.
  • Control panel will be lit up once the door of fridge compartment is opened.
  • Control panel will be lit up once short touching operation keys.
  • There will be a prompt beep for any key operation.

2.2 Temperature setting of fridge compartment

• In user defined mode or SUPER mode, short touch FRIDGE key consecutively, setting temperature of firdge compartment will display in a circle from 2°C to 8°C.
• Setting temperature will be confirmed after 5s of flashing of the indicator.

2.3 Temperature setting of freezer compartment

• In user defined mode, short touching FREEZER consecutively, setting temperature of firdge compartment will display in a circle from -14°C to -22°C.
• Setting temperature will be confirmed after 5s of flashing of the indicator.

2.4 Temperature setting recommendation

Temperature setting recommendation
Environment Temperature	Fridge Compartment	Freezer Compartment
SummerNormalWinter

2.5 Temperature control of fresh zone

• Temperature of the fresh can be adjusted according to the type of storage food.
- Push the knob upward from the bottom, temperature in the fresh zone will be gradually decreased.
- When the knob is placed at the "CRISPER" position, the fresh zone can be functioned as a crisper

zone and maintain the appropriate temperature and humidity for the fruits and vegetables

• When the knob is placed at the "FRESH" position, it is suitable for short-term storage of fish and other fresh food. The food will keep fresh but the frozen which makes it the best choice for storing fresh food.
• Tips: When you choose "FRESH" function, it is recommended to set the refrigerator temperature below 4^ and preserved lead-time no more than 3 days, in order to keep the best freshness.

FRESH CONVERTER FRESH CRISPER

2.6 ECO mode

Activate ECO mode:

- Short touching MODE LOCK 378 key conse cutively,when ECO (ECO mode indicator) is lit up, ECO mode is selected.

• After 5s of flashing of ECO mode indicator, ECO mode will be activated.
- When ECO mode is activated, fridge / freezer temperature will be set automatically in a temperature according to environment temperature.
- In ECO mode, if you set fridge or freezer temperature by manual, ECO mode indicator will flash for 3s, fridge and freezer temperature setting operations are not workable.

Quit from ECO mode:

- Short touch MODE key, when ECO mode indicator is light off, the appliance quits from ECO mode.

2.7 VACATION mode

Activate VACATION mode:

• Short touching MODE KEY key consecutively, when (VACATION mode indicator) is lit up, VACATION mode is selected.
• After 5s of flashing of VACATION mode indicator, VACATION mode will be activated.
• When VACATION mode is activated, fridge temperature will be set automatically to 17°C, setting temperature of freezer compartment is available.
• In VACATION mode, if you set fridge temperature by manual, VACATION mode indicator will flash for 3s, fridge temperature setting operation is not workable.

Quit from VACATION mode:

- Short touch MODE key, when VACATION mode indicator is light off, the appliance quits from mode.

2.8 SUPER mode

It is advisable to set SUPER mode 24 hours ahead, if lots of foods need to be frozen in one time.

Activate SUPER mode:

• Short touching MODE KEY key consecutively,when (SUPER mode indicator) is lit up, SUPER mode is selected.
• After 5s of flashing of SUPER mode indicator, SUPER mode will be activated.
• When SUPER mode is activated, freezer temperature will be set automatically to -25^ , setting temperature of fridge compartment is available.
• In SUPER mode, if you set freezer temperature by manual, SUPER mode indicator will flash for 3s, freezer temperature setting operation is not workable.

Quit from SUPER mode:

- Short touch MODE LUCK 95 key, when SUPER mode indicator is light off, the appliance quits from SUPER mode.

WARNING !!!

In SUPER mode, the appliance will keep running under heavy load, noise level will be slightly higher than normal condition.

2.9 User defined mode

• Short touch MODE KEY key until ECO mode indicator / VACATION mode indicator / SUPER mode indicator are all light off, user defined mode is activated.
• In user defined mode, users can set fridge temperature and freezer temperature by manual.

2.10 Door opening alarm function

If fridge door keeps open for 60s, door opening alarm will arise.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Fridge food

Position different food in different compartments according to be below table

Refridgerator compartments	Type of food	Storage time
Door or balconies of fridge compartment	Food with natural preservatives, such jams, juices, drinks, condiments.Do not store perishable foods.	3 days
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in the refrigerator.	1 week
Fridge shelf - middle	Dairy products, eggs	1 week
Fridge shelf - top	Foods that do not need cooking, such as ready-to-eat food, deli meats, leftovers.	1 week

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

- Place the fresh food to be frozen in the bottom compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 month
Non-oily fish, shellfish, pizza, scones and muffins	3 month
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 month
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 month
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 month

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories Movable shelves

The wall of the refrigerator are equipped with a series of runners so that the shelves Can be positioned as desired.

Positioning the door balconies

Door balconies can be disassembled for cleaning. To make the disassembling as follows: gradually pull the balcony in the direction of the arrows until it comes free, after cleaning, reposition it.

Line drawing of a hand holding a shelf with a tray (no text or symbols)

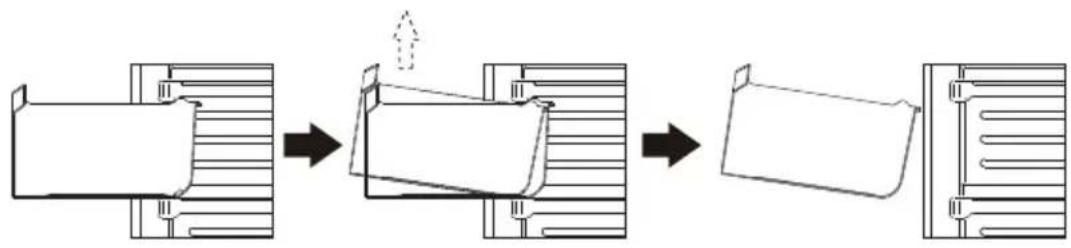

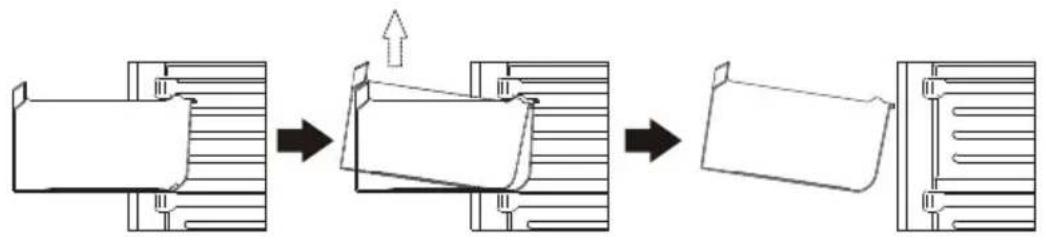

Disassemble the bottom drawer

1. Pull out the bottom drawer to stopper position.
2. Lift up the front of drawer.
   3.Pull out the bottom drawer.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
the freezing process takes 24 hours. No further food to be frozen should be added during this period;
-only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required:
- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
- lean foods store better and longer than fatty ones; salt reduces the storage life of food;
water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

Do not store warm food or evaporating liquids in the refrigerator

- Do cover or wrap the food, particularly if it has a strong flavour

Hints for refrigeration

Useful hints:

- Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most.

•Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.

-Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

-butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.

- Milk bottle: these should have a cap and should be stored in the balconies on the door.

- Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

- Do not allow such substances to come into contact the appliance parts.

- Do not use any abrasive cleaners

-Remove the food from the freezer. Store them in a cool place, well covered.

- Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.

- Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.

After everything is dry place appliance back into service.

LED light replacement

LED lighting source

Replaceable by professional

Warning: the LED light must not be replaced by the user!

If the LED light is damaged, contact an authorized service representative for repairing.

The product contains a light source of energy efficiency class G.

COLDEST ZONE IN THE REFRIGERATOR

This symbol indicates the location of the coldest zone of the refrigerator,

To ensure the temperatures in this area, do not change the positioning of the shelf.

TEMPERATURE INDICATOR SETTING

To help you set your refrigerator well, it is equipped with the indicator that will monitor the average temperature in the coldest zone.

WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is some), the for any other use.

CHECKING THE TEMPERATURE IN THE COLDEST ZONE

With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.

When the indicator shows « OK », this means that her mental is well adjusted and the internal temperature correct.

If thandicator of temperature turns WHITE, this means that temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

TROUBLESHOOTING

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulati

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at coldest	Set the knob at other switch on the appliance.
	Mains plug is not plugged in or is ooose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at coldest.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.
Side panels are hot.	It's normal. Heat exchange parts are in the sides.	Take gloves to touch sides if needed.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

General information cooling
Supplier's name or trade mark: VEDETTE
Supplier'saddress:BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France
Model Identifier: VFC320BX
Type of refrigerating appliance
Low-noise appliance: no Design type:		Free standing
Wine storage a pplance: no Other refrigerating appliance: Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimeter)	Height	1850	Total volume (dm3 or l)Width		323
		600
	Depth	685
EEI Energy Efficiency Class		51			B
Airborne acoustical noise emissions (dB(A) re1pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		127	Climate class		SN/N/ST/T
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		43
Winter setting No
Comportment Parameters:
Comportment type		Comportment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (Kg/24h)	Defrosting type (outodefrost =A, manual defrost =M)
Pantry	no	-	-	-	-
Wine storage	no	-	-	-	-
Cellar	no	-	-	-	-
Fresh food	yes	219	4	-	A
Chill	no	-	-	-	-

TECHNICAL SPECIFICATION

Comportment type		Comportment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (Kg/24h)	Defrosting type (outodefrost =A, manual defrost =M)
0-star or ice no - - - -
1-star no - - - -
2-star no - - - -
3-star no - - - -
4-star yes -18		104 6.4			A
2-star section non no - - - -
Variable temperature - - - -
For 4-star compartment:
Fast freeze facility :		yes
Light source parameters:
Type of light source LED
Energy efficiency class		G
Minimum duration of the guarantee offered by the manufacturer: 24 Months
Additional information: N/A
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

TECHNICAL SPECIFICATION

Reference:	VFC320BX
Rated voltage: 220-240V~
Ampere:	1.3A
Rated frequency 5	0Hz
Climate class: SN,N,ST,T
Refrigerant:	R600a(52g)
Protection against electrical shock: I
Insulation foam: CYCLOPENTANE

Climate class:

• Extended temperate(SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

Note:

· In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of of conformity of 2 years.
· Duration of availability of spare parts: 10 years.
- To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97, from Monday to Saturday from 8:00 am to 8:00 pm (local call price).

LE TRI + FACILE BAC DE TRI
