USER MANUAL VFD330NFEW VEDETTE

Simple line drawing of a refrigerator with two legs and a front panel (no text or symbols)

VFD330NFEW

Table des matières

CONSIGNES DE SÉCURITÉ -1-

DESCRIPTION DE L'APPAREIL -9-

INSTALLATION -10-

UTILISER LE PANNEAU DE CONTROLE -15-

USAGE QUOTIDIEN -17-

ZONE LA PLUS FROIDE DU REFRIGERATEUR -22-

DÉPANNAGE -24-

CARACTÉRISTIQUES TECHNIQUES -25-

PROTECTION DE L'ENVIRONNEMENT -28-

Simple line drawing of a mechanical component or bracket with no text or symbols

Simple line drawing of a person standing on a pole with a diagonal line extending from the base (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Simple line drawing of a cabinet or enclosure with a hanging switch and a circular inset showing three small objects (no text or symbols)

INSTALLATION

Simple line drawing of a 3D rectangular frame with a curved top edge and a small circular symbol at the top (no text or labels)

Pure mechanical diagram showing two symmetrical components with circular holes and connecting lines, no text or symbols present.

Technical line drawings of a mechanical device with two views: top shows front view, bottom shows side view (no text or symbols)

unscrew turn over screw

Technical line drawings of a mechanical device with two views: top shows front view, bottom shows side view (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a person standing on a ladder with a ladder extending upward (no text or symbols)

Simple line drawing of a corner joint with a small bracket (no text or symbols)

Simple line drawing of a right angle with a small rectangular object on the side (no text or symbols)

Simple line drawing of a closed book with arrows indicating rotation around it (no text or symbols)

Emplacement

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

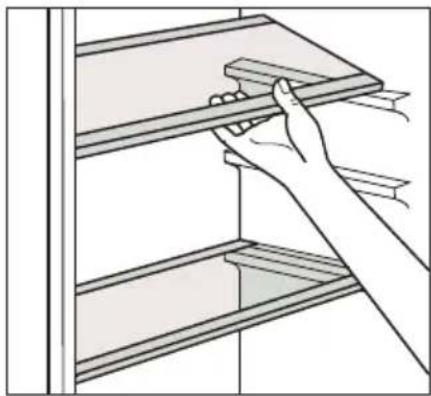

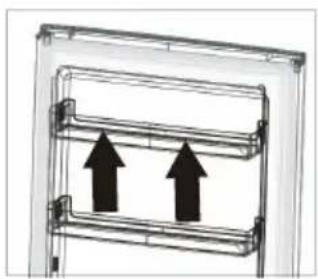

Line drawing of a hand holding a shelf with a handle, no text or symbols present

Diagram of a mechanical or electrical component with two upward-pointing arrows, no text or symbols present.

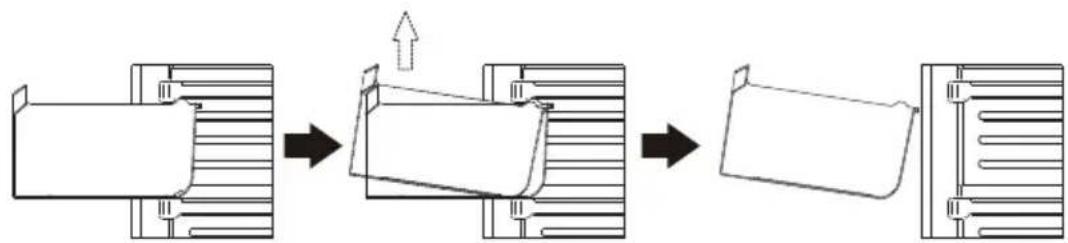


Conseils et astuces

Simple black-and-white warning symbol with exclamation mark and thermometer (no text)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

CORRECT DISPOSAL OF THIS PRODUCT - 27 -

This product is for household use only!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

SAFETY INFORMATION

When using an electrical appliance, basic precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
6. WARNING: Do not damage the refrigerant circuit.

SAFETY INFORMATION

1. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
2. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

3. This appliance is intended to be used in household and similar applications such as:

4. staff kitchen areas in shops, offices and other working environments;

5. farmhouses and by clients in hotels, motels and other residential type environments;
6. bed and breakfast type environments;
7. catering and similar non-retail applications.
8. Placed the appliance against a wall with a free distance not exceeding 75 mm and more than 50 mm.
9. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
10. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
11. To avoid contamination of food, please respect the following instructions:
12. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
13. Clean regularly surfaces that can come in contact with food and accessible drainage systems.
14. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

SAFETY INFORMATION

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1. Unplug the appliance from outlet when not in use, before putting on or taking off parts, before cleaning.

2. Make sure to place the plug all the way into socket when connecting your appliance.

3. Insert the plug into a single grounded socket.

4. Never use the appliance in place where combustible and inflammable materials are kept.

5. For safety reason, be sure to repair or replace parts at an authorized service dealer.

6. The motor is permanently lubricated and will require no oil.

7. The appliance must be positioned so that the plug is accessible.

8. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

9. Ensure the refrigerator is unplugged before cleaning or if the product is not in use.

SAFETY INFORMATION

1. To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.
2. It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
3. Do not place hot food or drink into the refrigerator before it cools down to room temperature.
4. Close the door immediately after putting in any items so the inside temperature will not rise dramatically.
5. Keep appliance away from any heat source or direct sunlight.
6. To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.
7. Do not place any other appliance on top of the refrigerator, and do not wet it.
8. To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water.
9. Do not use outdoors or in wet conditions.
10. Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
11. Keep the cord away from heated surfaces.

SAFETY INFORMATION

1. Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this Product.

2. Connect your refrigerator to an independent electrical socket and use a safe ground wire.

3. When the frost in freezer is removed, or when there is no electricity or when refrigerator ceases to be used, it should be cleaned in order to prevent it from smelling.

4. Defrost the freezer at least once a month because too much frost may affect refrigeration.

5. Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

6. Children should be supervised to ensure that they do not play with the appliance.

7. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

8. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

9. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

SAFETY INFORMATION

1. Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. Old refrigerators can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

2. ⚠️ WARNING! Risk of fire-flammable material. Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance.

3. This refrigerating appliance is not intended to be used as a built-in appliance.

4. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

5. Regarding the instructions for cleaning and maintenance, thanks to refer to the below paragraph of the manual.

6. If the refrigerant circuit is damaged:

- Avoid naked flames and sources of ignition. - Thoroughly ventilate the room in which the appliance is situated.

1. If you are discarding an old freezer or refrigerator with a lock /catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.

SAFETY INFORMATION

1. Do not insert oversized food as this could cause incorrect operation.

2. Extreme caution must be used when moving the appliance.

3. Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause "freezer burns" on the lips.

4. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

5. For installation and handling information, refer to the following sections.

6. Regarding the details for safe storage of food, installation and maintenance, Please refer to the relevant sections of the manual.

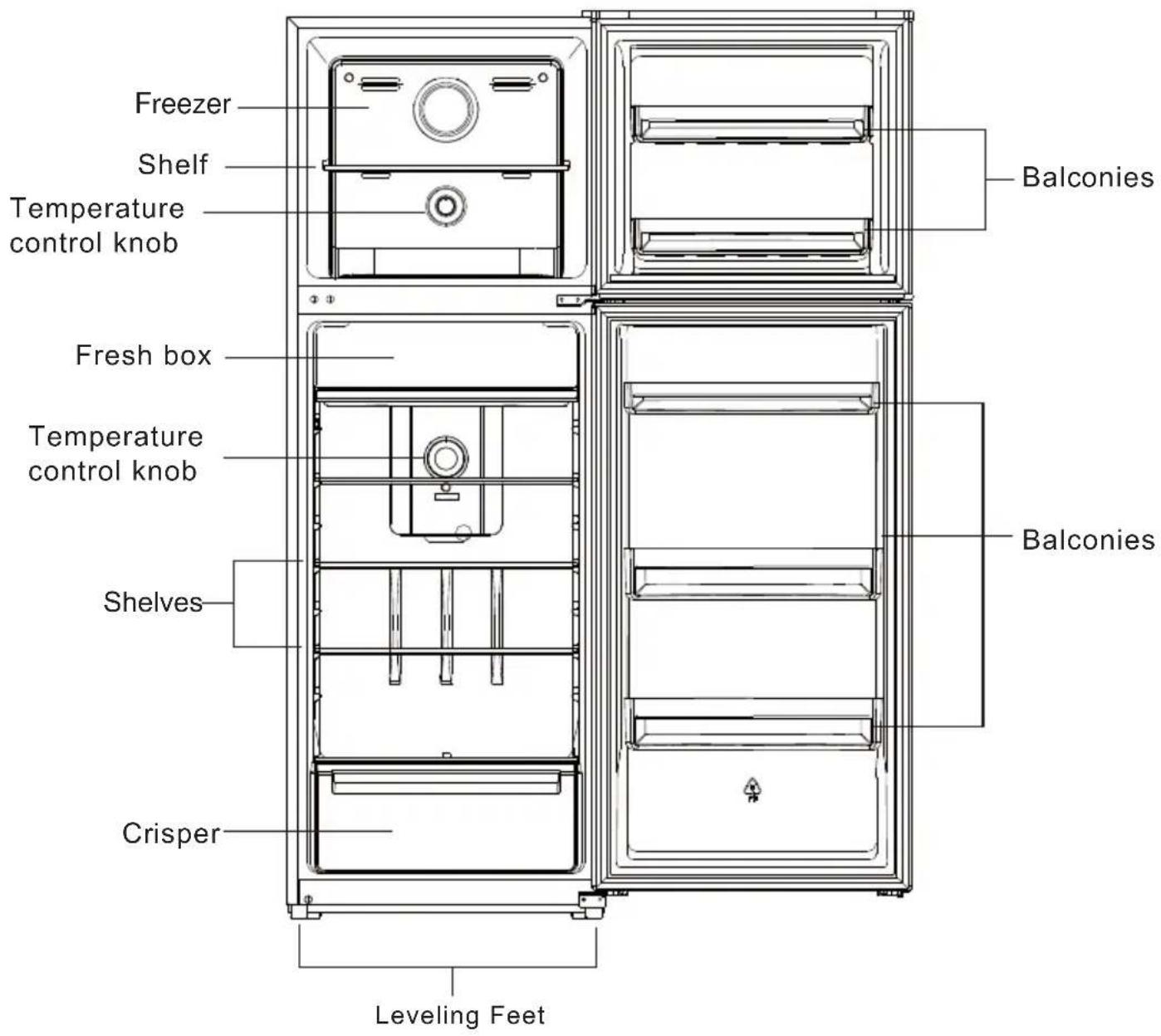

Freezer Shelf Temperature control knob Balconies Fresh box Temperature control knob Balconies Shelves Crisper Leveling Feet

1. Above picture is for reference only. Real appliance probably is different.
2. Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open easily;
• Select a location with level (or nearly level) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Keep at lest 50mm gap at two sides and back.

Location

The appliance should be installed well away from source of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall unit. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

The refrigerator appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be earsily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

INSTALLATION

Door Reversibility

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and em p ty.
  • To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door removing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

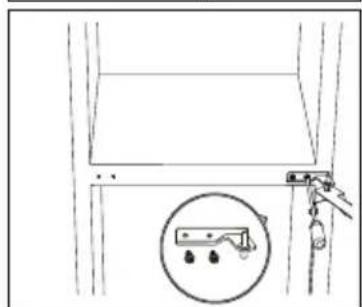

• Unscrew top hinge cover and then unscrew the top hinge. Then lift upper door and place it on a soft pad to avoid scratch and damage.

Simple line drawing of a corner-mounted device with a diagonal line (no text or symbols)

Simple line drawing of a person standing on a pole with a diagonal line extending from it (no text or symbols)

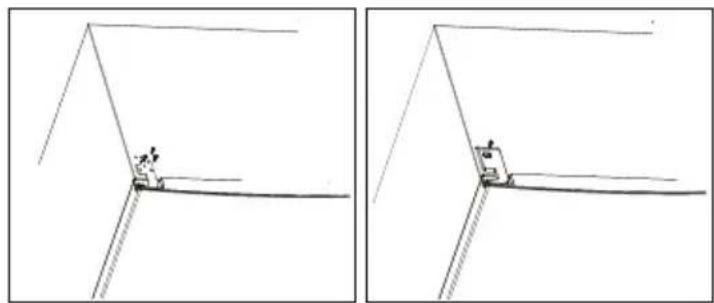

1. Remove the pin with a screwdriver and flip the hinge bracket. Then refit the pin to hinge bracket.

2. Remove the top left screw cover.

3. Unscrew middle hinge.

180°

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Simple line drawing of a cabinet or enclosure with a hanging handle and a circular inset showing a device (no text or symbols)

INSTALLATION

1. Move shaft sleeve and pin hole plug from left to right side.

Simple line drawing of a 3D rectangular frame with a curved top edge and a small circular symbol at the top (no text or labels)

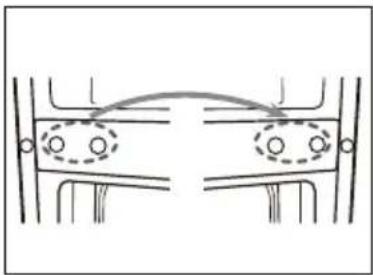

1. Move the hinge hole covers from left side to right side.

Pure mechanical diagram showing two symmetrical components with circular holes, no text or symbols present

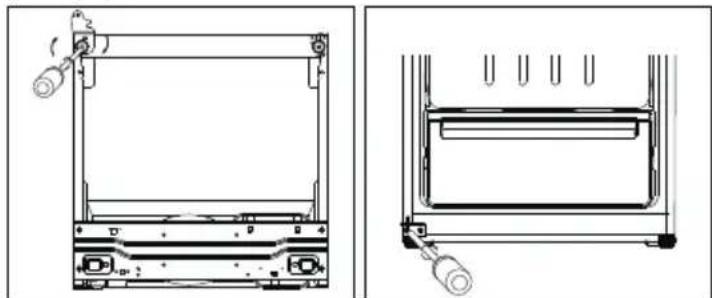

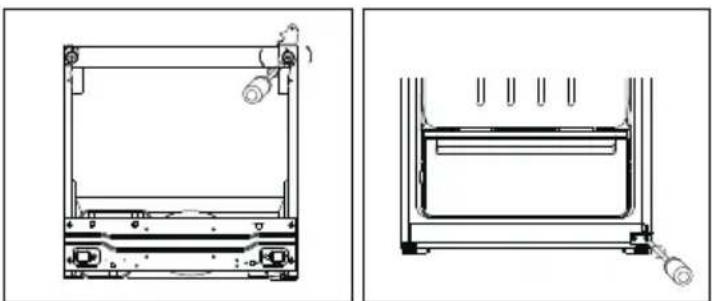

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Technical line drawings of a mechanical device with two views: top shows front view, bottom shows side view (no text or symbols)

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

unscrew turn over screw

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.

Technical line drawing of a mechanical device with two views: top shows front view, bottom shows side view (no text or symbols)

INSTALLATION

1. Make the middle hinge reverse the direction 180^ C , then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door, then tight the bolts.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Place the upper door back on. Ensure the door is aligned horizontally and ver tically so that the seal are closed on all sides before finally tightening the top hinge. Then inert the top hinge and screw it to the top of unit and then fix hinge cover(in accessory bag) by screw.

Two identical line drawings showing a person climbing a slope next to a vehicle, with no text or symbols present.

1. Fix the screw cover.

Simple line drawing of a corner joint with a small rectangular object on one side (no text or symbols)

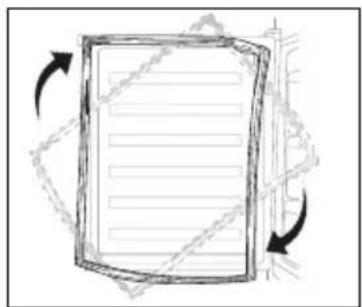

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Diagram of a document with arrows indicating rotational motion (no text or symbols)

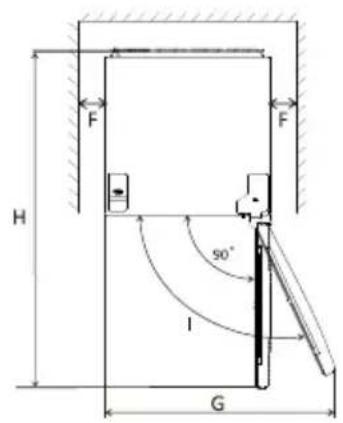

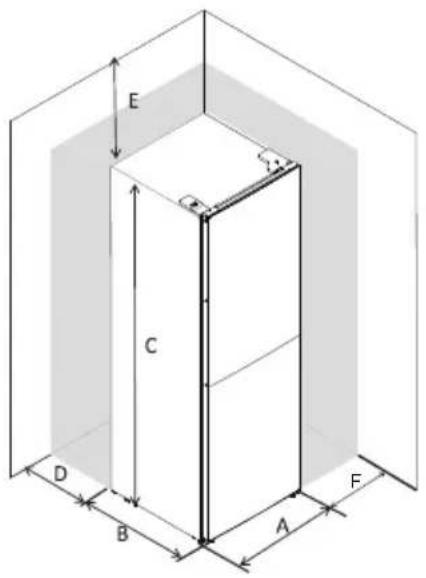

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides and back.

E C D B A F

F F H 90° I G

A	600
B	670
C	1700
D	min=q0
E	min=50
F	□□□min=50
G	□□□6200
H	□□□1270
I	□□□6302

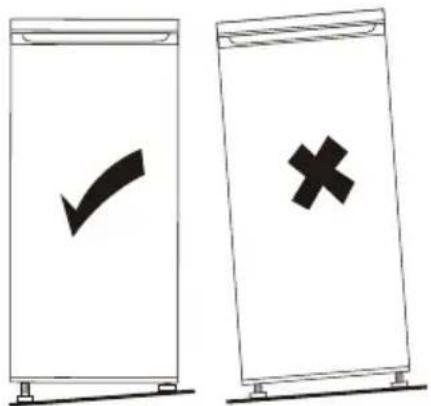

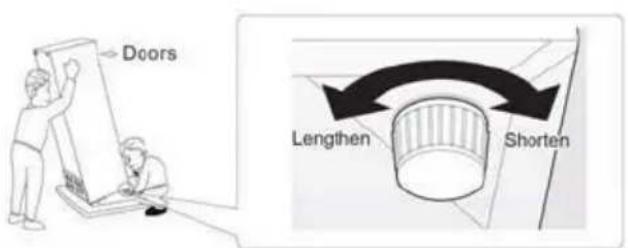

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Doors Lengthen Shorten

Two safety signs: a checkmark and a cross, both pointing at a barrier with base stations.

USING THE CONTROL PANEL

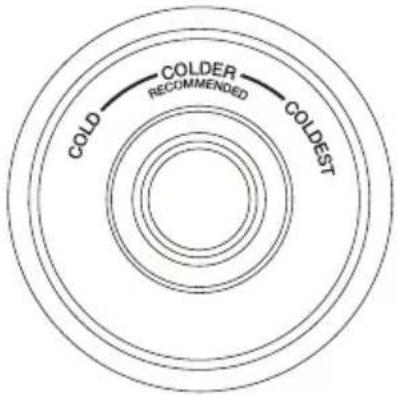

7HP SHUDWXUH&RQWUR0RI WKH) Ueezer&RP SDUWP HQW

- Plug on you appliance. The internal temperature is controlled by a sensor. There are 3 settings COLD, COLDER, and COLDEST. COLD is warmest setting and COLDEST is coldest setting. Under COLDER setting, the temperature could reach -18°C.

- The appliance may not operate at the correct temperature if it is in a particularly hot or you open the door often.

COLD COLDER RECOMMENDED COLDEST

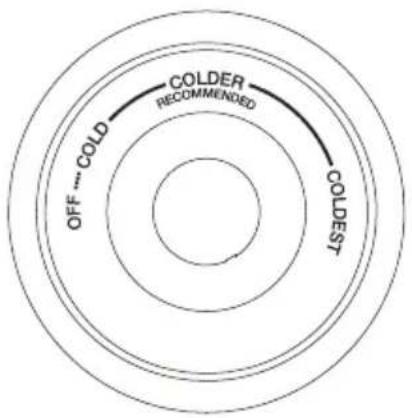

7HP SHUDWXUH&RQWUR0RIWKH) ridge&RP SDUWP HQW

• Plug on you appliance. The internal temperature is controlled by a sensor. There are 4 settings OFF, COLD, COLDER, and COLDEST. COLD is warmest setting and COLDEST is coldest setting.
• The appliance may not operate at the correct temperature if it is in a particularly hot or you open the door often.
• Neight fridge or freezer compartment works when the setting is OFF.

COLD COLDER RECOMMENDED COLEST OFF .... COLD

Temperature Setting Recommendation
Environment Temperature	Freezer Compartment	Fridge Compartment
Summer
	Set on colder~coldest	Set on colder~coldest
Normal
	Set on colder	Set on colder
Winter
	Set on colder~coldest	Set on colder~coldest

• Information above give users recommendation of temperature setting.
- In winter or temperature below 16°C, users should avoid set on coldest.
- For energy saving, the coldest set only apply to special need (such as quick-freezing or ice making), and need turn back after special need.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish.

Fridge food

Storage time of different food in different compartments according to be below table.

Refridgeratar comportments	Type of food	Storage time
Door or balconies of fridge compartment	·Food with natural preservatives, such jams, juices, drinks, condiments.·Do not store perishable foods.	3 days
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.	1 week
Fridge shelf - middle · Fridge shelf	- middle 1 week
Fridge shelf - top	·Foods that do not need cooking, such as ready-to-eat food, deli meats, leftovers	1 week

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment, let the appliance run at least 2 hours on the lowest temperature(cf. page 14).

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whale and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry ar in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

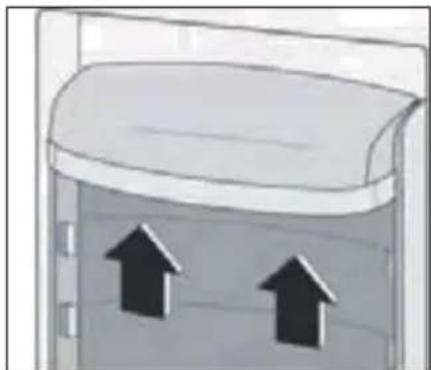

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

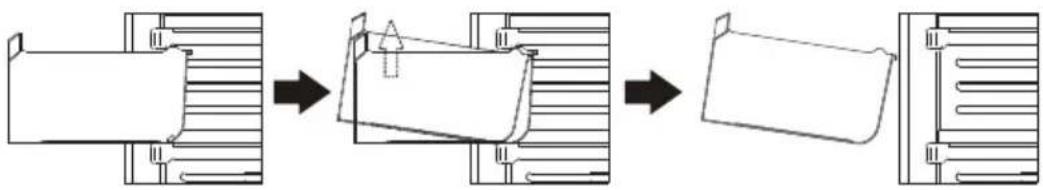

Disassemble the bottom drawer

1. Pull out the bottom drawer to stopper position.
2. Lift up the front of drawer.
3. Pull out the bottom drawer.

Illustration of a hand placing a wooden shelf item on a shelf (no text or symbols)

Simple line drawing of a container with two upward-pointing arrows inside (no text or symbols)

Helpful hints and tips Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate,
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
  • prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight,

DAILY USE

• do not allow fresh, unfrozen food to touch food which 1s already frozen, thus avoiding a rise in temperature of the latter;
- lean foods store better and longer than fatty ones; salt reduces the storage life of food.
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt:
- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer:
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time:
- not open the door frequently or leave it open longer than absolutely necessary;
- once defrosted, food deteriorates rapidly and cannot be refrozen;
- do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator;
• do cover or wrap the food, particularly if it has a storage flavour.

Hints for refrigeration

Useful hints:

• make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer;
  • for safety, store in this way only one or two days at the most;
• cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf;
• fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided;
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible;
• milk bottle: these should have a cap and should be stored in the balconies on the door:
• bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid

• Do not allow such substances to come into contact the appliance parts;
• Do not use any abrasive cleaners;
• Remove the food from the freezer. Store them in a cool place, well covered;
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse;
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry;
  • After everything is dry place appliance back into service

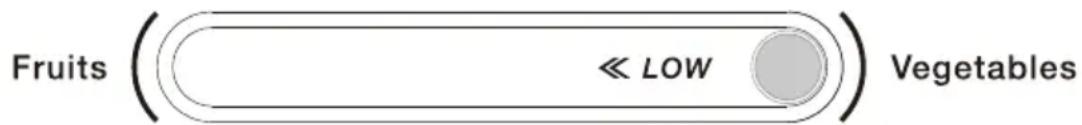

Setting the humidity in the Crisper

• Low humidity: move the regulator to the left
• Hight humidity: move the regulator to the right

Fruits (<< LOW) Vegetables

LED light replacement

LED lighting source Replaceable by professional

Warning: the LED light must not be replaced by the user!

If the LED light is damaged, contact an authorized service representative for repairing.

The product contains a light source of energy efficiency class G.

COLDEST ZONE IN THE REFRIGERATOR

This symbol indicates the location of the coldest zone of the refrigerator,

Pure warning symbol with exclamation mark inside a downward arrow (no text or numbers)

To ensure the temperatures in this area, do not change the positioning of the shelf.

TEMPERATURE INDICATOR SETTING

To help you set your refrigerator well, it is equipped with temperature indicator that will monitor the average temperature in the coldest zone. WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

CHECKING THE TEMPERATURE IN THE COLDEST ZONE

With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, amount of food stored and the frequency of door opening.

Take these factors into consideration when setting the device.

COLDEST ZONE IN THE REFRIGERATOR

When the indicator shows « OK », this means that you thermostat is well adjusted and the internal temperature correct.

OK

Simple black circular outline on a light beige background (no text or symbols)

If the indicator of temperature turns WHITE, this means the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator.

Caution! Before troubleshooting, disconnect the power supply.

Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold.	Turn the temperature regulator to a warmersetting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	Alarge quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting).At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

General information cooling
Supplier's name or trade mark: VEDETTE
Supplier'saddress: BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France
Model Identifier: VFD330NFEW
Type of refrigerating appliance
Low-noise appliance:		No	Design type: Free standing
Wine storage a pplance:		No	Other refrigerating appliance: Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimeter)	Height	1700	Total volume (dm3 or l)		334
	Width	600
	Depth	670
EEI		100	Energy efficiency class		E
Airborne acoustical noise emissions (dB(A) re1pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		225	Climate class		N/ST/T
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		43
Winter setting No
Comportment Parameters:
Comportment type		Comportment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (Kg/24h)	Defrosting type (outodefrost =A, manual defrost =M)
Pantry no - - - -
Wine storage	no - - - -
Cellar	no - - - -
Fresh food	yes	257.0	4	-	A
Chill	no - - - -
Comportment type		Comportment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (Kg/24h)	Defrosting type (outodefrost =A, manual defrost =M)
0-star or ice no - - - -
1-star no - - - -
2-star no - - - -
3-star no - - - -
4-star yes		77.0	-18	3.6 A
2-star section non no - - - -
Variable temperature - - - -
For 4-star compartment:
Fast freeze facility :		No
Light source parameters:
Type of light source LED
Energy efficiency class		G
Minimum duration of the guarantee offered by the manufacturer: 24 Months
Additional information: N/A
Web link to the manufacturer's website, where the information contained in point 4 Annex II of Regulation (EU) 2019/2019 of the Commission: www.but.fr

Reference: VFD330NFEW
Rated voltage: 220-240V~
Ampere: 1.3A
Defrost power inout:	150W
Rated frequency 50Hz
Climate class: N,ST,T
Refrigerant: R600a(56g)
Protection against electrical shock: I
Insulation foam: CYCLOPENTANE

Climate class:

• Extended temperate(SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

Note:

· In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of of conformity of 2 years.
· Duration of availability of spare parts: 10 years.
- To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97, from Monday to Saturday from 8:00 am to 8:00 pm (local call price).

LE TRI + FACILE BAC DE TRI
