USER MANUAL Elite Pro WAD

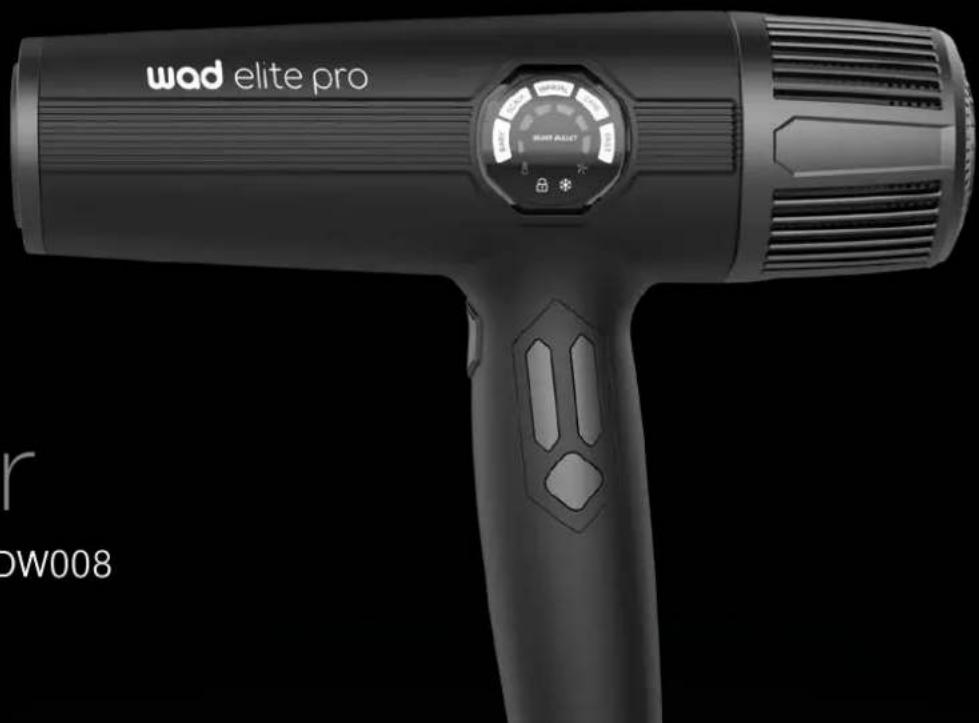

Elite Pro Hair Dryer

USER MANUAL MODEL DW008

(VERSION 202307)

wad elite pro r DW008

04 English
16 Français
28 Deutsch
40 Español
52 Italiano

Line drawing of a hair dryer with no text or symbols

Thank you for purchasing this product

We are sure you will appreciate the care taken in designing and implementing it. We constantly research and combine innovation and technology to create high-quality products. We apply the most advanced methods and use the best materials to always obtain excellent performance. We offer products designed for the most demanding customers who want to achieve excellent results. Read these instructions carefully before using the appliance and keep them for future reference.

Warnings

Please read the following warnings and the rest of the manual carefully before using the appliance.

1. CAUTION: Do not use the dryer near bathtubs, showers, washbasins or other vessels containing water.
2. Do not operate the appliance with wet hands, in a damp environment or on wet surfaces. Do not immerse in water or other liquids. If the appliance falls into water, do not touch the water and unplug it immediately.
3. When the hair dryer is used in a bathroom, unplug it after use, as the proximity of water poses a hazard even when it is switched off.
4. Do not use this electrical appliance if it has been in contacts with liquids, if its power cord is damaged or it is body and/or accessories show clear signs of damage. If the appliance is not working properly, disconnect it immediately from the mains and take it to a service center.
5. If the power cord is damaged, it must be replaced immediately by the manufacturer, an authorised service agent or a qualified professional only.
6. Keep the appliance and its power cord away from heat sources and heat-sensitive surfaces (plastic, vinyl, etc).

IMPORTANT! Failure to observe all these warnings and instructions could result in a short circuit and therefore irreparable damage to the hair dryer, as well as endangering the safety of the user.

Z. Do not hold or grasp the appliance by its power cord: after use, do not wind the cord around the appliance when it is still hot. Do not coil the power cord around the appliance, bend or twist is to prevent damage to the dryer or its operation.
8. Do not use accessories that have been modified or not been approved by the manufacturer.
9. Unplug the appliance when not in use and allow it to cool down before storing it in a sale place. To disconnect the appliance, unplug the power cord from the wall socket.
10. This appliance must only be used for its intended purpose.
11. For additional protection, the installation of a residual current device (RCD) with a nabe residual operating current not exceeding 30 mA in the electrical circuit supplying the bath is recommended. Ask your installer for advice.
12. IMPORTANT CLEANING AND MAINTENANCE OF THE DRYER MUST NOT BE CARRIED OUT BY CHILDREN WITHOUT SUPERVISION. This hair dryer can be used by children aged from 8 years and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the hair dryer.

1. This device is conceived for professional use

Warnings

Please read the following warnings and the rest of the manual carefully before using the appliance.

This symbol indicates that this product should not be treated as normal household waste. Once you have decided to dispose of it, you should take it to be a dedicated collection point for the recycling of electrical appliances. By recycling betterless and electrical appliances correctly we help to prevent health hazards and protect the environment.

I this product is imparably damaged or, for any reason. Its useful life is described to have expired, please inform yourself about local state and European regulations regarding the proper disposal and recycling of products containing lead batteries, plastics and other resources, as well as collection points for these types of products

This symbol indicates that this appliance should not be used near bathbuds, showers, washbasins or other vessels containing water.

This product comples with the CE Marking. You can find the European Declaration of Conformby at the web link wadprofessional.com/wad-elle-pro-hair-dryer-ce.pdf

This manual is available in digital format at wadprofessional.com/wad-elite-pro-hair-dryer-user-manual.pdf

Cleaning and Maintenance

This hair cryer has an innovative system that prevents hair from coming into contact with the motor parts.

Keep your appliance in good condition to ensure the best performance and prolong to service life.

Before cleaning, unplug to from the socks and web until to cools down • Periodsally remove dust and hair from the unit

- To remove the rear filter, hold the dryer by the handle and turn the rear cover (filter holder) anticlockwise. Clean the gracing with a brush and a wee cloth. - Remove the internal filter. Clean is with a damp cloth or spongs. Make sure it is completely dry before replacing it.

- Clean the body of the cryer with a damp cloth or sponge.

A hair dryer that is maintained daily in good condition lasts much longer than one that is not cared for. This is especially important if hair dryer has a brushless motor, which is the case.

Close-up of a black cylindrical object with ventilation grilles and a circular emblem (no visible text or symbols)

Technical specifications Hair Dryer ELITE PRO (MOD)

Voltage: 220-240 V

Frequency 50:60 Hz

Power 2000-2400 W

- Weight 435 g (without power cord)

- Business motor (diameter: 40 mm)

Verlun effect

Iank

- 2 nozzles and diffuser

- Memory function

- Microfiber

- 5 speed and 4 temperature settings - cool shot

5 operation modes

- Salt-clean system

- CHS, mbar 701000 +/- 3,000 RPM speed 1.56100 +/- 3,000 rpm speed

2 65.000 / 3.000 rpm, speed 8 70.000 / 3.000 rpm

Noiseless 30 cm < 87 dB

Extrelong livespan 2000 hours

Airflow > 0.5 m3 x min

Arion generator (20 cm) > 6,000,000 tons/ml

Worldsell S.L. · C/ de la Mora 22 · 08918 Badalona, Spain

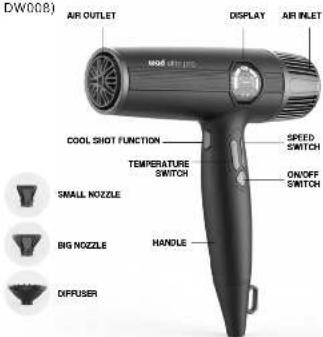

DW008 AIR OUTLET DISPLAY AIR INLET COOL SHOT FUNCTION SPEED SWITCH TEMPERATURE SWITCH ON/OFF SWITCH SMALL NOZZLE HANDLE BIG NOZZLE DIFFUSER

Instructions of use

1 Make sure that the device, your hands and the working area is dry.
2 Bug the device into a power supply at 220-240V.
3 Press the ON/OFF switch during a second and the device will start working. As the same time the display will light up. Once the display has been totally lit up during a second, only the working mode that has been selected will be lit up.
4 When the dryer is burned on for the first time, the selected mode by default is CAHE and the speed level is the first, one
5 Once you press the start switch √ again, the device will stop. If you do not use it for a long period, unplug it from the power supply.
6 Once you use it again, the mode you were using when the device was turned off will be the one set up by default as the device has a mode memory function.
7 When the dryer is on press the ON/OFF switch to select the mode you wish BABY - SCALP - MANUAL - CARE - FAST.

Close-up of a black and white hair dryer with control panel and handle (no visible text or symbols)

Instructions of use

The temperature for each mode is FAST 95 degrees, CARE 75 degrees, SCALP 95 degrees and BABY 40 degrees. With the FAST mode, if you use the small mode, you reach 105 degrees if you use the big one your such 95 degrees and 65 degrees if you use the diffuser. When using the mode BABY, SCALP, CARE or FAST, you will be able to adjust speed level but the temperature will always be the one that is set up for this mode.

NOTE: temperature can only be adjusted in the MANUAL mode.

10 Press the cold air switch and the device will switch into cold air mode. You will see on the display the snow symbol and the temperature symbol will disappear. If you press again the cold air, the snow symbol will disappear from the display and the temperature symbol will appear again. You can switch it into cold air mode at any mode or temperature you are using.

Press the speed switch to increase it. The dryer will adjust the speed into levels 1,2 or 3. If you keep pressing the switch once you have reached the highest level the speed will start to be lower into 3,2,1 in this order. When you reach again the first level a blue light will burn on, when you reach the second level there will be two lights and three if you reach the third level

Press the temperature switch to increase b from 0 to 1, 2, 3 or 4. When the temperature is at the highest level, press the switch to decrease b up to 3, 2, 1, 0.

Venturi Effect

The air outlet has been designed to multiply the air flow provided by the engine. The additional airflow is produced, without using more energy by the vacuum effect.

Self-cleaning function

Plug the turned-off device into the power supply and press the lower side of the temperature switch and the lower side of the speed switch at the same time during 3 seconds and the device will start the self-cleaning function. This mode works with the motor in reverse at highest speed during 10 seconds. After this time, you can activate it again if it is necessary.

Illustration of a black hair dryer emitting airlines (no text or symbols)

VERY IMPORTANT: The air filter needs to be cleaned so that the hair dryer works properly and its lifespan is not reduced. It is a brushless motor, as it is the case, the fiber cleaning is completely essential.

During the daily operation, the products, the hairpray and the suspended particles get the filter drag. The upmarket performances as well as los lifespan may be seriously affected if the filter is not clean enough. You need to daily clean the filter and the air input sponge end also activate the self-cleaning function. Prevent any substance from entering the device during the filter cleaning process.

Note: the self-cleaning function works three times when the dryer is plugged or when it starts working.

Voltage protection mode

The low voltage protection value is around 160V. If the voltage of the power supply is lower, the device will automatically stop working. The display will show the temperature indicators drinking. When the voltage exceeds the 160V, the hair dryer will work again. The high voltage protection value is around 250V, if the voltage of the power supply is higher, the device will automatically stop working. The display will show the temperature indicators drinking. When the voltage is under 250V, the hair dryer will work again.

Except for the high and low voltage protection modes. The error codes will disappear after three seconds. When the device is in normal condition, it will automatically start working again.

Close-up of a black hair dryer with visible grille and handle (no text or symbols)

Error detection
PROBLEM POSSIBLE ORIGIN POSSIBLE SOLUTION

During the operation we sometimes know what and some time is done to work.	The play might be known. The work output might be blocked to another or two hands if damaged.	Property play the air diger. For not, block the air init.
The ON/OFF action does not work.	ON/OFF action that internal component is damaged.	Contact the after-sales department.
The display does not work properly or name off.	Circuit board fails. Contact the after sales department.
The play or the power cord are connected.	The power cord is damaged.	Stop using the service immediately. Contact the after-sales department.
	Internal components is damaged. Contact the after sales department.
Air does not come cut when the device is on and there later differ in very lots.	Internal components is damaged. Contact the after-sales department.
	External agents, stock lines are alive.	None sure but live at live is not blocked and use the air order ones is a challenge.
Noise and vibration. Internal components is damaged. Contact the after-sales department.
Products deformation internal component is damaged. Contact the after-sales department.
Burst burning during the use except for the first time.	Internal components is damaged. Contact the after sales department.

In case of facing any other problem not mentioned above, please contact the after-sales department.

Accessories

2 Concentrator nozzles 1 Diffuser

SMALL NOZZLE (83 MM WIDE X 7 MM THICK)

LARGE NOZZLE (93 MM WIDE X 5 MM THICK)

DIFFUSER

Guarantee

This document from Worldsell S.L. is valid as a warranty certificate for the product. All claims must be made to:

Worldsell S.L.

C/ de la Mora 22

08918 Badalona, Spain

The warranty period for manufacturing defects is 6 months from the date of purchase. The warranty does not cover damage resulting from improper use of the product or failure to follow the manufacturer's instructions.

Date of acquisition:

Signature and stamp of the sales outlook
