USER MANUAL Exersaucer Jungle Quest Evenflo

KEEP INSTRUCTIONS FOR FUTURE USE.

Read all instructions BEFORE assembly and use of product.

CONSERVER CES INSTRUCTIONS POUR RÉFÉRENCE ULTÉRIEURE.

Assembling the ExerSaucer 1

Attaching the Toys.... 5

Adjusting the Height 6

Care and Maintenance....6

Limited Warranty 7

Technical illustration of a mechanical flange component (no text or symbols)

Tray

Seat Pad

Seat Ring

Stabilizer Tube (3)

Foot (3)

Pylon (3)

Base

8-16 X 18 mm Screw (12)

8-16 X 75 mm Screw (3)

Wheel (4)

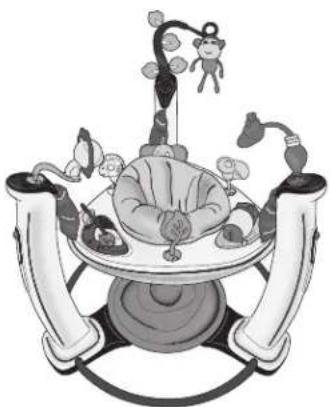

Illustration of a round table with flowers, candles, and a monkey on top (no text or symbols)

(1) Hardware Kit Bag

1 Instructions

3 8-16 x 75 mm Screws

15 8-16 x 18 mm Screws

(1) Toy Kit Bag

6 Bags of Toys

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our on-line registration at

http://plweb.evenflo.com/productreg.aspx

For future reference, record the Model Number and Date of Manufacture below.

Model Number: Date of Manufacture:

WARNING

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

FALL HAZARD!

Babies can FALL from product resulting in head injuries.

• NEVER leave child unattended. Always keep child in view while in product.
• NEVER use near stairs, ranges, space heaters, fireplaces, swimming pools, or anything else that could hurt your child.
• To avoid tip over, place product on a flat, level surface.
  • DO NOT use with children who can walk.
• DO NOT allow baby to stand flat-footed on the base or on the floor.

STRANGULATION HAZARD!

Strings can cause STRANGULATION.

• DO NOT place items with a string around child's neck, such as hood strings or pacifier cords.
• DO NOT suspend strings over product or attach strings to toys.
  For use with children who can hold up head and neck unassisted (at least 4-5 months of age).

DO NOT fill this product with water.
- Read all instructions before assembly and use of the ExerSaucer.
- Keep instructions for future use.
- Keep children away from unassembled product.
- Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and immediately discard packing material before using this product.
- NEVER use ExerSaucer near stairs or steps.
- NEVER use ExerSaucer near ranges, radiators, space heaters, and fireplaces or any other hot surfaces.
- DO NOT adjust height while baby is sitting in ExerSaucer.
- DO NOT use the ExerSaucer if it is damaged, broken, or is missing any parts.
• NEVER use as a sled.
- DO NOT allow child to sleep in ExerSaucer.
- DO NOT spin baby in seat. Only permit baby to rotate the seat.
- For use by children who are at least 4 months old AND can hold up their head and neck unassisted.
- Stop using ExerSaucer when your child reaches any of the following developmental stages:

- Can walk;

- Is over 30" (76 cm) tall;

- Can stand flat-footed in the ExerSaucer in the highest adjustment level;

- Can climb out of the product.

• Allow only the baby's toes to touch the base.
• DO NOT use or store this product outdoors.
  • DO NOT mix old and new batteries.
• DO NOT mix alkaline and standard (carbon-zinc) batteries. Use only batteries of the same or equivalent type.
• DO NOT dispose of batteries in fire, as batteries may explode or leak.
  • DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
• Promptly remove old batteries from the toy.
• Remove batteries before storing unit for a prolonged period of time.

Tools Required

Phillips Screwdriver

CAUTION: Tighten all screws until snug; do not overtighten. Use only screws provided.

DO NOT USE POWER TOOLS.

Assembling the ExerSaucer

Technical diagram showing two views of a mechanical component with labeled parts A and B

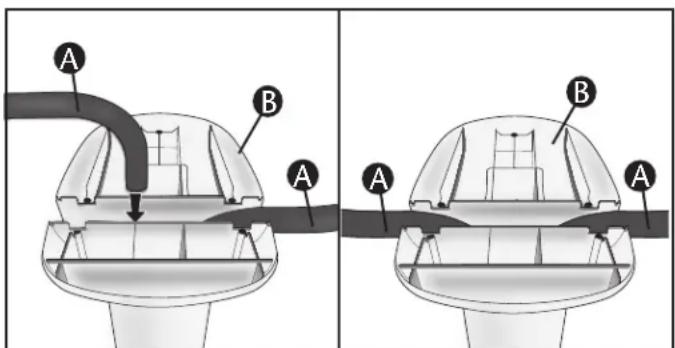

1. Locate two stabilizer tubes Ⓐ and one pylon Ⓑ.

Turn the pylon Ⓑ upside down and insert one end of each stabilizer tube Ⓐ into the bottom of the pylon Ⓑ, as shown. Make sure both stabilizer tubes are fully inserted into the bottom of the pylon.

Technical diagram showing mechanical assembly with labeled parts (A, B, C, D, E) and directional arrows indicating movement or force.

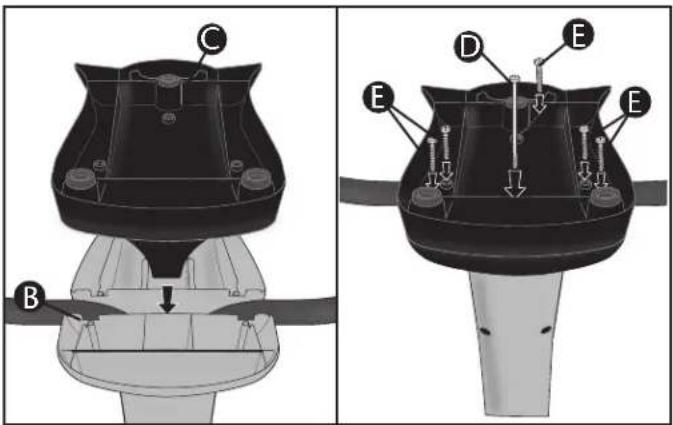

1. Insert a foot Ⓑ into the bottom of the pylon Ⓒ, as shown. Secure with one 8-16 X 75 mm screw Ⓓ and five 8-16 X 18 mm screws Ⓔ. Tighten all five screws securely but do not overtighten. DO NOT USE POWER TOOLS.

IMPORTANT: The foot MUST sit completely flat in the bottom of the pylon. If it is raised on either end, then one of the stabilizer tubes is not installed correctly or is not fully inserted. If this is the case, remove the stabilizer tube and reinstall until the foot fits over it correctly.

Technical diagram of a mechanical device with labeled parts A, B, and C

1. Locate the other two pylons ①. One at a time, turn them upside down and completely insert the end of a stabilizer tube ② in each pylon, as shown. Make sure the stabilizer tubes are fully inserted into the bottom of each pylon.

Technical diagram of a mechanical assembly with labeled parts A and B, showing components like a handle, bracket, and base.

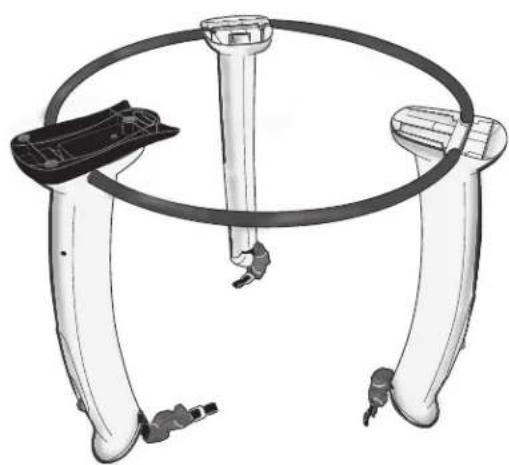

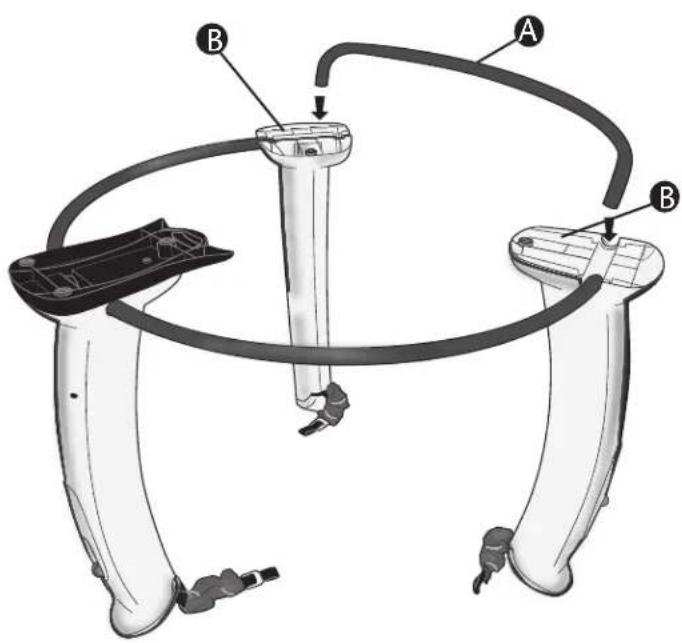

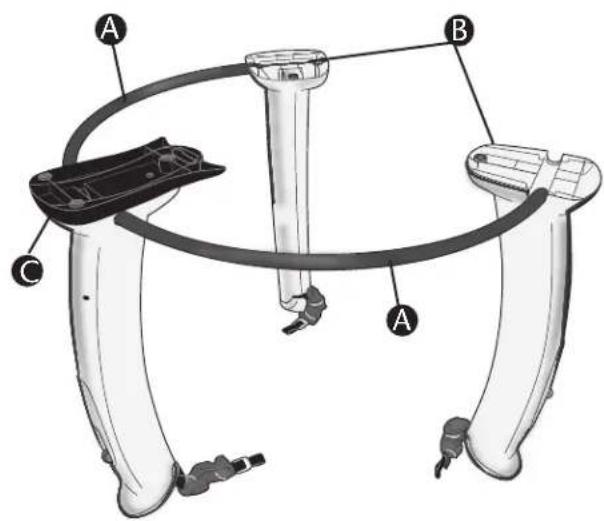

1. Locate the third stabilizer tube A and insert into both pylons B, as shown. Make sure the stabilizer tube is fully inserted into the bottom of each pylon.

Technical line drawing of a circular mechanical device with base and legs, no text or symbols present

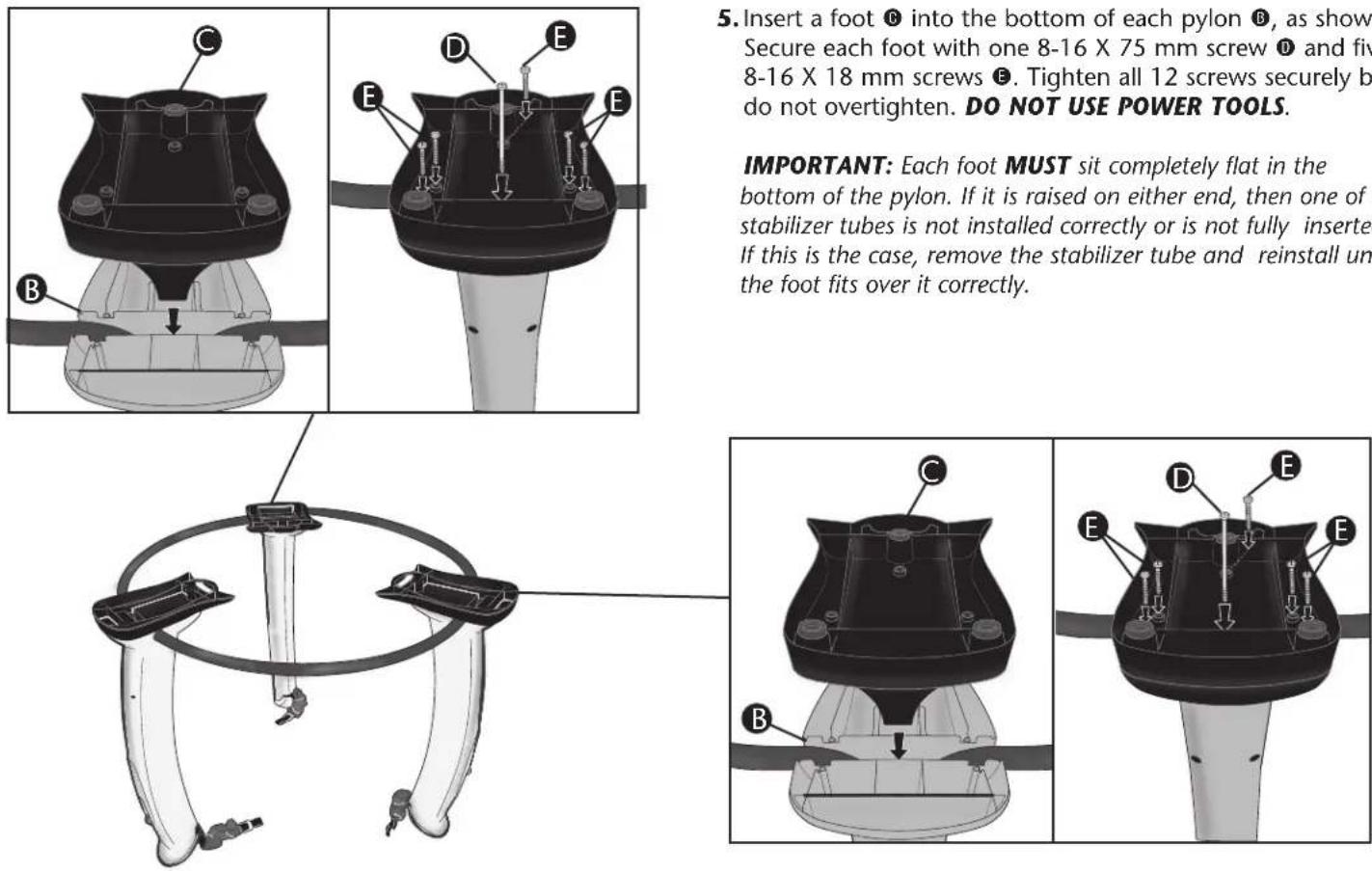

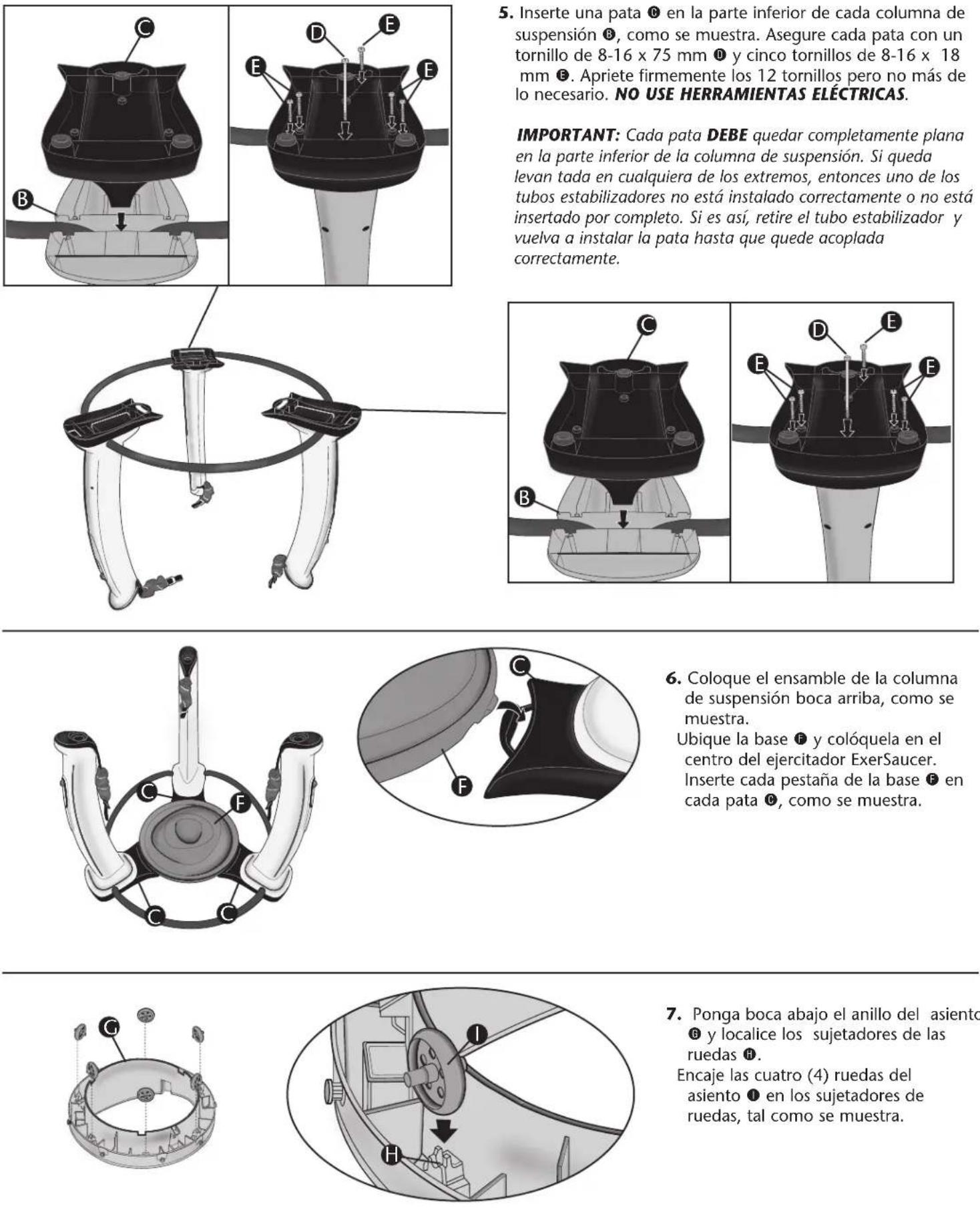

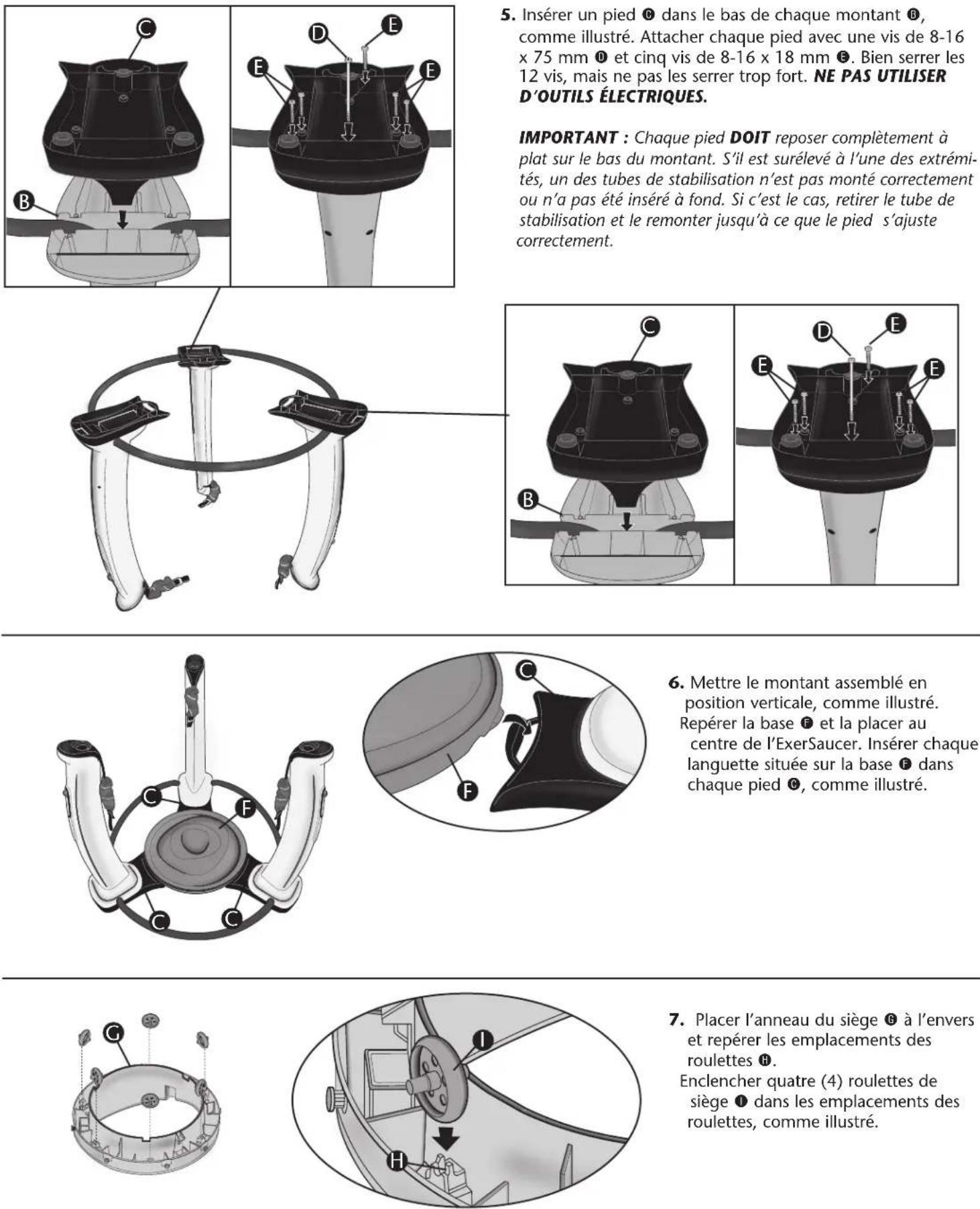

1. Insert a foot Ⓑ into the bottom of each pylon Ⓔ, as shown. Secure each foot with one 8-16 X 75 mm screw Ⓓ and five 8-16 X 18 mm screws Ⓔ. Tighten all 12 screws securely but do not overtighten. DO NOT USE POWER TOOLS.

IMPORTANT: Each foot MUST sit completely flat in the bottom of the pylon. If it is raised on either end, then one of the stabilizer tubes is not installed correctly or is not fully inserted. If this is the case, remove the stabilizer tube and reinstall until the foot fits over it correctly.

Diagram of a mechanical device with labeled parts (C and F), showing a top view and close-up of the internal structure (no text or symbols present)

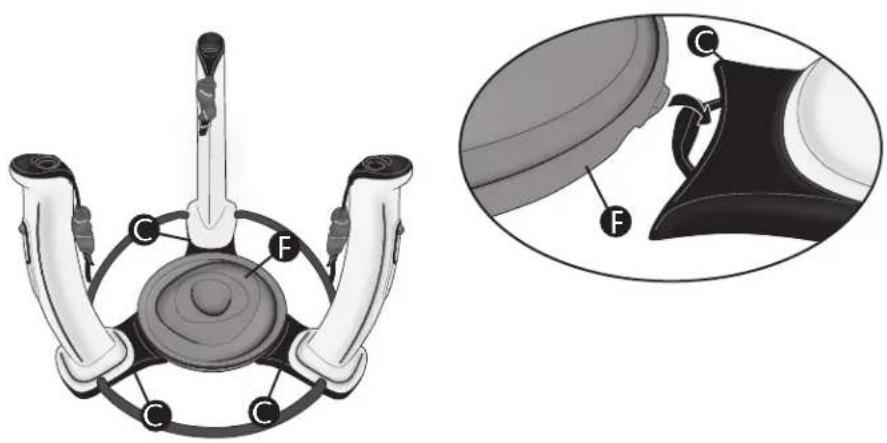

1. Turn the pylon assembly upright, as shown. Locate the base F and place it in the center of the ExerSaucer. Insert each tab on the base F into each foot D, as shown.

Technical diagram showing mechanical assembly with labeled parts and a close-up view of the component.

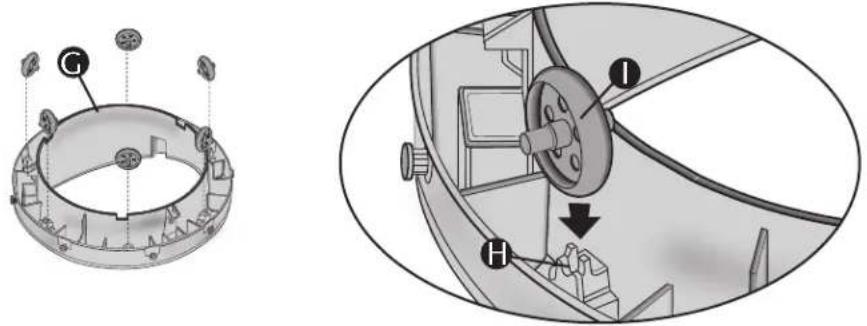

1. Place seat ring ⑥ upside down and locate the wheel holders ①. Snap four seat wheels ① into wheel holders, as shown.

M G K L J K Triangles L

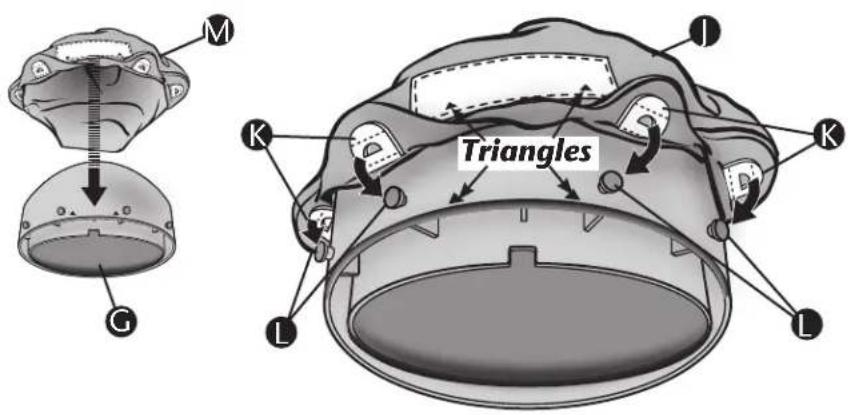

1. Turn seat ring Ⓔ right side up. Align the two triangles on the back of the seat ring with the two triangles on the label on the seat pad ⬆. Snap the plastic tabs ⬆ on the pad over the pegs ⬆ on the seat ring. Continue this process until all tabs are attached to all pegs.

Medical diagram showing a person performing a medical procedure on a device with labeled parts M and N

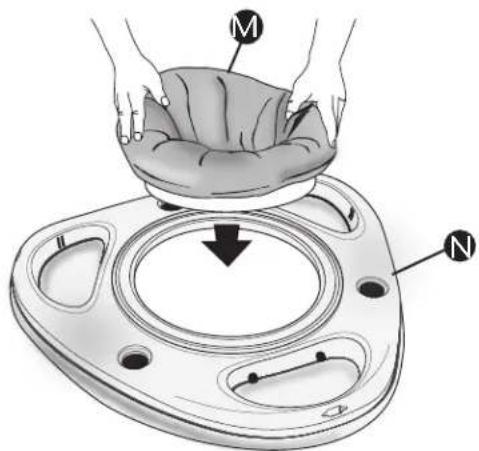

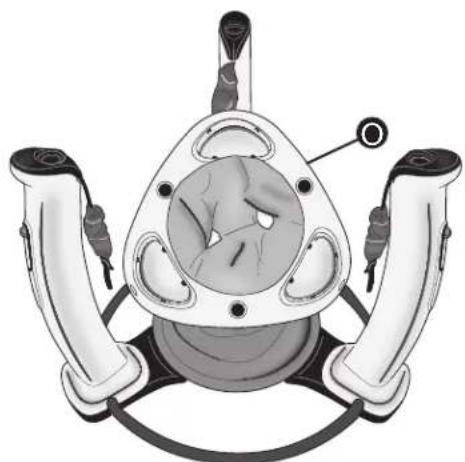

1. Press assembled seat Ⓜ down firmly onto the top of the tray Ⓝ until it snaps into place and spins freely.

Medical illustration of a human head with surgical hardware and a central circular anatomical structure (no text or labels)

1. Lean the tray assembly ① against one of the pylons, as shown.

Technical diagram showing three-step car wheel assembly steps with labeled parts P and Q, including a close-up of the component.

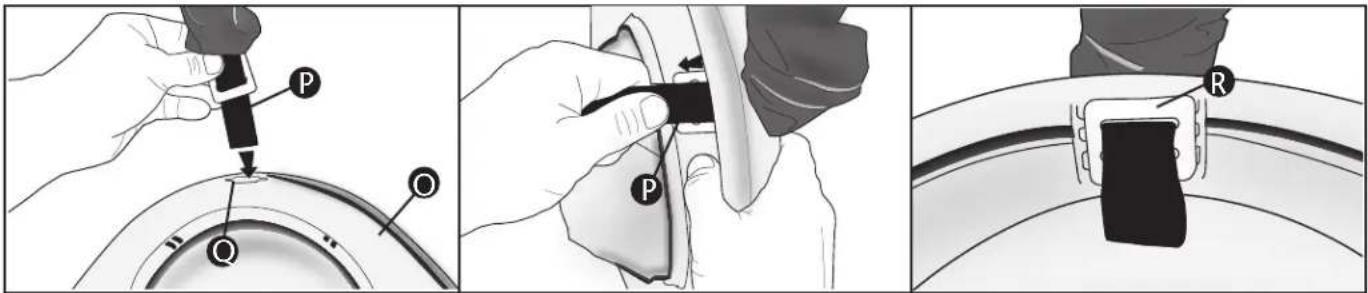

1. Insert a strap P through a strap slot D in the tray D. Pull the strap completely through the tray making sure the strap anchor R lies flat against the bottom of the tray, as shown. Repeat for the other two straps.

WARNING

To prevent injury, make sure all three strap anchors are completely inserted and resting against the bottom of the tray.

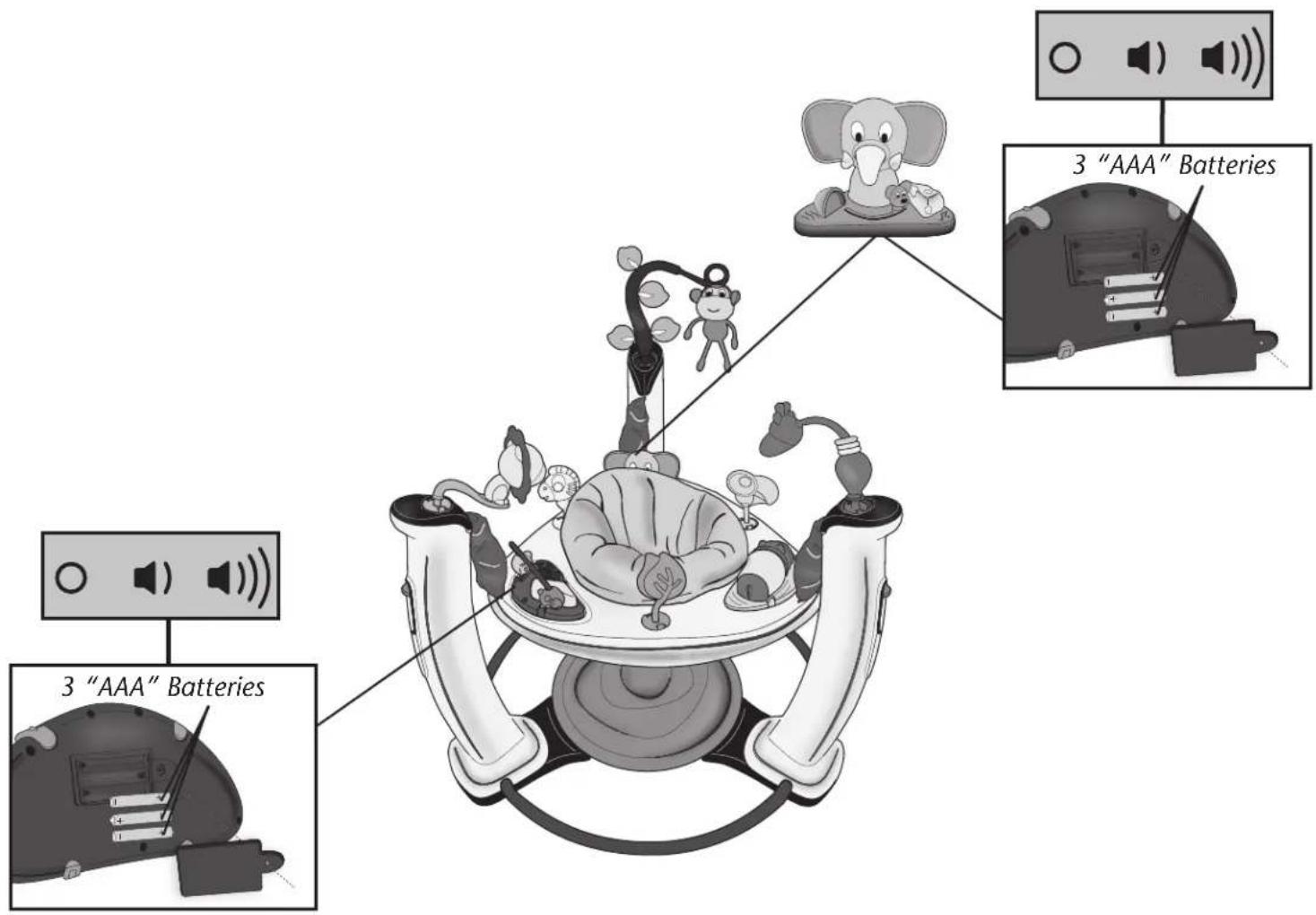

Attaching the Toys

3 "AAA" Batteries 3 "AAA" Batteries

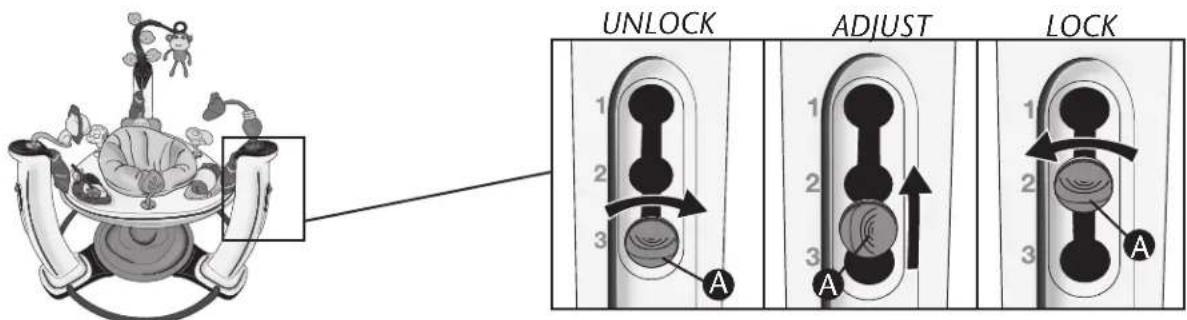

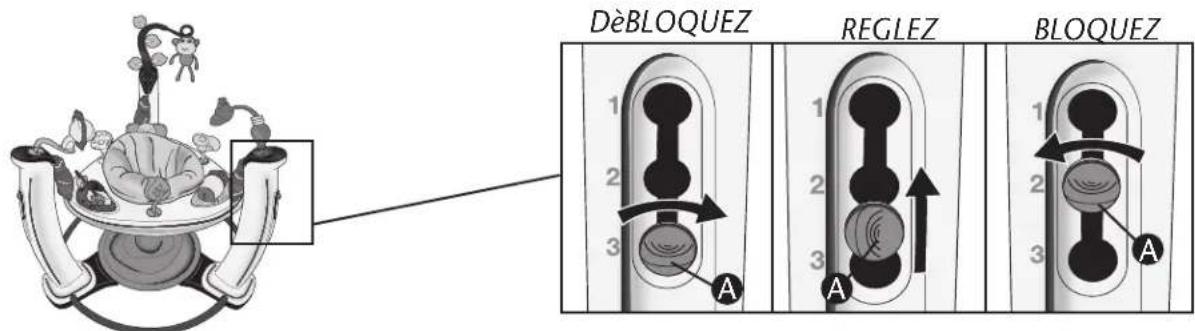

UNLOCK ADJUST LOCK

WARNING

During use, allow the baby's toes only to touch the base. DO NOT allow the baby to stand flat-footed on the base. As baby grows and becomes more active, raise the tray to the next level so that baby enjoys the most comfortable fit and maximum use of the spin, and bounce features. Discontinue use when baby can stand flat-footed at the highest setting.

ALWAYS remove baby from ExerSaucer before adjusting. Unlock the adjustment knob A by turning to the right, then moving until the desired height is obtained (there are three positions). Turn the adjustment knob to the left to lock in place. Repeat the adjustment on the other two pylons. Note: Make sure that all three legs are adjusted to the same position.

IMPORTANT: Always make sure the adjustment knobs are locked in position before placing the child in the activity center.

Care and Maintenance

For Plastic Parts:

Wipe surface clean with cloth slightly moistened with mild soap and water. Allow to air dry.

For Seat Pad:

Machine Wash Separately, Cold Water – Delicate Cycle. NO CHLORINE BLEACH.

Tumble Dry: 10 – 15 Minutes on Low Heat – Remove Immediately.

If musical toys fail to operate, check the batteries. Note: ONLY the AAA batteries are replaceable. Dispose of old batteries safely.

DO NOT use this product if any parts are damaged, broken, or missing and call Evenflo ParentLink at 1-800-233-5921 (U.S.A.), 1-937-773-3971 (Canada), or 01-800-706-12-00 (Mexico).

Battery Information

Battery life varies with use. For best results, use alkaline batteries. Safety Information: Batteries are small objects. Batteries must be replaced by adults. Follow the polarity (+/-) diagram in the battery compartment.

WARNING

• DO NOT mix old and new batteries.
- DO NOT mix alkaline and standard (carbon-zinc) batteries. Use only batteries of the same or equivalent type.
- DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
- Promptly remove old batteries from the toy.
- Remove batteries before storing unit for a prolonged period of time.
- The supply terminals are not to be short-circuited.

Battery Replacement: To replace batteries, loosen screw and remove battery door. Discard old batteries properly and replace with 3 AAA alkaline or standard batteries. Replace door and tighten screw.

Troubleshooting:

Toy does not turn on or does not respond.

• Make sure batteries are installed correctly.
• Make sure battery cover is correctly secured.
  • Install new batteries.

Toy makes improper responses.

- Check or install new batteries.

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at [phone] or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
• This Class B digital apparatus complies with Canadian ICES-003.

ParentLink.

answers. advice. affirmation.™

- www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.

- Canada: 1-937-773-3971 • México: 01-800-706-12-00
