USER MANUAL Exersaucer Sweet Tea Evenflo

exer saucer®

Jumper Sauteuse Brincador

BABY ACTIVE™

KEEP INSTRUCTIONS FOR FUTURE USE.

Read all instructions BEFORE assembly and use of product.

CONSERVER CES INSTRUCTIONS POUR RÉFÉRENCE ULTÉRIOR.

© 2014 EVENFLO COMPANY, INC. 25701242 4/14

Table of Contents

Warnings....1

Assembling the ExerSaucer ^® – Stage 1 (Optional)....1

Assembling the ExerSaucer – Stage 2....2

Attaching the Toys....5

Care and Maintenance....6

Battery Information....6

Limited Warranty....7

For Australian Consumers....7

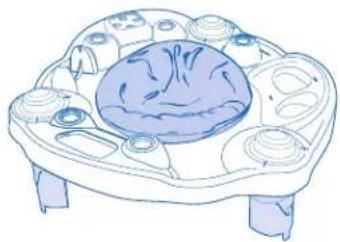

Line drawing of a mechanical component with multiple ports and a central circular feature (no text or symbols)

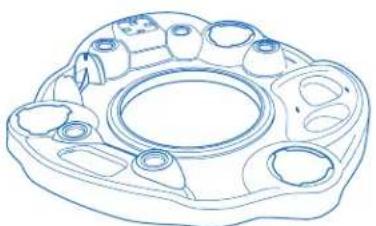

Tray (1)

Top-down architectural sketch of a circular building facade with radial lighting and central circular elements (no text or symbols)

Base (1) Seat Ring (1)

Seat Pad (1)

Simple line drawing of a cylindrical container with a side handle and top rim (no text or symbols)

Upper Leg (3)

Illustration of a cylindrical device with three circular cutouts and four base legs (no text or symbols)

Lower Leg (3)

Toy Kit

*Not Shown.

Toy kit contents vary by model.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at

www.evenflo.com/registerproduct.

For future reference, record the Model Number and Date of Manufacture below.

Model Number: Date of Manufacture:

ParentLink.

answers, advice, affirmation. ^™

• www.evenflo.com • USA: 1-800-233-5921 8 AM - 5 PM E.T.

• Canada: 1-937-773-3971 • México: 01-800-706-12-00

WARNING

TO AVOID INJURY, FOLLOW THESE INSTRUCTIONS IN THE ORDER PRESENTED!

- Do not allow other children to play near the product when it is occupied.

- Read all instructions before assembly and use of product. Keep instructions for future use. Adult assembly required.

- Inspect the product before each use. DO NOT use this product if it is damaged, broken, or missing parts. Take care when unpacking and assembling; contains small parts and some items with sharp edges.

• To prevent possible choking hazard, remove and immediately discard packaging material before using this product.

- NEVER leave child unattended. ALWAYS keep child in view while in product.

- For use by children at least four months old who can hold up their head and neck unassisted.

- FALL HAZARD! DO NOT use with children who can walk.

• DO NOT use until baby can sit up by him or herself.

- Stop using this product when your child reaches any of the following developmental stages:

- Is walking;

- Is over 30" (76 cm) tall;

- Can climb out of the product;

- Can stand flat-footed in the unit when adjusted to its highest level. Allow only the baby's toes to touch the base.

- Keep children away from unassembled product.

• DO NOT adjust height while baby is sitting in ExerSaucer.

• DO NOT allow child to sleep in ExerSaucer.

• DO NOT spin baby in seat. Only permit baby to rotate the seat.

- NEVER use near stairs. NEVER use near ranges, radiators, space heaters, fireplaces.

• NEVER use as a sled.

• The ExerSaucer should not be left outdoors in direct sunlight, or any place where temperatures are likely to exceed 100^ F ( 38^ C).

• DO NOT allow unit to get wet. DO NOT fill ExerSaucer with water. NEVER use as a flotation device.

- NEVER use in or near swimming pools or other bodies of water.

• To avoid tip over, place product on flat, level ground or floor.

• To avoid possible entanglement or strangulation (Stage 1), remove toybar when baby begins to push up on hands and knees.

• NEVER place play mat from stage 1 in the bottom of saucer in stage 2

• STRINGS CAN CAUSE STRANGULATION! :

- DO NOT place the ExerSaucer anywhere near cords from window blinds, draperies, phone, etc.

- DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.

- DO NOT suspend strings over product or attach strings to toys.

- Wash snack tray and snack tray area thoroughly prior to use.

• DO NOT mix old and new batteries.

- DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Only batteries of the same or equivalent type, as recommended, are to be used.

• DO NOT use rechargeable batteries.

• DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT recharge non-rechargeable batteries.

- Promptly remove old batteries from the toy. Remove batteries before storing unit for a prolonged period of time.

- Only use replacement parts supplied by Evenflo on this product.

Assembling the ExerSaucer

Stage 1 (Optional)

Stage 1 is used for infants from birth to 4 months old.

Stage 1 (Optional)

Mat and toys vary by model. Mat and toys vary by model.

A B 1. PL sid sh pla Pu ma

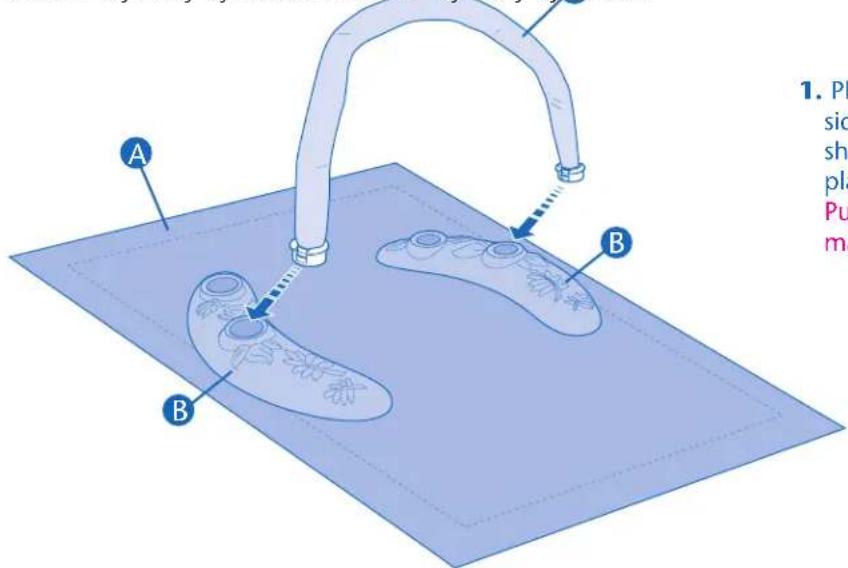

1. Place optional mat A on floor. Place feet B on either side of mat, as shown. Install toy bar C into feet, as shown. Press toy bar down firmly until it snaps into place.

Pull up on the toy bar and toys installed into the feet to make sure they are locked in place.

Stage 2

Stage 2 is used for infants 4 months old (who can hold up head and neck unassisted) to walking age and under 30 inches tall.

Stage 2

Technical diagram showing car interior components with labeled parts A and B, including a hand holding a tool.

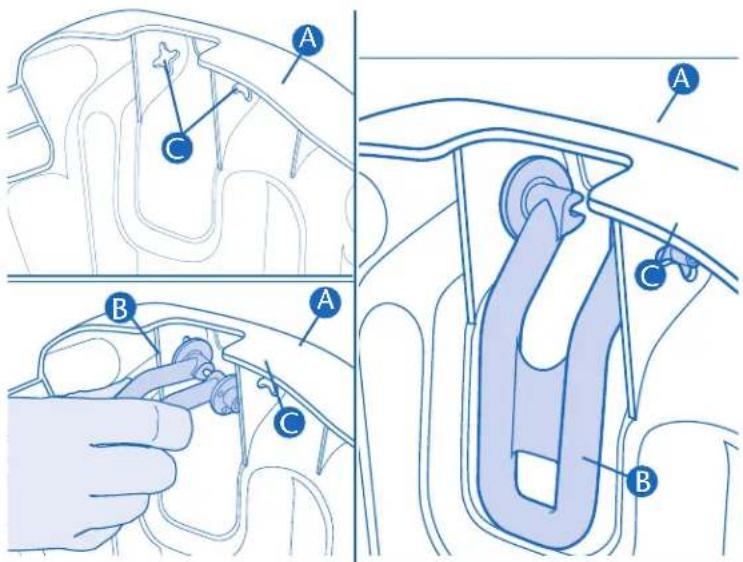

1. Turn ExerSaucer base A upside down and locate three (3) stabilizer feet B. Insert one side of foot B into the foot bracket hole C and twist the foot until the other side snaps into the opposite hole C. Repeat until all three (3) stabilizer feet are installed.

To use stabilizer feet:

Flip the three (3) stabilizer feet out from beneath base to prevent ExerSaucer from rocking.

Technical diagram showing mechanical assembly with labeled components D, E, and F, including a circular component with internal features.

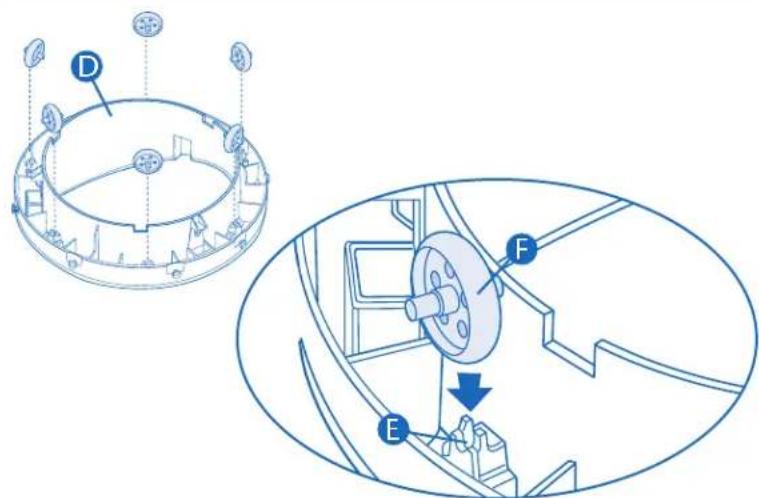

1. Place seat ring ① upside down and locate the wheel holders ②. Snap six (6) seat wheels ③ into wheel holders, as shown.

Technical diagram of a medical device with labeled components including a dome, cap, and adjustment parts.

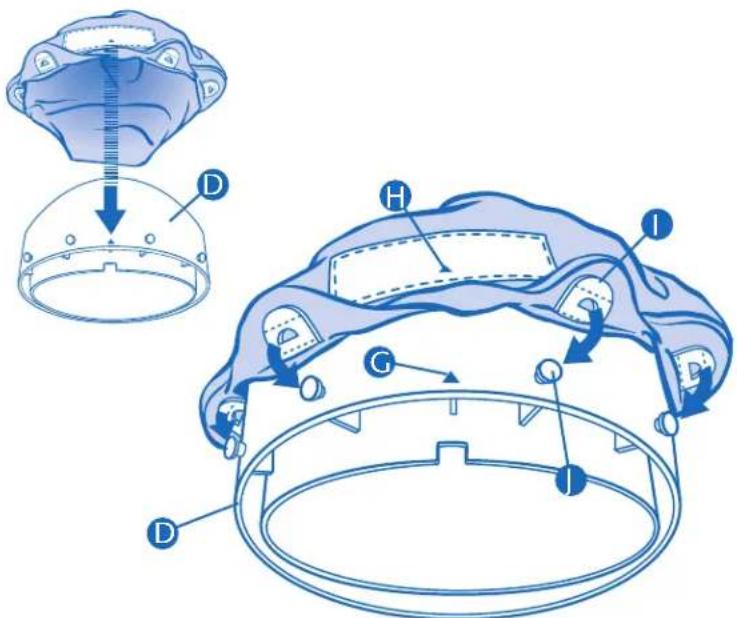

1. Turn seat ring right side up.

Align triangle G on the back of the seat ring with the triangle H on the seat pad label.

Snap the plastic tabs ⏻ on the pad over the pegs ⚠ on the seat ring.

Continue this process until all tabs are attached to all pegs, then push the seat pad down inside the seat ring.

Diagram illustrating a medical procedure with labeled parts K and L, showing hands performing a procedure on a patient's abdomen.

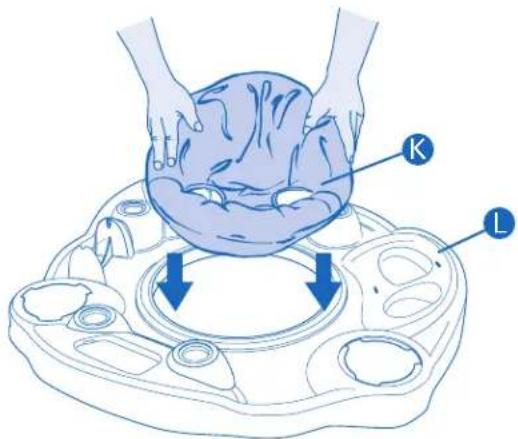

1. Press assembled seat ring Ⓚ down firmly onto the top of the tray Ⓛ until it snaps into place and spins freely.

Diagram illustrating a medical procedure with labeled points M and N indicating specific anatomical or mechanical positions.

Technical diagram of a circular mechanical component with labeled parts and directional indicators

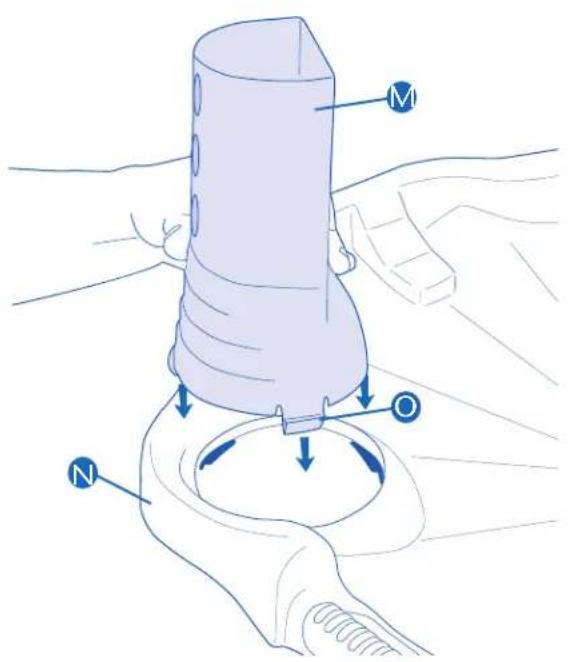

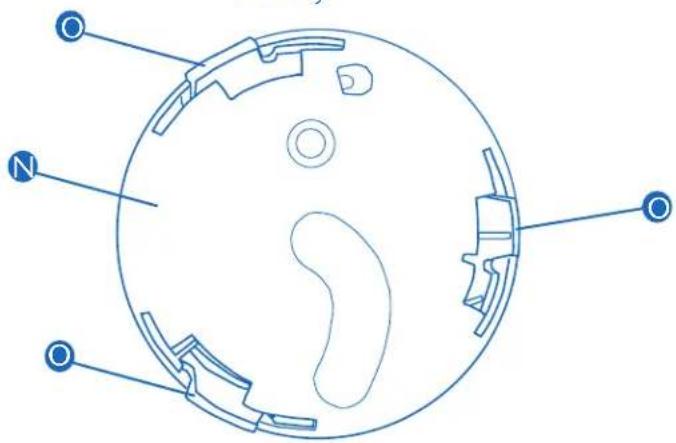

1. Locate three lower legs Ⓜ and the base Ⓝ. Align the tabs Ⓞ on the lower legs with the slots in the base, then snap the lower legs onto the base. Repeat for all three lower legs.

Note: Make sure the tabs on the lower legs have locked completely into the base, as shown, by moving the legs from side-to-side. If they are not completely locked in place, repeat this step until they are locked securely.

Diagram illustrating a medical device with labeled parts and internal components, including a brain model and a circular view of the device's internal structure.

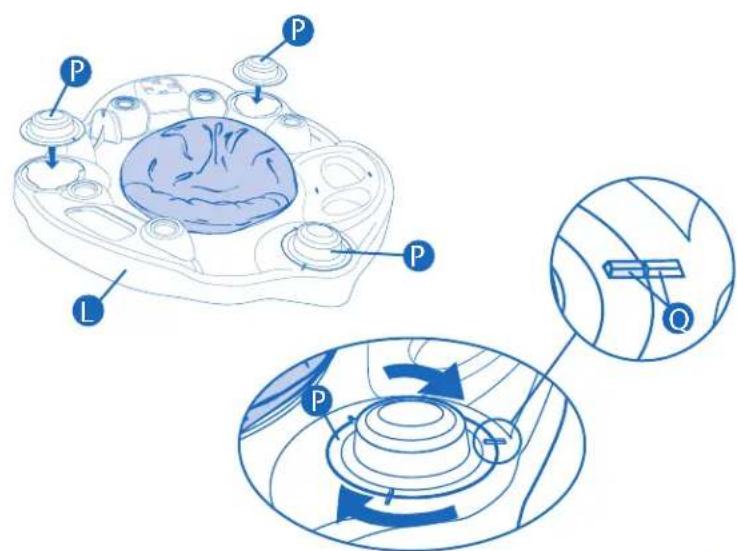

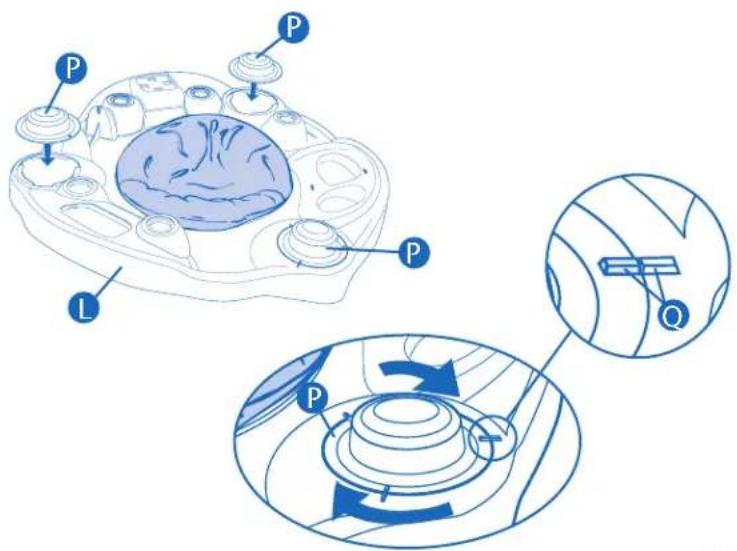

1. Locate the tray L and three spring domes P. Place each spring dome onto the tray over each leg opening, as shown. Press the spring dome downward while turning until it locks into place.

WARNING

If you don't line up the alignment guides properly, the spring dome may come off of the tray and cause injury.

Make sure the alignment guides Ⓠ line up properly, as shown.

Technical diagram of a mechanical assembly with labeled parts R and P, showing internal components and a magnified detail view.

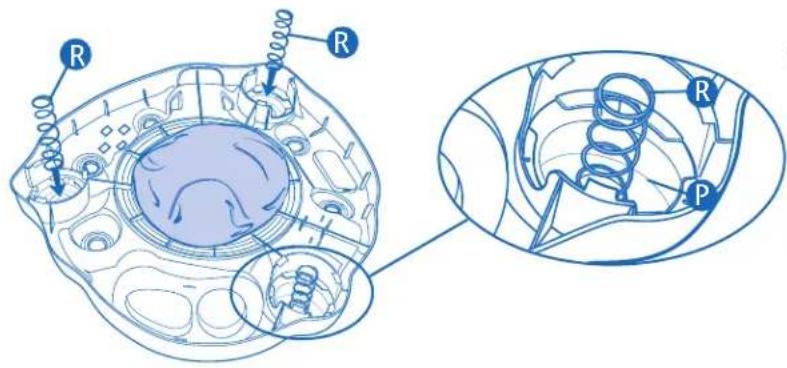

1. Turn the tray over and place three large springs Ⓗ into the center of each spring dome Ⓟ.

8. Ins the heig After the S S S T

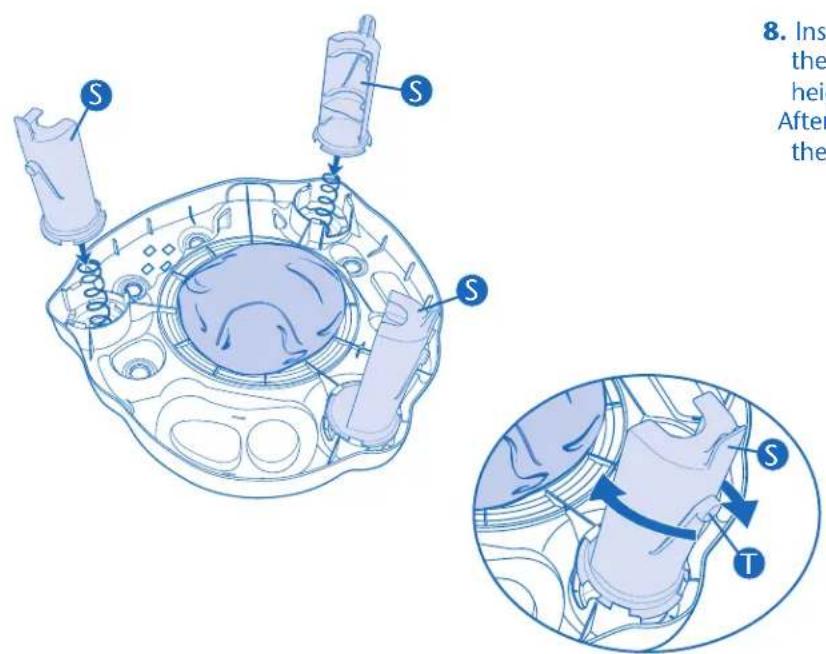

1. Insert three upper legs Ⓢ over the springs and onto the tray. Twist each upper leg, as shown. Make sure height adjustment button ⏱ is facing outward. After all three upper legs are installed, turn tray over to the upright position.

Illustration of a biological specimen with a central cell and surrounding compartments (no text or labels)

S M T T

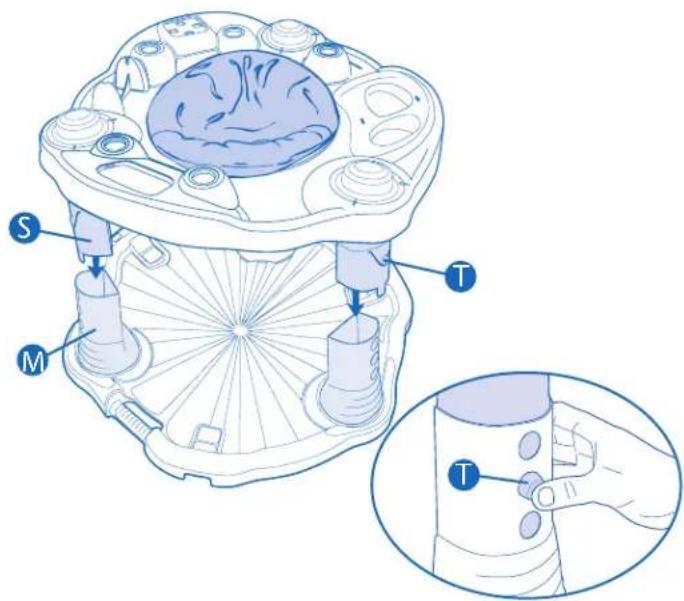

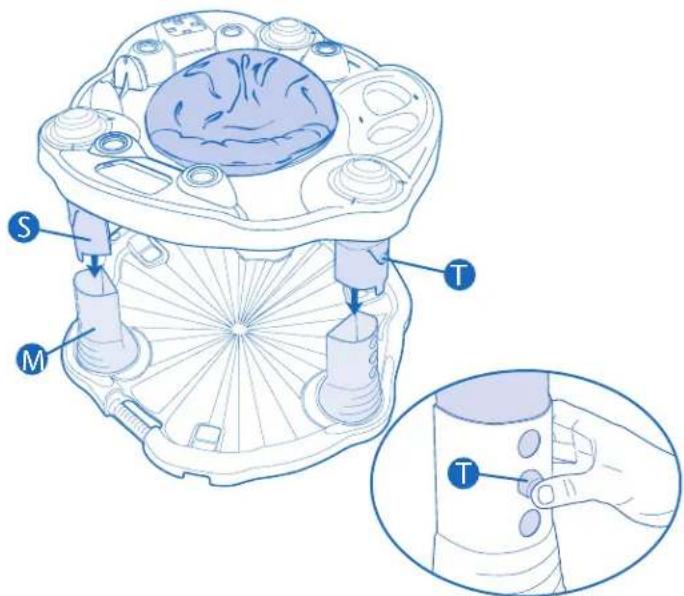

1. Align and start each upper leg S into the lower leg M. Push button T and guide upper leg into lower leg until upper leg snaps into place.

To adjust height:

ALWAYS remove baby from ExerSaucer before adjusting. Push button Ⓜ until the desired position is obtained. Make sure that all three legs are adjusted to the same position.

WARNING

During use, allow the baby's toes only to touch the base. DO NOT allow the baby to stand flat-footed on the base. As baby grows and becomes more active, raise the tray to the next level so that baby enjoys the most comfortable fit and maximum use of the rock, spin, and bounce features.

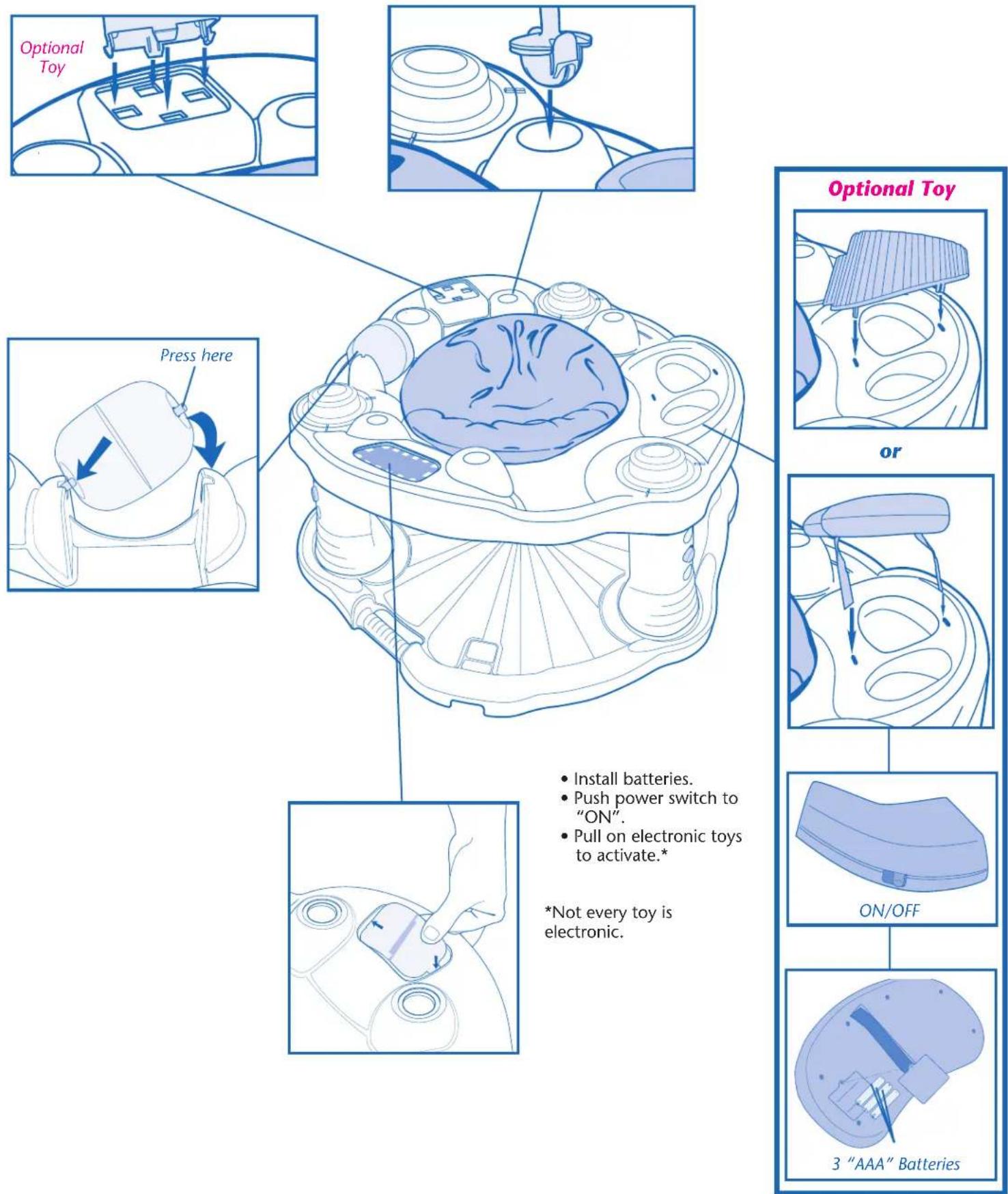

Optional Toy Press here • Install batteries. • Push power switch to "ON". • Pull on electronic toys to activate.* *Not every toy is electronic. Optional Toy or ON/OFF 3 "AAA" Batteries

Care and Maintenance

Machine wash pad in cold water, delicate cycle. Tumble dry, low heat for 10 to 15 minutes. DO NOT use harsh detergents or bleach. DO NOT dry clean. Wipe plastic parts with mild soap and water.

Battery Information

Battery life varies with use.

Safety Information: Batteries are small objects. Batteries must be replaced by adults. Follow the polarity (+/-) diagram in the battery compartment.

WARNING

• DO NOT mix old and new batteries.
- DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
- Remove batteries before storing unit for a prolonged period of time.
• DO NOT allow unit to get wet.
- Promptly remove dead batteries from the toy.
- Dispose of used batteries properly.
- Only batteries of the same or equivalent type, as recommended, are to be used.
- DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
- DO NOT recharge non-rechargeable batteries.

Battery Replacement: To replace batteries, loosen screw and remove battery door. Discard old batteries properly and replace with 3 AAA alkaline batteries. Replace door and tighten screw.

Troubleshooting:

Toy does not turn on or does not respond.

• Make sure batteries are installed correctly.
• Make sure battery cover is correctly secured.
  • Install new batteries.

Toy makes improper responses.

- Check or install new batteries.

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at 1-800-233-5921 or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.

For Australian Consumers

For consumers' transactions in Australia, the limited warranty terms contained in the above statements, except to the extent lawfully permitted, do not exclude, restrict, or modify but are in addition to any mandatory statutory rights. For Australian consumers, our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

ParentLink.

answers. advice. affirmation.™

- www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.

- Canada: 1-937-773-3971 • México: 01-800-706-12-00

Table des matières

Avertissements 9

Technical line drawing of a mechanical flange component (no text or symbols)

Tablette (1)

Top-down line drawing of a circular architectural or mechanical structure with four circular elements and radial lines (no text or symbols)

answers. advice. affirmation.

Technical diagram showing car component parts with labeled parts A and B, including a hand holding a tool.

Technical diagram showing mechanical assembly with labeled components D, E, and F, including a circular component with internal features.

Diagram illustrating a medical or surgical procedure with labeled components including a device, cap, and surgical tools.

Diagram illustrating a medical procedure with labeled parts K and L, showing hands performing a circular massage or pressure technique.

Diagram illustrating a mechanical or electrical component with labeled parts M, N, and O, showing directional arrows indicating motion or force.

Diagram of a circular mechanical component with labeled parts (N, O) and internal features, no readable text or symbols present.

Technical diagram of a robotic device with labeled parts and internal components, including a brain and mechanical assembly.

Technical diagram of a mechanical assembly with labeled parts R and P, showing internal components and a magnified inset view.

Illustration of a baby in a medical device with multiple ports and a central body (no text or symbols)

S M T T

answers. advice. affirmation.™

Technical line drawing of a mechanical flange component (no text or symbols)

Charola (1) Acolchado del asiento (1)

Top-down line drawing of a circular architectural or mechanical structure with four circular elements and radial lines (no text or symbols)

Base (1) Anillo del asiento (1)

Pata superior (3))

Pata inferior (3)

Bolsa de juguetes ^* (1)

answers. advice. affirmation.

• www.exersaucer.com • USA: 1-800-233-5921 8 AM a 5 PM hora del Este

• Canada: 1-937-773-3971 • México: 01-800-706-12-00

ADVERTENCIA

Technical diagram showing car interior components with labeled parts A, B, and C

Technical diagram showing a mechanical assembly with labeled components D, E, and F, including a circular component with internal features.

Technical diagram illustrating a mechanical assembly with labeled components (D, H, I) and directional arrows indicating motion or assembly.

Diagram illustrating a medical procedure with labeled parts K and L, showing hands performing a circular component with directional arrows indicating motion.

Diagram illustrating a mechanical or electrical component with labeled parts M and N, showing directional arrows indicating motion or force.

Technical diagram of a circular mechanical component with labeled parts and directional indicators

Diagram of a medical device with labeled parts including brain, valve, and control panel

Technical diagram of a mechanical assembly with labeled parts R and P, showing internal components and a magnified detail view.

Illustration of a brain inside a medical device with multiple circular components (no text or symbols)

S M T T

answers. advice. affirmation.™

- www.Evenflo.com • USA: 1-800-233-5921 8 AM a 5 PM hora del Este

- Canada: 1-937-773-3971 - México: 01-800-706-12-00

ParentLink.

answers, advice, affirmation. ^™

• www.exersaucer.com • USA: 1-800-233-5921 8 AM - 5 PM E.T.

- Canada: 1-937-773-3971 • México: 01-800-706-12-00
