USER MANUAL EASYLIFE PHILIPS

Always here to help you Register your product and get support at www.philips.com/welcome

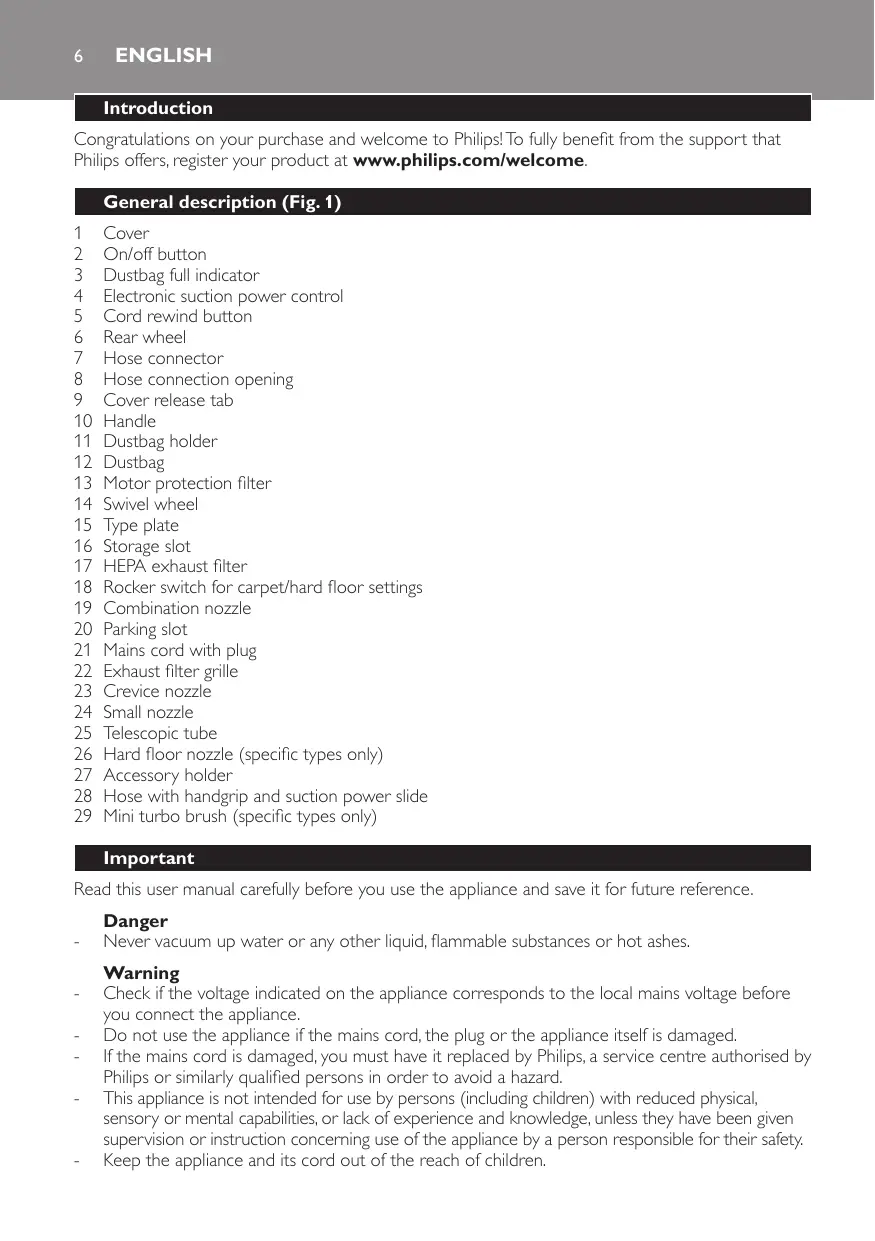

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that

Philips offers, register your product at www.philips.com/welcome. General description (Fig. 1) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

On/off button Dustbag full indicator Electronic suction power control Cord rewind button Rear wheel Hose connector Hose connection opening Cover release tab Handle Dustbag holder Dustbag Motor protection filter Swivel wheel Type plate Storage slot HEPA exhaust filter Rocker switch for carpet/hard floor settings Combination nozzle Parking slot Mains cord with plug Exhaust filter grille Crevice nozzle Small nozzle Telescopic tube Hard floor nozzle (specific types only) Accessory holder Hose with handgrip and suction power slide Mini turbo brush (specific types only) Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger -- Never vacuum up water or any other liquid, flammable substances or hot ashes. Warning -- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. -- Do not use the appliance if the mains cord, the plug or the appliance itself is damaged. -- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard. -- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -- Keep the appliance and its cord out of the reach of children.

-- The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

-- Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth. -- Do not use the appliance and the mini turbo brush on pets. Caution -- Do not vacuum up large objects as this may cause the air passage in the tube or hose to become obstructed. -- When you use the vacuum cleaner to vacuum ashes, fine sand, lime, cement dust and similar substances, the pores of the dustbag and the motor protection filter become clogged. If you notice a strong decrease in suction power, replace the dustbag and clean the motor protection filter. -- Always unplug the appliance before you replace the dustbag or clean the filters and assemble or disassemble accessories. -- Never use the appliance without the motor protection filter. This could damage the motor and shorten the life of the appliance. -- Only use Philips s-bag® disposable synthetic dustbags or the reusable dustbag. Using other types or brands of dustbags might cause damage to the vacuum cleaner. -- To guarantee optimal dust retention and performance of the vacuum cleaner, always replace the filters with original Philips filters of the correct type. Electromagnetic fields (EMF) This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields. Preparing for use Hose 1 To connect the hose, push it into the appliance (‘click’) (Fig. 2). 2 To disconnect the hose, press the release buttons (1) and pull the hose connector out of the hose connection opening (2). (Fig. 3) Telescopic tube 1 To connect the tube to the handgrip of the hose, insert the narrow section into the wider section while turning a little (Fig. 4). To disconnect the tube, pull while turning a little. 2 Adjust the telescopic tube to the length you find most comfortable during vacuuming. Press the slide on the tube (1) and push the lower tube part downwards or pull it upwards (2) (Fig. 5). Combination nozzle You can use the combination nozzle on carpet (with the brush strips folded in) or on hard floors (with the brush strips folded out). -- To clean hard floors, push the rocker switch on top of the combination nozzle with your foot to make the brush strips come out of the nozzle housing. (Fig. 6) -- To clean carpet, push the rocker switch on the other side to make the brush strips disappear into the housing. (Fig. 7) Hard floor nozzle (specific types only) -- The hard floor nozzle is designed for gentle cleaning of hard floors (Fig. 8).

ENGLISH Accessory holder

You can store two accessories in the accessory holder at the same time.

1 Connect the accessory holder to the tube (1) and then connect the handgrip of te hose to the accessory holder (2) (Fig. 9). 2 To store accessories in the accessory holder, push them onto the holder (Fig. 10). Crevice nozzle and small nozzle 1 Connect the crevice nozzle or the small nozzle to the handgrip of the hose or to the tube. To do this, insert the handgrip or tube into the accessory while turning a little. (Fig. 11) -- Use the crevice nozzle to clean narrow corners or hard-to-reach places. -- Use the small nozzle to clean small areas, e.g. the seats of chairs and sofas. Mini turbo brush (specific types only) The mini turbo brush is specially designed to effectively pick up animal hairs and fluff from furniture and mattresses. The unique brush inside the mini turbo brush loosens the hairs from the fabric so that they can be picked up by the vacuum cleaner. The mini turbo brush can be attached to the handgrip of the hose or to the telescopic tube. 1 To attach the mini turbo brush, insert it into the handgrip or the telescopic tube while turning a little. 2 To detach the mini turbo brush, pull it out of the handgrip or the telescopic tube while turning it a little. Using the appliance Vacuum cleaning 1 Pull the cord out of the appliance and insert the mains plug into the wall socket. 2 Press the on/off button on top of the appliance with your foot to switch on the appliance. (Fig. 12) Note: If you want to pause for a moment, insert the ridge on the nozzle into the parking slot to park the tube in a convenient position (Fig. 13). Note:You can carry the vacuum cleaner by the handle at the front of the appliance (Fig. 14). Adjusting suction power You can adjust the suction power with: -- the suction power slide on the handgrip (Fig. 15). -- the electronic suction power control on the vacuum cleaner (Fig. 16). Cleaning and maintenance The plug must be removed from the socket-outlet before cleaning or maintaining the appliance. 1 Switch off and unplug the appliance before you remove and clean any parts. 2 Clean the appliance and its parts with a damp cloth. Do not clean any part of the vacuum cleaner in the dishwasher.

Cleaning the motor protection filter

To maintain optimal performance, clean the motor protection filter at least once a year. 1 Pull the cover upwards to open it (Fig. 17). 2 Lift the dustbag holder out of the appliance. (Fig. 18) Make sure you hold the dustbag upright when you lift it out of the appliance. 3 Pull the filter holder with the motor protection filter out of the appliance.  (Fig. 19) 4 Take the motor protection filter out of the holder. Shake the motor protection filter over a dustbin to clean it. 5 Put the filter in the filter holder and slide the filter holder back into the appliance. 6 Put the dustbag holder back into the appliance. Cleaning the mini turbo brush (specific types only) To clean the brush inside the mini turbo brush, follow the steps below. 1 Rotate the brush inside the mini turbo brush until the cutting groove faces you. Use a pair of scissors to cut the hairs, threads etc. that have collected around the brush.  (Fig. 20) 2 Remove fluff, hairs and other dirt from the brush. Storage 1 Switch off and unplug the appliance. 2 Press the cord rewind button to rewind the cord (Fig. 21). 3 Put the appliance in upright position. To attach the nozzle to the appliance, insert the ridge on the nozzle into the storage slot. Note:To ensure stable storage of the telescopic tube, adjust the tube to the shortest length. Replacement The plug must be removed from the socket-outlet before cleaning or maintaining the appliance. Replacing the dustbag -- Replace the dustbag as soon as the dustbag-full indicator has changed colour permanently, i.e. even when the nozzle is not placed on the floor (Fig. 22). 1 Switch off and unplug the appliance. 2 Pull the cover upwards to open it. 3 Lift the dustbag holder out of the appliance. Make sure you hold the dustbag upright when you lift it out of the appliance. 4 Pull at the cardboard tag to remove the full dustbag from the holder (Fig. 23). ,, When you do this, the dustbag is sealed automatically.

5 Slide the cardboard front of the new dustbag into the two grooves of the dustbag holder as far as possible.  (Fig. 24)

6 Put the dustbag holder back into the vacuum cleaner (Fig. 25).

Note: If no dustbag has been inserted, you cannot close the cover. 7 Push the cover downwards to close it. Replacing the HEPA exhaust filter Replace the HEPA exhaust filter every 6 months. 1 To open the HEPA exhaust filter grille, grab the tabs and pull the grille upwards to remove it from the appliance (Fig. 26). 2 Remove the old HEPA exhaust filter. 3 Place the new HEPA exhaust filter into the appliance. 4 To close the HEPA exhaust filter grille, first align the lugs on the top of the grille with the slots in the appliance (1). Then press the tabs downwards until the grille locks into place (2) (‘click’) (Fig. 27). Ordering accessories To buy accessories or spare parts (such as dustbags, filters and additional nozzles), visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). Ordering dustbags -----

Philips Classic s-bag® synthetic dustbags are available under type number FC8021.

Philips Clinic s-bag® high filtration synthetic dustbags are available under type number FC8022. Philips Anti-odour s-bag® synthetic dustbags are available under type number FC8023. Reusable dustbags (some countries only) are available under code number 4322 004 93370.

Note: Please visit www.s-bag.com for more information about the s-bag.

Ordering filters and accessories -- HEPA exhaust filters are available under type number FC8070. Environment -- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 28). Guarantee and support If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Troubleshooting This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country. 1 The suction power is insufficient -- Perhaps the dustbag is full. If necessary, empty the dustbag. -- Perhaps the filters need to be cleaned or replaced. If necessary, clean or replace the filters. -- Perhaps the suction power slide on the handgrip is open. Close the slide. -- Perhaps the electronic suction power control is set to a low setting. Set the control to a higher setting. -- Perhaps the nozzle, tube or hose is blocked up. (Fig. 29) To remove the obstruction, disconnect the blocked-up item and connect it (as far as possible) the other way round. Switch on the vacuum cleaner to force the air through the blocked-up item in opposite direction. 2 Specific types only: hairs are entangled around the brush inside the mini turbo brush. -- Clean the mini turbo brush. See chapter ‘Cleaning’, section ‘Cleaning the mini turbo brush’.
