Inhoudsopgave

Voorwoord

4

1. Veiligheid 5

Technical diagram of a vertical-mounted air conditioner with labeled parts including screw, socket, and housing assembly

① Torenventilator

② Luchtuitlaat

3 Voedingskabel

4 Luchtinlaat

⑤ Schroef (4×)

6 Voet (2×)

Two technical diagrams showing mechanical components with arrows indicating motion or movement, no text or symbols present.

Diagram of a cylindrical device with a circular top and two downward arrows indicating force or movement (no text or symbols)

Illustration of a hand inserting a cable into a vertical cylindrical device (no text or symbols)

1.1. Safety warnings and regulations 17
1.2. Safety instructions: installation 18
1.3. Safety instructions: use 18
1.4. Safety regulations: electrical safety 19
1.5. Explanation of graphic symbols on the product and packaging 20

2. Product features 20

2.1. System overview 20
2.2. Technical data 20
2.3. Warranty 21

3. Installation 21

3.1. Important information 21
3.2. Unpacking the appliance 21
3.3. Installing the appliance 22

4. Use 22

4.1. Important information 22
4.2. Key components 23
4.3. Turning the appliance on and off 23

5. Cleaning and maintenance 24

5.1. Important information 24
5.2. Cleaning the housing 24
5.3. Thorough cleaning 24

6. Faults and solutions 25

7. Taking out of service 25

8. Waste disposal 25

8.1. Dispose of the appliance as waste 25
8.2. Dispose of the packaging material as waste 25

Foreword

About this document

• This user manual contains all information for correct, efficient and safe use of the device.
• This user manual is intended for the end user and/or buyer of this device.
- Installation of the appliance, use and all cleaning and maintenance activities as described in the instructions may be carried out by the end user, unless clearly indicated to the contrary.
- Please make sure that you have completely read and understood the instructions in this manual before you install or use the device. Keep this document for future use as long as you are using and/or are in possession of this device.
- Please retain this document for future use as long as you use and/or own the appliance and pass it on to subsequent users of the appliance.
- Coolblue B.V. cannot be held responsible in any way for immaterial damage to you or others, or material damage to the device, your property or the property of others caused by not or not correctly following the instructions in this manual.
- The Fuave tower fan is also called appliance in this manual.
- If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.
• You can also find the latest version of this manual online, at www.coolblue.nl/en if you search by item number.

Original instructions

This user manual was originally written in Dutch. All other languages are translated documents. In case of translation errors, the Dutch version shall prevail.

Used symbols

SYMBOL DESCRIPTION
DANGER!	Indicates fire hazard and/or flammable materials.
WARNING!	Indicates a hazardous situation which, if not avoided, could result in serious immaterial damage to you or others.
	Indicates a hazardous situation which, if not avoided, could result in light immaterial damage to you or others.
	Indicates a situation related to material damage.
	Indicates useful, additional information.

Copyright

The data displayed in this manual, including text, photographs, graphic drawings, graphic brands, (trade) names and logos are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never permitted to reproduce, transfer, distribute, store, or make available to third parties for payment, the contents of this user manual in its entirety or partially without prior written permission from Coolblue B.V. and/or the third party the data belongs to.

Compliance

TF86MB

Coolblue B.V. hereby declares that the appliance complies with Regulation (EU) 327/2011. The full text of the EU declaration of conformity can be consulted at: www.coolblue.nl/product/941129

TF86MW

Coolblue B.V. hereby declares that the appliance complies with Regulation (EU) 327/2011. The full text of the EU declaration of conformity can be consulted at: www.coolblue.nl/product/941130

Contact details

Fuave is a registered brand of Coolblue B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

Coolblue B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. Safety

Read this manual and safety instructions carefully and make sure you understand the contents before using the appliance with the appropriate parts. Failure to comply with all instructions can cause material damage and/or serious injury.

1.1. Safety warnings and regulations

DANGER!

• Fire hazard. The appliance must be stored in a room free of naked flames, gas-powered appliances or electric heaters.
• Fire hazard. Do not use the appliance close to a fire source, close to splashing oil, direct sunlight or splashing water.

WARNING!

Danger of entrapment.

• This appliance may be used by children from eight years of age and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been trained in the safe use of the appliance and that they understand the associated dangers.
• This appliance must not be used by children under 8 years of age.
• This appliance and its components are not toys, so children should not play with the appliance or its components.
• Children, legally incompetent persons and domestic animals must be supervised while using the appliance. Children must be supervised to ensure that they do not play with the appliance.
• Store the appliance out of reach of unauthorised persons and do not allow anyone unfamiliar with the appliance and these instructions to use it.
• Electrocution hazard due to short circuit. Cleaning and user maintenance must not be carried out by children without supervision.
• Risk of suffocation. Keep packaging materials out of reach of children. Packaging materials are not toys.

Risk of damage to the device.

• This appliance is for indoor use only. This appliance should not be used outdoors.
  • This appliance is intended for domestic use and similar applications, such as:
  – staff kitchens in shops, offices and other work environments
  – farms and guests in hotels, motels, B&B, and other residential environments,
  – catering and similar non-retail applications.
• The appliance must be stored in such a way so as to prevent mechanical failure.

1.2. Safety instructions: installation

DANGER!

- Fire hazard. Install the appliance in accordance with the installation instructions.

- Trip hazard. Ensure that the plug and socket are clearly visible and accessible at all times.

• Risk of damage to the appliance. Use only the accessories provided for the installation.
• Risk of damage to the appliance. Do not pass the power cable under a carpet or cover it with mats, runners and the like. This can lead to unforeseen heat generation.

1.3. Safety instructions: use

1.3.1. Safety of persons

WARNING!

Danger of entrapment.

• Always be alert and careful. Do not use electrical appliances if you suffer from impaired concentration or lack of awareness, or if you are under the influence of drugs, alcohol or medications. Even the slightest distraction can lead to serious accidents and injuries when using electrical appliances.
• Always operate and use the appliance as described in these instructions for use. Assume that anything not specified here is also not possible.

1.3.2. Safety in use

DANGER!

• Risk of fire and explosion. Do not use the appliance in the vicinity of highly flammable or explosive substances or fuels. Keep it at least one metre away.
• Risk of fire and explosion. Never expose the appliance to a naked flame.

Fire hazard.

• Unplug the appliance if you hear strange noises, smell an odour or see smoke.
• Do not place objects on the appliance and never cover the appliance. Never block the grilles for incoming and outgoing air, not even partially.

- Do not leave the appliance unattended with the plug in the socket.

WARNING!

Electrocution hazard due to short circuit.

• Do not expose the appliance to rain or use it in damp or wet environments, such as the bathroom and laundry room, nor near a bath, shower or swimming pool.
• Do not spill or pour any water, oil or liquid onto or into the appliance.

• Do not operate the appliance if you notice damage to the appliance, the power cable or the plug, or if does not work properly, has fallen or otherwise malfunctions. Contact customer service for further information (See Foreword for contact details).

• If the appliance is not in use, or when cleaning it, carrying out maintenance or moving it, first switch it off and then remove the plug from the socket.

• Danger of entrapment. Always move and/or relocate the appliance calmly.
• Danger of entrapment. Do not insert fingers or objects such as pens through the grilles in the appliance and especially warn children of these dangers.

Risk of damage to the device.

• Follow the maintenance instructions for trouble-free use and long service life.
• Do not expose the appliance to direct sunlight to avoid discolouration of the housing.
• Do not use paint, cleaning sprays, anti-insect sprays, etc. on or near the appliance. This may cause deformation of the housing or electrical damage.
• Never use aggressive cleaning agents, white spirit, detergents, impregnated wipes or other cleaning solutions. These can damage the housing and appliance.
• Do not climb, sit or stand on the appliance.
• Do not place heavy objects on the appliance. This can cause deformations and damage to the appliance.

1.4. Safety regulations: electrical safety

DANGER!

Fire hazard.

• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240 V; 50/60 Hz). Damage caused by faulty voltage is not covered by the guarantee.
• Fully unroll the appliance's power cable before plugging it into the socket. This is to prevent heat generation in the cable.
• Do not pass the power cable under a carpet or cover it with mats, runners and the like. This can lead to unforeseen heat generation.
• Regularly check the appliance for damage to the power cable and plug. If there is visible damage, a strong smell, or parts become excessively hot, stop using it immediately and remove the plug from the socket.

WARNING!

Electrocution hazard due to short circuit.

• Only use the appliance's factory-fitted plug and never change it. The plug must match the type of socket used to reduce the risk of electric shocks.
• The connector has an earth connection. Do not remove the earth contacts from the plug.
• Do not connect the appliance to the power supply until it is installed as instructed.
• Never pull the power cable to carry or move the appliance or to disconnect the plug from the socket.
• Keep the power cable away from heat, oil, sharp edges or corners and moving parts.
• Do not make any changes to the power cable or submerge it in water or other liquids.
• Do not turn or kink the power cable, do not roll up the power cable too tightly after use and do not wind it up around the appliance; this may damage the insulation layer! Damaged or tangled power cables increase the risk of electric shocks.
• Do not touch the appliance, plug or power cable with wet or damp hands.

- Never spray the appliance and make sure no water gets into it.

- It is not permitted to open, change or repair the appliance yourself. Do not drill holes into the appliance anywhere to avoid dangerous situations. The appliance, plug and/or cable must be repaired and/or replaced by an electrician or an equivalent qualified person. Repairs by amateurs invalidate the guarantee and can cause dangerous situations!

1.5. Explanation of graphic symbols on the product and packaging

SYMBOL MEANING
	The CE marking on this appliance indicates that Coolblue B.V. declares that this appliance meets the requirements of the relevant European legislation relating to health, safety and environmental protection. The declaration of conformity is available on request from Coolblue B.V. See Foreword for the contact details.
	The electrical safety class II on this appliance indicates that it is double insulated or has an extra strong insulating housing.
	Indicates that the instructions must be read carefully before continuing to use the appliance.
	This symbol on the appliance, accessories or packaging indicates that this appliance must not be disposed of with ordinary household waste but must be returned to a collection point.

2. Product features

2.1. System overview

The Fuave tower fan is designed to blow air around a room to create a pleasant perceived temperature.

The Fuave TF86MB/TF86MW tower fan is supplied in separate parts and can be assembled in a few simple steps before use.

2.2. Technical data

The technical data are also indicated on the type plate on the appliance (also printed on page 2).

PARAMETER UNIT
Product name Tower fan
Model / Type TF86MB TF86MW
Housing colour	Black	White
Net weight	2.7 kg
Gross weight	3.6 kg
Dimensions folded (L × W × H):	13 × 13 × 85 cm
Dimensions fully unfolded (L × W × H):	26 × 26 × 86.4 cm
Nominal voltage, frequency and current	220 - 240 V~ 50/60 Hz
Input power	50 W
Energy consumption in standby mode (Psb)	0 W
Maximum noise level	53 dB
PARAMETER UNIT
Maximum fan flow rate 3.3 m/s
Tropical climate (yes/no) No
Suitable for room temperature >40 °C Not suitable

2.3. Warranty

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/en/customer-service. In any case, you must have the proof of purchase with purchase and/or delivery date in order to be able to claim the guarantee.

3. Installation

3.1. Important information

Read and follow all the instructions in section 1. Safety.

3.2. Unpacking the appliance

WARNING!

- Risk of suffocation. Keep packaging materials out of reach of children. Packaging materials are not toys.

NOTICE!

- Risk of damage to the appliance. Never use batteries if they are dented, leaking or damaged.

1. Remove all packaging material and any transport attachments present (e.g. tape, tie-wraps, cable ties and protective film).
2. Check that all parts are present and that there is no damage to the appliance or accessories.

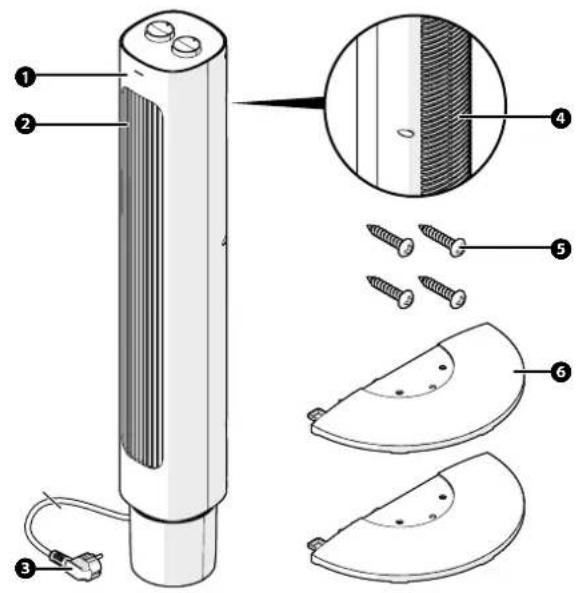

Parts of the appliance

Technical diagram of a vertical-mounted air conditioner with labeled parts including screw, panel, and housing details

① Tower fan
2 Air outlet
3 Power cord

4 Air inlet
5 Screw (4×)
6 Base (2×)

3.3. Installing the appliance

WARNING!

• Electrocution hazard due to short circuit. Do not connect the appliance to the power supply until it is installed as instructed.

- Risk of damage to the appliance. Do not pass the power cable under a carpet or cover it with mats, runners and the like. This can lead to unforeseen heat generation.

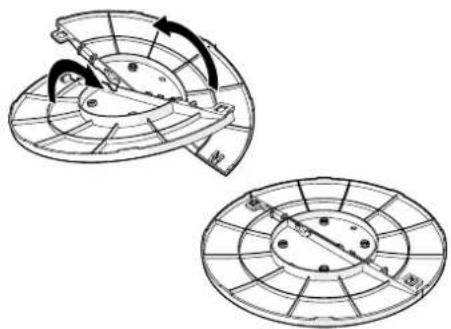

Two technical diagrams showing mechanical components with arrows indicating motion or rotation, no text or symbols present.

1. Align the two halves of the base crosswise against each other.
2. Press the studs into the recesses to clip the two halves of the base together.

Diagram of a cylindrical device with a circular top and two downward arrows indicating force or movement (no text or symbols present)

1. Gently turn the tower fan upside down.
2. Align the base with the holes on the tower fan and secure the base with the four screws provided and a screwdriver.
3. Turn the appliance upright.

4. Use

4.1. Important information

Read and follow all the instructions in section 1. Safety.

DANGER!

• Fire hazard. Do not leave the appliance unattended with the plug in the socket.

Select a suitable place for use that satisfies the following points:

• A firm, flat and horizontal surface;

• Near an electrical socket;

• On all sides of the appliance always at least 10 cm free space and away from curtains;

- At least one metre from televisions or radios to prevent electromagnetic interference.

- On all sides of the appliance always at least 10 cm free space and away from curtains; - At least one metre from televisions or radios to prevent electromagnetic interference.

4.2. Key components

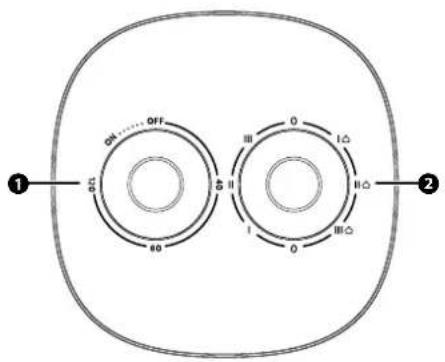

The control panel

All functions can be selected and set using the buttons on the appliance.

OFF ON ON OFF II II III III III I I 0 0 0 1 1 2

① Timer dial

② Mode dial

4.3. Turning the appliance on and off

Before using the appliance, check that:

• The appliance is installed according to the regulations and safety instructions. Do not use the appliance until installed as instructed!
  • The appliance does not show any damage or defects.

• The socket to be used supplies the voltage on the appliance's type plate (220-240 V; 50/60 Hz).

• Insert the appliance's plug into the socket.

• Turn the mode dial to the desired mode to turn on the device. Turn the timer dial to set the timer.

ICON MEANING

|	Low speed
||	Medium speed
||||	High speed
|△	Low speed with oscillation
||△	Medium speed with oscillation
||||△	High speed with oscillation

5. Cleaning and maintenance

5.1. Important information

Carry out cleaning and maintenance as indicated. This extends the life of the appliance and will keep it working properly.

WARNING!

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT.

• Before cleaning and maintenance, turn off the appliance with the power button and remove the plug from the socket. Ensure that the plug is not accidentally plugged into the socket during the activities.
• Never spray the appliance and make sure no water gets into it.
  • Cleaning and user maintenance must not be carried out by children without supervision.

- Risk of damage to the appliance. Never use aggressive cleaning agents, white spirit, detergents, impregnated wipes or other cleaning solutions. These can damage the housing and appliance.

5.2. Cleaning the housing

1. Turn the mode dial to 0 to turn the appliance off.
2. Remove the mains plug from the socket.
3. Use a soft damp cloth to wipe the housing.
4. Then wipe the appliance dry with a soft cloth.

5.3. Thorough cleaning

Depending on the degree of use and the operating environment, dust and other dirt may have ended up in the air inlet and outlet. In this case, more thorough cleaning is required.

1. Turn the mode dial to 0 to turn the appliance off.
2. Remove the mains plug from the socket.

Illustration of a hand inserting a cable into a vertical cylindrical device (no text or symbols)

1. Clean the air outlet and air inlet with a vacuum cleaner.

6. Faults and solutions

PROBLEM CAUSE SOLUTION
The appliance does not start when the on/off button is pressed.	The appliance is not powered. Check that	the plug is in the socket and that the cable or plug is not damaged.
		Check that the RCD is switched on.
		Check that there is no power failure.
	A fuse has blown in the meter cabinet. 1.	Remove the appliance's plug from the socket.2. Check the fuses in the meter box.If the problem persists, contact Customer Service.
A bad smell comes out of the appliance.	The air inlet is dusty or dirty. Clean the appliance according to the instructions in 5.Cleaning and maintenance.
The appliance makes a noise. The surface	on which the appliance is placed is not firm, flat or horizontal.	Move the appliance to a place with a firm, flat and horizontal surface.

7. Taking out of service

NOTICE!

- Risk of damage to the appliance. Do not place heavy objects on the appliance. This can cause deformations and damage to the appliance.

If the appliance is stored for a longer period, the following measures must be taken:

1. Turn the mode dial to 0 to turn the appliance off.
2. Remove the mains plug from the socket.
3. Clean the appliance according to the instructions in 5.Cleaning and maintenance.
4. Pack the appliance in its original packaging or in a plastic bag and put it in a dry place.

8. Waste disposal

8.1. Dispose of the appliance as waste

This symbol on the product indicates that this product must not be treated as normal household waste, but should be collected separately. Return the product to a collection point for recycling waste electrical and electronic equipment if you live within the EU or in other European countries that have separate collection systems for waste electrical and electronic equipment. By properly disposing of the product as waste, you help to avoid potential environmental and public health risks that could otherwise arise from mishandling discarded equipment. Recycling materials contributes to the conservation of our natural resources.

8.2. Dispose of the packaging material as waste

Dispose of the packaging material through your local recycling facility. By properly disposing of packaging material and packaging waste, you help prevent potential risks to the environment and public health. The symbol on the packaging indicates that the packaging is made of cardboard.

Inhalt

Vorwort

27

1. Sichereit 28

Technical diagram of a portable air conditioner with labeled parts including top, side, and internal components

Technical line drawing of two circular mechanical components with internal blades and mounting holes (no text or symbols)

Diagram of a cylindrical device with a circular top and two downward arrows indicating force or movement (no text or symbols present)

Line drawing of a hand inserting a cable into a vertical cylindrical device (no text or symbols)

Technical diagram of a water heater with labeled parts including top, side, and internal cross-sections

Two technical diagrams of a mechanical component with curved surfaces and internal ribs, shown from different angles (no text or symbols present)

Diagram of a cylindrical device with a circular top and two downward arrows indicating force or movement (no text or symbols present)

Illustration of a hand using a tool to lift a vertical cylindrical device (no text or symbols visible)
