WK-130990.1 - Kettle Emerio - Free user manual and instructions

Product type	Electric kettle
Brand	Emerio
Model	WK-130990.1
Capacity	1.7 L (min. 0.5 L)
Power	1850-2200 W
Supply voltage	220-240 V ~ 50/60 Hz
Body material	Stainless steel
Base material	Plastic
Net weight	0.8 kg (approx.)
Dimensions (approx.)	22 x 15 x 24 cm
Base type	Power base with connector
Cord length	75 cm (approx.)
Temperature settings	5 levels: 40°C, 60°C, 80°C, 90°C, 100°C
Keep warm function	Yes, up to 30 minutes
Light indicator	Multicolored (green, blue, purple, cyan, red) according to temperature
Safety	Automatic shut-off, dry-boil protection
Maintenance	Monthly descaling recommended (vinegar or citric acid)
Cleaning	Exterior with damp cloth, do not immerse
Included accessories	Power base, user manual
Warranty	2 years

Frequently Asked Questions - WK-130990.1 Emerio

How to use the kettle for the first time?

Before first use, boil water twice and discard it to clean the interior. Fill the kettle between the min (0.5 L) and max (1.7 L) levels. Plug in, set the temperature (default 100°C) and press BOIL.

How to set the water temperature?

Press the SET button repeatedly to select the desired temperature among 40°C, 60°C, 80°C, 90°C or 100°C. The display shows the current temperature. Then press BOIL to heat.

How to activate the keep warm function?

Press and hold the SET button for 3 seconds until the keep warm indicator lights up. Select a temperature (max 90°C in keep warm) then press BOIL. The kettle keeps water warm for 30 minutes.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on the power base and the plug is correctly inserted. Make sure the lid is closed. If the problem persists, contact customer service.

How to descale the kettle?

Descale regularly (at least once a month). Use white vinegar (8°): fill half with vinegar, let sit for 1 hour cold. Or use 25 g of citric acid in 0.5 L of boiling water, let sit for 15 minutes. Then rinse 5 to 6 times.

Why is the water not boiling?

Check that the set temperature is not below 100°C. If the kettle is in keep warm mode, it does not heat beyond 90°C. Also ensure the water level is sufficient (min 0.5 L) and the appliance is not in dry-boil protection.

What does the colored light indicator mean?

The kettle emits a different color light according to the set temperature: green for 40°C, blue for 60°C, purple for 80°C, cyan for 90°C and red for 100°C. This indicates the water is heating or has reached the temperature.

Can I boil something other than water?

No, this kettle is designed only to heat water. Never boil milk, tea or other liquids as this could damage it.

Why does the kettle turn off before boiling?

This can happen if the water amount is insufficient (less than 0.5 L) or if the dry-boil protection has activated. Let it cool, fill with cold water and try again.

How to clean the exterior of the kettle?

Unplug and let it cool completely. Clean the exterior with a damp cloth and mild detergent. Do not use abrasive or corrosive products. Never immerse the base or cord in water.

USER MANUAL WK-130990.1 Emerio

Black and white photo of a modern black coffee maker with water filter and control buttons (no visible text or symbols on the device itself)

Water kettle (EN)

Wasserkocher (DE)

Bouilloire (FR)

Waterkoker (NL)

Instruction manual – English ...... - 2 -

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children aged less than 8 years.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.
8. If the kettle is overfilled, boiling water may be ejected.
9. When cleaning, the appliance must not be immersed.
10. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.
11. Warning: Avoid spillage on the connector.
12. Warning: Potential risk of injuries from misuse.
13. The heating element surface is subject to residual heat after use.
14. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
15. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
16. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
17. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
18. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
19. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
20. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
21. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
22. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
23. Never leave the appliance unattended during use.
24. Do not use the appliance for other than intended use.

25. Do not operate the appliance without water to avoid damaging the heating elements.

26. Should you accidentally allow the kettle to operate without water; the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

27. Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
28. Do not touch the hot surface. Use the handle or the button.
29. Extreme caution must be used when moving an appliance containing hot water.
30. The kettle is for household use only, not for outdoor.
31. Our warranty does not cover water kettles that malfunction resulting from failure to descale.
32. Do not boil anything but water in this water kettle.
33. The kettle is only to be used with the base provided.

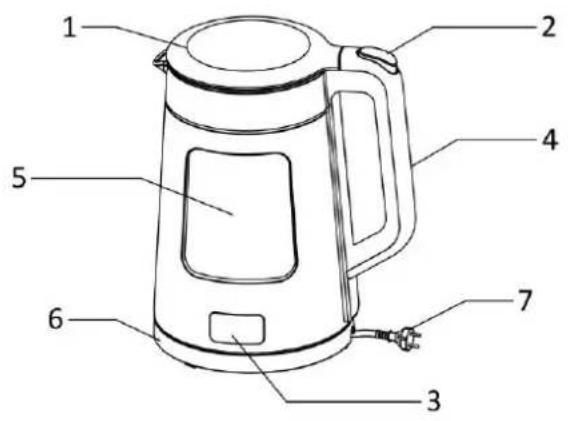

HOUSEHOLD USE ONLY PARTS DESCRIPTION

1. Lid
2. Lid opening button
3. Digital display
4. Handle
5. Water gauge
6. Power base
7. Power cord and plug

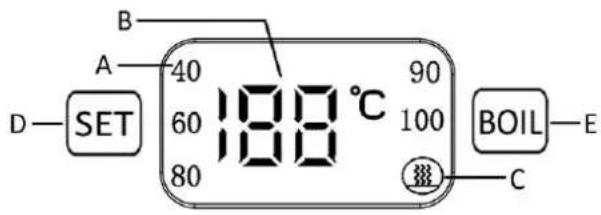

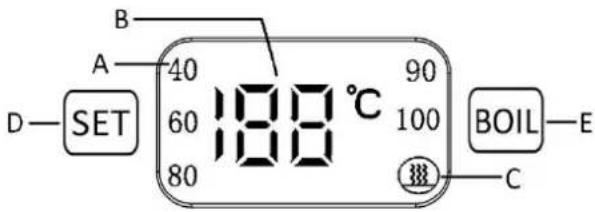

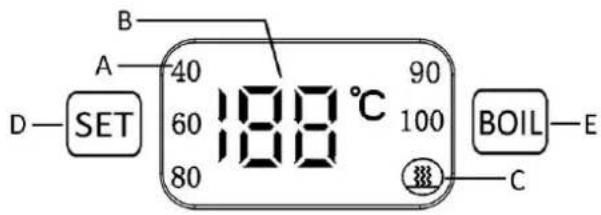

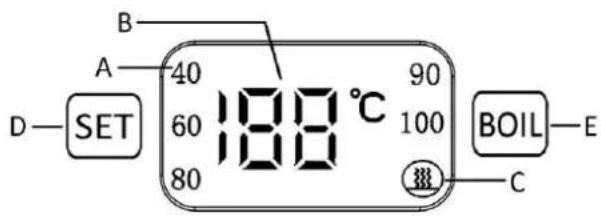

Digital display

A. Temperature values
B. Current temperature of the water
C. Keep-warm indicator
D. Temperature set button
E. Boil on/off button

BEFORE USING YOUR KETTLE

If you are using the kettle for the first time, it is recommended that you clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

1. To fill water into the kettle, remove the kettle from the power base and open the lid by pressing the lid opening button; pour out left over water from previous boiling cycle and fill with the desired amount of fresh water to the water kettle. Always fill the kettle between the minimum (0.5L) and maximum (1.7L) marks for water boiling. Too little water will result in the kettle switching off before the water has boiled. Note: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before connecting the power cord to the outlet.

2. Position the kettle on the power base. Connect the plug into a power outlet.

1) Heat up the water to desired temperature: Press the button "SET" once or several times to select your desired water temperature among the temperature values 40^ 60^ 80^ 90^ 100^ 40^ . Press the button "BOIL" and the kettle starts boiling water, and the specific temperature indicator light inside the kettle turns on. The kettle has indicator lights in different colours for each temperature setting: Green - 40^ , Blue - 60^ , Purple - 80^ , Cyan - 90^ , Red - 100^ . Once the desired temperature has been reached, the kettle stops heating automatically with two beep sounds, and the indicator light turns off.

Note:

• The digital display shows the current temperature of the water in the kettle.
• The default temperature setting is 100^ C once plugged in the appliance. You can directly press the button "BOIL" to boil up water if needed.
• During working you may shut off the power: press the button "BOIL" again or lift the kettle from the power base at any moment.

2) Heat up the water and then keep warm: Press and hold the button "SET" for 3 seconds, the keep-warm indicator "☐" will be on. Continue to press the button "SET" to select your desired water temperature and then the button "BOIL" to start boiling water. Once the selected temperature has been reached, the kettle stops heating automatically, but the indicator light is still on. If the water temperature drops down, the kettle will start heating up to the selected temperature again. The kettle will keep the water warm for 30 minutes and then shut off automatically. Note that the keep-warm function is not suitable for 100°C. The kettle can only keep the water warm to 90°C even "100°C" is selected.

Additionally, please note that every time you take the kettle away from the power base your setting will be lost. You have to reset the kettle after putting it back again.

1. Once the water boils, wait 10 seconds before pouring out water to prevent hot steam from exiting through the lid of the kettle. Lift the kettle, then pour the water.

Note:

1) Operate carefully when pouring the water from your kettle as boiling water may result in scald. Besides, do not open the lid while the water in the kettle is hot. Ensure power supply is turned off when kettle is not in use. The kettle may be stored on the power base when not in use.
2) Allow the kettle to cool down for 30\~40 seconds before reopening to boil water. Never re-boil water older than 2 hours.
3) Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

CLEANING AND MAINTENANCE

1. Always let the kettle cool down first and disconnect the appliance from the power outlet before cleaning.
2. Never immerse the kettle area or cord in water, or allow moisture to contact with these parts.

Cleaning appearance of housing:

Wipe the appearance of body with a mild and damp cloth or cleaner, never use a poisonous cleaner.

Never immerse the power base in water or other liquid for cleaning.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle.

Descale regularly, preferably at least once a month and more frequently if your water is very hard.

To descale your kettle, use:

• white vinegar
• fill the kettle with half a litre of vinegar
• leave to stand for 1 hour without heating
• citric acid:
• boil half a litre of water
• add 25g of citric acid and leave to stand for 15 minutes.
  Empty your kettle and rinse it 5 or 6 times.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 1850-2200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Manufactured by: Emerio B.V.

Oudeweg 115, 2031 CC Haarlem, The Netherlands
