USER MANUAL KGDNF X20C GDSX BAUKNECHT

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

User Manual

USER MANUAL

INDEX

Use & Care guide 2

General Information 2

LED light 2

Light systems (depending on the model) 2

Shelves and door balconies 2

Door 2

How to use the appliance 3

First time use 3

Refrigerator compartment and food storage 3

How to store fresh food and beverages 3

Freezer compartment and food storage 3

Removing the freezer drawer container 3

Tips for freezing and storing fresh food 3

Frozen food: shopping tips 4

Food shelf life at different temperatures 4

Functional sounds 4

Recommendation in case of no use of the appliance 5

Cleaning and maintenance 6

Gasket replacement 7

After-sales service 8

General Information

LED light

If the LED light system does not work, please contact the Service to replace it.

Important: The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.

Light systems (depending on the model)

	This product contains a light source of energy efficiency class F
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class G
	This product contains a light source of energy efficiency class F
	This product contains a light source of energy efficiency class G

Shelves and door balconies

All shelves, flaps and pull-out baskets are removable. The quantity of those components can differ dependently on the model.

Door

Door reversibility

Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty. Is recommended to reverse door swing by two persons. Follow instruction in Installation Guide.

How to use the appliance

First time use

After installation, wait at least two hours before connecting the appliance to the power supply. Once connected, it will start working automatically. The ideal temperature settings are preset from the factory. After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.

Refrigerator compartment and food storage

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

Air ventilation

The natural circulation of air in the refrigerator compartment results in zones with different temperatures. Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance.

How to store fresh food and beverages

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

Freezer compartment and food storage

The freezer compartment allows for the storage of frozen food and the freezing of fresh food. The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around it to allow air to circulate freely. Avoid fresh food to come into direct contact with frozen food. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading. To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

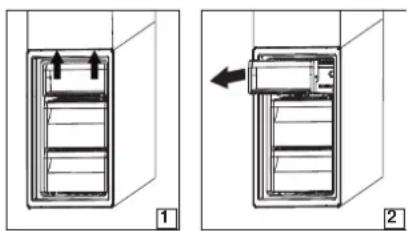

Removing the freezer drawer container

• Open the freezer door.
• Pull the upper container upwards by the right and left corners (1).
• Remove the drawer (2).
  • Install the upper container in the reverse order.

Two technical diagrams showing a door mechanism with arrows indicating movement, labeled 1 and 2 (no text or symbols present)

Tips for freezing and storing fresh food

• We recommend to label and date all your frozen food. Adding a label will help you to identify foods and to know they should be used before their quality deteriorates. Do not re-freeze defrosted food.
- Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
- Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.
- Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavor. Some meat, especially game, should be hung before it is frozen.
• Always leave hot food to cool before placing in the freezer.
- Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.
- Do not freeze bottles with liquid.

Frozen food: shopping tips

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have begun.
• When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the freezer.
• If food has defrosted even partially, do not refreeze it. Consume within 24 hours.
• Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package.
  • Always observe the storage information on the package.

Food shelf life at different temperatures

FROZEN COMPARTMENT
Product Storage period (-12°C)	Recommended Storage period (-18°C)	Storage period (-24°C)
Butter or margarine 1 month	6 months 9 months
Fish 1 month 1-3 months 6	months
Fruits (except citrus) & Vegetables	1 month 8-12 months 12 months
Meat- Ham- sausage Roasts (beef-pork- lamb) Steaks or chops (beef-lamb-pork)	1 month 2 months	8-12 months4 months	12 months
Milk, Fresh fluid, Cheese, Ice cream or sherbet	1 month 1-3 months 5 months	(not recommended for ice cream)
Poultry (chicken-turkey) 1 month	5-7 months 9 months

UNFROZEN COMPARTMENT
Product	Storage period 0-3°C	Storage period (3-6°C)	Storage period 6-8°C
Cans, drinks, eggs, sauces, pickles, butter, jam	3-4 weeks	3-4 weeks	3-4 weeks
Tropical fruit	Not recommended 2-4 weeks	3-4 weeks
Cheese, milk, dairy food, deli food, yoghurt	2-5 days	2-5 days	2-5 days
Cold cuts, desserts, meat and fish and home-cooked food	3-5 days	1-2 days	Not recommended
Store vegetables and fruits (excluding tropical fruits and citrus)	15 days	10-12 days	4-7 days

Functional sounds

Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.

Some of the functional sounds can be reduced through:

• Leveling the appliance and installing it on an even surface.
• Separating and avoiding contact between the appliance and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contact with each other.

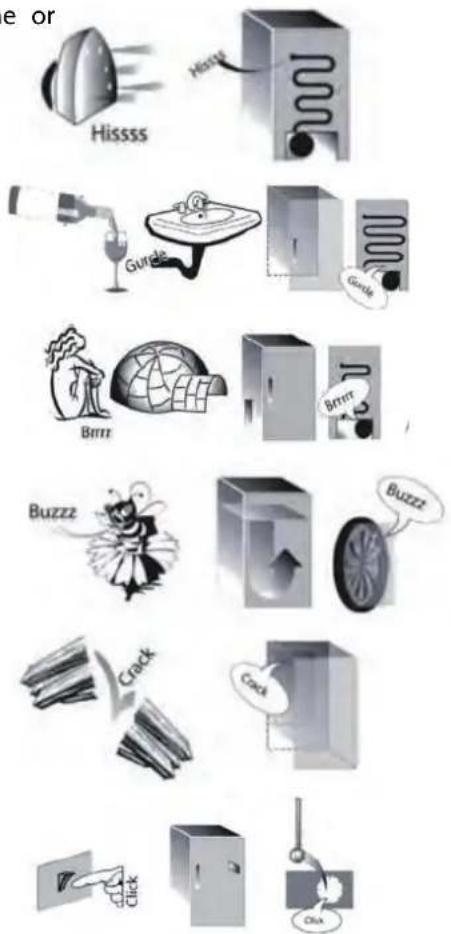

Some of the functional sounds you might hear

1. A hissing sound when switching on the appliance for the first time or after a long pause.

2. A gurgling sound when refrigerant fluid enters into the pipes.

3. BRRR sound is from the compressor running.

4. Buzzing sound when water valve or fan start working.

5. A cracking sound when compressor starts.

6. The CLICK is from the thermostat which adjusts how often the compressor is running.

e or Hissss Hisss Gudge Bmrt Bmrt Buzzz Crack Cock Click Ola

Recommendation in case of no use of the appliance

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it.

Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

Cleaning and maintenance

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the elect power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but cloth.

Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors.
Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth.

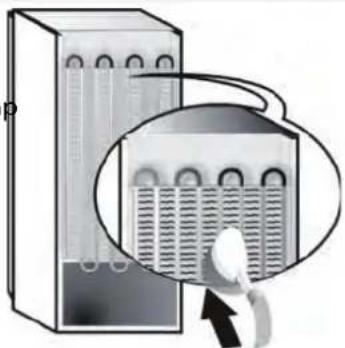

- Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Important:

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.
The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.

To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided *.

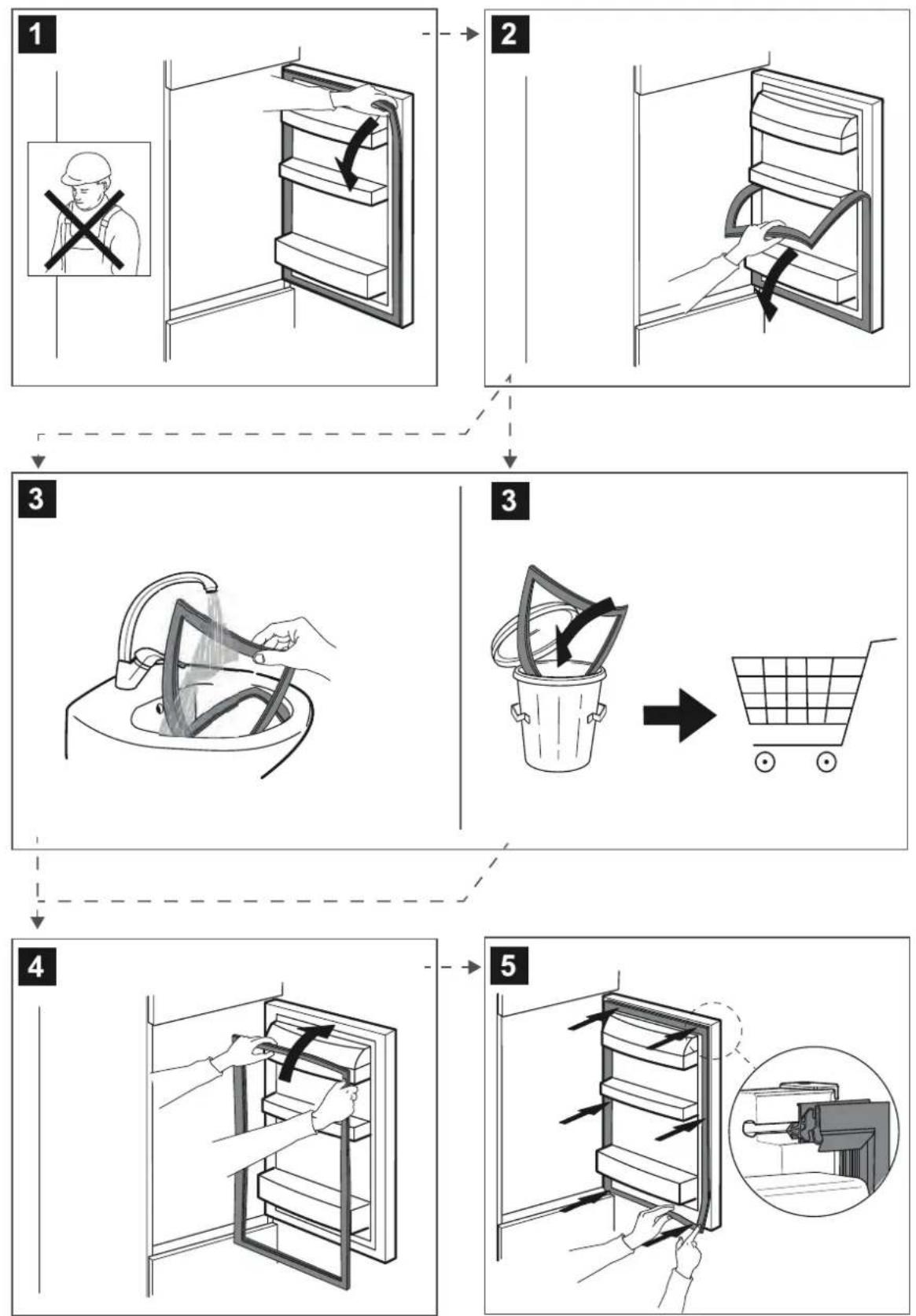

Gasket replacement

After-sales service

BEFORE CALLING THE AFTER-SALES SERVICE

1. See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING.
2. Switch the appliance off and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SE

To receive assistance, call the number shown on the warranty booklet.

When contacting our Client After sales service, always specify:

• a brief description of the fault;
- the type and exact model of the appliance;

t. H1 PS No R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R35 R36 R37 R38 R39 R40 R41 R42 R43 R44 R45 R46 R47 R48 R49 R50 R51 R52 R53 R54 R55 R56 R57 R58 R59 R60 R61 R62 R63 R64 R65 R66 R67 R68 R69 R70 R71 R72 R73 R74 R75 R76 R77 R78 R79 R80 R81 R82 R83 R84 R85 R86 R87 R88 R89 R90 R91 R92 R93 R94 R95 R96 R97 R98 R99 R100

• the service number (number after the word Service on the rating
plate). The service number is also indicated on the guarantee book
SERVICE
0000 000 00000
- your full address;
- your telephone number.

If any repairs are required, please contact an authorised aftersales service (to guarantee that original spare parts will be used and repairs carried out correctly).

Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

400011498903

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Bedienungsanleitung

BEDIENUNGSANLEITUNG

INDEX

Technical diagram showing two views of a device with internal compartments and directional arrows indicating movement or assembly.

Simple line drawing of a refrigerator with two legs, no text or symbols present

Diagram showing two steps of a device or container with arrows indicating movement, labeled 1 and 2.

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Handleiding

HANDLEIDING

INDEX

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Illustration of a server rack with a computer monitor and a magnified view showing the rack (no text or symbols)

Belangrijk:

Technical diagram showing a door handle with a magnified view of the main panel labeled 'B1' and technical labels like 'File', 'Check', and 'Adjust'.

SERVICE
0000 000 00000

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Manuale d'uso

MANUALE D'USO

INDICE

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Importante:

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Manual de usuario

MANUAL DE USUARIO

ÍNDICE

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Hissss Giggle Bmrr Buzzz Crack Click Click

Illustration of a server rack with a magnified inset showing internal structure (no text or symbols)

Importante:

Simple line drawing of a refrigerator with two legs, no text or symbols present

Manual do utilizador

MANUAL DO UTILIZADOR

ÍNDICE

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Gundle Gundle

Illustration of three industrial devices: a person with a head, a globe-like structure, and a control box (no text or symbols visible)

a Buzzz Buzzz

Crack Crack

Three grayscale illustrations showing a door, a cabinet, and a lock with a 'Click' button (no text or symbols on objects)

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

on paine B 1

Diagram of a refrigerator interior with an arrow indicating left side (no text or symbols present)

Buzzz Crack Click Buzzz Crack Click

Simple line drawing of a refrigerator with two legs, no text or symbols present

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Važno:

Gumbi i zaslon upravljačke ploče ne smiju se čistiti alkoholom ili sredstvima na bazi alkohola, već suhom krpom.
Cijevi sustava hlađenja nalaze se u blizini posude za odleđivanje i mogu postati vruće. Povremeno ih očistite usisavačem.

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Návod k použití

NÁVOD K POUŽITÍ

OBSAH

Diagram of a door or cabinet with internal compartments and arrows indicating movement (no text or symbols)

Diagram of a refrigerator interior with an arrow indicating left motion (no text or symbols)

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Důležité:

Technical diagram showing a door handle with a close-up of the door panel and a close-up of the door with labeled components.

SERVICE

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Brugsvejledning

BRUGSVEJLEDNING

INDHOLDSFORTEGNELSE

Diagram of a refrigerator interior with shelves and doors, no text or symbols present

Diagram of a refrigerator interior with an arrow indicating left-side motion (no text or symbols)

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Vigtigt:

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Kasutusjuhend

KASUTUSJUHEND

REGISTER

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Tähtis!

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Käyttöopas

KÄYTTÖOPAS

SISÄLTÖ

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Hissss Gurgle Bmrt Buzzz Crack Click CBA

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Tärkeää:

Technical diagram showing a door handle with a close-up of its internal components, including labeled parts and a magnified view.

SERVICE

Simple line drawing of a refrigerator with two legs, no text or symbols present

Εγχειρίδιο χρήσης

ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ

EYPETHPIO

Technical diagram showing two views of a device with internal compartments and directional arrows indicating movement or assembly.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Σημαντικό:

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Használati útmutató

HASZNÁLATI ÚTMUTATÓ

TARTALOMJEGYZÉK

Technical diagram showing two views of a mechanical component with directional arrows indicating movement or force.

Hissss Gurdle Burr Buzzz Crack Click Cla

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Fontos megjegyzés:

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Svarigi!

Technical diagram showing a door handle with a magnified view of the interior panel with labeled components and status indicators.

SERVICE
0000 000 00000

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Naudojimo vadovas

NAUDOJIMO VADOVAS

RODYKLÉ

Diagram showing two steps of a refrigerator interior with directional arrows indicating movement or change.

Girdle Girdle

Illustration of three electronic devices: a person with a globe, a globe dome, and an open circuit board (no text or symbols visible)

Buzzz Buzzz

Crack Crack

Diagram showing three electrical switch symbols: a wall-mounted switch, a cabinet with a lock, and a hanging switch labeled 'CBA'.

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Brukerveiledning

BRUKERVEILEDNING

STIKKORDREGISTER

Diagram of a storage unit with three compartments and upward arrows indicating flow or movement (no text or symbols)

Diagram of a refrigerator interior with an arrow indicating direction (no text or symbols)

ng Hissss Gudge Gudge Birr Birr Buzzz Crack Cock Click Click

Technical diagram showing a mechanical assembly with a magnified detail view of the main component.

SERVICE
0000 000 00000

Simple line drawing of a refrigerator with two legs, no text or symbols present

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Ważne:

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Manual de utilizare

MANUAL DE UTILIZARE

CUPRINS

Two technical diagrams showing a door or shelf assembly with arrows indicating movement, labeled 1 and 2 (no text or symbols present)

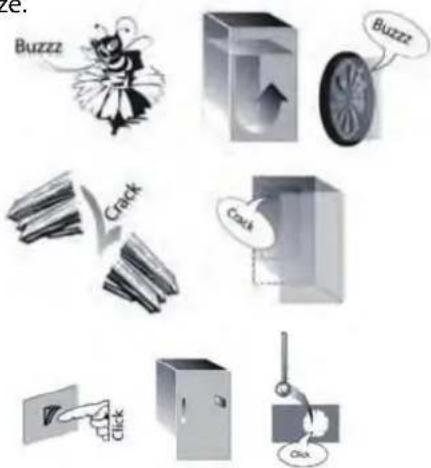

paužă Hissss Gurile Brrrr Brrrr

Buzzz Crack Crack Click Click

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Korisničko uputstvo

KORISNIČKO UPUTSTVO

INDEKS

Uputstvo za upotrebu i održavanje 2

Opšte informacije 2

LED svetlo 2

Diagram of a refrigerator interior with upward arrows indicating movement or force (no text or symbols)

Diagram of a refrigerator interior with an arrow indicating left side (no text or symbols present)

Diagram showing a server rack with labeled ports and a magnified view of the rack structure, possibly illustrating a data or system concept.

Važno:

UKOLIKO I NAKON GORENAVEDENIH PROVERA KVAR I DALJE POSTOJI, OBRATITE SE NAJBLIŽEM POSTPRODAJNI SERVISU

Da biste dobili pomoć, pozovite broj naveden u garantnoj knjižici.

Prilikom kontaktiranja našeg postprodajnog servisa za kupce potrebno je da navedete:

• kratak opis problema;
• tip i tačan model uređaja;

je M1 PS3# 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

• servisni broj (broj iza reči Service na pločici sa podacima). Servisni broj
  je takođe naveden u garantnoj knjižici;
• svoju punu adresu;
• Uvek ispustite vodu pre otvaranja vrata.

Ako su potrebne bilo kakve popravke, kontaktirajte ovlašćeni postprodajni servis (kako biste bili sigurni da će se koristiti originalni rezervni delovi i da će popravke biti ispravno obavljene).

SERVICE

400011498903

Simple line drawing of a refrigerator with two legs, no text or symbols present

Návod na používanie

NÁVOD NA POUŽÍVANIE

OBSAH

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Dôležité upozornenie:

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Navodila za uporabo

NAVODILA ZA UPORABO

KAZALO

Police in predali v vratih 2

Vrata 2

Uporaba aparata 3

Prva uporaba 3

Hladilni prostor in shranjevanje živil 3

Shranjevanje svežih živil in pijače 3

Zamrzovalni prostor in shranjevanje živil 3

Police in predali v vratih

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Hissss Gurale Bmrr Buzzz Crack Click Click

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Pomembno:

Simple line drawing of a refrigerator with two doors, enclosed in a rounded square frame (no text or symbols)

Bruksanvisning

BRUKSANVISNING

INNEHÅLLSFÖRTECKNING

Diagram showing two views of a refrigerator with labeled parts and directional arrows indicating movement or change.

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

Viktigt:

B1 Mg CEP 2.5

SERVICE

0000 000 00000

Simple line drawing of a refrigerator with a double door (no text or symbols)

Illustration showing a water bottle pouring liquid into a sink, next to a wall-mounted device with a coiled tube (no text or symbols)

Illustration of three objects: a person with a globe, a globe-like structure, and a server unit (no text or symbols)

Buzzz Buzzz

Crack Crack

Three grayscale illustrations of a door, cabinet, and hanging object with 'Click' labels (no text or symbols on objects)

Diagram showing a server rack with labeled components and a magnified view of the rack structure, possibly illustrating a data or system concept.

Важливо:

Simple line drawing of a refrigerator with two legs, no text or symbols present

Diagram showing two views of a device with internal compartments and directional arrows indicating movement or force.

Illustration of three objects: a hand holding a globe, a globe with a grid pattern, and an open box with a speech bubble containing 'Bmrr' (no text or symbols on objects)

Buzzz Buzzz

Crack Crack

Three icons showing a hand pressing a button, a cabinet, and a hanging tag (no text or symbols)

Simple line drawing of a refrigerator with a double door (no text or symbols)

Two technical diagrams showing a door or shelf assembly with arrows indicating movement, no text or symbols present.

sbsmo 36mconj0n 8sy63n 95 4663n 63mdgposg0n

Girdle Girdle

Illustration of three abstract symbols: a person with a globe, a globe on the left, and an electrical cabinet with a speech bubble (no text or labels)

1. 乾乾乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 乾燥 皂

Buzzz Buzzz

1. 0656760 3m336g1m6n6 h6m2025u.

Crack Cox

Illustration of three electrical components: a door, a cabinet, and a hanging switch (no text or symbols)

###

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)

∂δο∂ʒδʒμπμ3σ6ος:

Simple line drawing of a refrigerator with a double door (no text or symbols)

مادختسلااليلد

مدختسماليلد

فهرس

Diagram of a refrigerant or oven structure with internal compartments and arrows indicating flow direction (no text or symbols)

Diagram of a refrigerator interior with an arrow indicating left side (no text or symbols present)

Hissss Gurdle Bmrr Buzzz Crack Click O&A

Illustration of a server rack with a magnified inset showing internal components (no text or symbols)
