USER MANUAL TRETAKT 605.697.20 IKEA

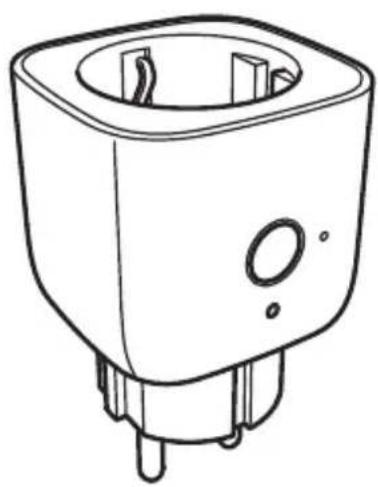

Simple line drawing of a rectangular device with a circular button and a small hole at the bottom (no text or symbols)

Line drawing of a square electronic device with internal components and mounting holes (no text or symbols)

IKEA®

Design and Quality IKEA of Sweden

English	3	Latviešu 55
Deutsch	6	Lietuvių 59
Français	10	Portugues	62
Nederlands	13	Româna	66
Dansk	17	Slovensky 69
Íslenska	20	Български 73
Norsk	24	Hrvatski	76
Suomi	27	Еллэнνικά 80
Svenska	31	Русский 83
Česky 34		Українська 87
Español	38	Srpski 90
Italiano	41	Slovenščina 94
Magyar 45		Türkçe 97
Polski	48	عربي 101
Eesti 52

English

RODRET steering device can be used to control your TRETAKT smart plug. If you own the DIRIGERA hub, you can control the TRETAKT smart plug via the IKEA Home smart app.

Pairing a steering device to your smart plug When the smart plug is sold together with a remote (in the same package), they are already paired. To add more smart plugs, just repeat the steps below:

1. Make sure that your smart plug is plugged in and the main power is turned on.
2. Hold the steering device close to the smart plug you want to add (no more than 5 cm away).
3. Press and hold the pairing button for at least 10 seconds. A red LED will steadily shine on the steering device. On your smart plug a white light will begin to dim and flash one time to indicate that it has been successfully paired.

Getting started with DIRIGERA hub

Download the IKEA Home smart app and follow the instructions on screen to add the smart plug to your IKEA Home smart system.

IKEA Home smart app

For Apple devices, download the app using the App Store. For Android devices, download the app using Google Play store.

Good to know

Without DIRIGERA, you can connect a maximum of 10 smart products to one dimmer/switch. Remember to add one product at a time. If your products are close together, disconnect the ones you have already connected while adding the next product.

Get to know your TRETAKT product

Press the On/Off button on the smart plug once to turn it on. Press it once again to turn it off.

When using a remote: Press the On button (|) to turn the smart plug on. Press the Off button (o) to turn the smart plug off.

Factory reset your smart plug:

Push the reset button on top of the smart plug with a pointy object for at least 5 seconds until the LED starts pulsating.

IMPORTANT!

• The Smart plug is for indoor use only and can be used in temperatures from 0°C to 35°C.
• Do not leave the Smart plug in direct sunlight or near any heat source, as it may overheat.
• Do not subject the Smart plug to wet, moist or excessively dusty environments as this may cause damage.
• The range between the steering device and the receiver are measured in open air. Different building materials and placement of the units can affect the wireless connectivity range.

WARNING:

• Do not connect after each other in sequence.
• Do not cover when in use.
• To disconnect the power, pull the plug.
• Use only indoors in dry areas.
• Do not overload the product.
• Discard the product if damaged.
• For adult use only. This is not a toy and is not intended for use by children.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Get to know your RODRET product

Pairing button

Press to turn on, or long-press to increase brightness

Press to turn off, or long-press to decrease brightness

Changing the battery

A red LED light will blink when you press any button the dimmer/switch to show that a new battery is needed. Open the battery lid and replace with a new AAA/HR03 battery.

Factory reset RODRET wireless dimmer

To reset and remove all connected products, quick-press the pairing button 4 times (within 5 seconds). Follow steps 1-3 to reconnect your smart products.

IMPORTANT!

• The steering device is for indoor use only and can be used in temperatures ranging from 0^ C to 40^ C .
• Do not leave the steering device in direct sunlight or near any heat source, as it may overheat.
• Different building materials and placement of the units can affect the wireless connectivity range.

WARNING!

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Save these instructions for future use.

Technical data

Model: TRETAKT plug smart

Type: E2204

Input: 220-240V, 50/60Hz

Max output power: 3680 W

Resistive load/ Max 300W motor load

Range: 10 m in open air.

For indoor use only

Operating frequency: 2405-2480 MHz

Output power: 10 dBm

Care instructions

To clean the product, wipe it with a soft cloth moistened with a little mild detergent. Use another soft, dry cloth to wipe dry. Never use abrasive cleaners or chemical solvents as this can damage the product.

Technical data

Model: RODRET wireless dimmer

Type: E2201

Input: 1.2 V, 1x AAA/HR03 LADDA battery

Range: 10 m in open air.

For indoor use only

Operating frequency: 2405-2480 MHz

Output power: 3 dBm (EIRP)

IP-class: IP44

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in

accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
