USER MANUAL Platinum SB10 TUNTURI

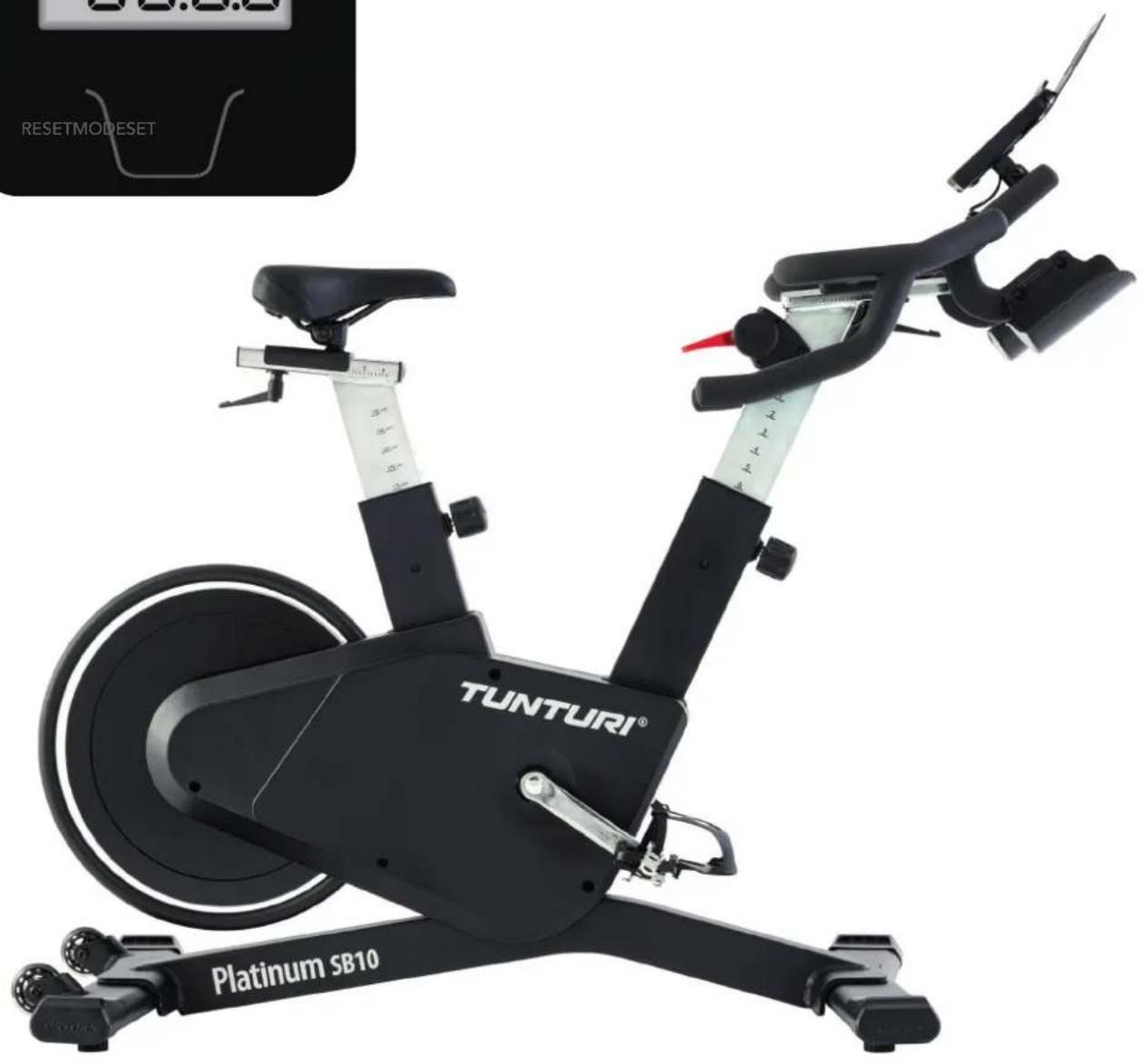

Exterior view of a TUNTURI Platinum S810 stationary exercise bike (no signage or text beyond branding)

Attention, Achtung, Attention, Attentie, Attenzione, Atención, Giv akt, Huomio

• Please read this user manual carefully prior to using this product.
• Lesen Sie sich vor dem Gebrauch des Produkts diese Bedienungsanleitung sorgfältig durch.
• Veuillez lire attentivement le présent manuel de l'utilisateur avant d'utiliser ce produit.
• Lees deze gebruikershandleiding zorgvuldig voordat u dit product gaat gebruiken.
• Leggere attentamente questo manuale dell'utente prima di utilizzare il prodotto.
• Antes de utilizar este producto, lea atentamente este manual de usuario.
• Läs den här användarhandboken noggrant före användning av den här produkten.
• Lue tämä käyttöohje huolellisesti ennen tämän tuotteen käyttöä.

Icon depicting a document with a globe symbol and the word 'WWW' (no additional text or symbols)

A

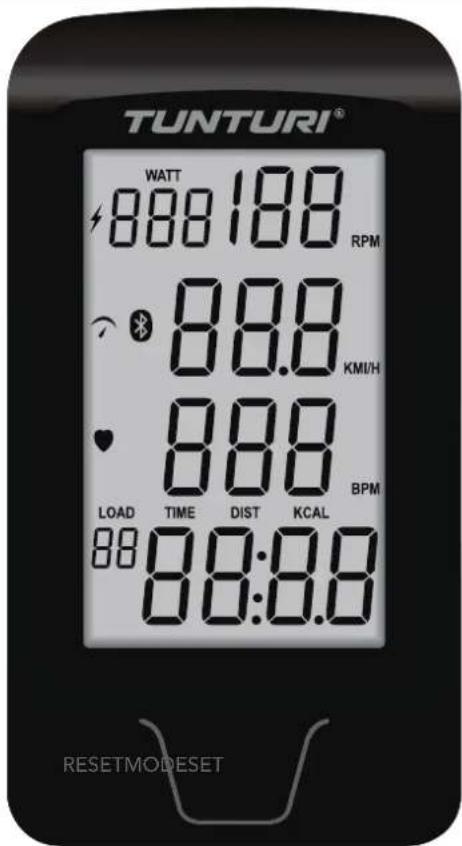

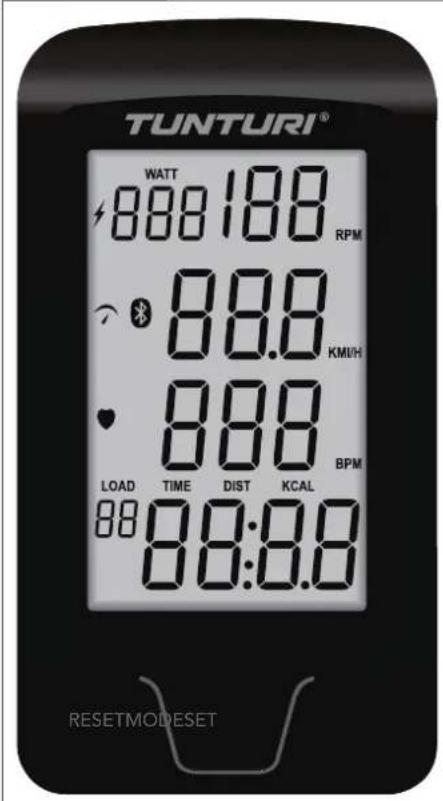

TUNTURI® WATT 188 RPM 888 88.8 KM/H 888 BPM LOAD TIME DIST KCAL 88 88:8.0 RESETMODESET

Exterior view of a Tunturi stationary exercise bike (no signage or text overlays)

B

Technical drawings of a stationary exercise machine with labeled components and cross-sectional views

C

STEP 1 ③2 M8*1.25*20L 4pcs ③3 D30*D8.2*3T 4pcs ③4 D15.4*D8.2*2T 4pcs STEP 2 ⑦1 D31.8*D10.5*3T 1pc ⑦2 M10*1.5*35L 1pc ⑦3 M5*0.8*15L 4pcs ⑦4 M5*0.8*30L 2pcs ⑦5 D15*D5.2*3T 2pcs STEP 3 STEP 4 ⑥1 D4*D12*13 1pc (mm) 13 15

D-00

300 mm 600 mm 600 mm 600 mm 2000 mm

D-01

Technical line drawing of a stationary exercise bike with yellow and blue components (no text or symbols)

D30*D8.2*3T D15.4*D8.2*2T M8*1.25*20L

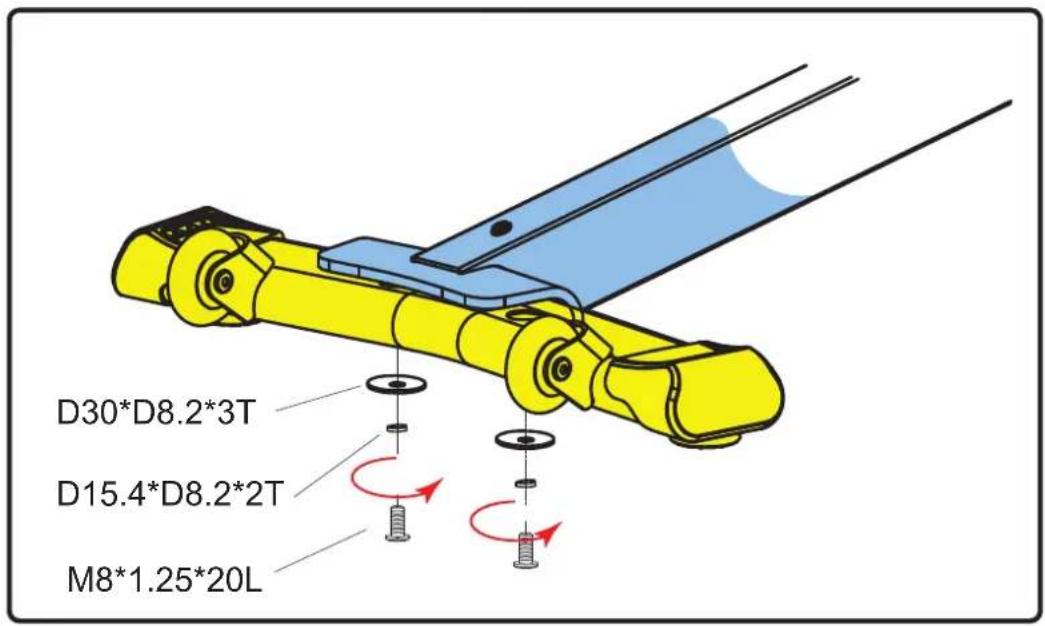

STEP 1 M8*1.25*20L 4pcs D30*D8.2*3T 4pcs D15.4*D8.2*2T 4pcs STEP 2 M10*1.5*35L 1pc M5*0.8*15 L 4pcs D15*D5.2*3T 2pcs STEP 3 D31.8*D10.5*3T 1pc STEP 4 D4*D12*13 1pc

D-02

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or movement.

D31.8*D10.5*3T M10*1.5*35L

Diagram of an exercise bike with Chinese annotation indicating the assembly process

STEP 1 ⑫ M8*1.25*20L 4pcs ③ D30*D8.2*3T 4pcs ④ D15.4*D8.2*2T 4pcs STEP 2 ⑦ M10*1.5*3SL 1pc ⑧ M5*0.8*15 L 4pcs ⑨ M5*0.8*30L 2pcs ⑩ D15*D5.2*3T 2pcs STEP 3 STEP 4 ⑪ D4*D12*13 1pc

D-03

M5*0.8*30L D15*D5.2*3T M5*0.8*15L

STEP 1 ⑫ M8*1.25*20L 4pcs ③ D30*D8.2*3T 4pcs ④ D15.4*D8.2*2T 4pcs STEP 2 ⑦ M10*1.5*35L 1pc ⑧ D31.8*D10.5*3T 1pc ⑨ M5*0.8*15 L 4pcs ⑩ M5*0.8*30L 2pcs ⑪ D15*D6.2*3T 2pcs STEP 3 STEP 4 ⑫ D4*D12*13 1pc

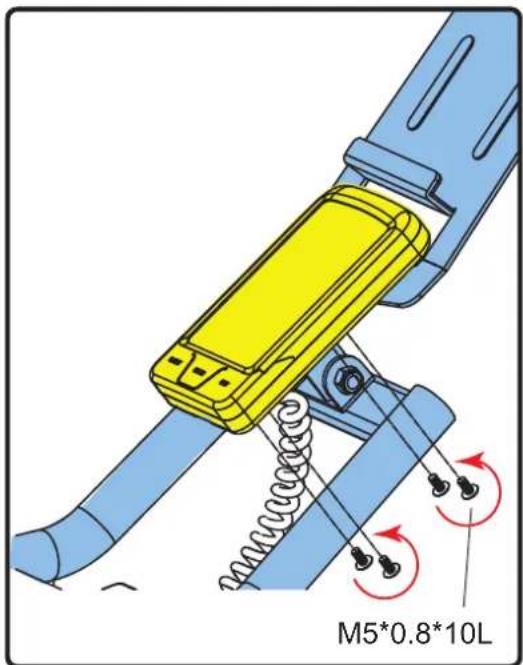

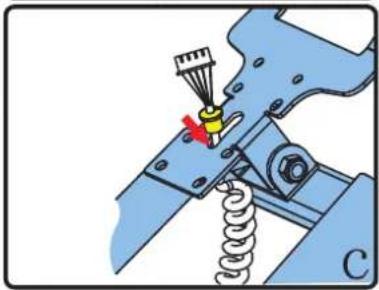

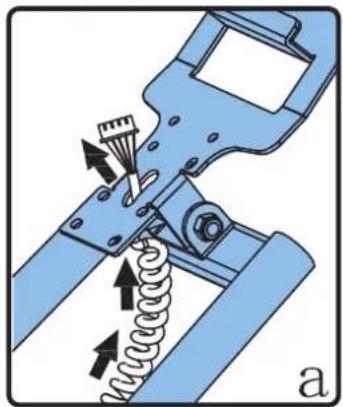

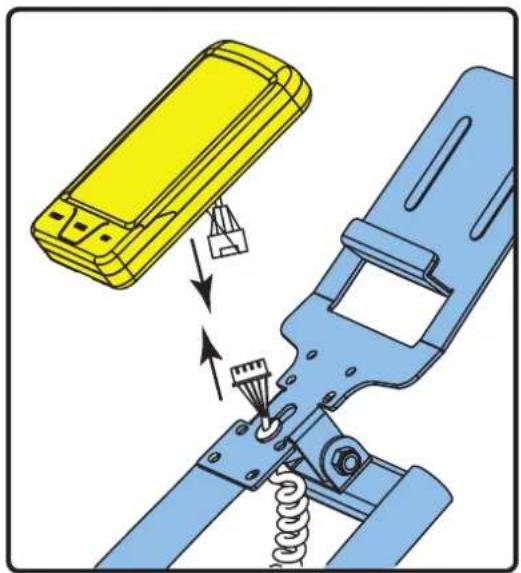

D-04

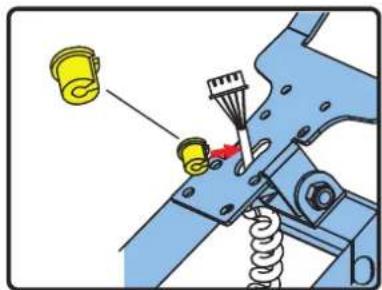

Mechanical assembly diagram showing a spring-loaded tool interacting with a mechanical bracket (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a blue bracket and spring (no text or symbols)

Mechanical assembly diagram showing a spring-loaded component with a yellow tool inserted (no text or symbols visible)

Illustration of a yellow and blue mechanical device with a spring, showing assembly steps (no text or symbols)

4x Screw M5x 10

4x Screw Mix 10 Preassembled Vormontiert Pré assemblé Voorgemonteerd Pre-assemblato Förmonterad Esikoottu

Mechanical assembly diagram showing a blue lever with yellow component and red rotation arrows, labeled M5*0.8*10L (no text or symbols on the diagram itself)

STEP 1 ⑫ M8*1.25*20L 4pcs ③ D30*D8.2*3T 4pcs ⑭ D15.4*D8.2*2T 4pcs STEP 2 ⑦ M10*1.5*39L 1pc ⑧ D31.8*D10.5*3T 1pc ⑨ M5*0.8*15 L 4pcs ⑩ M5*0.8*30L 2pcs ⑪ D15*D5.2*3T 2pcs STEP 3 STEP 4 ⑬ D4*D12*13 1pc

D-05

Scan to see YouTube tutorial TUNTURI®

Left hand crank
Make sure to use Left hand pedal

Illustration of a stationary exercise machine with a magnified inset showing internal components (no text or symbols)

Right hand crank
Make sure to use Right hand pedal

Diagram illustrating the use of a balance bike with labeled components and a magnified inset showing the gear shift.

STEP 1 ⑫ M8*1.25*20L 4pcs ③ D30*D8.2*3T 4pcs ④ D15.4*D8.2*2T 4pcs STEP 2 ⑦ M10*1.5*35L 1pc ⑧ D31.8*D10.5*3T 1pc ⑨ M5*0.8*15 L 4pcs ⑩ M5*0.8*30L 2pcs ⑪ STEP 4 ⑫ D15*D5.2*3T 2pcs ⑬ D4*D12*13 1pc STEP 3 (mm)

E-1

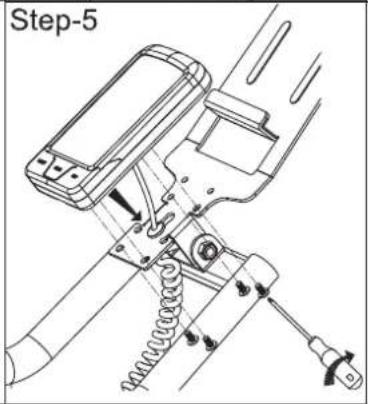

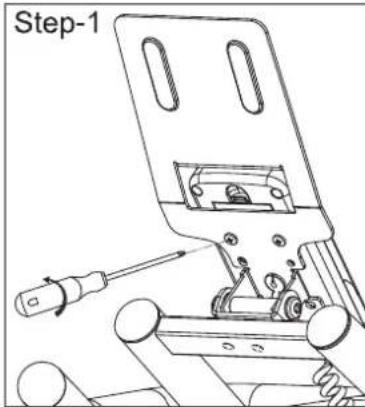

Step-1

Step-2

Step-3 ACEN

Step-4

Step-5

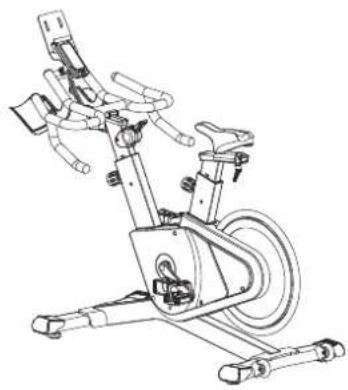

Line drawing of an outdoor exercise bike with adjustable arms and wheels (no text or symbols)

E-2

Technical diagram of an exercise bike with labeled mechanical components and motion arrows indicating changes.

F-1

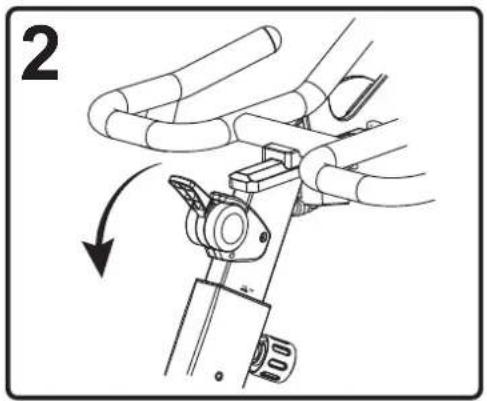

Line drawing of a hand using a bicycle pedal mechanism, showing lever and grip assembly (no text or symbols)

Line drawing of an exercise bike with visible legs, arms, and wheels (no text or symbols)

2

F-2

TUNTURI® WATT 188 RPM 888 88.8 KMI/H 888 LOAD TIME DIST KCAL BPM 88 88:8.8 RESETMODESET

Index

Welcome....13

Safety warnings....13

Assembly instructions....14

Description illustration A....14
Description illustration B....14
Description illustration C....14
Description illustration D....14
Additional assembly information 14
Additional environmental information 14
Free training area (Fig. D-0) 14

Workouts....14

Exercise Instructions....15

Heartrate 15

Use....16

Adjusting the support feet....16

Adjusting the horizontal seat position 16

Adjusting the vertical seat position....16

Adjusting the horizontal handlebar position....16

Adjusting the handlebar height 16

Adjusting resistance (Fig. G-1) 16

Emergency break knob (Fig. G-2) 16

Use our dual function pedal....16

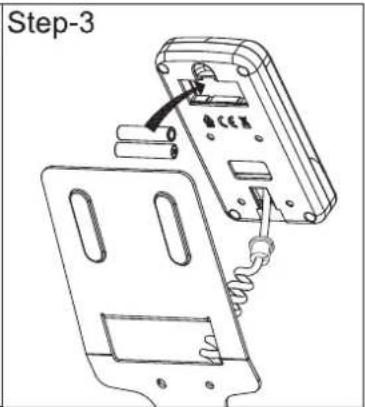

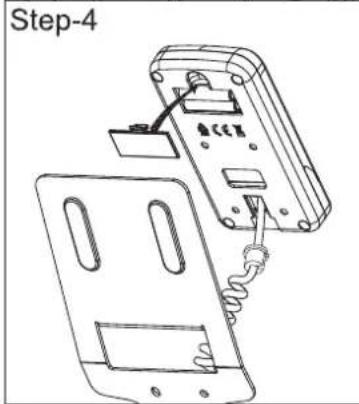

Replacing the batteries (Fig. E-1)....17

Console (Fig. F-2)....17

Explanation Display functions 17

Explanation of buttons....17

Operation....18

Programs 18

Bluetooth & APP 18

Cleaning and maintenance....18

Defects and malfunctions....18

Transport and storage 18

Warranty....19

Technical data....19

Declaration of the manufacturer ....19

Disclaimer....19

Welcome

Welcome to the world of Tunturi!

Thank you for purchasing this piece of Tunturi equipment.

Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes, rowers, strength benches and multi stations. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Important Safety Instructions

This manual is an essential part of your training equipment please read all instructions in this manual before you start using this equipment. The following precautions must always be followed:

Safety warnings

WARNING

- Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

WARNING

• Heart rate monitoring systems may be inaccurate.
• Over exercise may result in serious injury or death. If you feel faint stop exercising immediately.

• The equipment is suitable for domestic and professional use only (e.g. hospitals, fire stations, hotels, schools etc.).
• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.
• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
• Only use the equipment in environments with ambient temperatures between 10 °C and 35 °C. Only store the equipment in environments with ambient temperatures between 5 °C and 45 °C.
• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80%.
• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.

• Keep clothing, jewellery and other objects away from the moving parts.

• Make sure that only one person uses the equipment at a time.
  The equipment must not be used by persons weighing more than 180kg (397 lbs).

• Do not open equipment without consulting your dealer.

Assembly instructions

Description illustration A

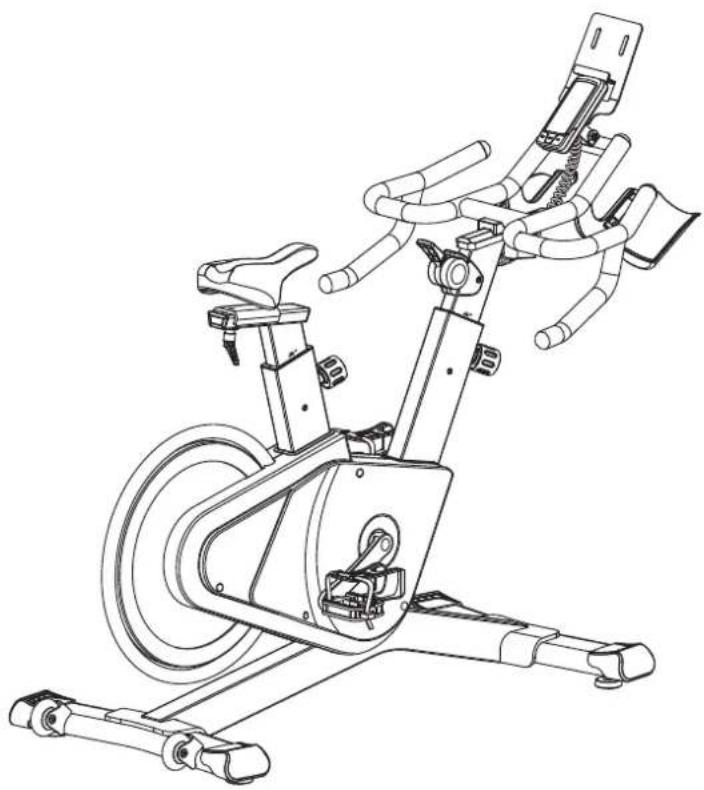

The illustration shows what the trainer will looks like after the assembly is completed.

You can use this as a reference during your assembly, but do follow the assembly steps always in the correct sequence as showed in the illustrations.

Description illustration B

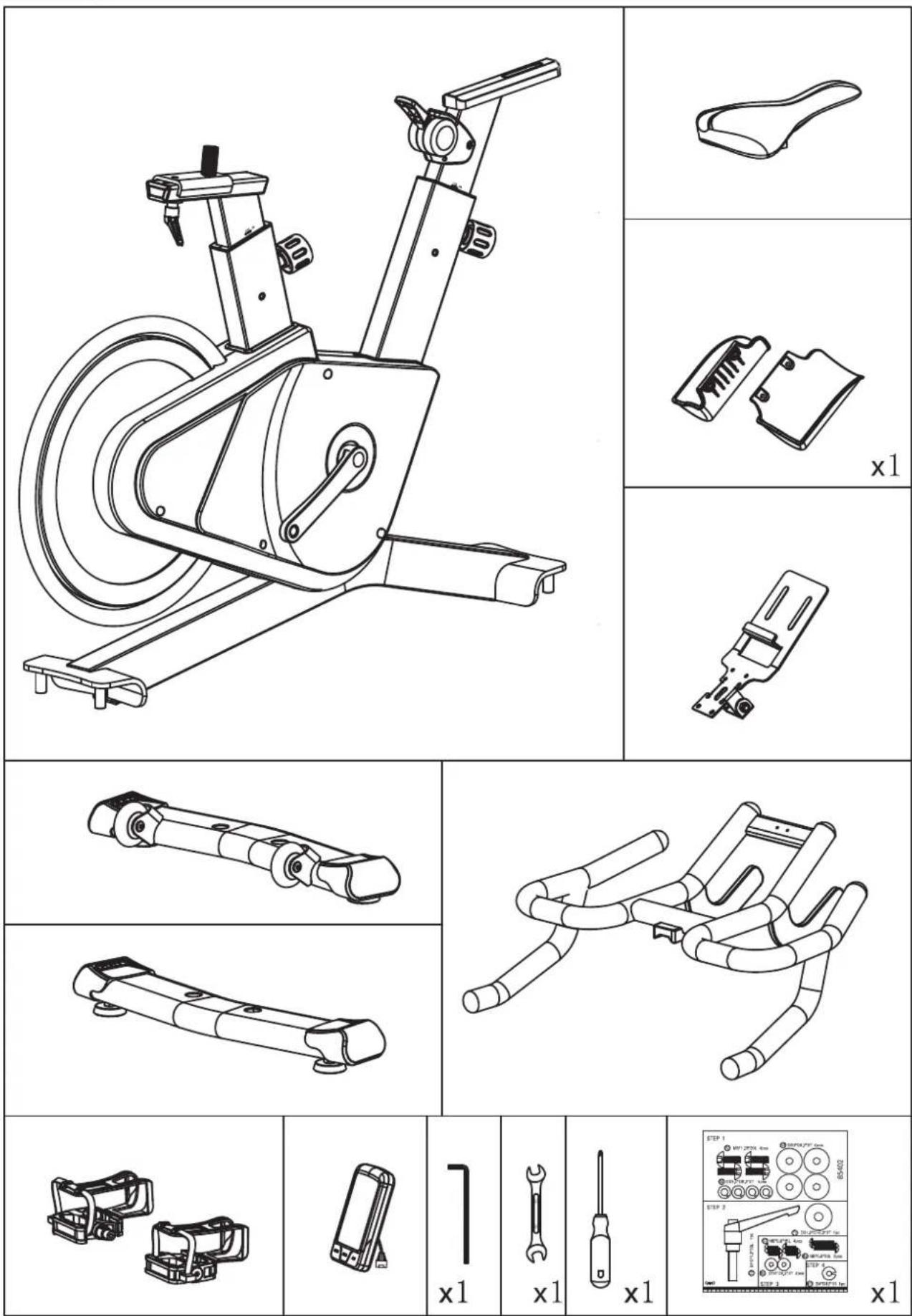

The illustration shows what components and parts you should find when un-boxing your product.

NOTE

• Small parts can be hidden/ packed in hollow spaces in the Styrofoam product protection
  • If a part is missing, contact your dealer.

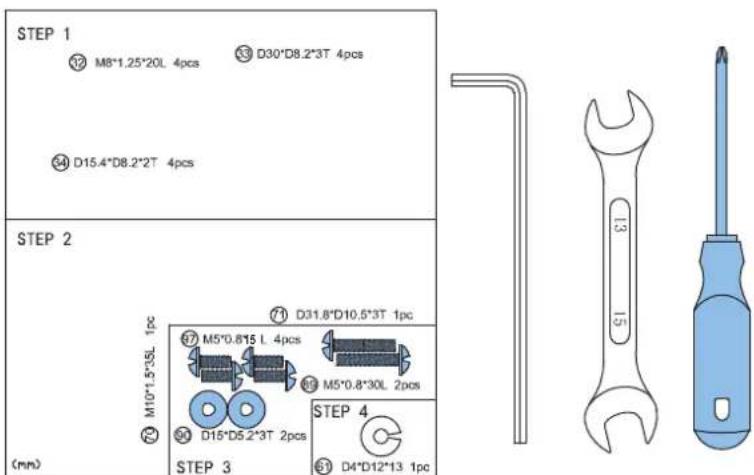

Description illustration C

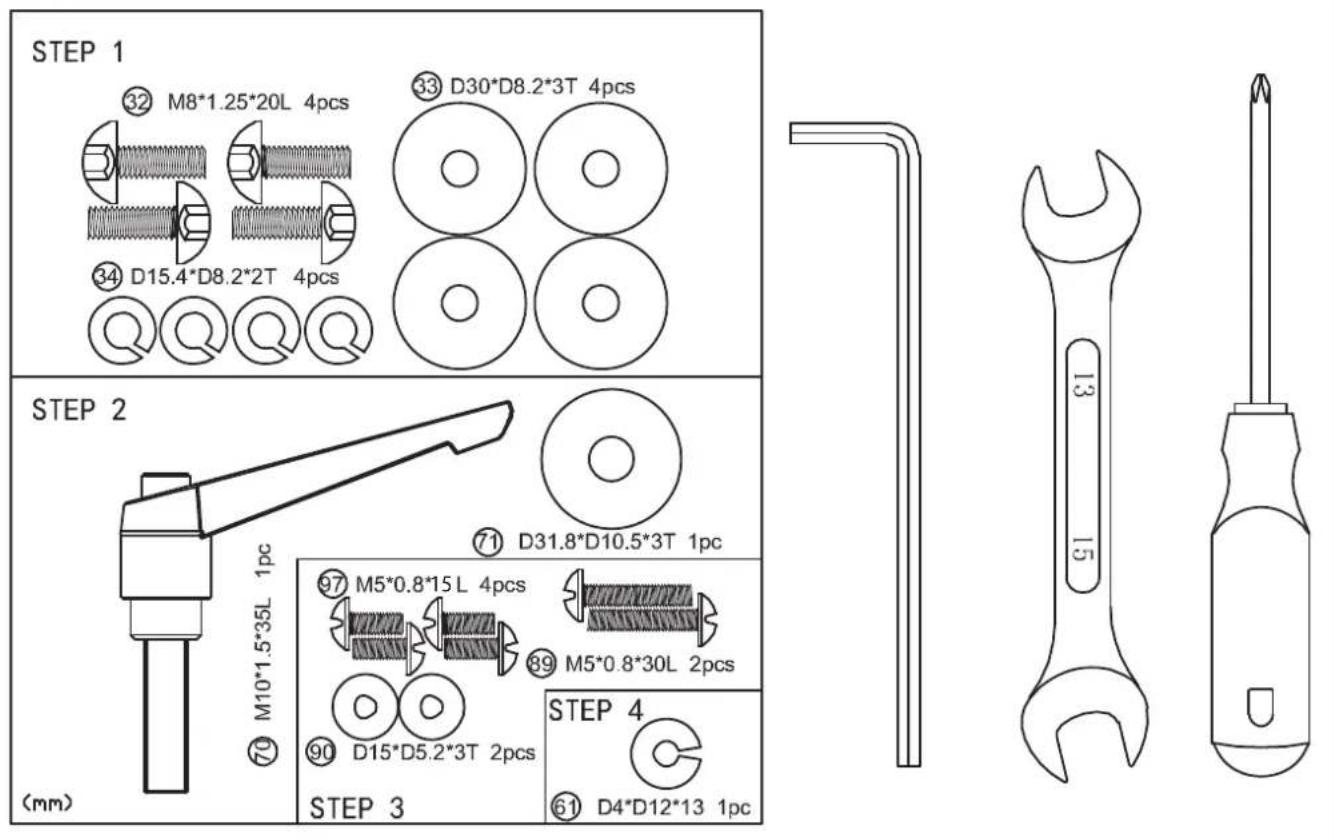

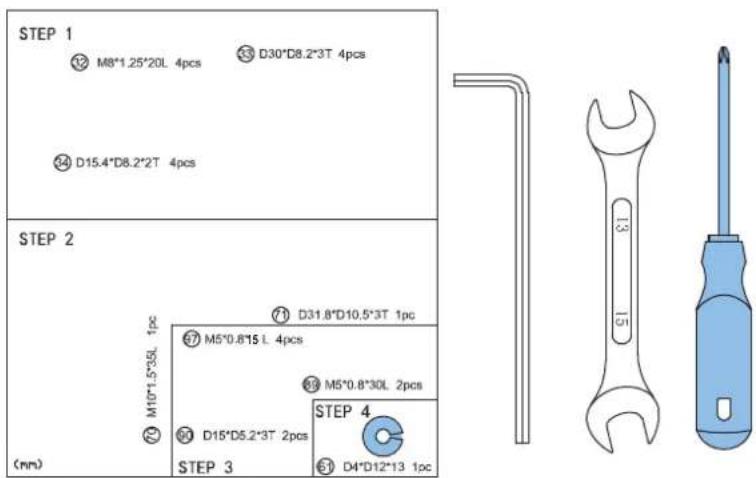

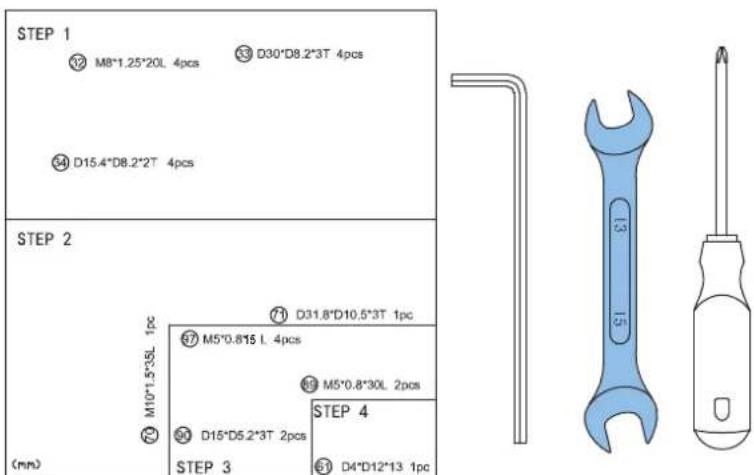

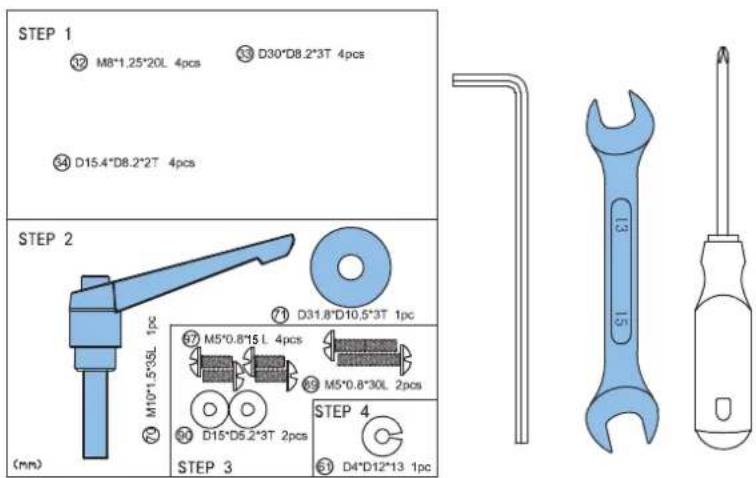

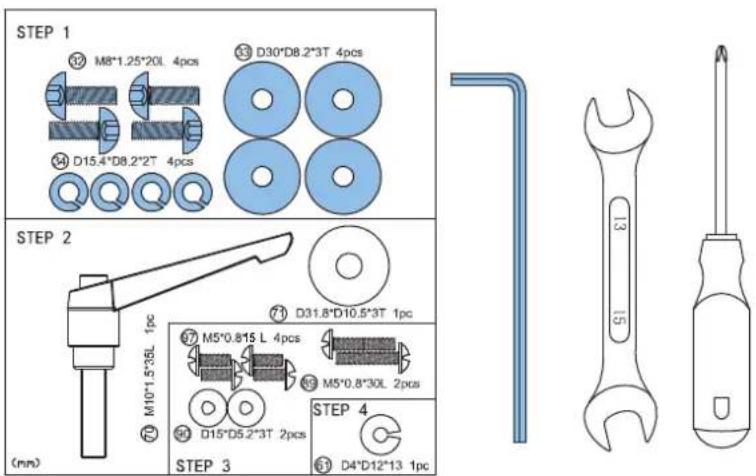

The illustration shows the hardware kit that comes with your product. The hardware kit contains bolts, washers, screws, nuts etc. and the required tools to properly fit your trainer.

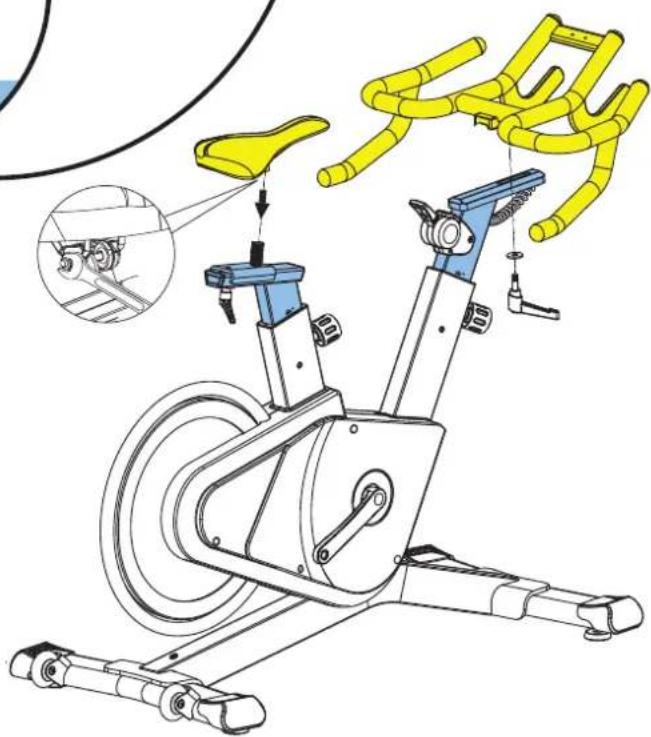

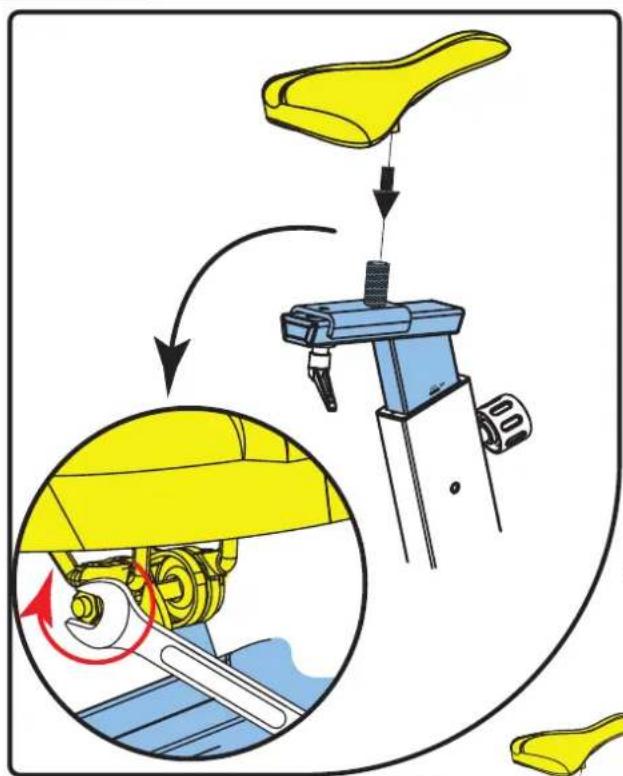

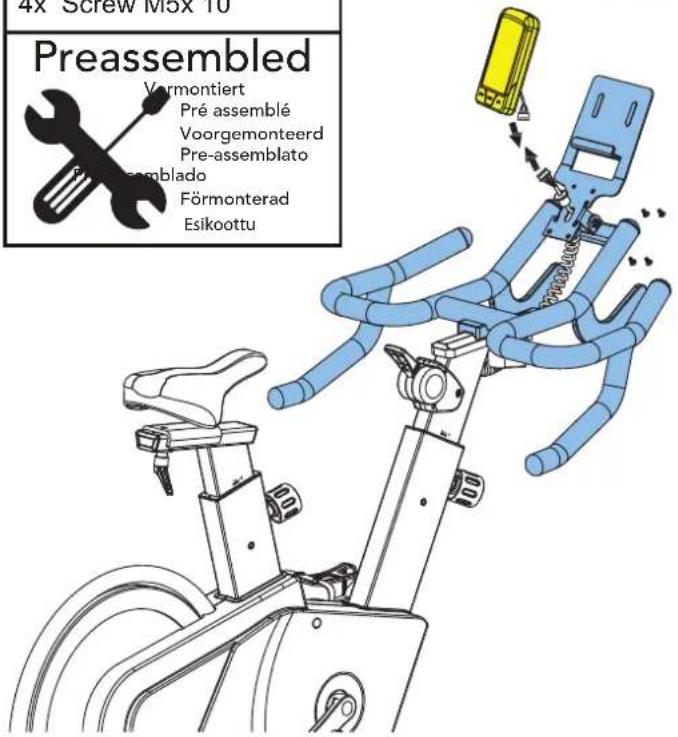

Description illustration D

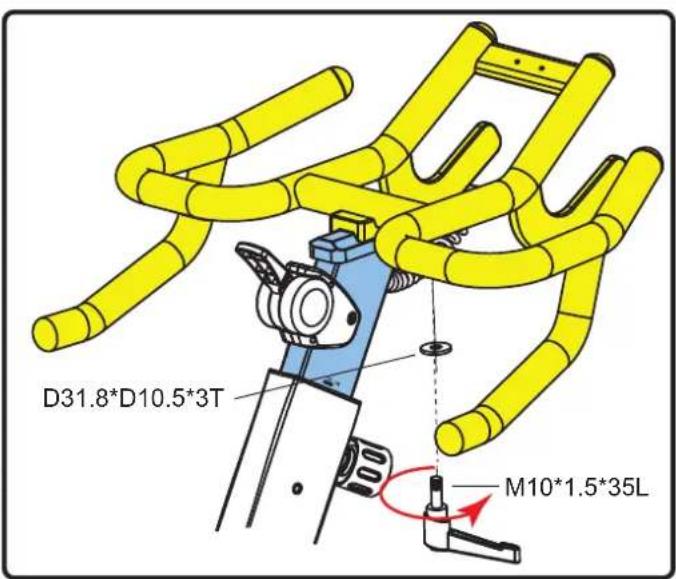

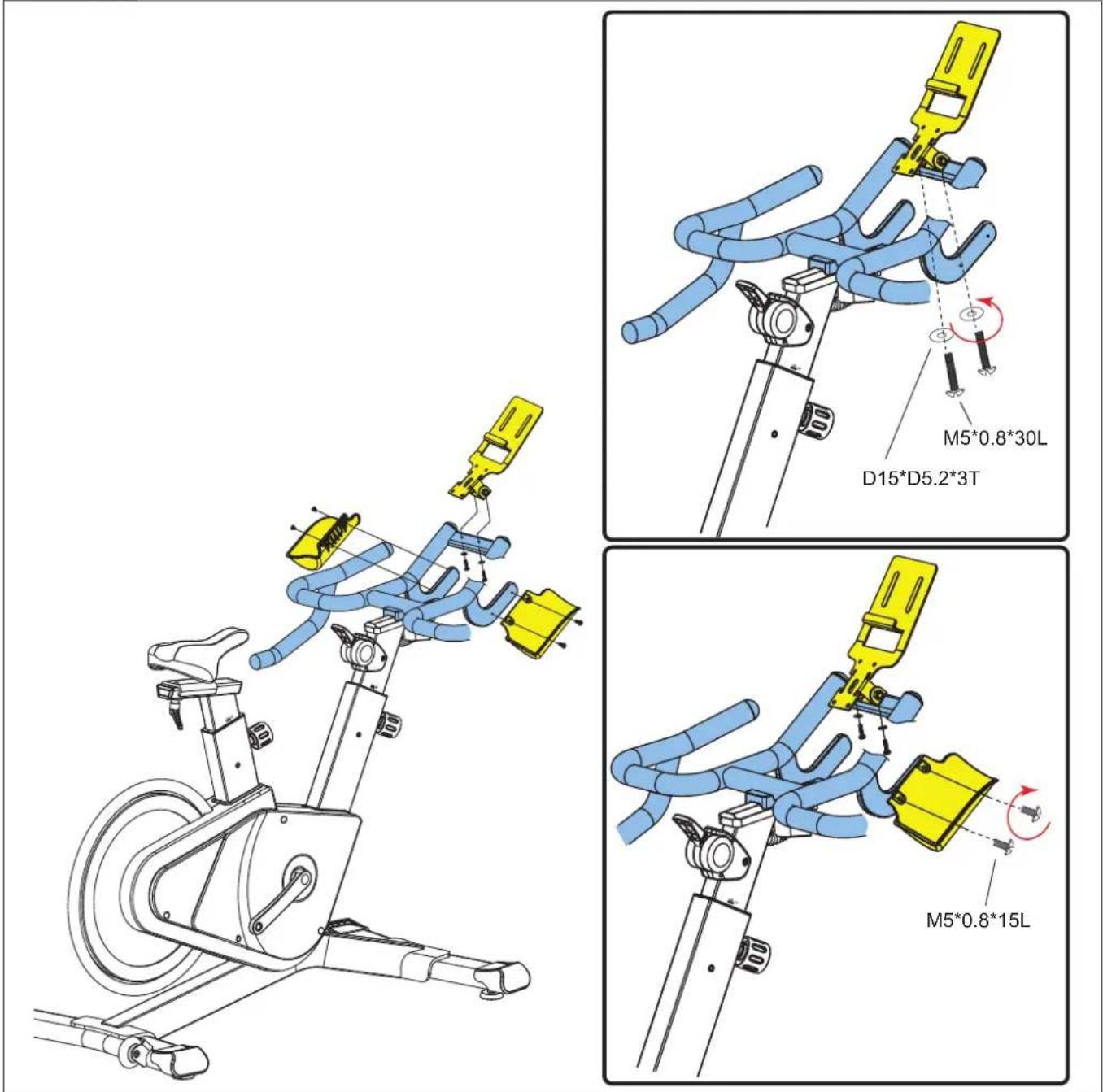

The illustrations shows you in the correct following order how to assembly your trainer best.

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Refer to the illustrations for the correct assembly of the equipment.

NOTE

- Save the tools provided with this product, after you completed the product assembly, for future service purposes.

Additional assembly information

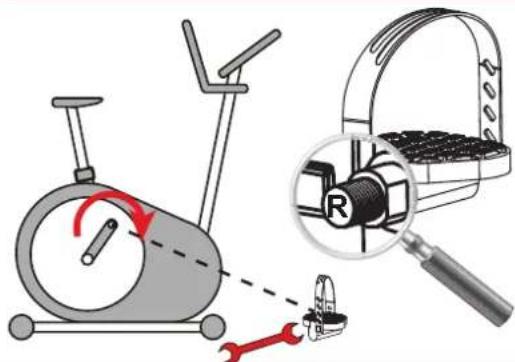

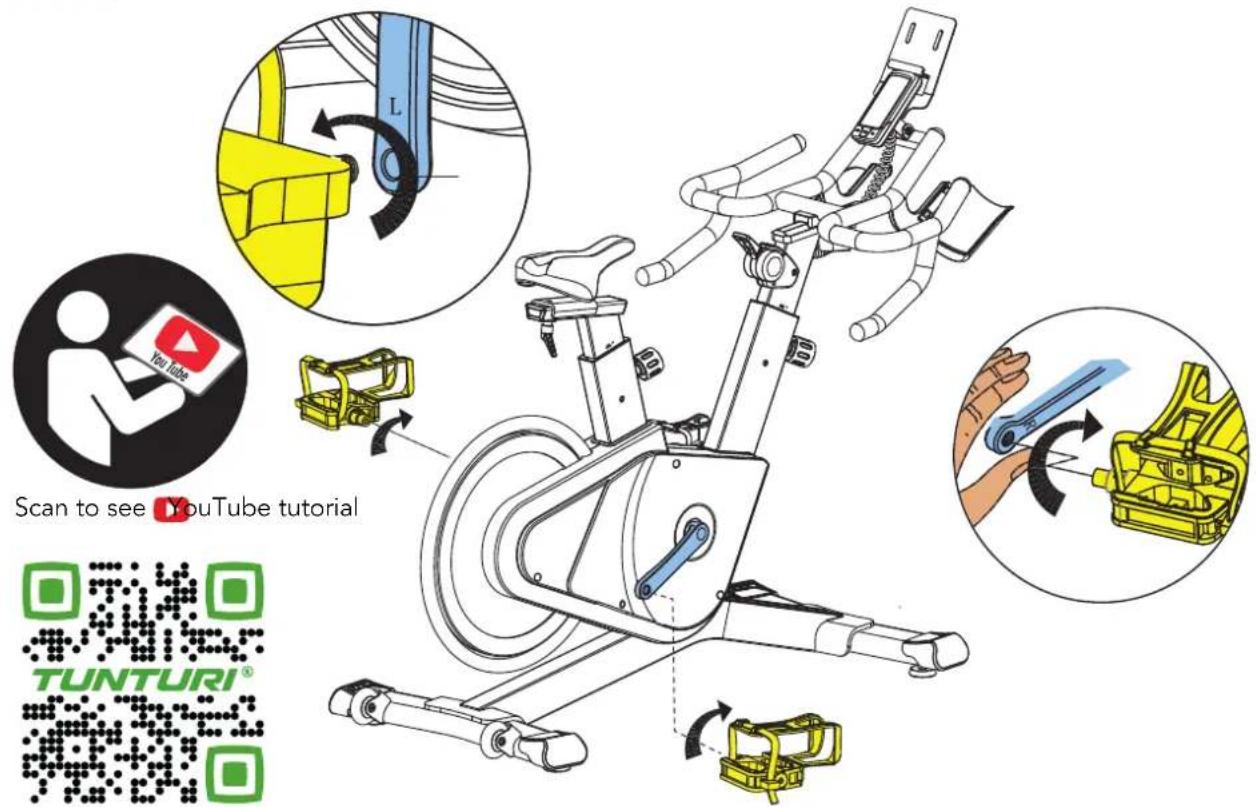

D5 How to fit the pedals correctly.

NOTE

- Right and left side are determined from an exercising positions perspective.

Right hand pedal

Find the "R" or "L" mark on the pedal axle
- Fit the right hand pedal "R" into the right hand crank.
- Firstly turn the pedal axle in clockwise direction by hand.
- Use the wrench to fully tighten the pedal.

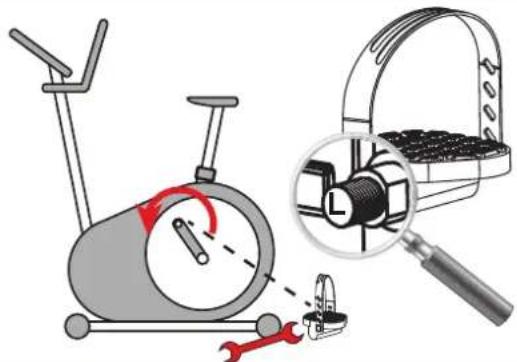

Left hand pedal

• Fit the left hand pedal "L" into the left hand crank.
• Firstly turn the pedal axle in counter-clockwise direction by hand.
• Use the wrench to fully tighten the pedal.

Click to see our supportive YouTube video https://youtu.be/3BiN9mc5Tmw?t=101

NOTE

- Save the tools provided with this product, after you completed the product assembly, for future service purposes.

Additional environmental information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a Time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

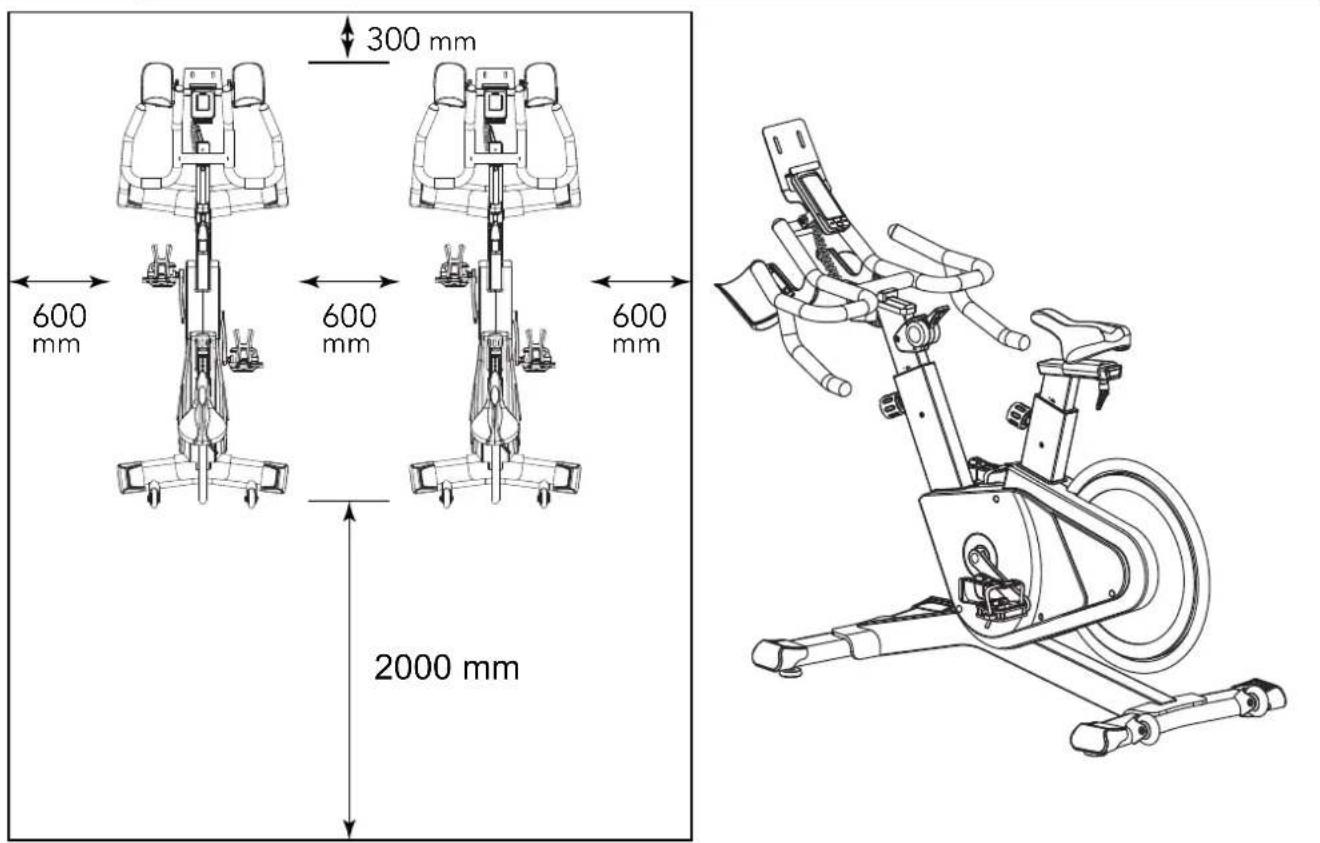

Free training area (Fig. D-0)

Front of the equipment

Allow at least 30~cm clearance in front of the equipment. - The free training area for this section can be shared with other equipment of the same kind when both are facing each other.

Side of the equipment.

Allow at least 60 cm clearance on each side of the equipment. - The free training area for this section can be shared with other equipment of the same kind when both are facing each other.

Rear side of the equipment

Allow at least 200 cm clearance behind the equipment.

- The free training area for this section cannot be shared with other equipment of the same kind, the extra free space required is depending on the orientation of both equipment and should be the sum of both values.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain.

As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Exercise Instructions

Using your fitness trainer will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight.

The warming up phase

This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP

The exercise phase

This is the stage where you put the effort in. After regular use, the muscles in your legs will become more flexible. Work to your but it is very important to maintain a steady tempo throughout.

The rate of work should be sufficient to raise your heart beat into the target zone shown on the graph below.

This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes

The cool down phase

This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

As you get fitter you may need to train longer and harder. It is advisable to train at least three times a week, and if possible space your workouts evenly throughout the week.

Muscle toning

To tone muscle while on your fitness trainer you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program. You should train as normal during the warm up and cool down phases, but towards the end of the exercise phase you should increase resistance making your legs work harder. You will have to reduce your speed to keep your heart rate in the target zone.

Weight loss

The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal.

Heartrate

Heart rate measurement (heart rate chest belt)

NOTE

- A chest strap does not come standard with this trainer. When you like to use a wireless chest strap you need to purchase this as an accessory.

The most accurate heart rate measurement is achieved with a heart rate chest belt. The heart rate is measured by a heart rate receiver in combination with a heart rate transmitter belt. Accurate heart measurement requires that the electrodes on the transmitter belt are slight moist and constantly touching the skin.

If the electrodes are too dry or too moist, the heart rate measurement will become less accurate.

WARNING

- If you have a pacemaker, consult a physician before using a heartrate chest belt.

CAUTION

- If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 1.5 metres. - If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

- Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.

- If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

- The transmitter transmits the heart rate to the console up to a distance of 1 metre. If the electrodes are not moist, the heart rate will not appear on the display.

- Some fibers in clothes (e.g. polyester, poly-amide) create static electricity which can prevent accurate heart rate measurement.

- Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

• Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Beginner

50-60% of maximum heart rate

Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.

Advanced

60-70% of maximum heart rate

Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.

Expert

70-80% of maximum heart rate

Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Adjusting the support feet

The equipment is equipped with adjustable support feet.

If the equipment feels unstable, wobbly, or not levelled well, these support feet can be adjusted to make the required corrections.

• Turn the support feet in/ out as required to put the equipment in a stable and as well possible levelled position.
• Tighten the locknut's* to lock the support feet.

NOTE

- The equipment is most stable when it is as low to the floor as possible. Therefore, start to level the equipment by turning all support feet fully in, before turning out the required support feet to stabilize and level the equipment.

Click to see our supportive YouTube video https://youtu.be/3BiN9mc5Tmw?t=535

Adjusting the horizontal seat position

The horizontal seat position can be adjusted by setting the seat to the required position. (Fig. E-2)

• Loosen the seat rail by turning the quick release lever in clock wise direction.
• Move the seat to the required position.
• Tighten the seat rail by turning the quick release lever in clock wise direction.

NOTE

- The quick release lever is spring loaded. To reset the lever position you can pull the lever down, reposition it, and release it again.

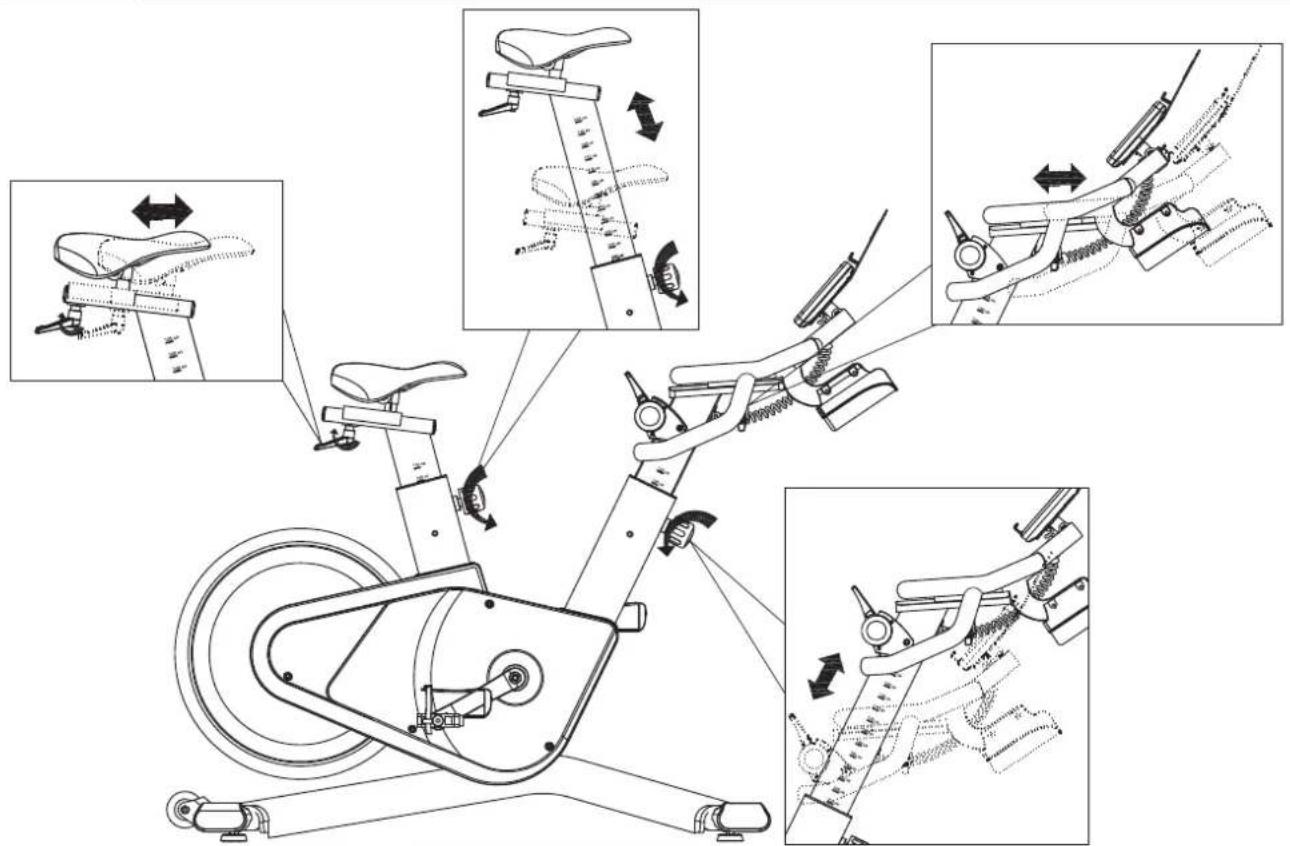

Adjusting the vertical seat position

The vertical seat position can be adjusted by setting the seat tube to the required position. (Fig. E-2)

With the leg almost straight, the arch of the foot must touch the pedal at its lowermost point.

• Loosen the seat tube adjustment knob.
• Move the seat tube to the required position.
• Tighten the seat tube adjustment knob.

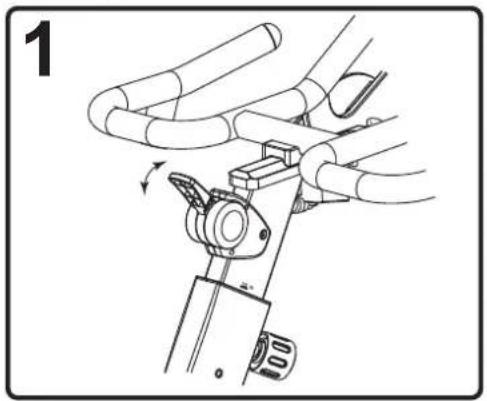

Adjusting the horizontal handlebar position

The horizontal handlebar position can be adjusted by setting the further or closer to the user to set it into the required position. (Fig. E-2)

• Loosen the handlebar fixture frame by turning the quick release lever in clock wise direction.
• Move the handlebar fixture frame to the required position.
• Tighten the handlebar fixture frame by turning the quick release lever in clock wise direction.

NOTE

- The quick release lever is spring loaded. To reset the lever position you can pull the lever down, reposition it, and release it again.

Adjusting the handlebar height

The handlebar height can be adjusted to user height preference to get the best height and the exercise position of the user. (Fig. E-2)

• Support the handlebar before loosen the handlebar adjustment knob, loosen the knob by turning it 2 full rotations counter clockwise, and pull out the spring loaded knob.
• Hold the spring loaded knob pulled out and move the handlebar to the required position.
• When required height is found, release the spring loaded knob, and move the handlebar slightly up/ down to assure the spring loaded knob find the closed fixture position.
• Tighten the handlebar adjustment knob firmly by turning it in clockwise direction.

Adjusting resistance (Fig. G-1)

The resistance can be adjusted to intensify or ease the workout.

• Pull the resistance lever up to reduce the tension level.
  The tension level is displayed on the console.
• Push the resistance lever down to increase the tension level.
  The tension level is displayed on the console.

NOTE

- The tension adjust lever is also used as an emergency break, so when pushing the lever over the maximum tension level, the friction pad of the emergency break will be activated.

Emergency break knob (Fig. G-2)

To activate the emergency brake, press down on the brake tension lever fully and with pressure.

Use our dual function pedal

Attaching Cleats to Your Shoes:

If you have questions it is recommended that you consult a bicycle dealer for assistance, or refer to your shoe manufacturer's instructions.

When fixing the cleat the lateral center line should be under the center of the ball of the foot. Adjust forward and backward via the slots in the shoe sole. Adjust laterally via play between cleat washer and cleat. Tighten cleats very firmly. Cleat position can be fine-tuned, according to personal preference, after trial use. It may take time to find your optimum cleat set-up.

Toe Clips:

All standard toe clips can be attached to the pedals. Use fixing hardware and installation instructions supplied with toe clips and ensure the attachment screws are firmly tightened before use.

To Use Pedals:

Engage cleated shoes in pedals by placing cleat between bindings while pushing down.

Disengage by twisting heel outwards away from exercise bike. Binding tension is adjustable and should be set so that cleat and shoe do not disengage when pedaling. Use an Allen key to turn tension adjusting screws, clockwise to increase binding tension, counterclockwise to decrease binding tension.

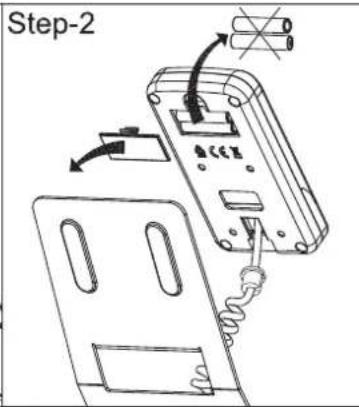

Replacing the batteries (Fig. E-1)

The console is equipped with 2xAA batteries at the rear of the console.

• Remove the console.
• Remove the old batteries.
• Insert the new batteries. Make sure that batteries match the (+) and (-) polarity markings.
• Mount the console.

NOTE

- Empty batteries should always be recycled per your Local legal regulations to save the environment.

WARNING

• Do not expose batteries to big temperature changes to prevent the batteries from leaking.
• To prevent your batteries from leaking, take them out if you plan on not using your device for longer periods of time.
• When inserting multiple batteries into a device, always use the same brand, the same type, and the same energy level.

Console (Fig. F-2)

WARNING

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

- The console switches to standby mode when the equipment is not used for 4 minutes.

Explanation Display functions

RPM

• Display the rotations per minute.
• Range: 0 \~ 188 RPM.
• Without any signal being transmitted into the monitor for 4 seconds during workout, RPM will display "0"
• When workout is stopped the display scans between AVG and MAX being:

AVG: The average "RPM" during your latest workout.

MAX: The maximum reached "RMP" during your latest workout.

TIME

• Automatically accumulates workout time when exercising.
• When setting the target value, time will count down from your target time to 0 and alarm will sound.
• Display range: 00:00 \~ 99:59.

Speed

• Displays current training speed.
• Range 0.0 \~ 99.9 / Units: KM/H.
• Without any signal being transmitted into the monitor for 4 seconds during workout, "Speed" will display "0".
• When workout is stopped the display scans between AVG and MAX being:

AVG: The average "Speed" during your latest workout.

MAX: The maximum reached "Speed" during your latest workout.

DIST (Distance)

• Without setting the target value, distance will count up.
• When setting the target value, distance will count down from your target distance to 0 with an alarm.
• Range 0.0 \~ 99.99 / Units: KM.

KCAL (Calories)

• Without setting the target value, calorie will count up.
• When setting the target value, calories will count down from your target calorie to 0 with an alarm.
• Range: 0 \~ 9999 / Units: K.Cal.

NOTE

- This data is a rough guide for comparison of different exercise sessions which cannot be used in medical treatment

Pulse

• Current pulse will display after 6 seconds when detected by the console.
• Without any pulse signal for 6 seconds, console will display "P".
• Range: 0-30 \~ 230 BPM.
• When workout is stopped the display scans between AVG and MAX being:
  AVG: The average "Pulse" during your latest workout.
  MAX: The maximum reached "Pulse" during your latest workout

WATT

• Display current workout watts.
• Range: 0 \~ 999

LOAD

• Shows tension level setting.
• Range: 1 \~ 32

Explanation of buttons

Mode

In workout mode:

• Press shortly to fix the displayed parameter and hold this parameter in fixed displayed mode.
  The display parameter name will be blinking.
• Press 1 time briefly to release the fixed display mode and activate scanning display mode again.
  The displayed parameter name will be light constantly
• Press and hold for over 2 seconds to restart console and set all accumulating values back to "0" again.

In programming mode:

- Change parameter to set goal for.

Set

In workout mode:

No assigned function in workout mode, when pressed the backlit will light up and a double chimes will sound as a sign of a non functional action.

In programming mode:

• Setting the goal values.
  Press 1 time briefly to increase value with one unit at the time. Press and hold to increase value rapidly.

Reset

In workout mode:

- Press and hold for over 2 seconds to restart console and set all accumulating values back to "0" again.

In programming mode:

- Clear and reset parameter value.

Operation

Power on

• Press any key to power on the console when being in sleep mode..
• Start pedalling to power on the console when being in sleep mode.

Power off

Without any signal being transmitted into the monitor for 4 minutes the monitor will enter SLEEP mode automatically. (Active training data will be lost)

Programs

Workout target setting

• Press MODE key to cycle between the functions of: TIME, DISTANCE, KCAL & PULSE.
• Use SET key to set the target for your planned workout. Press 1 time briefly to increase value with one unit at the time. Press and hold to increase value rapidly.
• Use RESET key to clear the displayed target mode.

TIME TARGET MODE:

- Setting range: 1:00 \~ 99:00

- Setting units: 1:00 Minute

DIST TARGET MODE:

- Setting range: 0.0 \~ 99:5

- Setting units: 0.5 KM

KCAL TARGET MODE:

- Setting range: 10 \~ 9990 +10

- Setting units: 10 Kcal.

PULSE TARGET MODE:

- Setting range: 0 -3 0 \~ 230

- Setting units: 1 Bpm

NOTE

- When leaving a target setting 0, it will not be seen as a target.

Console function in target mode

• Start pedalling to start the workout at any time, and non set target values will count up.
• If a target is set for a specific value, that value will countdown, till target is reached.
• When target is reached, an beep-chimes alarm will sound shortly go notify you have reached your goal, and that specific parameter value will continue to count up when keep working out.
• When a pulse limit is set a beep-chimes alarm will sound when measured pulse exceeds the set pulse limit to notify your measured heart rate is over set target.

Bluetooth & APP

• This console can connect with an APP on a smart device by Bluetooth (iOS & Android).
• Establish the Bluetooth connection only via the connection mode on the installed APP on your smart device.
• When the bluetooth connection between APP and console is established the console display will be dimmed.

NOTE

• Tunturi only provides the option to connect your fitness console throughout a bluetooth connection. Therefore Tunturi cannot be held responsible for damage, or malfunctioning of products other than Tunturi products.
• Check the website for extra information.

This console can receive a Bluetooth heart-rate transmitter. There is no need to pair the device, as the console will auto detect the heart-rate transmitter when it is in range.

Cleaning and maintenance

The equipment requires very little maintenance, please follow up on below instructions. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

• Do not use solvents to clean the equipment.
• Clean the equipment with a soft, absorbent cloth after each use.
• Regularly check that all screws and nuts are tight.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

• If the equipment does not function properly, immediately contact the dealer.
• Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Trouble shooting:

• When the display of LCD is dim, it means the batteries need to be changed.
• If there is no signal when you pedal, please check if the cable is well connected.

NOTE

• When stop training for 4 minutes, the main screen will be off.
• If the computer displays abnormally, please re-install the batteries and try again.

Shaky or unstable feeling during use

If the machine feels unstable or unstable during operation, it is advisable to adjust the support feet to bring the frame to the correct height. Read the instructions in this manual in section: "Use"

Transport and storage

WARNING

- Carry and move the equipment with at least two persons.

• Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Tilt the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.
• Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.
• Store the equipment in a dry place with as little temperature variation as possible.

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV, and is maintained as instructed for that particular equipment. The product-specific approved environment and maintenance instructions are stated in the "user manual" of the product. The "user manual" can be downloaded from our website. http://manuals.tunturi.com

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per Distancery, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

Warranty limitations

This warranty covers manufacturing defects in the fitness equipment as originally packed by Tunturi New Fitness BV. The warranty shall apply only under conditions of normal, recommended use of the product as described in the Owner's Manual and providing that Tunturi New Fitness BV's instructions for installation, maintenance and use have been complied with. Neither Tunturi New Fitness BV's nor the Tunturi Distributors' obligations apply to defects due to reasons beyond their control. The warranty applies only to the original purchaser and is valid only in Distanceries where Tunturi New Fitness BV has an authorised importer. The warranty does not extend to fitness equipment or components that have been modified without the consent of Tunturi New Fitness BV. Defects resulting from normal wear, misuse, abuse, corrosion, or damage incurred during loading or transportation are not covered.

The warranty does not cover sounds or noises emitted during use where these do not substantially impede the use of the equipment and where they are not caused by a fault in the equipment. The warranty does not cover defects arising from the failure to carry periodic maintenance as outlined within the Owner's Manual for the product. Furthermore, the warranty does not cover defects arising from usage and storage within an unsuitable environment as described within the Owner's Manual which should be indoors, dry, dust and grit free and within a temperature range of +15°C to +35°C. The warranty does not cover maintenance activities, such as cleaning, lubricating, and normal part adjustments, nor installation

procedures that customers can accomplish themselves, such as changing uncomplicated meters, pedals and other similar parts not requiring any dismantling/reassembling of the fitness equipment. Warranty repairs carried out by other than authorised Tunturi representatives are not covered. Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Technical data

Parameter Unit of measurement Value
Length cm	inch	156.061.4
Width cm	inch	59.023.2
Height cm	inch	142.055.9
Weight kg	Ibs	53.2117.3
Max. user weight kg	Ibs	180397
Battery size 2x AA
Heartrate measurement available via:	Hand-grip contact5.0 Khz5.3 Khz.Bluetooth (BLE)ANT+	NoNoYesNoNo

IMPORTANT

The console is equipped with a 5.3 Khz receiver to prevent interference with the build in BT module operating on 5.0 Khz frequency signal.

Though by our experience a 5.0 Khz heart rate transmitter (chest strap) will most likely work without any problems.

Declaration of the manufacturer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (S Class), 2014/30/EU. The product therefore carries the CE label.

11-2023

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2023 Tunturi New Fitness BV

All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.

Deutsch

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Haftungsausschluss

© 2023 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Pays-Bas

© 2023 Tunturi New Fitness BV

All standard toe clips can be attached to the pedals. Use fixing hardware and installation instructions supplied with toe clips and ensure the attachment screws are firmly tightened before use.

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2023 Tunturi New Fitness BV

MODALITÀ TARGET DIST:

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Paesi Bassi

© 2023 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

© 2023 Tunturi New Fitness BV

KCAL Calories [Kalorier]

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Nederländerna

Friskrivning

© 2023 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslauseke

© 2023 Tunturi New Fitness BV
