TS-1420BL - Ice machine Brentwood - Free user manual and instructions

USER MANUAL TS-1420BL Brentwood

Brentwood Just for Fun®

© 2021 Brentwood Appliances, Inc

SNOW CONE MAKER

Modern ice cream shaver with colorful powder inside, displayed against a white and cyan background (no text or symbols visible)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.

- Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

- Do not use attachments not recommended or sold by the Manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the outlet with wet hands.

- This appliance is intended solely for non-commercial, non-industrial, household use in the preparation of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not operate the appliance empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 5.

- Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

- Avoid contact with moving parts. Keep hands and utensils away from the Blender while in use to reduce the risk of injury. Blades are extremely sharp, handle with care.

SPECIAL INSTRUCTIONS: Do not use for Ice Crushing only or overfill with frozen fruits. Make sure you have filled with at least 1 cup of liquid before adding frozen solids.

A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature

The plug will fit into a polarized outlet only one was If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

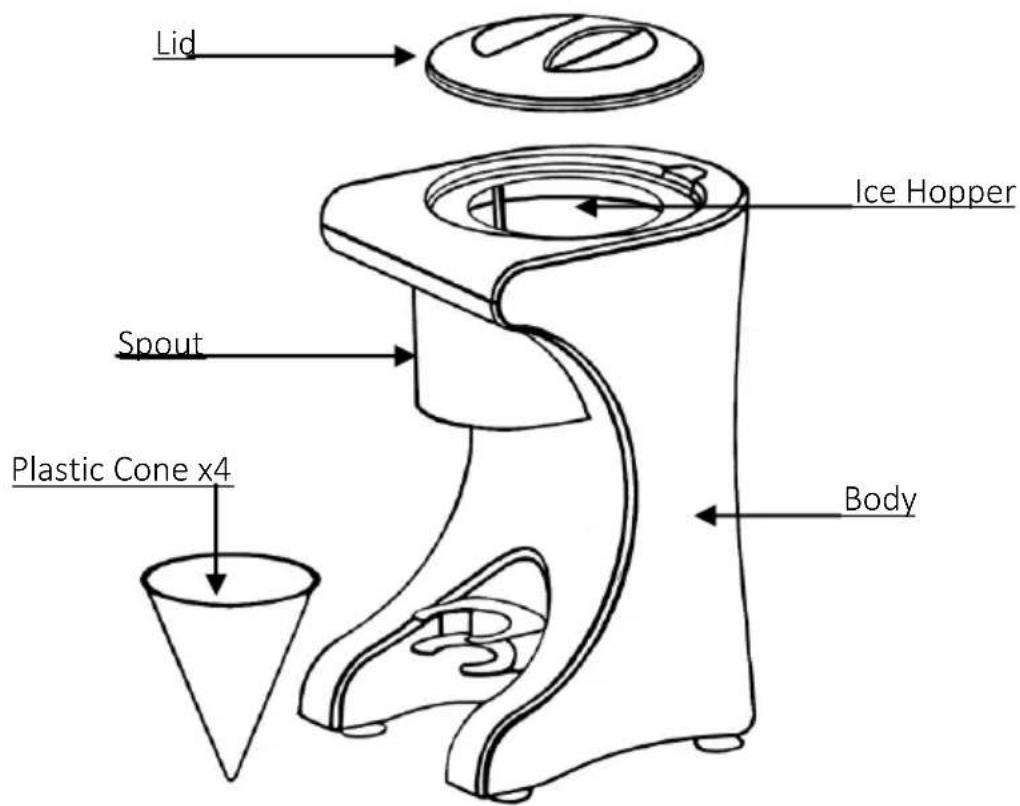

Parts:

Lid Ice Hopper Spout Plastic Cone x4 Body

WARNING: Avoid contact with moving parts.

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

WARNING: Before your first use, wash pieces using warm soapy water. Rinse and dry thoroughly.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

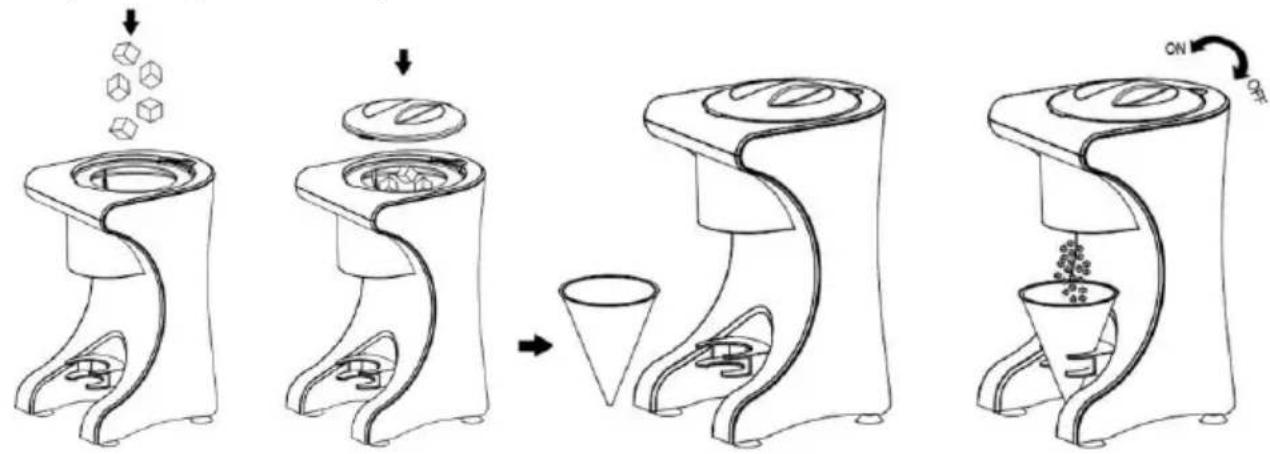

Using Your Snow Cone Maker:

1. Place the Snow Cone Maker on a stable, waterproof surface.
2. Remove the Snow Cone Holder from the base of the unit and reattach the Snow Cone Holder so that it faces upward.
3. Before plugging in the unit, add ice cubes to the Ice Hopper by removing the Lid. In order to do so, turn the Lid clockwise, lift and remove.
4. Plug the unit into an electrical outlet. Place a cone in the Snow Cone Holder.
5. When you are ready to make a snow cone, place the Lid back on the unit and turn Lid counter-clockwise to lock.
6. The Ice Hopper will immediately begin shaving the ice. Rotate cone with your hand as needed to collect ice.
7. To stop the Ice Hopper from shaving ice, turn the Lid clockwise.
8. Repeat the process until you have shaved the amount of ice desired.

Tips:

• Ice cubes should sit a short while before putting them in the shaving unit. If ice has a frosty
• appearance, it is too hard to shave. Let ice sit until it is translucent and wet to the touch. Then it is ready to put in the Ice Hopper.

- While ice is shaving, it will empty from Spout and may get on surface and floor around the Snow Cone Maker. This is normal. In order to prevent messes:

• Place unit on a waterproof surface while in use.
• Rotate cone in holder as needed in order to fill cone evenly.
• After you are finished making snow cones, make sure Ice Hopper is empty so that ice does not melt onto surface.

- If the unit begins to shake, make sure that the suction cups on the bottom of the unit are firmly pressed into table or countertop.

Cleaning Your Blender:

WARNING: Always unplug the product and allow it to cool before cleaning or storing it.

• Only the Cones and Lid can be washed under running water. Do not use abrasive cleaners.
• Handle blades with extreme caution.
• The Body may be wiped with a soft damp cloth.

NOTE: NEVER IMMERSE THE BASE

- Dry all parts thoroughly before storing in a cool, dry place, away from reach of children.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

Lid Ice Hopper Spout Plastic Cone x4 Body

Consejos:

Lid Ice Hopper Spout Plastic Cone x4 Body

© 2021 Brentwood Appliances, Inc
