USER MANUAL TS-1410BL Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

1 LITER ICE CREAM MAKER

FABRICANTE DE HELADOS / MACHINE A CRÈME GLACÉE

ITEM NO.: TS-1410BL

Brentwood brand hairdryer with clear glass and white casing (no text or symbols visible on body)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

ENGLISH

WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the appliance is unplugged from the electrical outlet before assembling, disassembling, relocating, or cleaning it.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• Only use attachments recommended, provided, or sold by the product manufacturer.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or sturdy flat surface.
• Do not plug or unplug the appliance from the electrical outlet with a wet hand.
• This appliance is intended solely for non-commercial, non-industrial, household use in creating of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the appliance empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 6.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating must be at least as great as that of the product.

- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug

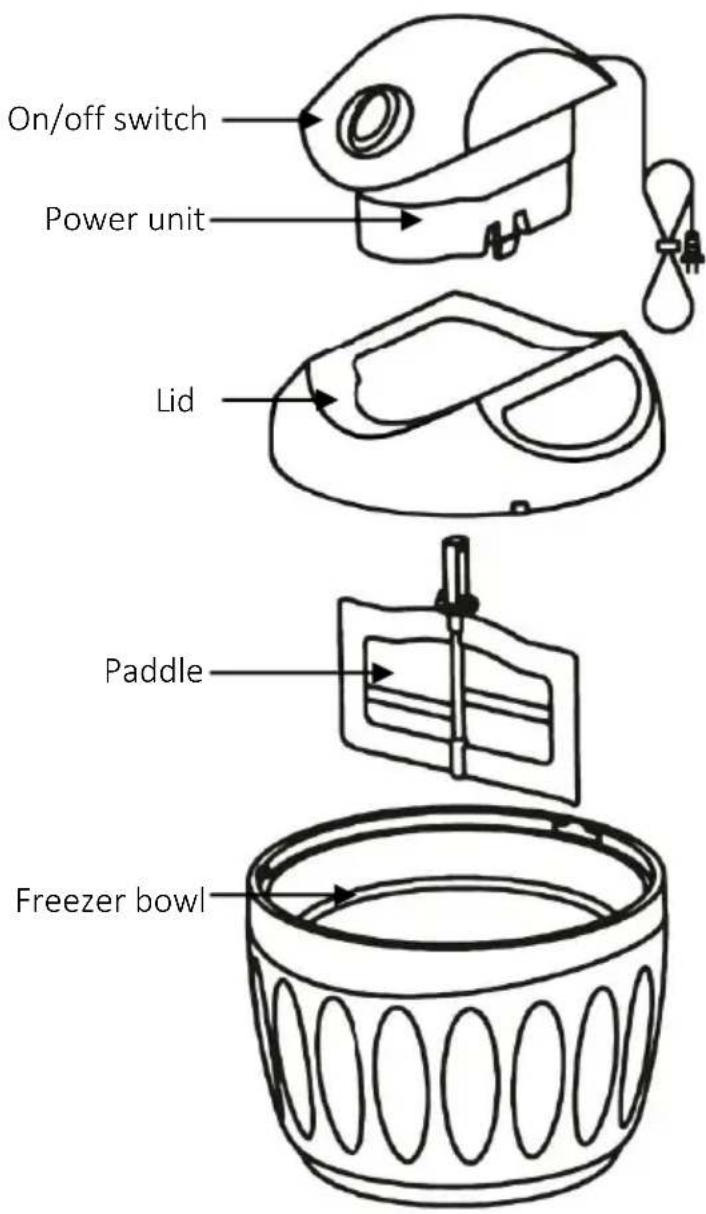

Parts:

On/off switch Power unit Lid Paddle Freezer bowl

Assembly:

Fit the power unit into the lid, A "click"

sound will be heard indicating that both plastic locks have locked into place.

Line drawing of a handheld device with a scroll wheel and base, showing a downward arrow indicating motion (no text or symbols)

Fit the paddle into the power unit until locked into place.

Simple line drawing of a helmet and a clipboard (no text or symbols)

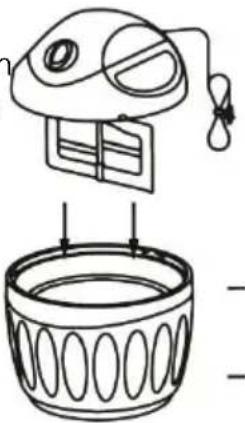

Take out the freezer bowl from the freezer. Lower the assembled lid/power

unit/paddle onto the freezer bowl and turn clockwise to lock into position.

Simple line drawing of a birdhouse and a basket with no text or symbols

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Before First Use: Check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

1. Wash all the parts: see "cleaning".
2. Place the inner bowl into a freezer 12 hours in advance,
3. Prepare the ice cream or sorbet mix (see recipe ideas). Allow the mixture to cool in the refrigerator.

Using Your Ice Cream Maker:

WARNING: Avoid contact with moving parts.

1. Follow Before Use instructions and assemble appliance, following the directions on page 3.
2. Insert the plug into outlet and switch on the ice cream maker using the on/off switch.

ATTENTION: The appliance must be switched on before adding your ingredients to prevent them from freezing inside the bowl.

1. Pour the ice cream or sorbet mixture into the freezer bowl through opening in lid.
2. Stop pouring at least 1.5 inch from the top, as the mixture will increase in volume during freezing.
3. Allow the mixture to churn until frozen or the desired consistency is reached. This can take up to 30 minutes maximum, depending on ingredients and recipe.

Note: Do not stop and start the machine during the mixing process. The mixture might freeze in the bowl and the paddle will not move.

1. Once ice cream has reached the desire consistency, switch off the appliance and remove the power unit/lid. The ice cream is ready to serve.

Note: The ice cream should be a soft spoon-able type. This can be transferred to a separate container for storage in the freezer or if you wish to firm the ice cream before eating.

Important Tips:

• To avoid overheating the motor, the direction of rotation will change if the mixture becomes too thick. If the direction of rotation continues to change, stop the machine when the mixture is ready.
• In the unlikely event of the motor overheating, a safety cut out will cause the motor to stop. If this happens, switch to off, unplug the machine and allow the power unit to cool.
• Do not use metal utensils to remove mix from the bowl.
• Do not remove the freezer bowl from the freezer until ready to make ice cream.
• We suggest that you keep the freezer bowl in the freezer so that it is ready for use. Place in a plastic bag before freezing. Freeze the bowl in the upright position.
• Always make sure the freezer bowl is thoroughly dry before placing in the freezer.
• Do not puncture or heat the freezer bowl.
• The freezer bowl should be placed in a freezer that is operating at a temperature of -18^ Celsius (-0.40° Fahrenheit) or below for 12 hours before use.
• For best results always refrigerate the ingredients before making ice cream.
• The addition of alcohol to recipes inhibits the freezing process.

Cleaning Your Ice Cream Maker:

WARNING: Always unplug the product before cleaning or storing it.

NOTICE: Never immerse the motor base, plug or cord in water or any other liquid.

• Do not wash parts in the dishwasher.
• Do not clean with scouring powders, steel wool pads, or other abrasive materials.

Freezer Bowl: Allow the freezer bowl to reach room temperature before attempting to clean.

Wash the inside of the bowl, then dry thoroughly. Do not immerse in water.

Paddle: Remove the paddle from the power unit, wash then dry thoroughly.

Lid: Wash the lid then dry thoroughly.

Power unit: Wipe with a damp cloth, then dry.

Recipes:

Chocolate mint ice cream

Skimmed Milk – 34 Cup Heavy Cream – 34 Cup Grated Chocolate – 4 tsp Confectioner’s Sugar - 4 tsp Peppermint Extract - few drops

Place the milk and sugar into a saucepan. Place over a low heat and stir until the sugar has dissolved leave until cold. Stir the cream and peppermint essence into cooled milk. Pour the mixture into fresh bowl with the paddle running. When the mixture starts to freeze add the grated chocolate down the chute. Allow to freeze until the desired consistency is achieved.

Strawberry Ice Cream

Fresh strawberries - 3⁄4 Cup	Heavy cream – 1⁄2 Cup
Confectioner's sugar – 1⁄4 Cup	Lemon juice - 1⁄2 Lemon
Puree the strawberries until smooth, add the remaining ingredients. Pour the mixture into the fre bowl with the paddle running. Allow the mixture to freeze until the desired consistency is achieved

Lemon Sorbet

Granulated Sugar - 3⁄4 Cup Juice from 1⁄2 medium size orange 1/2 egg whiteWater - 1⁄4 Cup Lemon Juice - 1⁄4 Cup

Place the sugar and water in a saucepan. Stir over a low heat until the sugar has dissolved. Bring t mixture to the boil and allow to boil for 1 minute. Remove from heat and allow to cool. Add the or and lemon juice. Whisk the egg white until almost stiff and then stir into the lemon mixture. Pour mixture into the freezer bowl with the paddle running. Allow to freeze until the desired consistent achieved.

Custard Based Vanilla Ice Cream

1 Egg yolk	Skimmed Milk 1⁄4 Cup	Vanilla extract few drops
Confectioner's Sugar 3⁄4 Cup	Heavy Cream 1⁄2 Cup
Place the egg yolks and sugar in a glass bowl and beat together. In a saucepan slowly bring the mil boiling point, then pour onto the egg mixture beating together. Return the mixture to the pan and constantly until the mixture thickens and forms a film over the back of the spoon. Do not let it boil mixture will separate. Remove from heat and leave until cold. Stir in the cream and vanilla extract the mixture into the freezer bowl with the paddle running. Allow to freeze until the desired consists achieved.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

Technical line drawing of a mechanical component with a circular head and a separate plate (no text or symbols)

Simple line drawing of a helicopter with propeller and cockpit (no text or symbols)

Simple line drawing of a helmet and a clipboard (no text or symbols)

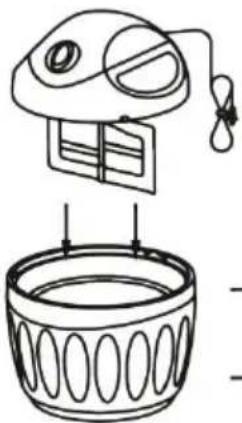

Take out the freezer bowl from the

freezer. Lower the assembled lid/power unit/paddle onto the freezer bowl and turn clockwise to lock into position.

Line drawing of a motor and a basket with no text or symbols

CONSERVEZ CES INSTRUCTIONS
