USER MANUAL SK-69BK Brentwood

© 2023 Brentwood Appliances, Inc.

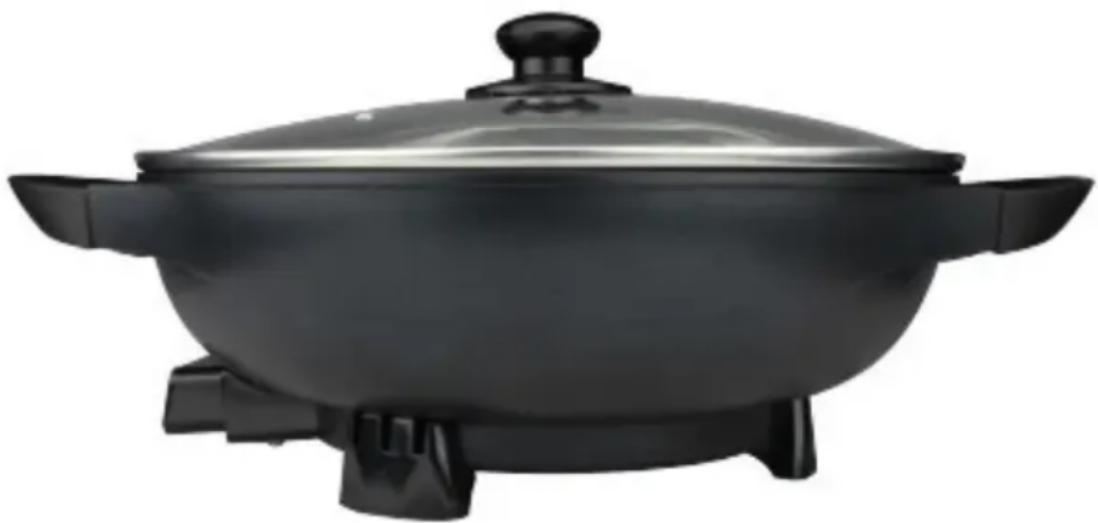

13" ELECTRIC WOK WOK ÉLECTRICO 33CM WOK ÉLECTRIQUE 33CM

ITEM NO.: SK-69BK (BLACK)

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY Instrucciones de Operacion y Seguridad SOLO PARA USO DOMESTICO

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE!

WARNING-To reduce the risk of fire, electric shock, serious personal injury, and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the appliance is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• Do not touch hot surfaces. Use handles or knobs and protective oven mitts or gloves when handling product to avoid burns or personal injury.
• This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal or property damage.
• Do not use any parts that are not delivered with the original pan; this might cause danger.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing food or liquids.
• Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or sturdy flat surface. Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the appliance from the electrical outlet with a wet hand.
• This appliance is intended solely for non-commercial, non-industrial, indoor household use in cooking of food for human consumption.
• Do not operate the appliance empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled.
  Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 7.

• Do not overload wall outlet or extension cords as this can result in a fire or electric shock.

• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

• If the Glass Lid has chipped or cracked discontinue use and contact the manufacturer to order a replacement.

• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this appliance, but if one must be used:

• The marked electrical rating must be at least as great as that of the appliance.

• If the appliance is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.
• If the appliance is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

FOR HOUSEHOLD USE ONLY!
PLEASE READ THESE INSTRUCTIONS & SAVE FOR FUTURE REFERENCE.

BEFORE FIRSTUSE

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

• Before your first use, clean the non-stick skillet using a damp cloth with non-abrasive soap. Do not submerge the unit under water. Make sure to dry all parts thoroughly.
• The Lid can be washed under running water also using a non-abrasive sponge and soap. Make sure to dry all parts thoroughly before using the appliance.

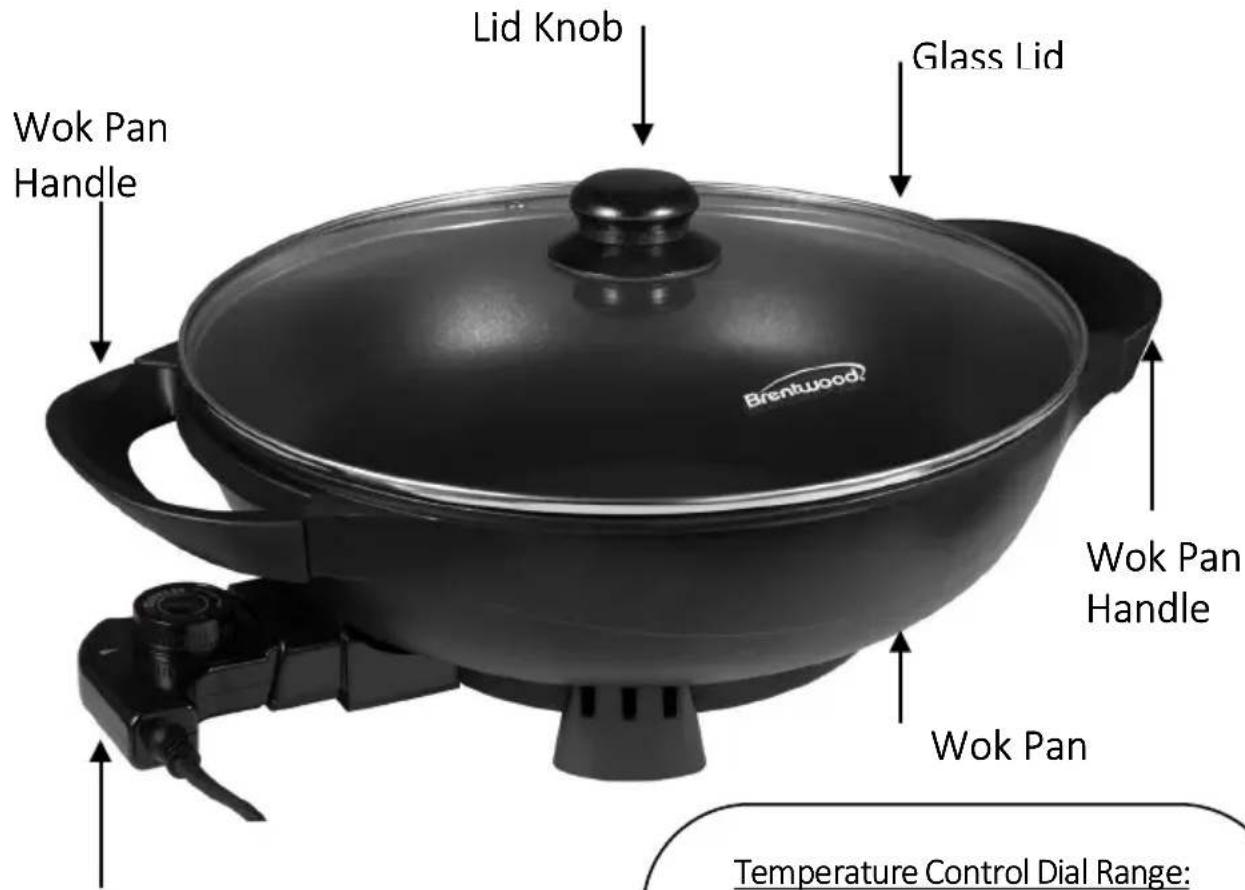

Parts:
Temperature Control Knob

Temperature Control Dial Range:

Dial	Approx. Temperature
1	194-230°F
2	230-266°F
3	266-320°F
4	320-375°F
5	375-450°F

Suggested Food Table Reference:

The food table below helps you select the basic settings for the types of food you want to prepare. Keep in mind that these settings are suggestions.

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

When preparing large amount of food (e.g., fries, prawns, drumsticks, frozen snacks) shake, turn or stir the ingredients in the basket 2 or 3 times to achieve a consistent result.

Food	Approx. Temperature	Approx. Cooking Time
Bacon	300-325	8 – 10
Chicken	325-350	25 - 40
Eggs	250-275	3 – 5
Fish	325-375	5 -10
French Toast	300-325	4 -6
Hamburgers	325-375	8 -12
Pork Chops	325-375	15 – 20
Potatoes	300-350	10 – 12
Sausage	300-350	20 – 30
Steak 1”	350-400	6 – 7 –Rare 10-12 – Medium 12-15 – Well

Using Your Electric Skillet:

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

WARNING: Avoid contact with hot parts.

1. Place the Electric Skillet on a sturdy flat and dry surface.
2. Insert the Temperature Control Probe firmly into the socket and make sure it is securely in place. The two electrical pins should be fully inserted.
3. Plug the Electric Skillet into the nearest Electric Outlet.
4. Turn the temperature control dial to the desired setting. The small indicator light on the Temperature Control Probe will show the unit is on.

TIP - Allow the appliance to preheat with the lid off on low or medium setting for a few minutes to heat it sufficiently before adding the food. This will maximize the nonstick properties of the pan.

1. While your Electric Skillet is preheating, you can prep the ingredients for your recipes.

CAUTION: Do not overfill the appliance or operate it when empty.

1. Add your ingredients to the skillet and gently stir using nonmetal utensils, such as silicone, wood, or plastic.

CAUTION: If you use metal utensils, you are risking damaging the non-stick coating on the skillet. This will not be covered under the manufacturer's Warranty.

1. Once cooking is completed, turn the Temperature Control Dial to OFF, unplug the appliance and disconnect the Temperature Control Probe from the skillet.

Cleaning Your Electric Skillet:

Warning: Always unplug the appliance and allow it to cool before cleaning or storing.

NOTE: Never immerse the Skillet, plug, or cord in water or any other liquid.

• Wash the Electric Skillet by hand using non-abrasive cleaners and pads with warm water.
• Use a water recipient to pour water into the skillet and carefully discard.
• Do not use steel wool pads as they can damage the Non-Stick Coating.
• The glass lid can be washed under running water with mild dish soap.
• Rinse all parts thoroughly and dry. Reassemble and store in a cool, dry place. Away from reach of children.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase _ Store/Dealer _

Item No:

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am - 5:00pm PST.

Email at [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
